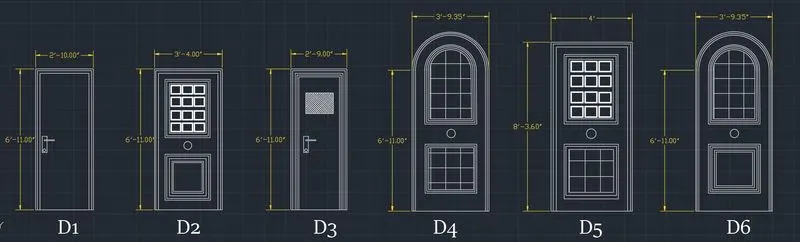

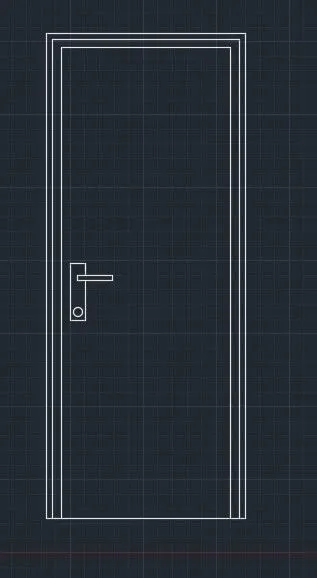

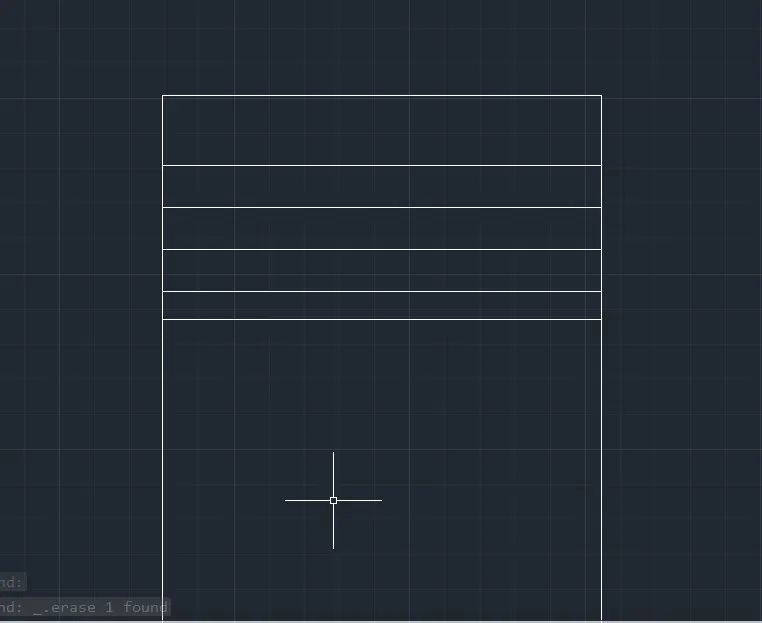

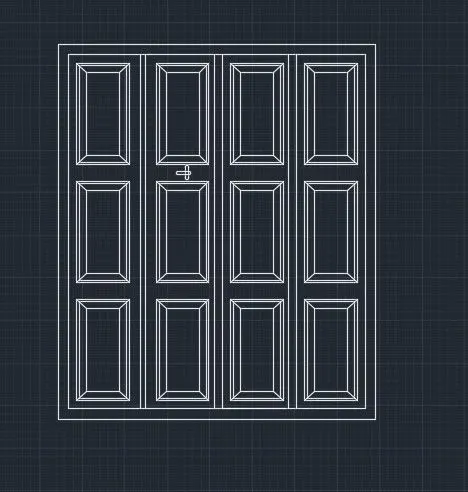

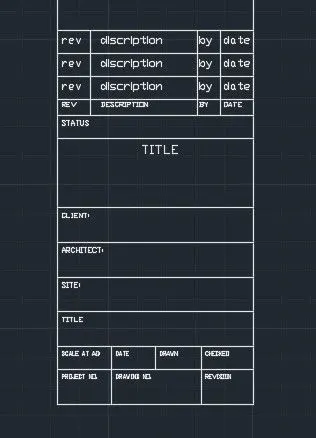

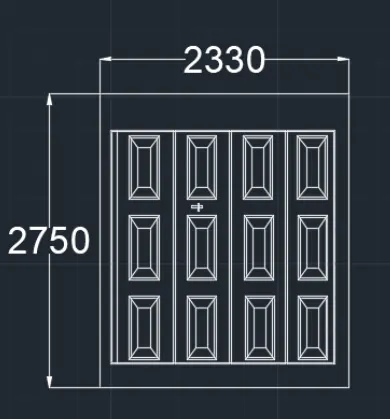

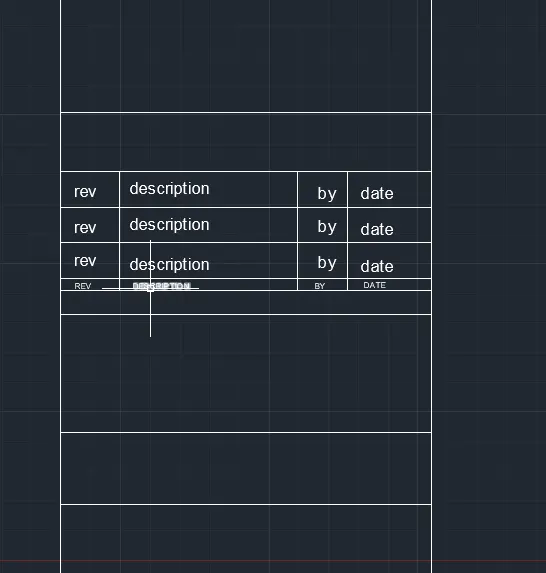

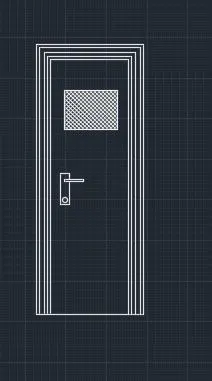

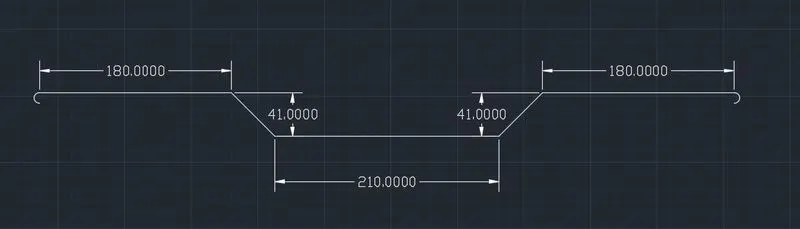

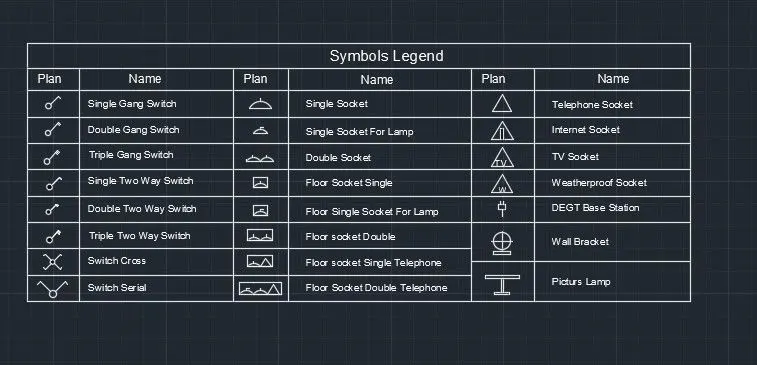

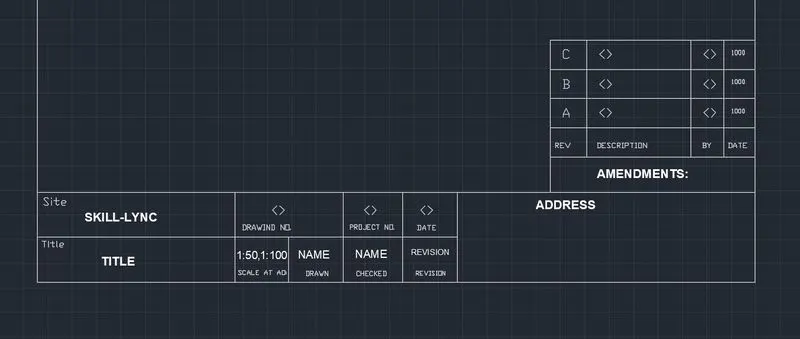

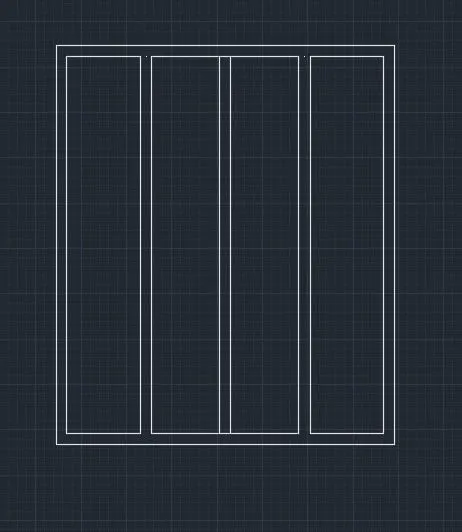

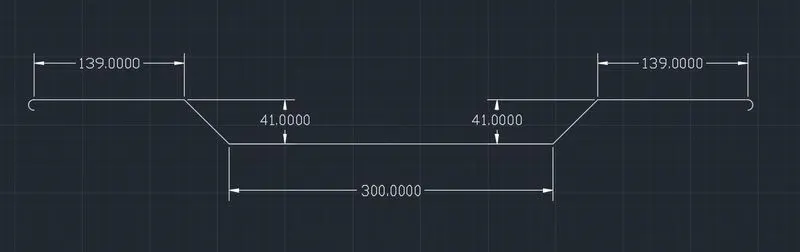

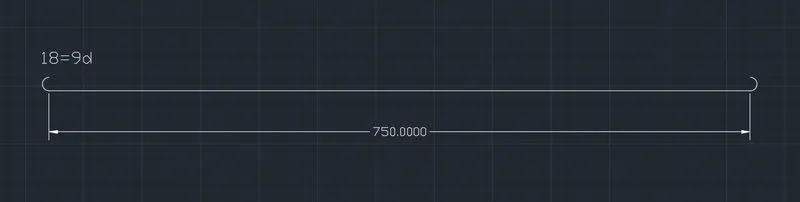

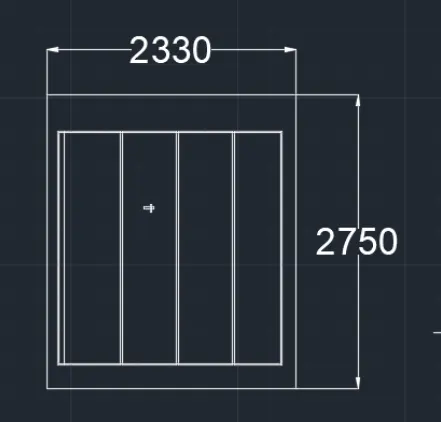

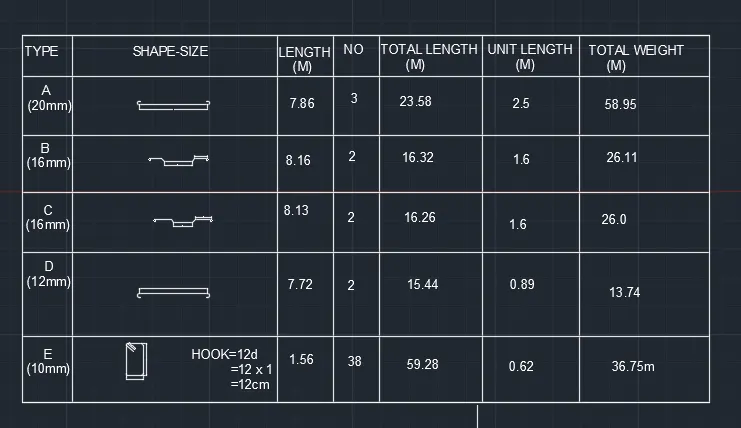

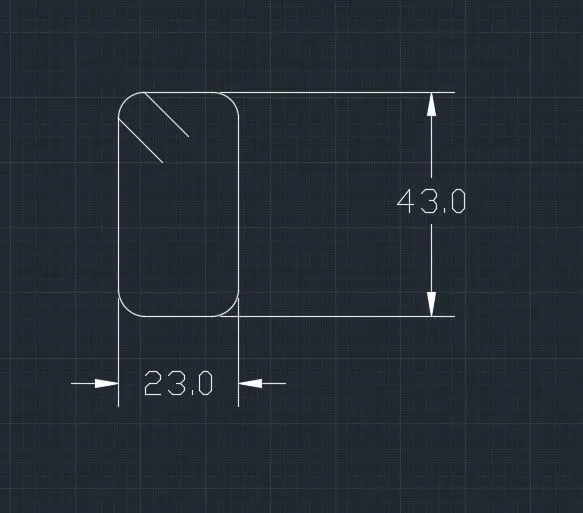

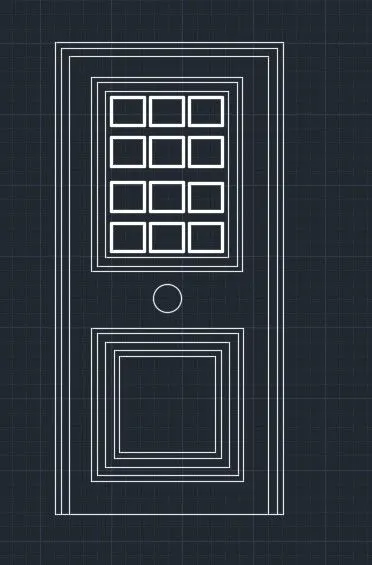

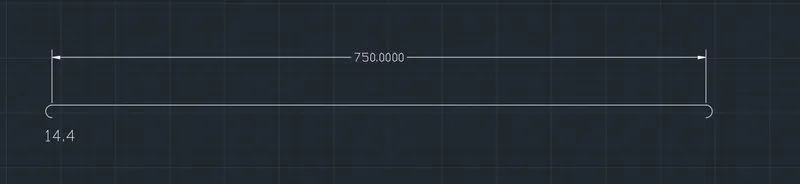

Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

Aim: To model and to analyse G+3 building with relevant seismic inputs based on the given data, using ETABS software. Also for the resultant column reactions, Deep foundations have to be designed with Piles and pilecap using SAFE software. Also Typical floor structural plan, Column rebar, Beam rebar, Pilecap rebar and…

QUESTION-1 Introduction: As per the isolated footing in week-11 challenge, model in safe, analysis and design of the foundation and to arrive the steel reinforcement. Aim: To Analyze and designthe isolated footing from week 11 challenge on SAFE To verify the size, depth and steel provided as per calculations. Procedure:…

objective of challenge: To know the general design procedure of spread footing with hand calculation. To practice how the inputs can be collabrated and arrived as data for calculations ( how assumptions are helpful when certain input is not available)   Steps involved in footing design: 1.calculation of gross soil…

Aim: To conceptualize a framing plan layout and then model the given G+7 building situated in zone 5 in Etabs. To develop the structural model that comply with provisions of IS 1893 and IS 13920. To run the modal response spectrum analysis and to check analysis results of the ETABS model for inter-storey drift requirements,…

objectives of the challenge: To know the design of rc shear wall using ETABS analysis To know the basics of shear wall reinforcement detailing with respect to primary standards  To ensure the ductility reinforcemnt required by IS 13920- 2016 been satisfied.  Detailing guide line for shear wall: 1.minimum reinforcement…

Reinforcement detailing of columns in Etabs 2018. objective : To know the design of RC column using ETABS analysis To know thee basics of RC column reinnforcement detailinng with respect to primary standards To ensure the ductility reinforcements required by IS - 13920- 2016 been satisified in reinforcement drawing Detailing…

Aim: To carryout the analysis of the given Etabs model and to design the RCC moment resisting frame. To provide the detailing of longitudinal and shear reinforcement for two continuous beams. To provide the reasons of failure of middle span along grid A. objective: To know the design of RC beam using ETABS analysis To…

Objective:  know how to extract different seismic response for structure how to easily after certain properties in an ETABS model to know factors infulencing the dynamic characteristics of building to know the factors influencing time period of building to know the factors influencing mode shape of building. Data: Material…

Model a 25 storey building on ETABS with structural properties as specified below. Ground floor or plinth floor level can be taken at a height of 1.5 metres from the base. Each of the successive 25 storeys has a storey height of 3 metres.   Structural Element Sizes  Beams : 300 × 400 mm  Columns : 800 × 800 mm  Slab :…

1. The building shown, 20 × 35 m in plan, has columns on a 5 × 5 m grid and shear walls (with dimensions shown in m, 250 mm in thickness) in three alternative arrangements, (a), (b), (c), all with the same total cross-sectional area of the shear walls. Compare the three alternatives, taking into account the…

1. Look into aspects of symmetry, redundancy and bi-directional stiffness and ductility. Investigation of the framing plan with respect to Symmetry in X-direction:If we split the plan vertically half, it will look mirrored. So we conclude the given plan is symmetric in X-direction.Investigation of the framing plan with…

1.MODAL MASS:                                                                 m1= 3.86 m2= 3.86 m3= 3.86 m4= 3.86 m5 = 3.86   2.MODAL PROPERTY:    …

1. Differentiate Static analysis and Dynamic analysis  when the loads of displacement are applied in very slowly to a structure inertia of forces that equals to mass and acceleration are negligible. and may be disregarded in a force equilibrium .when load is applied very slowly,this correspondance to what is normally…

1. A Observation :  The observation of the given image are by the damage assesments report. Concrete crushed and the reinforcement is exposed.we see the concrete has a damage more then the reinforcement also visible  Concrete spalled beyond the reinforcement which may be a sign of rupture. Beam top portion looks…

1. aim: To Use the Architecture/ Structure Project file developed by you in Week 6 to 8. introduction: Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class procedure:…

1. aim: To Using Dynamo create a set of sinusoidal points and create a curve and create a surface out of the curve. introduction:  Using Dynamo create a set of sinusoidal points and create a curve and create a surface out of the curve. procedure: Open Revit 2023.Go to Manage Tool.Open Dynamo in Visual programming.Start…

1) Select the type of structure you want to build from one of the three below:        a. Multi-Unit Residential Apartment        b. Office Buildings        c. School ans: a.Multi-Unit Residential Apartment.   2) Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions…

1. AIM: To draw the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level using revit software and commands. INTRODUCTION:  Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from…

AIM: To Create a 3 dimensional model of the residential building with a rendered view using autocad command and tools. INTRODUCTION: Create a 3 dimensional model of the residential building with a rendered view. PROCEDURE: Under Drawing Units, select Architectural (feet and inches) The lower limit is now set to 0…

1. AIM: To Create a 3D Isometric View of the building using autocad command and tools. INTRODUCTION:  Create a 3D Isometric View of the building with plan and elevation given. PROCEDURE:  Create a rectangle of size 10'9" X 10'9".Now offset the rectangle2 side lines with 9" as showing below in the image.Delete…

1. AIM: To Create a 3D Furniture element using autocad command and tools in isometric view of drawing. INTRODUCTION: Create a 3D Furniture element as shown in the Figure. Assume dimensions which are missing. PROCEDURE: set Drawing Units, select Architectural (feet and inches)Type Z enter to zoom and A enter…

1. Aim: To Create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial-mArch.dwt in a goven scale. Introduction:   Create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial-mArch.dwt in a scale as given in the Figure. Use the…

1. Aim:  To Create the layouts of the Kitchen and provide hatches pattern using autocad command and tools. Introduction: Create the layouts of the Kitchen and provide hatches pattern as shown. Also, use blocks wherever required. Provide appropriate dimensions in the plan. Assume the size of doors, appliances and others…

1. Aim: To create the templates using autocad command and tools as per drawing required. Introduction: Create the templates as shown in Figures. Take the size of the title block as per industry standards or you can assume it as per the size of the paper. Use text and attributes wherever required. After creating the…

Aim: To Design and Draft a layout of a residential building using autocad command and tools as per drawing requires. Introduction: Design and Draft a layout of a residential building with the following details: a. Plot Size: 60’x20’(18.3m x6m)  b. Orientation- Facing East    c. Develop the following: 1. Architectural Drawing…

1. AIM To draw the layout of the residential plan. INTRODUCTION AutoCAD is a drafting tool used to draft buildings and other needed structures through various tools available in it. Procedure:   Step 1  set the units and limits of lay command zoom and all   Step 2 XL specific line at vertical XL specific…

1. Aim: To draw the geometric using chamfer, fillet tool using autocad.   Procedure :- Select the line tool by entering LINE Command in tab. Specify the starting coordinate of point and @3,0 in command line. Now give line command  and  specify point @2.12<45 specify point @2.83<135,…

Aim:  To Creating a Floor plan, Footing detail and Isometric view using AutoCad. Introduction:  Using autocad to create the plan for footing detail and isometric view with line command, absolute line method, Relative rectangular method. 1. Procedure: Type Rec or Rectangle in the command line…

Aim: To create the geometries from p1 to p2 using all cordinate system. to use line tool to create geometries. Procedure: To Draw Line simple lines or series of lines segments by one way of the following: Command Line: Line or L Menu Bar: Draw- Line Draw Bar Tool palettes: Draw- Line Ribbon: Home- Draw panel -Line question…

Aim: To draw a G+1 floor residential plan according to the vaastu shastra and the essential structural drawing needed to be provided to the site for construction. Introduction:  Vaastu shastra is the ancient science of architecture and acts as a guideline to design a home in the way that enhances positive energy.…

I)The Concrete mix design for M35 grade concrete with fly ash; (a)Grade designation: M35 (b)Type of cement: OPC 43 grade conforming to IS 8112. (c) Type of mineral admixture: Fly ash conforming to IS 3812 (part-I). (d) Max. Nominal size of aggregate = 20mm. (e) Min. Cement content = 320 kg/m3 (from IS 456: 2000 Table 5)…
