Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

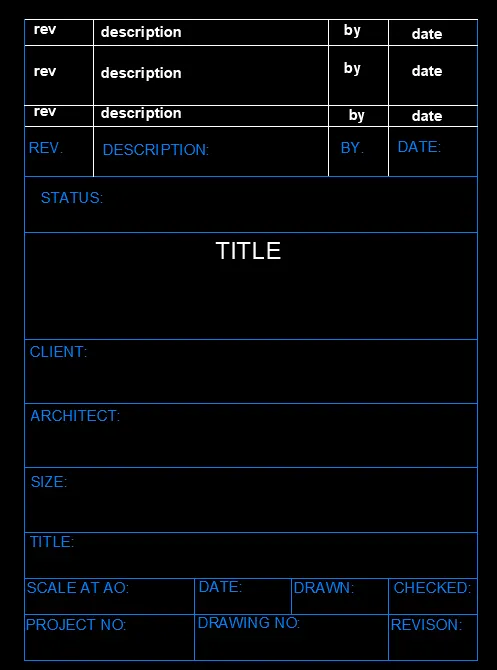

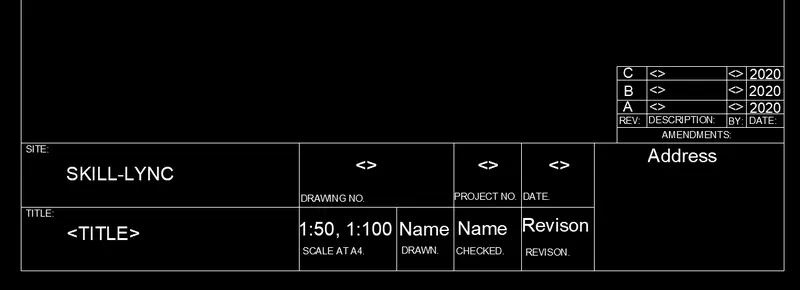

AIM :- Create the templates as shown in figures. By using text and attributes after creating template need to save as block with name: Custom1_titleblock and Custom2_titleblock respectively.

PROCEDURE :-

• The page is set for template is 210,297
• Table is created with the use of LINE command
• Dividing row & column are created by use of OFFSET command and MOVE & COPY command at required distance
• MTEXT command used for text
• Text height is 10mm & 5mm respectively
• Black color text style is bold for the showing

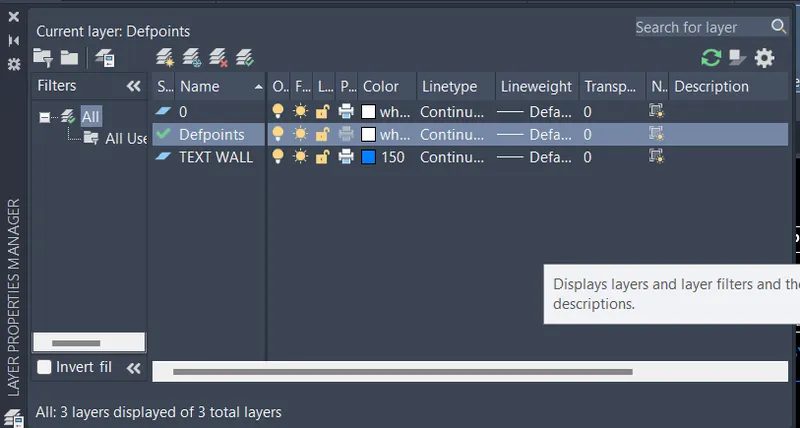

• After completing table make a layer for blue color line & text as shown
• After that use the layer where it required
• Now BLOCK in command prompt for making it as block
• Write name as Custom1_titleblock then save it & select the table.

• The page is set for template is 210,297
• Table is created with the use of LINE command
• Dividing row & column are created by use of OFFSET command and MOVE & COPY command at required distance
• MTEXT command used for text
• Text height is 10mm & 5mm respectively
• Black color text style is bold for the showing
• After completing table make a layer for blue color line & text as shown
• After that use the layer where it required
• Now BLOCK in command prompt for making it as block
• Write name as Custom2_titleblock then save it & select the table.

RESULT :-

• Template is created as shown in figure.
• Custom1_titleblock & Custom2_titleblock is saved as block.

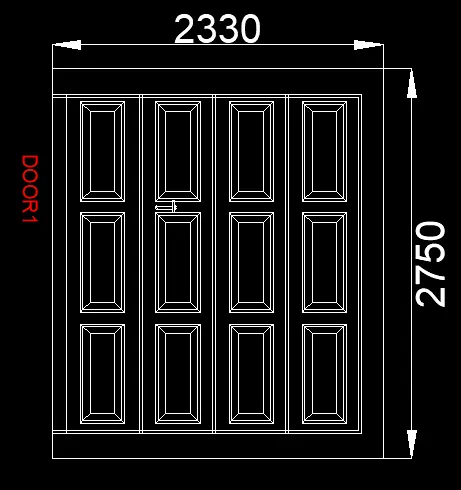

AIM :- To create the door type for warehouse as shown in figure. After creating them need to convert into block as name: DOOR1 & DOOR2 respectively.

PROCEDURE :-

• RECTANGLE in command prompt
• Specify first corner click at any point
• RECTANGLE command used for draw door1 at @2330,2750
• OFFSET bottom and top line at 200mm
• OFFSET right side line towards left at 150mm
• Now divide in 4 column at equal space
• OFFSET of 10mm on 4 column
• Now draw 4 rectangle same size same space
• OFFSET to suitable distance to show blocks of door
• COPY them at respective place where it requires
• DIMLINE command for dimensions
• MTEXT for texts
• BLOCK in command prompt
• Save it as DOOR1 in block

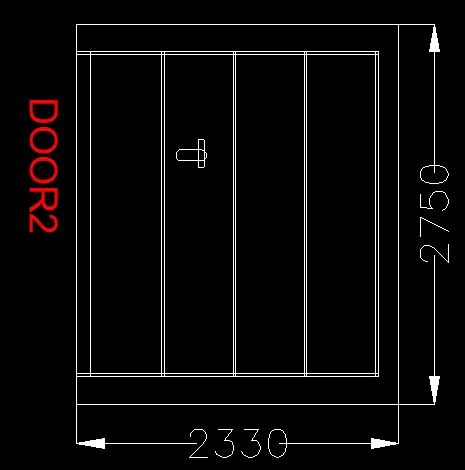

• RECTANGLE in command prompt
• Specify first corner click at any point
• RECTANGLE command used for draw door1 at @2330,2750
• OFFSET bottom and top line at 200mm
• OFFSET right side line towards left at 150mm
• Now divide in 4 column at equal space
• OFFSET of 10mm on 4 column
• OFFSET to suitable distance to show blocks of door
• DIMLINE command for dimensions
• MTEXT for texts
• BLOCK in command prompt
• Save it as DOOR2 in block

RESULT :-

• Created the door type of warehouse as shown in figure.
• DOOR1 & DOOR2 saved as block.

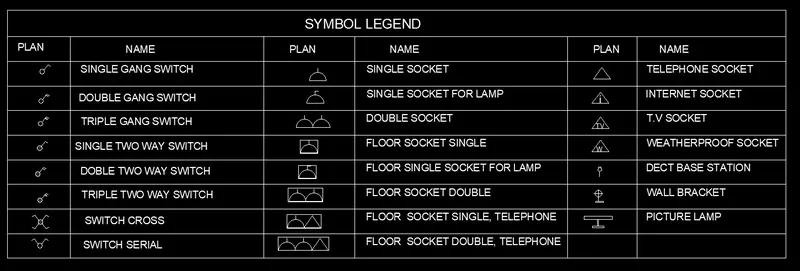

AIM :- To create each symbols as block. After creating as blocks arrange them in the legend as shown in the figure.

PROCEDURE :-

• Created a table by using LINE command
• MTEXT command used for text size of 20-30 mm respectively where size required
• First column symbol are created by use of LINE, CIRCLE, OFFSET & MIRROR command
• After creating them

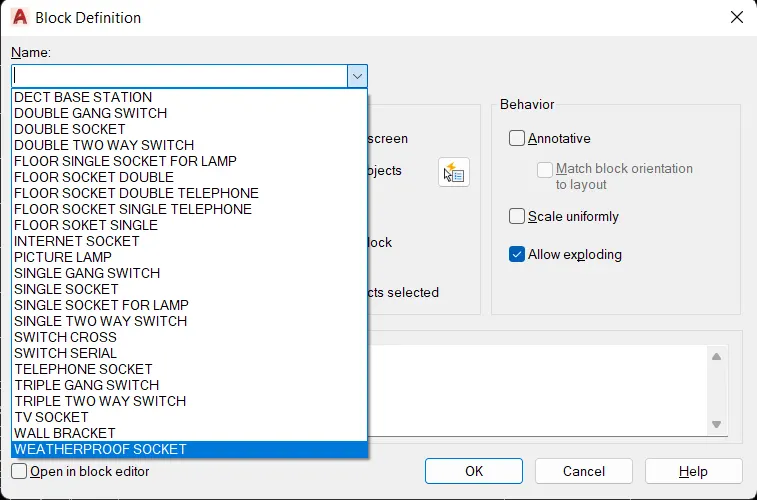

• Saved as block each symbols by there name by using BLOCK command
• After that place it to 1^st column by moving them
• In 2^nd column to draw the symbol
• Used command for 2^nd column symbol LINE, ARC, RECTANGLE & COPY
• After creating them
• Saved as block each symbols by there name by using BLOCK command
• After that place it to 2^nd column by moving them
• For drawing 3^rd column symbol
• Used command LINE,MTEXT & CIRCLE, POLYGON
• After creating them
• Saved as block each symbols by there name by using BLOCK command
• After that place it to 3^rd column by moving them

RESULT :-

• All symbols are created as block individually.
• Placed in table with clearly.
• After creating arranged in well manner which shows in figure.

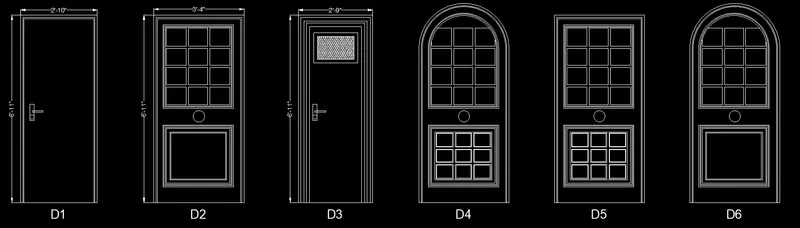

AIM :- To create the door type for residential building as a block. Save there name of the blocks as type.

PROCEDURE :-

D1

• D1 is drawn simply by using LINE command
• With the given dimension respectively
• Then OFFSET at some distance for D1
• Draw locker of door by use of LINE command
• MTEXT used for text
• DIMLINE used for dimensions

D2

• D2 is drawn simply by using LINE command
• With the given dimension respectively
• Then OFFSET at some distance for D2
• Draw a CIRCLE at center of door at suitable size
• Draw RECTANGLE at suitable size
• MTEXT used for text
• DIMLINE used for dimensions

D3

• D3 is drawn simply by using LINE command
• With the given dimension respectively
• Then OFFSET at some distance for D3
• Draw RECTANGLE at suitable size
• OFFSET of rectangle assumed size
• Fill the small rectangle by using HATCH command
• MTEXT used for text
• DIMLINE used for dimensions

D4

• D4 is drawn by the coping from D2 by using COPY command
• CIRCLE command used for arc shape door
• After drawing circle unwanted line are trimmed
• Made some changes what requires for D4

D5

• D5 is drawn by the coping from D2 by using COPY command
• Made some changes what requires for D5
• DIMLINE used for dimensions

D6

• D6 is drawn by the coping from D4 by using COPY command
• CIRCLE command used for arc shape door
• After drawing circle unwanted line are trimmed
• Made some changes what requires for D4

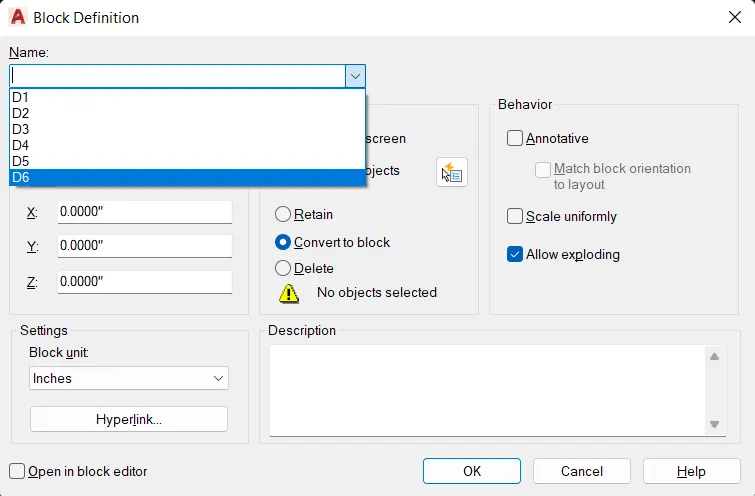

After creating D1-D6 save them as block separately as name D1-D6 respectively.

RESULT :-

• D1-D6 are created for residential building as shown in figure.
• After creating saved as block by name D1-D6.

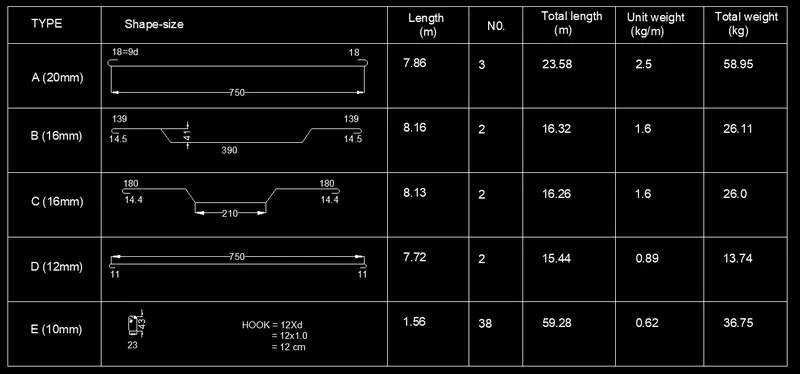

AIM :- Create each shape as block as shown in figure. Save them as block name as type shown.

PROCEDURE :-

• Table are created with the LINE command use
• After creating table use MTEXT command to write text as proper distance and height
• All shape are create by using LINE command & FILLET command
• DIMLINE command used to show dimensions
• MTEXT command used for texts

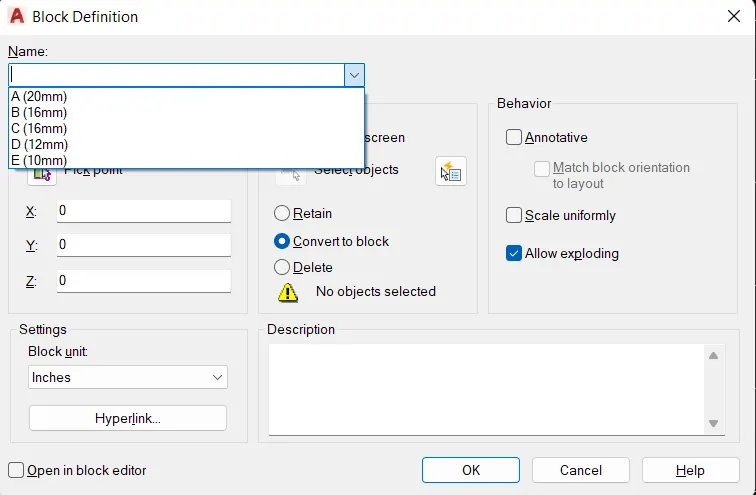

• After creating each shape convert each shape individually into block by name

RESULT :-

• Each shape is created in block.
• Each shape is placed in table at proper distance. As shown in figure.
