Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

AIM: To create

1. Template, inserting text and attributes
2. Doors of Warehouse and placing it in blocks
3. Electrical legend and making it blocks
4. Different types of doors for residential project
5. Drawing bars, making it as block and making it as a table as bar bending sechedule

Commands used:

1. Block
2. Intert
3. Attributes
4. Field
5. Rectangle
6. Line
7. Text
8. Array
9. Mirror
10. Copy
11. Offset

1)

Aim: Creating templates, inserting text and attributes

• Custom 1- Title block
• Custom 2- Title block

Procedure:

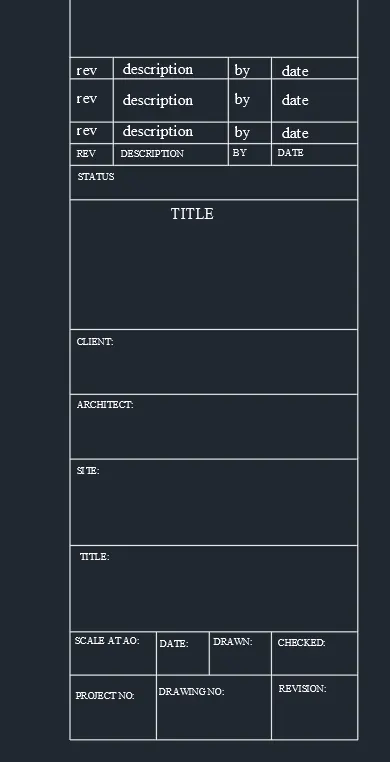

Custom 1- Title block

• Create a rectangle of size 66.63mm and 158mm
• Divide it with line for the text box into columns
• For rows, take offset of 5,10,5,5,8,30,15,15,20,20,10,15 mm.

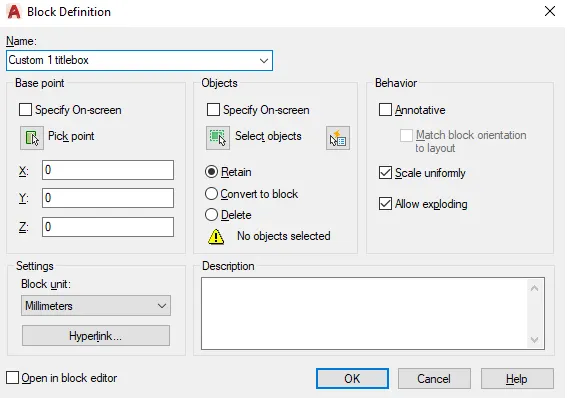

Creating block-

Command B- Block defenition dialogue box appears- give name as custom1_title block_select pick point and select a point in the table-select the object-select the whole table including the text. Give scale uniformly and tick allow exploding. Select covert to block option.

As we have selected retain the object it will be retain and same as the actual drawing and a block is creted for the objects that we have selected. If we want to use the block goto intert select the object and insert it.

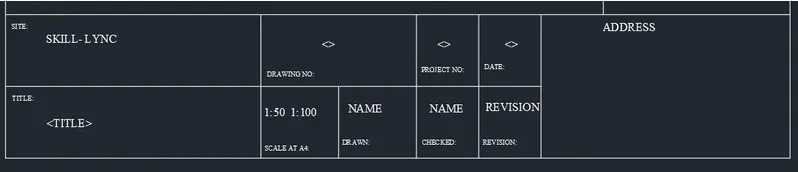

Custom 2 title block

For. f.g: in the first row 1st

2)

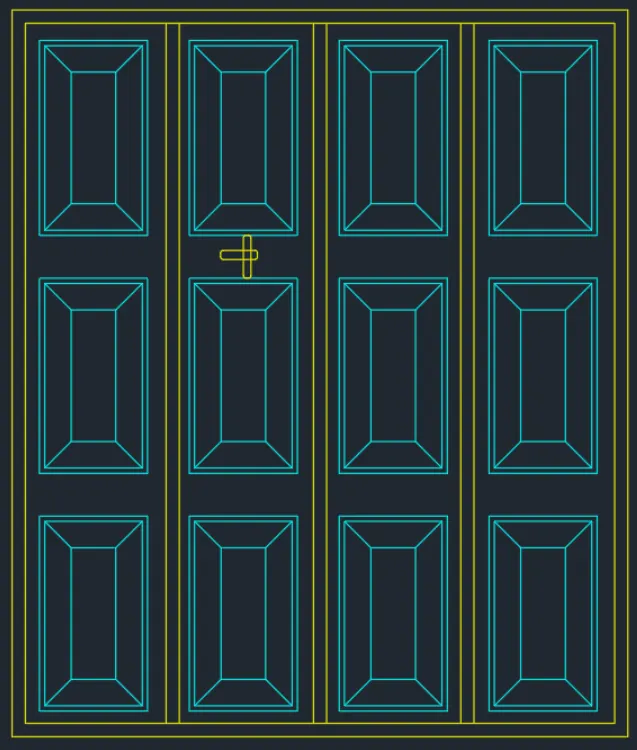

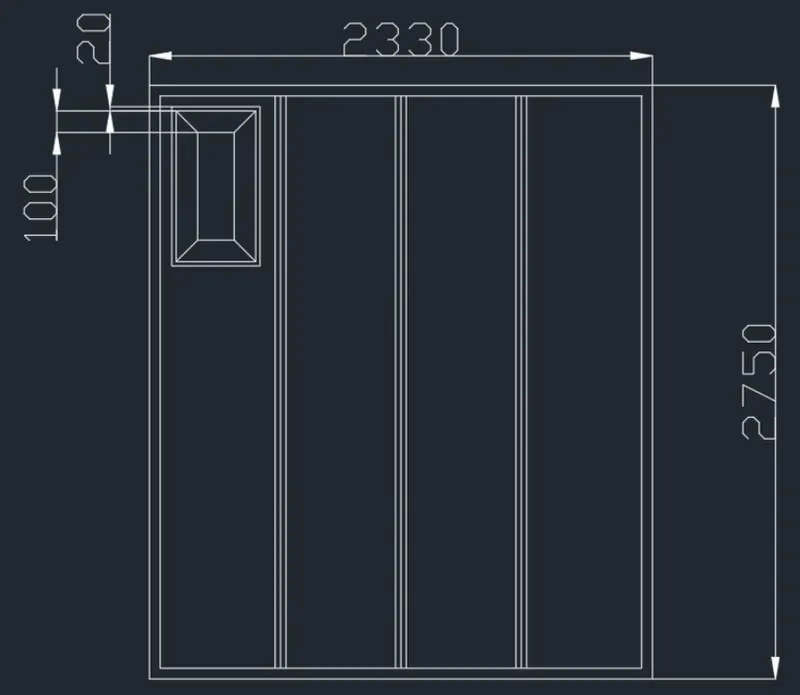

To create a door for warehouse and placing it in blocks

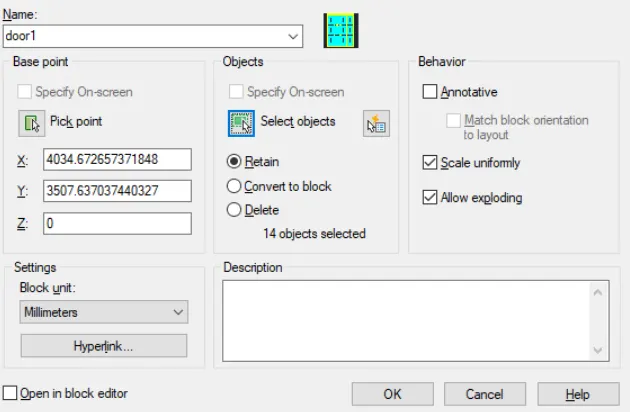

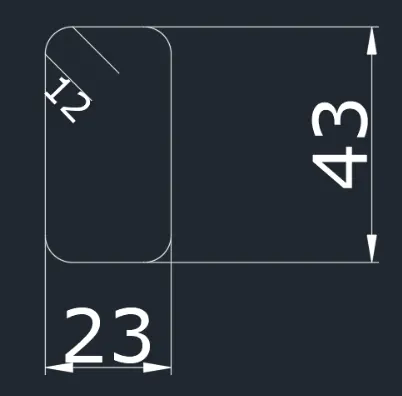

Create the panel as a block, so that it is easy to copy. Create lock by rectangle command and fillet the corners with redius 5mm

By using the copy all the command frmaes are copied.

3)

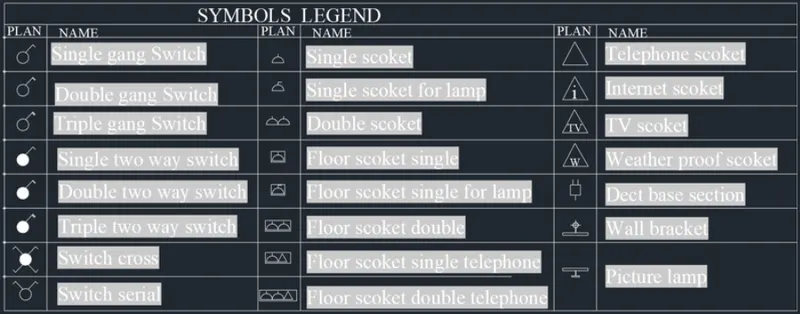

AIM: To create electrical legend

1. Create each electrical symbol

2. Creating them as block

3. Arranging them in legends

Procedure:

Creating electrical symbols

Single Gang Switch

Double Gang Switch

Triple Gang Switch

Single Two-way Switch

Double Two-way switch

Triple Two-way Switch

Sungle Socket

Double Socket

Floor SocketTelephone Socket

Internet Socket

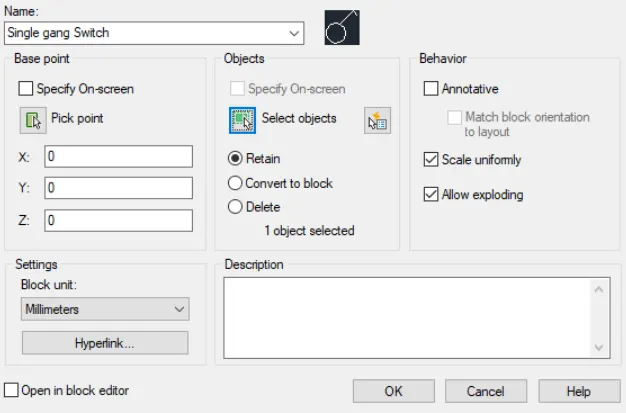

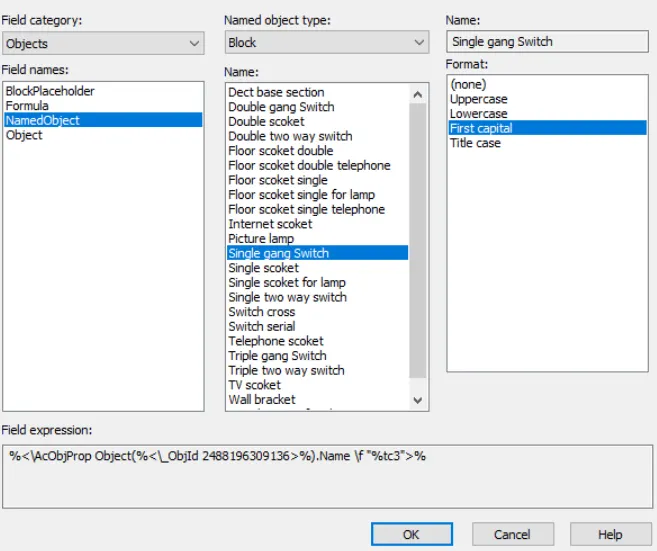

Creating them as block

RESULT:

4)

AIM:

To draw the doors of residential project and cerate it as block

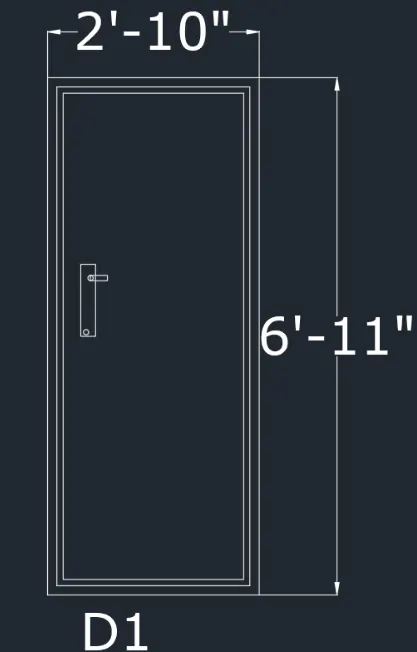

1. D1

2. D2

3. D3

4. D4

5. D5

6. D6

1. Draw rectangle

Create is as block B, give name as type D1, pick corner point, Select the object then block is created.

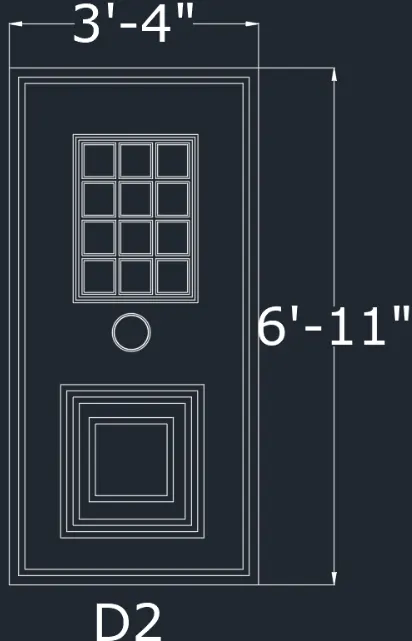

2. D2- 3'4"*6'11"

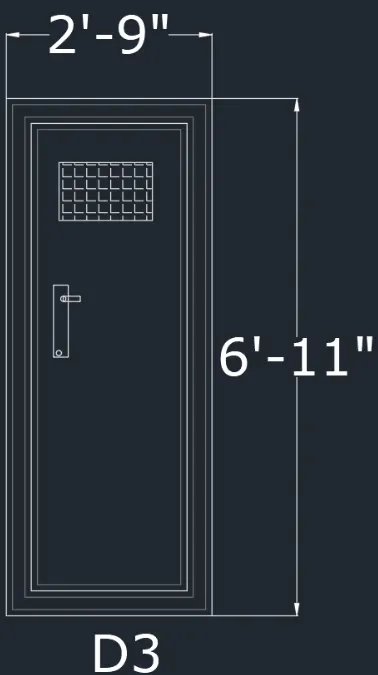

3. D3- 2'9"*6'11"

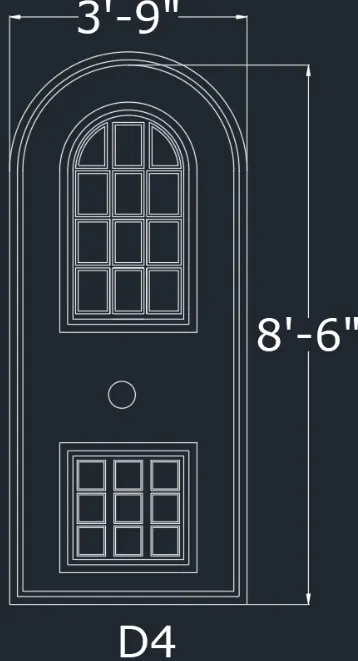

4. D4- 3'9"*8'7"

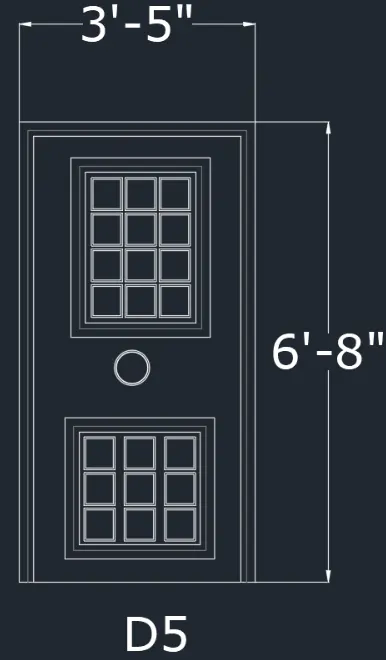

5. D5- 3'5"*6'8"

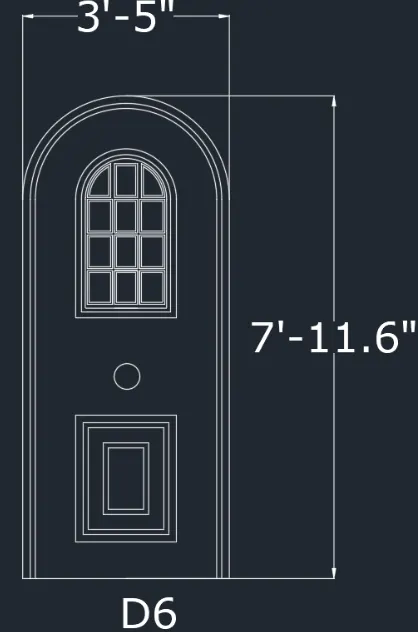

6. D6- 3'5"*7'11.5"

RESULTS:

The doors are created and are made into blocks

5.

AIM:

To create bar bending schedule and insert it as block

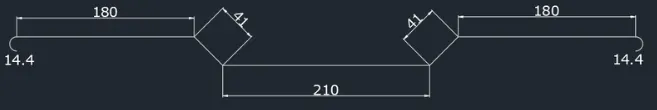

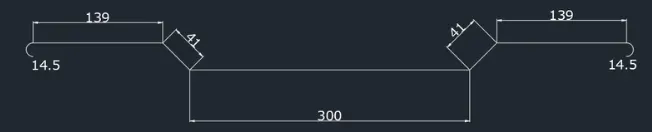

Drawing a each shape

A- 20mm

B- 16 mm

C- 16 mm

D- 12mm

E- 10 mm

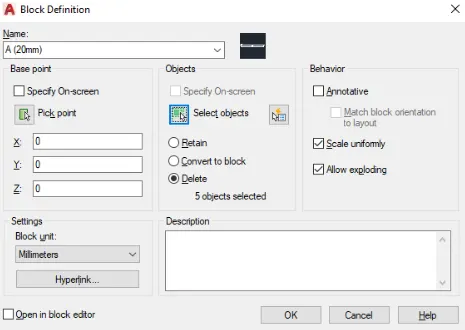

Creating each them as block by using command B,

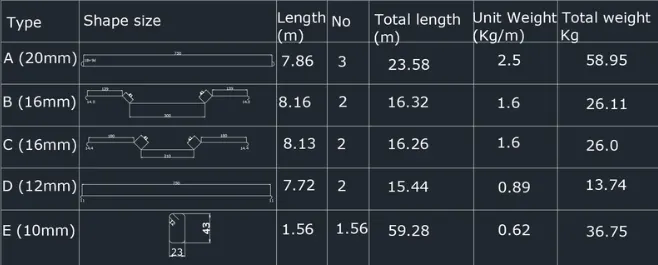

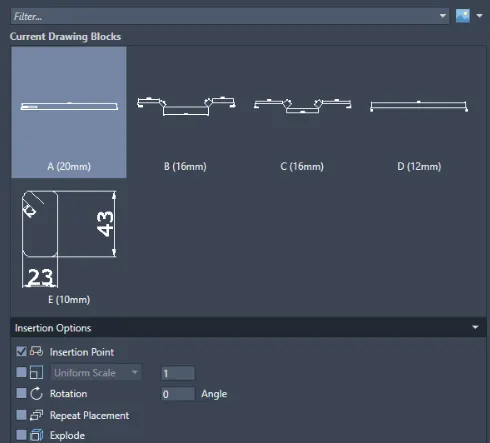

Inserting the blocks in table

RESULT:

RESULT:

• Template is drawn and text and attributes are inserted
• Doors on warehouse are drawn and placed it in blocks
• Electrical Legend are created and it is made into blocks
• Different types of residential project are drawn and are placed in blocks
• Bars are drawn and made in blocks and inserted it in take as bar bending schedule
