Challenge

Creating Architectural and Structural model with 3D rendering using REVIT

Ans 1: School Building.

Ans 2: My Building is in Plain area

According to the NCB

Ans 3: The Following are the steps to model the object.

Open revit and make horizontal and vertical grids.
Go to the elevation and increase the number of levels upto roof and change their names.

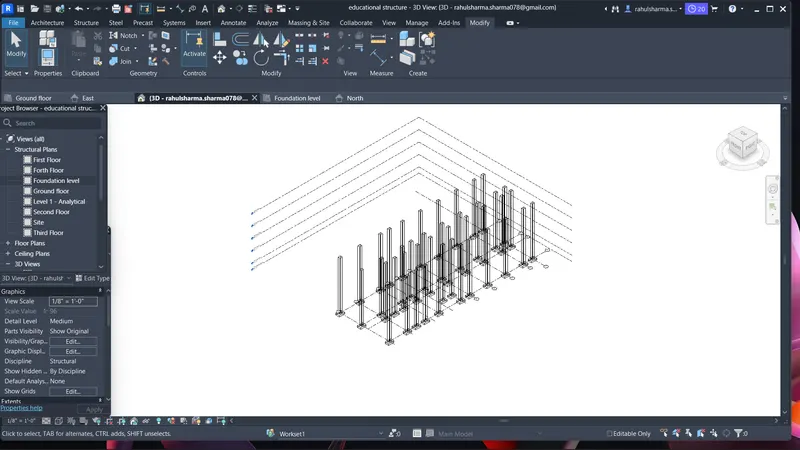

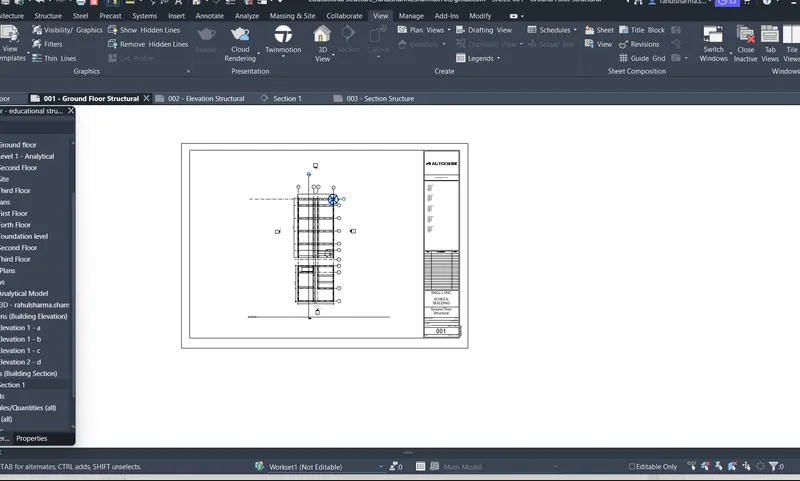

Select column from ribbon and place the columns at intersection of grids.

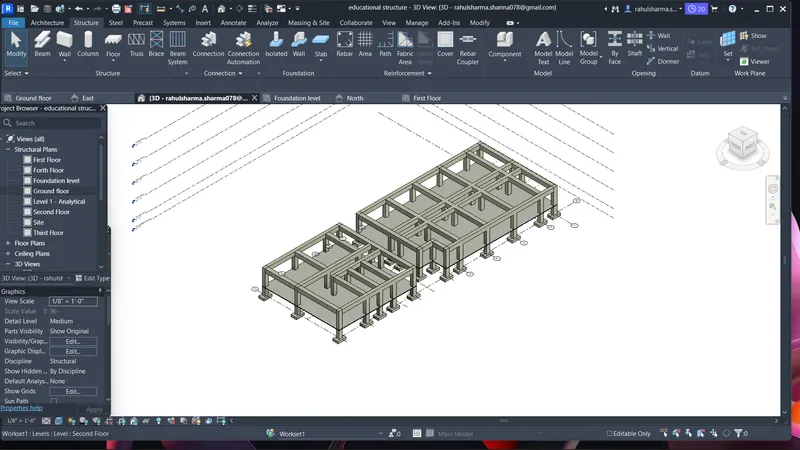

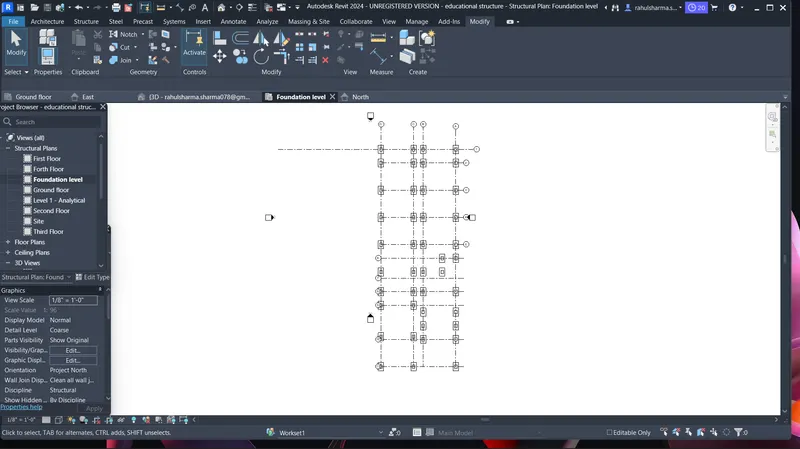

Select the Isolated Foundation option and place te foundation on ech and every column.

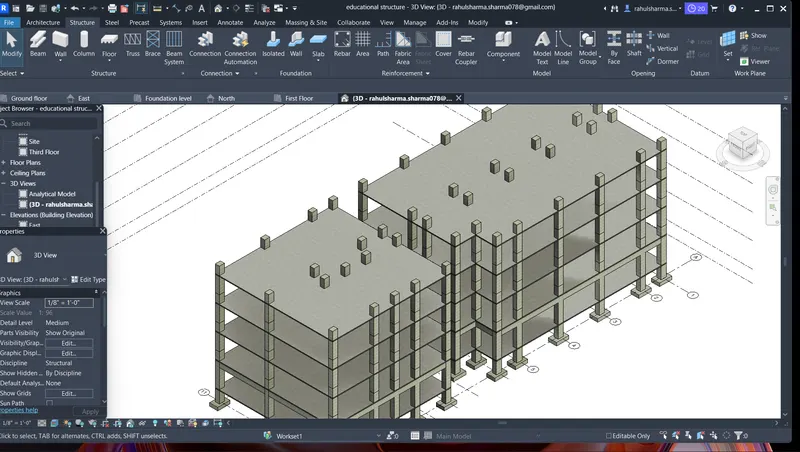

Now extend the column to the top level by giving the constraints.
Now select beam from the ribbon and modify the length, width of the beam as per column.
Now Draw the beam as per required.

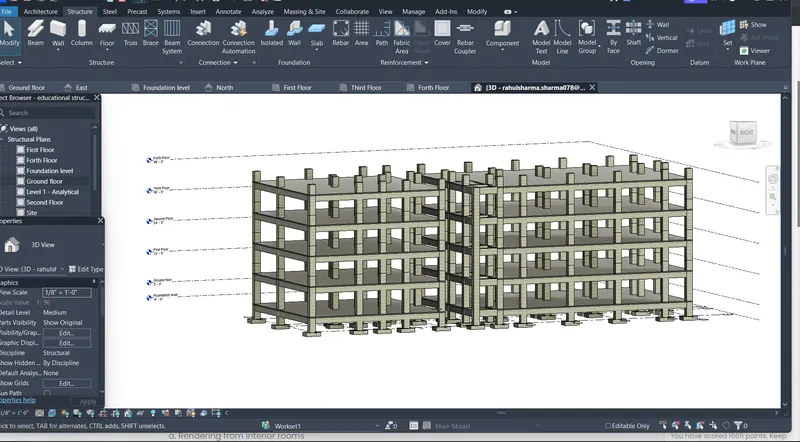

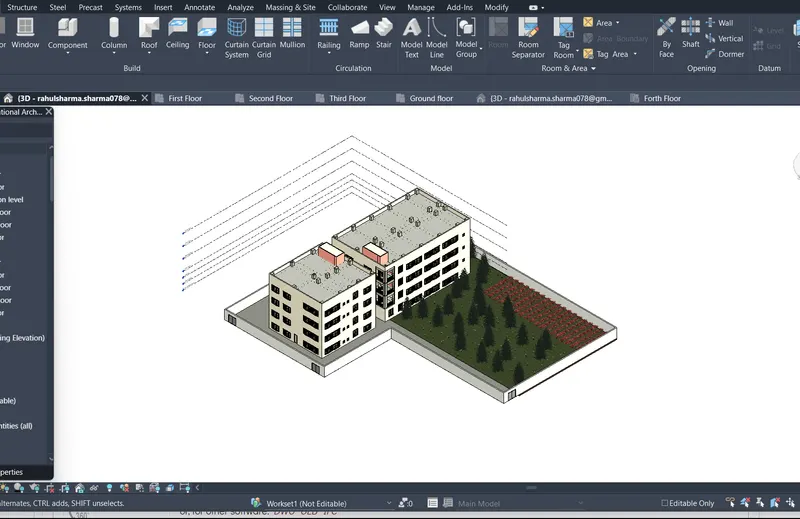

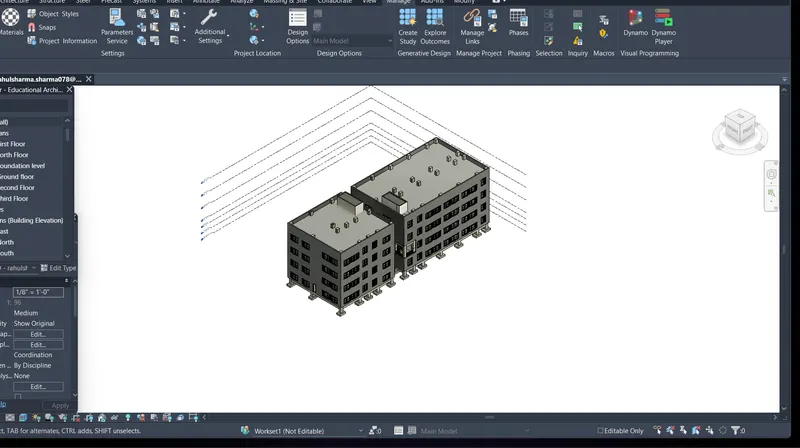

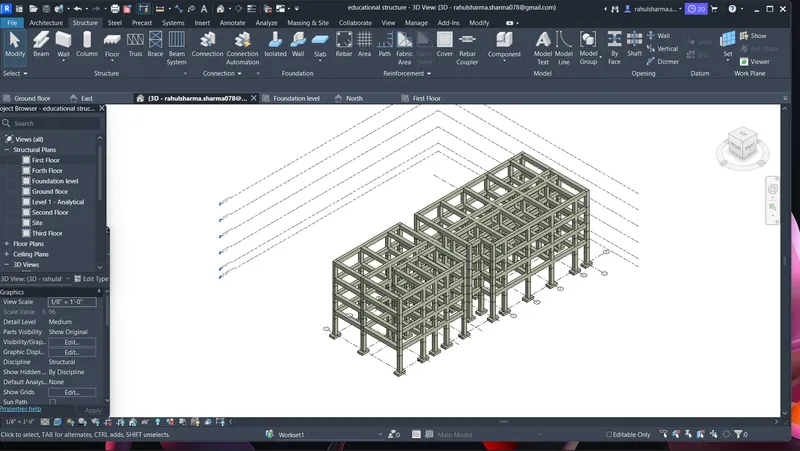

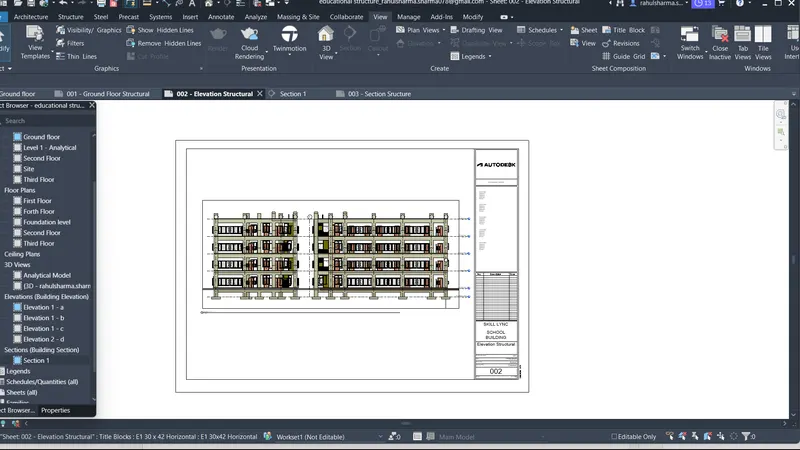

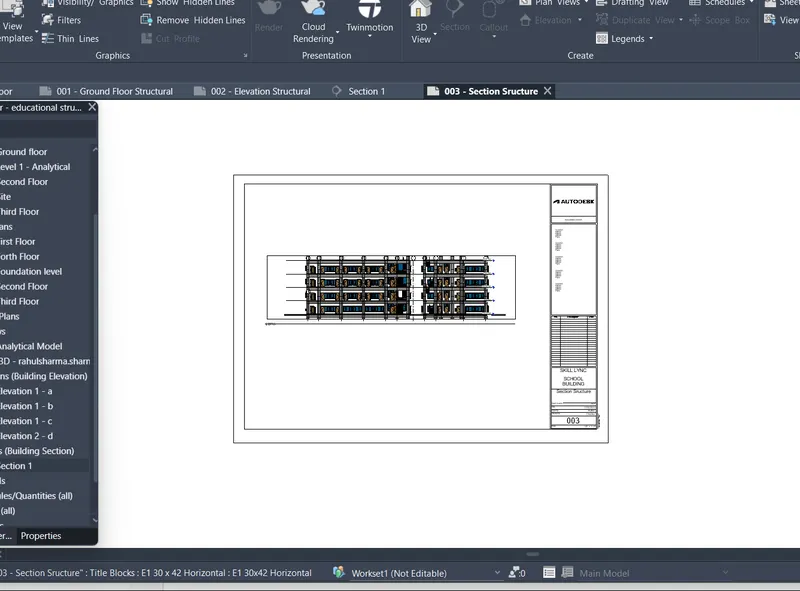

Change the view to 3d.
Select the entire figure and go to the copy option and assign them to first floor and second floor.

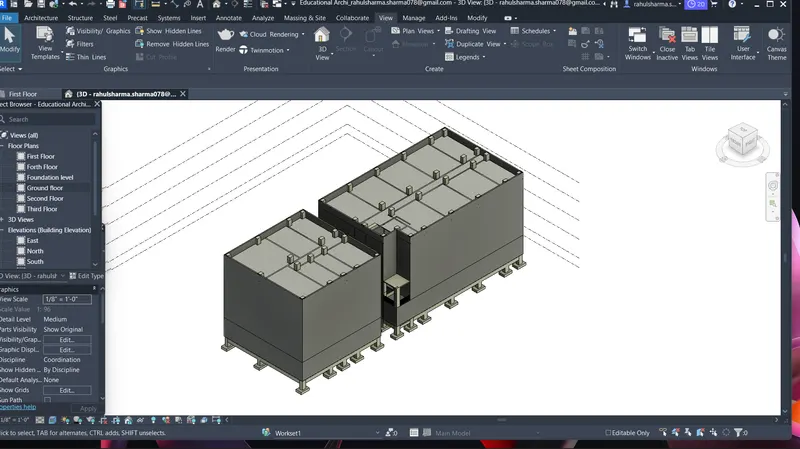

Now go to the wall option and select the floor you want to assign the wall ,copy it and assign to different levels.

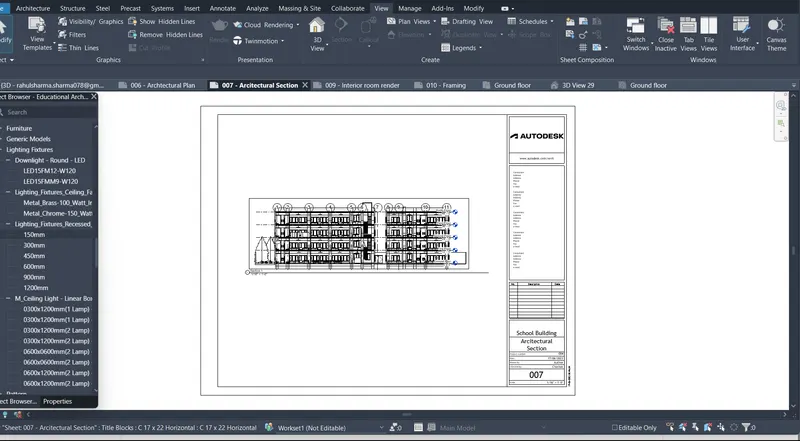

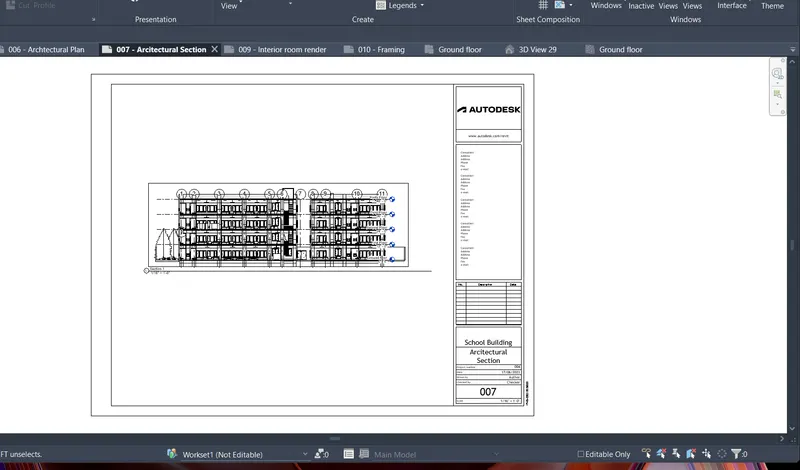

Now Go to the Architectural File and link the structural File and copy monitor and start working on the model.
Draw exterior and interior wall and make a top offset from 4th floor of 4' as a paraphet wall
Now Select the Flooring command and put the flooring on each level.
Now select the ceiling command and draw the ceiling on each floor.
Open structural project and provide a shaft for the stairs.
Open arhitectural project and draw the stairs to connect the Floor.

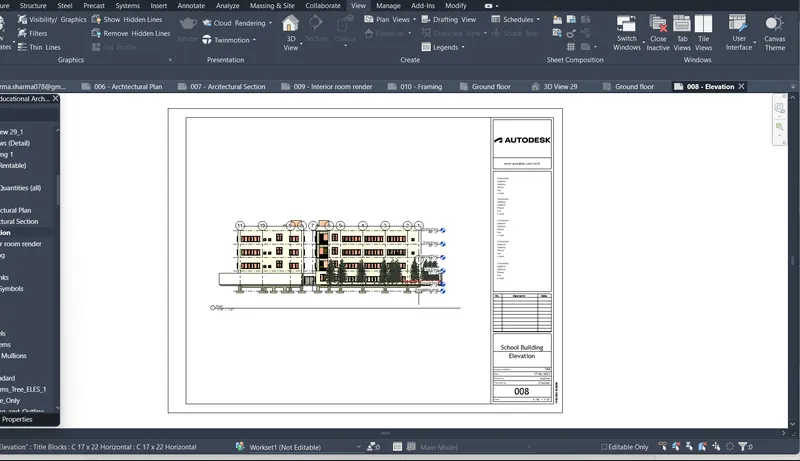

Provide Windows and ventilation to the model.

Ans 4: The Following are the steps to model the object:

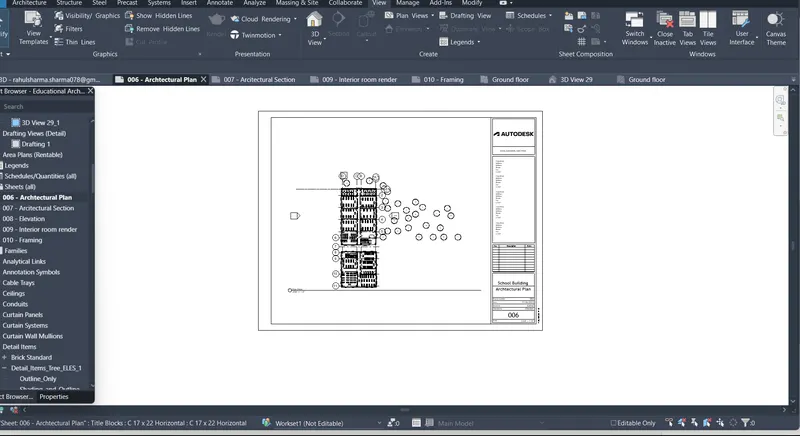

Draw the walls by using architectural walls command and choose the wall finishing as per your requirement
Provide the objects to the plan from ground to top floor.
Provide the stairs to the plan and connect the Floors.
Provide the Curtain wall to the plan

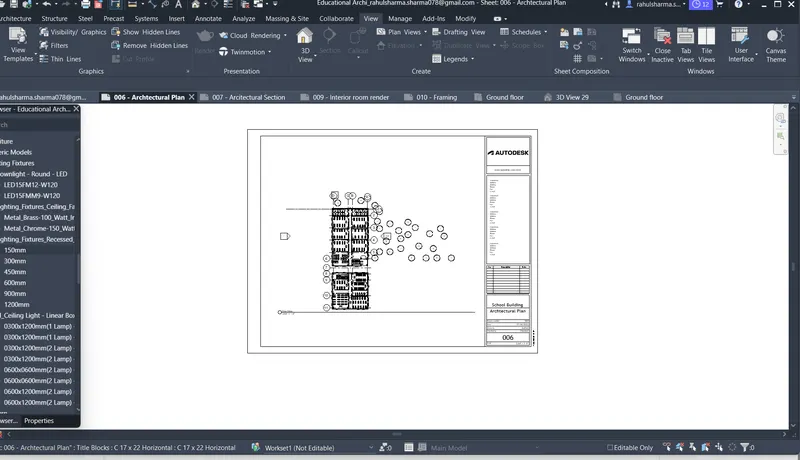

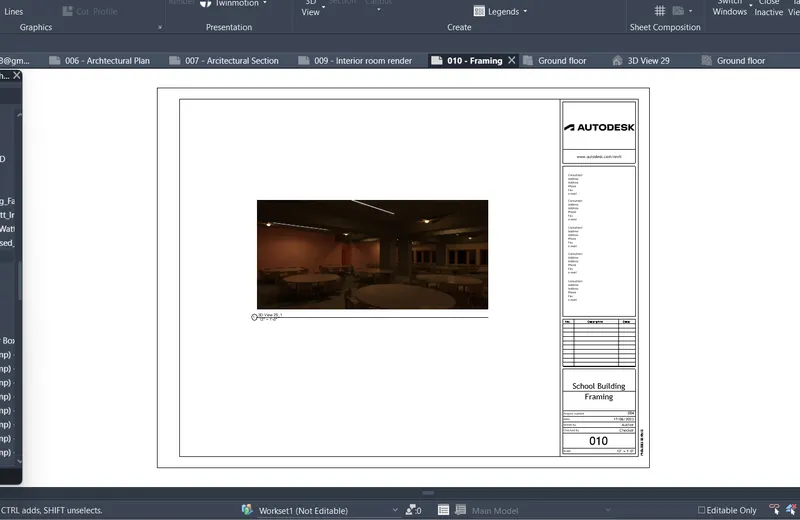

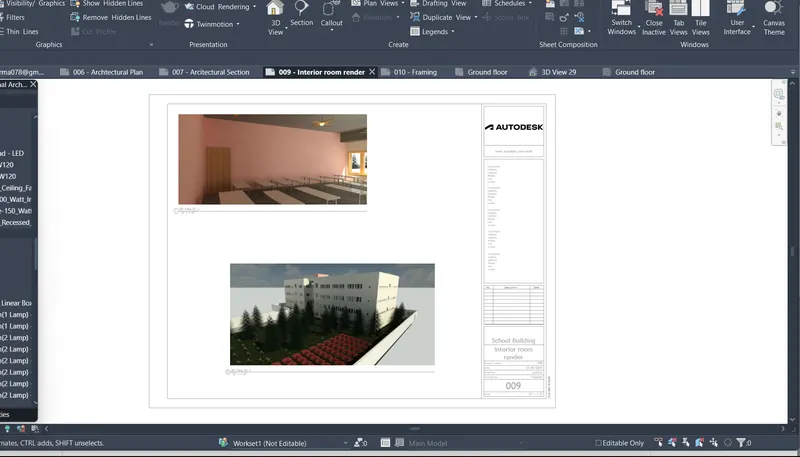

Provide the Lighting Fixtures to the model on each floor after providing ceiling to the drawing.
