Creating Architectural and Structural model with 3D rendering using REVIT
1) Select the type of structure you want to build from one of the three below
a. Multi Unit Residential Apartment
b. Office Buildings
c. School
2) Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions and type of structure selected identify the modeling requirements from NBC
Ans:- For Geographic and location details assumptions which I have made are:-
1. My project is in residential area (dense populated)
2. Road width in front of the apartment is 60 feet
3. project site is in plain area (geographical)
As per the NBC
Height Limit as per FAR Calculation and as per NBC Table 5 V-1
Minimum length and width of rooms as per NBC V-1
Fire and safety from NBC part IV

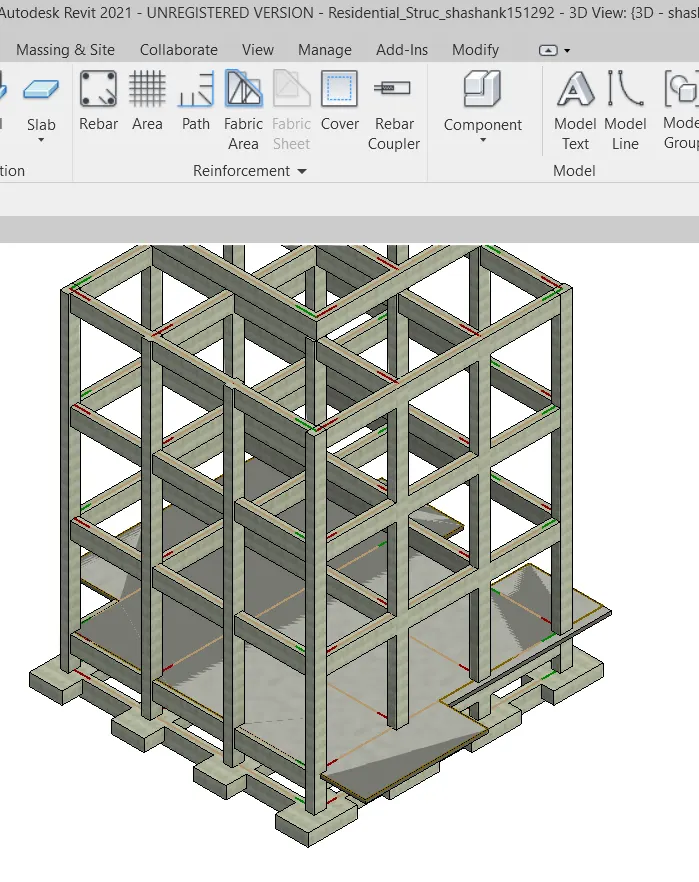

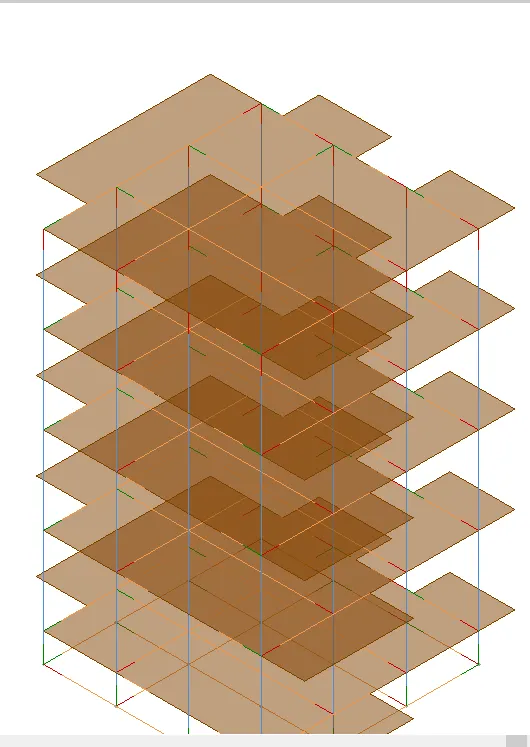

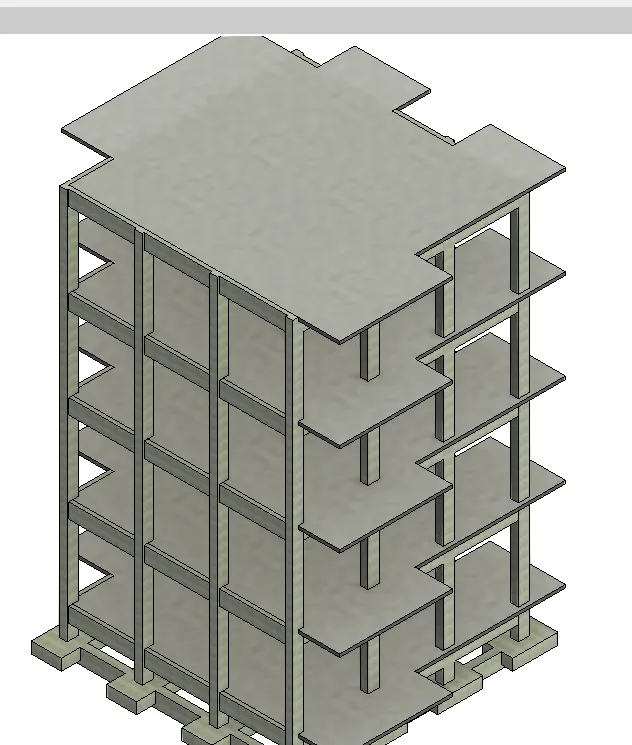

3) Using the structural model, include the following components based on the type of structure selected

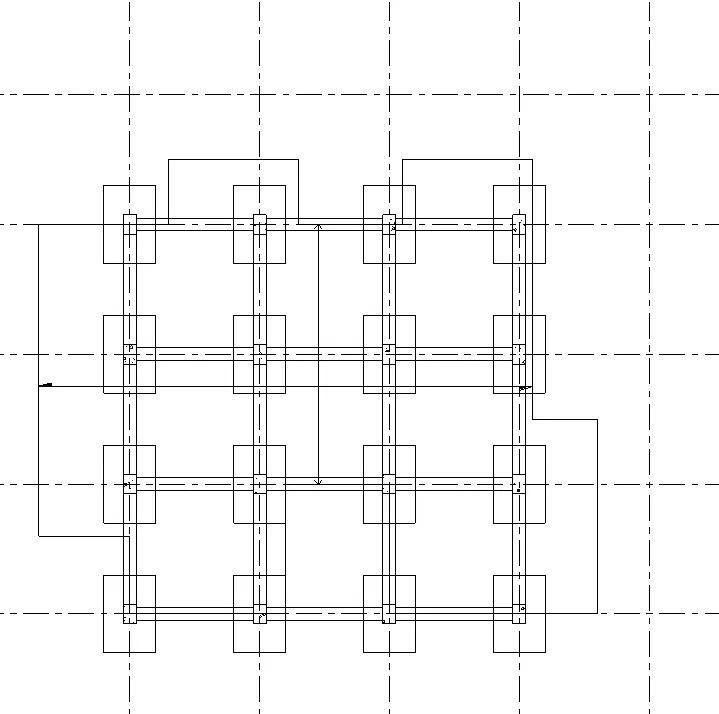

a. Foundation – Isolated / Wall/Matt Foundation
b. Columns
c. Beams Connected to Columns
d. Roof Framing/ Truss
e. Floor / Decks
f. Floor Openings for Elevators and Stairs

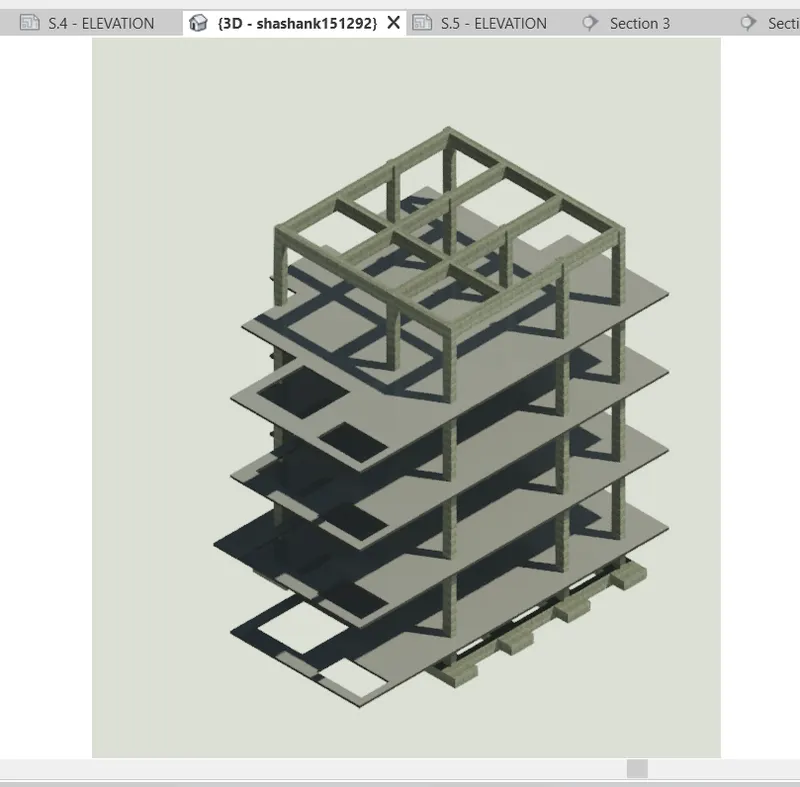

AIM:- Make a project using structural model and include the following components

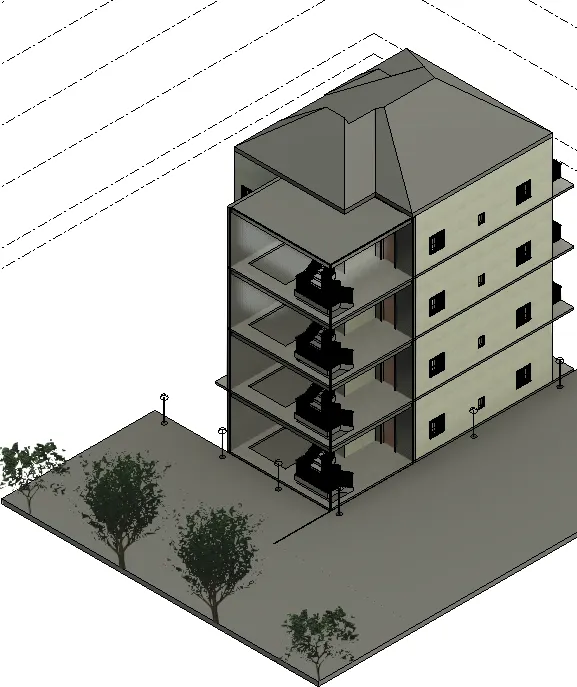

4) Using the architectural model, include the following components based on the type of structure selected
a. Wall Layout with appropriate material and finishing
b. Exterior façade with fancy finish
c. Interior partition walls to size rooms
d. Components to add details to room ( Desk, Chair, Lighting, Plumbing fixtures)
e. Add components such as stairs Elevators
f. Have at-least one side of building with curtain walls and glass panels
g. Include interior and exterior lighting fixtures
h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model
AIM:- Using architectural template create the walls , facade and other components of the building and give a complete building look with all the components
Result:-

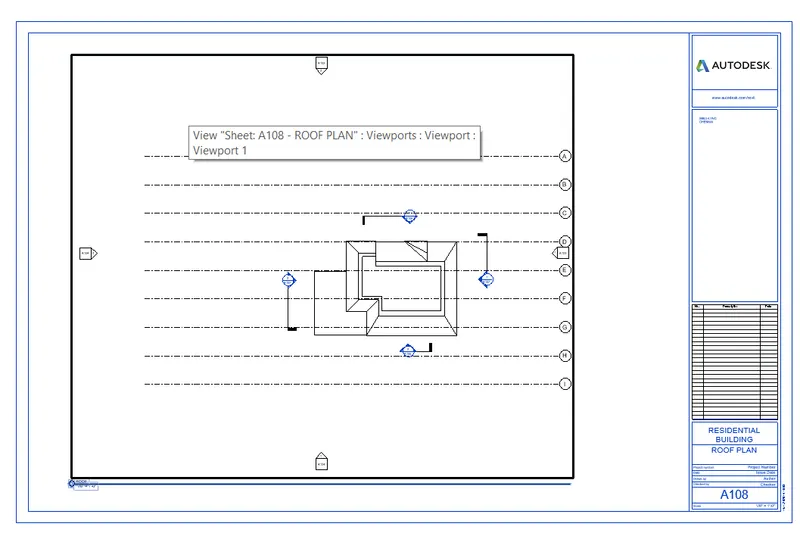

5) Provide set of drawings in architectural and structural model to list the following details with categories and appropriate sheet templates included

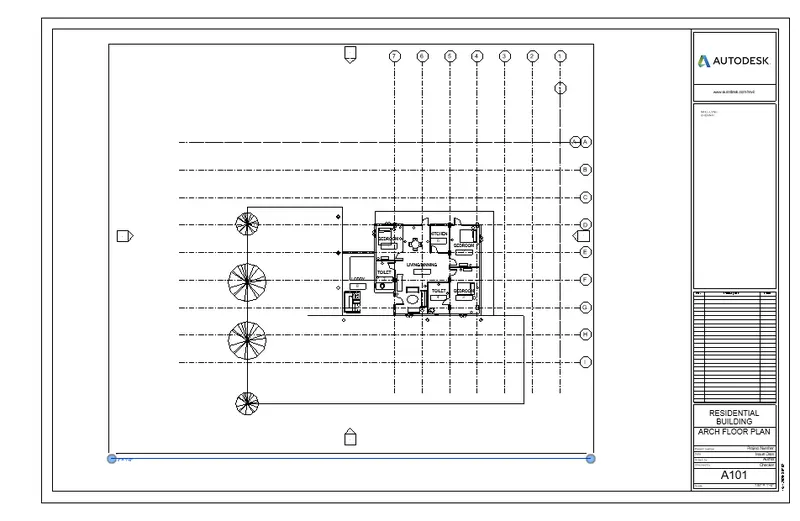

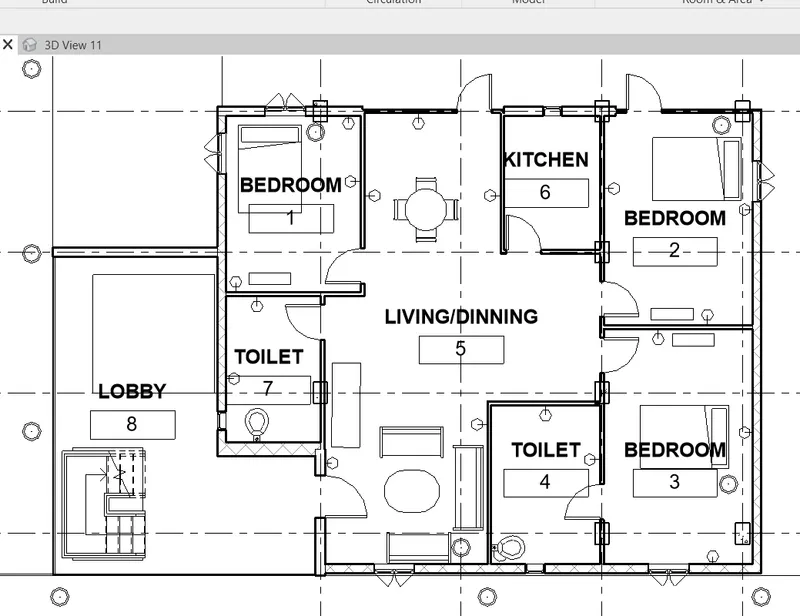

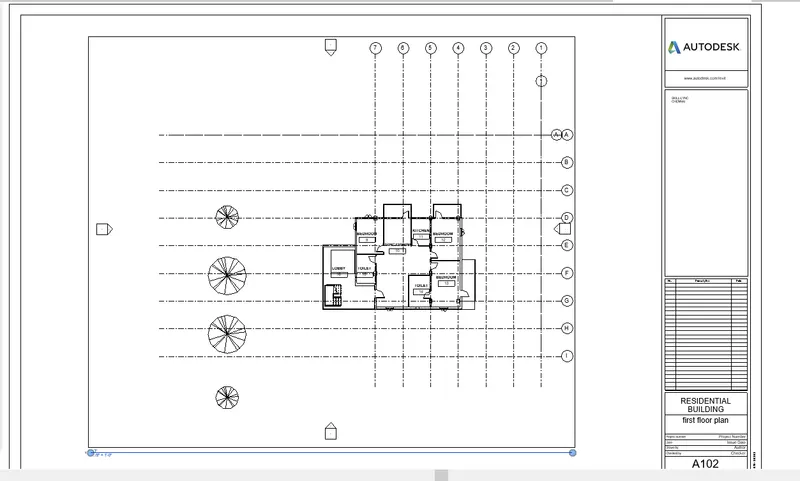

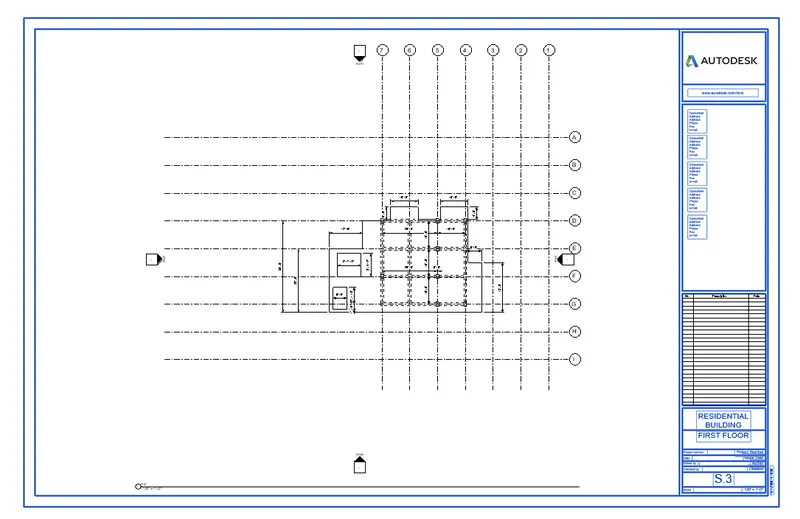

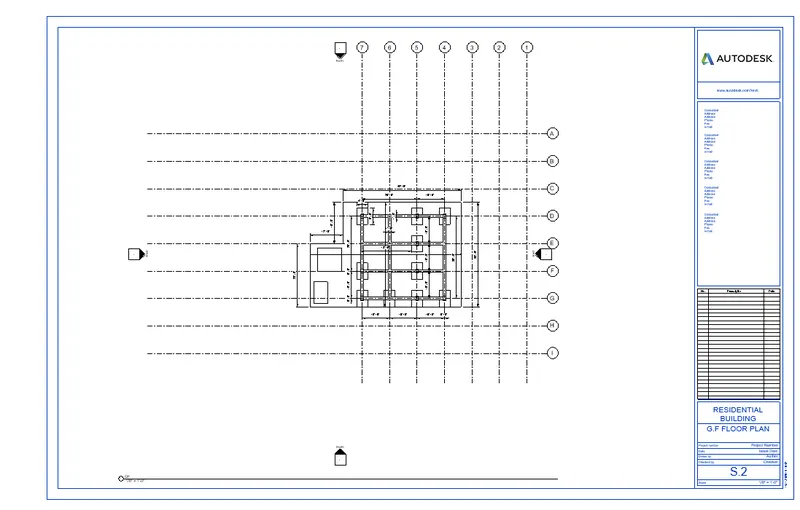

a. Floor Plans with Annotations

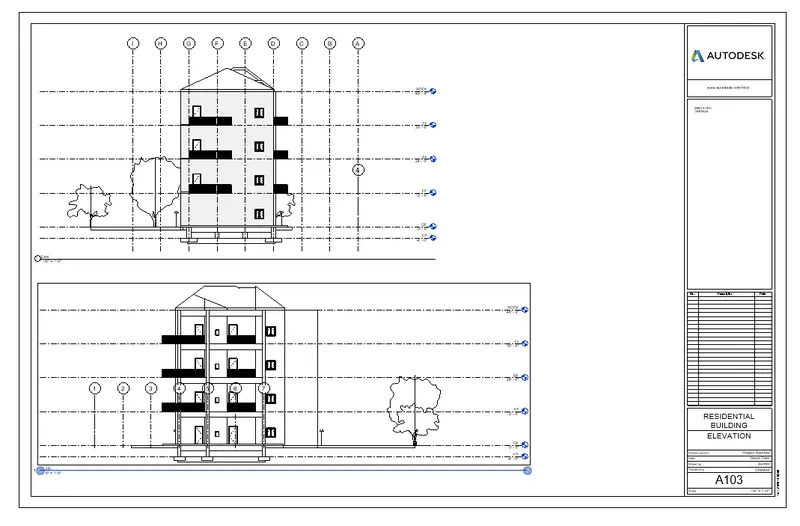

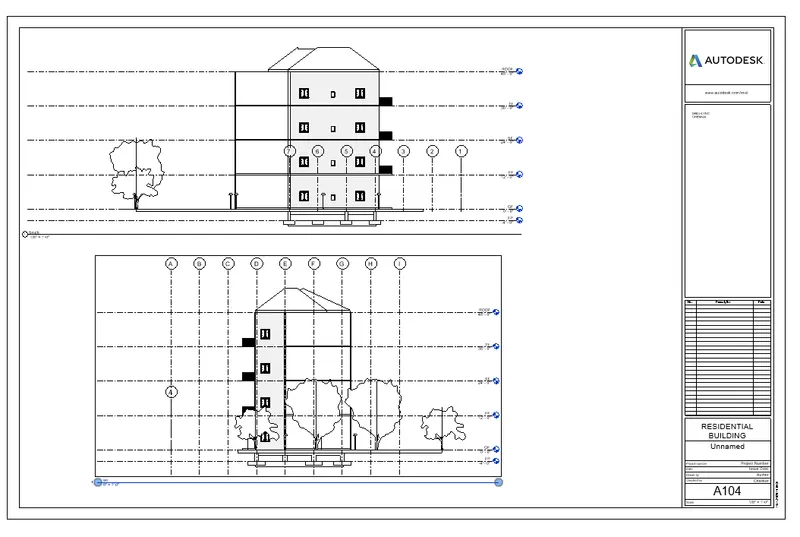

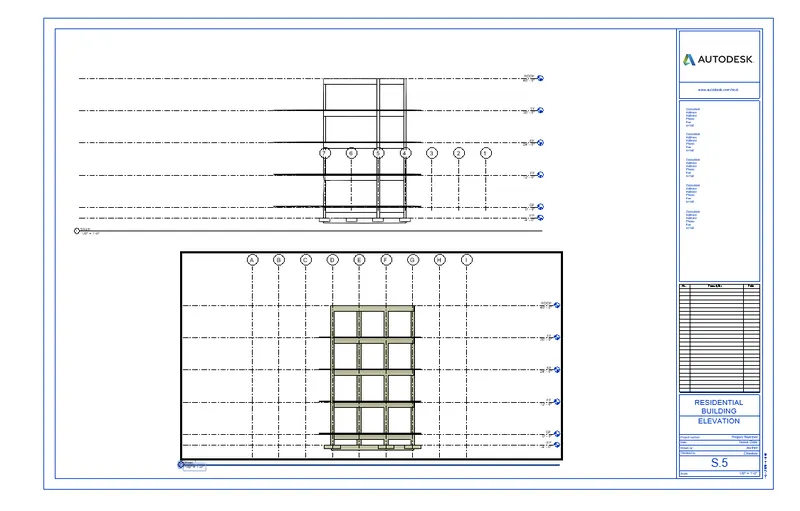

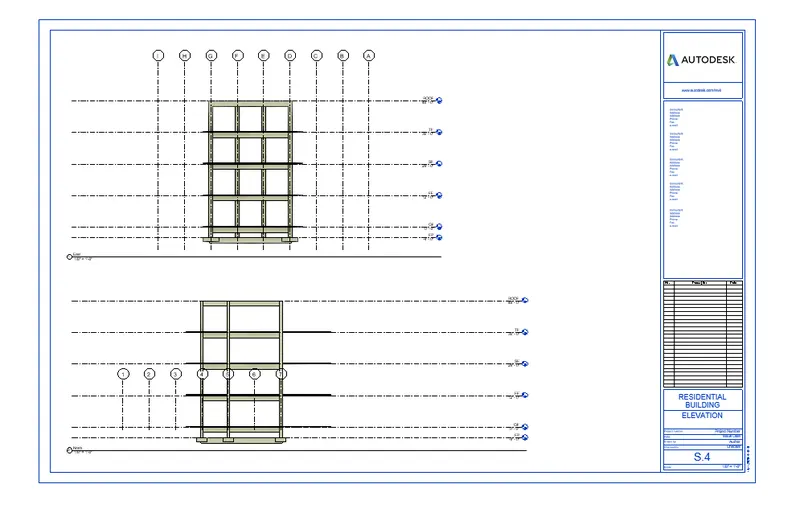

b. Elevations

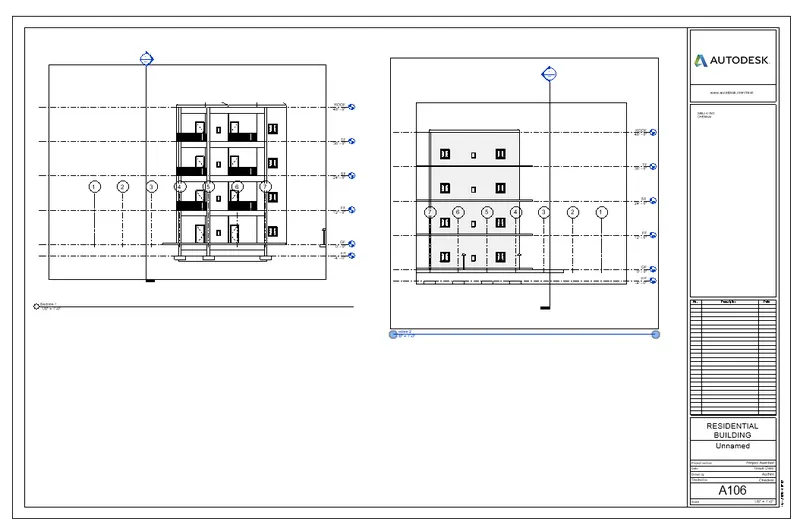

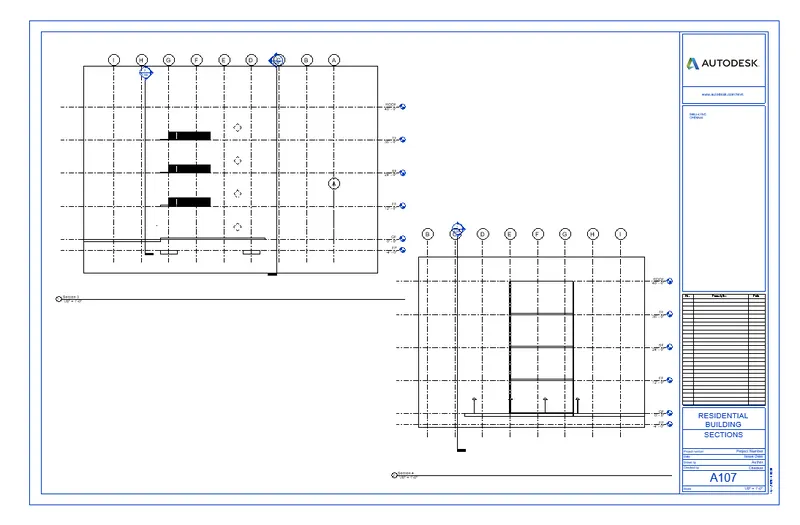

c. Sections
Results:-
6) Using the Rendering settings, Render images of 3D model produced and include the rendered images to the drawing sheets

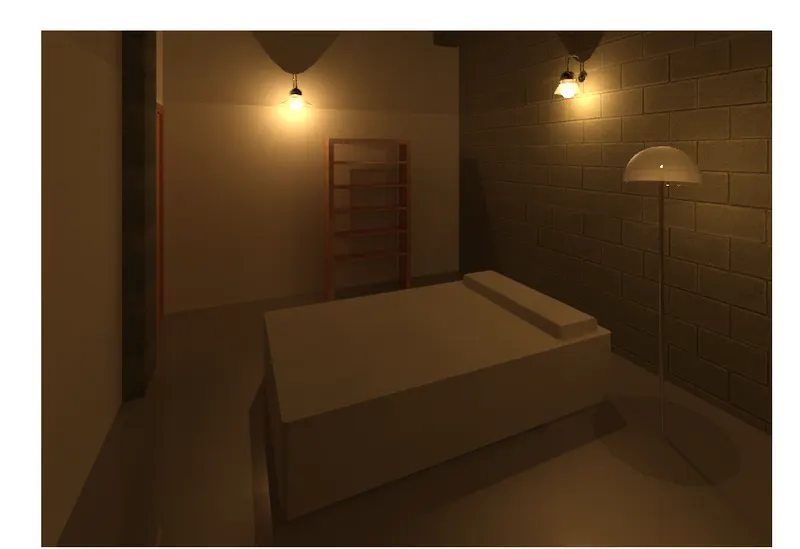

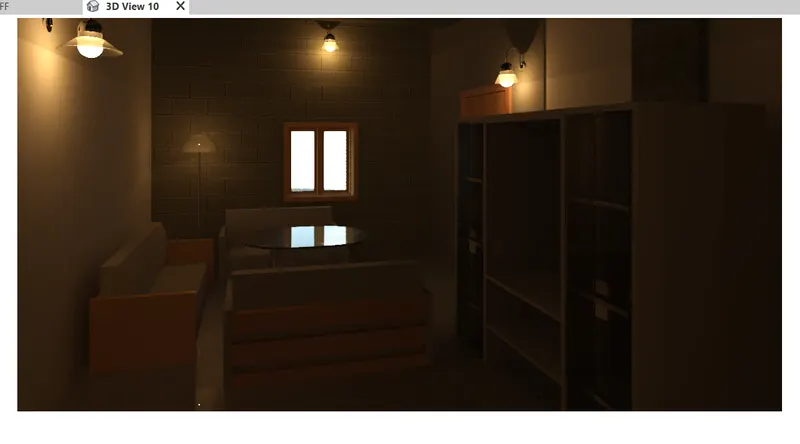

a. Rendering from interior rooms

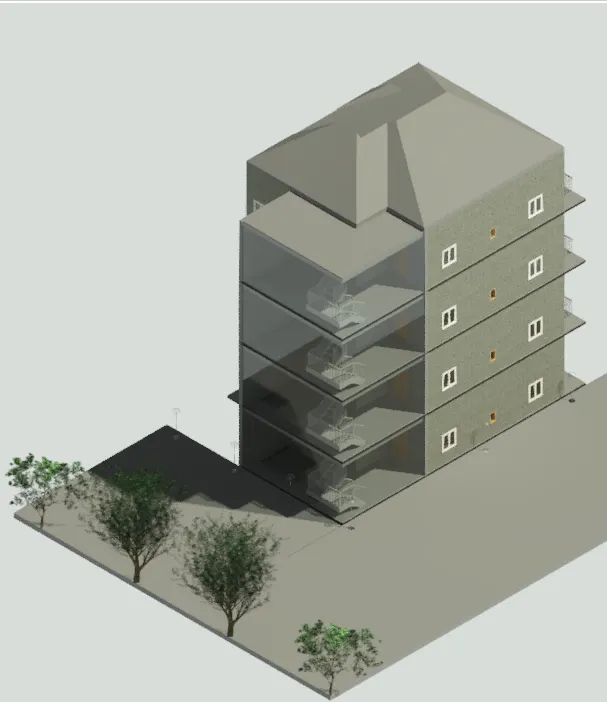

b. Rendering from out showing topographic features

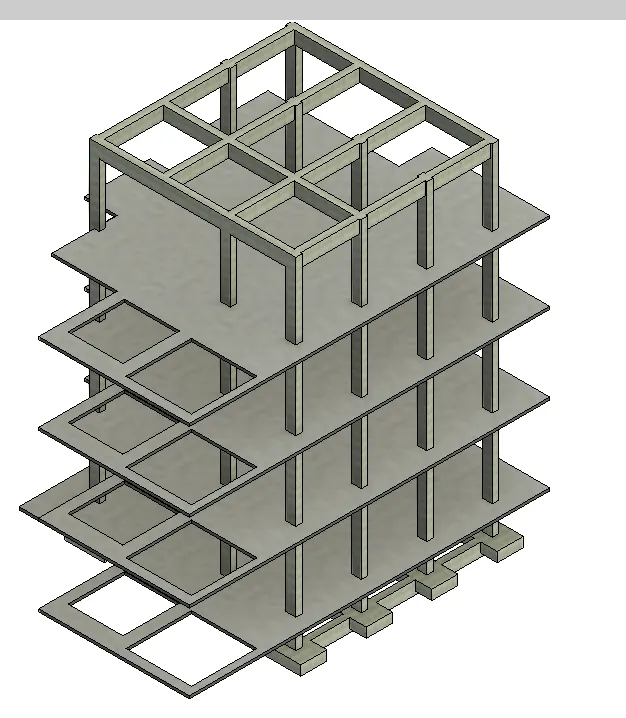

c. Rendering through structural framing
Results:-
7) Print the set of drawing sheets created and submit the drawings from architecture and structure model
Aim:- Print the sets of drawing sheets and submit for execution at site
Results:-
