Creating Architectural and Structural model with 3D rendering using REVIT
Q1) Ans:-
From the above option of the structure to be build i choose multi unit residential appartment.
Q2) Ans:-

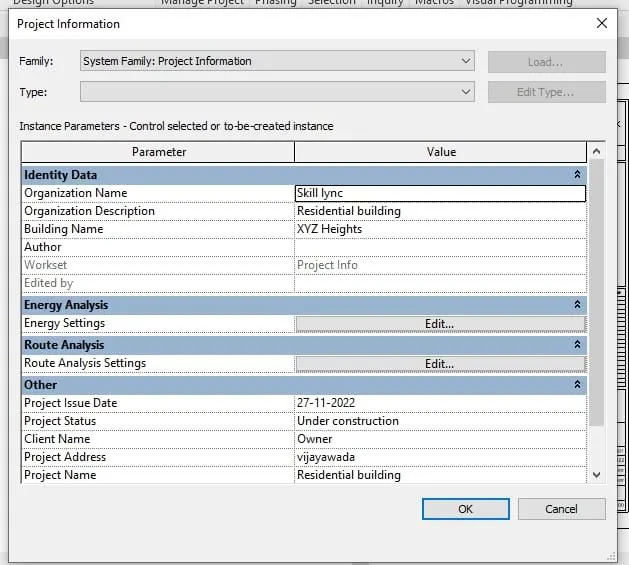

The geographic and location details for your project modelling. Based on assumption of multi unit residential appartment.
Identify the modelling requirement from the NBC.
1. As the above mentioned by the building comes under the residential category and is suituated in medile of city.
2. The road width of the projects is 60 feets.
3. The height of the projects is 40 feets.
4. The height, area limitation and safety measure are followed by the NBC 2005.
5. The project height in meters is 12.2 meters and the road width is 18.02 meters, the height of the building should't exceed 1.5 times width of the road.
6. In case of building height is not exceed, so it is suitable for contraction.
Q3) Ans:-
AIM:
To using the structural model, include the following components based on the type of structure like wall, windows doors foundations, beams etc.
PROCEDURE:
1. Open a architectural template in revit software and save it as residential building- arch001.
2. Then draw the grid lines and specify coordinate as 0'0'' for both horizontal and vertical grids lines.
3. Click the collaborate and save the projects.
4. Next open a new structure template, save it as residential building- STRC001.
5. Repeat step 2 and 3, same process and save the file.
6. Create a new architectural template and add the architectural and structural links using manage the links options.
7. Select the acquired coordinate and set links to the current coordinates.
8. Now start drawing the structural components of the projects in structural template.
9. Draw the vertical and horizontal grid lines, and also set the levels. foundation, ground floor, first floor, second floor, third floor and roof levels are created.

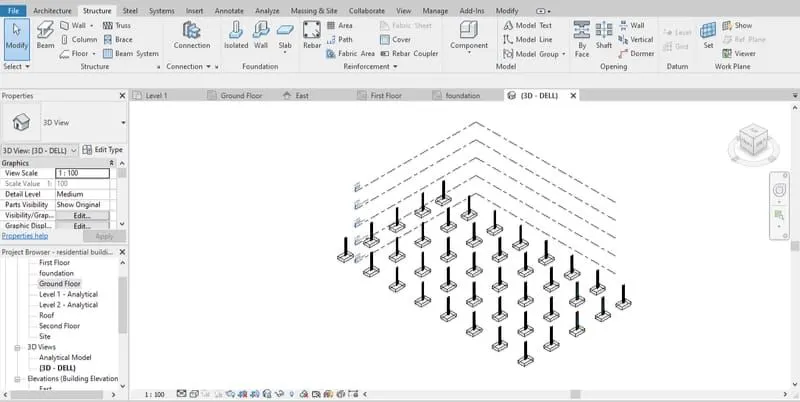

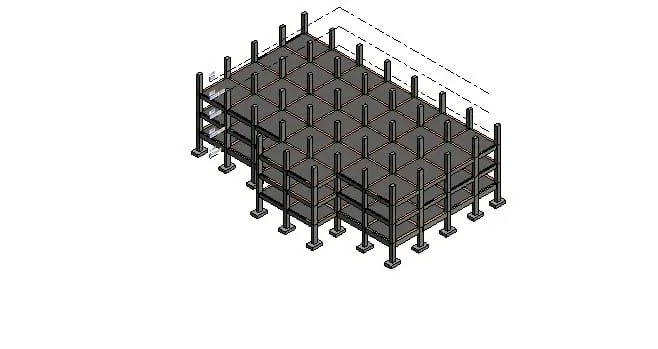

10. Select columns option from the structural tab and draw the columns intersection point of the grids.
11. React the same process, draw the structural components foundation, beam, floor, and save the projects to the central file.
Q4) Ans:-
AIM:-
To using the architectural model, include the following components based on the type of structure selected above.
PROCEDURE:-
1. Now go to architectural template which has created before in this file.
2. Copy the grids which were created in the previous structure template and copy it.
3. With the help of paste from clipboard option paste the grids in the architectural template.
4. Select the grids and pin it.
5. Click the elevation and create the levels required from architectural tab.
6. Click virtual graphics setting and select custom in annotation off the grids.

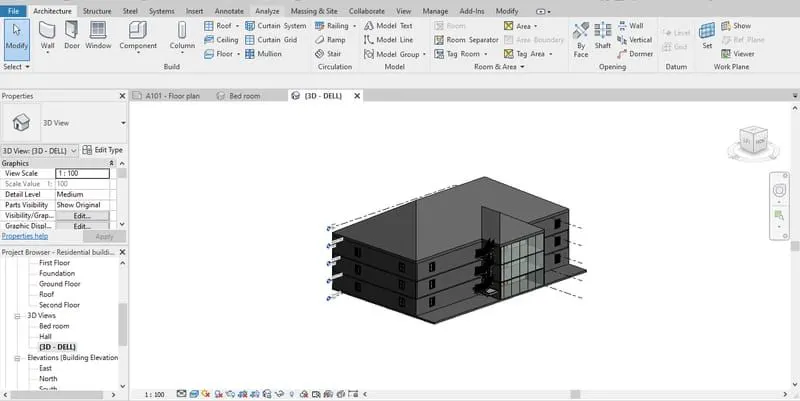

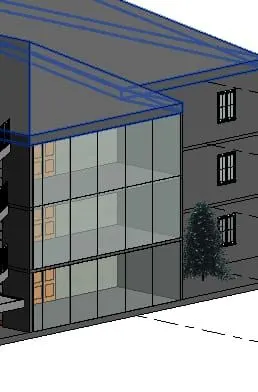

7. Now, start create the exterior wall on grids lines.
8. And then, floor tool add floor to all levels of projects.
9. By the way same doing in wall also,
10. Add stairs to all levels in it.
11. To created the staircase add railing system in it.
12. Add windows, doors to the walls.
13. Then, load the load families in the components required for the projects and add them in the drawing them in the load family.

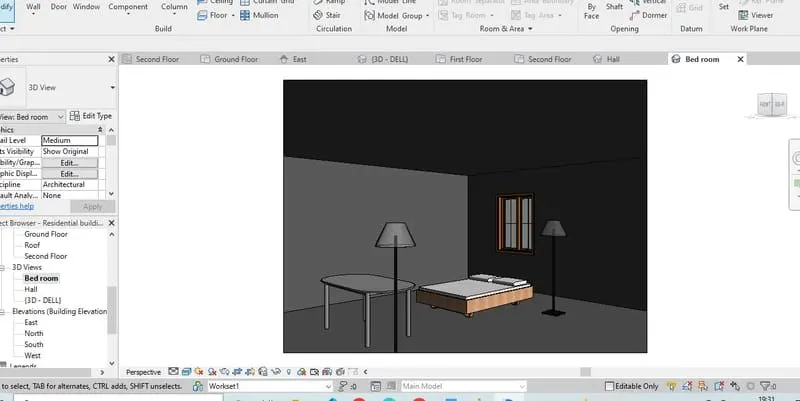

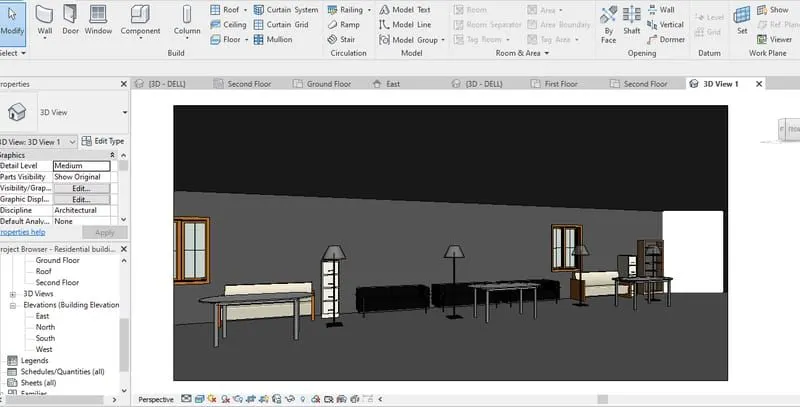

14. Set the camera in all rooms toview the pictures in realistics, of building.
15. Save the project and changes will done in the architectural template will be save to be centralised files.
Q5) Ans:-
Provide a set of drawings in an architectural and structural model to list the following details with categories and appropriate sheet templates included

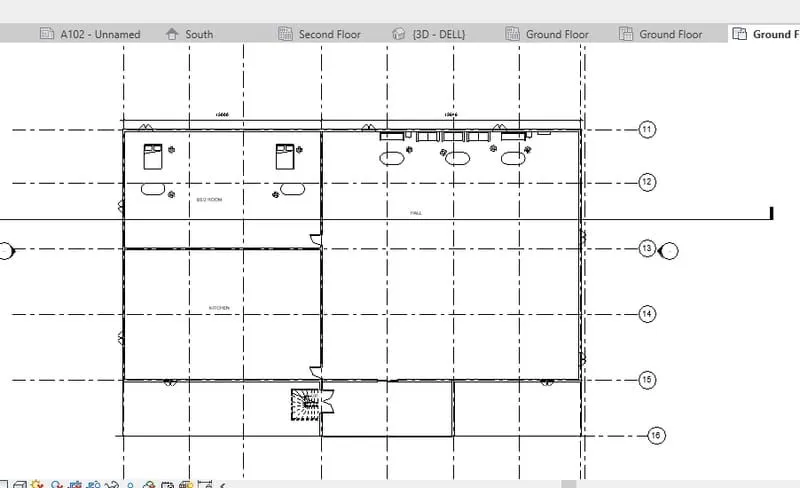

a. Floorplans with annotations

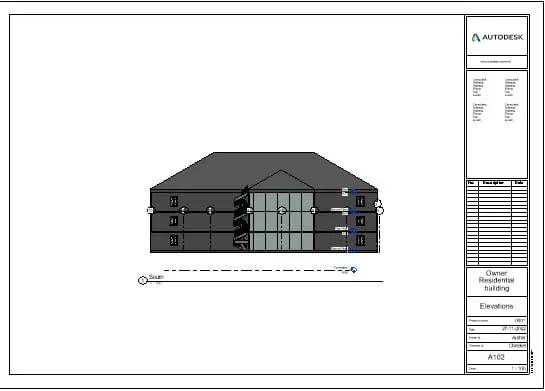

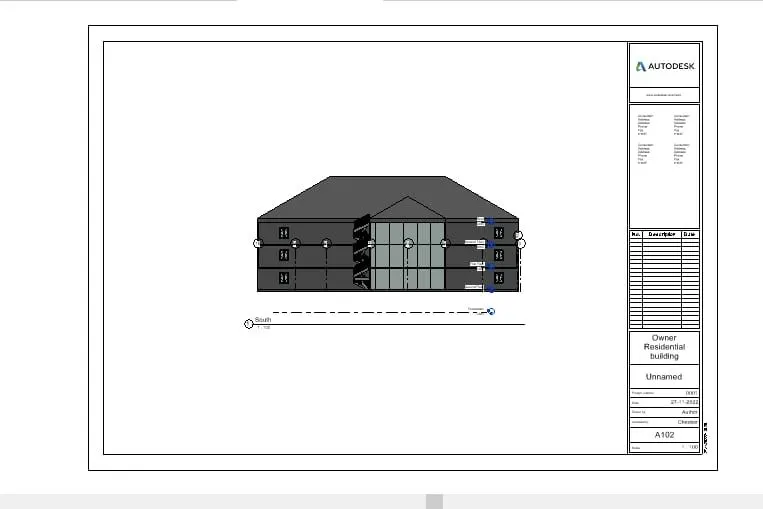

b. Elevations

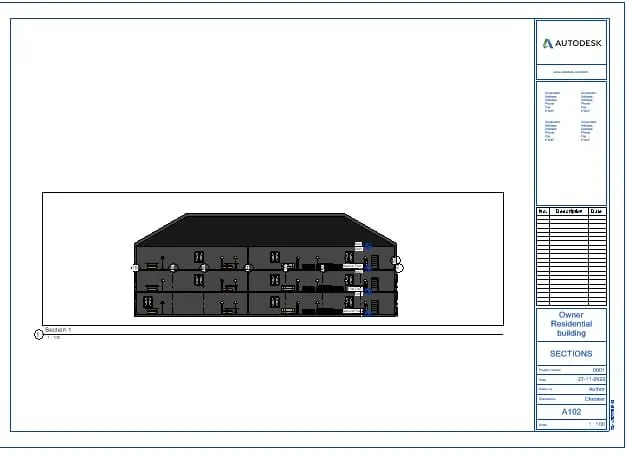

c. Sections.
ANS:
AIM:
To Provide a set of drawings in an architectural and structural model to list the following details with categories and appropriate sheet templates floor plans, elevations, and sections.
PROCEDURE;
1. open view tab and select sheet tool.
2. sheet dialog box will appear then, press A1 metric and click ok.
3. rename the sheets by doubl clicking on the name and use appropriate names to the sheet.
4. Go to the insert tab and select on load image option.
5. Then, add image into our sheets and then save it.
6. Repeat the same process and add the structural and architectural models into the sheets.
7. Add the floor plans, elevation plans and sections also with the same steps into the sheets.
Q6) Ans:-

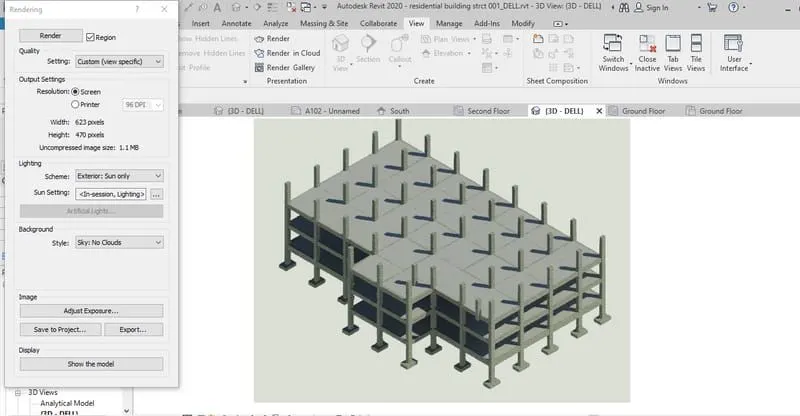

Using the rendering settings, render images of the 3D model produced and include the rendered images to the drawing sheets
a. rendering from interior rooms

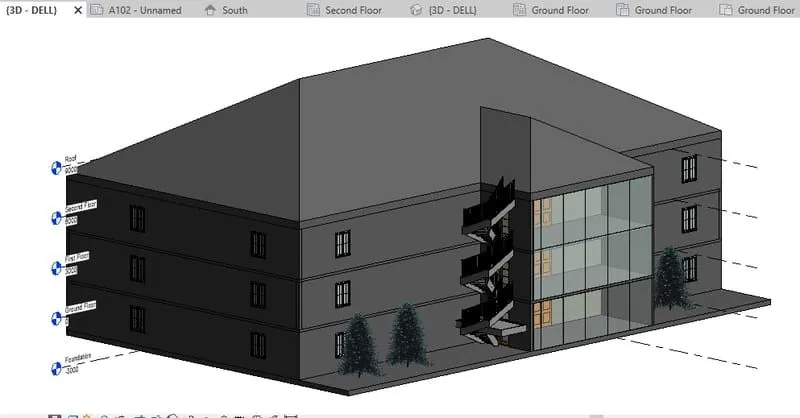

b. rendering from out showing topographic features
c. rendering throgh structural framing
AIM:
to using the rendering settings, render images of 3D model produced and include the rendered images to the drawing sheets.
Procedure:

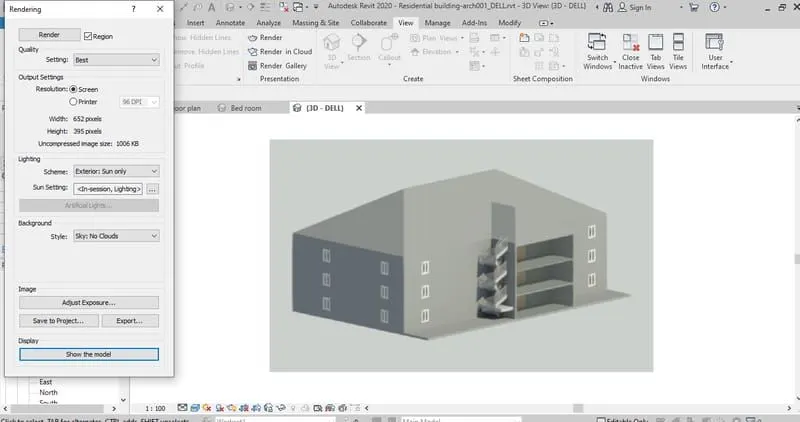

1). open 3D view and set the view to take the picture where, we want to render the area.
2). then, click view menu and click render option.
3). render dialog box are appears.
4). select region option and crop the image in region.
5). Then, we can change the style of render images, schemes, lighting option and finally, click render in it.
6). Then the rrender image will be appears into more realistic than other and it can used to better presentation of our clients also.
Q7) Ans:-
Print the set of drawing sheets created and submit the drawings from the architecture and structure model.
PROCEDURE:
1. Click the views and open file menu and click the print.
2. Print dialog box is appear.
3. Then, change the settings of sheets size,texts styles page setup everything.
4. Then click print and press ok.
