Creating Architectural and Structural model with 3D rendering using REVIT

1) Select the type of structure you want to build from one of the three below:
a. Multi-Unit Residential Apartment
b. Office Buildings
c. School

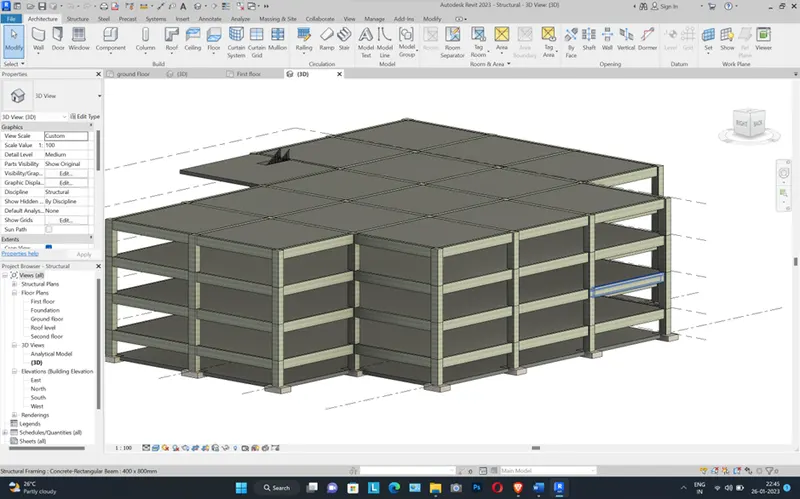

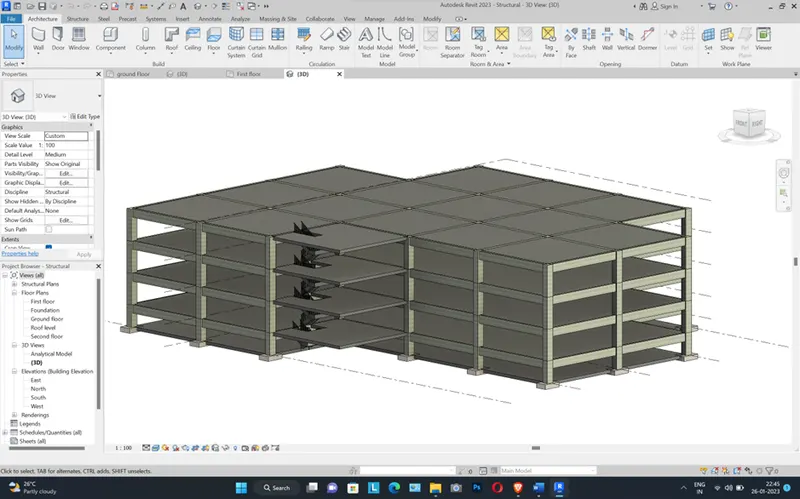

I have choosen Office Building

Aim:

To determine This is the Office building with concrete structure

Introduction:

This office building G+2 is build at the area of 13501 ft² is drawn in the Autodesk Revit software

Procedure

• This office building G+2 is build at the area of 13501 ft²
• This is concrete structure building
• In this structure of building there 25 isolated footing is provided with the size of 4’ x 6’ and the thickness is 1’6”
• Column Structure of building there 25 columns is provided with the size of 2’ x 2’ upto the roof level
• Span beam Structure of building is provided with the size of 1’6”’ x 2’ in all level of the building
• The building Ground floor level is 10’ and all the levels are in same height’
• All the floor are concrete flooring in the thickness of 6” in all the levels
• Height of the foundation is 8’
• There are fire exit stairs are provided

Result

The office building is Drawn and completed by Revit software

2) Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions and type of structure selected identify the modeling requirements from NBC

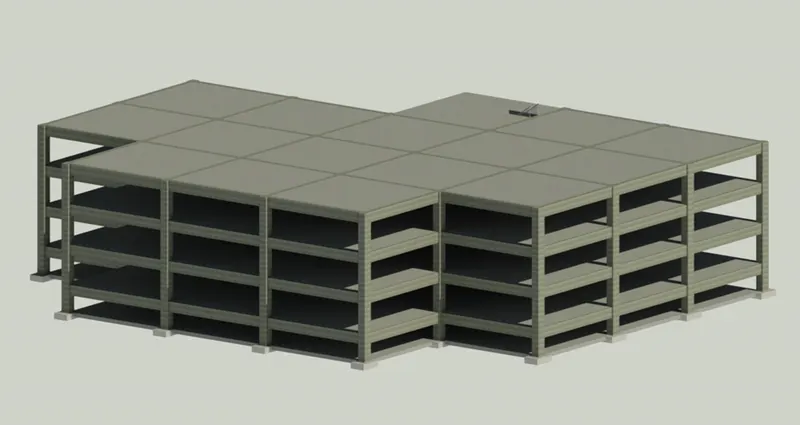

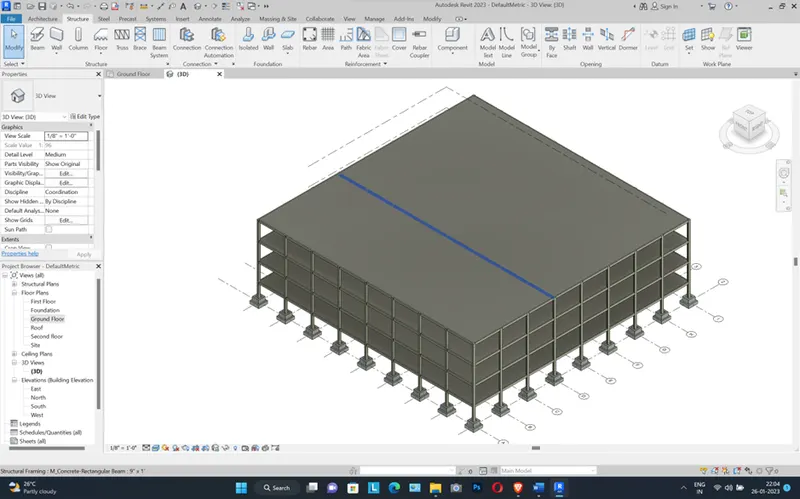

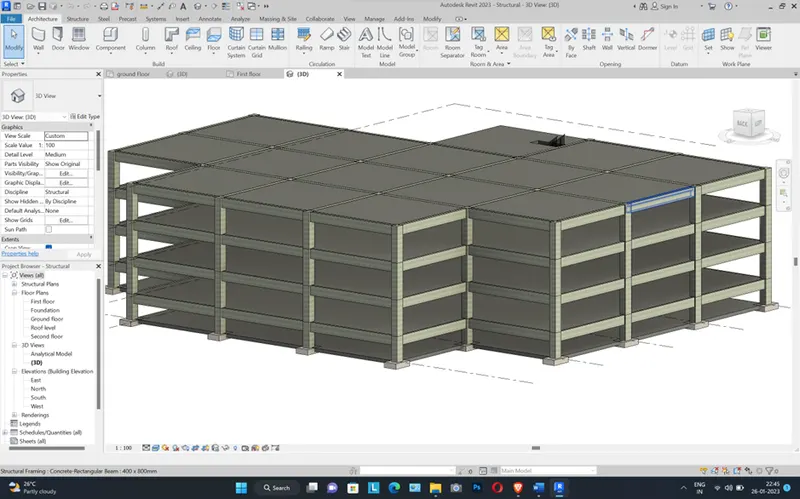

3) Using the structural model, include the following components based on the type of structure selected
a. Foundation – Isolated / Wall/Matt Foundation
b. Columns
c. Beams Connected to Columns
d. Roof Framing/ Truss
e. Floor / Decks

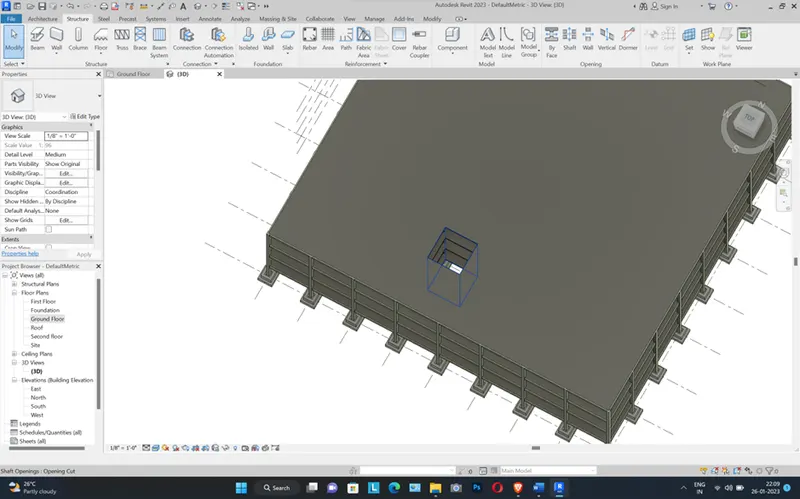

f. Floor Openings for Elevators and Stairs

Aim:

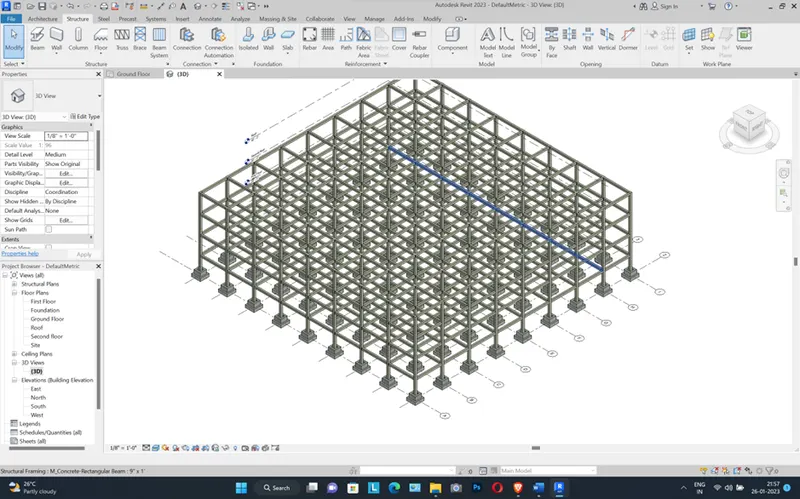

To determine This is the school building with concrete structure

Introduction:

This school building G+2 is build at the area of 1337 m²

Procedure

• This school building G+2 is build at the area of 1337 m²
• This is concrete structure building

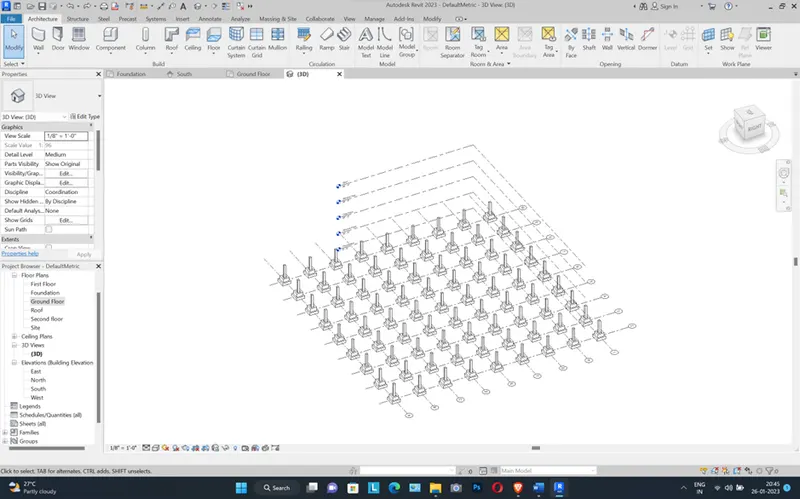

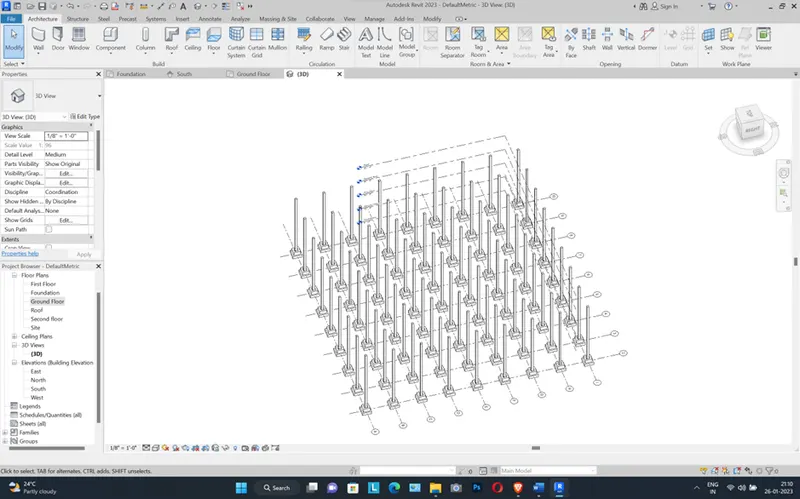

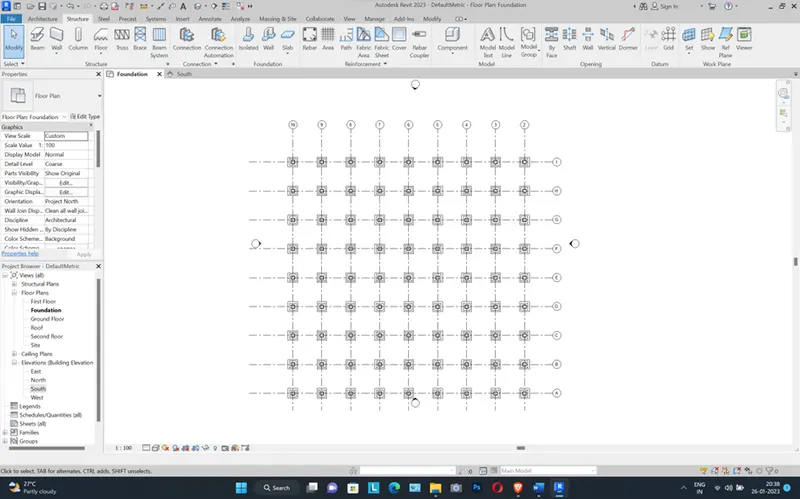

• In this structure of building there 72 isolated footing is provided with the size of 4’ x 6’ and the thickness is 1’6

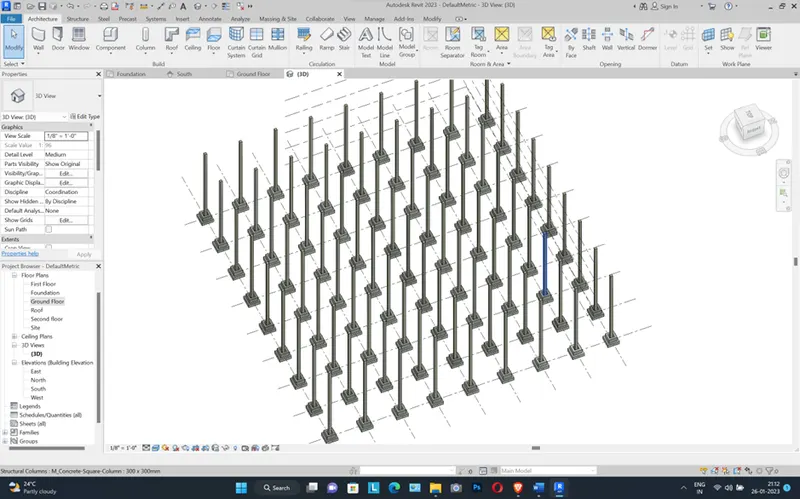

• Column Structure of building there 72 columns is provided with the size of 1’ x 1’ upto the roof level
• Span beam Structure of building is provided with the size of 1’ x 1’6” in all level of the building
• The building Ground floor level is 10’ and all the levels are in same height’
• All the floor are concrete flooring in the thickness of 6” in all the levels
• Height of the foundation is 8’
• There are fire exit stairs are provided

Result

The school building is Drawn and completed by Revit software

4) Using the architectural model, include the following components based on the type of structure selected
a. Wall Layout with appropriate material and finishing
b. Exterior façade with fancy finish
c. Interior partition walls to size rooms
d. Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)
e. Add components such as stairs Elevators
f. Have at-least one side of the building with curtain walls and glass panels
g. Include interior and exterior lighting fixtures
h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model

5) Provide a set of drawings in an architectural and structural model to list the following details with categories and appropriate sheet templates included

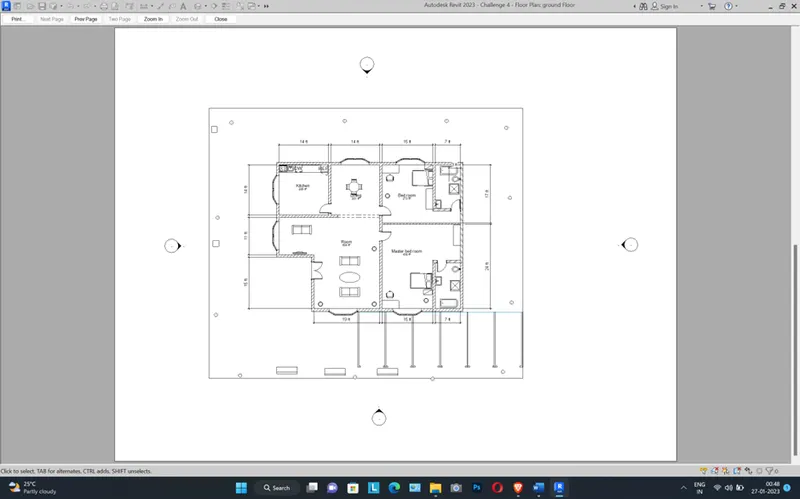

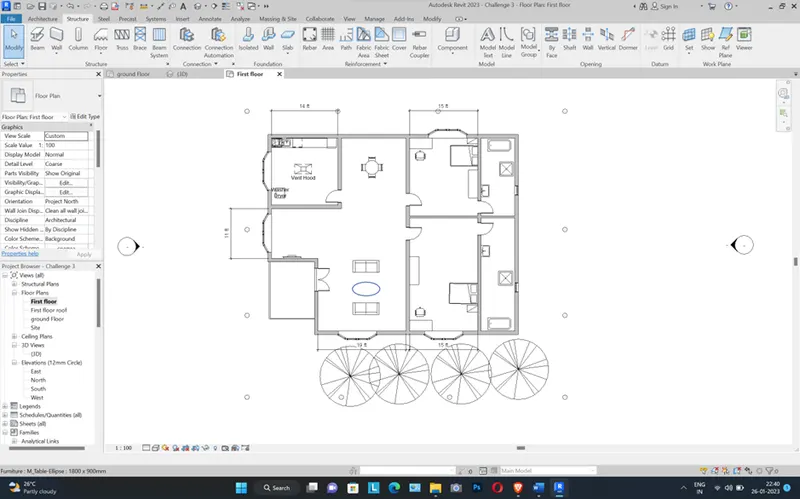

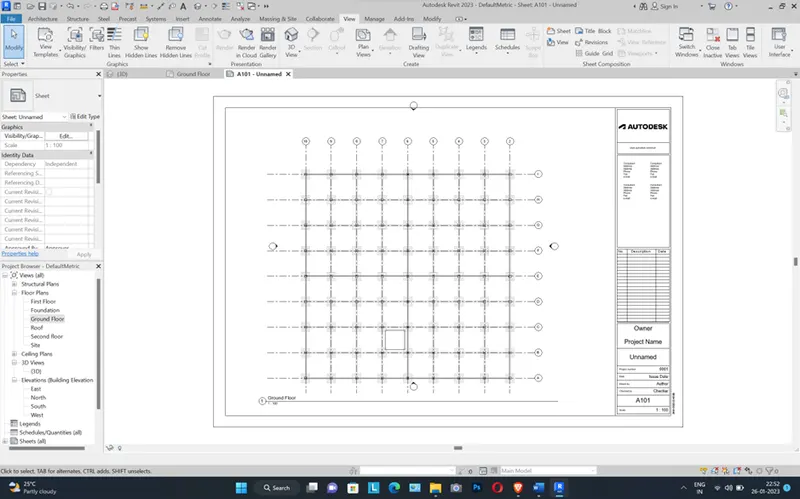

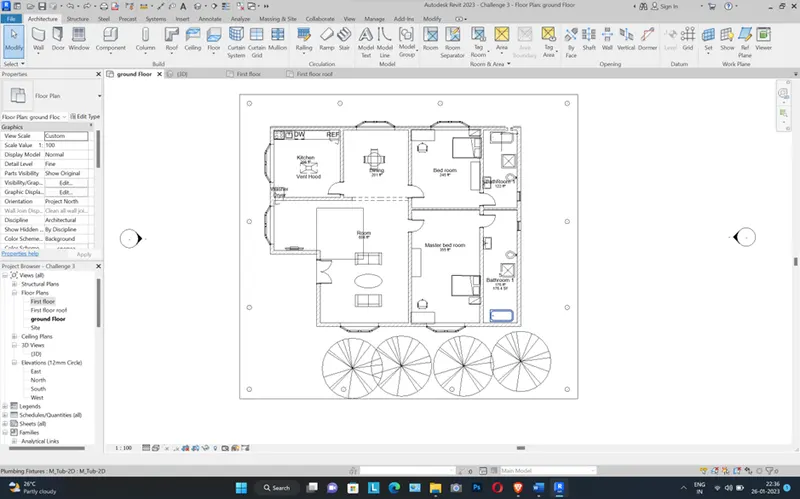

a. Floor Plans with Annotations

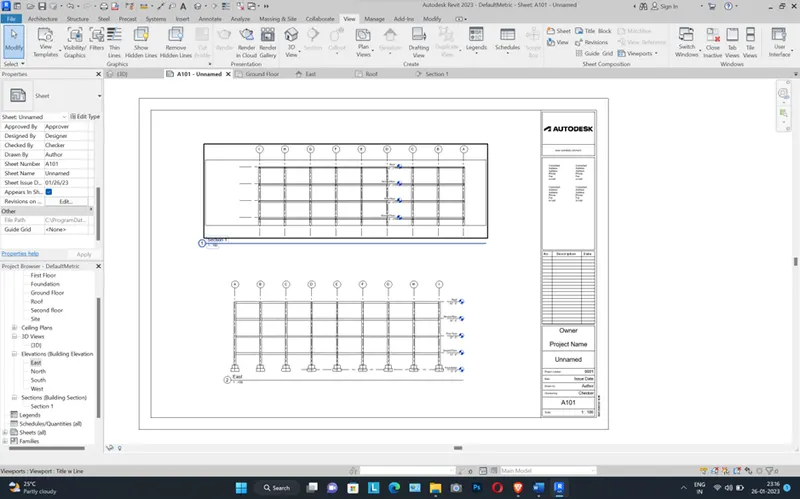

b. Elevations
c. Sections

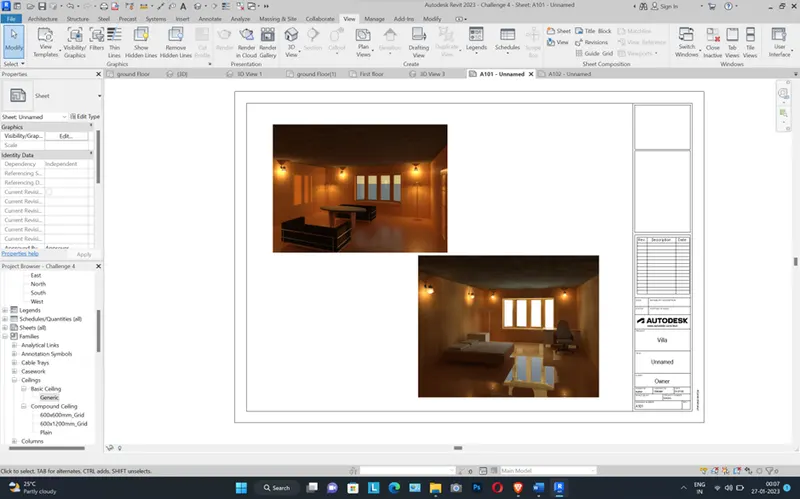

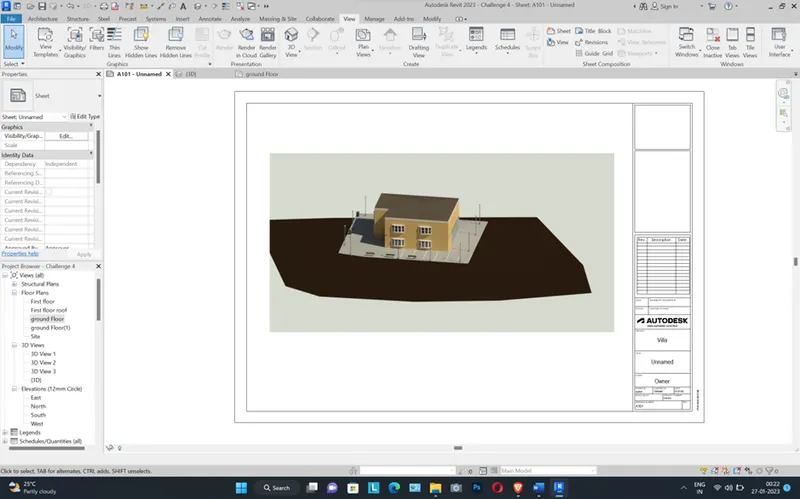

6) Using the Rendering settings, Render images of the 3D model produced and include the rendered images to the drawing sheets
a. Rendering from interior rooms
b. Rendering from out showing topographic features

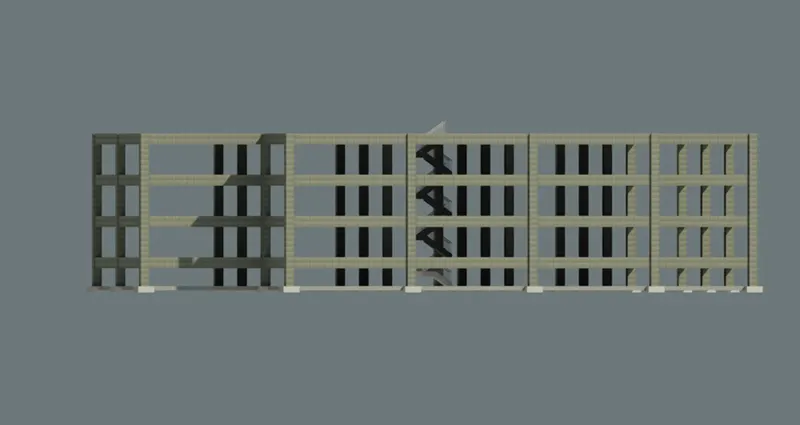

c. Rendering through structural framing

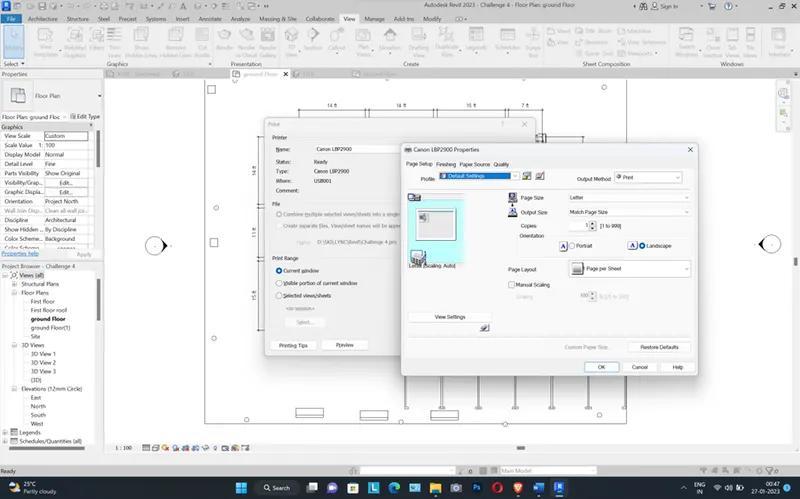

7) Print the set of drawing sheets created and submit the drawings from the architecture and structure mode
