Creating Architectural and Structural model with 3D rendering using REVIT
1. ANS:
As per the given options in the question iam opting for multi unit residential apartment.
2. ANS:
For geographic location details assumptions which i have made are:
1). My project is in residential area ( medium populated).
2. Road width in front of my apartment is 60 feet.
3. My project is in plain area ( geographical ).
As per the NBC
Height limit as per FAR calculation and as per NBC table 5 V-1.
Min length and width of rooms as per NBC V-1.
FIRE AND SAFETY FROM NBC PART IV .
3. ANS:
AIM:
Make a project using structural model and include the following components,
COMMANDS USED:
Grids.
Levels.
Columns.
Isolated foundation.
Beams.
Floor structural.
Shaft for lift and stair case.
PROCEDURE:
Open a new file in structural template and save it with a appropriate name.
Select collaborate and do the collaborate and make it as a center file.
Select structural and select grids and draw grid in horizontal and vertical.

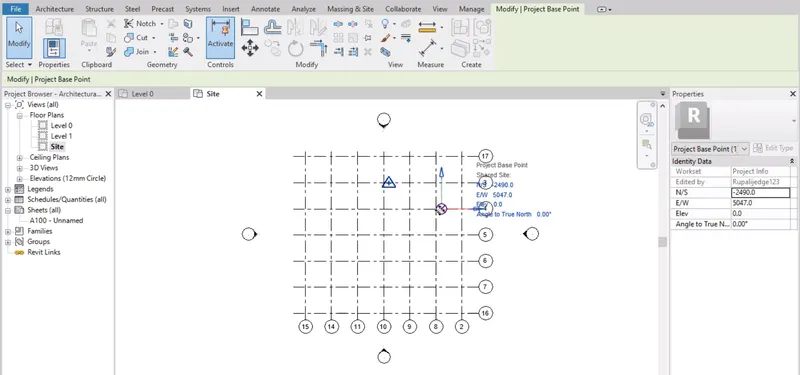

Select the manage tab and select coordinate and select specify coordinate.
Specify the coordinate as 0'0" in both the grids and pain it.
Save it.
Open a new template as architectural template and save it with a appropriate name.
Select collaborate and do the collaborate and make it as a central file.
Select architectural and select grids and draw inhorizontal and vertical.
Specify manage tab and select coordinate and select coordinate.
Specify the coordinates 0'0" in both the grids and pin it.
Save it.
Select the manage link and link the structural template in the architectural.
Both the grids will appear.
Select the manage tab and accquire the coordinate of the linked grid.
Select the relocate project and select the grid and over lap them now its good to go.
Save it.
Open the structural template.
Draw the grids at equal interval in both X axis and Y axis.
Select the elevation plan and draw the levels as 12' from one floor to another.
Select the floor plan and draw the floor plan as per the drawing or your building structure and copy it till roof.

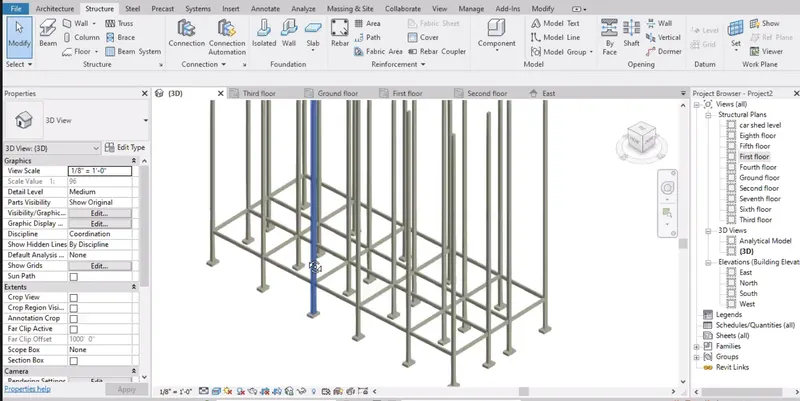

Select the columns at grids and draw columns in properties tab select the column property and size.

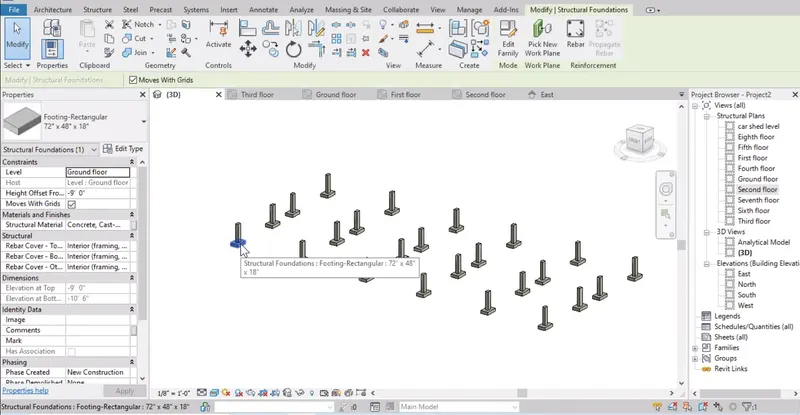

Select the footing and draw footingd at the columns.

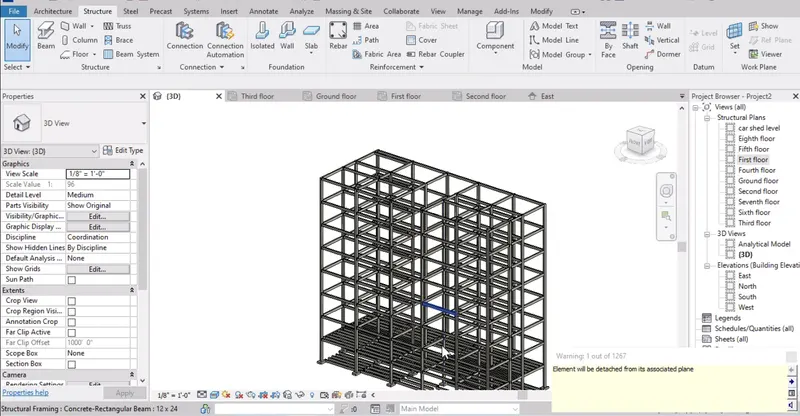

Select the beams and draw beams connected to the columns and select the contraint to first floor from ground floor as beams are at top of the floors.
After making beams and columns red line will show that is analytical which can be off by pressing vg and select custom and select annotation and off the analytical.

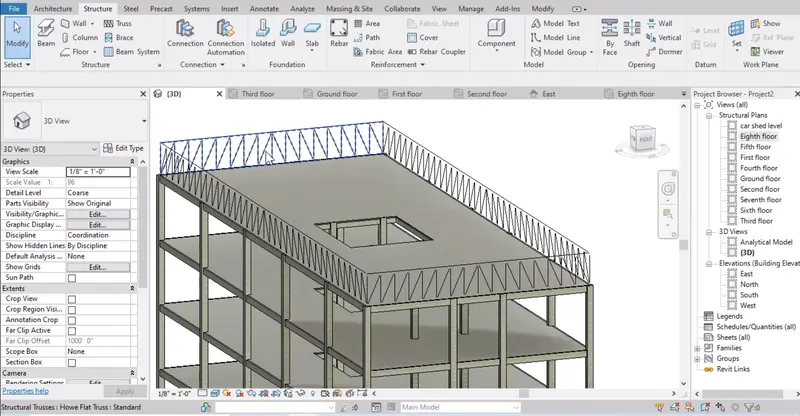

Select the shaft for lift opening and staircase opening.

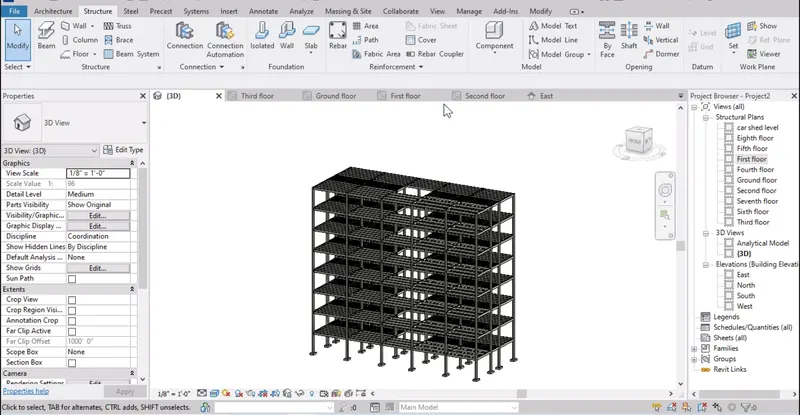

My structure framing plan is ready.
RESULT:
In result i have shown analytical part of the building too as it in structural template revit creates it automatically.
4. ANS:
AIM:
Using architectural template create the walls facade and other components of the building and give a complete byulding look with all the components.
COMMANDS USED.:
Walls.
Material.
Partition wall.
Components as desk, chair lights etc.
Stair.
Ceiling.
Roof.
Windows.
Doors.
Railing.
PROCEDURE:

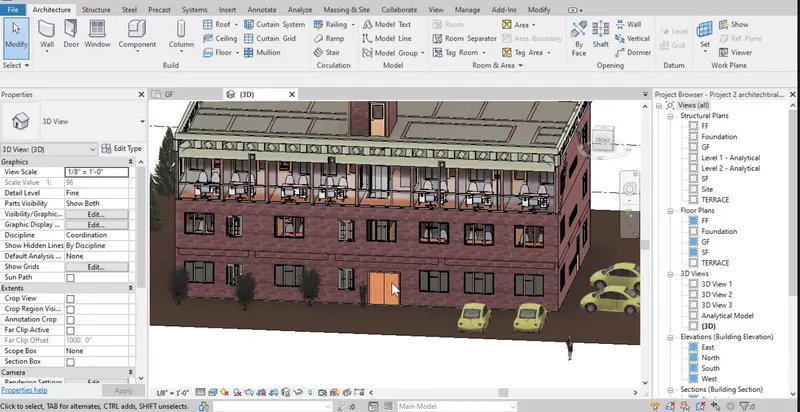

Open the architectural template and we will see all the grids in the template which we made it in structural template.
Select the copy monitor tool and select copy and select the grids.
Go to vg setting and select custom in annotation off the grids.
Now we will see the grids of architectural only.
Select the elevation and do the same as of grids to levels.
Select and pin it.
Select the exterior wall and draw the walls in the ground floor.
Go to the 3D view and select top constaint to roof.
Select the wall near the staircase area and in property tab select glazed wall.
Select the GF plan and select the partition wall and draw the rooms, kitchen, toilets, etc.,
Select the door and draw the doors wherever required.

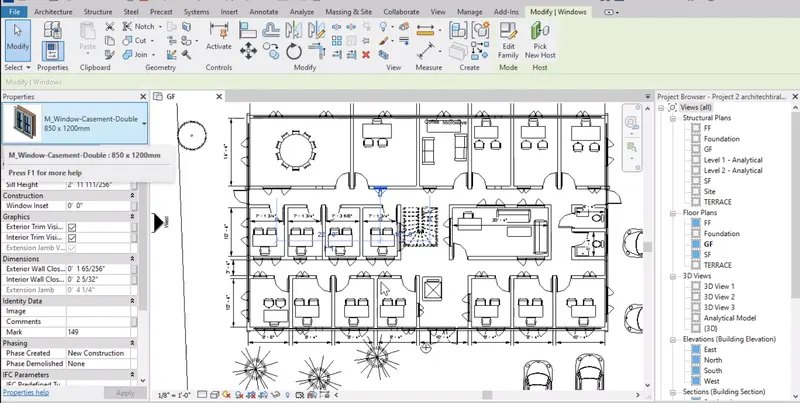

Select the window and draw the windows where ever required in property tab we can select type of windows.
Select all the doors and windows and select copy and paste it to selected level till roof.
All the doors and windows are made.
Select the ceiling and draw ceiling in the ground floor by selecting walls click the tick button.
Copy all the ceiling and paste it to selected level.
Select the wall properties and select type of wall to be used.
Select the FF plan and select railing and draw railing in the balconies.
Select the insert command and select the family and select the components as beds, tables, lights, plumbing fixtures etc.,
Select the add the component and select the component and add it to its appropriate place.
Select the roof and select roof by walls and draw the roof.
Select the component of trees and place it at the exterior portion of the building.
RESULT:

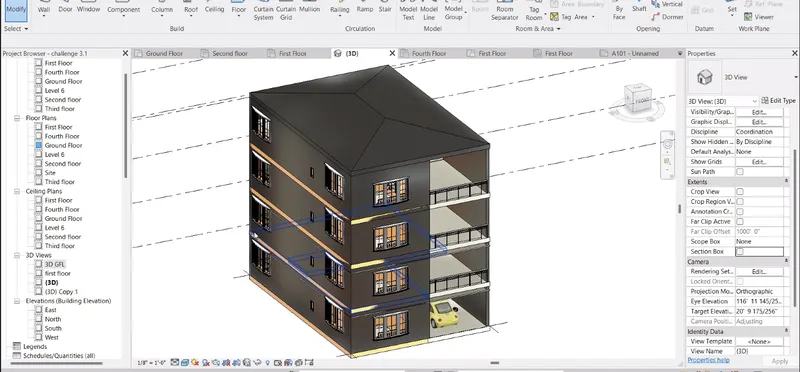

Using the architectural template create the walls, facade and other components of the building and give a complete building look with all the components.
5. ANS:
AIM:
Use proper sheet templates for the set of drawings.
COMMANDS USED:
Sheets.
Edit sheets.
PROCEDURE:
Select the view tab and select sheet and load it from the family.
Double click and edit the sheet and load it in the project.
Drag the plans, elevations, section in the sheet and rename the sheet and drawing the number and name as per the requirement and save it.
RESULT:
Use the proper sheet templates for the set of drawings.
6. ANS:
AIM:
Render the 3D images.
COMMANDS USED:
Render.
PROCEDURE:
Select the 3D images og the interior rooms, exterior and structural framing and select the render and do the rendering.
Select the properties like exterior sun and artificial setting, clouds etc.,
RESULT:
RENDERING THE 3D IMAGES.
7. ANS:
AIM:
Print the sheets of drawing sheets and submit for execution at site.
COMMANDS USED:
Print.
Setup page.
Select the plotter.
PROCEDURE:
Select the views and click print option.
Adjust the setting of the page and print the drawing sheets.
RESULT:

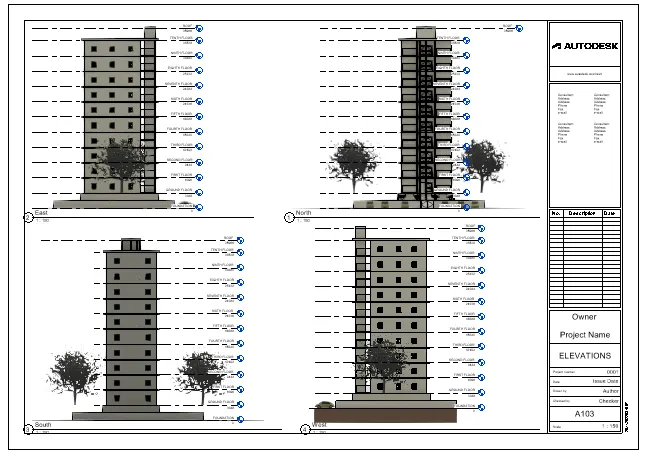

P.S. I have not printed the sheets as i don't have printer/plotter installed so iam attaching the image of the sheets.
As i have not attached all the sheets i have just attached 3 to 4 sheets from both architectural and structural just to show how the prints will look like explain neatly step by step.
