Creating Architectural and Structural model with 3D rendering using REVIT
1.
AIM:
Select the type of structure you want to build from one of the three below:
a. Multi-Unit Residential Apartment
b. Office Buildings
c. School.
ANS) OFFICE BUILDING
2.
AIM :
Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions and the type of structure selected identify the modeling requirements from NBC.
PROCEDURE :
my project is in a plain area.
it is in a commercial area.
MODELLING REQUIREMENTS FROM NCB ARE:
an exit must be provided in every building so as to permit the safe escape of employees
in case of earthquake or fire hazards.
3.
AIM:
Using the structural model, include the following components based on the type of structure selected
a. Foundation – Isolated / Wall/Matt Foundation
b. Columns
c. Beams Connected to Columns
d. Roof Framing/ Truss
e. Floor / Decks
f. Floor Openings for Elevators and Stairs
PROCEDURE:

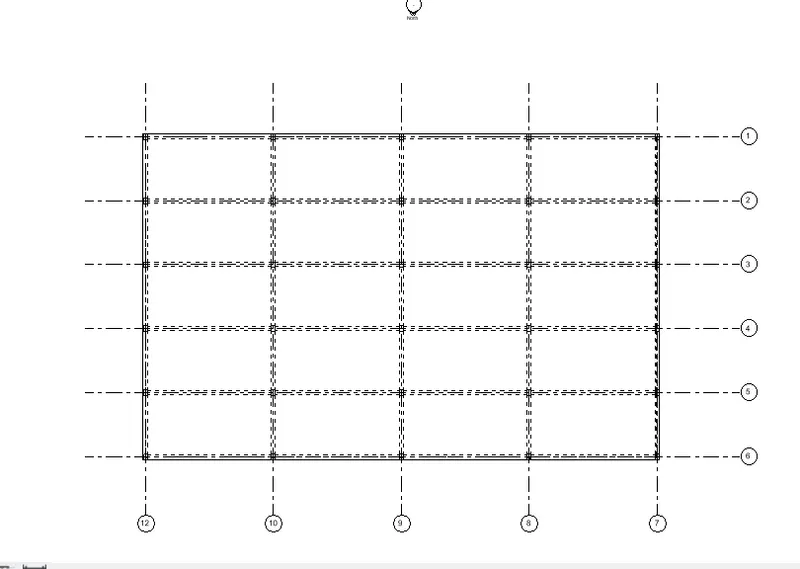

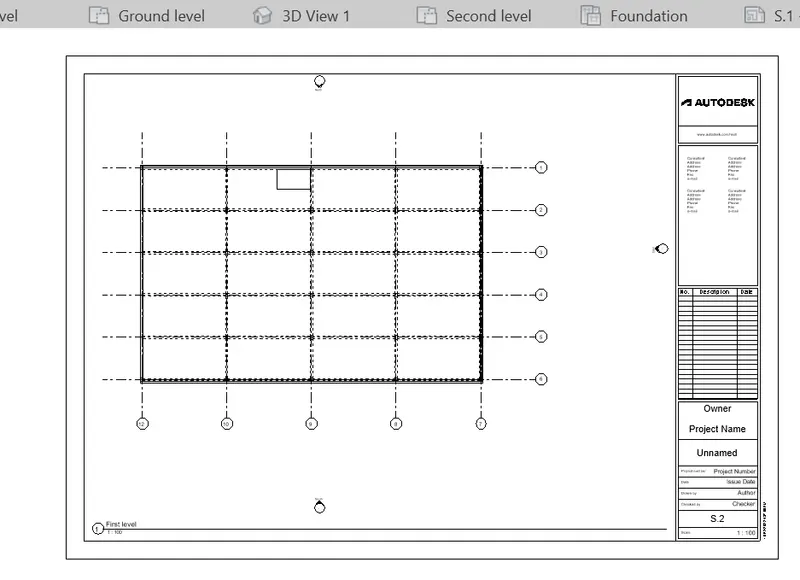

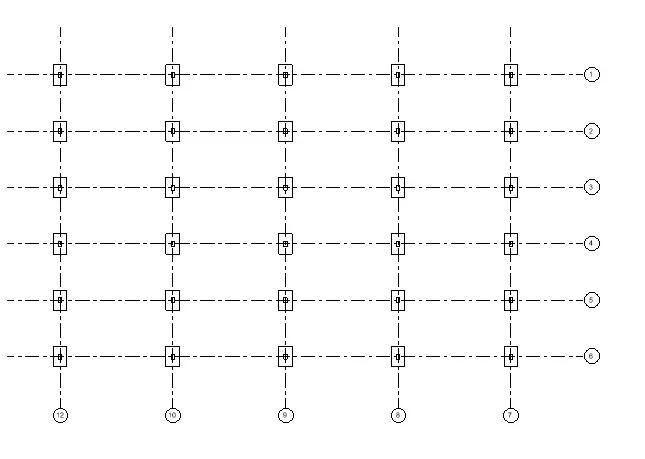

open Revit and make horizontal and vertical grids at a spacing of 30' per lb.

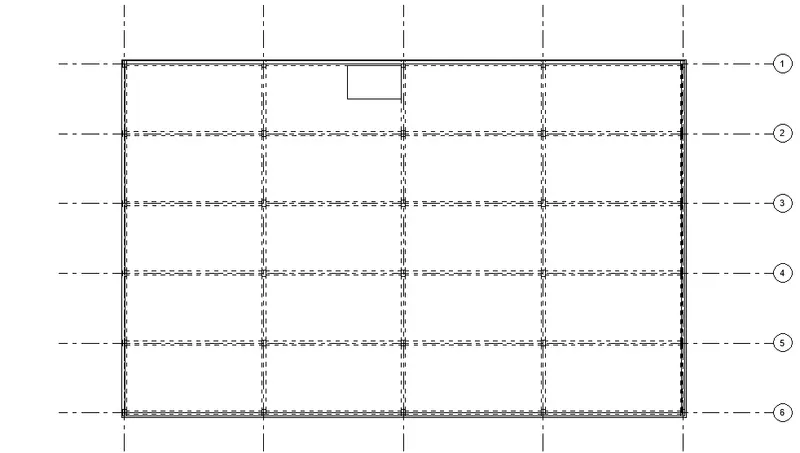

Roof:
4.
AIM :
Using the architectural model, include the following components based on the type of structure selected
a. Wall Layout with appropriate material and finishing
b. Exterior façade with fancy finish
c. Interior partition walls to size rooms
d. Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)
e. Add components such as stairs Elevators
f. Have at least one side of the building with curtain walls and glass panels
g. Include interior and exterior lighting fixtures
h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model.
PROCEDURE:

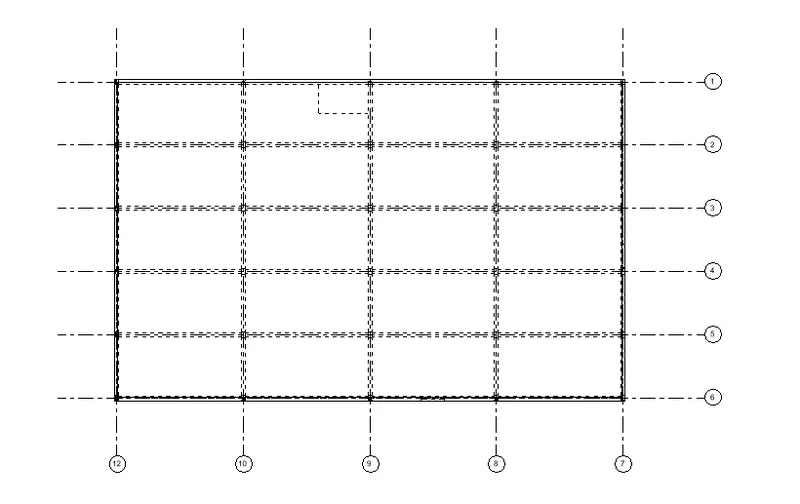

with the same grids drawn in the previous plan draw a wall along the boundary.
5.
AIM :

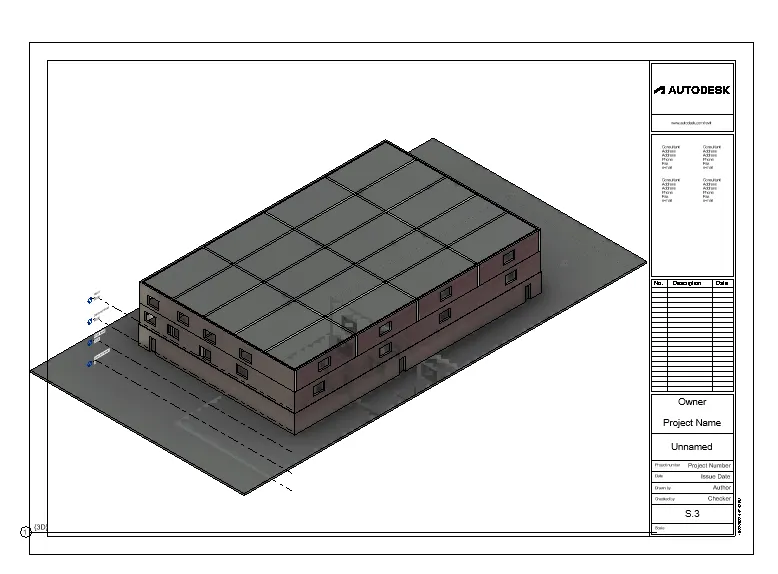

Provide a set of drawings in an architectural and structural model to list the following details with categories and appropriate sheet templates included
a. Floor Plans with Annotations
b. Elevations
c. Sections
PROCEDURE:

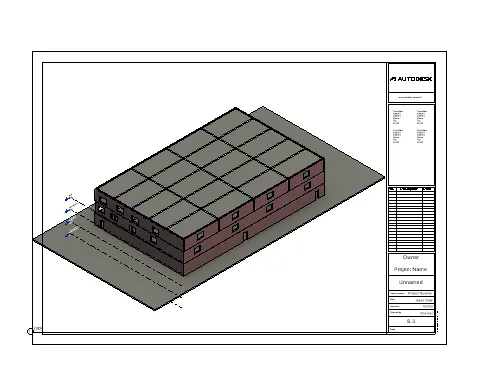

fo to the sheet option,as the sheet opens there is another option below it called views
and select the required view you want to place.
6.
AIM:
Using the Rendering settings, Render images of the 3D model produced and include the rendered images in the drawing sheets
a. Rendering from interior rooms
b. Rendering from out showing topographic features
c. Rendering through structural framing.
PROCEDURE:

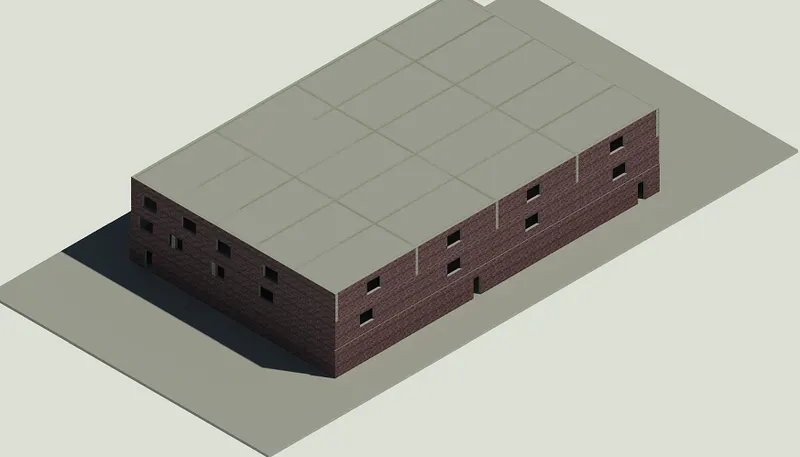

in order to render any figure go to the render option from the ribbon and change the settings you want
and click renders figure will turn to reality as shown below.
