Creating a Wardrobe detailed drawing, Floor Plan, Kitchen Layout and Column Detail using AutoCad

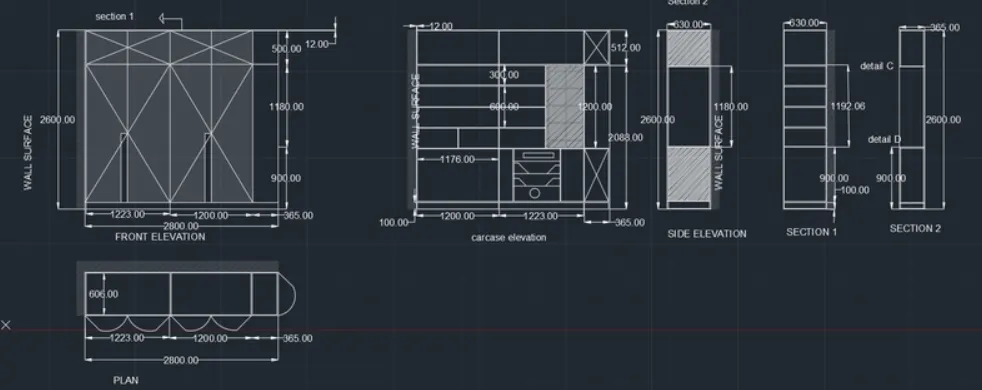

Q1. DRAWING NO. 1
AIM: To draw the elevation and details of a wardrobe as shown in the figure. After sketching, you need to provide the dimensions and text with the use of layers.
PROCEDURE:
STEP 1:
- Units are set to mm
- Limits and limax are also set
- Zoom command is also used
STEP 2:
- In the command line type rec>2800,2600
- In the command line type offset
- Offset from the top of the dimensions 12mm and 488mm
Step 3:
- In the command line type offset
- Create the offset from the side at the distance of 608.75 and 365
Step 4:
- In the command line type land by increasing the transperacy to create wall surface
- In the command line type gleader to mention the annotations
Step 5:
- In the command line type rec 630 x 2800
- In the command line type qleader to mention the annotations
- In the command line type rec> 2800 2600
- With the help of line command drawers and cabinet are created
Step 6:
- In the command prompt type rectangle and dimensions of 520 x 630 ,1180x630 ,900 x 630 repeated two times
- Using the command the next of lines are drawn
FINAL RESULT :

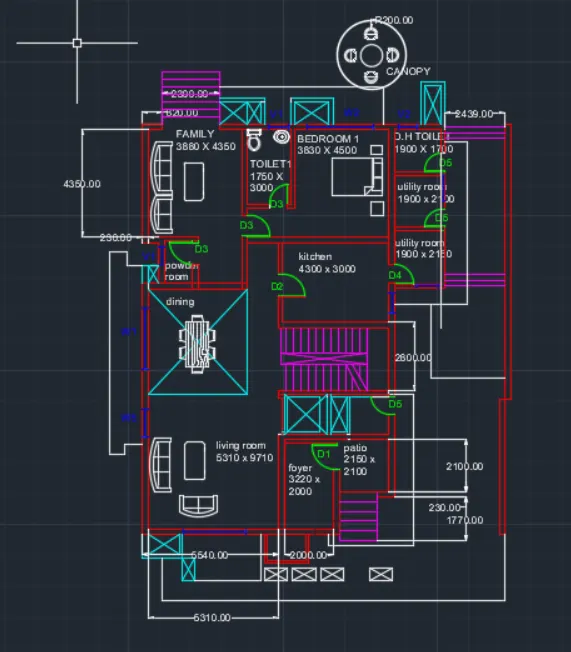

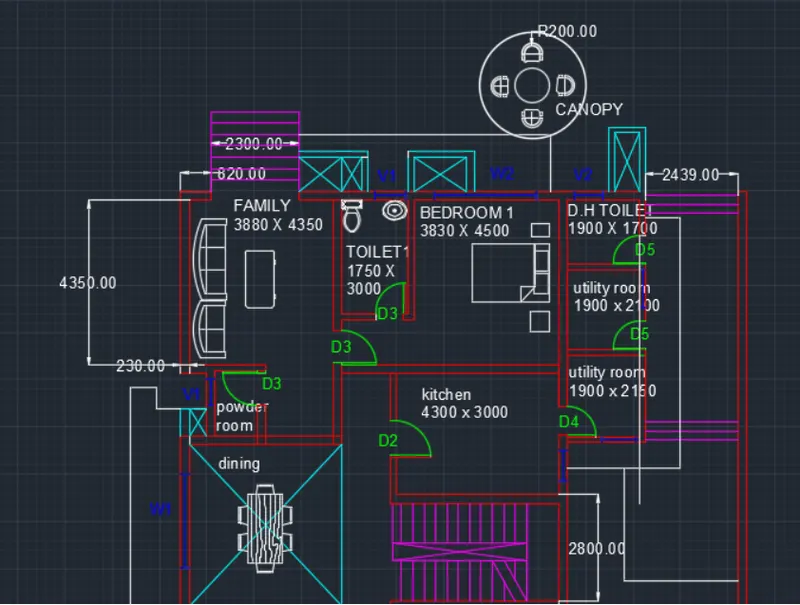

Q2.DRAWING NO. 2

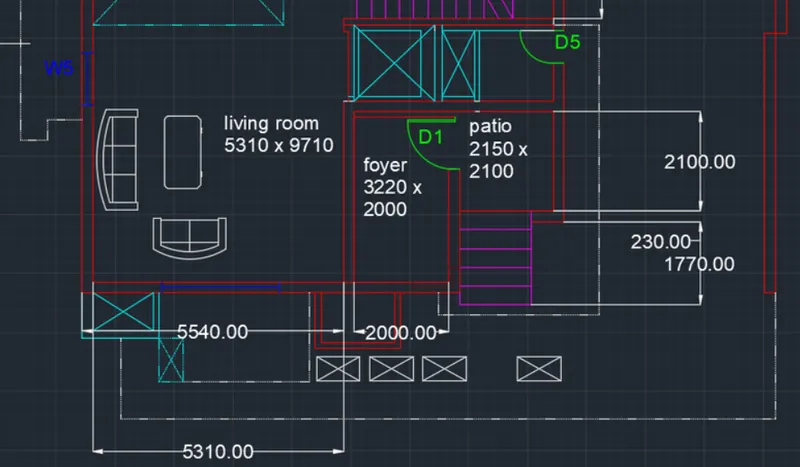

AIM: To draw the given floor plan
Procedure:
Step 1:
- Units are set to mm
- Limit and limax are also set
- Zoom command is also used
Step 2:
- In the command prompt type XL to draw the infinite lines
- In the command prompt type offset the line for a particular distance . Using are command doors are also created
Step 3:
- In the command line "ade" is typed to get components of the plan
- In the command line "line type is typed to get the dotted lines
- In the command Une "text" is typed to get the dimensions and annotations of the plan
To draw canopy :
Circle -
- In the menu bar click on circle center radius
- Specify the center point as 10,10 and radius 452
- In the menu bar click on circle> center radius
- Specify the center point same as the previous orcle and radius 1398
SEATS -
- In the menu bar click on rectangle or in the command prompt type rec specify the length of the rectangle as 662.3
- Specify the width of the rectangle as 298.0
- In the command prompt typu FILLET RADIUS-100
- In the menu bar-circle-2 point
- In the menu bara circle- center diameter
- Center is the indpoint of the line diameter is 777.2
- Now extend the center line and thin the extras
- In the menu bar dick fillet blend curves and select the arc
FINAL RESULT :

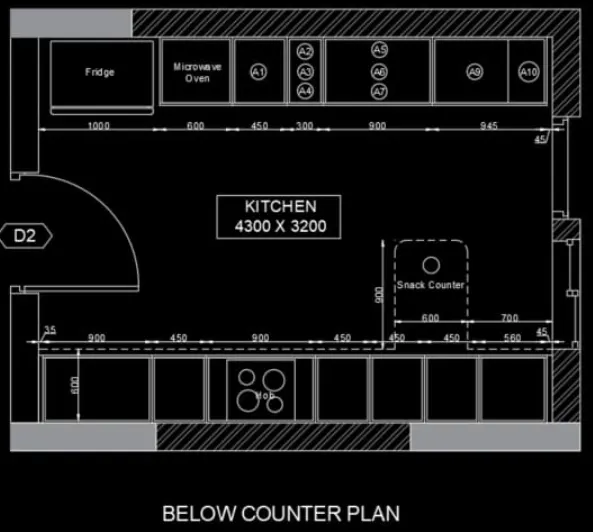

Q3.DRAWING NO. 3

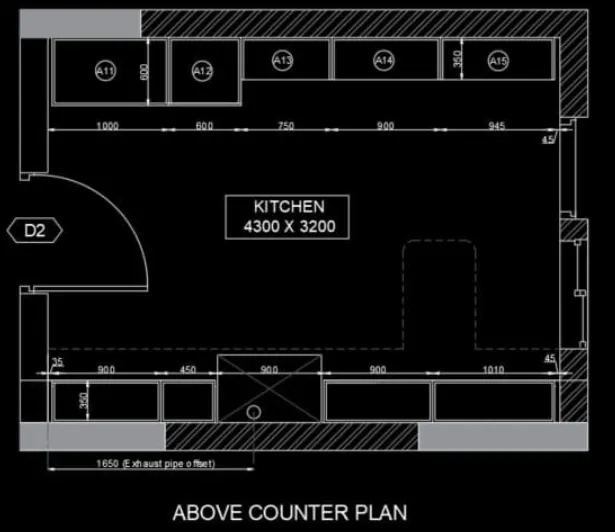

AIM: To create the kitchen layout and to also, use proper dimensions techniques to dimensions the kitchen layout. Also insert text where ever
required. All dimensions are in mm
PROCEDURE :
Step 1:
- Units are set to mm
- Limit and limax are also set
- Zoom command is also used
Step 2:

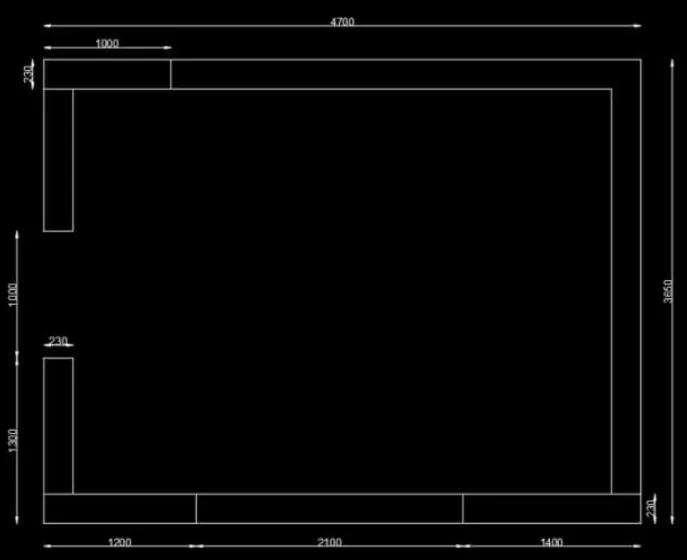

- In the command prompt type rec and the dimensions are 4734 x 3688mm it to the distance of 230mm
- In the command prompt type offset and offset
- Using the are and lines the door is drawn
- In the command prompt type hatch the model
- In the command prompt type rec> dimensions to do the fridge
- In the command prompt tyoc offset and offset it to desired distance to get the micro oven
- In the command prompt type trim to trim extra lines
- In the command prompt type offset it to the horizorital distance of 350, 450, 900, 450, 450 and 560
- In the command prompt type type trim to trim the extra lines
- In the command prompt type even the leader command is used to name the dimensions
FINAL RESULT:

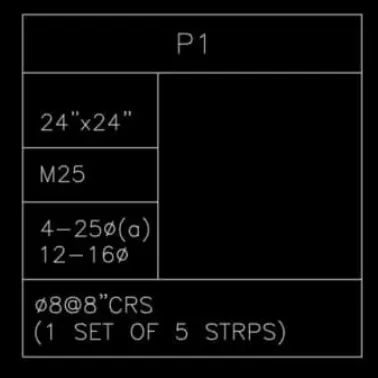

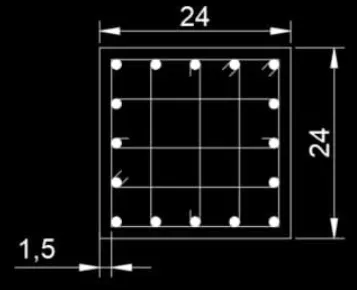

Q4.DRAWING NO. 4:
AIM: Sketch the column details as shown in the figure. Insert dimensions and text in the figure. Refer to the bar size from the schedule.
8mm------0.31 inches
25mm------1 inch
16mm-----0.62 inches
PROCEDURE:
Step 1:
- Units are set to mm
- Limit and limax are also set
- Zoom command is also used
Step 2:
- Using rec and line command the tables are drawn
- UsinG the text command the text are given
- Using the command the text are given
- In the command prompt type line to draw the reinforcement
- Type circle in the command prompt to draw reinforcement
- Draw the raft layout as shown in the figure. Assume the coloumn size as per requirement.
- Remaining P2 AND P3 columns are same as the P1 Column
FINAL RESULT :

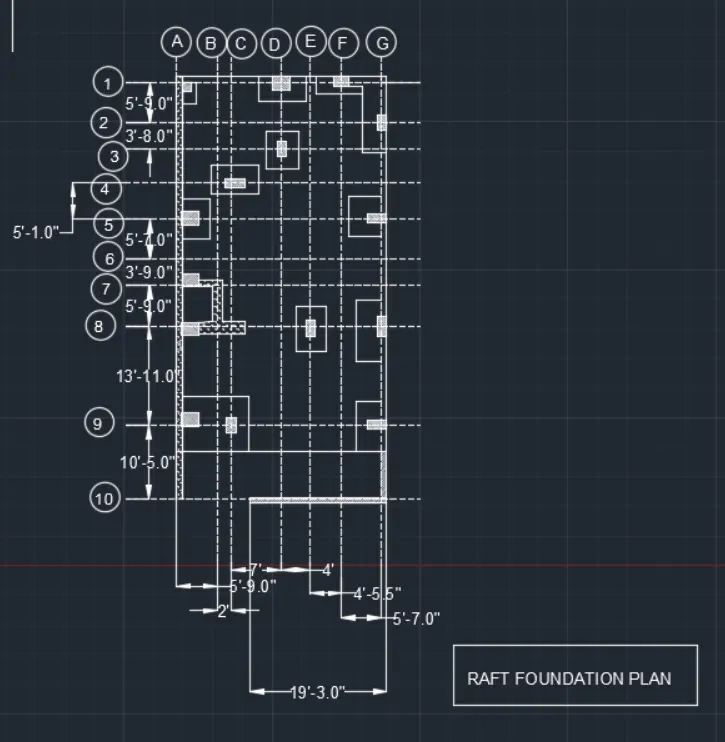

Q5.DRAWING NO. 5
AIM:To draw the raft layout
PROCEDURE:
Step 1:
- Units are set to Engineering> inches
- Limit and limax are also set
- Zoom command is also used
Step 2:
- In the command prompt type reco dimensions are 29'7" and 60'
- To get dotted lines click on the line type and load the datelines current With the help of dotted lines and offset command the grids are drawn
- In the command prompt offset the distance to 4"
- In the command line type rec 2" x 2"
- In the ribbon bar select hatch - ANS137
- In the ribbon tab> annotate> text>m test to test the giveranceattress
- In the ribbon tab> dimensions> to give the dimensions
FINAL RESULT:
