Challenge

Creating a Wardrobe detailed drawing, Floor Plan, Kitchen Layout and Column Detail using AutoCad

PPurnachander Rao Seelam20 Aug 2022

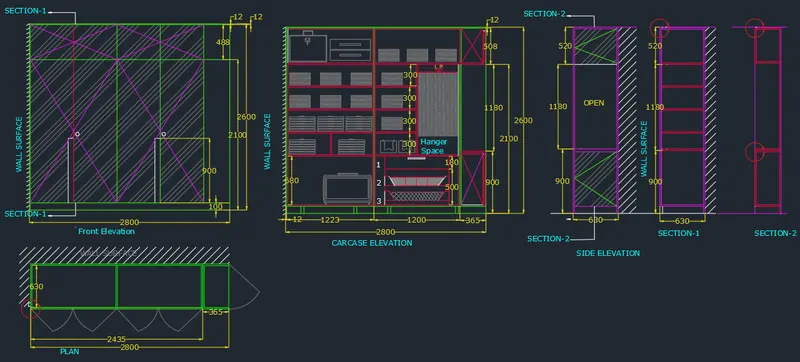

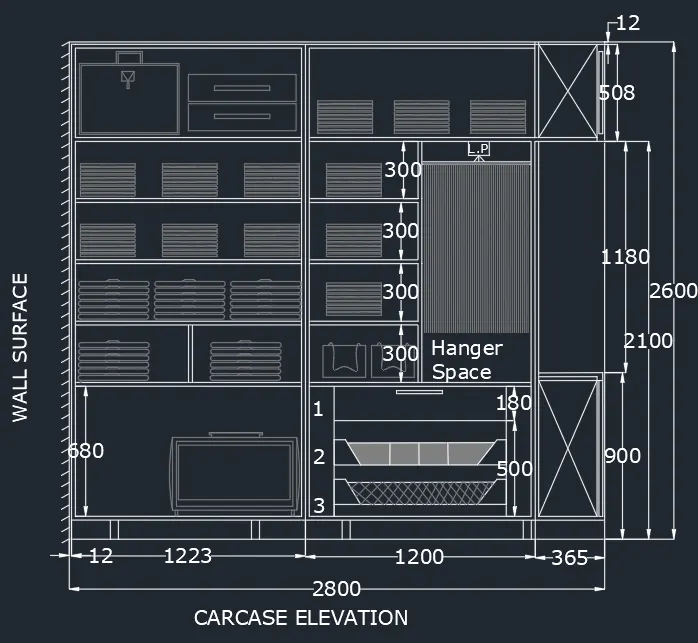

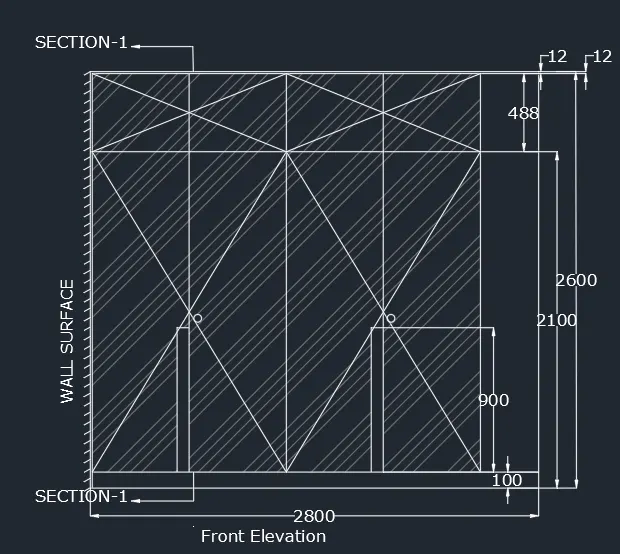

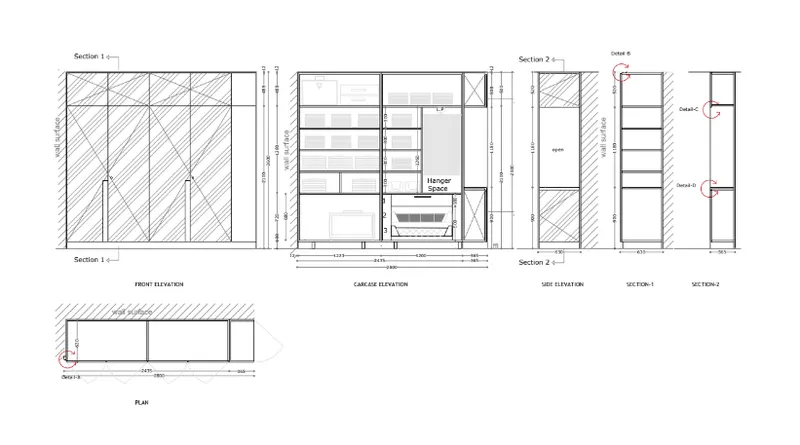

1) Draw the elevation and details of a wardrobe as shown in the Figure below. After sketching, you need to provide the dimensions and text with the use of layers.

(Answer):

Aim: To Draw the elevation and details of a wardrobe as shown in the Figure below. After sketching and to provide the dimensions and text with the use of layers.

Commands used:

Limmax command
Limits command
Zoom command
Xline command
Line command
Dimlinear command
Dimstyle command
Units command
Text command
LW command
Extend command
Trim command
Hatch command
arry command

Producer :

STEP 1:

Units are set to mm
Limits and lim-max are also set
Zoom command is also used

STEP 2:

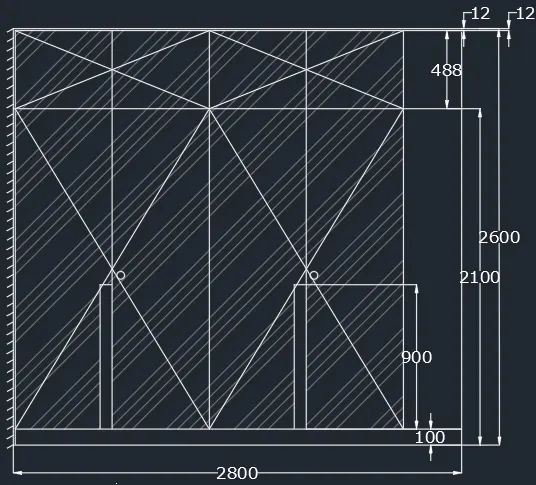

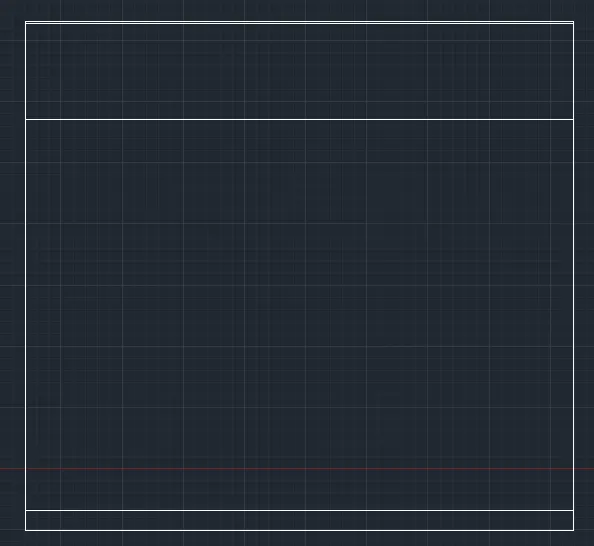

In the command line type rec>2800, 2600
In the command line type offset
Offset from the top of dimensions 12 and 488 mm.

STEP 3:

In the command line type offset
create the offset from the side at the distance of 608.75 and 365 .

STEP 4:

In the command line type L and by increasing the transparency to create wall surface.
by using hatch give the hatch and give scale 20.

In the command line type q leader to mention the annotations

STEP 5:

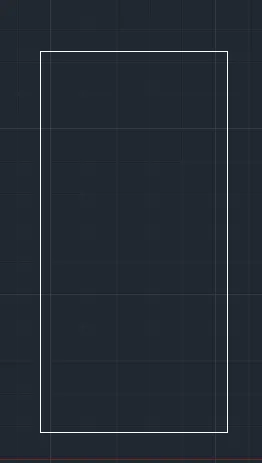

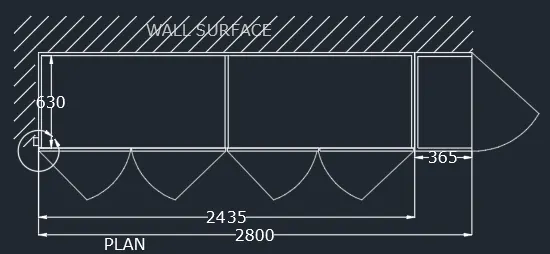

In the command prompt type rectangle > 630 x2800
In the command prompt type q leader to give the annotations .

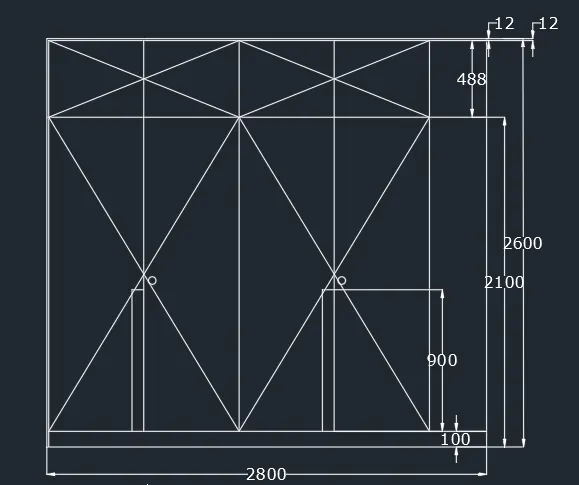

STEP 6:

In the command prompt type rectangle 2800 X 2600
With the help of line command drawers and cabinets are created .
For the drawers and cabinets give the grey colour.
Dimension the drawing.

STEP 7:

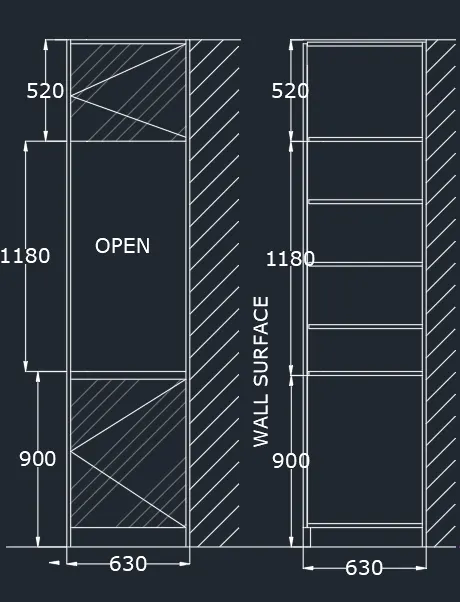

In the command prompt type rectangle and dimensions of 520 x 630, 1180 x 630 ,900x630 This is repeated 2 times.
using line commands, the next of the lines are drawn .

Step 8:

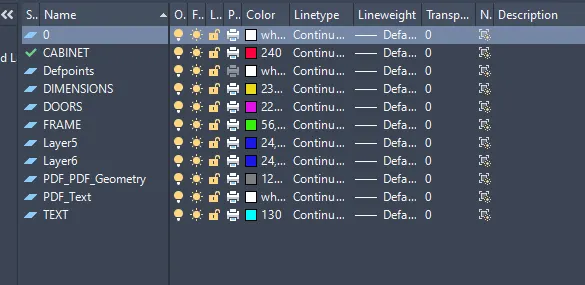

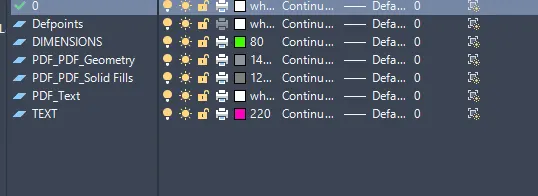

Place the entire drawing in the respective layers.

Result:

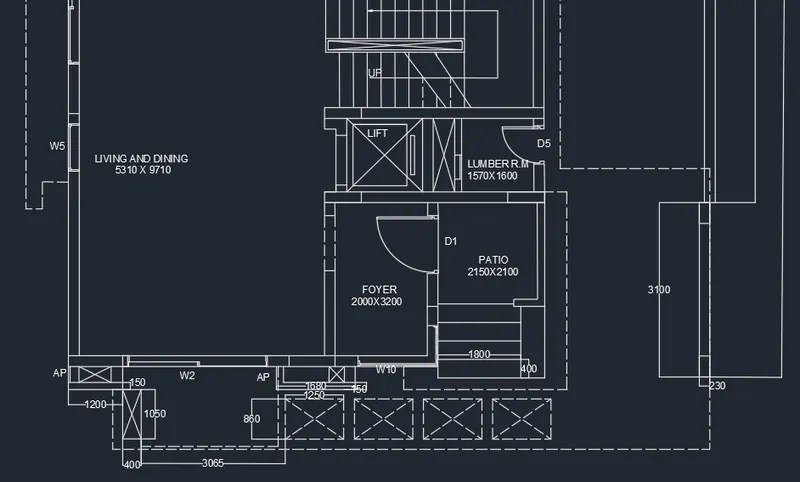

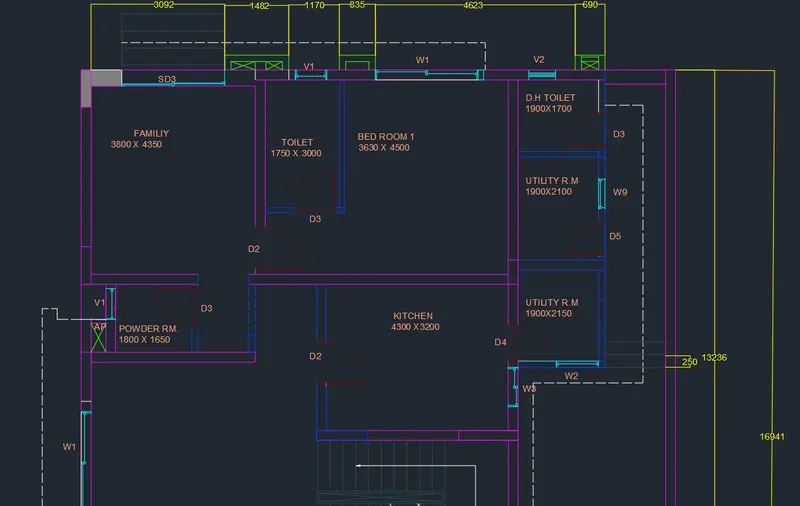

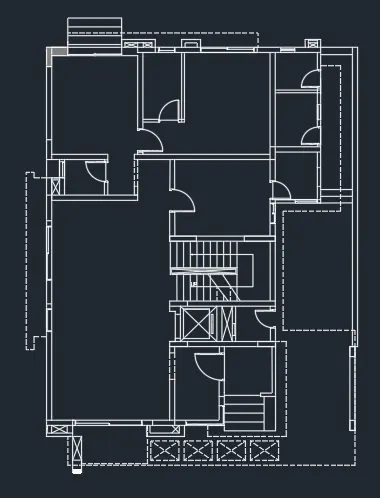

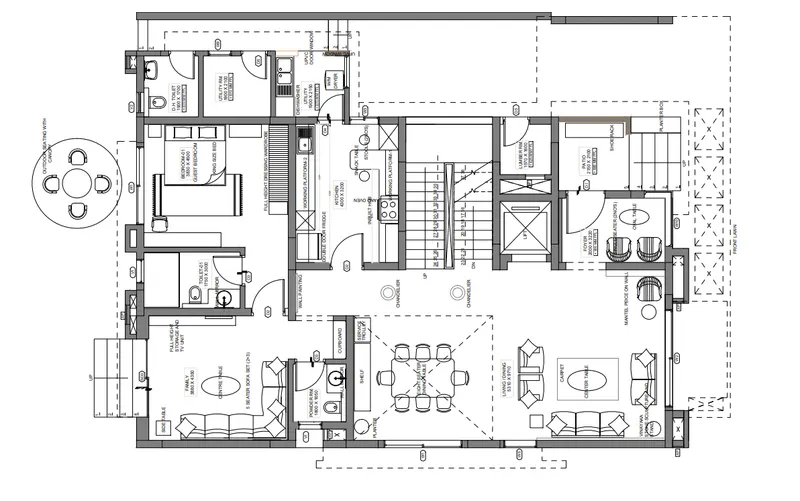

2)Draw the floor plan as shown in the Figure. Use the proper drafting tools to sketch the plan. Do not hatch or draw the furniture. You need to draw the floor plan with the following:

Note: You can also import the Floor_Plan.pdf into your current drawing and start working on the project. You need to scale the imported pdf file using reference option. All dimensions are in mm.

Walls (Exterior and Interior)

Wall Thickness: Exterior Wall- 230mm, Interior Wall: 150 mm (Wherever Required)

Doors and Windows: Assume the size of the doors and window.

2.1 Stairs: Tread-300mm, Riser-150mm

Insert Text wherever required
Insert the dimensions using proper dimension techniques

(Answer):

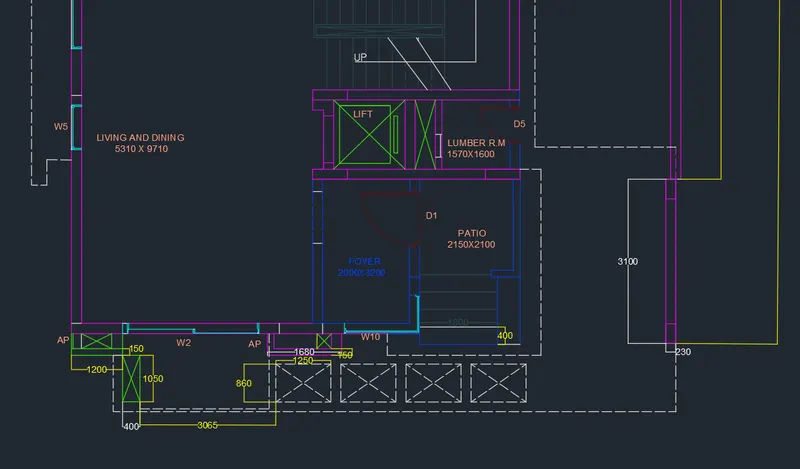

Aim: To draw the given floor plan

Commands used:

Limmax command
Limits command
Zoom command
Xline command
Line command
Dimlinear command
Dimstyle command
Units command
Text command
LW command
Extend command
Trim command
Hatch command
arry command

Procedure:

Step 1:

Units are set to mm
Limits and lim-max are also set
Zoom command is also used

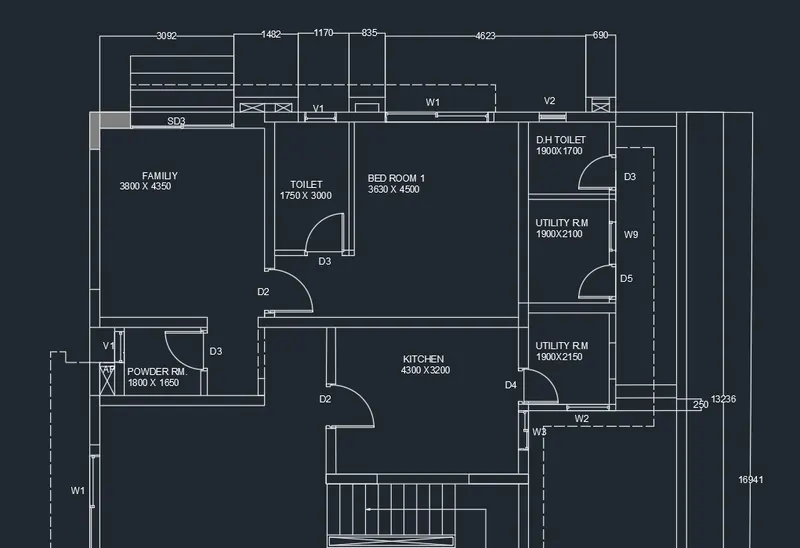

Step 2:

In the command prompt type XL to draw the infinite lines
In the command prompt type offset to offset the line for a particular distance
Using arc command doors are also created .

Doors: Windows: Ventilators:

D1 - 1000 x 2000 mm 1. W1 - 2700 x 1500 mm 1. V1- 800 x 500 mm
D2 - 900 x 2100 mm 2. W2 - 2500 x 1500 mm 2. V2 - 750 x 500 mm
D3 - 800 x 2100 mm 3. W3 - 900x 1500 mm
D4 - 750 x 2100 mm 4. W5 - 1000 x 1500 mm
D5 - 700 x 2100 mm 5. W9 - 800 x 1500 mm
SD - 2256 X2100 mm

Step 3:

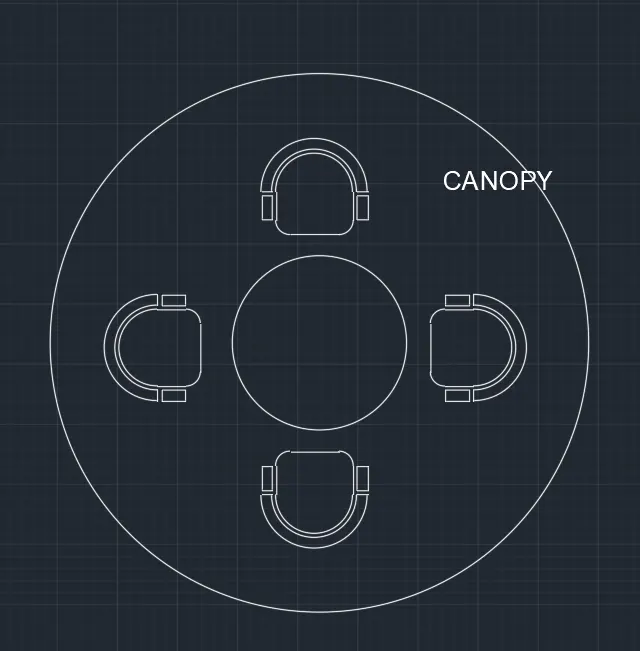

To draw canopy

circle:

In the menu bar click on circle > centre, radius
specify the centre point as 10,10 and radius 452
In the meu bar click on circle > centre, radius
specify the centre point same as the previous circle (10,10) and radius 1398

SEATS:

In the menu bar click on rectangular or In the command prompt type rec
specify the length of the rectangle as 662.3
specify the width of the rectangle as 298 .0
In the command prompt type FILLET > RADIUS > 100 .00 (to get curve edges in the corner)
In the menu bar > circle > 2-point ( 2 points are the end points of the top line )
In the men bar > circle > centre ,diameter
centre is the midpoint of the line , diameter is 719 .0
In the menu bar > circle > centre, diameter
centre is the midpoint of the line , diameter is 777.2
now, extend the centre line and trim the extra's
In the menu bar click fillet> blend curves > and select the arc
In the menu bar click fillet> blend curves > and select the arc

In the menu bar click fillet> blend curves > and select the arc

Step 4:

Give the dimensions and anotation the drawing with the text where ever required.

Step 5:

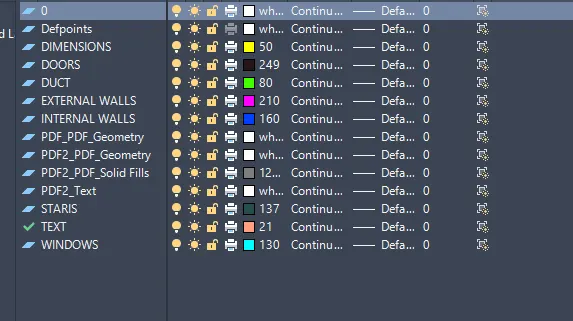

Place the all elements of the drawing in the respective layers.

Result:

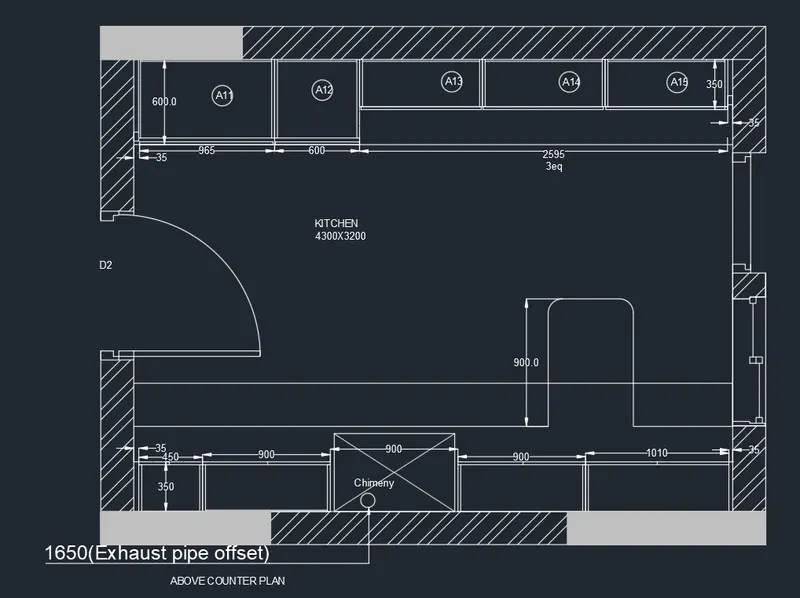

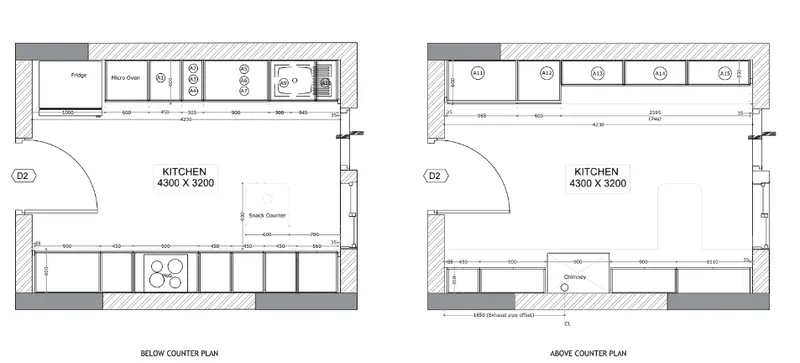

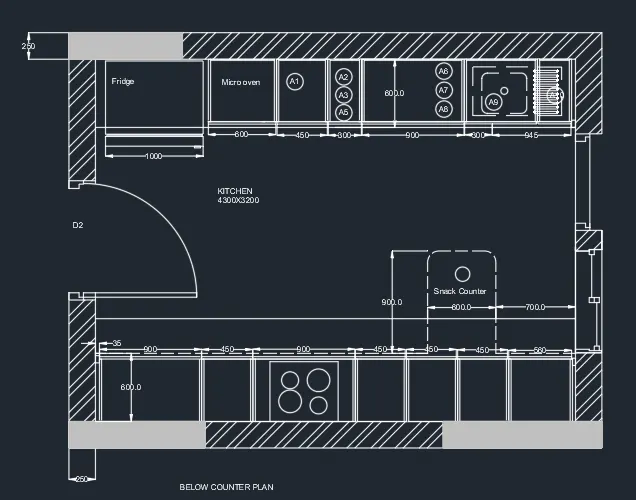

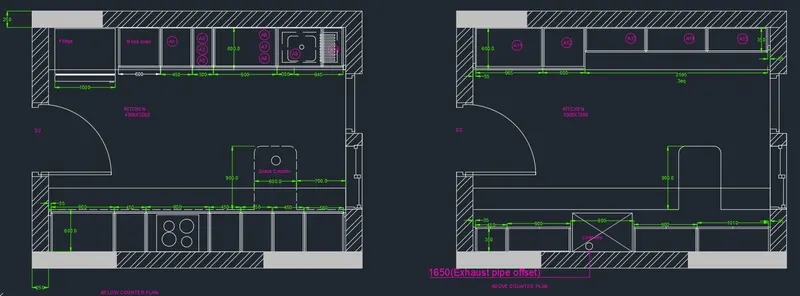

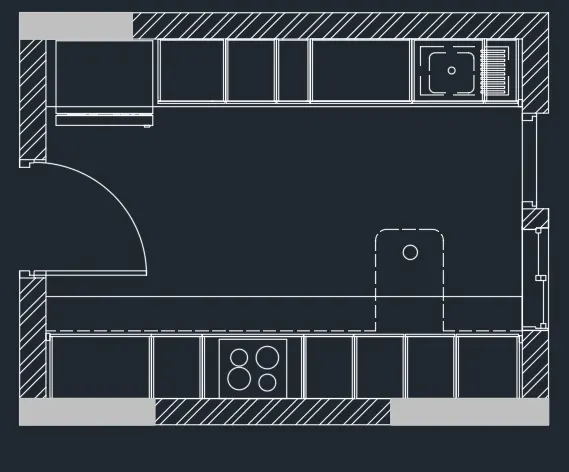

Q3. Create the Kitchen Layout as shown in the Figure below. Also, use proper dimension techniques to dimension the kitchen layout. Also, insert text wherever required. All dimensions are in mm.

(Answer):

Aim: To Create the Kitchen Layout and to Also, use proper dimension techniques to dimension the kitchen layout. Also, insert text wherever required.

Commands used:

Limmax command
Limits command
Zoom command
Xline command
Line command
Dimlinear command
Dimstyle command
Units command
Text command
LW command
Extend command
Trim command
Hatch command
arry command

Procedure:

step 1:

Units are set to mm.
Limits and lim-max are also set .
Zoom command is also used .

Step 2:

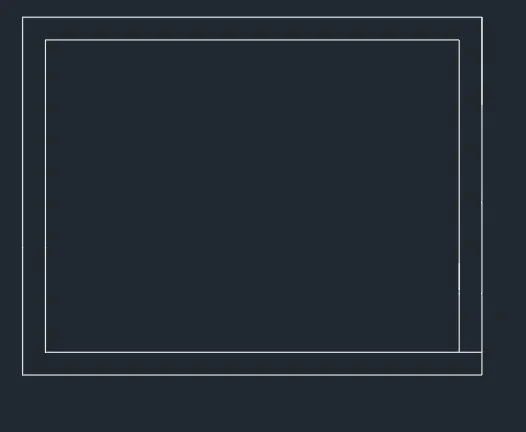

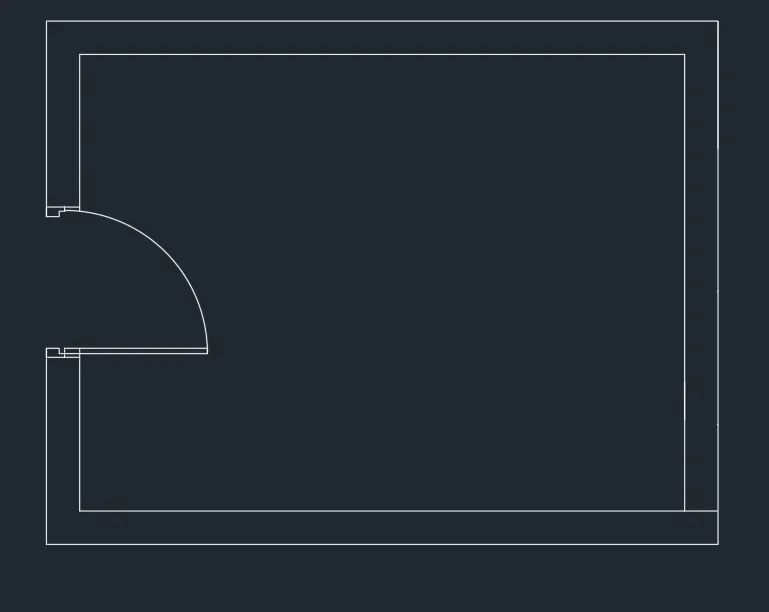

In the command prompt type rec and the dimensions are 4734 x 3688 mm.
In the command prompt type offset and offset it to the distance of 250mm.

Using arc and lines the door is drawn .

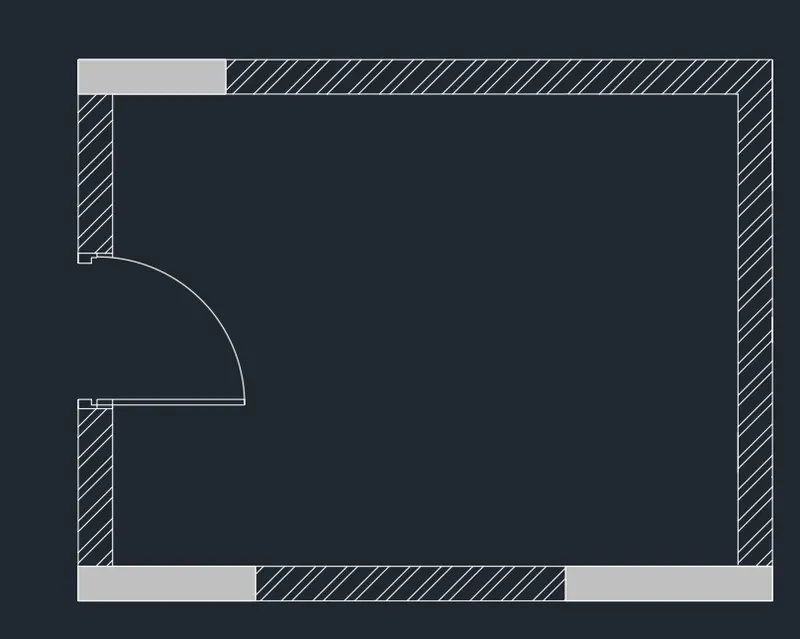

In the command prompt type hatch to hatch the model .

Step 3:

In the command prompt type rec > dimensions, to do the fridge .
In the command prompt type offset and offset it to the desired distance to get the Micro Oven .
In the command prompt type trim to trim the extras.
In the command prompt type offset and offset it to the horizontal distance of 350,450,900,450,450 and 560 .
In the command prompt type offset and offset it to the vertical distance of 600 .
In the command prompt type trim to trim the extras .

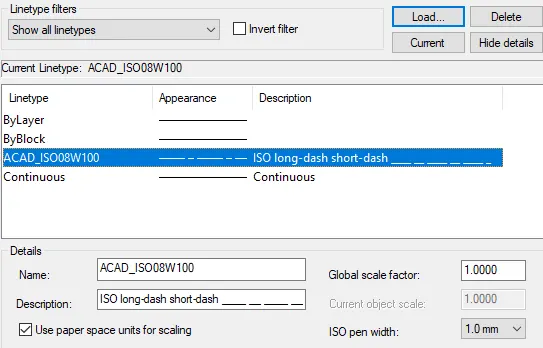

In the command prompt type line type and load the dotted lines .

Step 4:

In the command prompt type text to text the given annotations .
In the command prompt type dimensions to given the dimensions to your plan .
In the command prompt even the leader command is used to name the dimensions .

Step 5:

Place all the elements in the required layers .

Result:

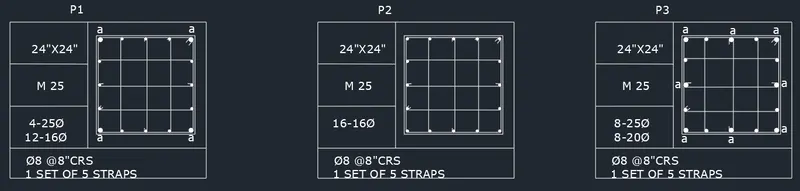

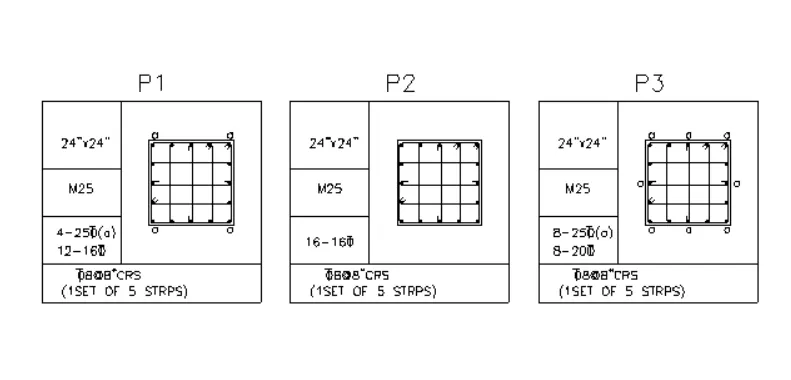

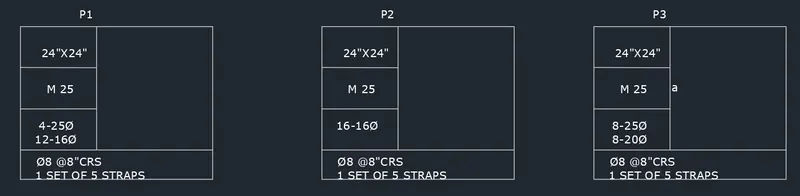

Q4. Sketch the column details as shown in Figure. Insert dimensions and text in the figure. Refer to the bar sizes from the schedule.

8mm ---- 0.31 Inches

25mm--- 1 inches

16mm—0.62 inches

(Answer) :

AIM: To sketch the column details

Commands used:

Limmax command
Limits command
Zoom command
Xline command
Line command
Dimlinear command
Dimstyle command
Units command
Text command
LW command
Extend command
Trim command
Hatch command
arry command

PROCEDURE:

Step 1:

Units are set to mm.
Limits and lim-max are also set .
Zoom command is also used .

Step 2:

Using rectangle and line command the tables are drawn .

Step 3:

Using text command, the text is given .

Step 4:

In the command prompt type lines to draw the reinforcement .
In the command prompt type circles to draw the reinforcement .

Result:

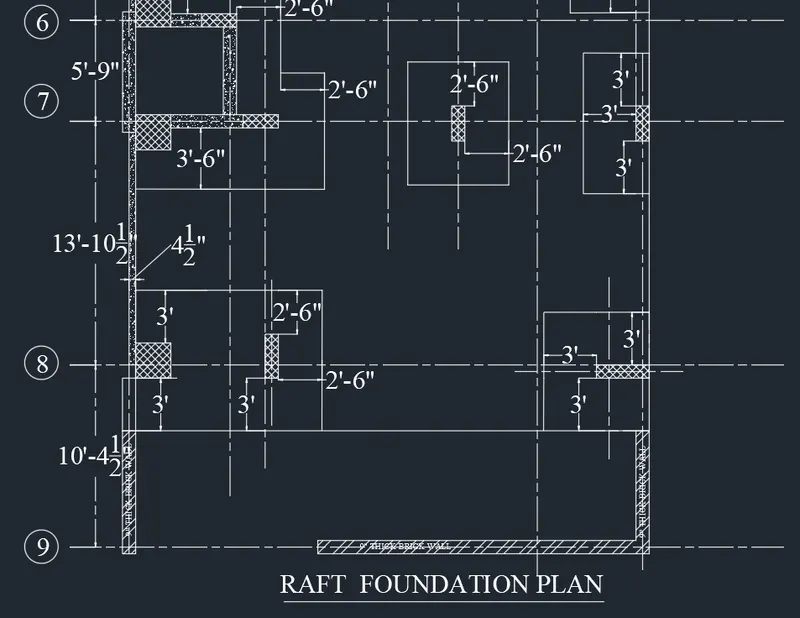

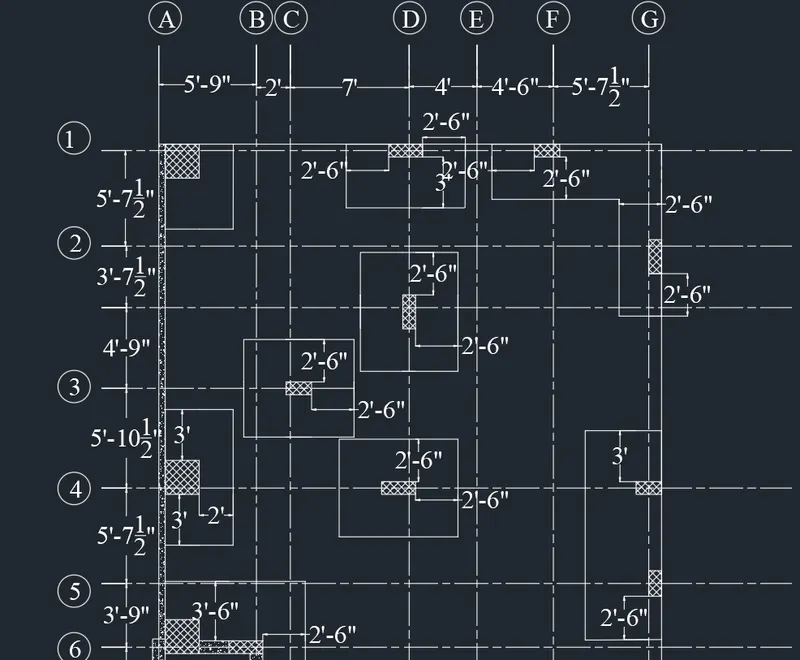

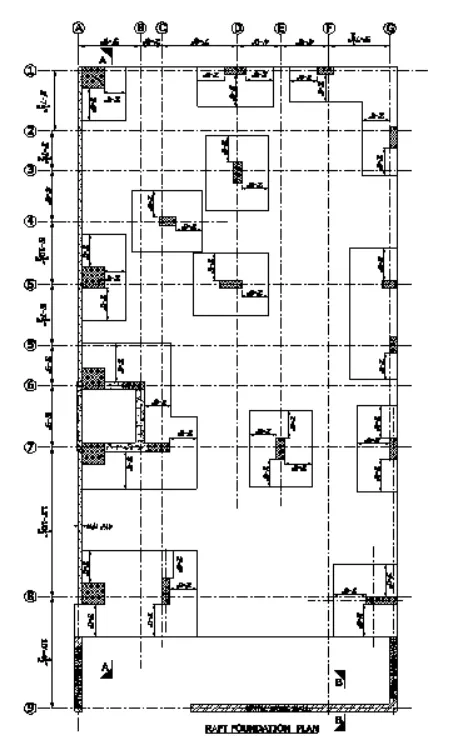

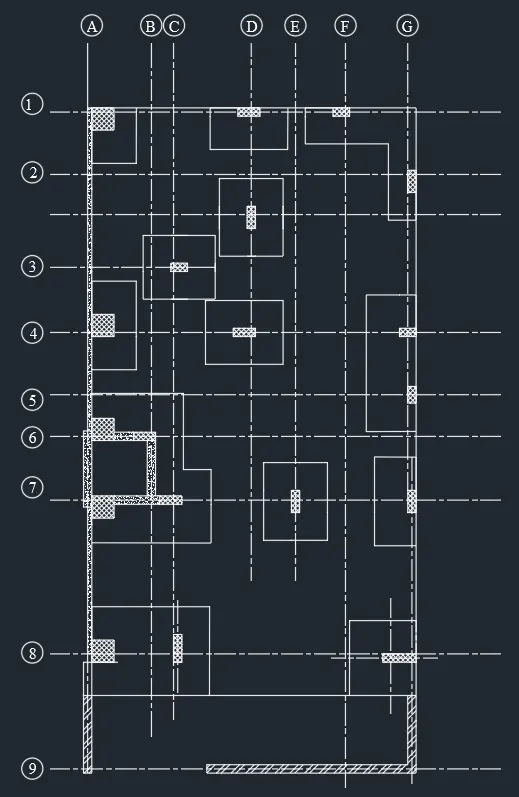

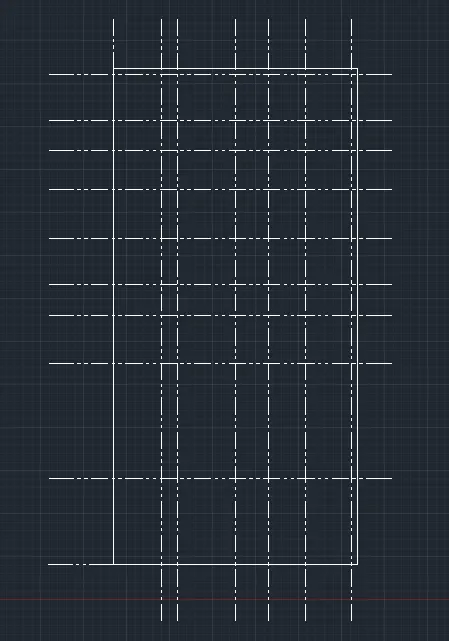

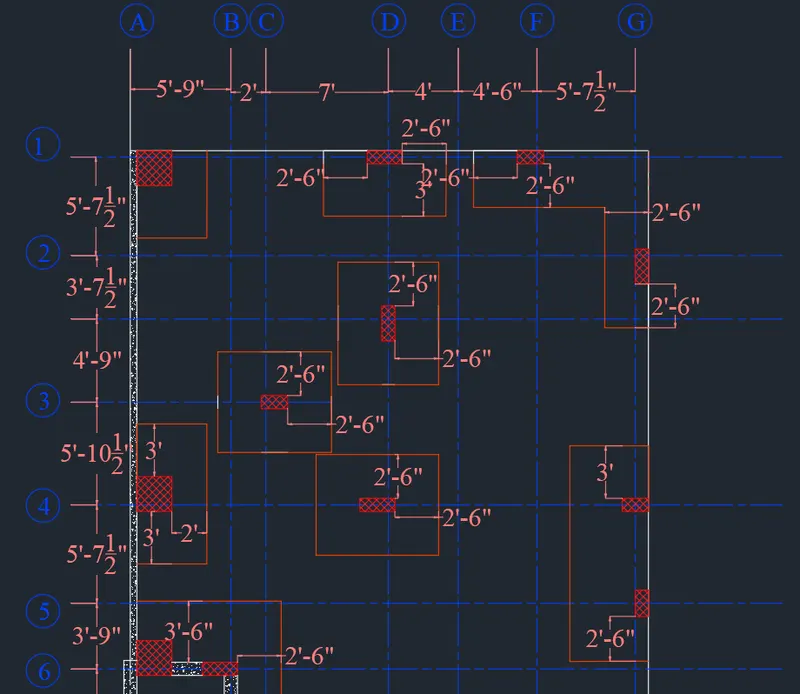

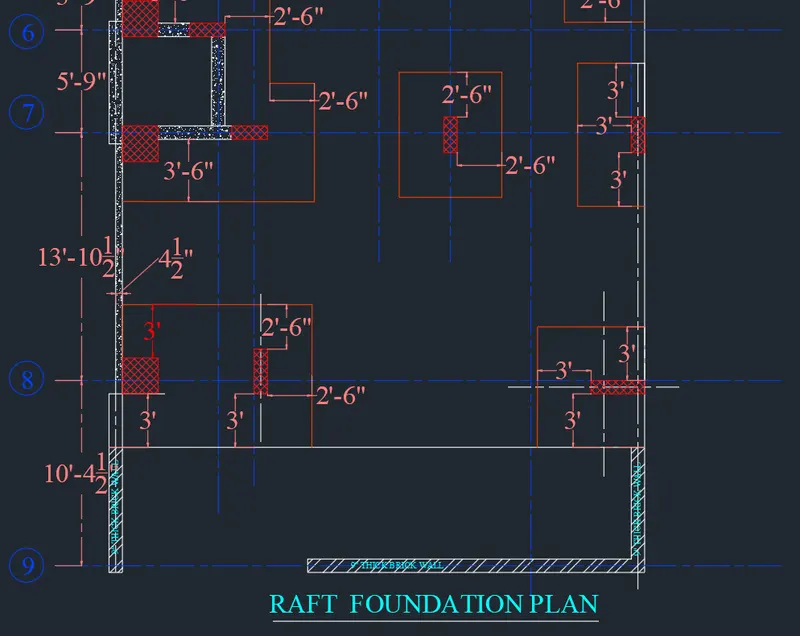

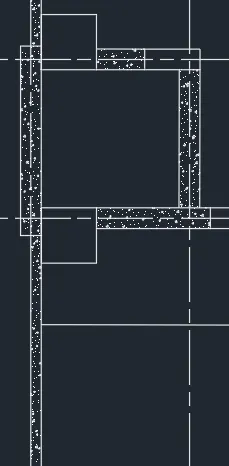

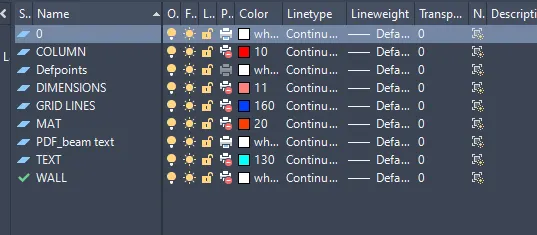

Q 5. Draw the Raft Layout as shown in the Figure. Assume the column size as per your knowledge. You can take the sizes as: 24”x24”, 9” x 24”, 9” x 18”, and 9’ x 24”. You can import the raft_foundation.pdf to ensure the missing dimensions.
