Creating a Wardrobe detailed drawing, Floor Plan, Kitchen Layout and Column Detail using AutoCad
1.

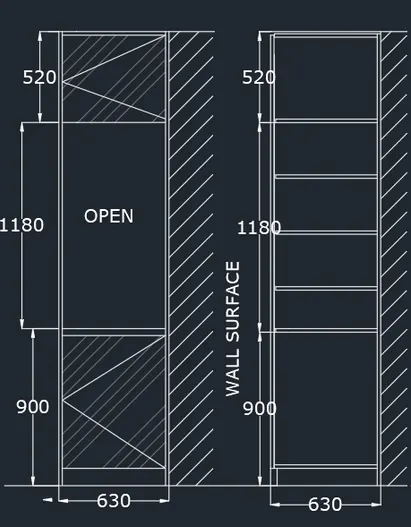

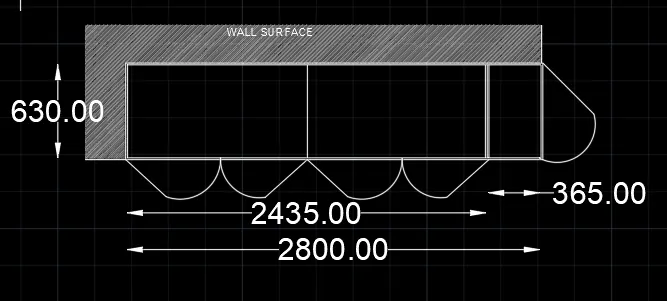

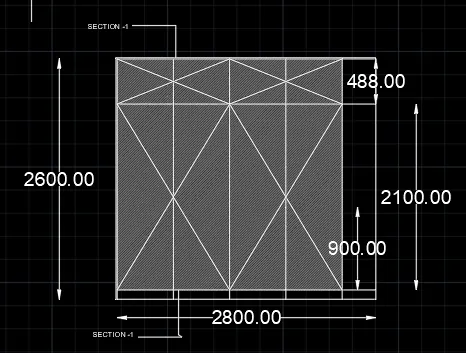

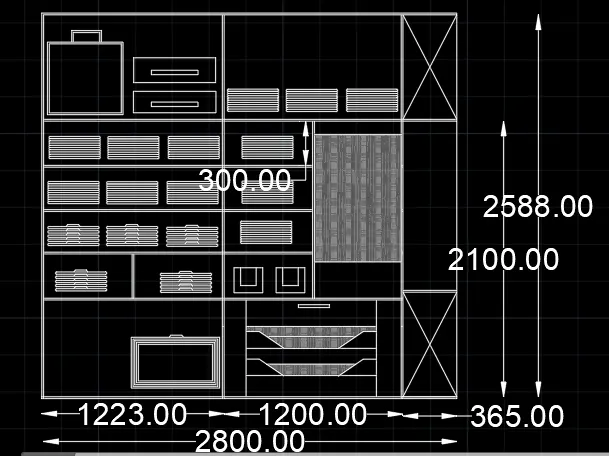

AIM:To Draw the elevation and details of a wardrobe as shown in the Figure below. After sketching and to provide the dimensions and text with the use of layers.
Commands: Line , Hatch , offset
PROCEDURE:
1. Firstly Units are set to mm that is decimel
2. In the command line type rec>2800, 2600 and type offset from the top of dimensions 12 and 488 mm.
3. In the command line type offset the offset from the side at the distance of 608.75 and 365 .
4. In the command line type L and by increasing the transparency to create wall surface by using hatch give the hatch and give scale 20.
5. In the command line type q leader to mention the annotations
6. The command prompt type rectangle > 630 x2800
7.The command prompt type rectangle 2800 X 2600 With the help of line command drawers and cabinets are created .
8. In the command prompt type rectangle and dimensions of 520 x 630, 1180 x 630 ,900x630 This is repeated 2 times.
using line commands, the next of the lines are drawn .
Result
2.

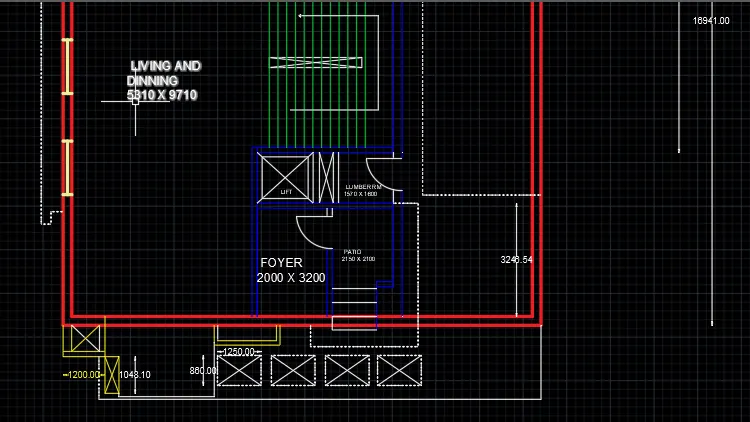

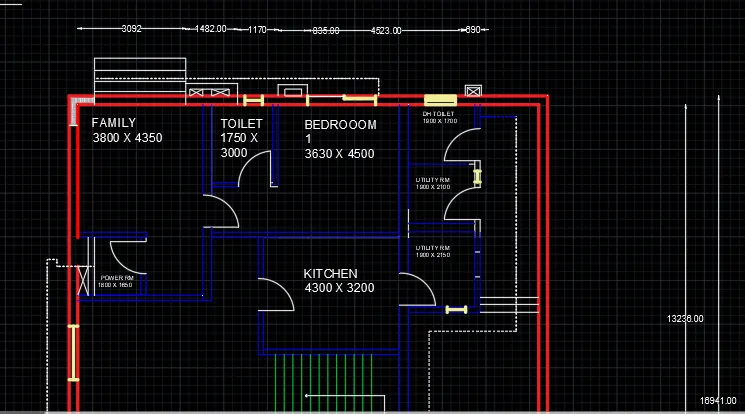

AIM :To draw the given floor plan
Commands: Line , Hatch , offset , Linetype manager
Procedure:
1. Firstly Units are set to mm that is decimel
2. In the command prompt type XL to draw the infinite lines then type offset to offset the line for a particular distance
3. Using arc command doors are also created . Doors: Windows: Ventilators:

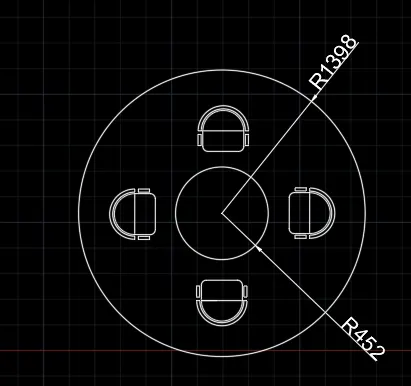

For CONOPY
1. Select metric units as the diamensions is in mm.
2. Draw a circle with radius as 1398mm.
3. Draw another circle with same centre with radius 452mm.
4. Draw an offset of 200mm from the inner circle to determine the position of chairs.
5. Draw a rectangle with command "REC" giving dimensions as 400 mm and 200 mm.
6. Draw an arc with two end points and centre of the side(400mm) of rectangle.
7. Draw another rectangle of 55mm x100mm for the handle of the chair Command: "REC" -select the base point and click on dimension and give as 55mm and 100mm.
8. Fillet the corner of rectangle by 50mm
9.Move the chair and place it such a way that it touches the offset 200mm circle. By using Command "M"- select the base point and move it.
4. Give the dimensions and anotation the drawing with the text where ever required
Result

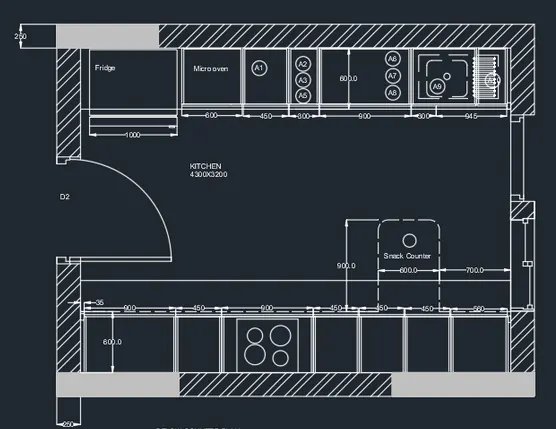

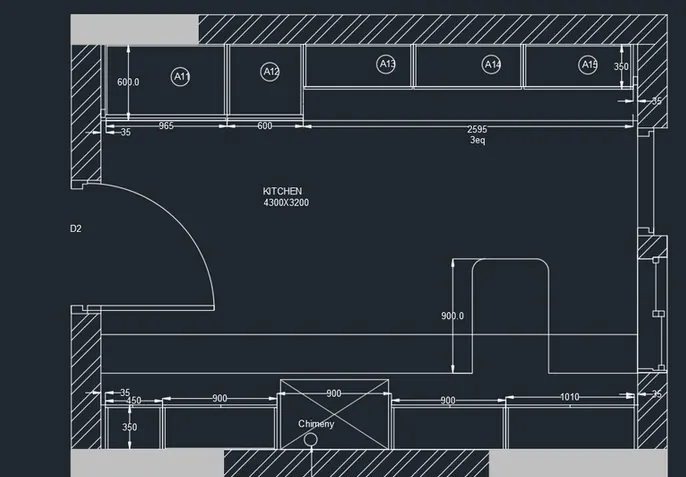

AIM: To Create the Kitchen Layout and to Also, use proper dimension techniques to dimension the kitchen layout. Also, insert text wherever required.
Commands: Line , Hatch , offset
Procedure:
1. Firstly Units are set to mm that is decimel
2. The command prompt type rec and the dimensions are 4734 x 3688 mm then type offset and offset it to the distance of 250mm. Use arc and lines the door is drawn .
3.The command prompt type rec > dimensions, to do the fridge and offset it to the desired distance to get the Micro Oven
4. The command prompt type offset and offset it to the horizontal distance of 350,450,900,450,450 and 560 then type offset and offset it to the vertical distance of 600 and trim the extras .
In the command prompt type line type and load the dotted lines .
5. The command prompt type text to text the given annotations and given dimensions to the plan
Result

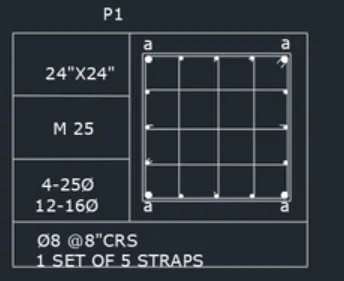

AIM: To sketch the column details
Commands: Line , offset , text
PROCEDURE:
1. Firstly Units are set to mm that is decimel
2. Use rectangle and line command the tables are drawn .
3. Then use the text command
4. The command prompt type lines to draw the reinforcement and circles to draw the reinforcement
Result

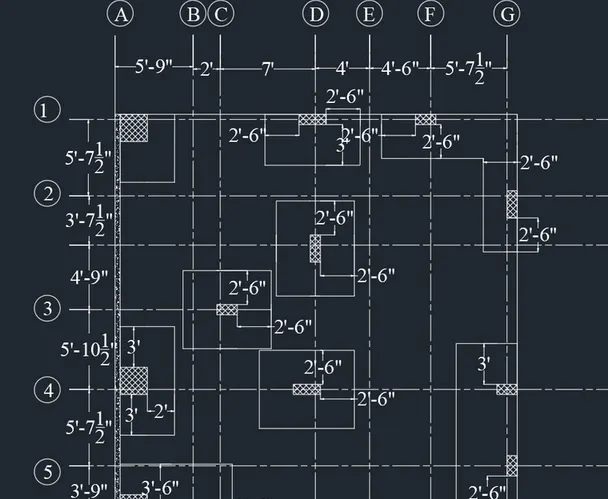

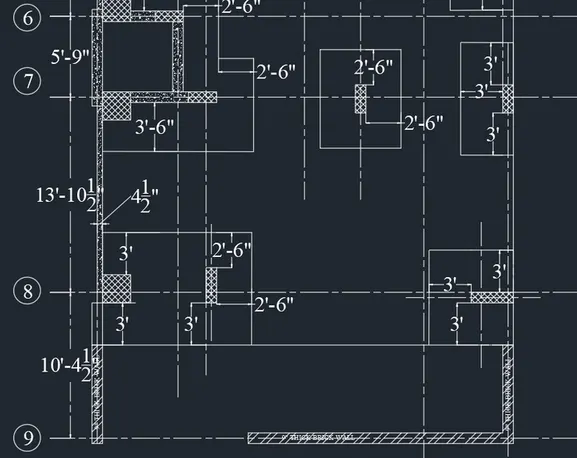

AIM: To draw the raft layout
Commands: Line , Hatch , offset
Procedure:
1. Firstly Units are set to Feets and inches that is engineering
2. The command prompt type rectangle > dimensions are 29'-7" and 60 '
3. Draw a dotted lines click on line type and load the dotted lines > set current With the help of dotted lines and offset command the grids are drawn
4. The command prompt offset the distance to 4" in the ribbon > hatch > AR-CONC
5. The command prompt type rec > 2' x2' then next type rec to draft the columns.
6. In the ribbon bar select hatch > ANSI37 hatch the columns and next select hatch > ANSI33 to hatch the walls.
7. In the same manner the ribbon tab > Annotate > text > Text to text the given annotations and the tab > Dimensions > To give the dimensions
Result
