Creating a Wardrobe detailed drawing, Floor Plan, Kitchen Layout and Column Detail using AutoCad

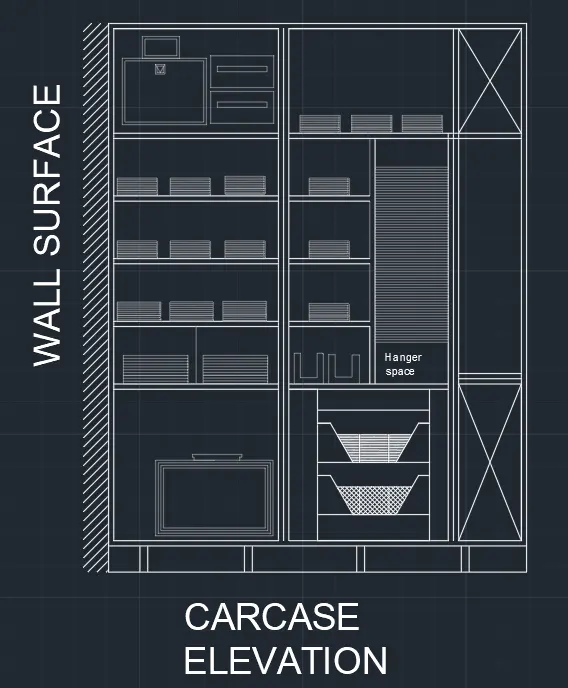

1.AIM: To draw the elevation and details of a wardrobe as shown in the figure.

PROCEDURE:

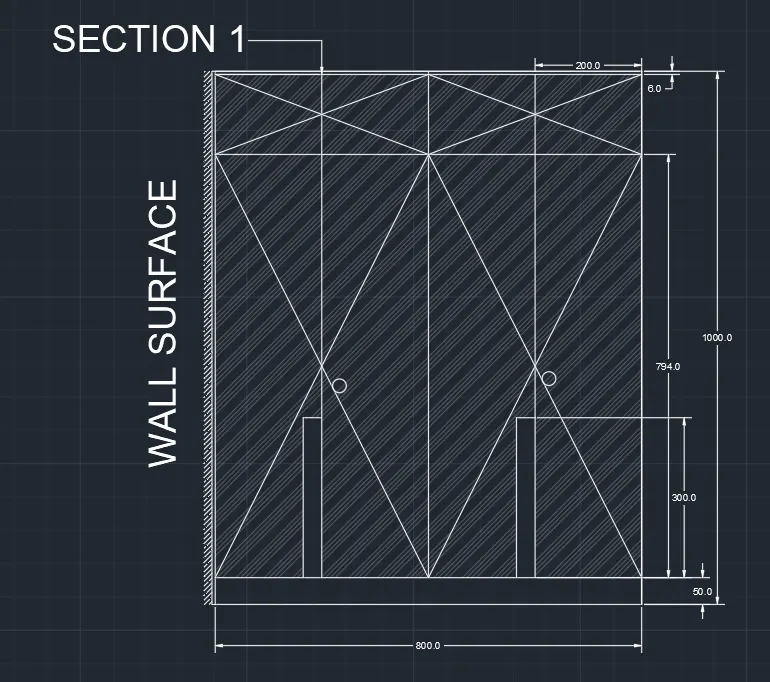

STEP 1

• In the command box type units and set to mm.
• In the command box type limits and lim-max are also set.
• In the command box type zoom
• In the command box type rec 1000X800
• In the command box type offset
• In the command box type dim of offset 6
• In the command box type offset and a distance of 200
• In the command box type hatch and specify one
• go to properties and select the transparent for hatch
• In the command box type dimensions and text

STEP 3:

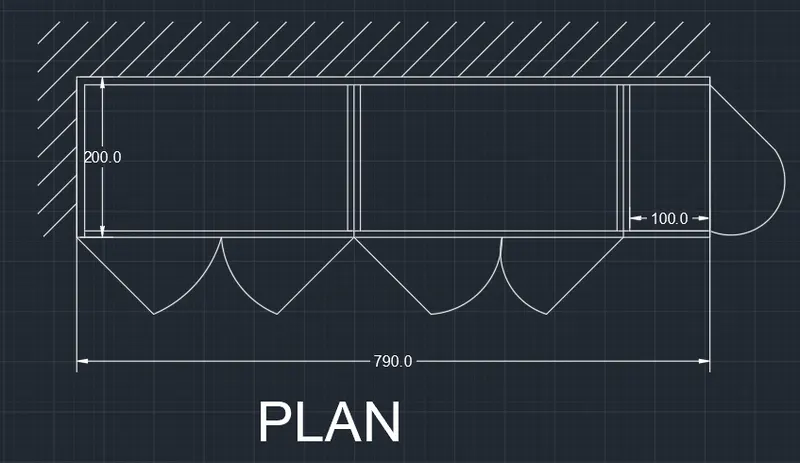

• In the command box type rec and specify the dimensions 800X200
• In the command box type offset.
• And give the distance.
• In the command box type HATCH at the wall surface.
• In the command box type dimensions and text.

STEP 4:

• In the command box type rec and specify 800X1000
• In the command box type offset
• In the command box type dim of offset 6
• In the command box type offset and a distance of 200
• In the command box type hatch at the wall surface.
• go to properties and select the transparent for hatch
• In the command box type dimensions and text

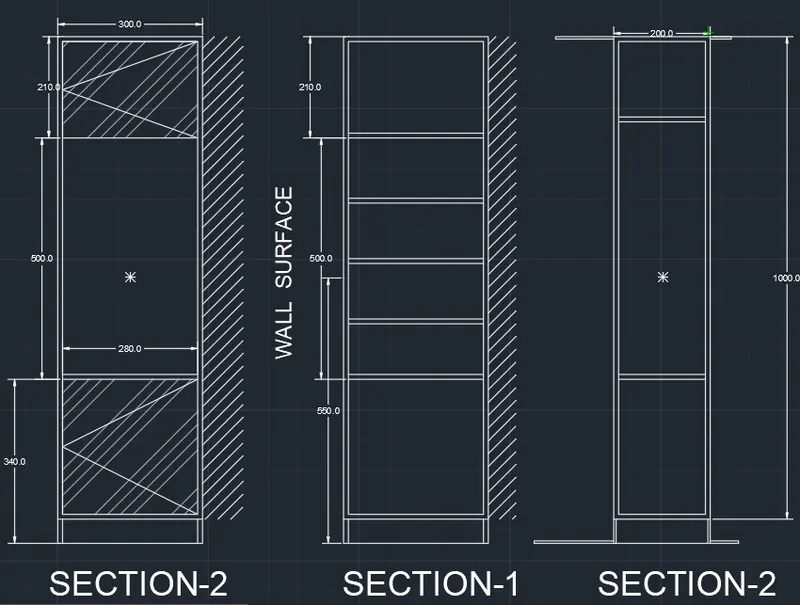

STEP 4:

• In the command box type rectangle as 300X100, 300X1000, 200X1000
• In the command box type offset give at specify distance.
• In the command box type dimensions and text.

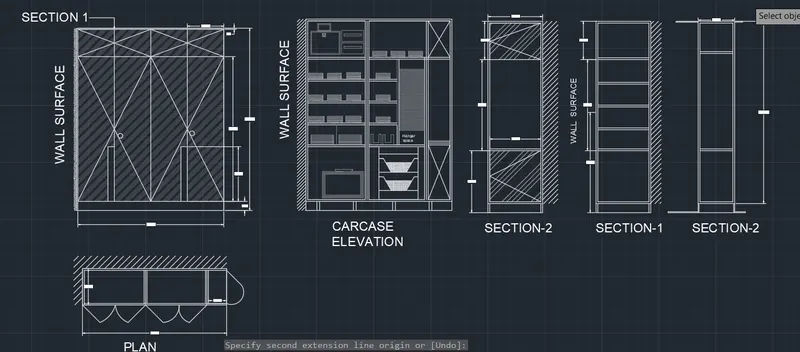

FINAL RESULT:

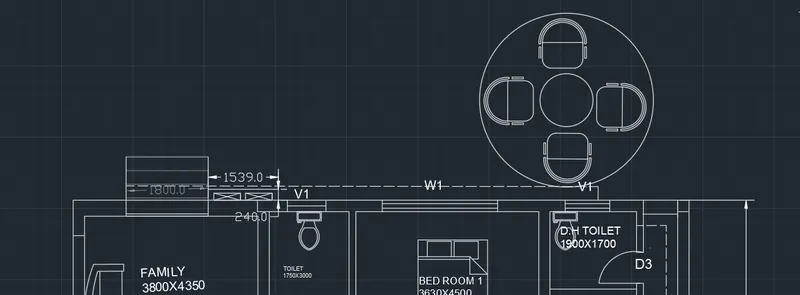

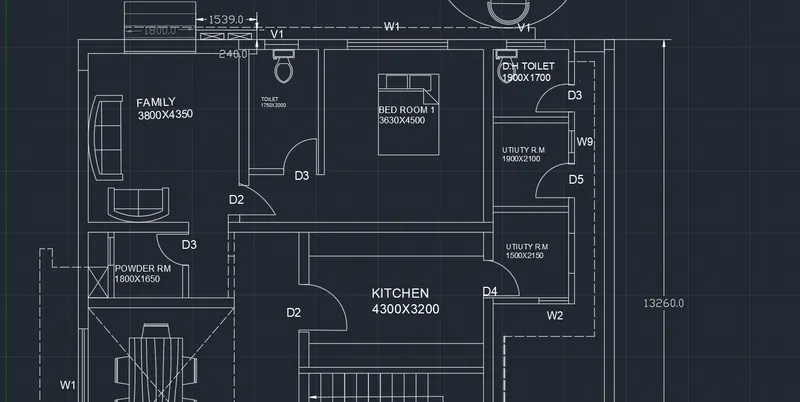

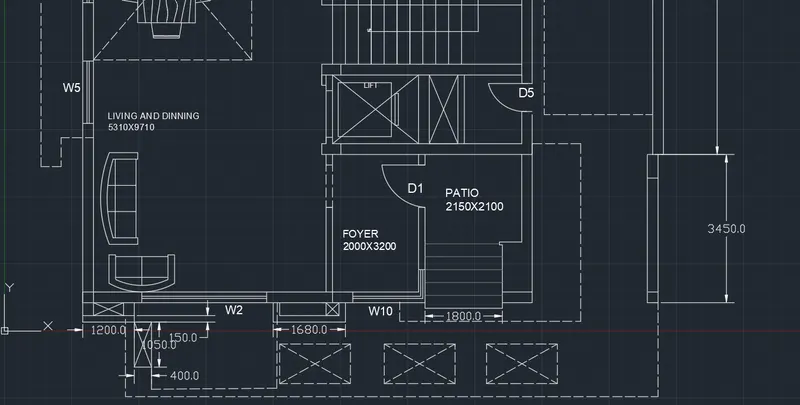

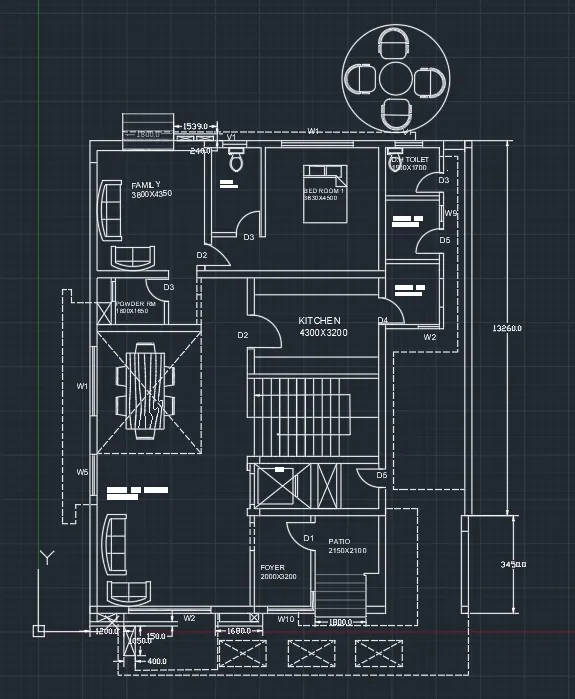

2. AIM: To draw the given floor plan.

PROCEDURE:

• In the command box type units and set to mm.
• In the command box type limits and lim-max are also set.
• In the command box type zoom
• In the command box type XL to draw the lines of horizontal and vertical.
• In the command box type offset the line for a particular distance.
• Using arc command doors are created.
• In the command box type circle.
• By using the circle and rectangle create a seating table.

Doors:

1. D1-1000X2000mm
2. D2-900X2100mm
3. D3-800X2100mm
4. D4-750X2100mm
5. D5-700X2100mm
6. SD-2256X2100mm

Windows:

1. W1-2700X1500mm
2. W2-2500X1500mm
3. W3-900X1500mm
4. W5-1000X1500mm
5. W9-800X1500mm

Ventilators:

1. V1-800x500MM
2. V2-750x500mm

RESULT:

FINAL RESULT:

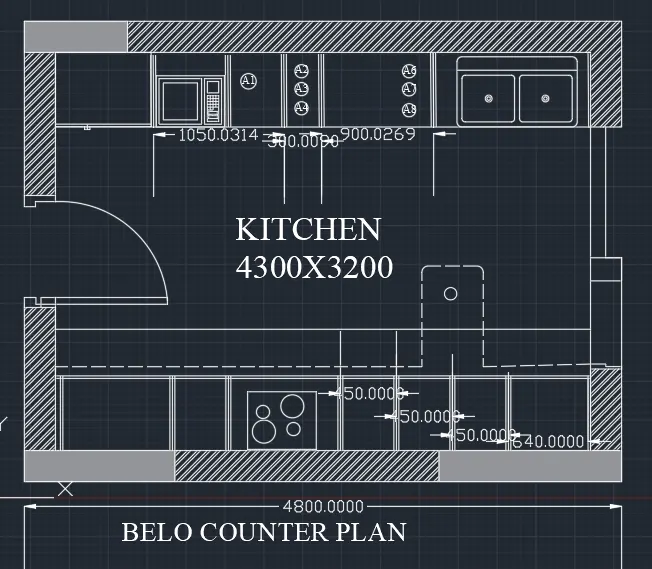

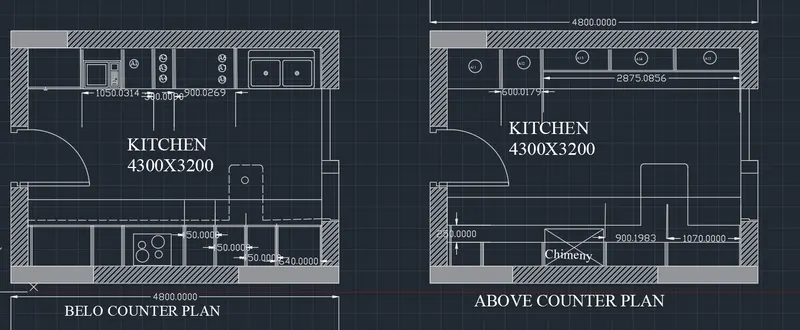

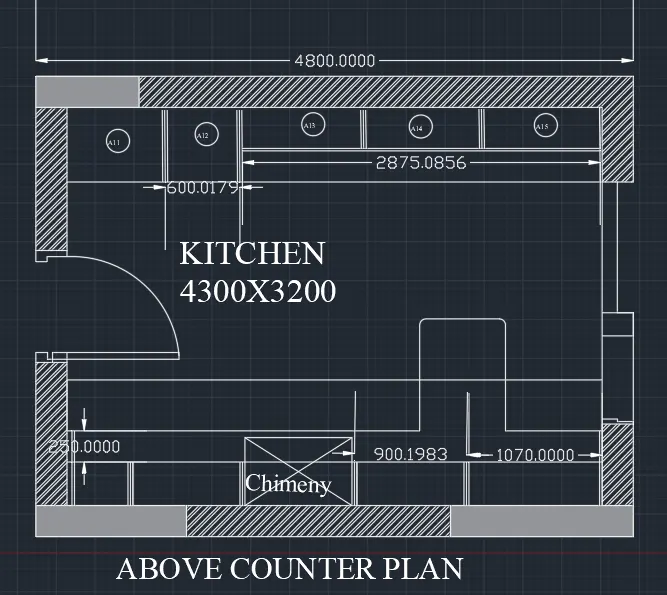

3. AIM: To create the kitchen layout.

PROCEDURE:

• In the command box type units are set to mm.
• Limits and lim-max are also set.
• Zoom command is also used.
• In the command box type rec and the dimensions are 4300x3200
• In the command box type offset and offset is a distance are 250
• In the command box type arc and lines to draw the door.
• In the command box type hatch to hatch the model.
• In the command box type DC and select fridge and micro oven.
• In the command box type offset and offset of horizontal distance of 600mm
• In the command box type offset and offset of vertical distance of 350,450,900,450,450,and 560.
• In the command box type line type and load the dotted line.
• In the command box type text and text the given annotations.
• In the command box type even the leader command is used to name the dimensions.

RESULT:

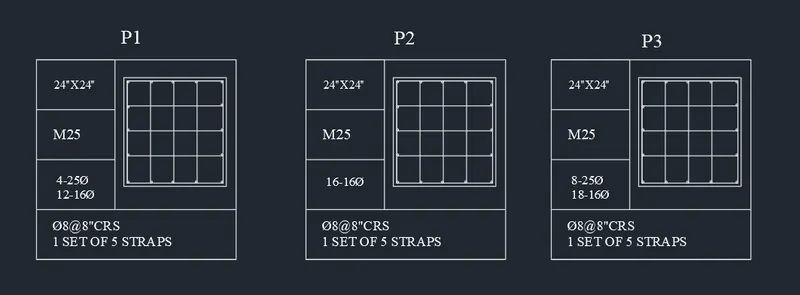

4. AIM: To sketch the columns:

PROCEDURE:

• In the command box type units are set to feet.
• Limits and Lim-max are also set.
• Zoom command is also used.
• In the command box type line and create a table.
• using rectangle and line command the table and draw.
• using text command, the text is given.
• In the command type lines to draw the reinforcement.
• In the command box type circles to draw the reinforcement.

RESULT:

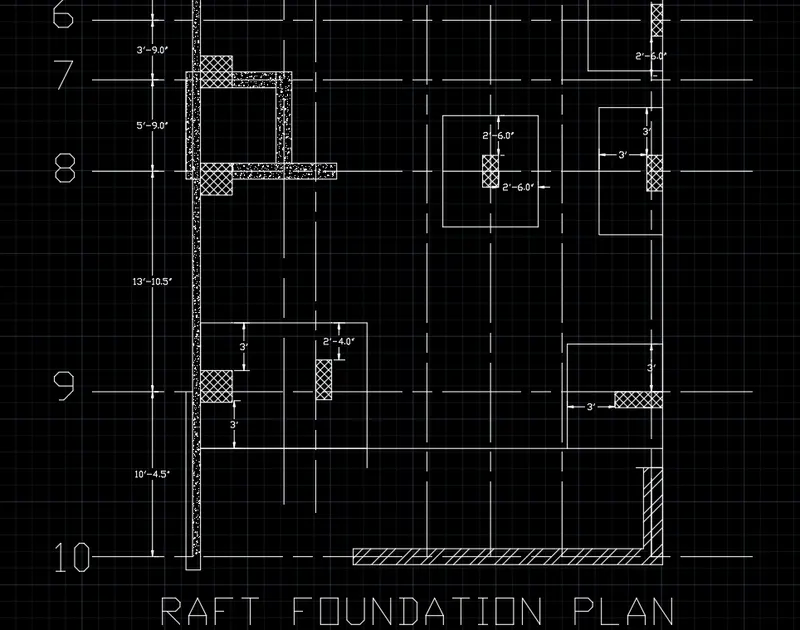

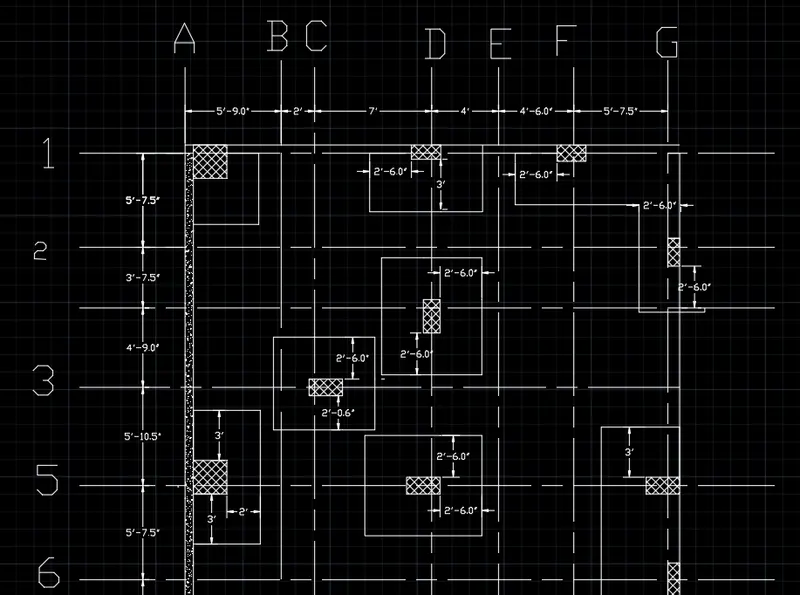

5. AIM: To create the raft layout.

PROCEDURE:

• In the command box type units are set to feet.
• Limits and lim-max are also set.
• Zoom command is also used.
• In the command box type rectangle-size-29'-7" and 60'
• To get dotted lines click on line type and load the dotted line and set current.
• With the help of dotted lines give the offset command
• In the command box type Hatch and select the AR-CON.
• In the command box type rec .2'and 2'
• In the command box type rec and draft the columns.
• In the command box type hatch and select -ANS137 for columns.
• In the command box type hatch and select -ANS133 for walls.
• In the command box type dimensions and text'

RESULT:
