Creating a Wardrobe detailed drawing, Floor Plan, Kitchen Layout and Column Detail using AutoCad

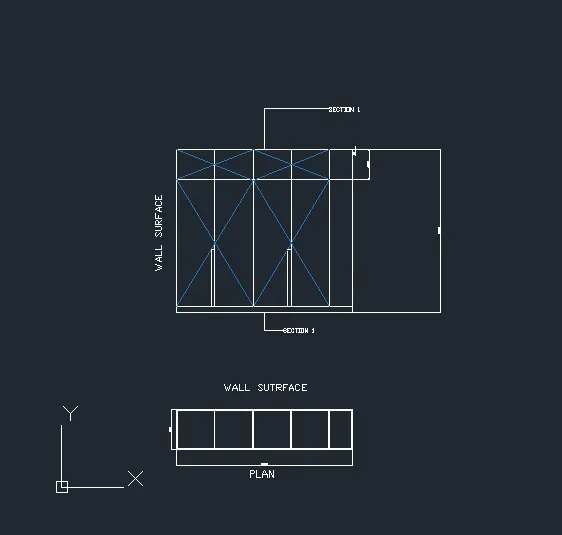

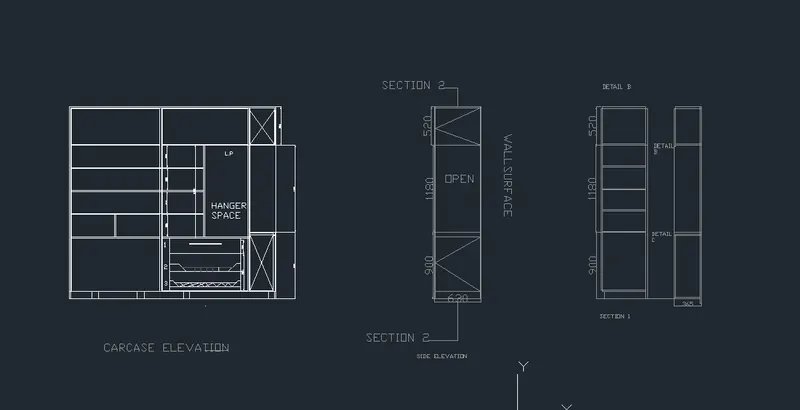

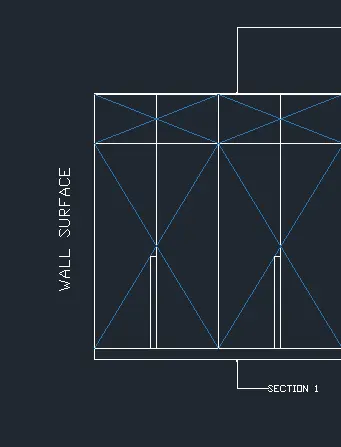

- AIM:

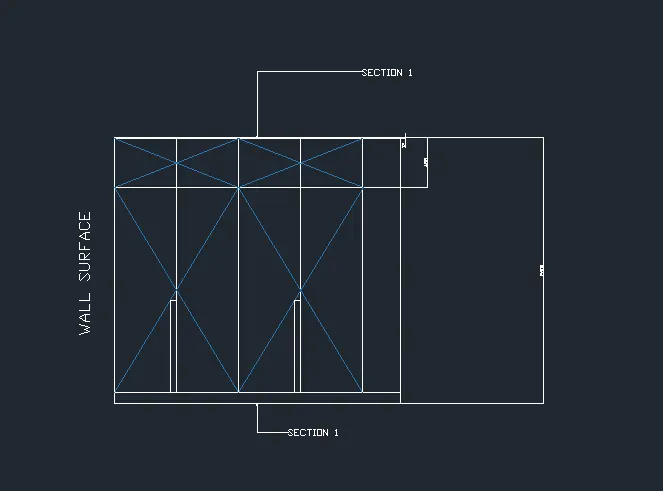

TO DRAW THE ELEVATION AND DETAILS OF A WARDROBE AS SHOWN IN THE FIGURE BELOW . AFTER SKETCHING , YOU NEED TO PROVIDE THE DIMENSION AND TEXT WITH USE OF LAYERS.
PROCEDURE :
STEP1 :
- UNIT ARE SET TO MM.
- LIMIT AND LIMAX ARE ALSO SET.
- ZOOM COMMAND ASLO USED.
STEP2:
- IN THE COMMAND LINE TYPE 3200,3000.
- IN THE COMMAND LINE TYPE OFFEST.
- OFFSET FROM THE TOP OF DIMENSIONS 12 AND 488 MM.
- IN THE COMMAND LINE TYPE OFFSET CREAT THE OFFSET FROM THE SIDE AT THE DISTANCE OF 608.75 AND 365.
- IN THE COMMAND LINE TYPE L AND BY INCREASING THE TRANSPARENCY TO CREAT WALL SYSTEM.

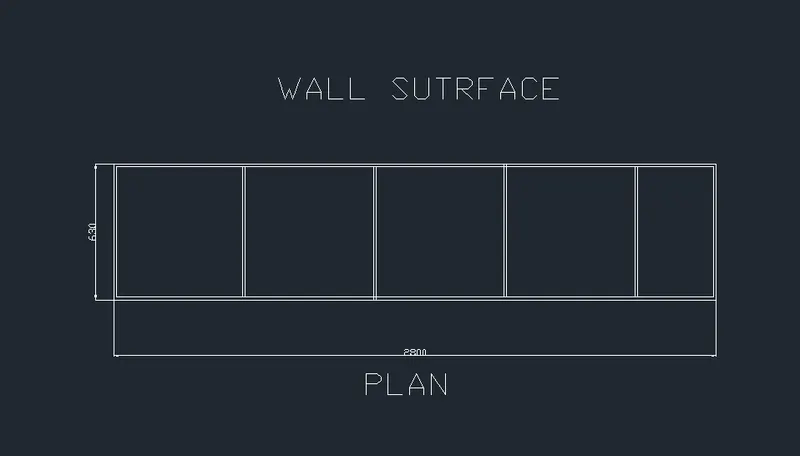

- IN THE COMMAND PROMPT TYPE RECTANGLE > 630 X2800.
- IN THE COMMAND PROMPT TYPE Q LEADER TO GIVE THE ANNOTATIONS.
- IN THE COMMAND PROMPT TYPE RECTANGLE 2800X2600.
- WITH THE HELP OF LINE COMMAND DRAWERS AND CABINET ARE CREATED.
- IN THE COMMAND PROMPT TYPE RECTANGLE AND DIMENSION OF 520X630, 1180X630,900X630, THIS IS REPEATED 2 TIMES.
- USING LINE COMMAND THE NEXT OF THE LINE ARE DRAWN.

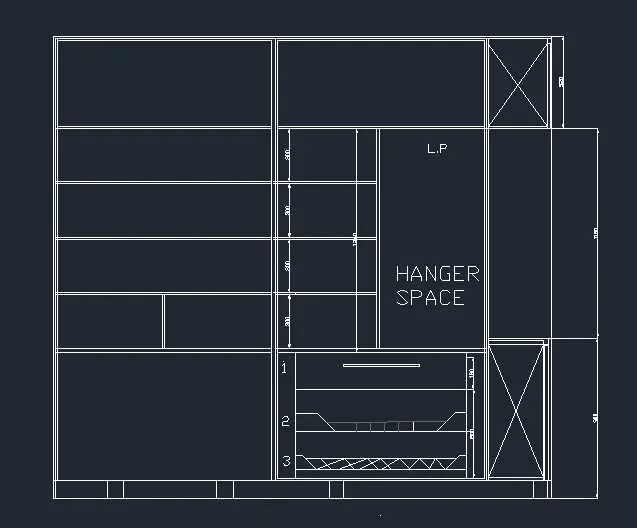

FINAL RESULT:

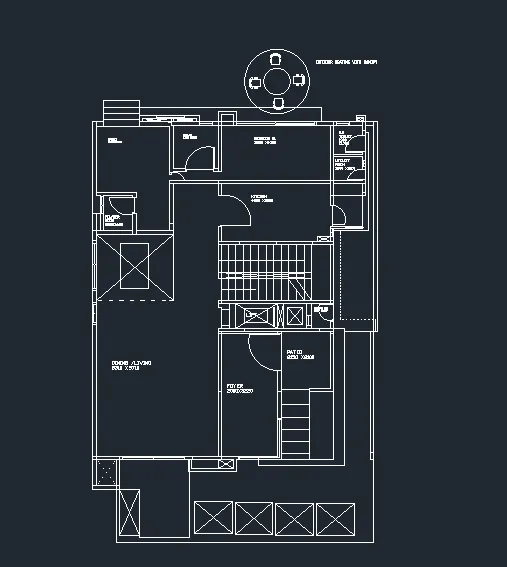

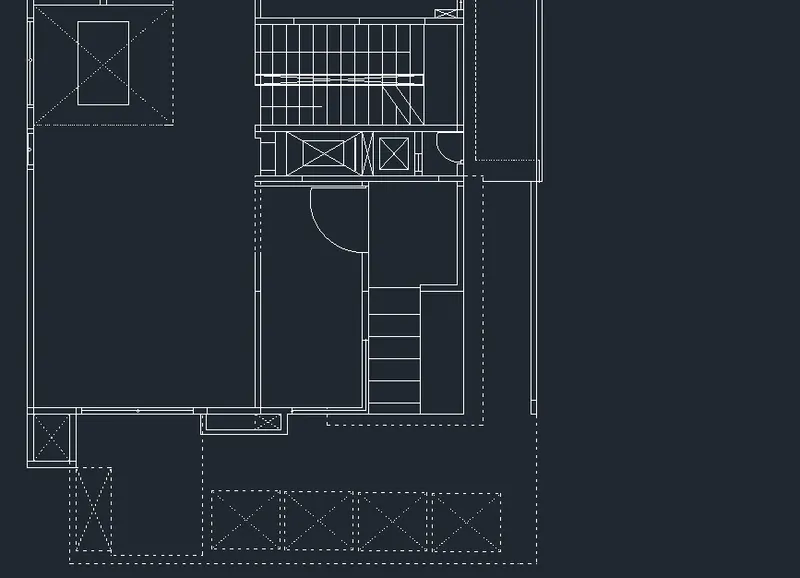

AIM:

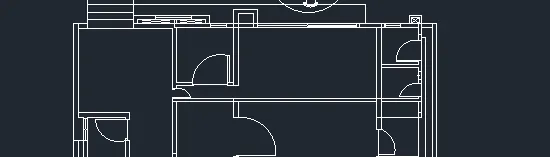

DRAW THE FLOOR PLAN ,USE THE PROPER DRAFTING TOOL TO SKETCH THE PLAN.
- PROCEDURE:
- STEP 1: IN THE COMMAND PROMPT TYPE ( XI) TO DRAW THE INFINITE LINES.
- IN THE COMMAND PROMPT TYPE OFFSET TO OFFSET THE LINE FOR PARTICULAR DISTANCE.
- USING ARC COMMAND DOORS ARE ALSO CREATED.
- IN THE COMMAND LINE ( LINE ) TYPE IS TYPE TO GET THE DOTTED LINES.
- IN THE COMMAND LINE ( TEXT) IS TYPED TO GET THE DIMENSION AND ANNOTATION OF THE PLAN .

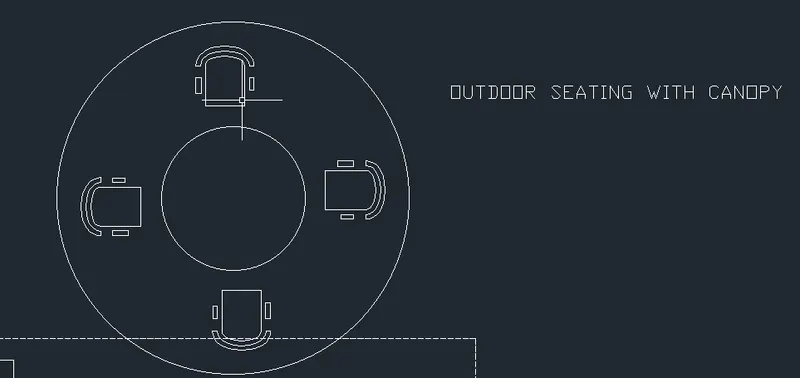

- TO DRAW CANOPY
- IN THE MENYU BAR CLICK ON CIRCLE > CENTRE , RADIUS SPECIFY THE CENTRE POINT AS 10,10 AND RADIUS 452 IN THE MENU BAR CLICK ON CIRCLE > CENTRE , RADIUS SPECIFY THE CENTRE POINT SAME AS THE PREVIOUS CIRCLE ( 10,10) AND RADIUS 1398 .
SEATS:
IN THE MENU BAR CLICK ON RECTANGULAR OR IN THE COMMAND PROMPT TYPE REC SPECIFY THE LENGTH OF RECTANGLE AS 660,SPECIFY THE LENGTH OF THE RECTANGLE AS 298.
IN THE COMMAND PROMPT TYPE FILLET > RADIUS 100 ( TO GET CURVE EDGES IN THE CORNER ).
IN THE MENU BAR > CIRCLE > CENTRE, DIAMETER ,CENTRE IS THE MID POINT OF THE LINE ,DIAMETER IS 770 NOW, EXTEND THE CENTRE LINE AND TRIM THE EXTRA'S.
IN THE MENU BAR CLICK FILLET > BLEND CURVE > AND SELECT THE ARC .
FINAL RESULT:

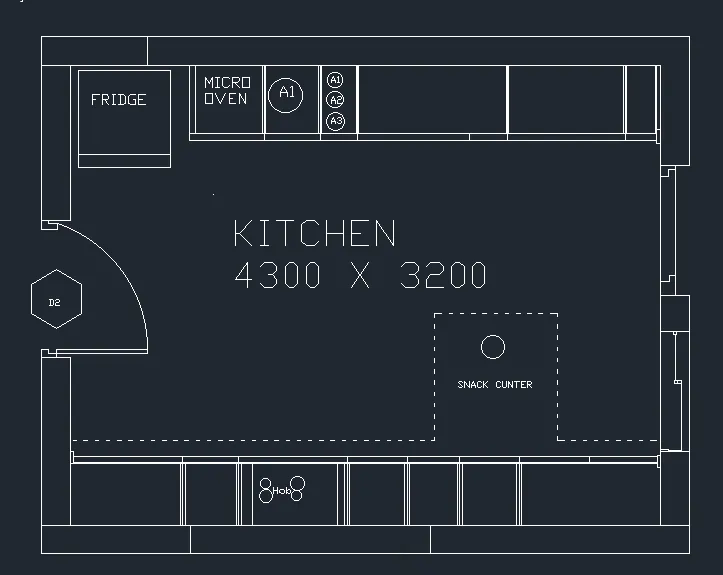

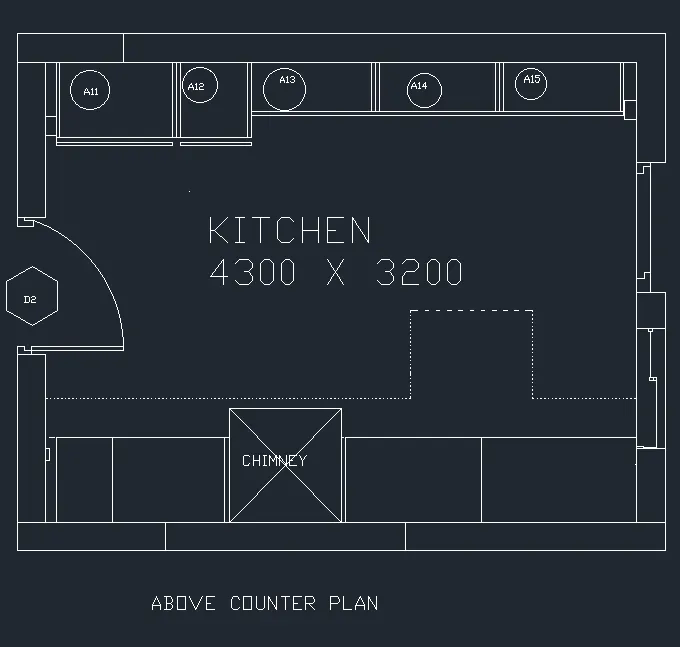

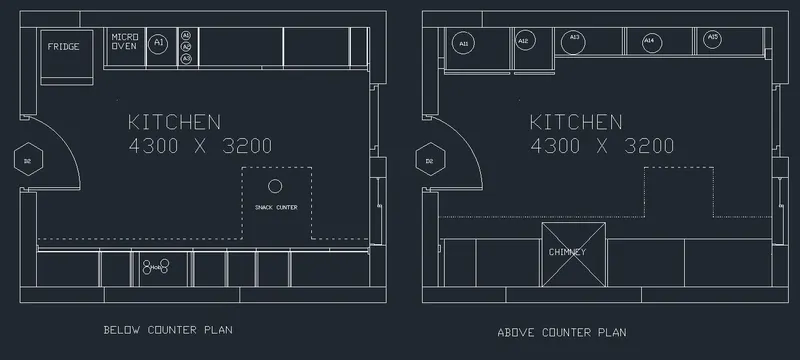

2. AIM : CREATE THE KITCHEN LAYOUT AS SHOWN IN THE FIGURE BELOW .ALSO ,USE PROPER DIMENSION TECHNIQUES TO DIMENSION THE KITCHEN LAYOUT ALSO , INSERT TEXT WHEREVER REQUIRED. ALL DIMENSION ARE IN MM.
PROCEDURE:
STEPS:
- IN THE COMMAND PROMPT TYPE REC AND THE DIMENSION ARE 4734 X 3688 MM.
- IN THE COMMAND PROMPT TYPE OFFSET AND OFFSET IT TO THE DISTANCE OF 230MM.
- USING ARC AND LINES THE DOOR IS DRAWN.

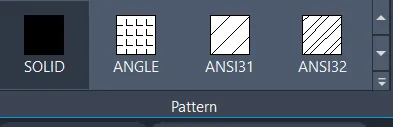

- IN THE COMMAND PROMPT TYPE HATCH TO HATCH THE MODEL.
- IN THE COMMAND PROMPT TYPE REC> DIMENSION,TO DO THE FRIDGE .
- IN THE COMMAND PROMPT TYPE OFFSET AND OFFSET IT TO THE DESIRED DISTANCE TO GET THE MICRO OVEN .
- IN THE COMMAND PROMPT TYPE TRIM TO TRIM THE EXTRAS.
- IN THE COMMAND PROMPT TYPE OFFSET AND OFFSET IT TO THE HORIZONTAL DISTANCE OF 350,450,900,450,450 AND 560.
- IN THE COMMAND PROMPT TYPE OFFSET AND OFFSET IT TO THE VERTICAL DISTANCE OF 600.
- IN THE COMMAND PROMPT TYPE TRIM TO TRIM THE EXTRAS .

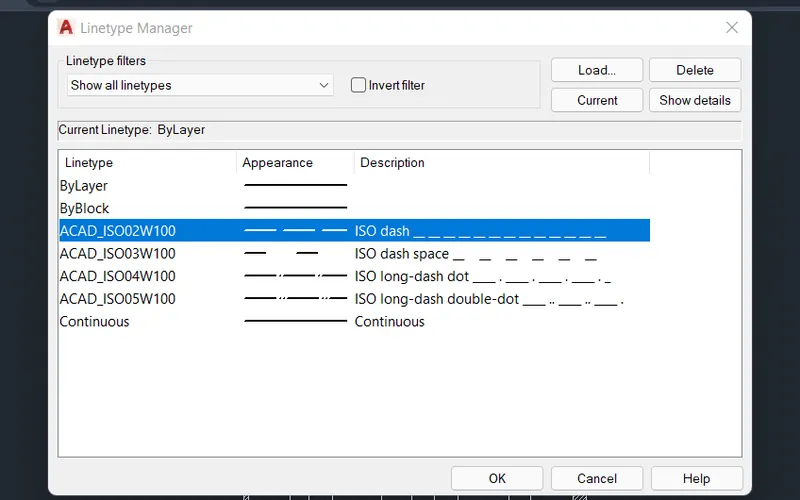

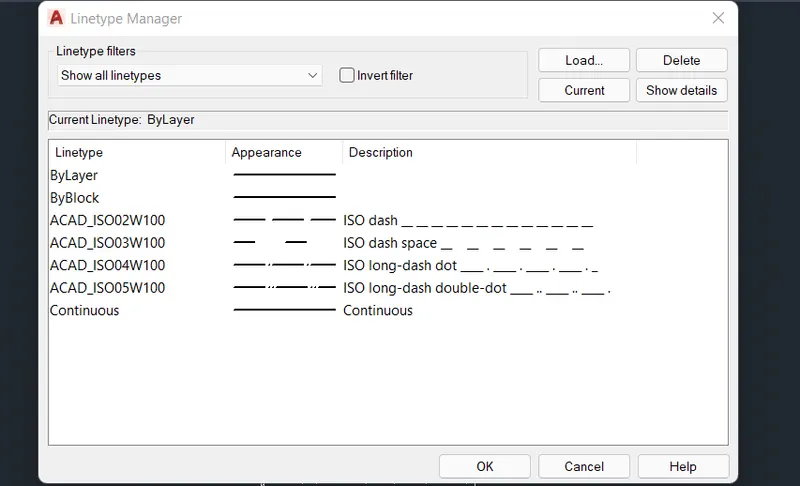

- IN THE COMMAND PROMPT TYPE LINE TYPE AND LOAD THE DOTTED LINES.
- IN THE COMMAND PROMPT TYPE TEXT TO TEXT THE GIVEN ANNOTATIONS.
- IN THE COMMAND PROMPT TYPE DIMENSION TO GIVEN THE DIMENSION TO YOUR PLAN .
- IN THE COMMAND PROMPT EVEN THE LEADER COMMAND IS USED TO NAME THE DIMENSION .

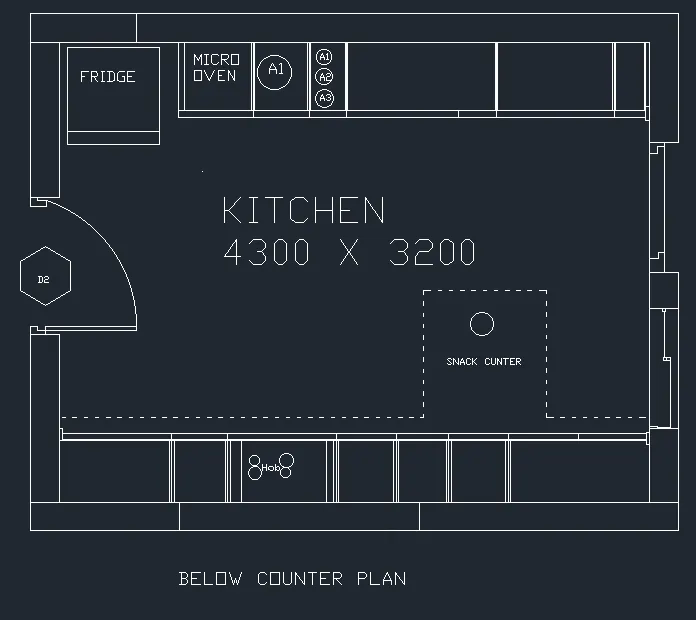

FINAL RESULT:

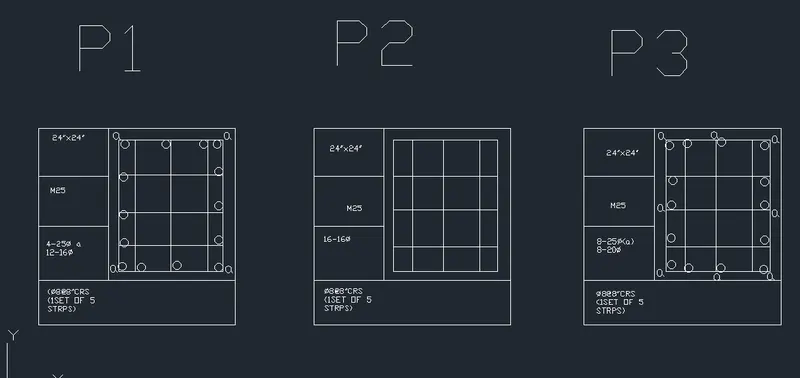

3.AIM: SKECTH THE COLUMN DETAILS AS SHOWN IN THE FIGURES, INSERT DIMENSION AND TEXT IN THE FIGURE. REFERS TO THE BAR SIZE FROM THE SCHDULES.
PROCEDURES:
STEPS:
- USING RECTANGLE AND LINE COMMAND THE TABLES ARE DRAWN.
- USING THE TEXT COMMAND THE TEXT ARE GIVEN.
- IN THE COMMAND PROMPT TYPE LINE TO DRAW THE REINFORCEMENT .
- IN THE COMMAND PROMPT TYPE CIRCLE TO DRAW THE REINFORCEMENT .
FINAL RESULT :

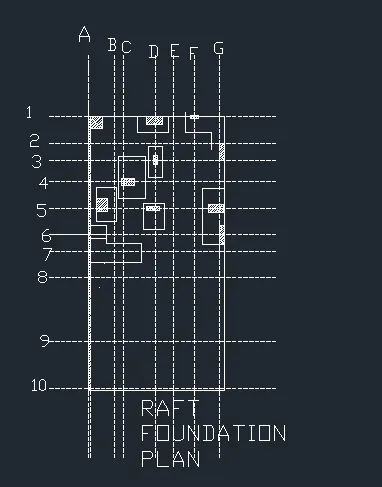

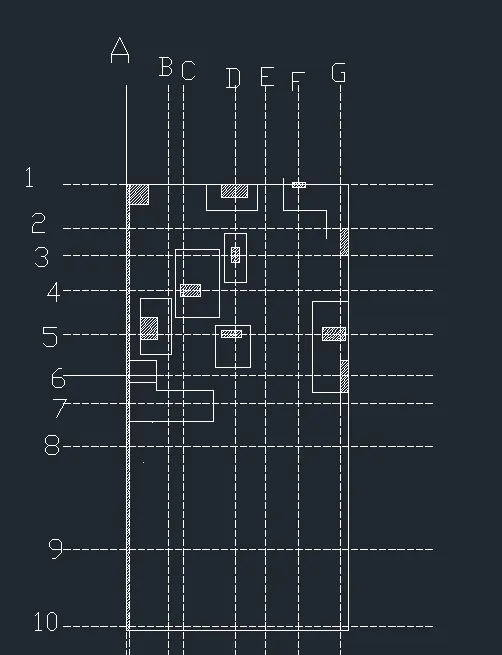

4.AIM: TO DRAW THE RAFT LAYOUT .
PROCEDURE:
STEPS:

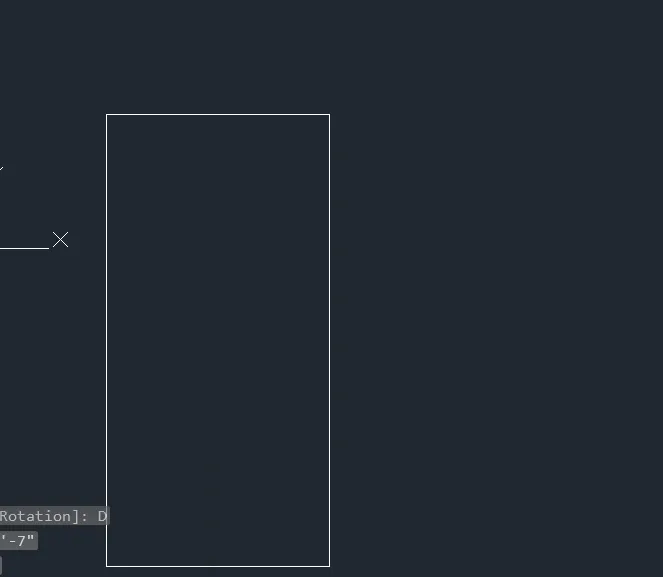

- IN THE COOMMAND PROMPT TYPE RECTANGLE > DIMENSION ARE 29'-7" AND 60'.
- WITH THE HELP OF DOTTED LINES AND OFFSET COMMAND THE GRIDS ARE DRAWN .
- IN THE COMMAND PROMPT OFFSET THE DISTANCE TO 4".
- IN THE RIBBON > HATCH > AR -CON
- IN THE COMMAND PROMPT TYPE REC.> 2'X2'
- IN THE COMMAND PROMPT TYPE REC TO DRAFT THE COLUMNS.
FINAL RESULT:
