Creating a Wardrobe detailed drawing, Floor Plan, Kitchen Layout and Column Detail using AutoCad

1.

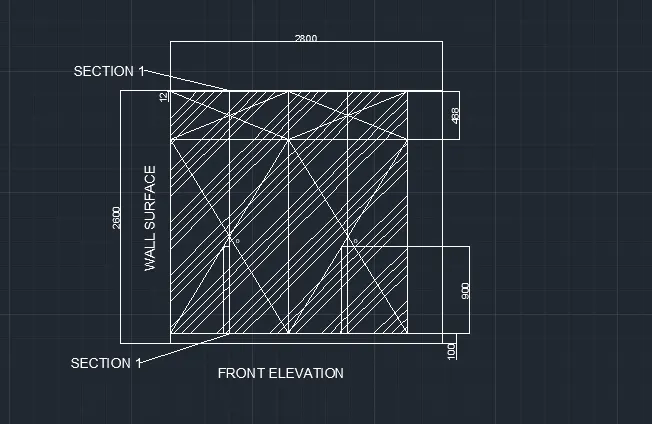

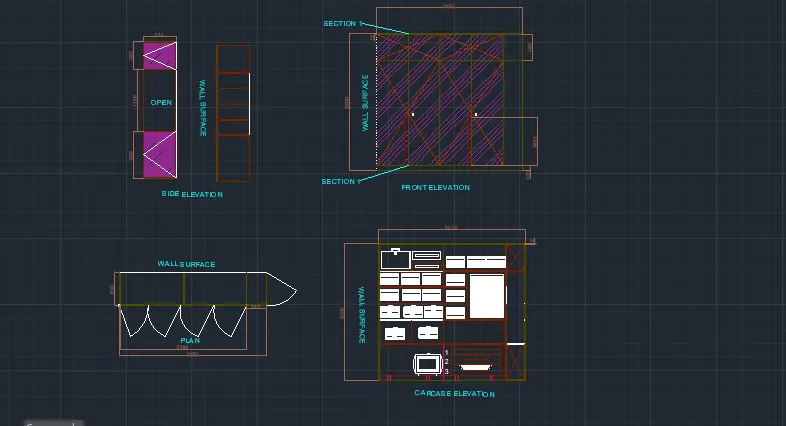

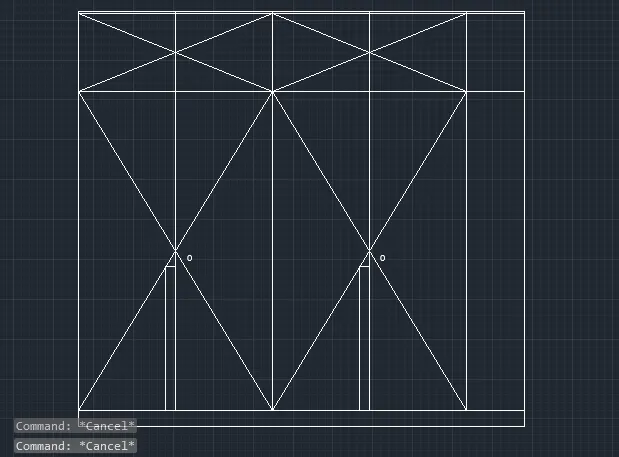

AIM :

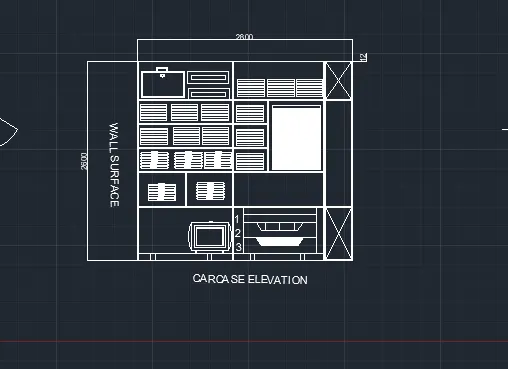

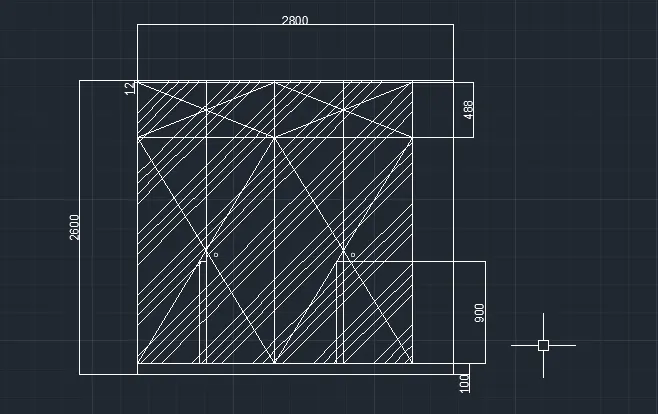

To draw the elevation and details of a wardrobe as shown in the fig below . after sketching you need to provide the dimensions and text with the use of layers.

Procedure:

Step 1:

• units are set in mm
• limit and lim-max are also set
• zoom command is also used

step 2:

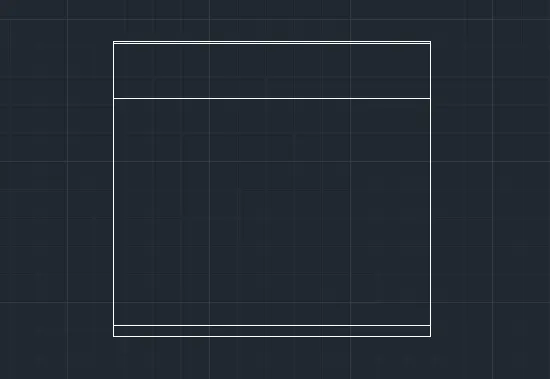

• in the command line type rec>2800,2600
• in then command line type offset
• offset from top of the dimension 12 and 488mm

step 3:

• in the command line type offset
• create the offset from side at a distance of 608.75 and 365

step 4:

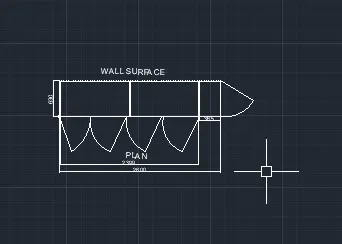

• in the command line type l and increasing the transparency to create wall surface
• by using hatch , give the hatch and give scale 20
• in the command line type q leader to mention the annotation

step 5:

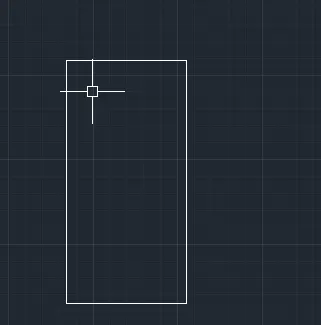

• in the command prompt type rectangle >680,2800
• in the command prompt type , q leader to mention annotation

step 6:

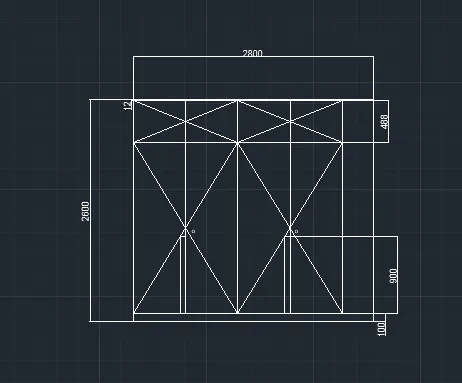

• in the command prompt type rectangle > 2800, 2600
• with the help of line command drawers and cabinets are created , give the grey colour, dimensions the drawing

step 7:

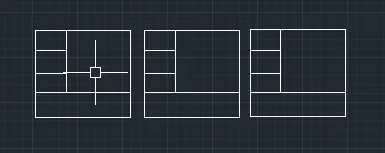

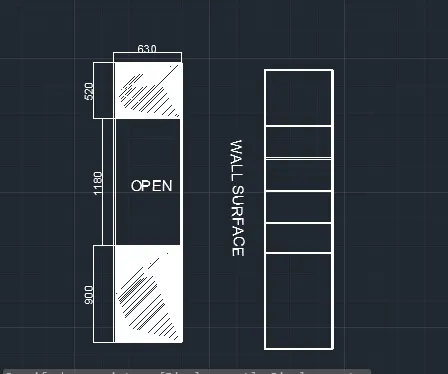

• in the command prompt type rectangle and dimensions of 520 * 630. 1180*630 , 900*630 this will repeated 2 times

using line command the next of lines are drawn.

step 8 :

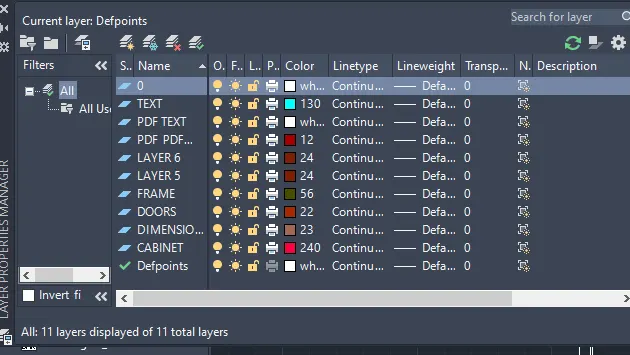

place the entire drawing in the respective layers.

RESULT :

2.

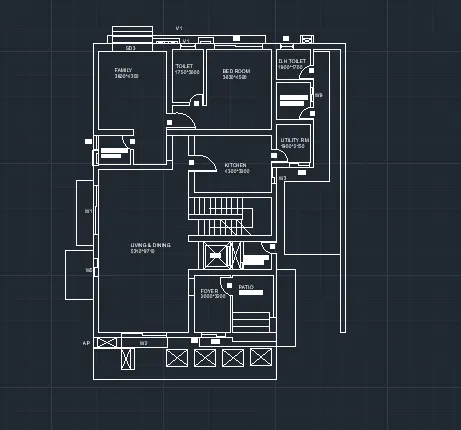

AIM :

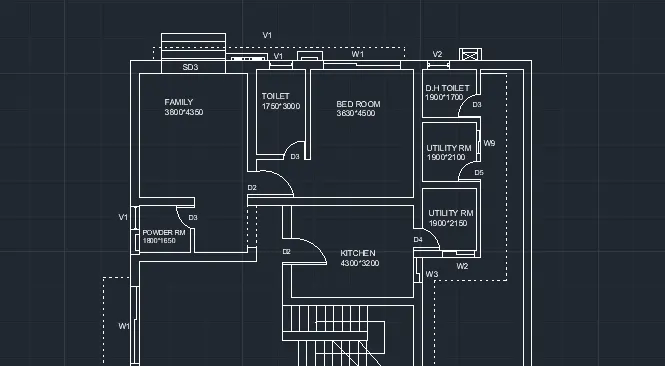

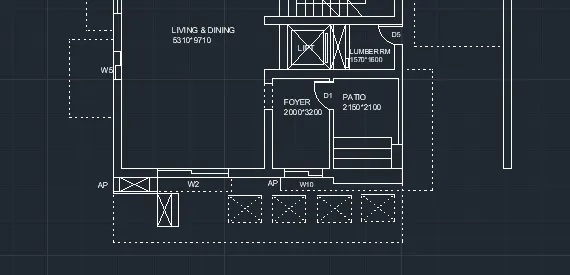

To draw the given floor plan .

Procedure :

Step 1:

• units are set in mm
• limit and lim-max are also set
• zoom command is also used

step 2:

• in the command type draw the xl line of infinite lines
• in the commanmd propt type the offset to offset the line for a particular distance
• using arc command doors also created

Doors:(IN MM) WINDOWS:(IN MM) VENTILATORS : (IN MM)

D1 = 1000*2000 W1 = 2700*1500 V1 = 800*500

D2 = 900*2100 W2 = 2500*1500 V2 = 750*500

D3 = 800*2100 W3 = 900*1500

D4 = 750*2100 W5 = 1000*1500

D5 = 700*2100 W9 = 800*1500

SD = 2256*2100

STEP 3:

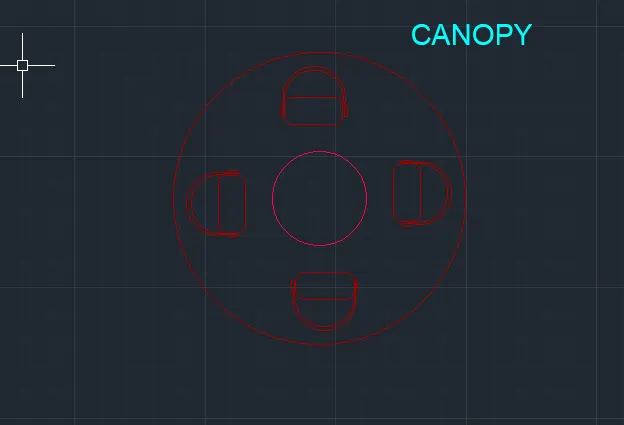

• Draw a canopy.
• circle;
• in the menu bar click on the circle, >center radius, specify the center point as 10,10 and radius 452
• repeat as same as radius 1398
• seats:
• in the menu bar click on the rectangle specify length and width of the rectangle is 662.3/298
• in command fillet>radius 100
• in the menu bar circle 2 point
• centre as the midpoint of the line as diameter 719
• centre as the midpoint of the line as diameter 777.2
• now extrend the centre line trim the extra line
• fillet>blend curves >select the arcs
• fillet>blend curves >select the arcs

step 4:

give the dimensions and annotations the drawing with the text wherever required.

step 5:

place the all elements in the respective layers

RESULT :

3.

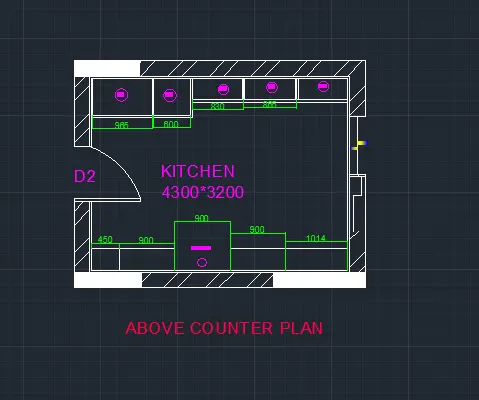

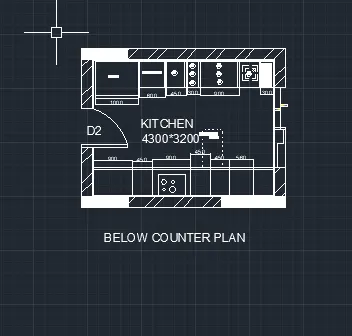

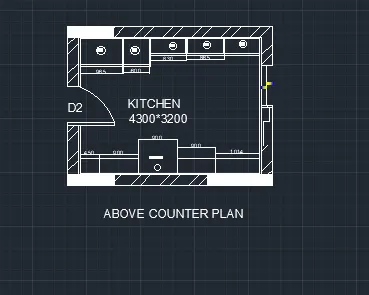

AIM:

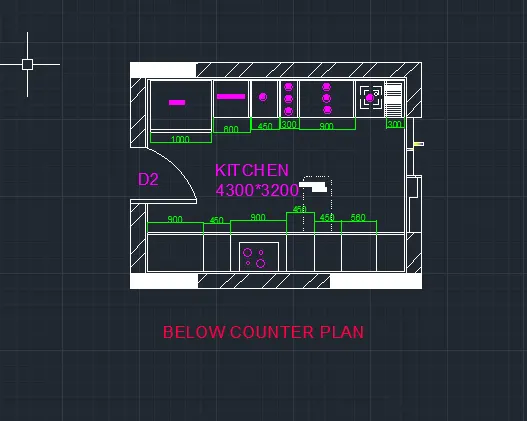

To create a kitchen layout and to also use proper dimension techniques to follow the dimension the kitchen layout insert text wherever required.

Procedure:

step1:

• units are set in mm
• limit and lim-max are also set
• zoom command is also used

srep 2:

• click rectangle in the menu bar, and the dimensions are 4734*3688 mm
• in the command prompt, type offset and offset to the distance of 250mm
• using arc and lines the door is drawn
• in the command prompt hatch to hatch the model

step3:

• in the command prompt type rec< to the dimesions to do fridge.
• in the command prompot type offset to offset to the distance to get the micro oven.
• in the command prompot type trim to trim the extras.
• in the command prompot type offset to offset to the horizontal distance 350,450,900,450,450,and 560
• in the command prompot type trim to trim the extras.
• in the command prompot type the line type load the dotted lines
• in the command prompt type text to text give annotations
• in the command prompt type dimension to give dimensions to the plan
• even the leader command to use the dimensions

step 5:

• place all the elments to the required layers

RESULT:

4.

AIM:

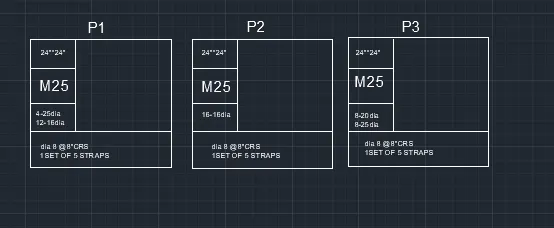

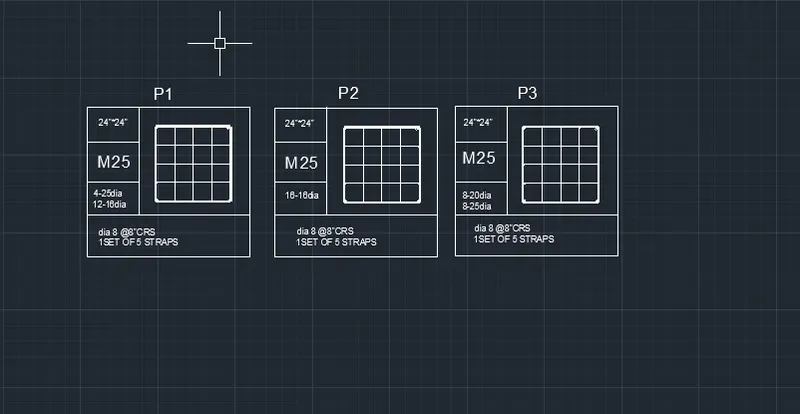

To sketch the column details.

Procedure:

step1:

• units are set in mm
• limit and lim-max are also set
• zoom command is also used

step 2:

• using rec and line command , the tables are drawn.

step 3:

• using text command the text is given.

step 4:

• in command prompt types, lines to draw for reinforcement.
• in command prompt type, circles to draw the reinforcement.

5.

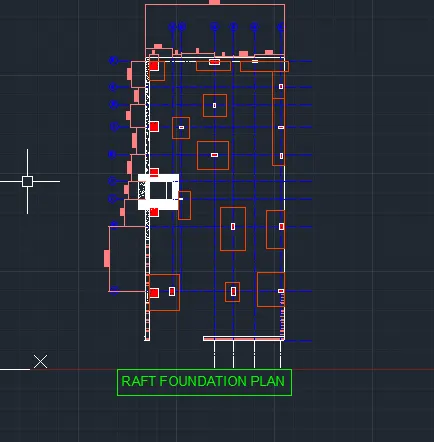

AIM:

To draw the raft layout.

Procedure :

step1:

• units are set in engineering and inches
• limit and lim-max are also set
• zoom command is also used

step 2:

• in the command prompt type rec> dimensions are 29'-7" and 60'

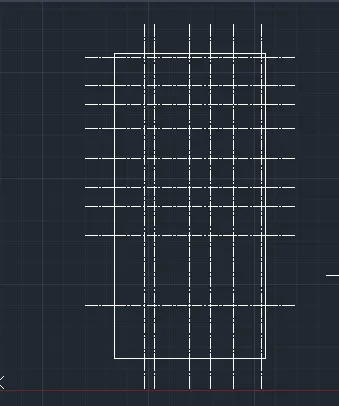

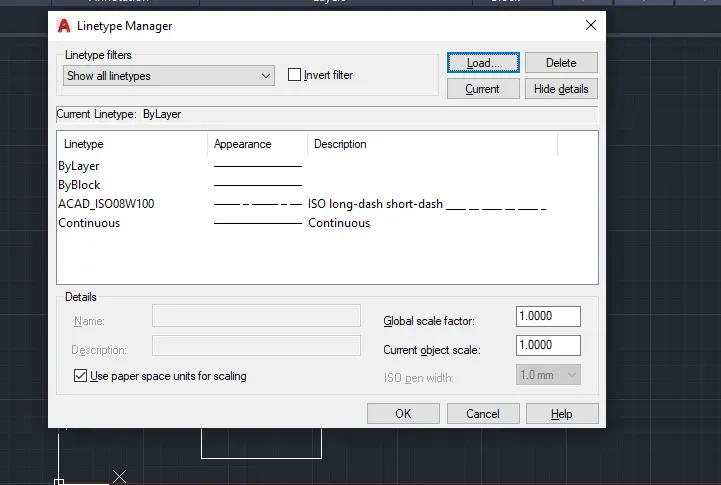

• to get dottedt lines click on line type and load the dotted lines set current
• with the help of dotted lines and offset command the grids are drawn.

step 3:

• in the command prompt type offset the distance to 4"
• in the ribbon hatch ar conc
• in the command rec>2'*2'
• type rec to draft the columns
• in the ribbon bar select >ANS137 hatchn the columns
• in the ribbon bar select >ANS133 hatch the walls

step4:

• in the ribbon bar> annotate text> text to the given annotations
• in the ribbon tab> dimensions> given dimensions

step5:

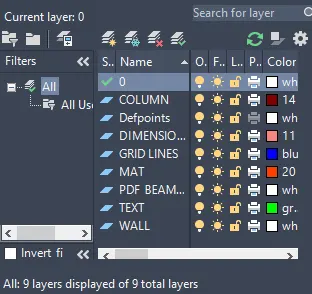

• place all the elements in the required layers.

RESULT :
