Creating a Residence Layout, Seating plan, Toilet and Utility room plan using AutoCad

AIM:

To Draw the above metioned drawings with required unit measurements by using AutoCAD.

INTRODUCTION:

• Residential Layout is ideal for students and practitioners of urban design, planning, engineering, architecture and landscape seeking a comprehensive guide to the theory and practice of designing and laying out residential areas
• Commands used:
• Limmax command
• Limits command
• Zoom command
• Xline command
• Line command
• Dimlinear command
• Dimstyle command
• Units command
• Text command
• LW command
• Extend command
• Trim command

STEP WISE PROCEDURE:

• Enter the xline command and draw the line in both x axis and y axis.
• Make offset of 9” and make the wall
• The main wall is made of thickness 9”
• Partition walls are made of 4.5” thickness

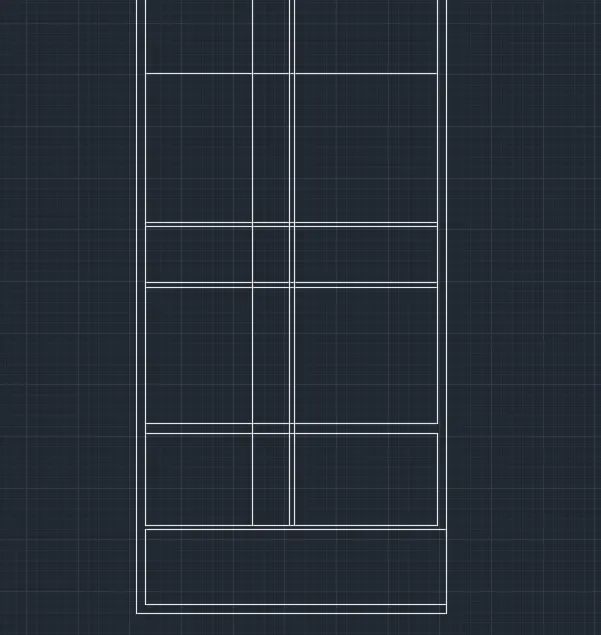

• Next enter the offset command in the command box, then press enter. And select the lines which we have drawn previously and offset the lines to 9.0"

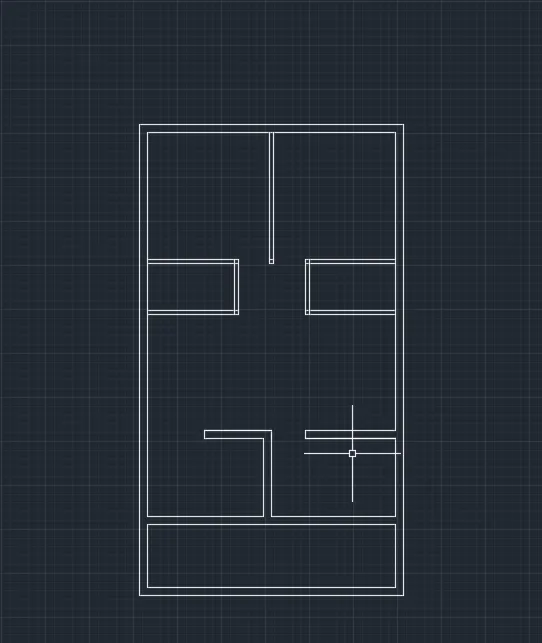

• After providing walls, remove the extra lines using the trim command
• In the same way offset command is used to partition the rooms, toilets, living and dinning hall as per the dimensions.

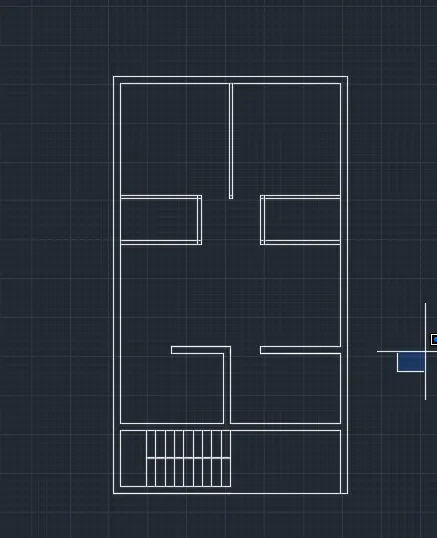

• Staircase provided is a dog legged stair.
• Draw the stairs left side of parking with 1' tread and 6' riser, that is shown in figure clearly.

• Next we have to draw the doors with the given dimensions for D1, D2, D3.

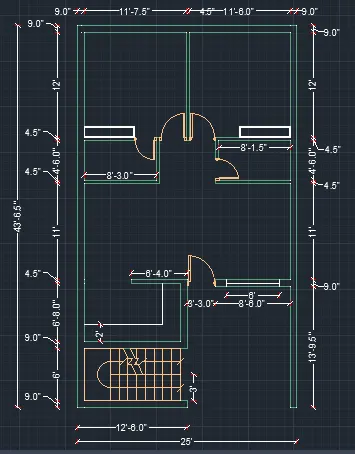

• provide the dimensions
• differentiate the doors and staircase using different colours.

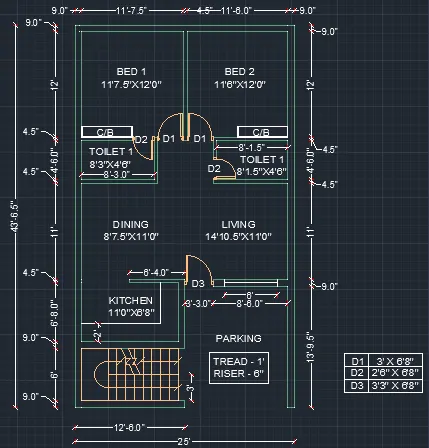

• And also give the names for the rooms in the residential building.
• To provide the names mtext command is used.

RESULT:

The given residential plan is drawn using autocad.

AIM:

To draw the given seating plan for an outdoor conopy in detail.

INTRODUCTION:

• A canopy is an overhead roof or else a structure over which a fabric or metal covering is attached, able to provide shade or shelter from weather conditions such as sun, hail, snow and rain.
• Canopy can also be a tent, generally without a floor.
• The seating plan of oudoor canopy is places in many places, like receptions, restaurants etc.

COMMANDS USED:

Limmax command

Limits command

Zoom command

Circle command

Arc command

array

Dimstyle commands

Units command

Text command

LW command

STEP WISE PROCEDURE:

Command: UN

UNITS

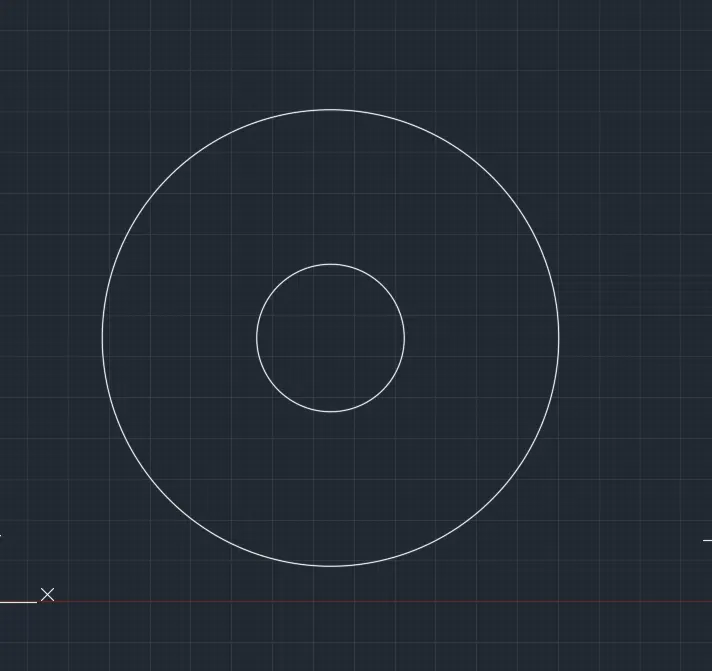

Command: C

CIRCLE

Specify center point for circle or [3P/2P/Ttr (tan tan radius)]:

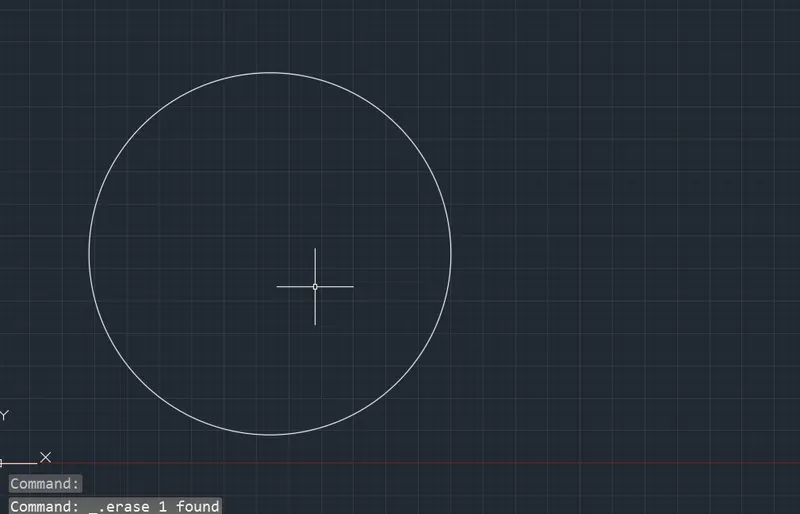

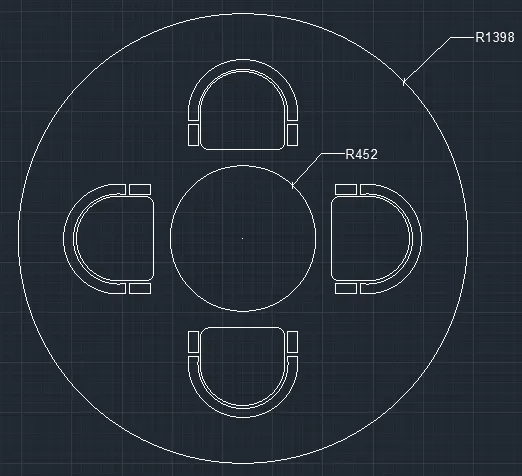

Specify radius of circle or [Diameter]: 1398

Command: C

CIRCLE

Specify center point for circle or [3P/2P/Ttr (tan tan radius)]:

Specify radius of circle or [Diameter] <1398>: 452

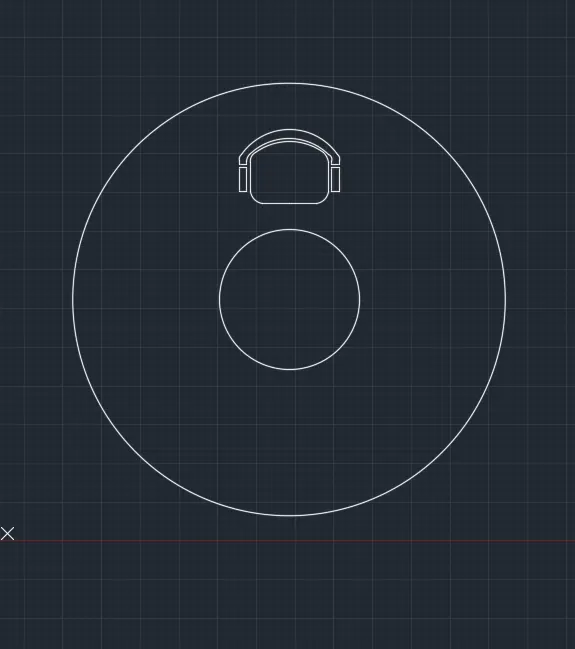

• Next here we have to draw the rectangle inside the first circle, then we have to enter the fillet command and select the rectangle coner to fillet it.
• Next we select the arc command to create are left side of the rectangle

• Copy the created chair and use array command

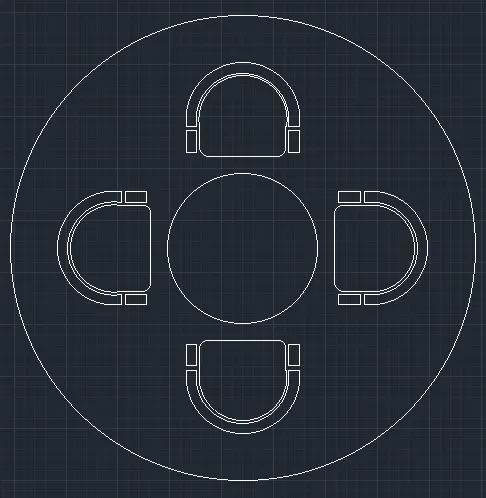

• By using polar array and providing the number of items as 4 the chairs are created as shown below.

RESULT:

An outdoor conopy is created as per the details given using autocad.

AIM:

To draw the part plan for the toilets and utilities in detail.

INTRODUCTION:

• A toilet room usually consists of obviously a toilet, Lavatory and all of the accessones, such as grab bars and dispensers
• There are many layouts of this type but we will explore one very simple design and the code requirements for each
• The utility room has several uses but typically functions as an area to do laundry.
• This room contains laundry equipment such as a washing machine, tumble dryer ironing board and clothes iron
• The room is also used for closet organization and storage.
• The room would normally contain a second coat closet which is used to store seasonal clothing such as winter costs or clothing which are no longer used daily.

COMMANDS USED:

Limmax command

Limits command

Zoom command

Line command

Dimlinear command

STEP WISE PROCEDURE:

Command: UN

UNITS

• The lines are drawn using xline command in both x and y direction.

Command: xline

Command: xline

• The wall thickness is provided as 300mm for the outer walls

Command: offset

Offset distance: 300

• The wall thickness for the inside walls are provided as 150mm.

Command: offset

Offset distance: 150

• the walls are provided as per the dimensions given.
• the extra unwanted lines are deleted using trim command.

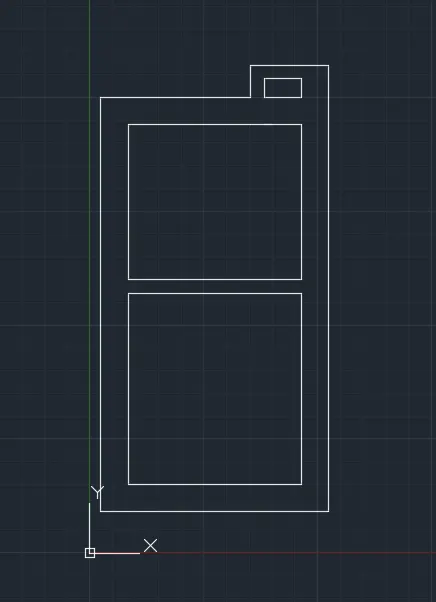

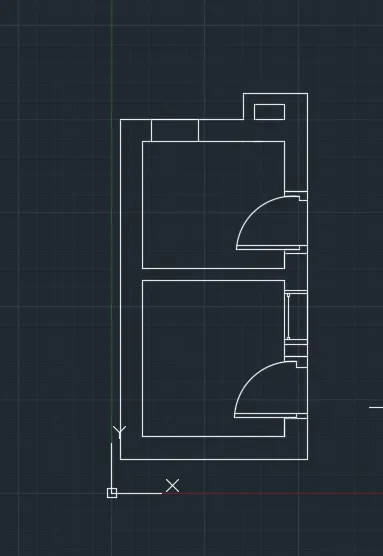

• the doors are provided using line and arc command
• doors are created as per the dimensions.

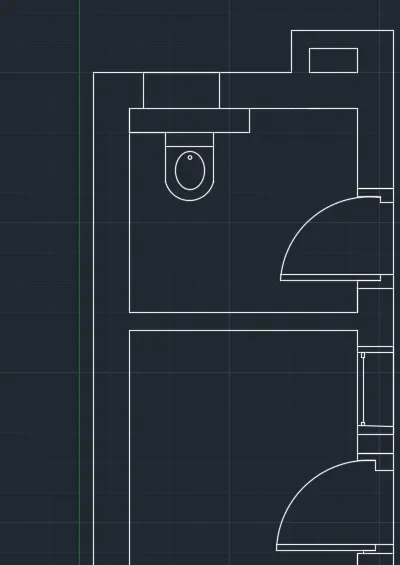

• the toilet basin is created
• commands used to create the basin are line, arc, ellipse and circle
• trim and extend command wherever required.

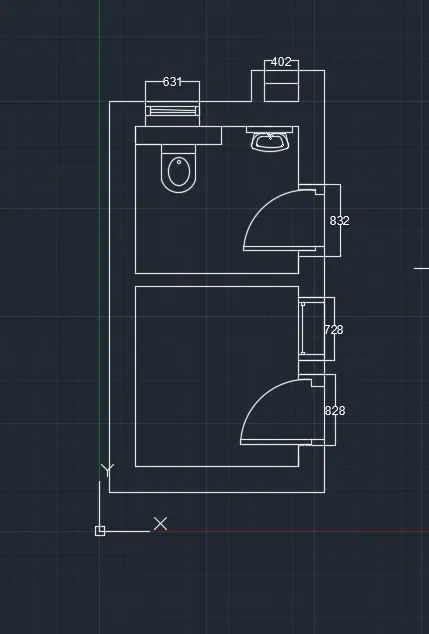

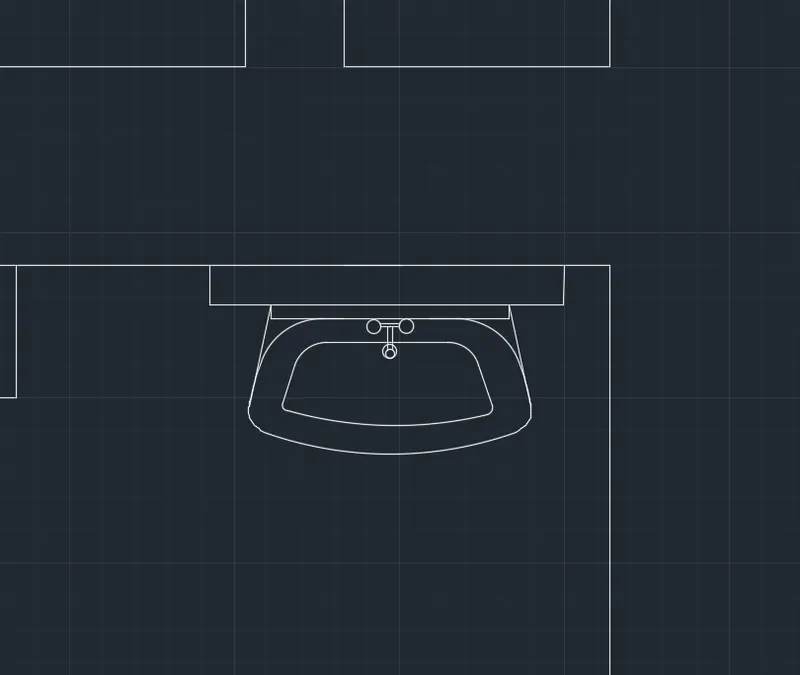

• the wash basin is created
• commands used are line, arc, fillet.

• ventilation for the bathroom is created.
• commands used were line, trim

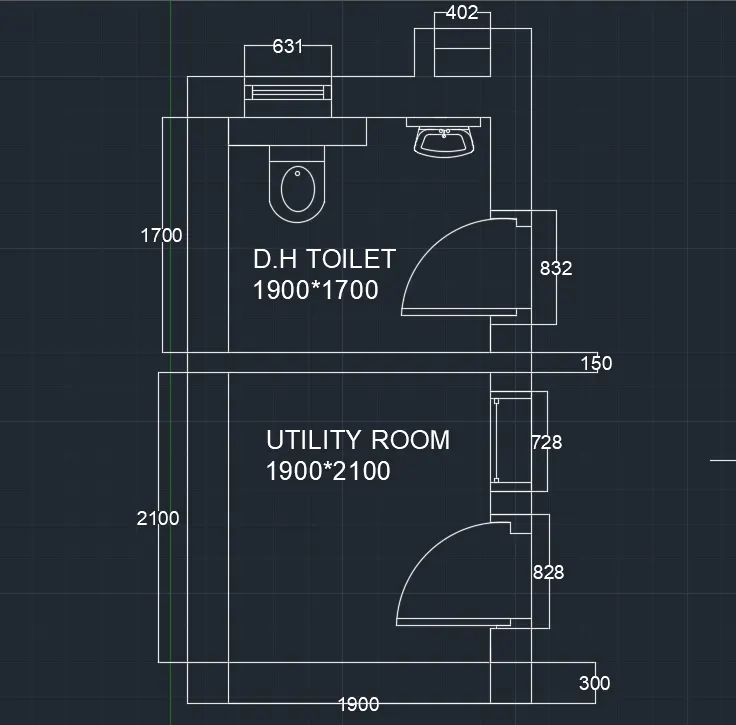

• text is added to the drawing using mt command.
• dimensions of the washroom is provided.

RESULT:

The given plan of the toilet and utilities are created successfully using autocad.
