Creating a Residence Layout, Seating plan, Toilet and Utility room plan using AutoCad

Aim: 1

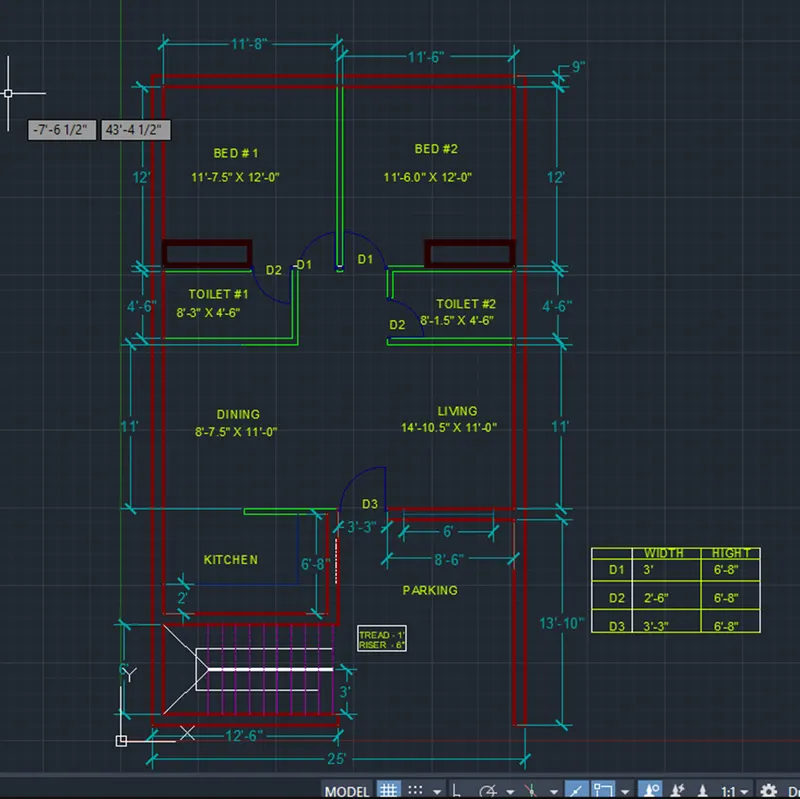

Residence plan . To draw the given drawing using. AutoCAD software

Procedure:

Step: 1

• In the command prompt type units and select architectural unit
• In the command prompt type limits
• In the command prompt type (0’,0’)
• In the command prompt type(50’,50’)

Step: 2 Exterior wall

• In the command prompt type L (line)
• In the command prompt specify start point 10’,10’
• Sketching the all dimensions
• In the command prompt click close
• In the command prompt type offset
• The Selecting objects and type dimensions
• In the command prompt click enter
• In the command prompt TR
• The Selecting objects
• Right click

Step: 3 Interior wall

• In the command prompt type L (line)
• In the command prompt specify start point 10’,10’
• Sketching the all dimensions
• In the command prompt click close
• In the command prompt type offset
• The Selecting objects and type dimensions
• In the command prompt click enter
• In the command prompt TR
• The Selecting objects
• Right click

Step: 4 Door

• In the command prompt type L
• In the command specify selecting start point
• Sketching the all dimensions
• In the command prompt click close
• In the command prompt type offset
• The Selecting objects and type dimensions
• In the command prompt click enter
• In the command prompt TR
• The Selecting objects
• Right click
• In the command prompt C
• In the command specify selecting start point
• Sketching the all dimensions
• In the command prompt click close

Step: 5 Windows

• In the command prompt type L
• In the command specify selecting start point
• Sketching the all dimensions
• In the command prompt click close
• In the command prompt type offset
• The Selecting objects and type dimensions
• In the command prompt click enter
• In the command prompt TR
• The Selecting objects
• Right click

Result:

Residence plan

Aim: 2

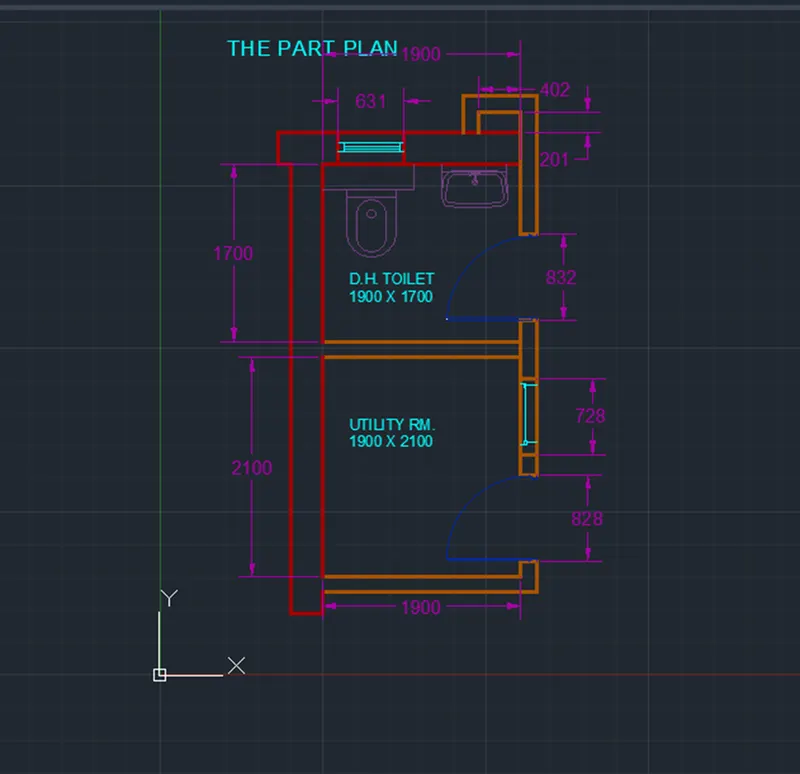

To draw the given drawing using. AutoCAD software

Procedure:

Step: 1

• In the command prompt type units and select architectural unit
• In the command prompt type limits
• In the command prompt type (0,0)
• In the command prompt type (3000,3000)

Step:2

• In the command prompt type C
• In the command prompt specify start point 1500,1500
• Sketching the -dimensions R 1398
• In the command prompt click enter
• In the command prompt type C
• In the command prompt specify start point 1500,1500
• Sketching the -dimensions R 452
• In the command prompt click enter

Step:3

• In the command prompt type C
• In the command prompt specify select start point
• Sketching the all dimensions
• In the command prompt click enter
• In the command prompt type MI
• The Selecting objects
• In the command prompt N
• In the command prompt click enter
• In the command prompt type L
• In the command specify selecting start point
• Sketching the all dimensions
• In the command prompt click close

Result:

Aim: 3

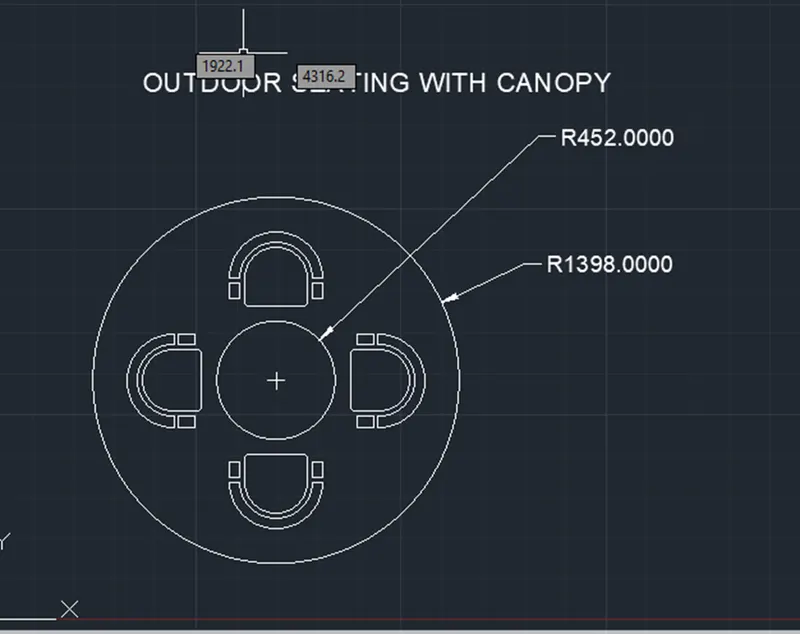

To draw the given drawing using. AutoCAD software

Procedure:

Step: 1

• In the command prompt type units and select architectural unit
• In the command prompt type limits
• In the command prompt type (0,0)
• In the command prompt type(4000,4000)

Step: 2 Exterior wall

• In the command prompt type L (line)
• In the command prompt specify start point 10’,10’
• Sketching the all dimensions
• In the command prompt click close
• In the command prompt type offset
• The Selecting objects and type dimensions
• In the command prompt click enter
• In the command prompt TR
• The Selecting objects
• Right click

Step: 3 Interior wall

• In the command prompt type L (line)
• In the command prompt specify start point 10’,10’
• Sketching the all dimensions
• In the command prompt click close
• In the command prompt type offset
• The Selecting objects and type dimensions
• In the command prompt click enter
• In the command prompt TR
• The Selecting objects
• Right click

Step: 4 Door

• In the command prompt type L
• In the command specify selecting start point
• Sketching the all dimensions
• In the command prompt click close
• In the command prompt type offset
• The Selecting objects and type dimensions
• In the command prompt click enter
• In the command prompt TR
• The Selecting objects
• Right click
• In the command prompt C
• In the command specify selecting start point
• Sketching the all dimensions
• In the command prompt click close

Step: 5 Windows

• In the command prompt type L
• In the command specify selecting start point
• Sketching the all dimensions
• In the command prompt click close
• In the command prompt type offset
• The Selecting objects and type dimensions
• In the command prompt click enter
• In the command prompt TR
• The Selecting objects
• Right click

Result:
