Creating a Layout, Section and Elevation with dimensions using AutoCad

AIM- TO DRAW PLAN ELEVATION AND SECTION OF THE HOUSE IN AUTO CAD.

INTRODUCTION- Commands used for drawing the plans and drawings

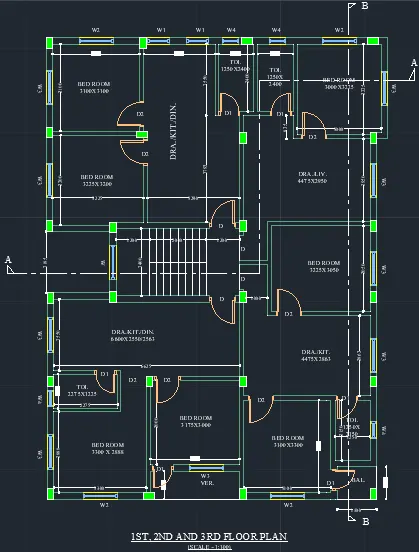

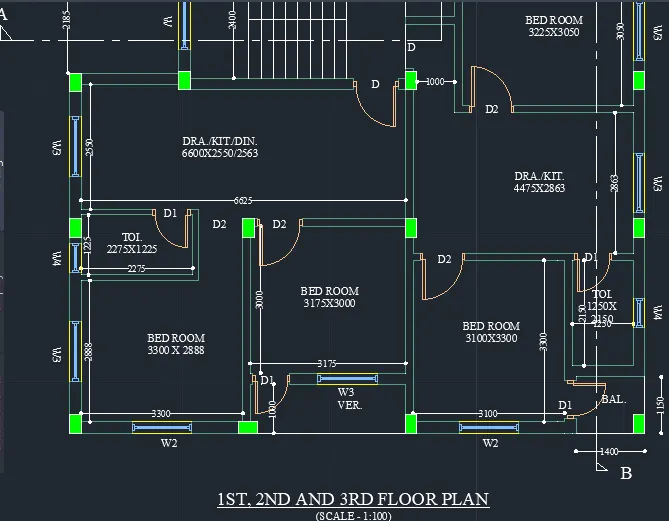

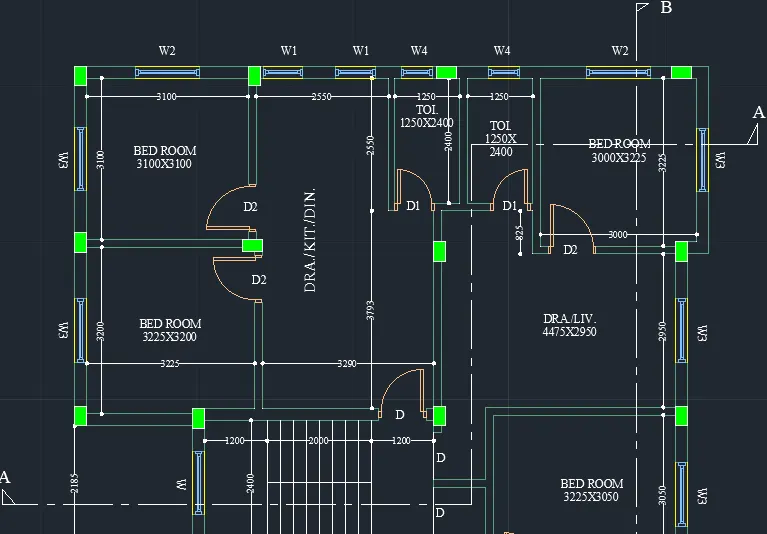

STEPS FOR DRAWING PLAN-

Open auto Cad and enter UN (Units command) in the command box and select type as decimal and set precision of decimal as 0
Select X line command and draw horizontal line and vertical line.
Trim the unwanted lines.
Now select offset command and give an offset of 250mm to both horizontal and vertical line drawn by X line.
Give the offsets as follows in the X direction.
Offset 3100 for bedrom.
Offset 125 for internal wall.
Offset 2250 for kitchen/ drawing room / dining room.
Offset 125 for internal wall.
Offset 1250 for both toilet
Offset 250 for external wall.
Give the offsets as follows in the X direction.
Offset 3100 for bedroom.
Offset 125 for internal wall.
Offset 3225 for bedroom.
Offset 250 for wall on both sides of stars.
Offset 250 for treads.
Offset 1200 for landing of staircase.
Offset 2400 for width of staircase.
Offset 2250 for kitchen dining bedroom.
Offset 1000 for veranda.

DRAWING OF WINDOWS -

SIZES OF WINDOWS ASSUMED

DRAWING OF DOORS-

SIZES OF DOORS ASSUMED-

Hatch- For hatching the columns type hatch in command box- open settings -select pattern- select pattern as AIR-CONC- select global scale factor as 0.7.

Text- For naming of plan use text in ribbon in that use multiline text and keep the height of text as 220.

RESULTS-

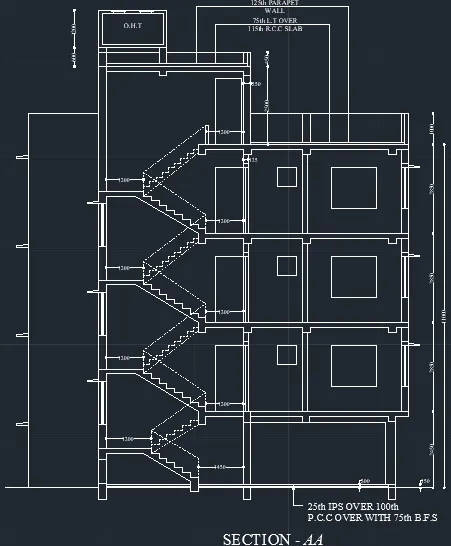

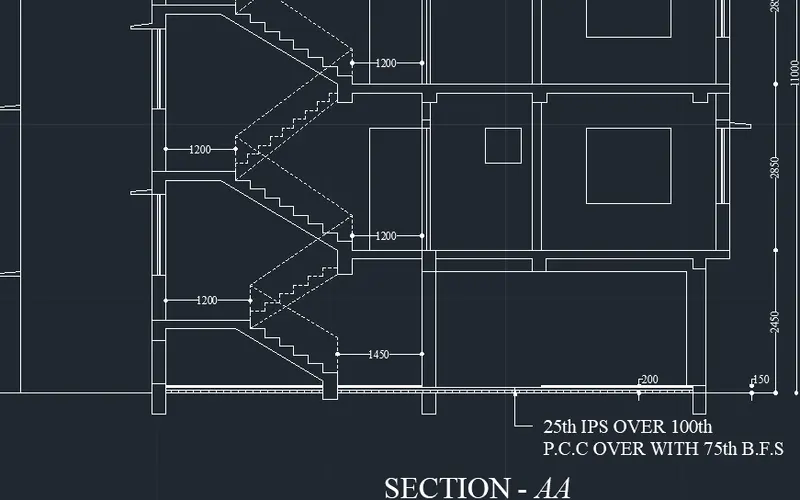

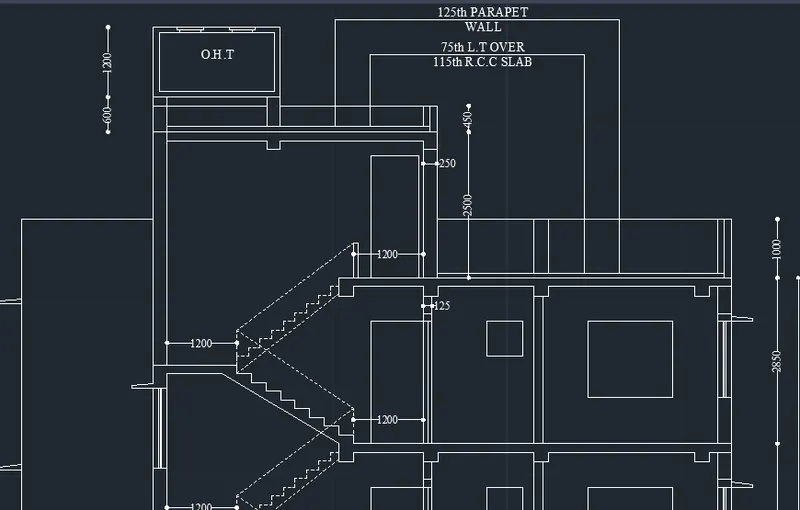

STEPS FOR DRAWING SECTION AA-

Select x line command and extend the lines from the plan in the downward manner to create projections.
Offset 150mm from the ground level.
Offset 2450 for ground floor.
Offset 2850 for second floor.
Offset 2850 for second floor.
Offset 2850 for third floor.
Offset 1000 for parapet wall.
Offset 2500 from terrace level fo mumty.
Offset 450 from mumty for parapet wall of mumty.
Offset 600 and offset 1200 for O.T.H.
For drawing of staircase offset 1250 for tread and offset 143.75 for rse of staircase.
Offset 125 below floor level for slab.
Draw the chajjas and windows as per the sizes considered and standards.
Draw the railing of staircase in dash manner from the layers and change the layer to ACADISO03W100.
Gie the dimensions by dim linear or dim continue command.
Select the multiline text for naming of the section.

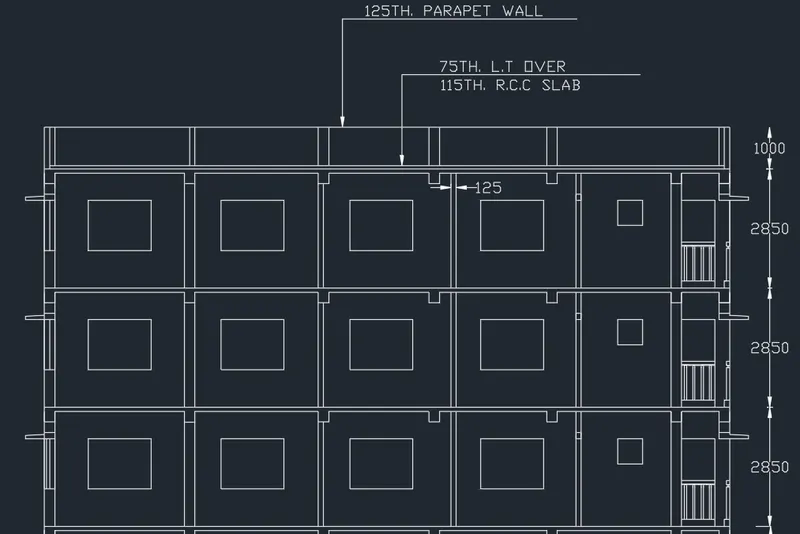

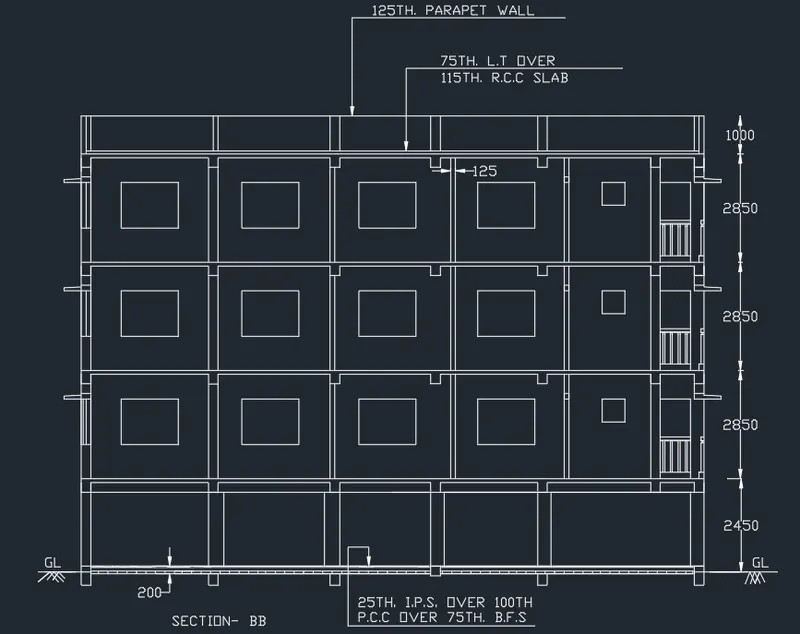

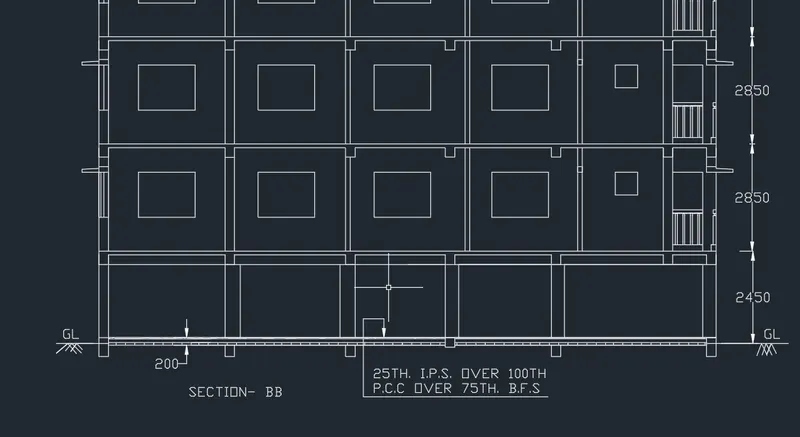

STEPS FOR DRAWING SECTION BB-

Rotate the entre plan drawn earlier in the 90 degrees direction o draw the section BB.
Select x line command and take the projectors of the rotated plan in the downward manner.
Take the projections of all internal walls of 125 mm and eternal walls of 250mm.
Draw a base line to draw the section BB.
Offset 150 from base line.
Offset 2450 for ground floor.
Offset 2850 for first floor.
Offset 2850 for second floor.
Offset 2850 for third floor.
Offset 1000 for parapet wall.
Thickness of slab is assumed to be 125 mm.
Offset 125 rom each floor in downward manner.
Dimensions- use dim linear or dim continuous for giving the dimensions.
Draw the windows as desired by using the line command.
