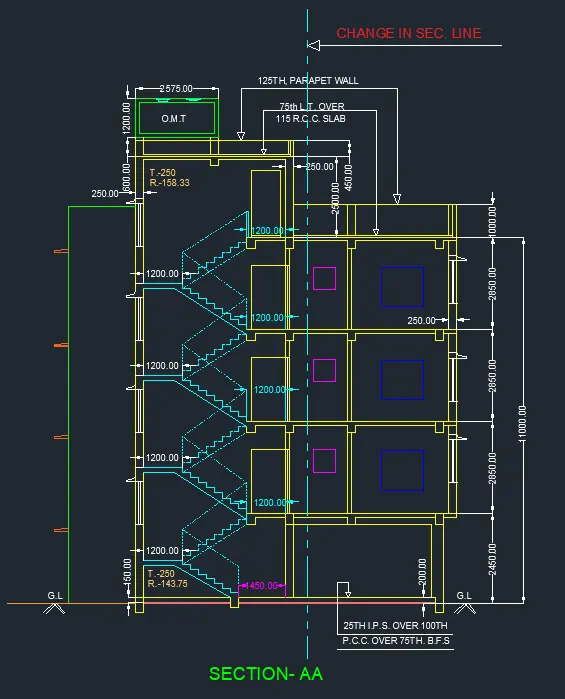

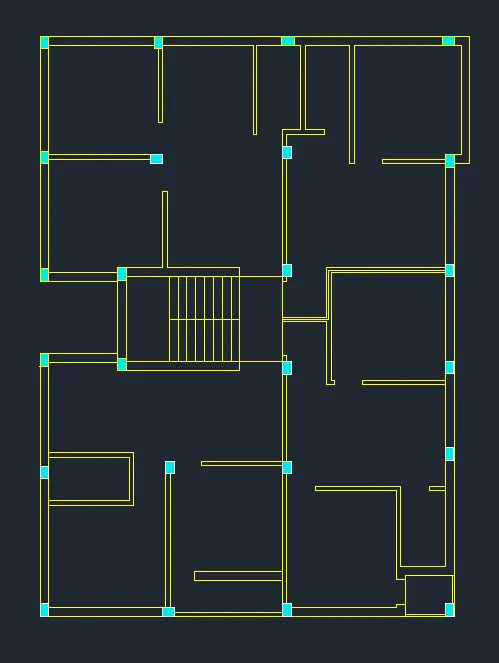

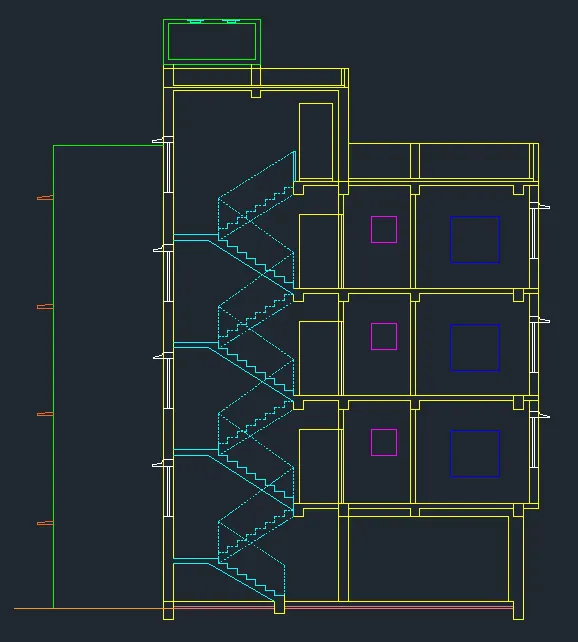

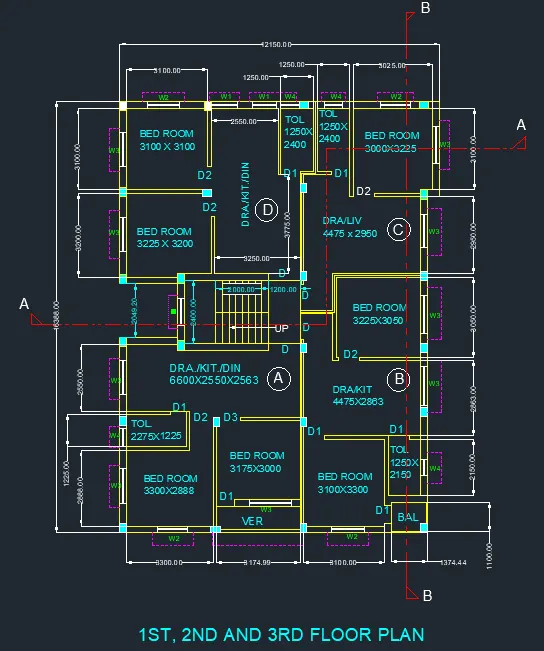

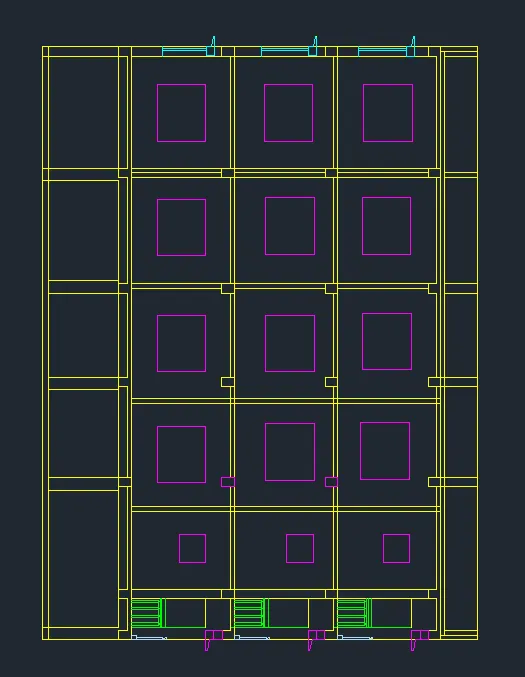

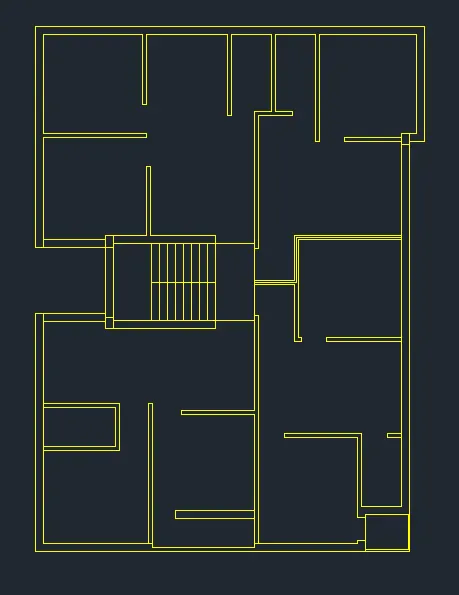

Creating a Layout, Section and Elevation with dimensions using AutoCad

    ANSWERS:    1. 1. State the primary load cases to be considered for design. Ans: Dead Load ,Live Load ,Snow Load, Seismic Load, Wind Load   2. What is One – Way slab? Ans: The one-way slab is a slab, which is supported by parallel walls or beams, and whose length to breadth…

Q1.1. How will you assign Circular section to column? ANS : Go to properties in that select define property select circle and give the radius for the member and assign the defined circle to the member created     Q1.2. How will you assign Unit system to a .std model file? ANS : While creating a model…

Q1. 1. Write the steps involved to upload a .std file through web mail? ANS:- Steps involved to upload a .std file through web mails are as follows; Open the STAAD pro software and locate the share option available on the introduction screen. After clicking on the share button, select send mail option. Then, browse for…

 Design & Analysis of a Hostel building at Guwahati, Assam Aim:- To design and analyze of G+3 (RCC) Hostel building in ETABS and Foundation in CSI SAFE. Introduction:- The procedure for analysis and design of a given building will depend on the type of building its complexity, the number of stories, etc.First,…

QUESTION 1: Model the isolated footing provided in week 11 challenge on SAFE. Analyze and design it to verify the size, depth and steel provided as per calculations. AIM: To Analyze and designthe isolated footing from week 11 challenge on SAFE To verify the size, depth and steel provided as per calculations.…

Design of Shallow Foundation(Isolated Footings)   QUESTION:- Design a square footing for a column size of 400x400. The compression axial load for the load combination of (1.5 DL + 1.5 LL) is 2000 KN. The safe soil bearing capacity is 150 KN/m2 at a depth of 2 metres below E.G.L. Participants are free to go for either…

  FLOOR PLAN:                                      SECTION X-X:                                            …

The Etabs file for a G+6 building is provided. Run the analysis and design the RCC shear walls (show in the etabs model). The following challenge deals specifically with the shear wall of size 300x1500 at grid A-11 in the structural model. Extract values of longitudinal steel ratio, boundary element length and…

PROJECT:- Reinforcement detailing of Columns from ETABS output INTRODUCTION:-  The reinforcement detailing of columns consist of carrying out the design of two columns, 3A & 3B for longitudinal and shear reinforcement. Shear reinforcement design of columns: Shear reinforcement demand on columns is larger…

QUESTION:- Detail design of beams in Etabs 2018.The ETABS file for a G+4 building is provided. Run the analysis and design the RCC Moment ResistingFrame. The following challenge deals specifically with two continuous beams in the 1st floor.         1) 3 span continuous beam along grid A        2) 7 span continuous beam…

  AIM: TO MODEL AND ANALYZE MULTIPLE BUILDINGS WITH DIFFERENT FLOOR LEVELS AND DESIGN PARAMETERS USING ETABS SOFTWARE AND COMPARE THE RESULTS TO UNDERSTAND THEIR OVERALL SEISMIC BEHAVIOUR.     INTRODUCTION:                            The…

Aim: to model and analyse a 25 storey building with given specifications and to cross check the parameters as per IS 1893 provisions. Procedure: Open the ETABS software. Click the file menu and choose to create a new model option. After choosing a new model a dialogue box will appear as model intialization. Choose the…

Question 1:The building shown, 20 × 35 m in plan, has columns on a 5 × 5 m grid and shear walls (with dimensions shown in m, 250 mm in thickness) in three alternative arrangements, (a), (b), (c), all with the same total cross-sectional area of the shear walls. Compare the three alternatives, taking into account…

uestion 1: Comment on the layout of the framing plan concerning earthquake resistance in the two horizontal directions X or Y (dots are columns, lines depict beams). Look into aspects of symmetry, redundancy and bi-directional stiffness and ductility.   Answer: 1.Symmertry Having a look over the aspects of symmetry of…

Aim: To compute the values of seismic parameters based on the given structural data Step-1 Step-2: Step-3 Step-4 Step-5 Ln, Mn, Tn values are calculated for each of the 5 modes The base shear force for each of the 5 modes is obtained. Effective modal mass and the modal mass participating ratio for 5 modes are obtained…

Week 2-Assignment 2-Module 3 Refer to below for the differences between Static and Dynamic Analysis with pictorial representation; Static refers to the force that has constant size, position and direction on or within a structure while Dynamic refers to a force on a structure that changes size, position or direction. Static…

1) What is the mode of failure or damage of the beams in the figure above? Would you characterize the case as damage or as a failure? Are the damages repairable? Elaborate. a)              This crack will be formed due to the flexural failure of a beam. The flexural strength, known…

A)  AIM: To use the architecture/structural project file developed from week 6-8, Export the Revit file to Navisworks cache file. TOOLS/COMMANDS USED : Architectural file. file. Open Export. NWC. Navisworks. View.  3D view.  PROCEDURE : 1.the Revit file which is to be exported to the Navisworks file is to be opened with…

Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo Introduction: Dynamo is an open source visual programming language for Revit, written by designers and construction professionals. Its a programminglanguage that allows you to type lines of code;  while also creating…

1).   Select the type of structure you want to build from one of the three below:        a. Multi-Unit Residential Apartment        b. Office Buildings        c. School.   (ANSWER): From the above the options of type of structure to build a building,…

1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level.     AIM:- To model a Ceiling from the architecture tab above the walls at the first-floor level.     INTRODUCTION:- The creation…

1) Use the project file created from Week 2. Use it for this assignment. Based on your layout from week 2, using floor tool under architecture tab and select the floor with appropriate material and thickness using the property browser create a layout in the Ground floor Level. Align the floor plan with grids created from…

  What is BIM? Summarize the features of BIM and benefits of using BIM over 2D CAD tools. Building Information Modelling (BIM)- Building information modeling (BIM) is a process supported by various tools, technologies and contracts involving the generation and management of digital representations of physical and…

Aim:  To Create a new project and name the project appropriately Introduction: Revit is an Autodesk product and is a building information modeling software for architects, landscape architects, structural engineers, mechanical, electrical, and plumbing engineers, designers, and contractors. Using REVIT, we can…

AIM:  To create a 3D rendered model for a Residential Building in AutoCAD INTRODUCTION: The main objective of this project is to understand about to create a Plan in 2D, then convert it into 3D using AutoCAD 3D, applying materials and rendering. AutoCAD is primarily used for generating 2D sketches. While it is…

Aim: To draw the 3D Isometric View of the building as shown in the figure Introduction:   A plan view of wall of two elevation views of windows on both sides are given and they are to be converted into a 3D model. 2 window openings on both sides are given with details regarding the frame dimensions, mullion dimensions…

.AIM         To create a 3D Furniture elements using the various commands in Auto CAD. INTRODUCTION BY 3D VIEW The process of creating a mathematical representation of any surface of an object in three dimensions by using special software. A 3D model can even be represented as a two dimensional image…

AIM: To create layout of plan and section, creating viewports, editing attributes and taking a plot. To create a kitchen layout in A4 sheet and take a plot To create Multiview ports for industrial section drawing, scaling it and taking a plot. COMMANDS USED: View Layout. Multiple View. Model Space. Paper Space. Scale.…

Q1. Create the layouts of the Kitchen and provide hatches pattern as shown. Also, use blocks wherever required. Provide appropriate dimensions in the plan. Assume the size of doors, appliances and others as per the standards.     Aim: To Create the Kitchen Layout and to Also, use proper dimension techniques…

Aim: To create: Template, inserting text and attributes Doors of warehouse and placing it in blocks Electrical legend and making it blocks Different types of door for residential project Drawing bars, making it as block and making it as a table as bar bending schedule.   Commands used:  Block. Insert. Attributes.…

AIM: To Design and Draft a layout of a residential building with plot size (18.3 m x 6 m)  Procedure: step 1: In the command prompt type Units >meters  In the command prompt type limmax >100,100 In the command prompt type limits >0,0 In the command prompt type zoom >a step 2: In the command prompt…

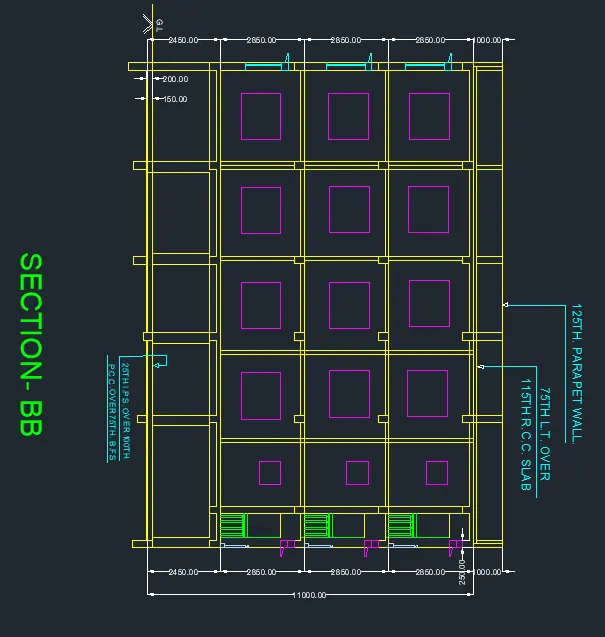

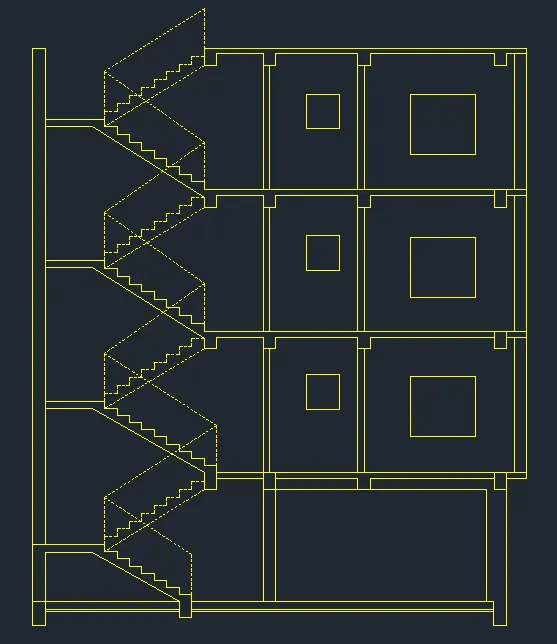

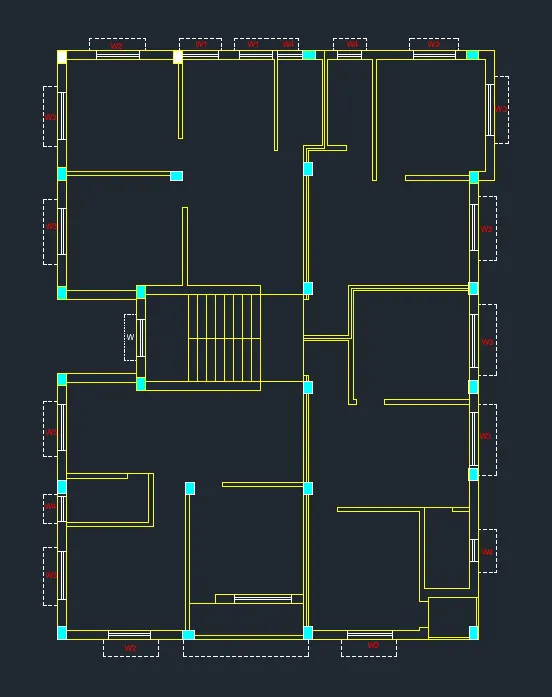

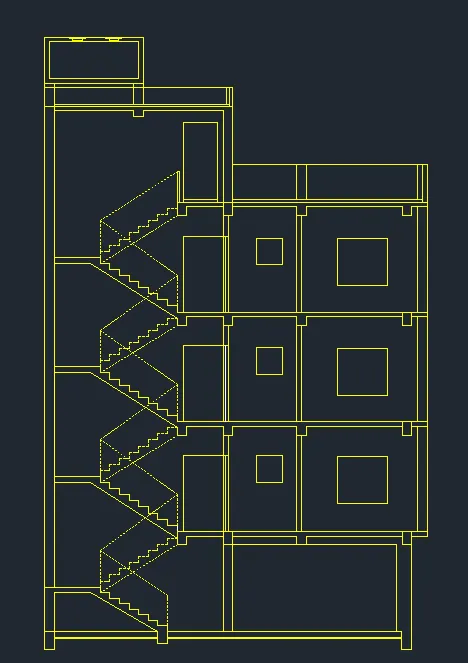

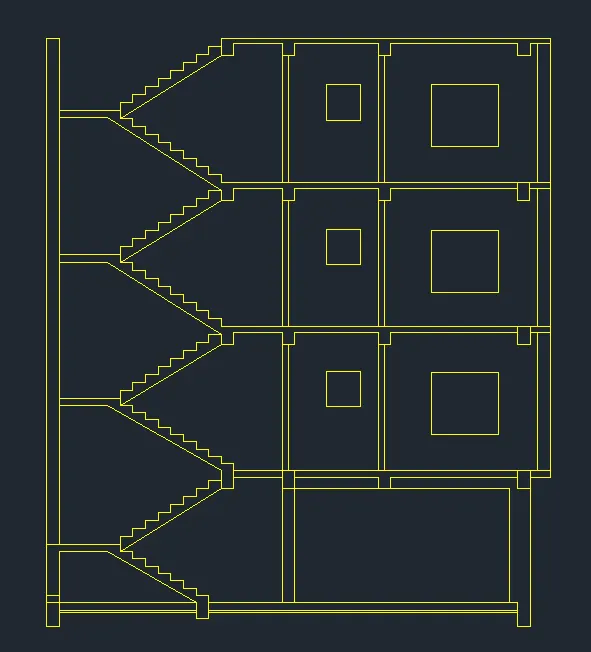

 Aim:- To draw the floor plans and sections using the proper dimension techniques and dimension styles to document the project.     Introduction:- Plan and Sections are different types of drawings used by architects to graphically represent a building design and construction. A plan drawing…

1. AIM: To draw the elevation and details of a wardrobe as shown in the figure. After sketching, you need to provide the dimensions and text with the use of layers. PROCEDURE: STEP 1: Units are set to mm Limits and limax are also set Zoom command is also used STEP 2: In the command line type rec > 2800,2600 In the command…

  1. Aim: To Create a column schedule as shown in figure INTRODUCTION: 1. Column C1 is provided with 4 bars of 20 mm dia. and 6 bars of 12 mm dia. The 12 mm dia bars are marked with 'a'.2. Column C1a and Column C3 are provided with 12 bars of 16 mm dia bars.3. Column C2 is provided with 8 bars of 20 mm dia and…

Aim:To draw the layout of a residence plan. INTRODUCTION: Residential Layout is ideal for students and practitioners of urban design, planning, engineering, architecture and landscape seeking a comprehensive guide to the theory and practice of designing and laying out residential areas Procedure: First create a new…

AIM: To draw the various geometries using Chamfer, fillet tool in Autocad. Introduction: One of the most important tool in autocad is the the chamfer and fillet tool which plays a major role in drafting various types of drawings.  The chamfer is a command through which you can cut corners of two adjacent…

1.Cross section of load bearing wall over spread footing. Aim: To draw cross section of wall over footing.    Procedure: Step:1 - Create rectangle by typing "REC" in command box  Specify the first corner point as (5,5) Specify the length of rectangle =0.9 units in command box Specify width of rectangle…

PROCEDURE: Starting AutoCAD software: Go to START MENU, select AutoCAD 2022 Click on START DRAWING  In the Command line type in: STARTUP [ENTER]  Enter new value of startup: 1 Go to Application Menu and select New  In the 'Create New Drawing' dialog box, select the 'Imperial system in the 'Start from Scratch'…

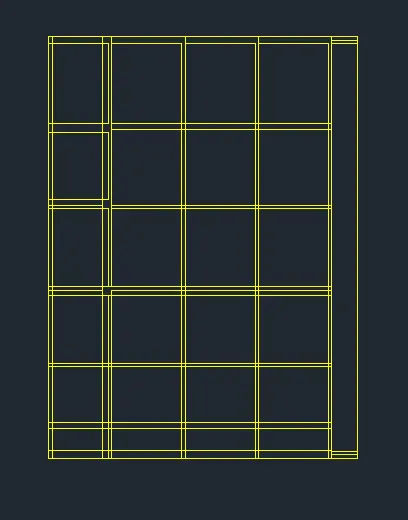

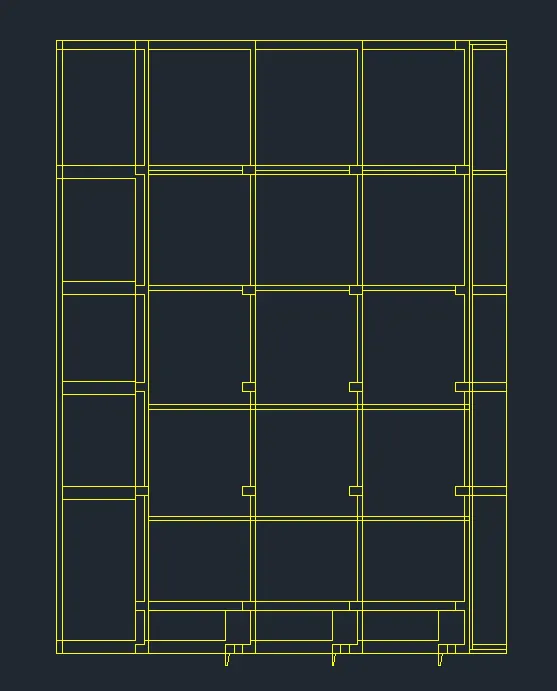

The important structural drawings required for the project are: Centre line drawing Footing and column layout with reinforcement details Column schedule with reinforcement details Plinth beam layout with reinforcement details First floor beam layout with reinforcement details  First floor slab layout with reinforcement…

1. To calculate the Concrete Mix Design for M35 grade Concrete with fly ash EQUATIONS: Target mean strength : f’ck= fck +1.65 s                                                 …
