Creating a Layout, Section and Elevation with dimensions using AutoCad

Aim: 1

Plan Sections . To draw the given drawing using. AutoCAD software

Procedure:

Step: 1

• In the command prompt type units and select architectural unit
• In the command prompt type limits
• In the command prompt type (0,0)
• In the command prompt type(30000,30000)

Step: 2 Exterior wall

• In the command prompt type L (line)
• In the command prompt specify start point 10’,10’
• Sketching the all dimensions
• In the command prompt click close
• In the command prompt type offset
• The Selecting objects and type dimensions
• In the command prompt click enter
• In the command prompt TR
• The Selecting objects
• Right click

Step: 3 Interior wall

• In the command prompt type L (line)
• In the command prompt specify start point
• Sketching the all dimensions
• In the command prompt click close
• In the command prompt type offset
• The Selecting objects and type dimensions
• In the command prompt click enter
• In the command prompt TR
• The Selecting objects
• Right click

Step: 4 Door

• In the command prompt type L
• In the command specify selecting start point
• Sketching the all dimensions
• In the command prompt click close
• In the command prompt type offset
• The Selecting objects and type dimensions
• In the command prompt click enter
• In the command prompt TR
• The Selecting objects
• Right click
• In the command prompt C
• In the command specify selecting start point
• Sketching the all dimensions
• In the command prompt click close

Step: 5 Windows

• In the command prompt type L
• In the command specify selecting start point
• Sketching the all dimensions
• In the command prompt click close
• In the command prompt type offset
• The Selecting objects and type dimensions
• In the command prompt click enter
• In the command prompt TR
• The Selecting objects
• Right click

Result:

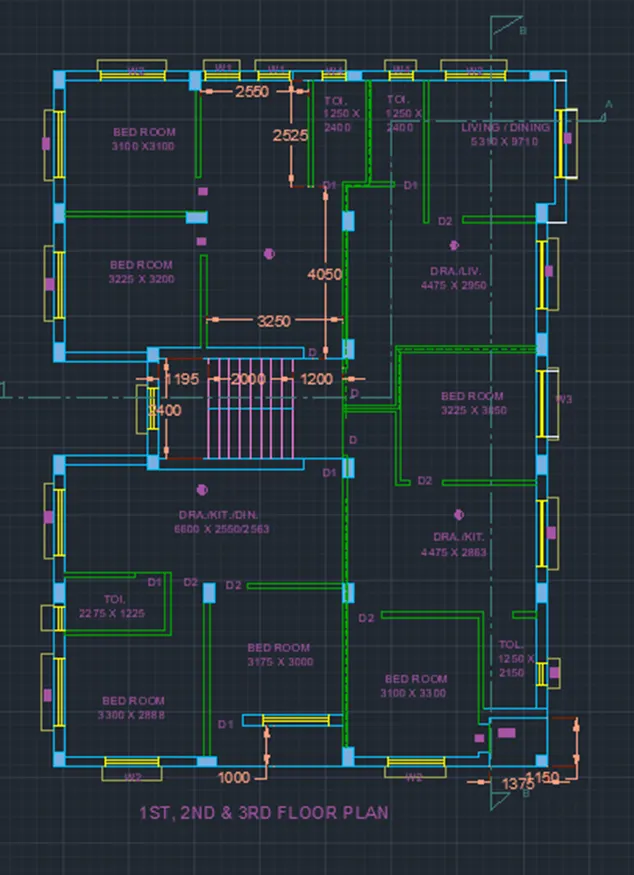

1^ST.2^ND & 3RD FLOOR PLAN

Aim: 1

Plan Sections . To draw the given drawing using. AutoCAD software

Procedure:

Step: 1

• In the command prompt type units and select architectural unit
• In the command prompt type limits
• In the command prompt type (0,0)
• In the command prompt type(30000,30000)

Step: 2 Exterior wall

• In the command prompt type L (line)
• In the command prompt specify start point 10’,10’
• Sketching the all dimensions
• In the command prompt click close
• In the command prompt type offset
• The Selecting objects and type dimensions
• In the command prompt click enter
• In the command prompt TR
• The Selecting objects
• Right click

Step: 3 Interior wall

• In the command prompt type L (line)
• In the command prompt specify start point
• Sketching the all dimensions
• In the command prompt click close
• In the command prompt type offset
• The Selecting objects and type dimensions
• In the command prompt click enter
• In the command prompt TR
• The Selecting objects
• Right click

Step: 4 Door

• In the command prompt type L
• In the command specify selecting start point
• Sketching the all dimensions
• In the command prompt click close
• In the command prompt type offset
• The Selecting objects and type dimensions
• In the command prompt click enter
• In the command prompt TR
• The Selecting objects
• Right click
• In the command prompt C
• In the command specify selecting start point
• Sketching the all dimensions
• In the command prompt click close

Step: 5 Windows

• In the command prompt type L
• In the command specify selecting start point
• Sketching the all dimensions
• In the command prompt click close
• In the command prompt type offset
• The Selecting objects and type dimensions
• In the command prompt click enter
• In the command prompt TR
• The Selecting objects
• Right click

Result:

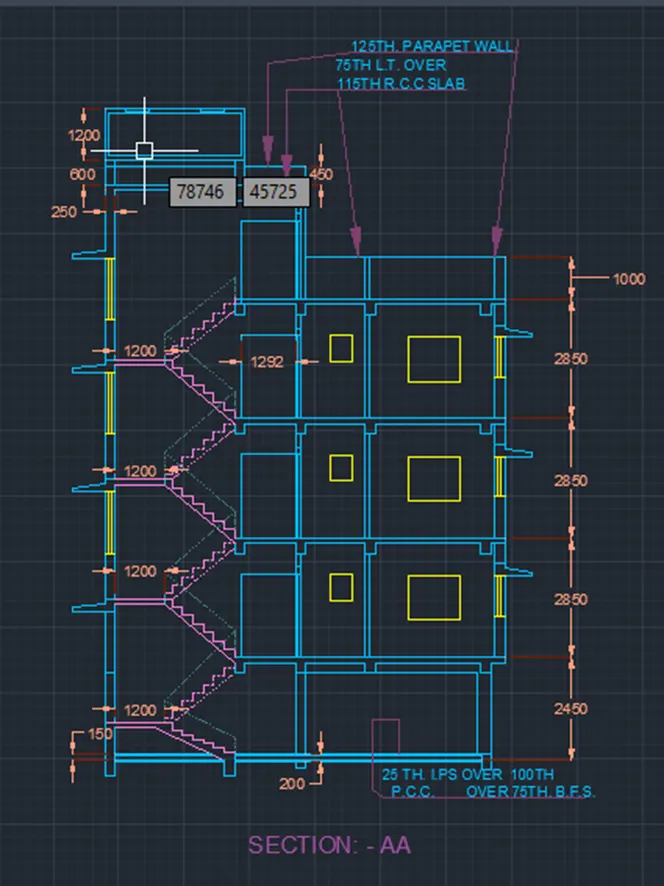

SECTION:-AA

Aim: 1

Plan Sections . To draw the given drawing using. AutoCAD software

Procedure:

Step: 1

• In the command prompt type units and select architectural unit
• In the command prompt type limits
• In the command prompt type (0,0)
• In the command prompt type(30000,30000)

Step: 2 Exterior wall

• In the command prompt type L (line)
• In the command prompt specify start point 10’,10’
• Sketching the all dimensions
• In the command prompt click close
• In the command prompt type offset
• The Selecting objects and type dimensions
• In the command prompt click enter
• In the command prompt TR
• The Selecting objects
• Right click

Step: 3 Interior wall

• In the command prompt type L (line)
• In the command prompt specify start point
• Sketching the all dimensions
• In the command prompt click close
• In the command prompt type offset
• The Selecting objects and type dimensions
• In the command prompt click enter
• In the command prompt TR
• The Selecting objects
• Right click

Step: 4 Door

• In the command prompt type L
• In the command specify selecting start point
• Sketching the all dimensions
• In the command prompt click close
• In the command prompt type offset
• The Selecting objects and type dimensions
• In the command prompt click enter
• In the command prompt TR
• The Selecting objects
• Right click
• In the command prompt C
• In the command specify selecting start point
• Sketching the all dimensions
• In the command prompt click close

Step: 5 Windows

• In the command prompt type L
• In the command specify selecting start point
• Sketching the all dimensions
• In the command prompt click close
• In the command prompt type offset
• The Selecting objects and type dimensions
• In the command prompt click enter
• In the command prompt TR
• The Selecting objects
• Right click

Result:

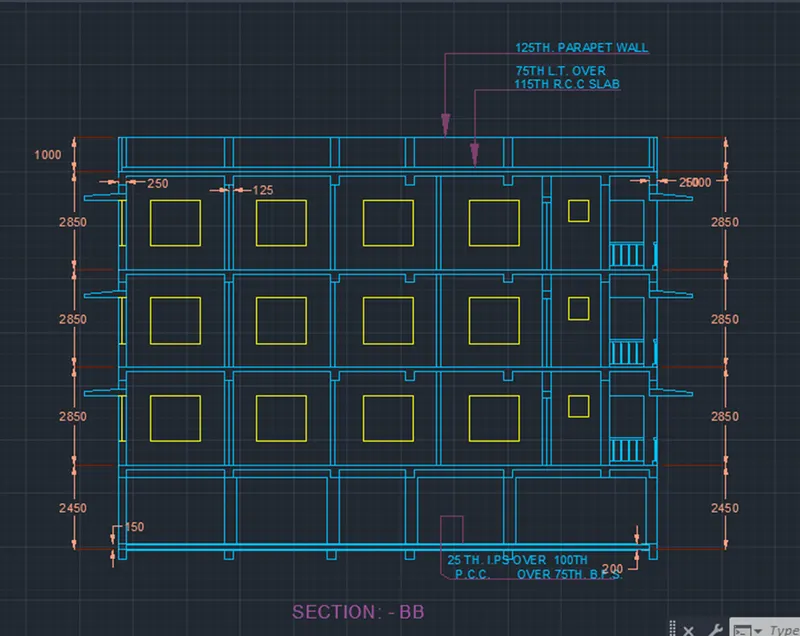

SECTION:-BB
