Creating a Layout, Section and Elevation with dimensions using AutoCad
1)a Generate the Plan and Sections as shown in the pictures. Utilize proper dimension techniques and dimension styles to document the project. Suppose the sizes of the doors and windows as per construction standards. Refer to sections for stair details if needed.
Aim- To make the Plan and Sections as given in the pictures. Utilize proper dimension techniques and dimension styles to document the project utilizing AutoCAD.
Procedure-

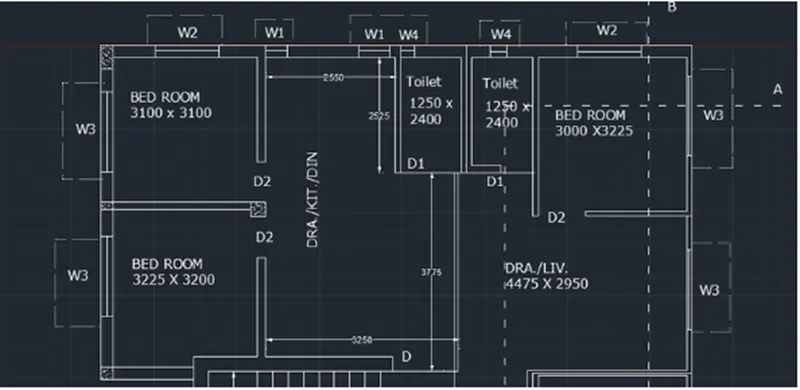

Step-1
- In the command prompt type units > mm.
- In the command prompt type limmax > 100,100.
- In the command prompt type limits > 0, 0.
- In the command prompt type zoom > a

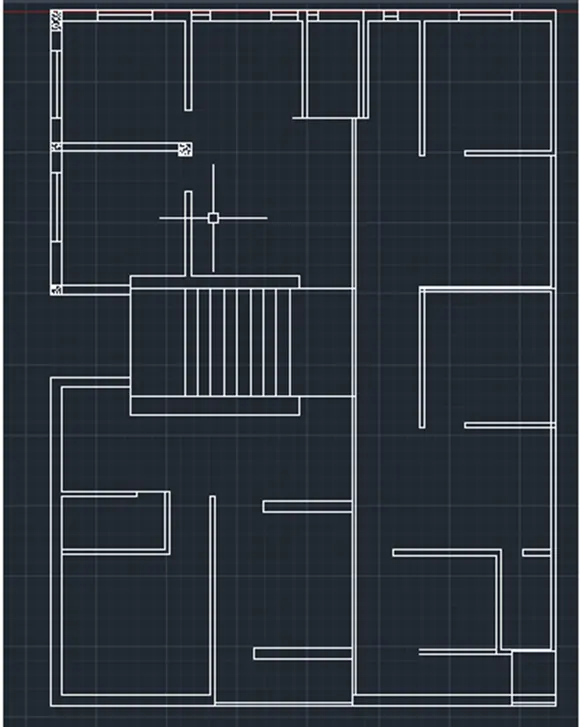

Step-2

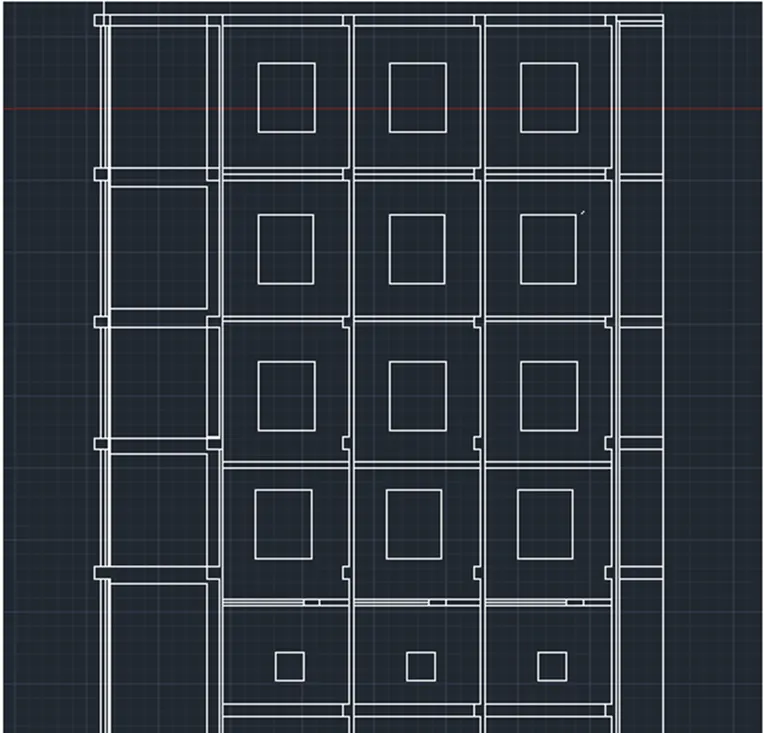

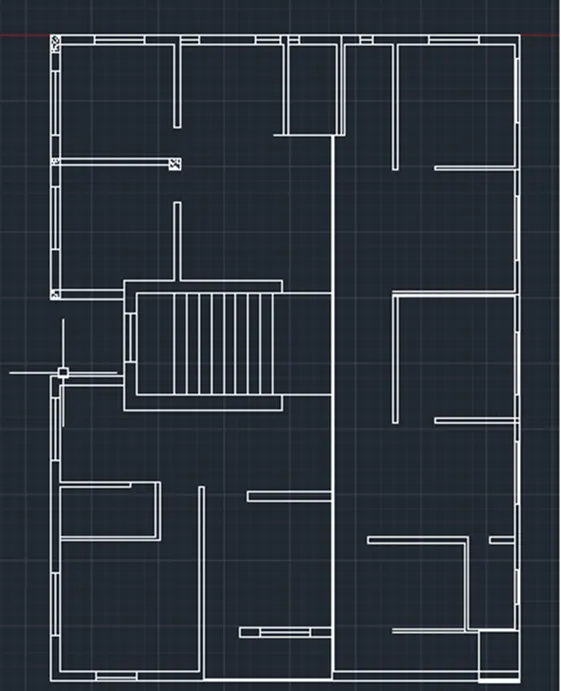

- In the command prompt type XL to draft the infinite line
- In the command prompt type offset to offset it to the desired distance

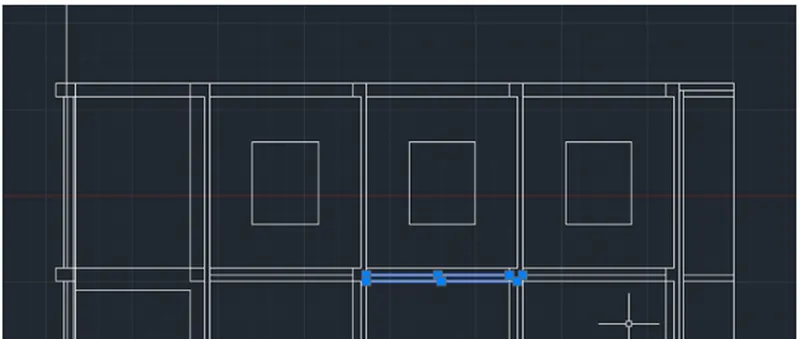

- With the command lines , offset and trim windows are sketched
- In the ribbon tab > annotate > mtext ( to text the annotations )
- In the command prompt type LN ( line type) to get dotted lines
- In the ribbon bar > dimensions > to provide the dimensions to the plan
- In the ribbon bar > hatch > sand

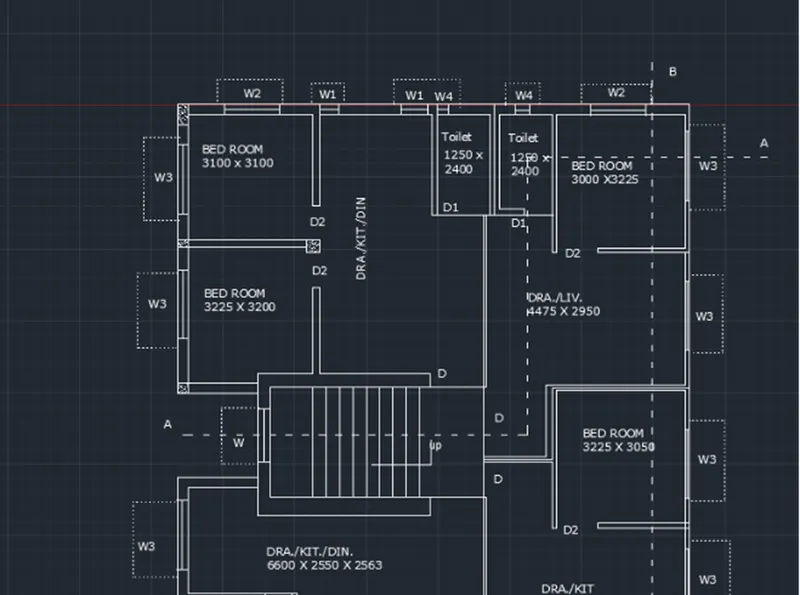

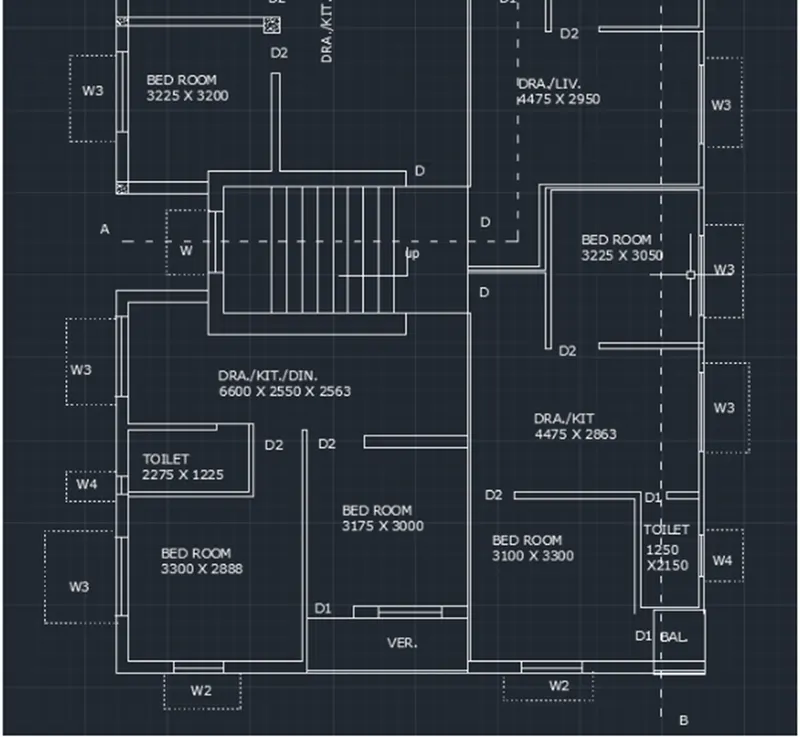

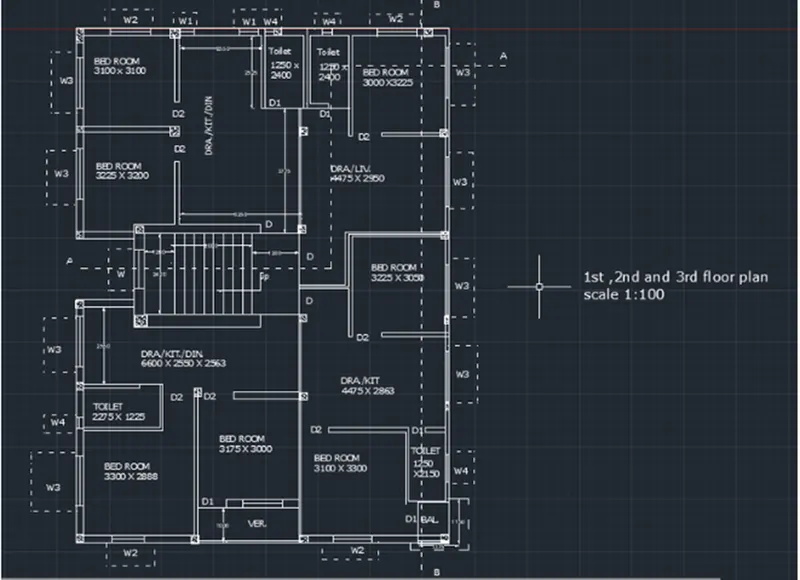

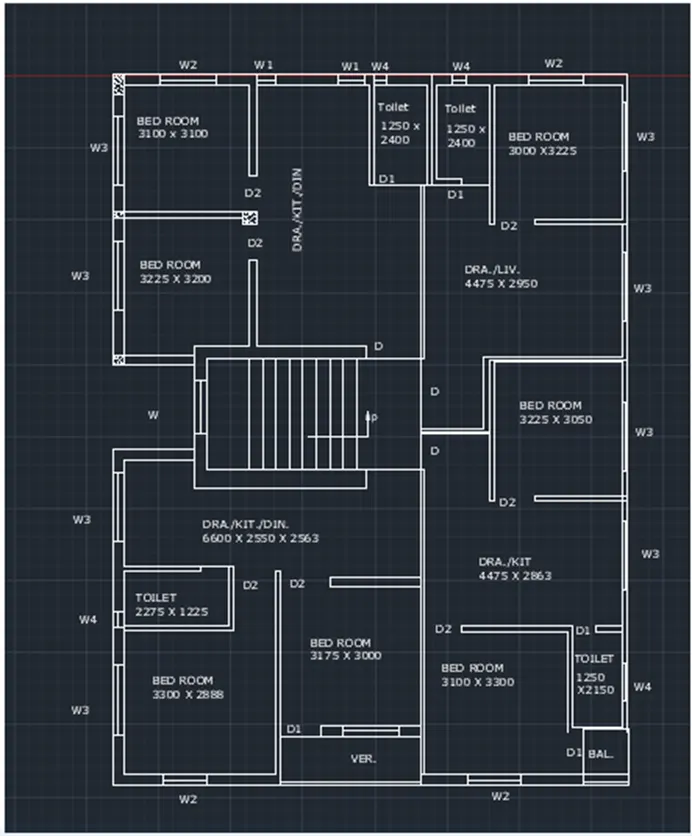

Final Result-
1)b Make the Plan and Sections as given in the pictures. Utilize perfect dimension methods and dimension styles to document the project. Suppose the sizes of the doors and windows as per construction standards. Refer to sections for stair details if needed.

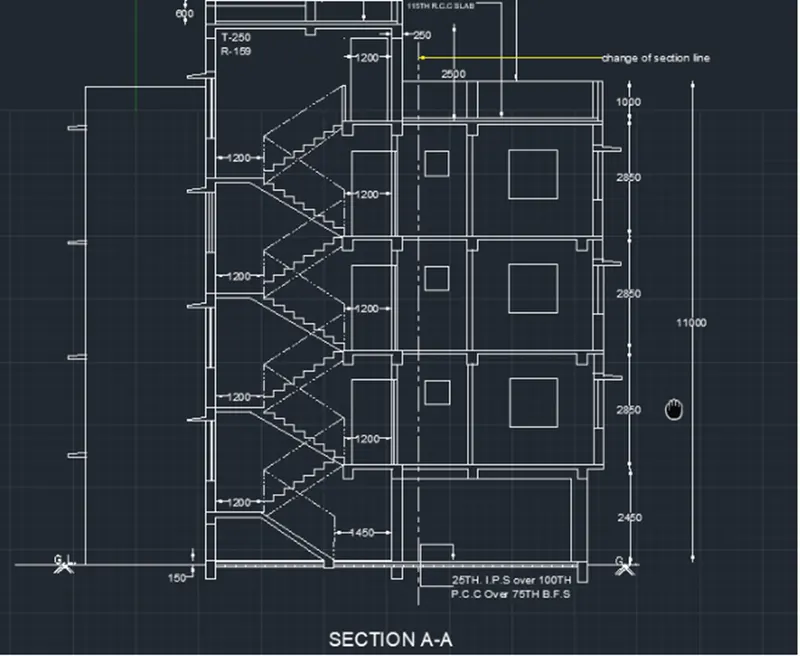

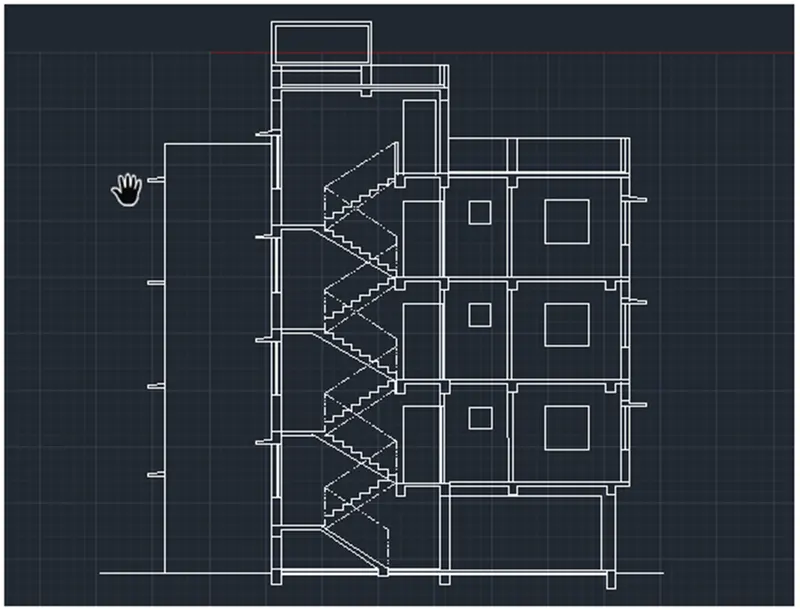

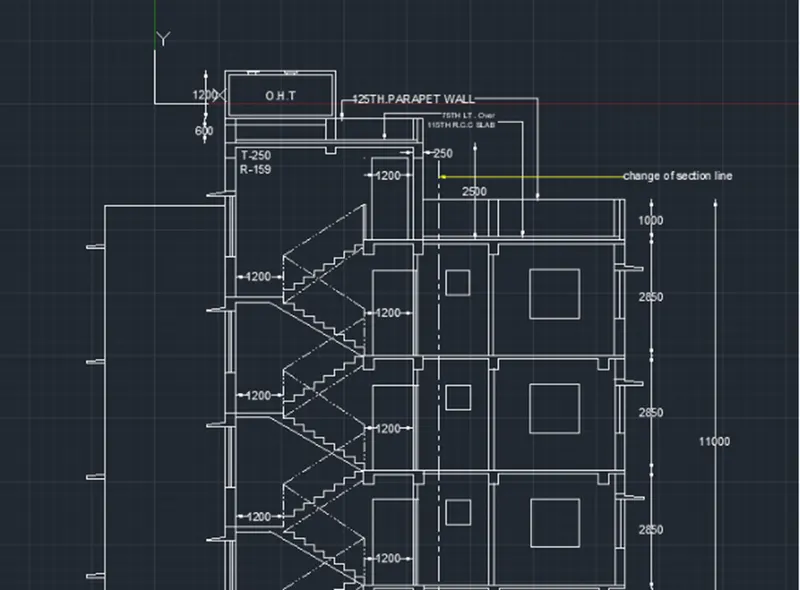

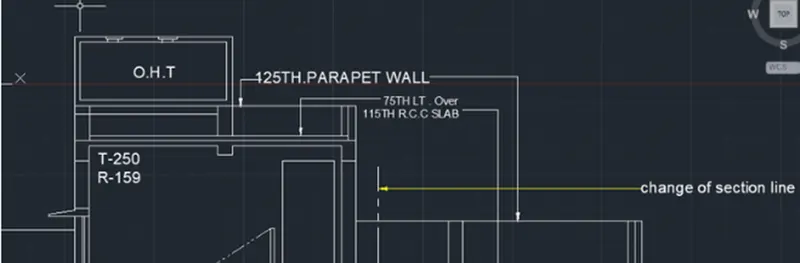

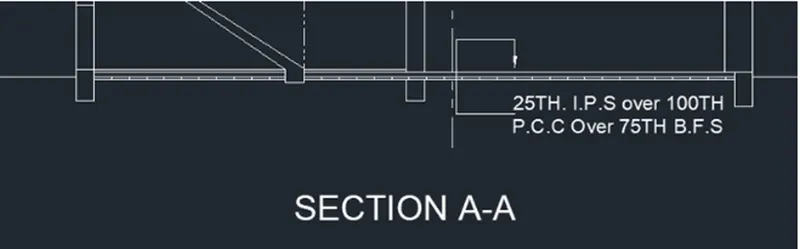

Aim- To make section A-A of the previous plan
Procedure-

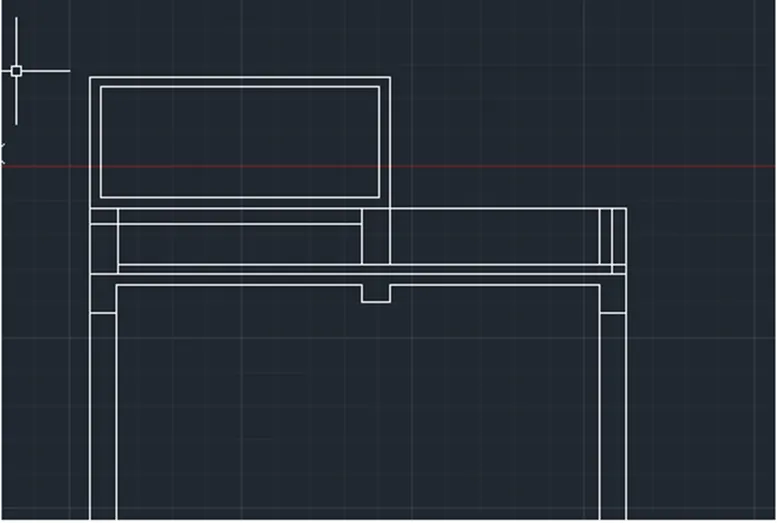

- In the command prompt type rec to draft the rectangle of dimensions 2745 x 1200
- In the command prompt type offset and offset it to the needed distance
- In the command prompt type l to draft the needed lines
- In the command prompt type LT( to get the dotted lines)
- In the ribbon tab > annotate > to text the plan
- In the ribbon tab > Dimensions > to give the dimensions to the plan
- In the command prompt type leader to type the provided text and dimensions

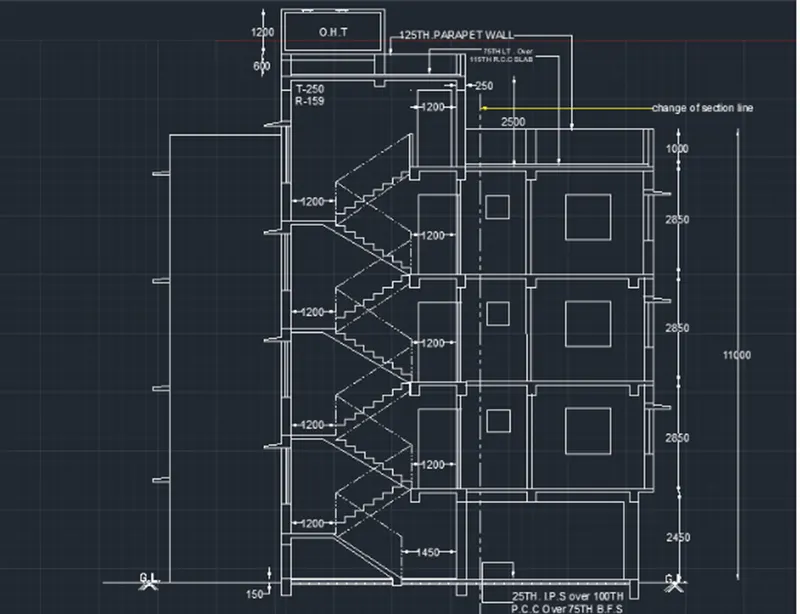

Final Result-

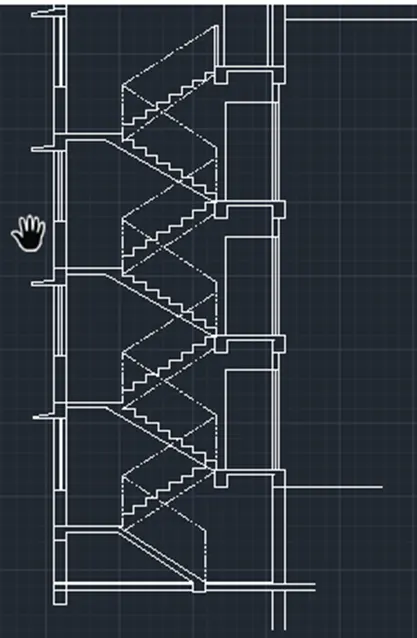

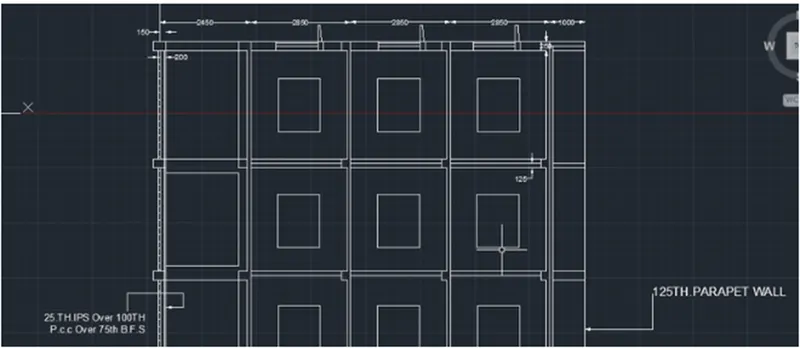

1) c Make the Plan and Sections as shown in the pictures. Utilize proper dimension methods and dimension styles to document the project. Suppose the sizes of the doors and windows as per construction standards. Refer to sections for stair details if needed.

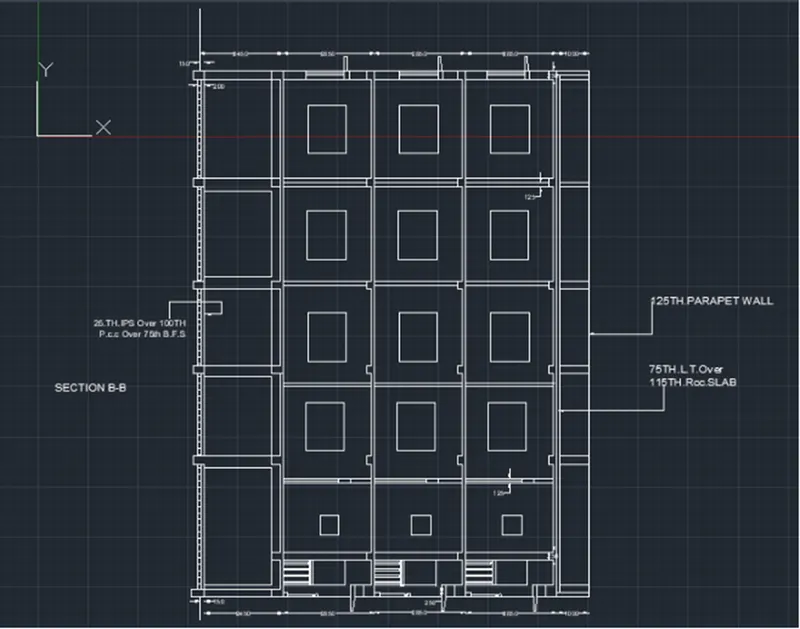

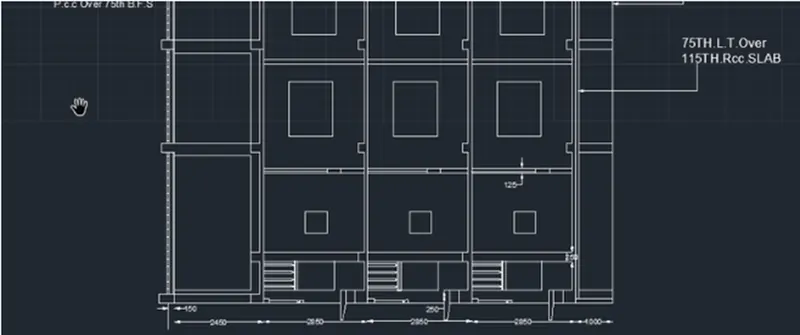

Aim: To make section B-b of the previous plan
Procedure-
- In the command prompt type XL to sketch the infinite lines.
- In the command prompt type offset to offset the infinite lines for the wanted distance.
- In the command prompt type rec to sketch the rectangles
- In the command prompt type line to draft the wanted lines
- In the command prompt type dimensions to provide the dimensions
- In the command prompt type leader to give the annotations for the plan
Final Result-
