Creating a Layout, Section and Elevation with dimensions using AutoCad

CHALLENGE 7

AIM-TO DRAW PLAN ELEVATION AND SECTION OF THE HOUSE IN AUTO CAD.

INTRODUCTION- Commands used for drawing the plans and drawings below are as follows

1. Line: Draw lines in AutoCAD

2. Polygon: Draws polygons with three or more sides

3. Rectangle: Used to draw rectangles

4. Circle: Command used to draw circles
5. Ellipse: Used to draw ellipse.
6. Erase - Erase object in the drawing area
7. Copy - Used to copy one or more objects
8. Mirror - Command used to mirror an exact duplicate of an object.

   9. Offset - Used to offset one object from another a distance you specify

   10. Extend - Used to extend one line to another

   11. Array - Use to make a rectangular or polar array of an object

   12. Move - Used to move objects around in the drawing area

   13. Rotate - Used to rotate an object around a base point

   14. Scale Command used to make an object larger or smaller

   15. Trim - Command used to trim an object from another object

   16. Chamfer - Used to put a chamfer between two lines

   17. Fillet - Used to put a fillet between two lines of a radius you specify ETC

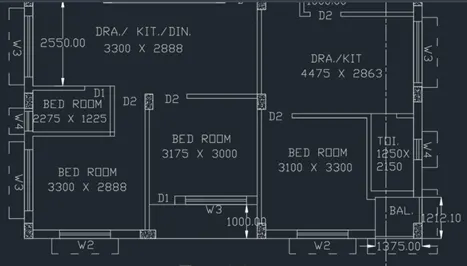

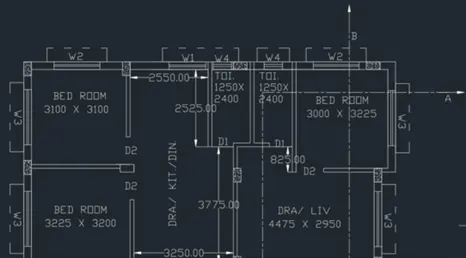

STEPS FOR DRAWING PLAN

Open command) in the command box and select type as decimal and set precision of decimal as 0
auto Cad and enter UN (Units)

• Select X line command and draw horizontal line and vertical line.
• Trim the unwanted lines.
• Now select offset command and give an offset of 250mm to both horizontal and vertical line drawn by X line.
• Give the offsets as follows in the X direction.
• Offset 3100 for bedroom.
• Offset 125 for internal wall.
• Offset 2250 for kitchen/ drawing room / dining room.
• Offset 125 for internal wall.
• Offset 1250 for both toilet
• Offset 250 for external wall.
•Give the offsets as follows in the X direction.
• Offset 3100 for bedroom.
• Offset 125 for internal wall.
• Offset 3225 for bedroom.
• Offset 250 for wall on both sides of stars.
• Offset 250 for treads
• Offset 1200 for landing of staircase.
• Offset 2400 for width of staircase.
• Offset 2250 for kitchen dining bedroom.
• Offset 1000 for veranda.

DRAWING OF WINDOWS -

SIZES OF WINDOWS ASSUMED

• W1= 1000 X 1200
• W2= 1500 X 1200
• W3= 1800X 1200
• W4= 600 X 1050
• W= 1200X 1200

DRAWING OF DOORS

SIZES OF DOORS ASSUMED

• D 1200 X 2100 =
• D1= 750 X 2100
• D2= 900 X 2100
• Windows are drawn by using line command.
• Section lines are drawing by using layer and changing the layer type.
• Hatch- For hatching the columns type hatch in command box- open settings - select pattern- select pattern as AIRCONC- select global scale factor as 0.7.
• Dimension- For drawing dimension using dimension tool in the ribbon.
• Text- For naming of plan use text in ribbon in that use multiline text and keep the height of text as 220.

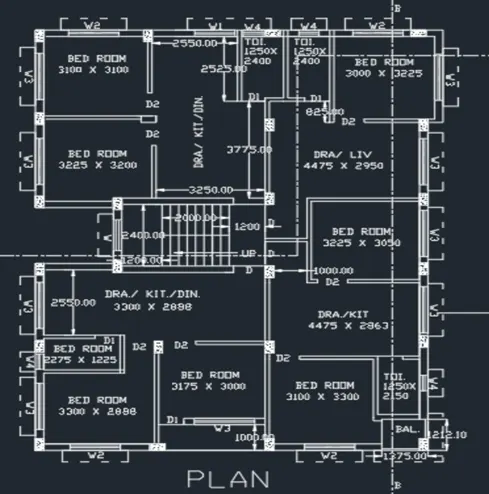

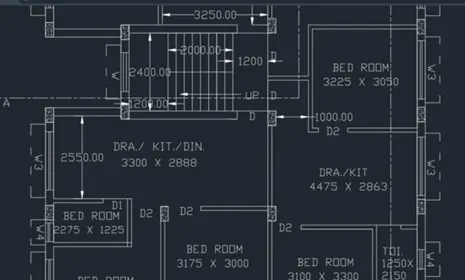

Result:

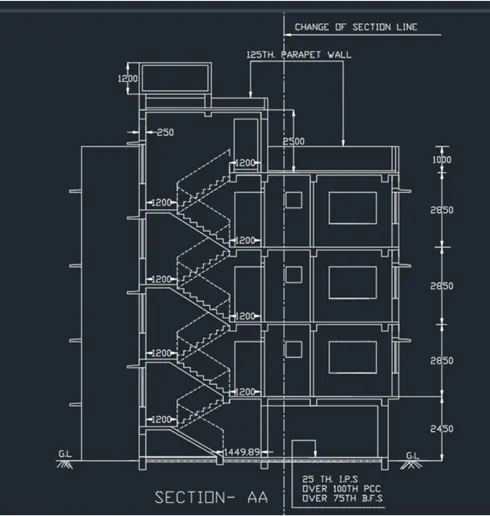

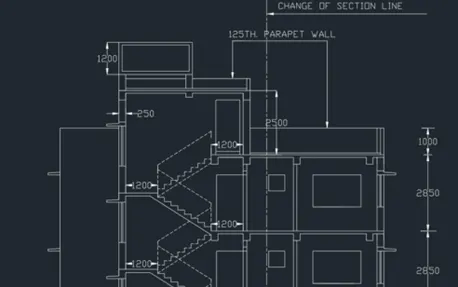

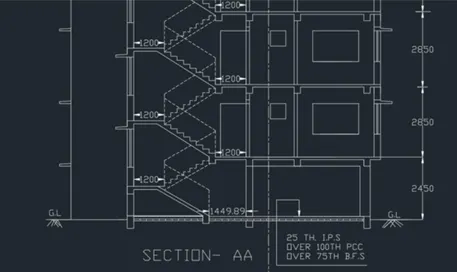

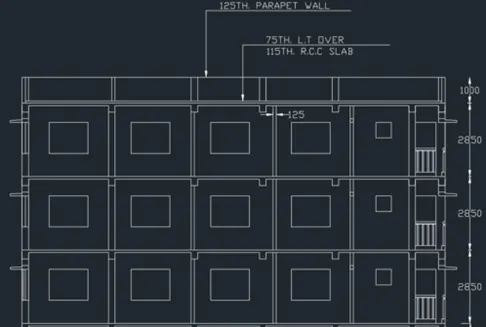

STEPS FOR DRAWING SECTION AA

• Select x line command and extend the lines from the plan in the downward manner to create projections.
• Offset 150mm from the ground level. • Offset 2450 for ground floor.
• Offset 2850 for second floor.
• Offset 2850 for second floor.
• Offset 2850 for third floor.
• Offset 1000 for parapet wall.
• Offset 2500 from terrace level for mumty.

• Offset 450 from mumty for parapet wall of mumty.
  • Offset 600 and offset 1200 for O.T.H.
  • For drawing of staircase offset 1250 for tread and offset 143.75 for rise of staircase
  • Offset 125 below floor level for slab.
  • Draw the chajjas and windows as per the sizes considered and standards.
  • Draw the railing of staircase in dash manner from the layers and change the layer to ACADISO03W100.
  • Give the dimensions by dim linear or dim continue command.
  • Select the multiline text for naming of the section.

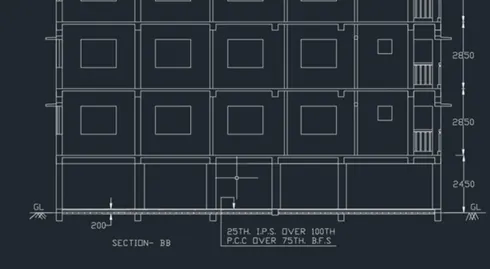

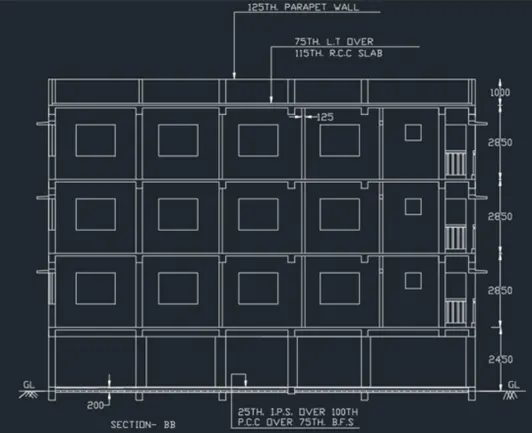

STEPS FOR DRAWING SECTION BB
• Rotate the entre plan drawn earlier in the 90 degrees direction o draw the section BB.
• Select x line command and take the projectors of the rotated plan in the downward manner.
• Take the projections of all internal walls of 125 mm and eternal walls of 250mm.
• Draw a base line to draw the section BB. Offset 150 from base line.
• Offset 2450 for ground floor.
• Offset 2850 for first floor.
• Offset 2850 for second floor.
• Offset 2850 for third floor.
• Offset 1000 for parapet wall.
• Thickness of slab is assumed to be 125 mm.
• Offset 125 from each floor in downward manner.
• Dimensions- use dim linear or dim continuous for giving the dimensions.
• Draw the windows as desired by using the line command.

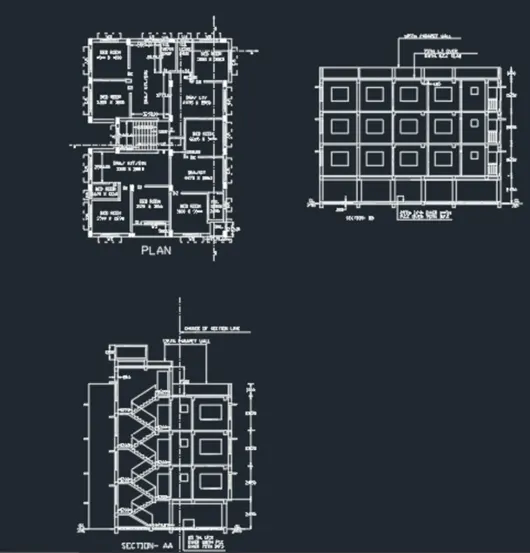

All sections combined:
