Creating a Layout, Section and Elevation with dimensions using AutoCad

AIM : creating a Floor plan and section of 3 story building

Intraduction:

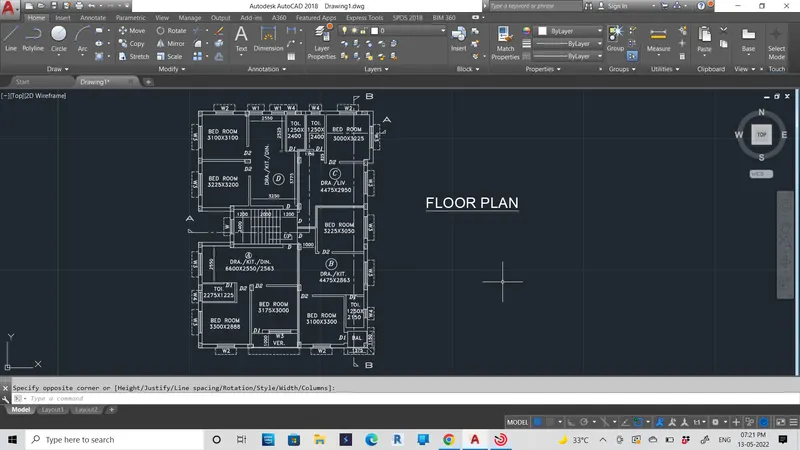

• in first snap showing a creation of floor plan in detail with the daimention and crosection of alinement also

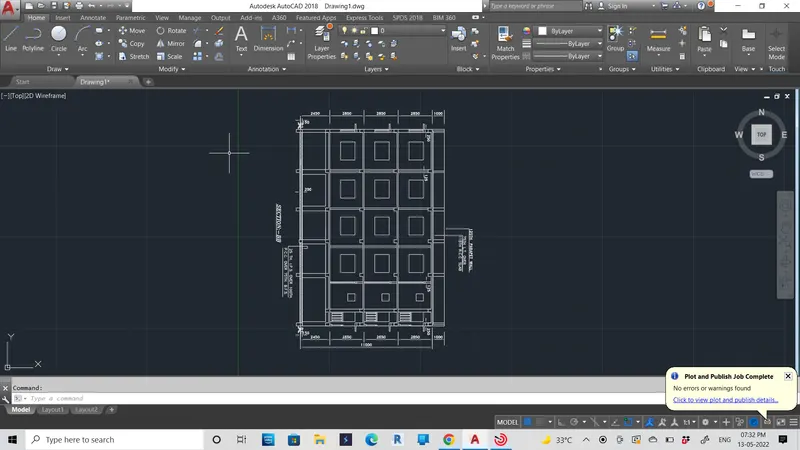

• in second snap showing a elvation of building

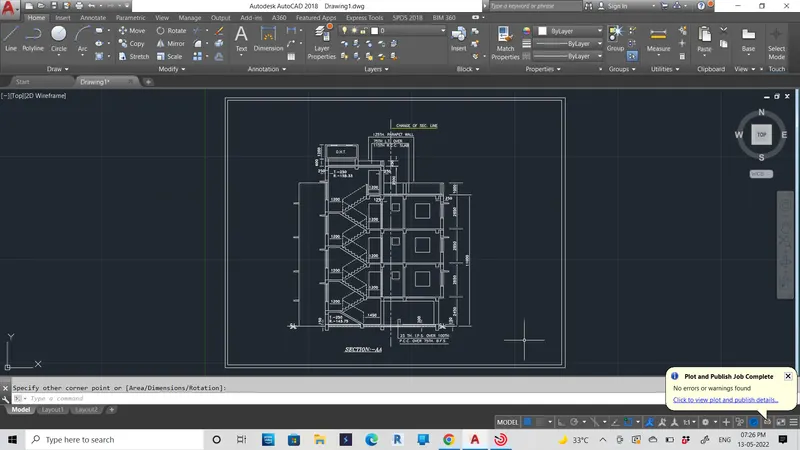

• and final snap showing the side view of the building

Procedure:

step 1:

• slecting line by entering command L
• and enter the daimension how much we need

step 2:

• trime the un wanted lines and make iit aline
• and making adimension and crossection lines

step 3:

• creating a front elevation of building
• and menstioning proper dimension

step 4:

• creating a side view of building with dimension

Result:

• Created the Plan and Sections of building

1)Plan and Sections

2)

3)
