Creating a Layout, Section and Elevation with dimensions using AutoCad

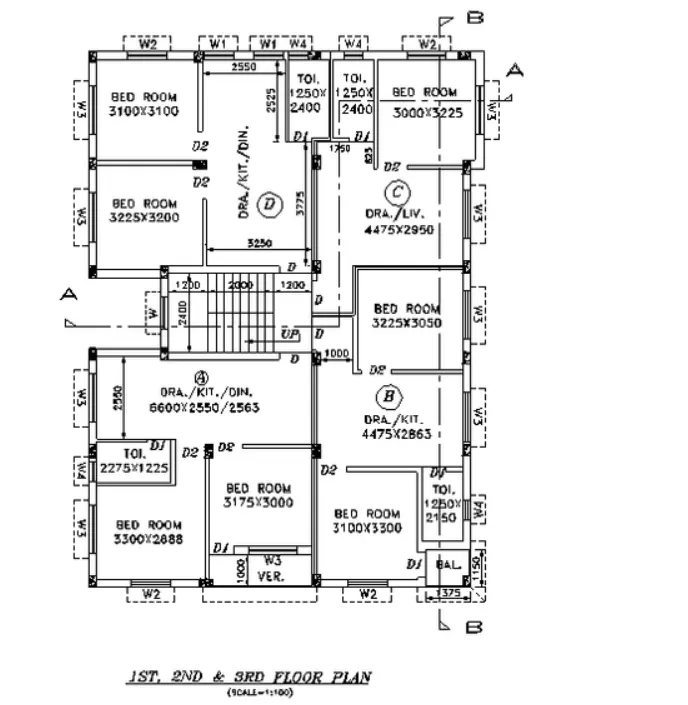

1. CREATE THE PLAN AND SECTION AS SHOWN IN THE FIGURES. USE PROPER DIMENSION TECHNIQUES AND DIMENSION STYLES TO DOCUMENTS THE PROJECTS .ASSUME THE SIZE OF THE DOORS AND WINDOWS AS PER CONSTRUCTION STANDARS.REFERS TO SECTION FOR STAIRS DETAILS IF REQUIRED .

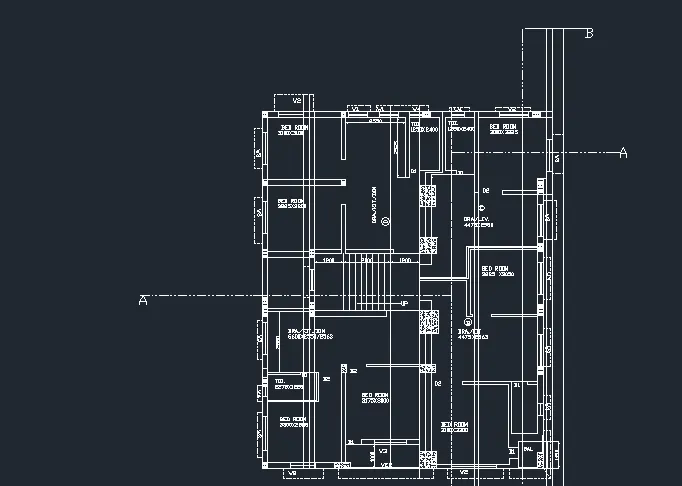

AIM : TO CREATE THE PLAN AND SECTION AS SHOWN IN THE FIGURES. USE PROPER DIMENSION TECHNIQUES AND DIMENSION STYLES TO DOCUMENTS THE PROJECTS USING AUTOCAD .

PROCEDURES:

STEP 1:

• IN THE COMMAND PROMPT TYPE XL TO DRAFT THE INFINTE LINE .
• IN THE COMMAND PROMPT TYPE OFFSET TO OFFSET IT TO THE DESIRED DISTANCE .
• WITH THE COMMAND LINES, OFFSET AND TRIM WINDOWS ARE DRAWN
• .
• IN THE RIBBON TAB > ANNOTATE > MTEXT ( TO TEXT THE ANNOTATIONS).
• IN THE RIBBON BAR > DIMENSION> TO GIVE THE DIMENSION TO THE PLAN .
• IN THE RIBBON BAR > HATCH > SAND .
•

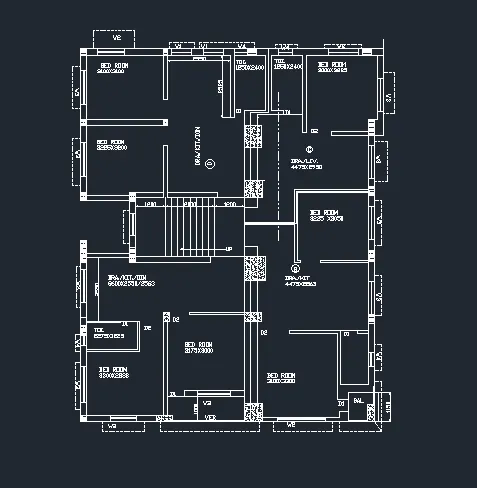

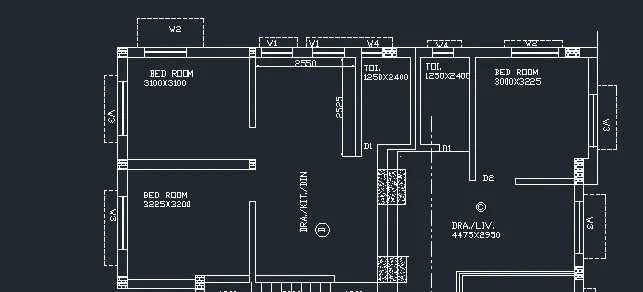

• FINAL RESULT :
•

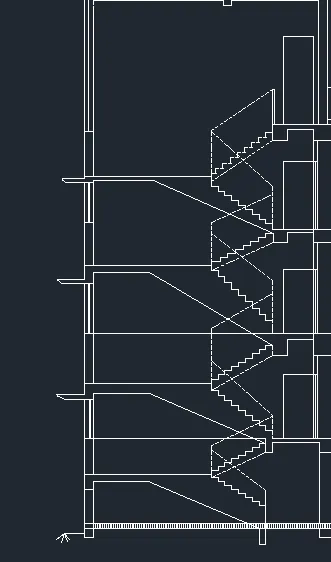

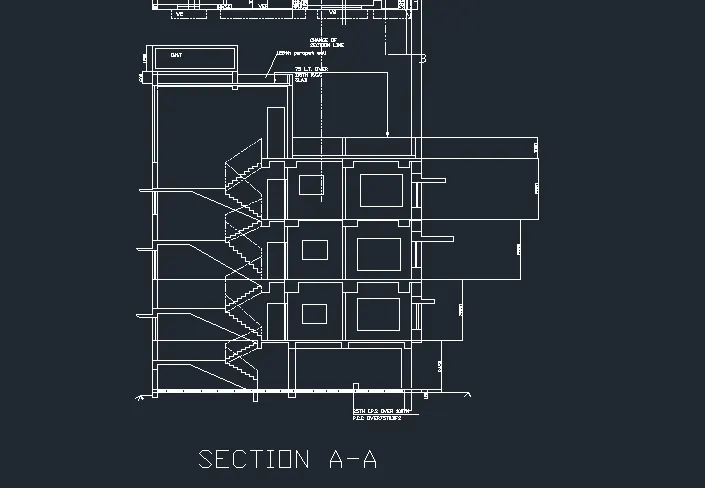

2) AIM : TO CRETAE SECTION A-A OF THE PREVIOUS PLAN.

• PROCEDURE:
• IN THE COMMAND TYPE REC TO DRAFT THE RECTNGLE OF DIMENSION 3000X1500.
• IN THE COMMAND PROMPT TYPE OFFSET AND OFFSET IT TO THE REQUIRED DISTANCE.
• IN THE COMMAND PROMPT TYPE I TO DRAFT THE REQUIRED LINES .
•
• IN THE COMMAND PROMPT TYPE LT ( TO GET THE DOTTED LINES .)
•
•
• IN THE RIBBON TAB > ANNOTATE > TO TEXT THE PLAN .
• IN THE RIBBON TAB > DIMENSION > TO GIVE THE DIMENSION TO THE PLAN .
• IN THE COMMAND PROMPT TYPE LEADER TO TYPE THE GIVEN TEXT AND DIMENSION .
•

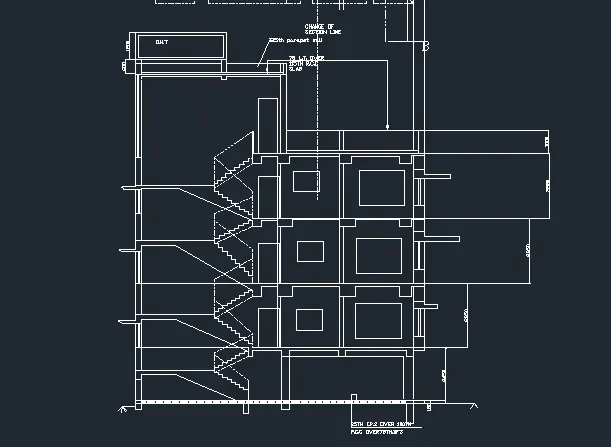

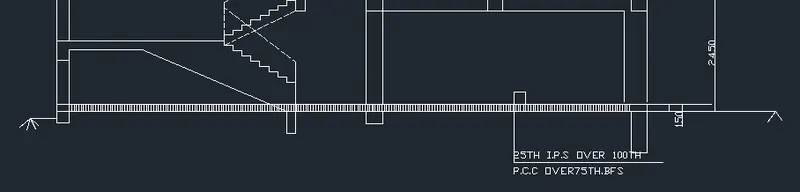

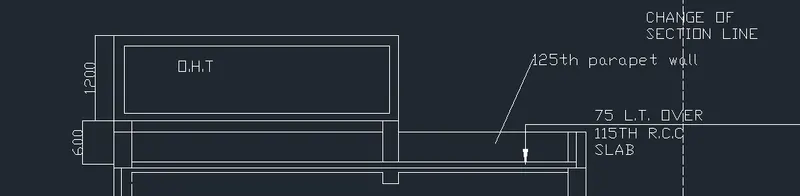

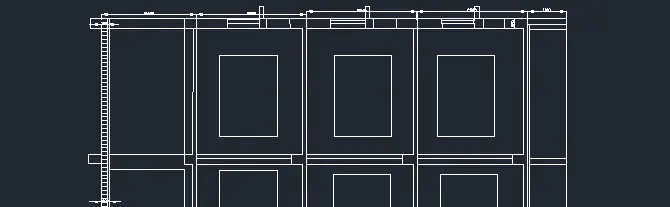

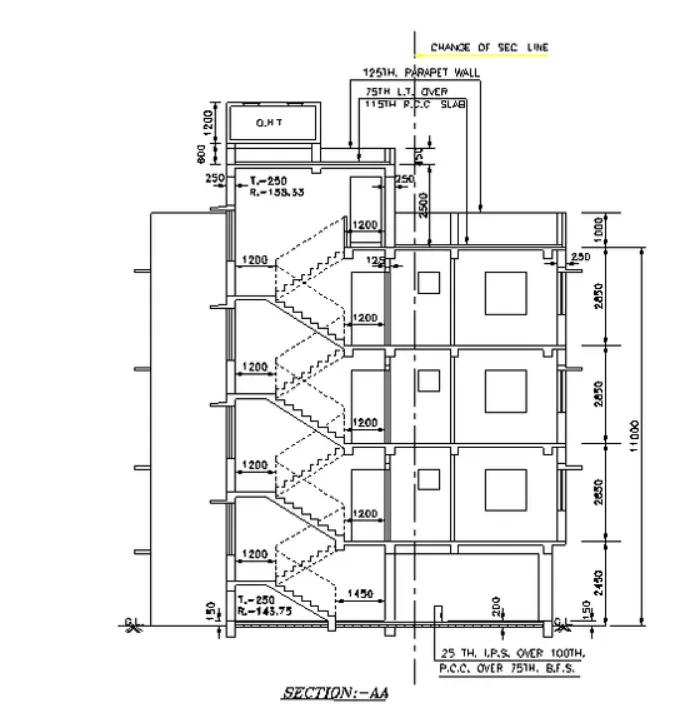

• FINAL RESULT.
•

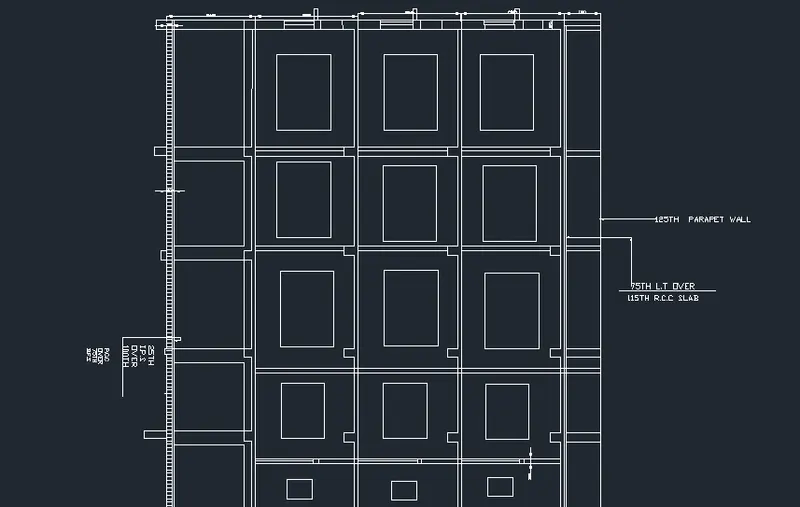

3) AIM: TO CREATE SECTION B - B OF THE PREVIOUS PLAN.

PROCEDURE:

• IN THE COMMAND PROMPT TYPE XL TO DRAW THE INFINITES LINES .
• IN THE COMMAND PROMPT TYPE OFFSET TO OFFSET THE INFINITES LINES FOR THE DESIRED DISTANCE.
• IN THE COMMAND PROMPT TYPE REC TO DRAW THE RECTANGLES.
•
• IN THE COMMAND PROMPT TYPE LINE TO DRAFT THE DESIRED LINES.
• IN THE COMMAND PROMPT TYPE DIMENSION TO GIVE THE DIMENSIONS.
• IN THE COMMAND PROMPT TYPE LEADER TO GIVE THE ANNOTATIONFOR THE PLAN.
•

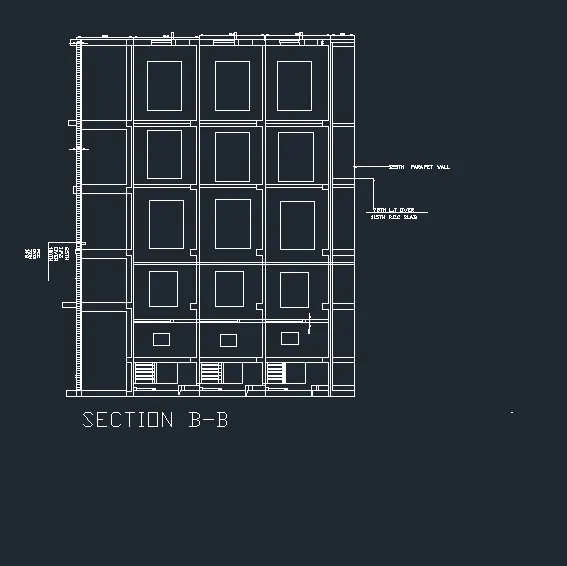

• FINAL RESULT:
