Creating a Layout, Section and Elevation with dimensions using AutoCad

AIM-Create the Plan and Sections as shown in the Figures. Use proper dimension techniques and dimension styles to document the project. Assume the sizes of the doors and windows as per construction standards. Refer to sections for stair details if required.

PROCEDURE-

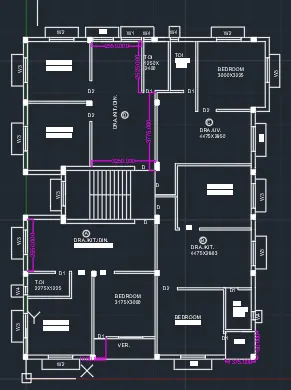

Click REC' Rectangle command to draw the outer of the plan
And offset the 250mm of outer wall and inner wall 125mm.
After Click L'Line command to draw the center line.
And click 'OF Offset commend to offset the Line.
Create a rooms as per dimensions using of ofset command.
And create a Staircase as per dimension with a 250mmouter wall.
Then we create a Layer Properties with a different layer.
Create a Layer for window door and dimension.
Windows and door are create with standart size using in residencial building

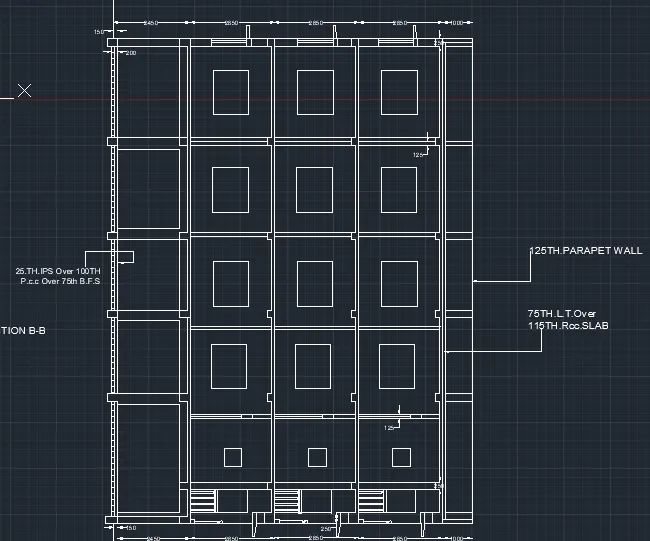

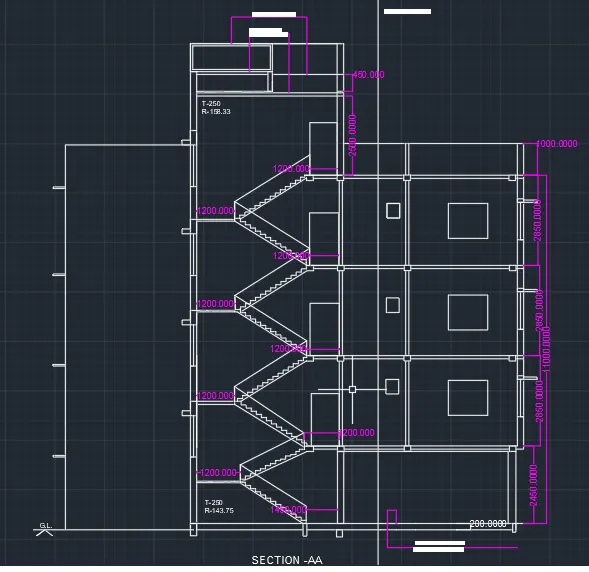

And cut the SectionAA and SectionBB in different side.
Also insert text with help of Dlext command or Single Line text
Click "DTEXT" command to create the text.
Then create the Room name given in plan
Click DIM'to create a dimerision of the plan.
And check the dimesnion belore save.
And Click "SAVE command

RESULT-
