Creating a Floor plan, Footing detail and Isometric view using AutoCad

AAreeb Qaiser18 Aug 2022

C-1 :

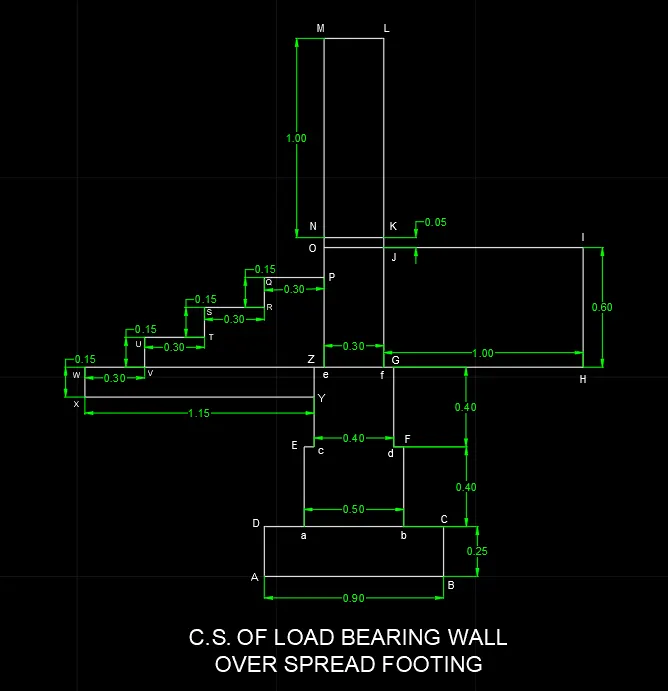

AIM : To create C.S. of load bearing wall over spread footing.

Step - 1

  • Start with line command (L)
  • Line specify 1st point : 2,1 (Point A)
  • Specify 2nd point : X direction (East) 0.90 (Point B)
  • Specify 3rd point : Y direction (North) 0.25 (Point C)
  • Specify 4th point : -X direction (West) 0.90 (Point D)
  • Specify 5th point : -Y direction (South) 0.25 / Close (Point A)
  • Offset with CD line in Y direction (0.40) for draw point line EF
  • Offset with EF line in Y direction (0.40) for draw point line ZG
  • Offset with ZG line in Y direction (0.60) for draw point line OJ
  • Offset with OJ line in Y direction (0.05) for draw point line NK
  • Offset with NK line in Y direction (1.00) for draw point line ML
  • Create a vertical construction (Xline) command (XL) from the centre point of (0.90) length (AB) for the offset command run in X and -X direction.
  • Offset with verticle construction line in X direction 0.25 and - X direction 0.25 and maked point ab, EF and trimmed extra line as per drawing.
  • Create a vertical construction (Xline) command (XL) from the centre point of (0.50) length (EF) for the offset command run in X and -X direction.
  • Offset with verticle construction line in X direction 0.20 and - X direction 0.20 and maked point cd, ZG and trimmed extra line as per drawing.
  • Create a vertical construction (Xline) command (XL) from the centre point of (0.40) length (ZG) for the offset command run in X and -X direction.
  • Offset with verticle construction line in X direction 0.15 and - X direction 0.15 and maked point ef, OJ, NK, ML and trimmed extra line as per drawing.

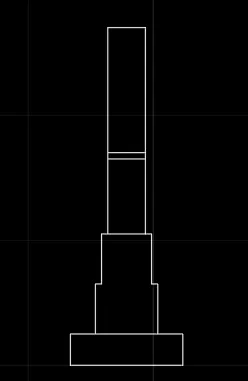

Result for Step-1

Step - 2

  • Extend line in -X direction with point Z length 1.15 and mention point W
  • Offset with ZW line in -Y direction 0.15
  • Offset with ZW line in Y direction 0.15
  • Repeat offset 3 times in Y direction
  • Offset with Me line in -X direction 0.30
  • Repeat offset 4 times in -X direction and make point P, Q, R, S, T, U, V, W, X and Y, and trimmed all extra line as per drawing.

Result for Step-2 with Step-1

Step - 3

  • Extend line in X direction with point f (asume 1.00- not mentioned in drawing) length 1.00 and mention point H
  • Copy fH line and paste in y direction 0.60 and make point JI
  • Join the line I and H

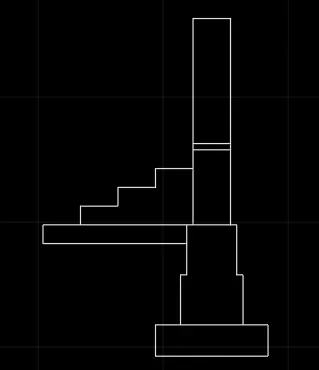

Final Result :

C-2 :

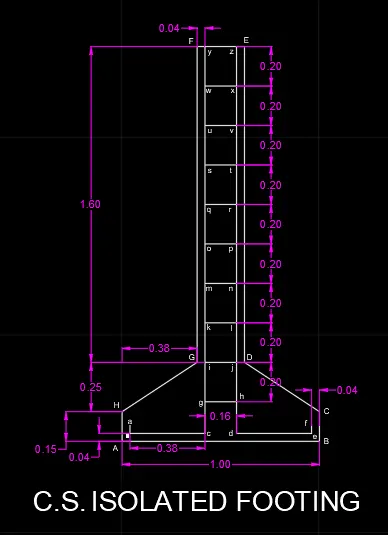

AIM : To create C.S. Isolated footing.

Step - 1

  • Start with line command (L)
  • Line specify 1st point : 2,1 (Point A)
  • Specify 2nd point : X direction (East) 1.00 (Point B)
  • Offset with AB line in Y direction (0.15) for draw point line HC
  • Offset with HC line in Y direction (0.25) for draw point line GD
  • Create a vertical construction (Xline) command (XL) of centre point of (1.00) length (AB) for the offset command run in X and -X direction.
  • Offset with verticle construction line in X direction 0.50 and - X direction 0.50
  • Offset with verticle construction line in X direction 0.12 and - X direction 0.12 and maked point C, D, E, F, G & H, and trimmed extra line as per drawing.
  • Join the line with point G H and D C.

Result for Step-1

Step - 2

  • Offset AB line in Y direction 0.04
  • Offset AH line in X direction 0.04
  • Offset BC line in -X direction 0.04 and make the point b & e
  • Create a line with point b in Y direction 0.04 and mention point 'a' (asumed size) not mentioned in drawing
  • Create a line with point e in Y direction 0.04 and mention point 'f' (asumed size) not mentioned in drawing
  • Create a vertical construction (Xline) command (XL) of centre point of (1.00) length (AB) for the offset command run in X and -X direction.
  • Offset with verticle construction line in X direction 0.08 and - X direction 0.08 and trimmed all extra line as per drawing.
  • Offset EF line in -Y direction 0.20 repeat 9 times in -Y direction and make the point c, d, g, h, i, j, k, l, m, n, o, p, q, r, s, t, u, v, w, x, y, z and trimmed all extra line as per drawing.

Final Result :

C-3 :

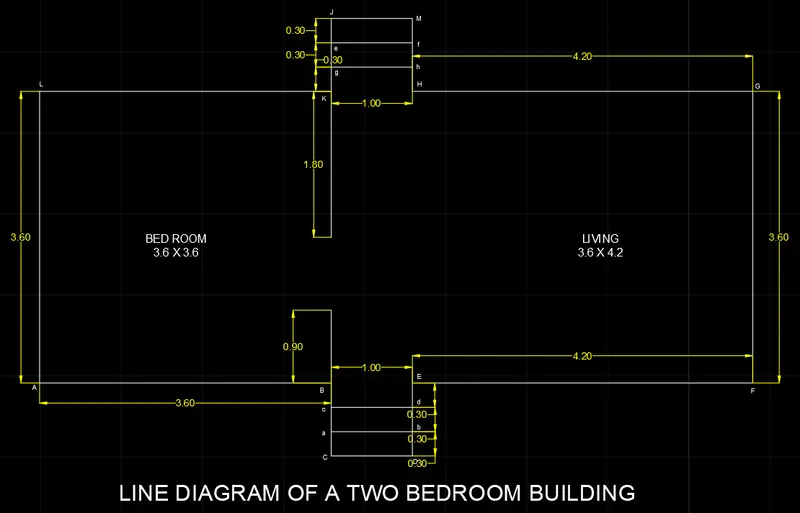

AIM : To create a line diagram of a two bedroom building.

Step - 1

  • Start with line command (L)
  • Line specify 1st point : 2,1 (Point A)
  • Specify 2nd point : X direction (East) 3.60 (Point B)
  • Specify 3rd point : -Y direction (South) 0.90 (Point C)
  • Specify 4th point : X direction (East) 1.00 (Point D)
  • Specify 5th point : Y direction (North) 0.90 (Point E)
  • Specify 6th point : X direction (East) 4.20 (Point F)
  • Specify 7th point : Y direction (North) 3.60 (Point G)
  • Specify 8th point : -X direction (West) 4.20 (Point H)
  • Specify 9th point : Y direction (North) 0.90 (Point I)
  • Specify 10th point : -X direction (West) 1.00 (Point J)
  • Specify 11th point : -Y direction (South) 3.60 (Point K)
  • Specify 12th point : -X direction (West) 3.60 (Point L)
  • Specify 13th point : -Y direction / Close

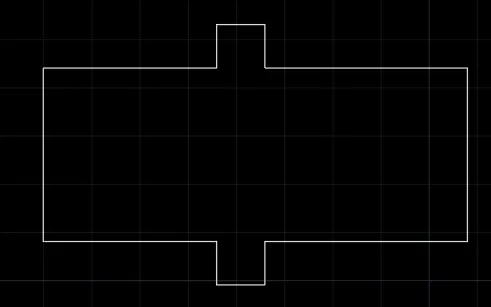

Result for Step-1

Step - 2

  • Offset CD line in Y direction 0.30 repeat 2 times in Y direction and make point a, b, c & d
  • Offset JI line in -Y direction 0.30 repeat 2 times in Y direction and make point e, f, g & h
  • Extend line from B point to Y direction 0.90 and make point N
  • Extend line from K point to -Y direction 1.80 and make point M

Final Result :

C-4 :

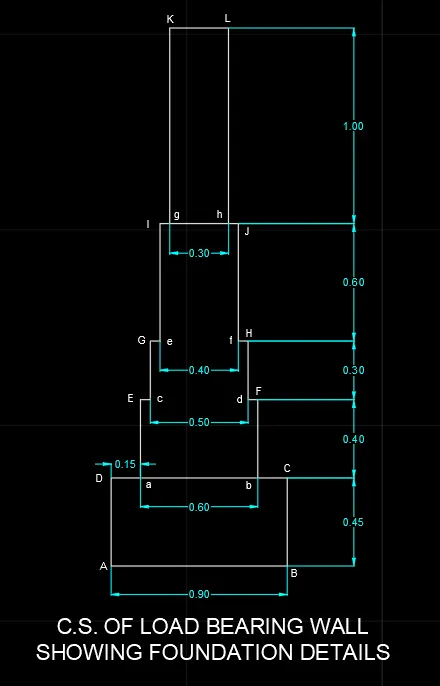

AIM : To create C.S. of load bearing wall showing foundation details.

Step - 1

  • Start with line command (L)
  • Line specify 1st point : 2,1 (Point A)
  • Specify 2nd point : X direction (East) 0.90 (Point B)
  • Specify 3rd point : Y direction (North) 0.45 (Point C)
  • Specify 4th point : -X direction (West) 0.90 (Point D)
  • Specify 5th point : -Y direction (South) 0.45 / Close
  • Offset with CD line in Y direction (0.40) for draw point line EF
  • Offset with EF line in Y direction (0.30) for draw point line GH
  • Offset with GH line in Y direction (0.60) for draw point line IJ
  • Offset with IJ line in Y direction (1.00) for draw point line KL
  • Create a vertical construction (Xline) command (XL) from the centre point of (0.90) length (CD) for the offset command run in X and -X direction.
  • Offset with verticle construction line in X direction 0.30 and - X direction 0.30 and maked point ab, CD and trimmed extra line as per drawing.
  • Create a vertical construction (Xline) command (XL) from the centre point of (0.60) length (EF) for the offset command run in X and -X direction.
  • Offset with verticle construction line in X direction 0.25 and - X direction 0.25 and maked point cd, EF and trimmed extra line as per drawing.
  • Create a vertical construction (Xline) command (XL) from the centre point of (0.50) length (GH) for the offset command run in X and -X direction.
  • Offset with verticle construction line in X direction 0.20 and - X direction 0.20 and maked point ef, GH and trimmed extra line as per drawing.
  • Create a vertical construction (Xline) command (XL) from the centre point of (0.40) length (IJ) for the offset command run in X and -X direction.
  • Offset with verticle construction line in X direction 0.15 and - X direction 0.15 and maked point gh, IJ & KL and trimmed extra line as per drawing.

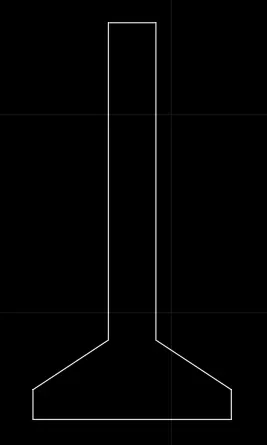

Final Result :

C-5 :

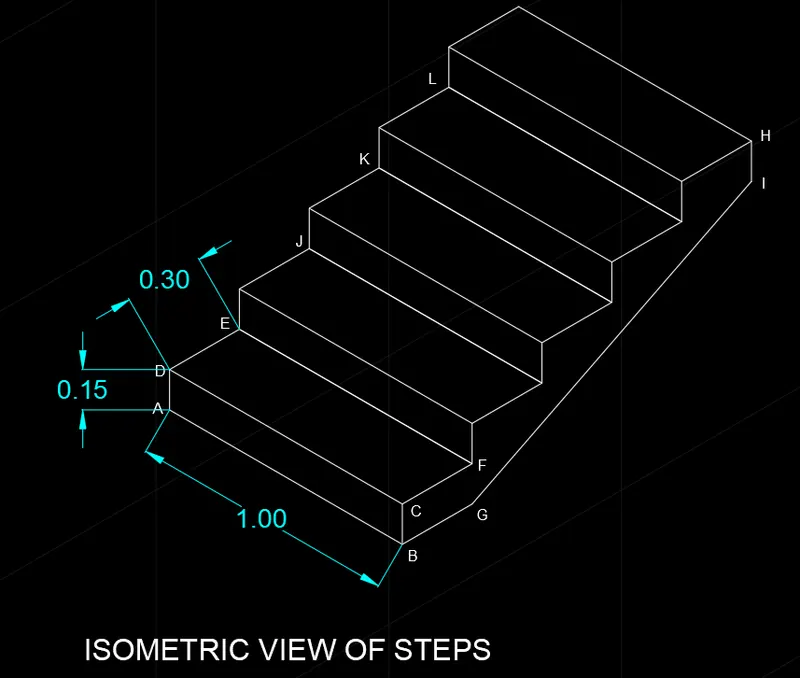

AIM : To create a Isometric view of steps.

  • Start with line command (L)
  • Line specify 1st point : 2,1 (in Left Isometric view) (Point A)
  • Specify 2nd point : X direction (in Left Isometric view) 1.00 (Point B)
  • Specify 3rd point : Y direction (in Left Isometric view) 0.15 (Point C)
  • Specify 4th point : -X direction (in Left Isometric view) 1.00 (Point D)
  • Close in -Y direction with (A)
  • Next start from point D and specify 5 point : Y direction (in Top Isometric view) 0.30 (Point E)
  • Specify 6th point : X direction (in Top Isometric view) 1.00 (Point F)
  • Close in -Y direction with (C)
  • Copy all with point A and paste 4 times with point E, J, K & L
  • Extend line with point H to -Y direction 0.15 and make point I
  • Extend line with point B to X direction 0.30 and make point G
  • Join with line G and I.

Final Result :

C-6 :

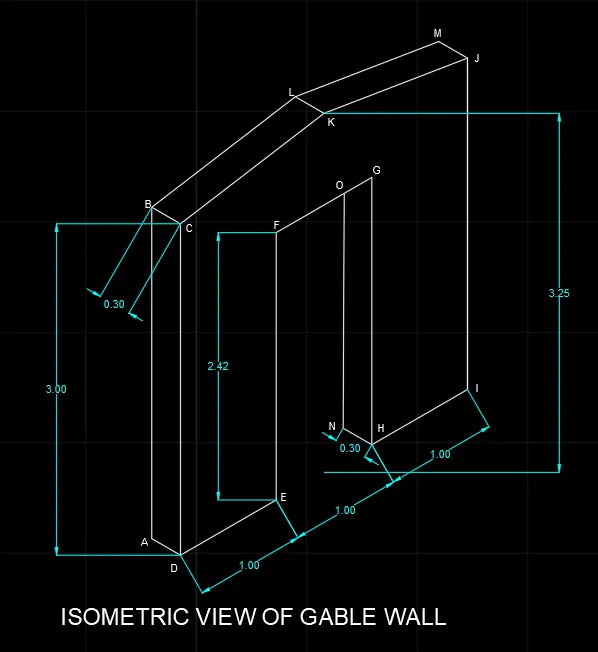

AIM : To create a Isometric view of Gable Wall.

Step - 1

  • Start with line command (L)
  • Line specify 1st point : 2,1 (in Left Isometric view) (Point A)
  • Specify 2nd point : Y direction (in Left Isometric view) 3.00 (Point B)
  • Specify 3rd point : X direction (in Left Isometric view) 0.30 (Point C)
  • Specify 4th point : -Y direction (in Left Isometric view) 3.00 (Point D)
  • Close with Point A
  • Next start with point D (in Left Isometric view) X direction 1.00 (Point E)
  • Specify next point in Y direction (in Left Isometric view) 2.42 (Point F)
  • Specify next point in X direction (in Left Isometric view) 1.00 (Point G)
  • Specify next point in -Y direction (in Left Isometric view) 2.42 (Point H)
  • Specify next point in X direction (in Left Isometric view) 1.00 (Point I)
  • Specify next point in Y direction (in Left Isometric view) 3.00 (Point J)

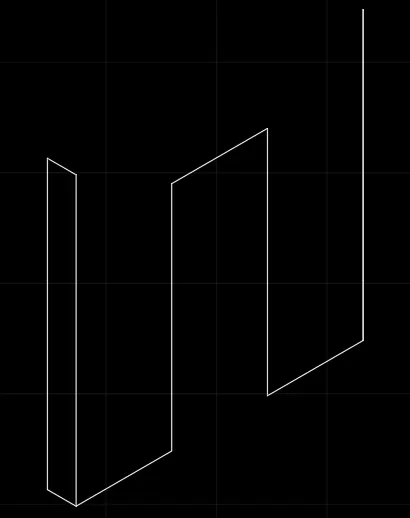

Result for Step-1

Step - 2

  • Next start with point H (in Left Isometric view) -X direction 0.30 (Point N)
  • Specify next point in Y direction (in Left Isometric view) 2.42 (Point O)
  • Next maked point K(centre point of EH to Y direction 3.25 height) K
  • Copy CB line and paste to point K and point J and maked point KL and JM
  • Next join the line with B & L, C & K, K & J and L & M

Final Result :
