Challenge

Creating 3D Isometric view of various structural elements in AutoCAD

PPrachit Milmile10 Feb 2022

Create a 3D Isometric View of the building with plan and elevation given.

AIM:- To Create a 3D Isometric View of the building with plan and elevation given.

INTRODUCTION:-

THE PLAN OF WALLS WITH TWO WINDOWS IS GIVEN WE HAVE TO CONVERT IT INTO A 3D MODEL

THE DETAILED DRAWING OF WINDOWS IS GIVEN

THE GROUND PLINTH IS 4" AND SLAB IS OF 6" AND THE HEIGHT IS 10'.

PROCEDURE:-

OEPN AUTO CAD

SET UNITS TO ENGGINEERING AND INCHES

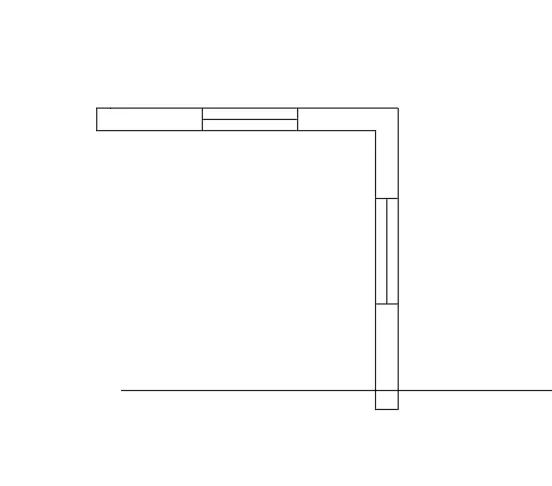

DRAW 10' LINE ALONG X AND Y AXIS THEN TAKE OFFSEY OF 9" AFTERV THAT TRIM THE LINES THEN USE LINE COMMAND TO JOIN THE REAMINING LINES

DRAW THE WINDOWS OF SIZES 3' AND 3'2"

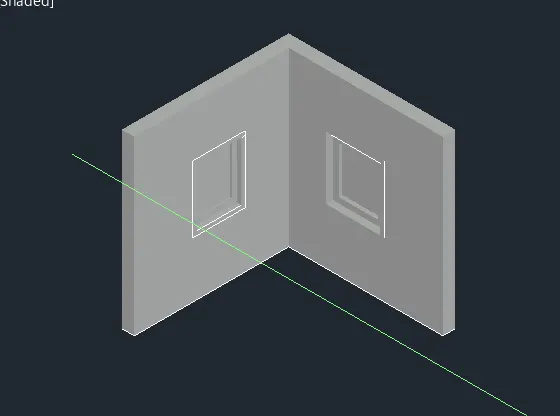

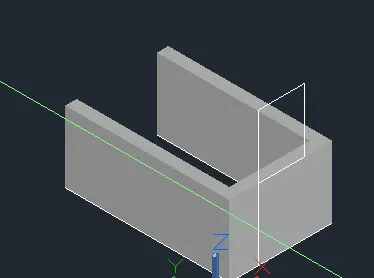

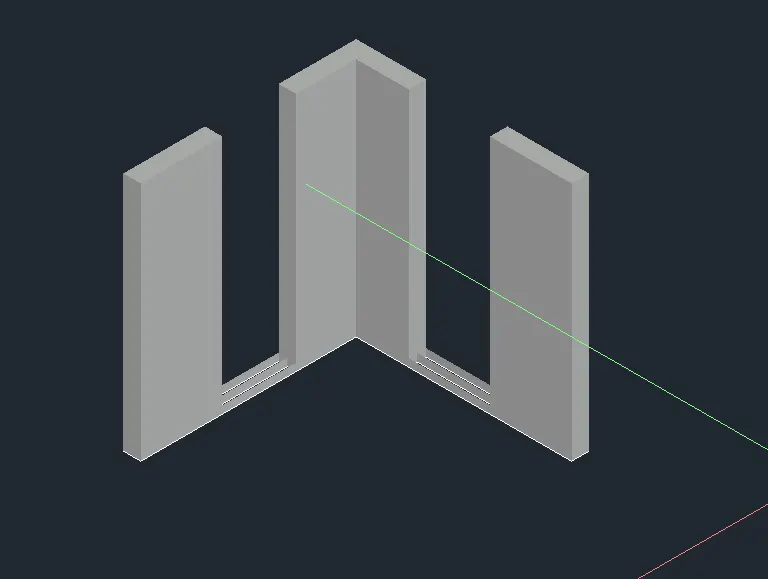

USE EXTRUDE COMMAND OF 4" AND THEN OF 10' WHERE WINDOWS ARE NOT PRESENT

WHERE WINDOWS ARE PRESENT THERE EXTRUDE UPTO 3'

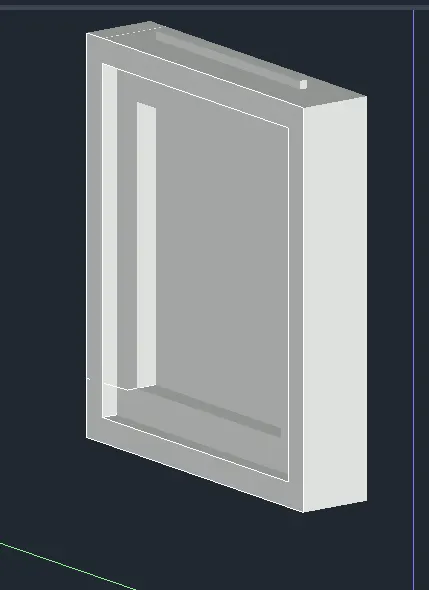

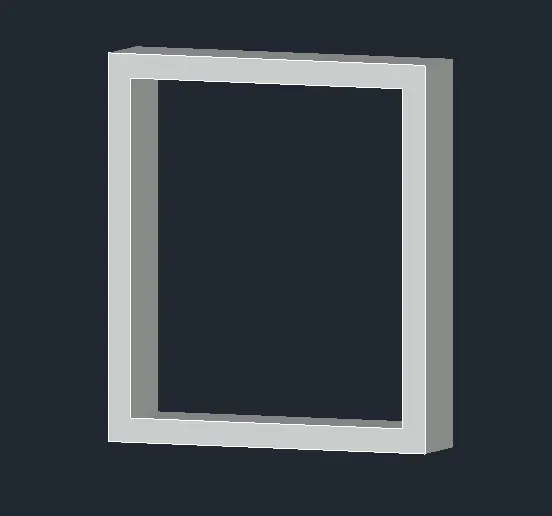

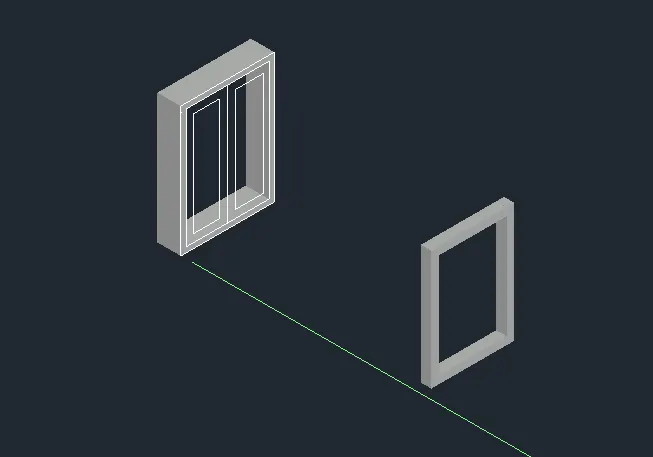

THEN WINDOWS ARE DRAWN USING THE EXTUDE COAMMAND .

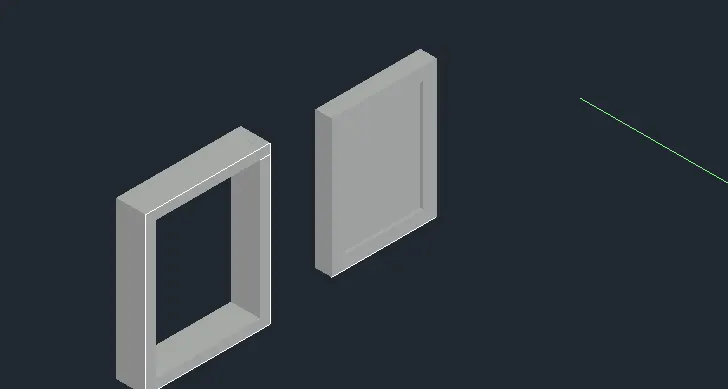

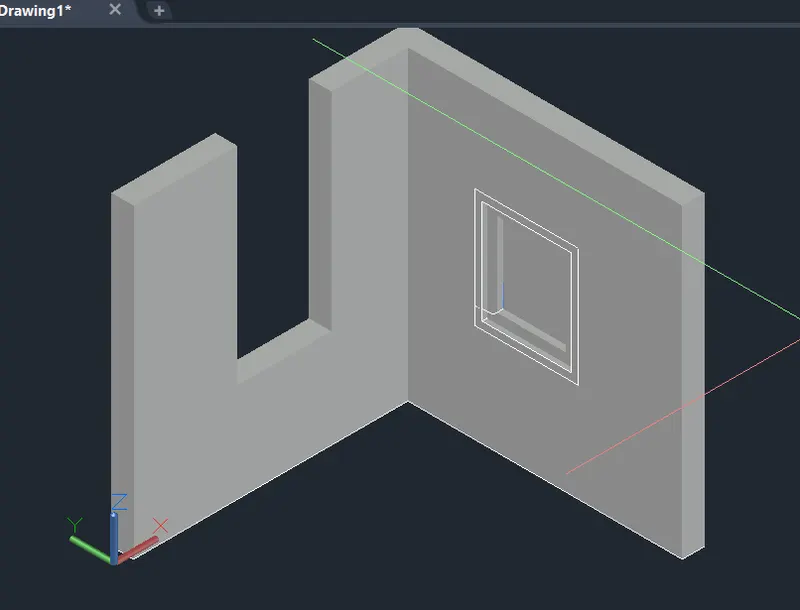

THE WINDOWS WERE DRWAN SAPERATLY AND THE MOVED TO THE REQUIRED LOCATION

THEN 6" ROOF SLAB IS EXTRUDED

COMMANDS USED

LINE

OFFSET

TRIM

EXTRUDE

EXPLODE

JOIN

COPY

MOVE

BOX

REACTANGLE

SUBSTRACT

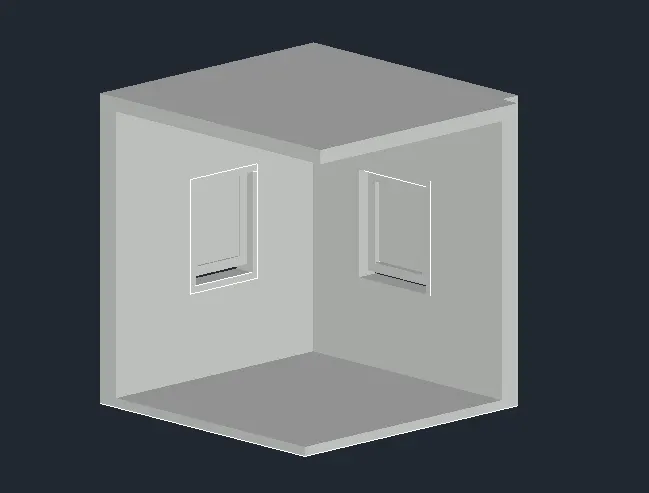

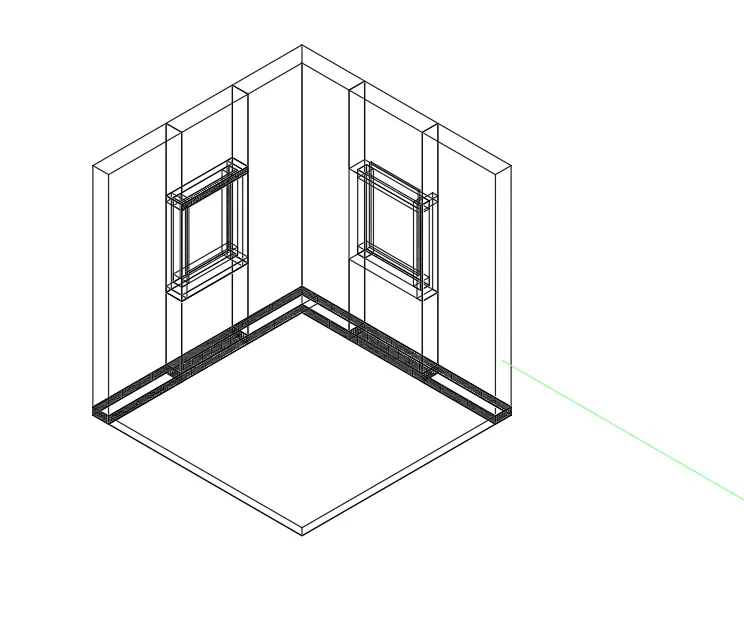

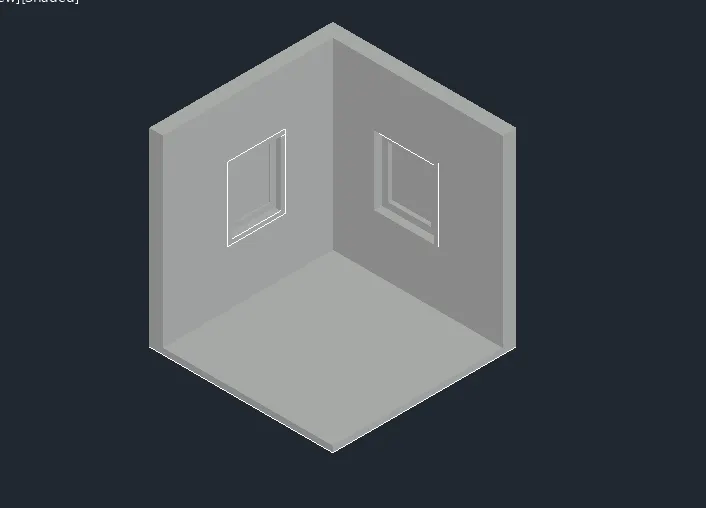

RESULT

2. Create the 3D View of the Building Façade as given in the plan and elevation. Also, see the detail of the window.

AIM:- To Create the 3D View of the Building Façade as given in the plan and elevation

INTODUCTION:- A PLAN AND ELEVATION OF THE STORY BUILDING IS GIVVEN WITH DETAILS OF WINDOWS

DRAW A 3D MODEL BY THESE COMPONENTS GIVEN THE HEIGHT OF FLOOR IS 9'- 11"

WINDOW IS OF 4'

PROCEDURE:-

SET UNITS TO ENGGINEERING AND INCHES

DRAW A LINE OF 10'-9" AND THEN A PERPENDICULAR LINE OF 6'-9"

TAKE OFFSET OF BOTH LINES OF 9"

DRAW A WINDOW OF SIZE 3'

EXTUDE THE PLAN BY 4'

THEN DRAW THE WINDOW OF 3'X4'

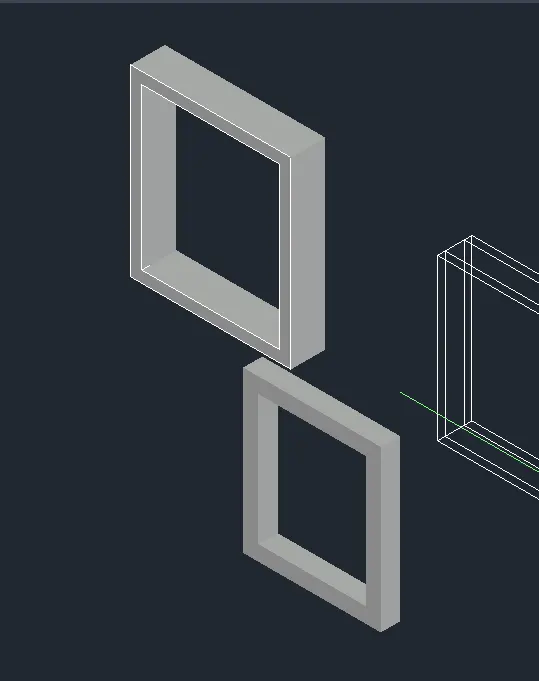

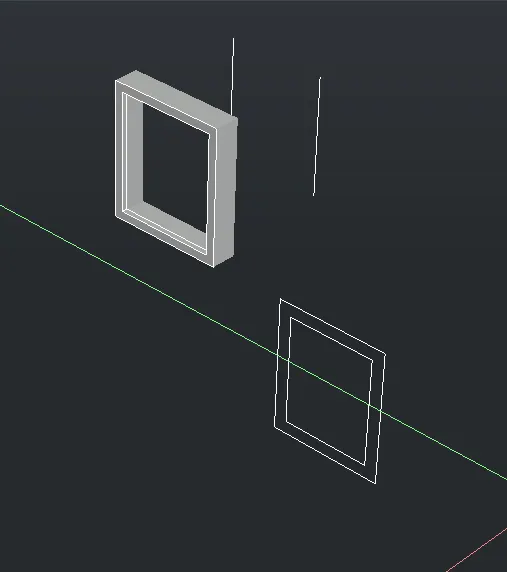

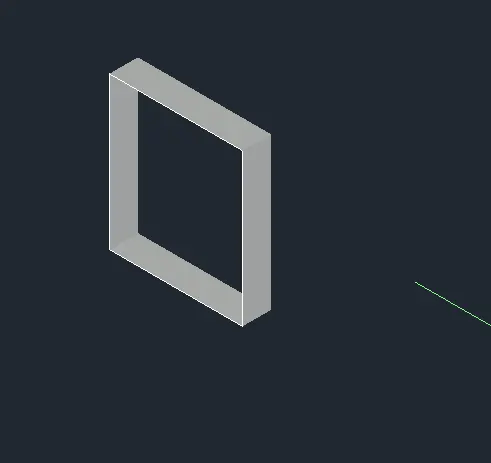

THEN DRAW THE FRAME OF THE WINDOW EXTRUDE IT FIRST BY 2" AND THEN SUBTRACT IS NAD TAKE ANONTHER 3"

REAPEATING THE ABOVE PROCESS 3 TIMES WE WILL GRT THE 4 STORY BUILDING

THE PROCESS OF EXTUDE THE PLAN BY 4' THEN DRAW THE WINDOW OF 3'X4'

THEN DRAW THE FRAME OF THE WINDOW EXTRUDE IT FIRST BY 2"

COMMANDS USED

LINE COMMAND

OFFSET COMMAND

MOVE COMMAND

COPY COMMAND

JOIN COMMAND

EXTRUDE COMMAND

SUBSTRACT COMMAND

UNION COMMAND

BOX COMMAND

EXTUDE THE PLAN BY 4' THEN DRAW THE WINDOW OF 3'X4'

THEN DRAW THE FRAME OF THE WINDOW EXTRUDE IT FIRST BY 2"

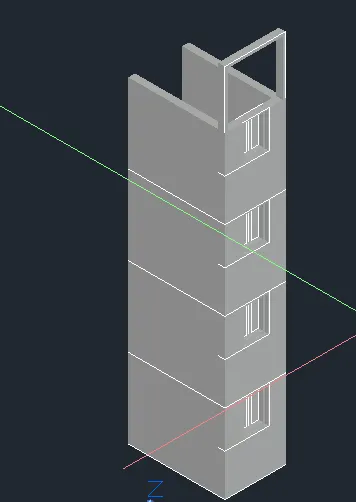

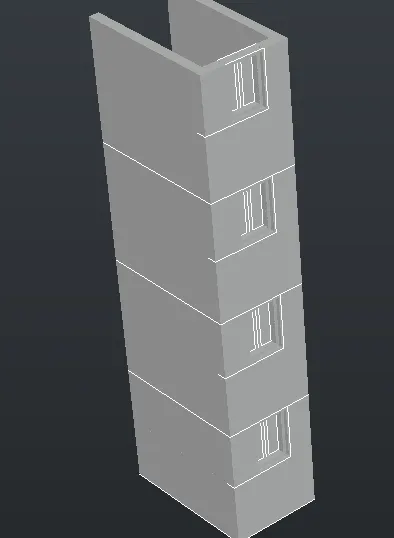

RESULT:

3. Create the ismoteric 3d view of a stair with railing as shown in the plan and elevation. Assume the size of the balustrades and the hand rails.

AIM:- Create the ismoteric 3d view of a stair with railing as shown in the plan and elevation

INTRODUCTION:- PLAN AND SIDE ELEVATION OF A STAIRCASE IS GIVEN AND WE HAVE TO DRAEW A 3D MODEL OFVTHE SATIRS RISER IS OF 7"

AND TRADE IS OF 1'

LANDING IS OF 3'

DRAEW SLL THE COMPONENETS

PROCEDURE:-

SET UNITS TO ENGGINEERING AND INCHES

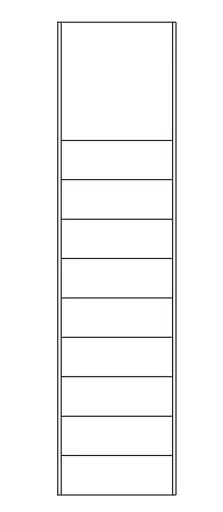

DRAW A LINE OF 1' WHICH WILL BE TARDE AND THE COPY THE ARRAY REQUIRED NO.OF TIMES

DRAW THE LINE OF LANDING THE LANDING IS OF 3"

THEN DEAW THE LIBE OF 7" WHICH WIIL BE RISER COPY THE RISER REQUIRED NO.OF TIMES

AND THEN JOIN THE LINES WHICVH WILL BE THE TARDE

JOIN THE BOTH END OF THE STARCASE ANF THAKE THE OFFSET OF THAT LINE TO 6"

NOW SIMILARLY DRAW IN 3D BY TAKING 7" RISER AND 1' TRADE JOIN BOTH WITH HELP OF JOIN COMMAND

EXTRUDE THE DRAWN AREA

COMMANDS USED:

LINE COMMAND

OFFSET COMMAND

MOVE COMMAND

COPY COMMAND

JOIN COMMAND

EXTRUDE COMMAND

SUBSTRACT COMMAND

UNION COMMAND

BOX COMMAND

CICLE COMMAND

SWEEP COMMAND

DRAW CICLE ANF THEN TAKE THE SWEEP COMMAND TO GET THE RAILINGS

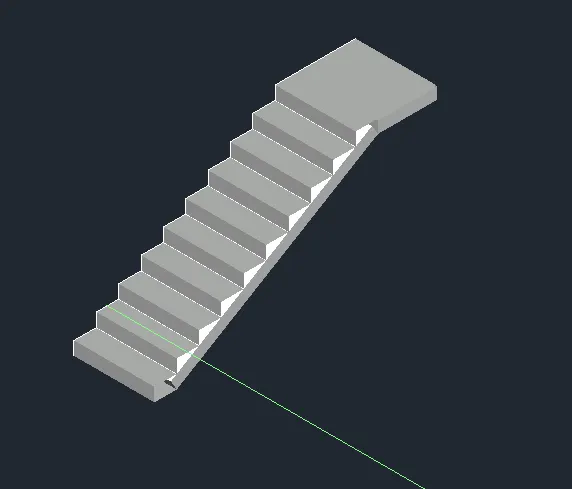

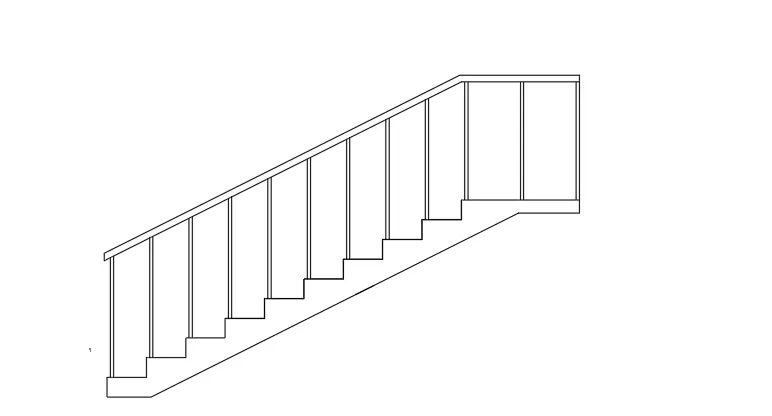

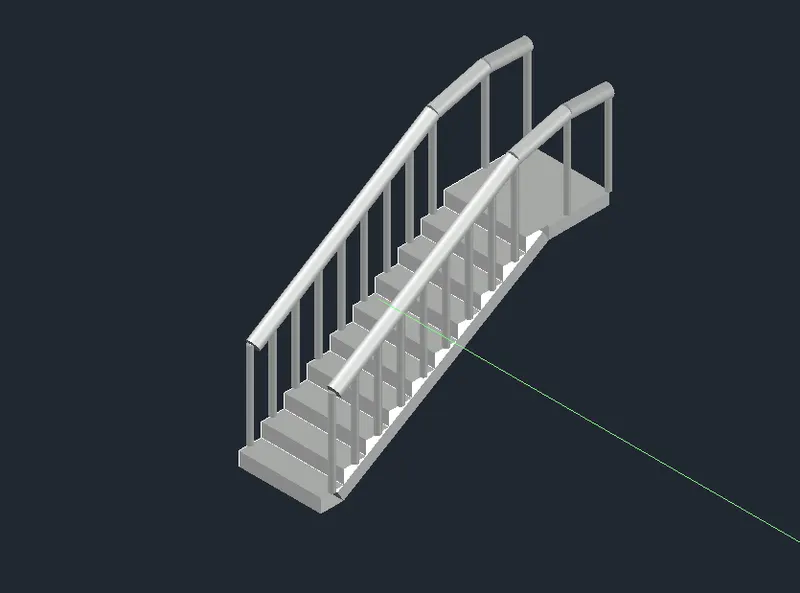

RESULT:

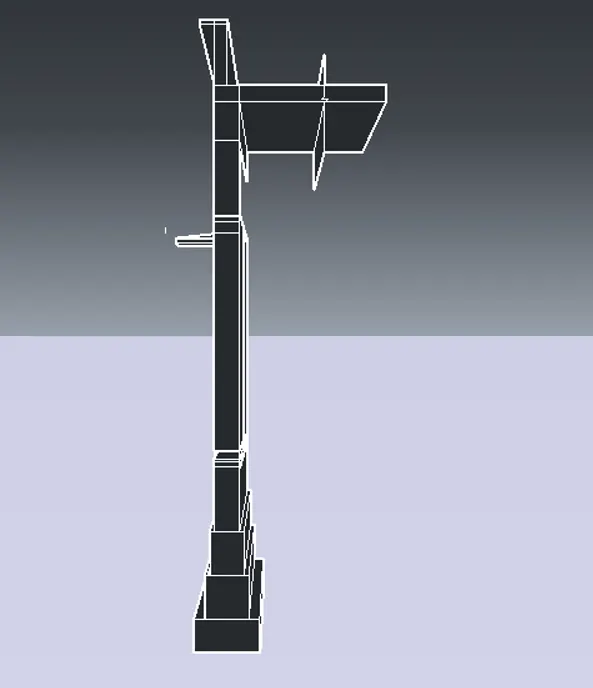

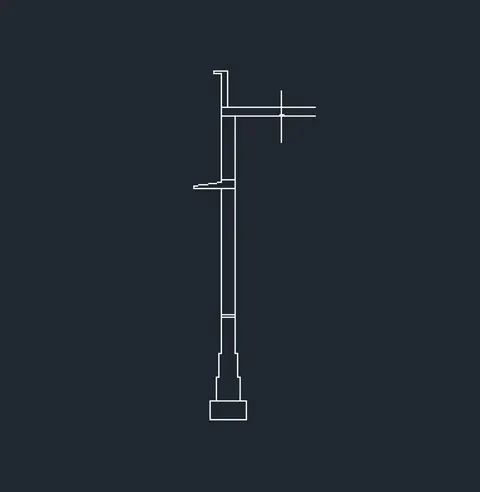

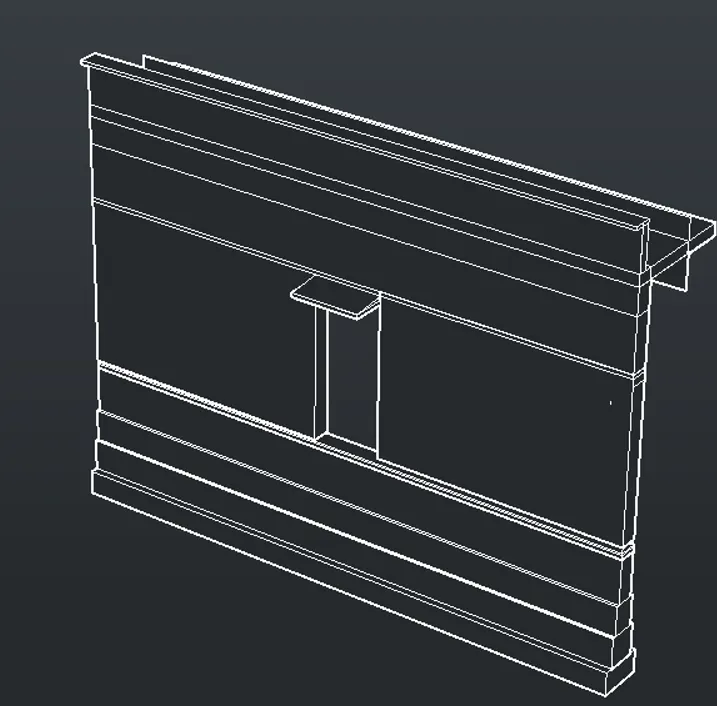

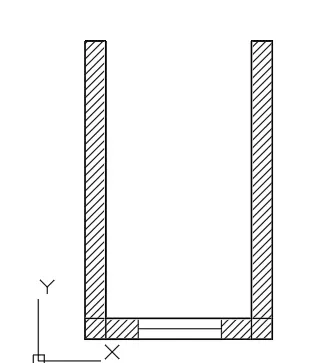

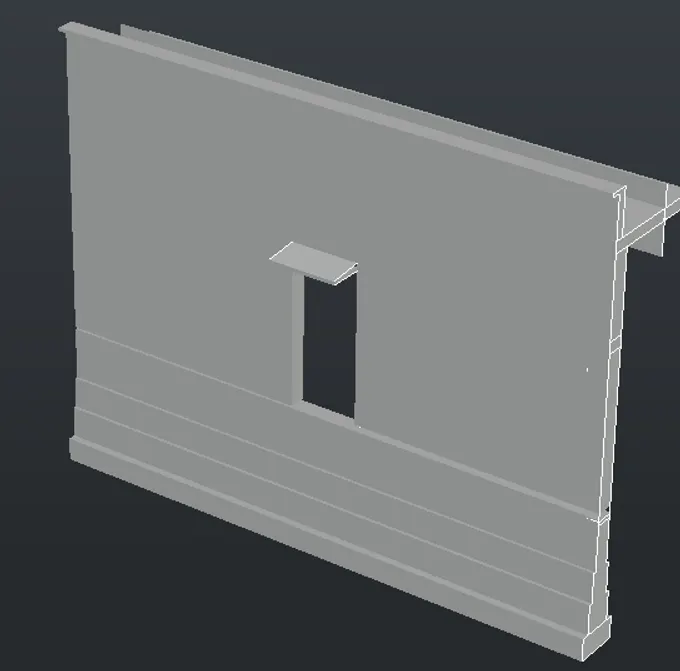

4. Create the 3D view of a Wall with spread footing . Create the Door opening only. Assume the size of the parpaet and the coping. See the plans and elevation for the details. Also, create a rendered view of the model with materials as of your choice.
