Creating 3D Isometric view of various structural elements in AutoCAD

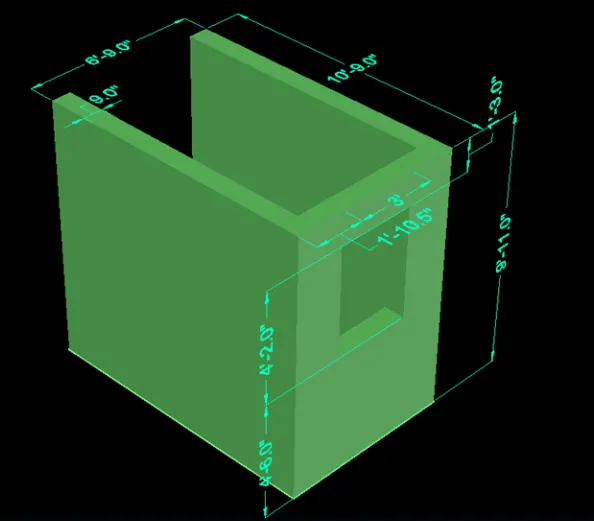

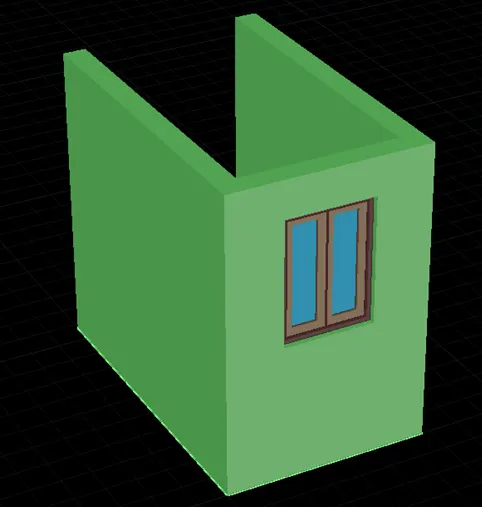

Aim: To draw the 3D Isometric View of the building as shown in the figure

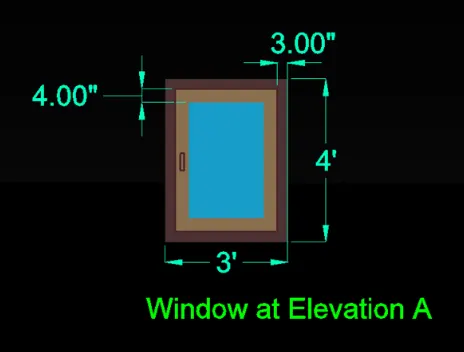

Window at Elevation A

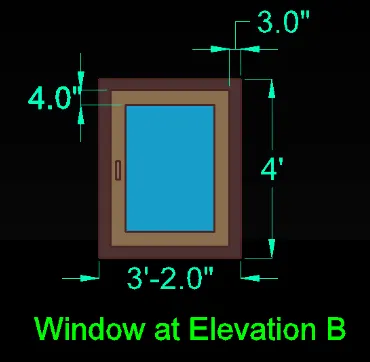

Window at Elevation B

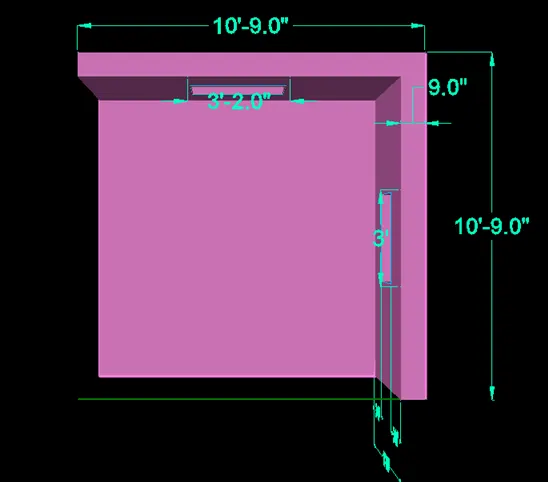

Aim: To draw the 3D Building Façade as given in the plan and elevation
Procedure:
Open AutoCAD
In Startup settings start from scratch select Imperial (Feet and Inches)
Open grid and snap settings
- Change snap and grid spacing to 1’
- Change major line every grid line to 10
- Turnoff adaptive grid
Type ‘un’ in command box and press enter
Change units’ type to decimal and precision to 1’1/16” and insertion scale to inches
Change the workspace setting of AutoCAD from ‘drafting and annotation’ to ‘3D Modeling’

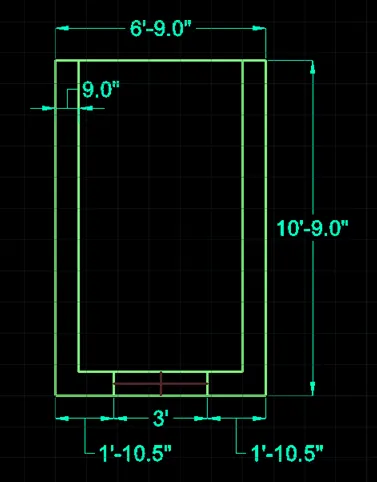

Creating 2D Plan View
Creating 3D View

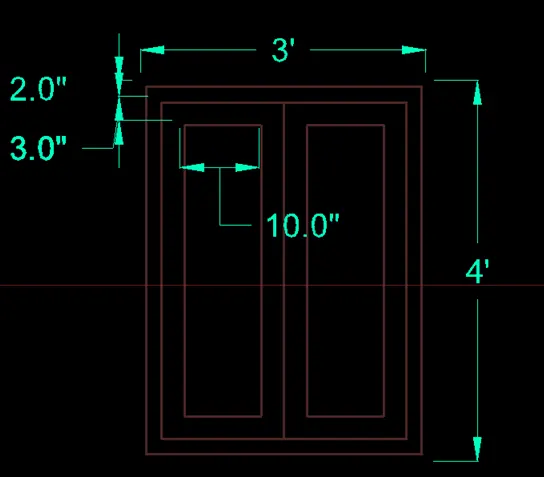

Creating Elevation Windows
Creating Elevation View

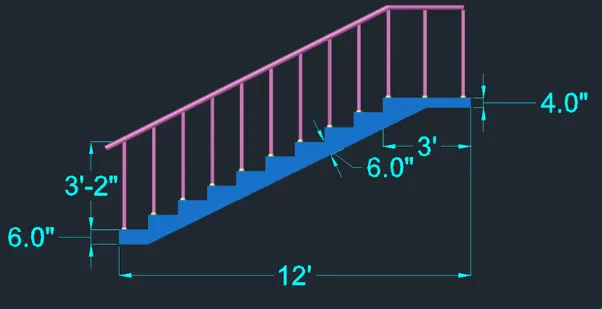

Aim: To draw the 3D view of a stair with railing as shown in the plan and elevation
Procedure:
Open AutoCAD
In Startup settings start from scratch select Imperial (Feet and Inches)
Open grid and snap settings
- Change snap and grid spacing to 1’
- Change major line every grid line to 10
- Turnoff adaptive grid
Type ‘un’ in command box and press enter
Change units’ type to decimal and precision to 1’1/16” and insertion scale to inches
Change the workspace setting of AutoCAD from ‘drafting and annotation’ to ‘3D Modeling’

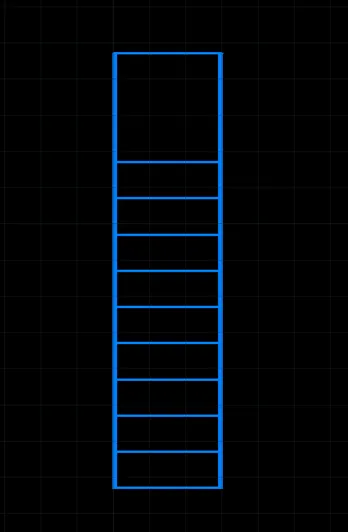

: Creating 2D Plan View of Staircase

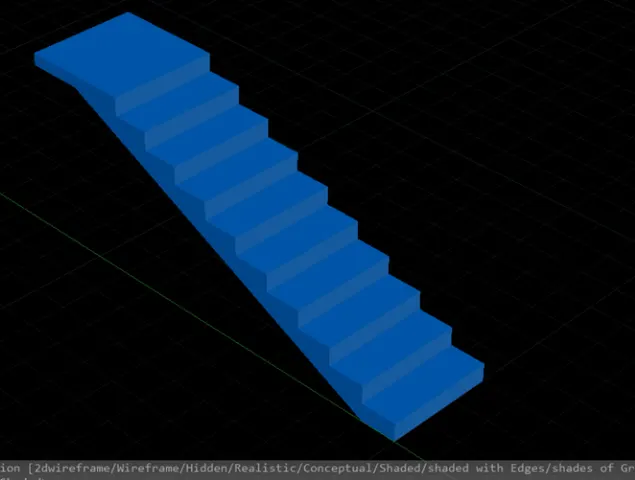

: Creating 3D View
Creating Views

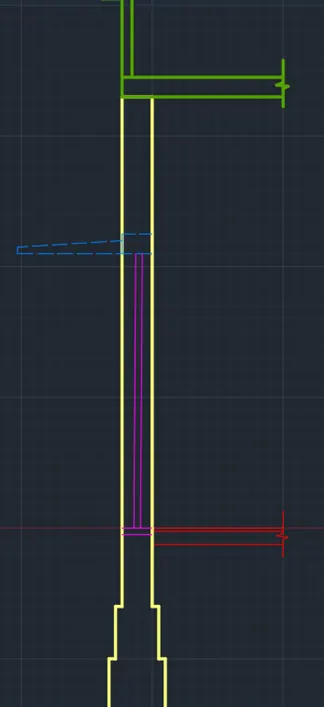

Aim: To draw the 3D view of a Wall with spread footing as shown in the plan and elevation
Procedure:
Open AutoCAD
In Startup settings start from scratch select Metric (Meters and mm)
Open grid and snap settings
- Change snap and grid spacing to 100
- Change major line every grid line to 10
- Turnoff adaptive grid
Type ‘un’ in command box and press enter
Change units’ type to decimal and precision to 0.00 and insertion scale to inches
Change the workspace setting of AutoCAD from ‘drafting and annotation’ to ‘3D Modeling

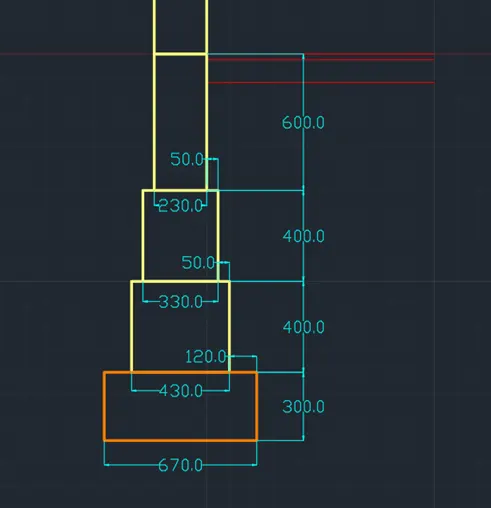

Creating 2D Plan View of wall with spread footing

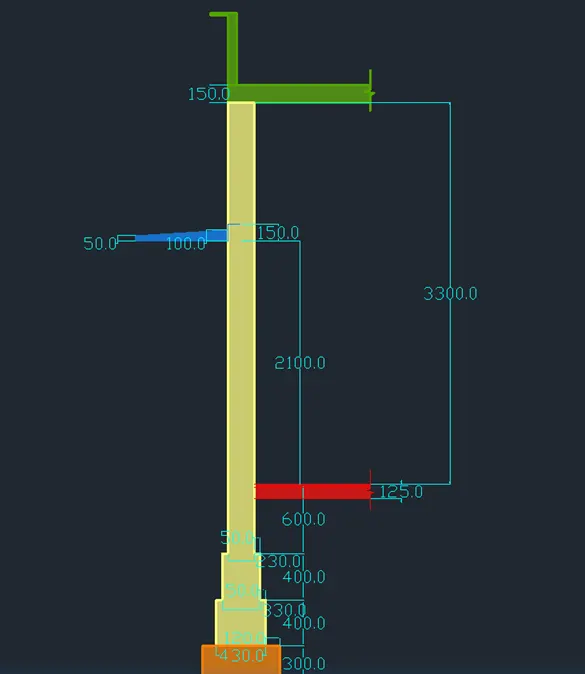

Drawing 3D View of section
Result:
- All dimensions are in millimeters
- Text and dimensions are added with respective layers
