Creating 3D Isometric view of various structural elements in AutoCAD

1. Create a 3D Isometric View of the building with plan and elevation given.

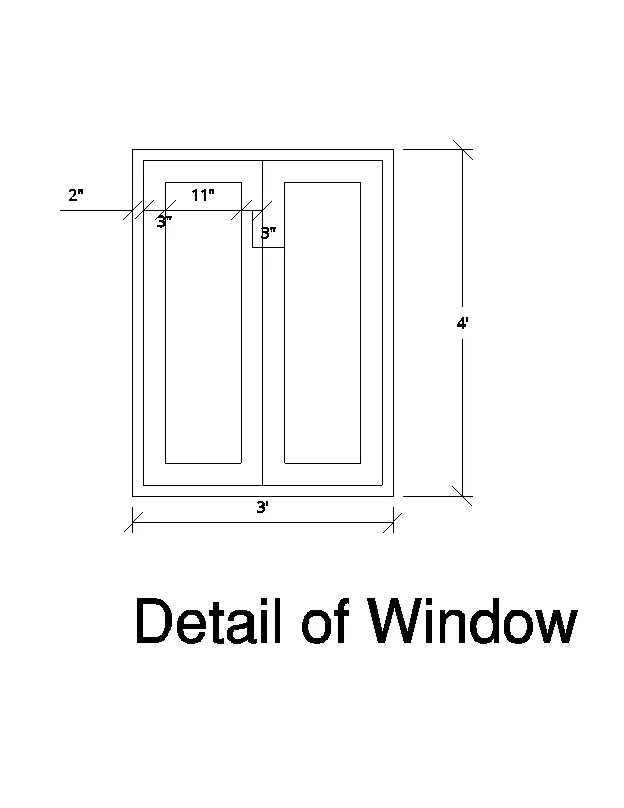

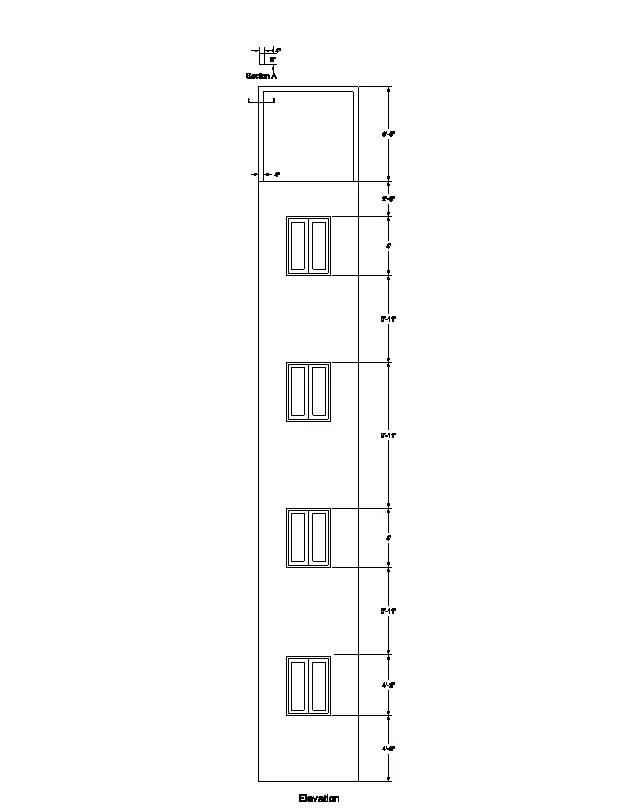

2. Create the 3D View of the Building Façade as given in the plan and elevation. Also, see the detail of the window.

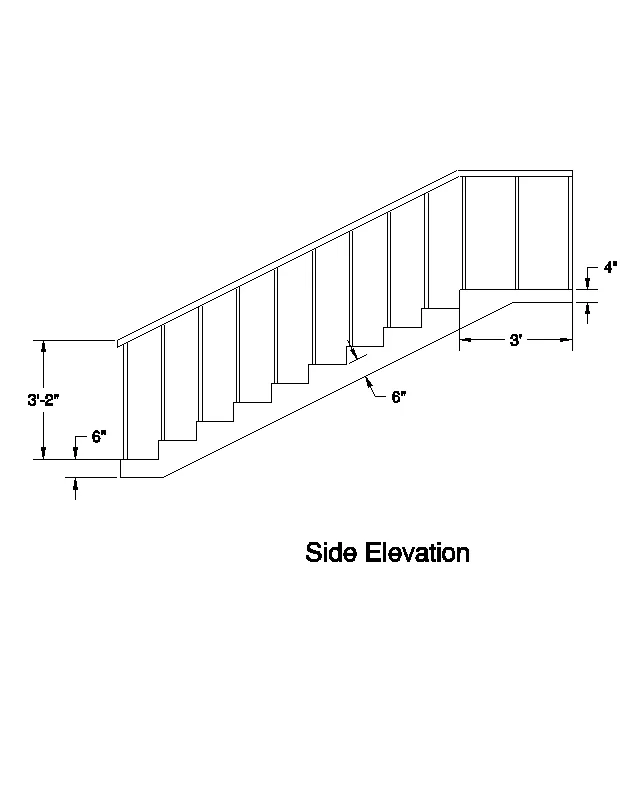

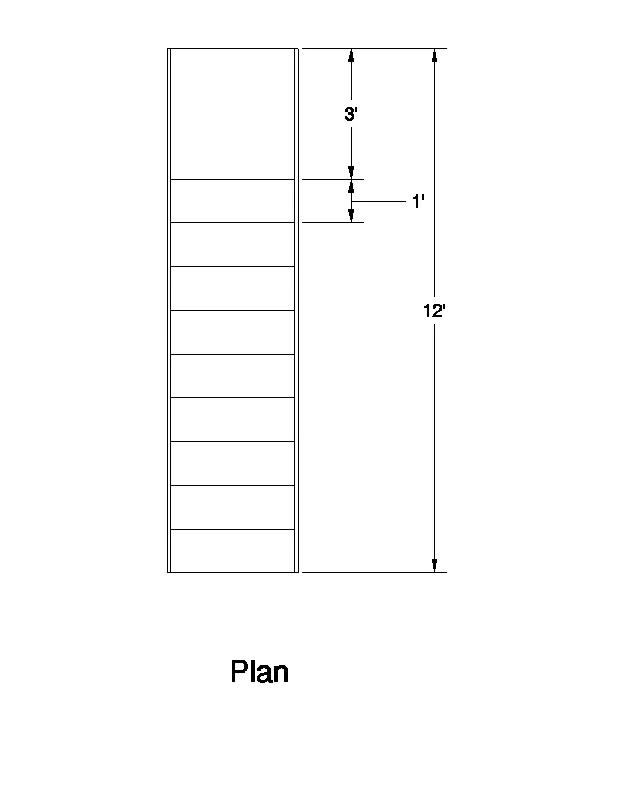

3. Create the ismoteric 3d view of a stair with railing as shown in the plan and elevation. Assume the size of the balustrades and the hand rails.

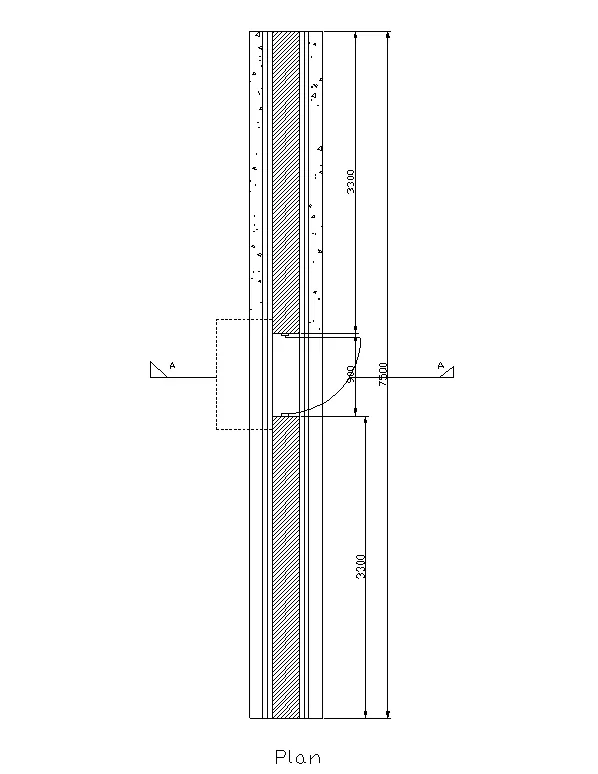

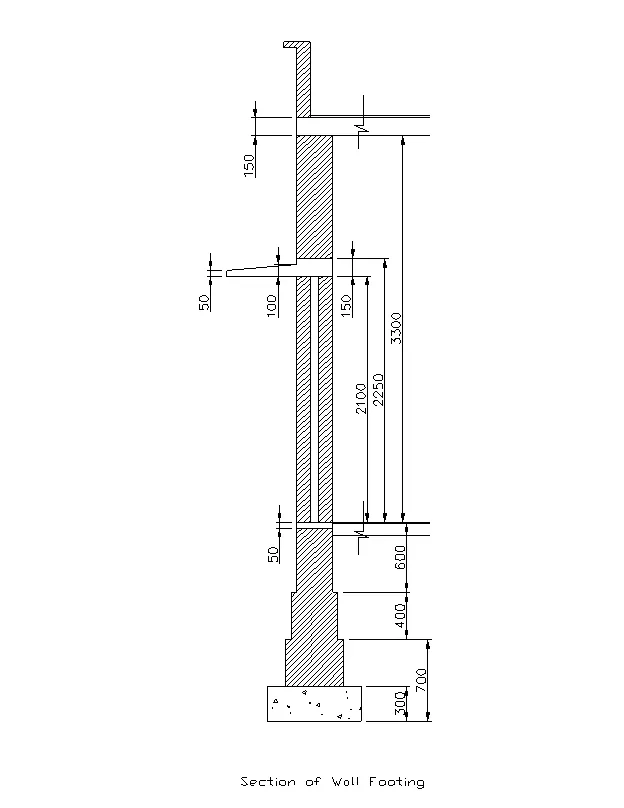

4. Create the 3D view of a Wall with spread footing . Create the Door opening only. Assume the size of the parpaet and the coping. See the plans and elevation for the details. Also, create a rendered view of the model with materials as of your choice.
