AIM: To create 3D isometric view of various structural elements

INTRODUCTION:

• Isometric drawing:
  • These drawings are not actual 3D drawings, they are made with 2D geometries but they appear like.  Isometric drawing in AutoCAD can be made by tilting viewing angle to 30 degree for all of its sides in the 2D plane.Isometric drawing can bow be easily created using the isodraft option in AutoCAD which enables us to switch between the planes. In AutoCAD, 3D modelling can be used to draw the isometric view of diffrent elements.
• Rendering AutoCAD:
  •  A realistics rendering of a 3D  model give a clearer vision of a conceptual desing than a plotted drawing.
  • Rendering is process of creating a raster image based on 3D object in a scene. A renderer is used to calculate the appearence of the material attached to the objects in a scene, and how lightings and shadows are calculated based on lights placed in a scene. Environmentl and exposure setttings of the renderer can be sdjested to control the final rendered image.
  • The basic rendering workflow is to attach materials to the 3D objects of a model, place user defined lights, add a background and start the renderer with the RENDER command.

DEFAULT PROCEDURE:

• Open Autocad aplication from my desktop
• And change to 3D modelling int he setting  and change the workspcae to 3D modelling
• Clik file menu to creat NEW PAGE
• Select default setting as Imperial or Metric what we need
• In default settin click on use a wizord and in that advance setting and set unit as Architectural, Engineering or Decimal etc.,  and precision as 0 0r 0',0' and press Next
• Set Angle as Decimal Degree and precision as 0 and click next
• Set Angle Measure as EAST and press next
• Set area by providing  what we need as per our plan
• Press finish
• Keep prthp, Object snap> on
• Keep Snap and grid >off
• Enter



      ***********************************************************************************



 QUESTION: 1







Aim: To creat the 3D isometric view of a building with plan and elevation given:

Step by Step Procedure:

To creat Plan:

• Initially, open the AutoCAD and go to 3D modelling
• Then set hte units of the drawing as Engineeing (feet and inches)
• Now set the limits
• Now in the AutoCAD take the top view and intially draw the plan as given in the question bu using various command
• Initially i creat the layer properties for creat the pan as different portion of plan , for wall and window
• To creat Layer properties:
• First to creat New group  fillter --> Name: Q1_3D PLAN ELEVATION
• Click on New Layer
• Give the Layer name>3D-WALL
• Select for what colour  We Need
• Layer which are assigned are shown in below fig. the following All layer propersties are used by the following diagram of  Plan And Elevation.
•
• Now  choose the 3D-WALL layer
• Take rectangle commadn form commanmd prompt
• Specify the first coner point at origin in the drawing
• Specify the other corner point @10'9",10'9"
•
• And Explode the rectangle by using EXPLODE command
• then take offset command
• Specify the offset distance is 9" wall thickness of right Y-axis right side and X-axis Top side
•
• Now take line command to draw the window
• Take line command
• Speicyf the first point at mid of the right side wall
• The offeset the line bother side of 1'7"
• Same step using to created the another side window size of 3'
• To creat Text And Dimension:
• To creat the Dimenaion style
• Click Annotation tab
• Click Dimension >Manage dimension style
• Style name> CHALLENGE-12 3D
• Slect the text colour code of 32
• And Dimension line, Extension line colou code of 134
• Select the linear dimension to provide the linear dimension as given below diagranm
• And similar way to provide the all dimension wherever necessary  as shown below
•
• Now to creat the Text
• Click Annotation tab>Multi line
• Mnage text style >New>Style Name> CHALLENGE-12 3D
• Font style > Arial
• Text Heigth>0'4"
•
• Now choose thge Multiline text to provied the Text for wherever required in diagram
• The text can be placed in a proper position by Using move command
• By used Quick Properties to incresed the size of required Text size
• Hence Complete figure Plan
•



 To crea Elevation at A:

• Initially take Xline command
• And draw the projection line of Elevation A Wall and window
•
• Again take xline command to draw the horixonal parraler line
• Now thake offset command
• Specify the offset distance of 4"
• Specify the offset distance of 3'
• Specify the offset distance 7'
• Specify the offset distance of 10'
• Specify the offset distance of 6" as shown in below
•
• Now delete the unwanted line by using TRIM command
• And now take Linetype command -->Line type manager
• Load the line type ACAD_ISO02W100
• Global scale factor : 0.300
• Then change the line type for Iso dash....
• Now to provide Text and Dimension By using Annotation
• Here created Elevatio A diagram is given below
•

To crea Elevation at B:

• Again take Xline command
• And draw the projection line of Elevation B Wall and window
•
• ake xline command to draw the horixonal parraler line
• Now thake offset command
• Specify the offset distance of 4"
• Specify the offset distance of 3'
• Specify the offset distance 7'
• Specify the offset distance of 10'
• Specify the offset distance of 6" as shown in below
•
• Now delete the unwanted line by using TRIM command
• And now take Linetype command -->Line type manager
• Load the line type ACAD_ISO02W100
• Global scale factor : 0.300
• Then change the line type for Iso dash....
• Now to provide Text and Dimension By using Annotation
• Here created Elevatio B diagram is given below
•
• To creat view port:
• The following view port properties are used to created the View port for Quick view
•



 To creat 3D Isometric View:

• Initiaaly To changed view for 3D isometric view form View cube on the display
• Then now to creat the Boundary
• Take BOUNDARY command the selct Object type--> Region,
• Current viewport -->New , press Ok
•
•
• Choose the EXTRUDE command
• Specify the Object the Extrude
• Specify the Extrude Height of 10'
• And apply the floor colour as shown in the below figure
•
• Now to creat the Window portion
• Take rectangle command for reerence on window portion
• Choose the EXTRUDE command
• Specify the Object the Extrude
• Specify the Extrude Height of 3'
• Now Merge the wall portion By using Union command as shown in below
•
• Now Take UCS command to set the UCS for where we draw on the Axis
•
• Now take rectang rectangle command to draw the window portion
• Take rectangle command for reerence on window portion
• Choose the EXTRUDE command
• Specify the Object the Extrude
• Specify the Extrude Height of -3'
• Now Merge the wall portion Buy using Union command
• Now Take UCS command to set the UCS for where we draw on the Axis
• Similarl way  to  used creat the both window portion
• Now copy the Window A side elevation for creating Window panel and frame, glass .
• Initially Rotate the plane as per wall portion
• Take 3DROATATE command the rotate the plane sfor 90 degree
•
• Now take the projection of window the create hte as size of window as given diagram
• Then Extrude the Thickness of the Frame is 3" , Mullion1.5" And Panel .5"
• Then Move the proper position of the frame and panel by Using MOVE comamnd
•
• Similarly use the sam procedure to create the window sat other side of the wall
• Use the move command to fix the window at proper position
• Then Change the visual style controls .SHADED
•
• Now To creat the Bottom Floor thickness"  and Roof concrete thickness is 6" Buy using EXTRUDE commadn as shown in below diagram



Result:





View 1:

View 2:

View 3:

•

View 4:

•





       *********************************************************************************



 QUESTION: 2



Aim: To creat the 3D view of the building facade as given in the plan and elevation

Step by Step Procedure:

To creat Plan:

• Initially, open the AutoCAD and go to 3D modelling
• Then set hte units of the drawing as Engineeing (feet and inches)
• Now set the limits
• Now in the AutoCAD take the top view and intially draw the plan as given in the question bu using various command
• Initially i creat the layer properties for creat the plan as different portion of plan ,wall and window
• To creat Layer properties:
• First to creat New group  fillter --> Name: Q2_BUILDING FACE ELEVATION
• Click on New Layer
• Give the Layer name>3D WALL
• Select for what colour  We Need
• Layer which are assigned are shown in below fig. the following All layer propersties are used by the following diagram of  Plan And Elevation.
•
• Take a rectangle command
• Specify the first coner point @ anywhere
• Specify other corner point @6'9",10'9"
• And Explode the rectangle by using EXPLODE command
• Then take offset command
• Specify the offset distance is 9" wall thickness
•
• Now take line command to draw the window
• Take line command
• SpeicifY the first point at mid of the  wall
• The offeset the line bother side of 1'6"
• Same step using to created the another side window size of 3'
•
• To Hatch the wall
• The following properties of the hatch pattern, Boundaries  etc., are used in this diagram
•
• To creat Text And Dimension:
• To creat the Dimenaion style
• Click Annotation tab
• Click Dimension >Manage dimension style
• Style name> CHALLENGE-12 3D
• Slect the text colour code of 32
• And Dimension line, Extension line colou code of 134
• Select the linear dimension to provide the linear dimension as given below diagranm
• And similar way to provide the all dimension wherever necessary  as shown below
•
• Now to creat the Text
• Click Annotation tab>Multi line
• Mnage text style >New>Style Name> CHALLENGE-12 3D
• Font style > Arial
• Text Heigth>0'4"
•
• Now choose thge Multiline text to provied the Text for wherever required in diagram
• The text can be placed in a proper position by Using move command
• By used Quick Properties to incresed the size of required Text size
• Hence Complete figure given below
•

To creat Elevation:

• Initially Take the projection of plan by using XLINE command to draw the elevation
•
• Again take Xline command for to draw the parallel ilien of the plan
• Then Choose the Offset comamnd
• Specify the offset distance 4'6"
• Again choose the offset command
• Specify offset distacne 4'2"
• Again choose the offset command
• Specify offset distacne 5'1"
• Again choose the offset command
• Specify offset distacne 4'
• Again choose the offset command
• Specify offset distacne 5'11"
• Again choose the offset command
• Specify offset distacne 4'
• Again choose the offset command
• Specify offset distacne 5'11"
• Again choose the offset command
• Specify offset distacne 4'
• Again choose the offset command
• Specify offset distacne 5'11"
• Again choose the offset command
• Specify offset distacne 2'5"
• The Delete the Unwanted line by using TRIM Command
• Now take a line command to draw the upper rectange portion
•



To crea the Section A

• Choose Rectangle command
• Specify the first corner point @ anywhere'
• Specify the other corner point @4",9"
• Then Provide the Text and Dimension by using Annotation method
• Increase the Text size by used Quick Properties
•
• To creat Text And Dimension:
• To creat the Dimenaion style
• Click Annotation tab
• Click Dimension >Manage dimension style
• Style name> CHALLENGE-12 3D
• Slect the text colour code of 32
• And Dimension line, Extension line colou code of 134
• Select the linear dimension to provide the linear dimension as given below diagranm
• And similar way to provide the all dimension wherever necessary  as shown below
•
• Now to creat the Text
• Click Annotation tab>Multi line
• Mnage text style >New>Style Name> CHALLENGE-12 3D
• Font style > Arial
• Text Heigth>0'4"
•
• Now choose thge Multiline text to provied the Text for wherever required in diagram
• The text can be placed in a proper position by Using move command
• By used Quick Properties to incresed the size of required Text size
• Hence Complete figure Plan

                        plan

•

                                                                                          For clear References

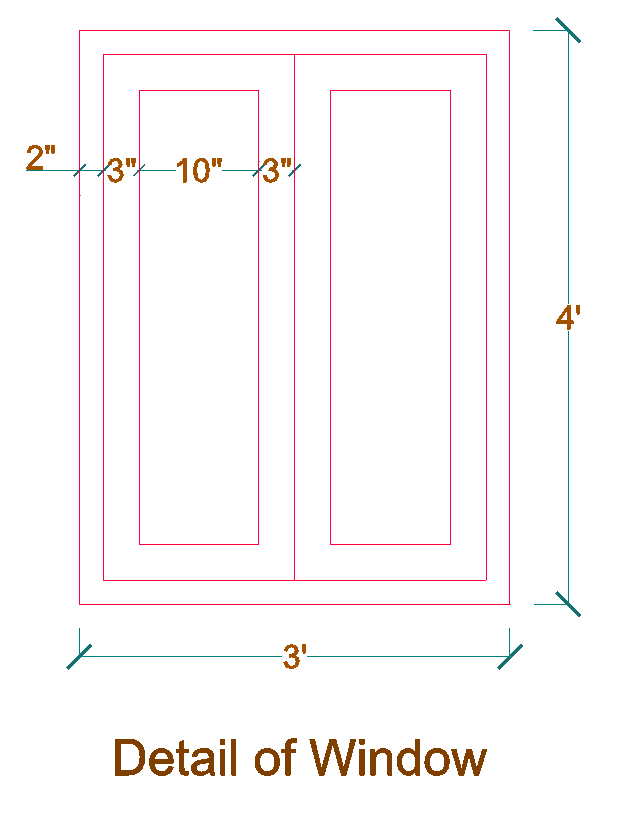

To creat Detail of Window:

• Initially change the layer to 3D WINDOW layer
• Take rectangle command
• Specify the first corner point@ anywhere
• Specifyt the other corner Point @3',4'
• Take offset command
• Specify the offset distance :2"
• Explode the inside rectngle command
• Take offset command
• Specify the first corner point@ anywhere
• Specifyt the other corner Point 3" inside of all 4 side
• Now Provide the Text and Dimension by using Annotatioin
• completer window figure are given below
•

To creat Elevation:

•  3D Isometric View:
  • Initiaaly To changed view for 3D isometric view form View cube on the display
  • Then now to creat the Boundary
  • Take BOUNDARY command the selct Object type--> Region,
  • Current viewport -->New , press Ok
  •
  • Then copy the outer plan line
  •
  • Now change the SHADED view from Visual Style controler
  •
  • Now take a Boundary command
  • Dialouge box will open
  • Click omn>pick a point
  • Click on th internal portion of wall
  • Enter
  • Take the EXTRUDE command
  • Slect object > Click on the walls
  • Specify the Extrude height >8'8"
  • Enter
  •
  • Take a rectangle command
  • Specify the corner point> click on the any corner of the window
  • Specify oppsite corner> . click the opposite corner of the window
  • Take Extrude command
  • Select object> select the rectangle
  • Provide the Exture height >3'
  • Use the Extrude , Substract and union commadn to provide the window gap view
  • Now Take UCS command
  • Specify the origan of UCS >face
  • Specify the X axis
  • Specify the XY plane face
  • Take a rectangle command to draw the Boundray line on the wall for creating 2nd floor
  • Now take a Boundary command
  • Dialouge box will open
  • Click omn>pick a point
  • Click on th internal portion of wall
  • Enter
  • Take the EXTRUDE command
  • Slect object > Click on the walls
  • Specify the Extrude height >9'11"
  • Enter
  • Select object> select the rectangle
  • Provide the Exture height >3'
  • Again take rectangle command draw the bountary line on the wall
  • Take Extrude command
  • Select object> select the rectangle
  • Provide the Exture height >-3'
  • Use the Extrude , Substract and union commadn to provide the window gap view
  • Similarly to created the Building wall with window open portion as shown in below
  •
  • Now to draw the upper Rectangle portion
  • Take rectangle command
  • Specify the first corner point @ anywherer
  • Specify the another corener @4",9'
  • Then take line commane to draw tha line as per that rectangle portion
  •
  • Now Cooe Extrude command
  • Slect object of the Exptrude--> Select Path--> Slect Extrude Path
  •
  • Then Move the portion to put the upper building asper given diagrame

     i. Shaded vide                                                      ii. Conceptual view

•

To creat the 3D Isometric Window:

• Initially change the layer to 3D WINDOW layer
• Take rectangle command
• Specify the first corner point@ anywhere
• Specifyt the other corner Point @3',4'
• Take offset command
• Specify the offset distance :2"
• Explode the inside rectngle command
• Take offset command
• Specify the first corner point@ anywhere
• Specifyt the other corner Point 3" inside of all 4 side
• Now Provide the Text and Dimension by using Annotatioin

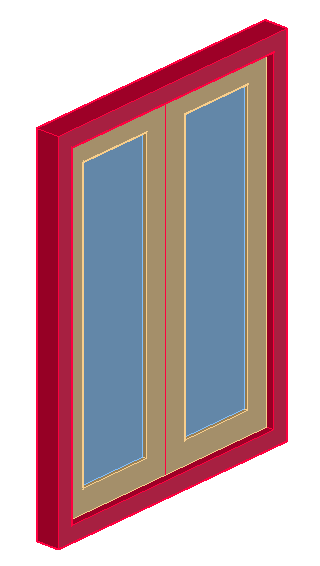

• completer window figure are given below
• Similarly to draw the Another size of ( 3',4'2') Window also created

                            3'4' SIZE WINDOW                                     3'4' SIZE WINDOW

•
• Initiaaly To changed view for 3D isometric view form View cube on the display
• Then Extrude the Thickness of the Frame is 3" , Mullion1.5" And Panel .5"
• Then Move the proper position of the frame and panel by Using MOVE comamnd
•
• Now Select the Window to fixed the proper position for all floor window by using Copy command
•



RESULT:





       *********************************************************************************





QUESTION: 3



 Aim: To creat the Isometric 3D view of a stair with railing as shown in plan and elevation:

Step by Step Procedure:

To creat Plan:

• Initially, open the AutoCAD and go to 3D modelling
• Then set hte units of the drawing as Engineeing (feet and inches)
• Now set the limits
• Here i Changed the drawing backgroud colour Black from Option -->Display-->Colour-->Apply &Enter.
• Now in the AutoCAD take the top view and intially draw the plan as given in the question by using various command
• Initially i creat the layer properties for creat the Plan , and Stair Side Elevation
• To creat Layer properties:
• First to creat New group  fillter --> Name: Q3_3D STAIR PLAN ELEVATION
• Click on New Layer
• Give the Layer name>3D STAIR
• Select for what colour  We Need
• Layer which are assigned are shown in below fig. the following All layer propersties are used by the following diagram of  Plan And Elevation.
•



To draw the Stair Plan:

• Take a rectangle command
• Specify the first corner Point @anwhere
• Specify the other corner point @3",12'
• Now Take Explode command
• Select the objet->Explode the Rectangle
• Take offset command
• Specify the offset distance @2"
• Slect the offset object ,
• Offse the both side of stair rail
• Now again take offset command
• Specify the offset distacne @3'
• Offset the line from above to bottom
• Again take offset command
• Specify the offset distacne @1' for Tread
• Select Multiple to continusely offset the stair
•
• To creat Text And Dimension:
• To creat the Dimenaion style
• Click Annotation tab
• Click Dimension >Manage dimension style
• Style name> CHALLENGE-12 3D
• Slect the text colour code of 32
• And Dimension line, Extension line colou code of 134
• Select the linear dimension to provide the linear dimension as given below diagranm
• And similar way to provide the all dimension wherever necessary  as shown below
•
• Now to creat the Text
• Click Annotation tab>Multi line
• Mnage text style >New>Style Name> CHALLENGE-12 3D
• Font style > Arial
• Text Heigth>0'4"
•
• Now choose thge Multiline text to provied the Text for wherever required in diagram
• The text can be placed in a proper position by Using move command
• By used Quick Properties to incresed the size of required Text size
• Hence Complete figure given below
•



To creat the 3D Isometric Stair:

• Take a line command
• Secify the first point @anywhere in newr by  Origin of X and Y Axis
• Specify the next point Upside @6'
• Specify the next point @1'
•
• Now Choose the copy command
• Select the copy object --> Multipel
• Then copy the object for no. of Rise and Tread is 10
• Then chooe the line command to increse the lline lenght of 2' for Landing
•
• Again choose the line command to join the bottom to top Riser
• Then Take offset command
• Specify the offset distance of 6" for waist Salb
• The using line command and Fillet commant to finish the stair side view
•
• Then change the view to 3D isometric view form View cube on the diaplaydisplay
• Take 3DROTATE Ccommand
• Slect the Object to rotate--> Select the Axis to rotate
•
• Noe take A Region
• Choose the EXTRUDE command
• Select the Extrude object
• Specify the Extrude Height > 3'
• And To creat the Balustrads
• Choose the circle comamand --> Diameter -->2"
• Now copy the circle -->Multiple
• Select base point @ Edge of the Riser and Tread
• Then Extrude the Circle the height of  3'
•
• Contunuesly copy the Balustrade circle to provide the all Treat as shown in below diagram
•
• Now to Draw the Rail
• Choose the line command
• To draw the  line bottom Balustrade to the Top
• Take circle command ->Daimeter -> 2"
• Now Take the SWEEP Command to draw the Rail
• Slect object  To sweep
• Select Sweep Path to Drawn as show in belwo figures
•
• Now To change view style to SHADE By Using Visuval Style
• Controller
•

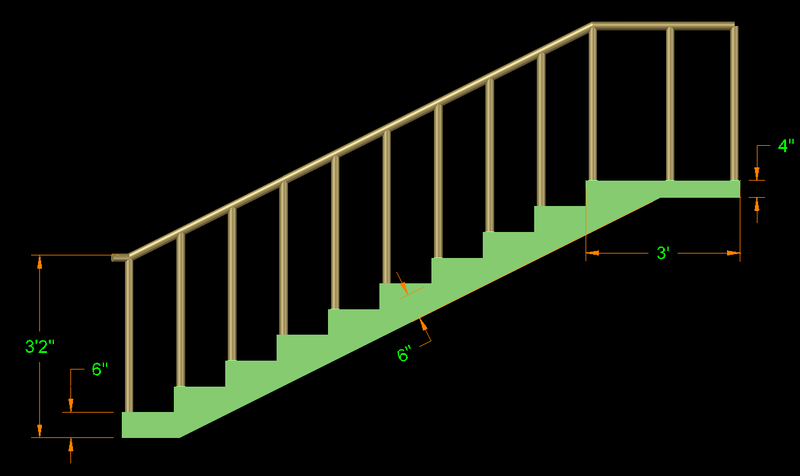

• Here some Axis Views of the Stair Elevtion
•
•
• To creat Text And Dimension:
• To creat the Dimenaion style
• Click Annotation tab
• Click Dimension >Manage dimension style
• Style name> CHALLENGE-12 3D
• Slect the text colour code of 32
• And Dimension line, Extension line colou code of 134
• Select the linear dimension to provide the linear dimension as given below diagranm
• And similar way to provide the all dimension wherever necessary  as shown below
•
• Now to creat the Text
• Click Annotation tab>Multi line
• Mnage text style >New>Style Name> CHALLENGE-12 3D
• Font style > Arial
• Text Heigth>0'4"
•
• Now choose thge Multiline text to provied the Text for wherever required in diagram
• The text can be placed in a proper position by Using move command
• By used Quick Properties to incresed the size of required Text size
• Hence Complete figure given below
•
• Hidden view
•





RESULT:



Plan:                                                                                         Side Elevation:









Shaded Elevation:







Shaded With White Backgrounds:





    *********************************************************************************



QUESTION: 4







Aim: To creat the Isometric 3D view of a Wall with spread footing, also create the rendered view of the model with materials of choice.

Step by Step Procedure:

To creat Section Of Wall Footing:

• Initially, open the AutoCAD and go to 3D modelling
• Then set hte units of the drawing as Decimal ( Millimeter )
• Now set the limits
• Now in the AutoCAD take the top view and intially draw the plan as given in the question by using various command
• Take Rectangle command
• Specify the first corner point @anywhere
• Specify the Other Corner point @700,300
• Again Take rectangle command
• Specify the first corner point @anywhere
• Specify the Other Corner point @400,400
• Now Adjust the portion of footing as given  diagram
• Again Take rectangle command
• Specify the first corner point @anywhere
• Specify the Other Corner point @300,400
• Now Adjust the portion of footing as given  diagram
• Again Take rectangle command
• Specify the first corner point @anywhere
• Specify the Other Corner point @230,400
• Now Adjust the portion of footing as given  diagram
• Again Take rectangle command
• Specify the first corner point @anywhere
• Specify the Other Corner point @230,50
• Again Take rectangle command
• Specify the first corner point @anywhere
• Specify the Other Corner point @230,2100
• Again Take rectangle command
• Specify the first corner point @anywhere
• Specify the Other Corner point @230,150
• Again Take rectangle command
• Specify the first corner point @anywhere
• Specify the Other Corner point @230,1050
• Again Take rectangle command
• Specify the first corner point @anywhere
• Specify the Other Corner point @230,150
• Again Take rectangle command
• Specify the first corner point @anywhere
• Specify the Other Corner point @230,900
• Now take line command to created the coping
• Again take line command to created the croos sectio vew of DOOR Thickness of 75mm
•
• To Hatch the wall and Footing
• The following properties of the hatch pattern, Boundaries  etc., are used in this diagram
•
•
• Created Drawing given below
•

 To creat Text and Dimension:





• To creat Text And Dimension:
• To creat the Dimenaion style
• Click Annotation tab
• Click Dimension >Manage dimension style
• Style name> Annotative
• Slect the text colour Bylayer
• And Dimension line, Extension line colour Bylayer
• Select the linear dimension to provide the linear dimension as given below diagranm
• And similar way to provide the all dimension wherever necessary  as shown below
•
• Now to creat the Text
• Click Annotation tab>Multi line
• Mnage text style >New>Style Name> Annotative
• Font style > Arial
• Text Heigth>30mm
•
• Now choose thge Multiline text to provied the Text for wherever required in diagram
• The text can be placed in a proper position by Using move command
• By used Quick Properties to incresed the size of required Text size
• Hence Complete figure given below
•



To Creat Plan:

• Take rectangle command
• Specify the first corner point @ anywhere
• Specify the other corner point @700,7500
• Now explode the Rectangle
• Take offset command
•  Specify the offset distance @100
• Select the line to offe the inside of footing
• Again take offset command
• Specify the offset command @50 of both inside
• Again take offset command
• Specify the offset command @35 of both inside
• Now created the footing plan
• To creat Door portion
• Slect line comamnd
• Select the center of the plan to draw the line
• Now takeoffset command
• Specify the offset distance 450 Both side
• Now created the door plan by using line and Circle command as given diagram
• Then draw the section A Flag line by using lLine command
• And also to drawn the Lintels by using line command
• Take Linetype command -->Line type manager
• Load the line type ACAD_ISO02W100
• Global scale factor : 10
• Then change the line type for Iso dash....
•
• Now to creat the Text And Dimension By suing above Annotation properties
•



To Creat 3D Vie Of Wall:

• Then change the view to 3D isometric view form View cube on the diaplaydisplay
• Now copy the Section of Wall Footing
• Take 3DROTATE Ccommand
• Slect the Object to rotate--> Select the Axis to rotate
• Initially copy the Section Wall footion Diagrame
•
• Now change the Colour by using layer properties
• Then Take EXTRUDE command
• Select the Extrude to Object
• Sepcify the Extrude Height-->7500mm
• Now change the view to SHADED by Using Visual Style Controler
•

Now to Creat Door Openin:

• First take UCS to put the face where we draw
• The Creat the door portion by using Rectangle command
• After that to Ectrude the Door
• Take EXTRUDE command
• Select the Extrude to Object
• Sepcify the Extrude Height-->230 mm wall thickness
• Now choose the SUBRACT command to separate the  Door and Wall portion
• Now go to visual tab of the ribbon and choose the material browser and then assign material to each element.

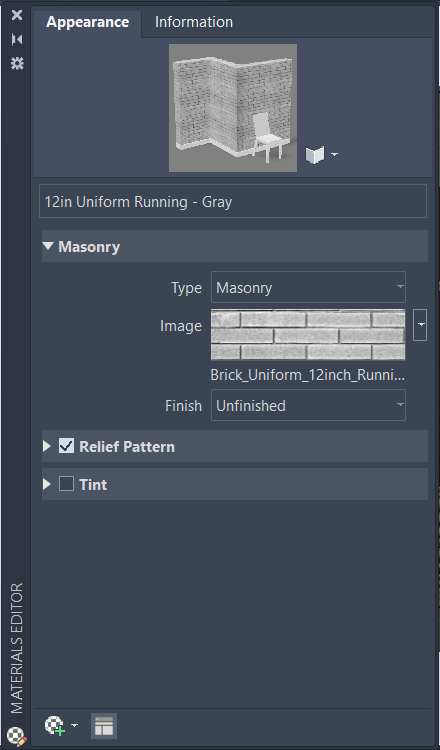

              Document Material                              Apperarance of material for Footing

•



       Apperarance of material for Wall           Apperarance of material for Lintel & Parrepat wall

•
•

 After Assing material the output obtains is:

• Now we have to creat the View by using Camera option
• Coose circel command to draw it
• The Extrude the circle height of 6' as Nomarl human height
• To creat the camera
• SpecIfy the Camera location
• Target the Camera view
• Then Enter the option for to provide name -->Name >cam1
• And Height > 6'
• Camera lence> 35mm And Enter
• The Cam1 View
•

Result of cam1 view:



• Similarly set the cam2 view
•



Result of cam2 view:

•
• Now i copy the Wall portion to Make the 1st floor with side by side 1 house  as follwoing rendring result will be show
• Now we have Render this figure
• For this go to visualise tab of the ribbon and in that choose the render to size option and in that chose the high quality rendering
• Now to select the Render option then set the Render and Environmental Exposure
•
• Hence Rendering is done
• The rendered image obtaine dis:
•



     *********************************************************************************



RESULT:

                        Plan                                       Section

•

Render Result

•



      ***********************************************************************************



All Final Result:

QUESTION: 1 Answer







View 1:

View 2:

View 3:

•

View 4:

•





    ***********************************************************************************



QUESTION: 2 Answer









     **********************************************************************************





QUESTION: 3 Answer



Plan:                                                                                         Side Elevation:









Shaded Elevation:







Shade With White Backgrounds:





     **********************************************************************************



QUESTION: 4 Answer



Plan                                       Section

•

Render Result

•





**************************************** END *****************************************
