Creating 3D Isometric view of various structural elements in AutoCAD

1. Create a 3D Isometric View of the building with plan and elevation given.

AIM :

To Draw the 3D isometric view of the building as shown in the figure.

INTRODUCTION :

A plan view of wall of two elevation views of windows of both sides are given and they are to be converted into a 3D model , 2 window openings on both sides are given with details regarding the frame given dimensions , mullion dimensions and height , the thickness of bottom floor and top roof are also ggiven 4" and 6" respectively, and the height of floor is 10' , height of window from floor is 3'.

PROCEDURE :

Open AUTO CAD,

In start up settings , start from scractch select imperial ( feet and inches)

Open grid and snap settings

• changing snap and grid spacing 1'
• changing major line every grid line to 10
• turnoff adoptive grid

change the workspace setting from draft and annotation to 3d modelling,

Step 1:

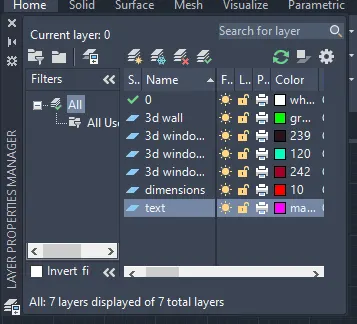

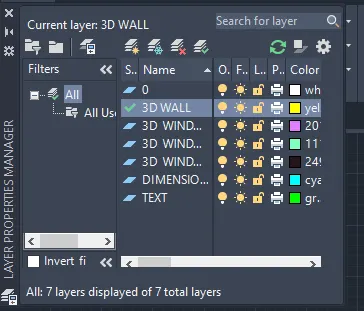

Creating layers,

Step 2:

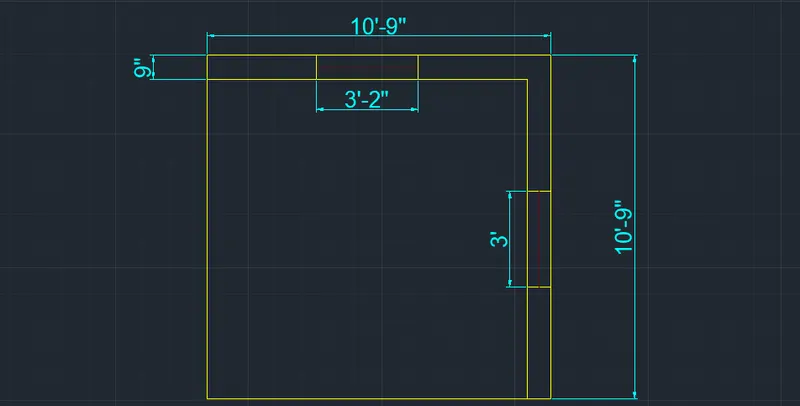

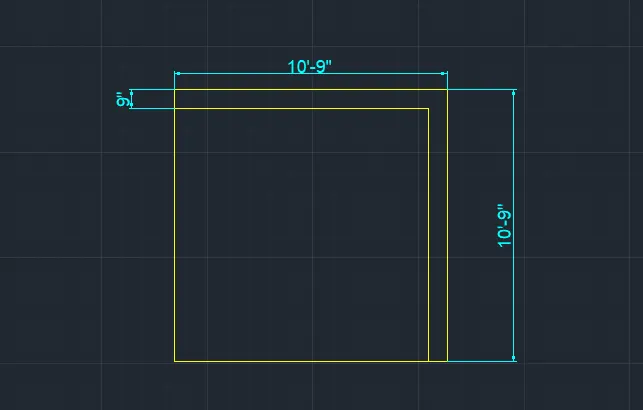

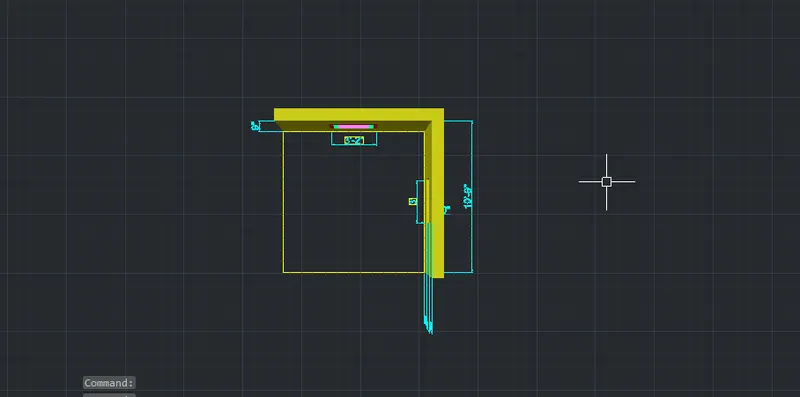

• Create a rectangle of dimensions 10'9"*10'9"
• offset the rectangle to inside of 9" of wall thickness,

• delete the left and bottom lines and extend them to the edges as shown in fig,
• Draw the window with dimensions 3'2" @ top and 3' on right side on shown in fig,

step 3:

Set ucs as world,

• create the boundaries of the wall using bo command

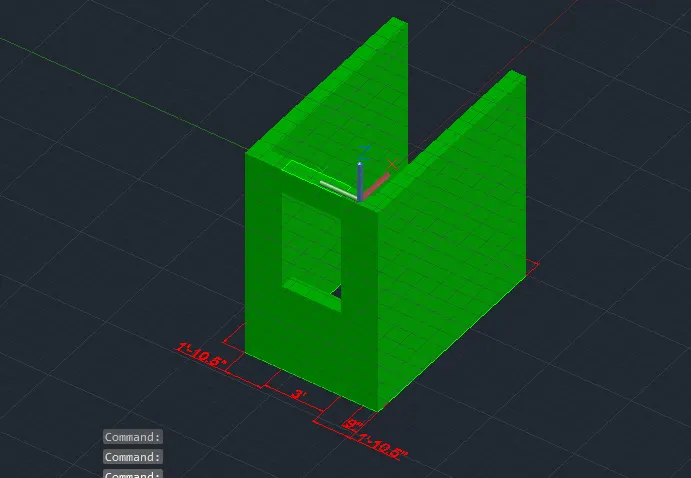

• extrude boundaries created to total height 10'10"

• select the wall and use group command to group together
• draw rectangle on both windows and change them bounfdaries using boundary command
• extrude both the rectangle at height 3'4" as shown

• darw the rectangle @ top of both the window as shown in, change them into boundaries using boundary command

type UCS click on face and select face having 3' wide window

• darw a rectangle a bottom part of the window with dimensions 3' 4'

type UCS click on face and select face having 3' 2" wide window

• darw a rectangle a bottom part of the window with dimensions 3'2" 4'

change the ucs back to world,

• extrude the rectangle drawn #@ top side to top edge of the window
• group all wall components together

Step 4:

Creation of elevation windows:

Window @ elevation A,

Change the current layer to 3d window frame,

type ucs click on face and select the face having 3' window,

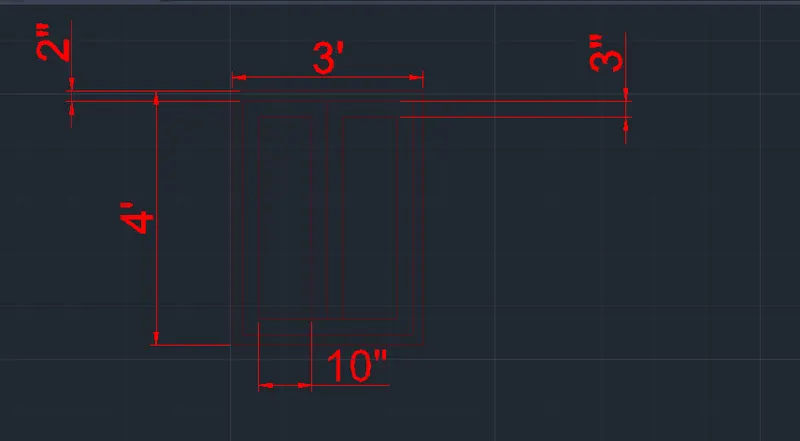

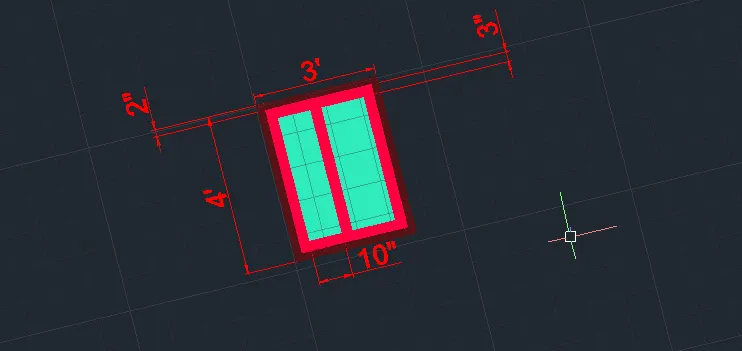

• draw the rectangle @ 3' 4' , offset rectangle inside distance of 3" & 4",

• start the boundary commands click on pick points,
• click inside the window fframe area and press enter,
• start subtract command ,/ select the bigger region and then the smaller region to subtract them.
• follow the same procedure for all the boxes,

change the current layer to 3d window glass,

start boundary commands , click on pick points,

• click inside the window glass area and press enter

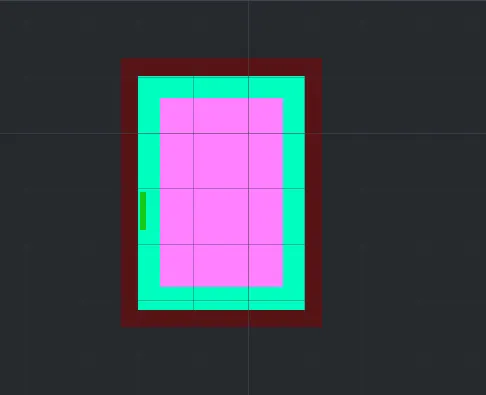

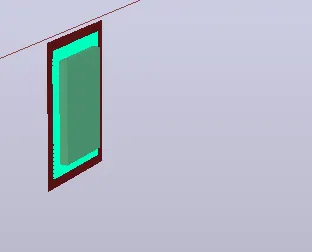

• all the layers are extruded to give window projection look as shown in fig,

Window @ Elevation B,

Change the current layer to 3d window frame,

type ucs click on face and select the face having 3' 2" window,

• draw the rectangle @ 3' 4' , offset rectangle inside distance of 3" & 4",
• start the boundary commands click on pick points,

• click inside the window fframe area and press enter,
• start subtract command ,/ select the bigger region and then the smaller region to subtract them.
• follow the same procedure for all the boxes,

change the current layer to 3d window glass,

start boundary commands , click on pick points,

• click inside the window glass area and press enter
• all the layers are extruded to give window projection look as shown in fig,

RESULT :

Initially all the layers necessary are created with respective line types and line weights ,

the plan view is drawn as shown in step 2, then from step 3 3d view is created with respective layers assigned , the UCS view is changed accordingly to make changes the 3d view and 3d dimensions , boundary command is used for creating region along the boundaries and extrude them , after the view is created the result is shown , the result consists of different views of the 3d model such as TOP VIEW, SW isometric VIEW , NE isometric VIEW, Windows .

* all dimensions are in feet and inches,

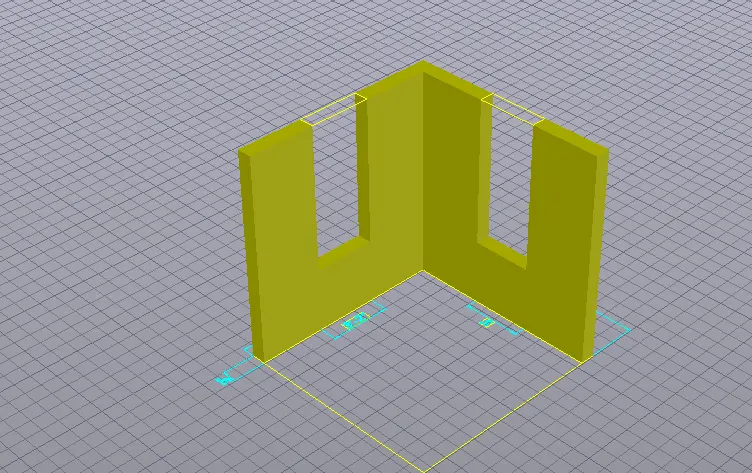

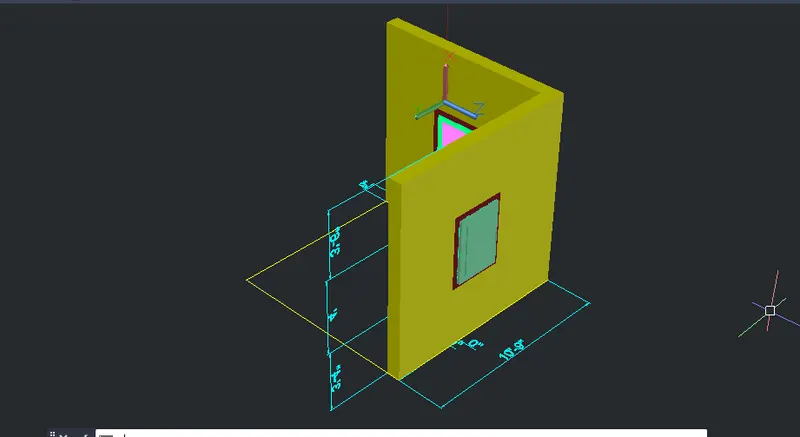

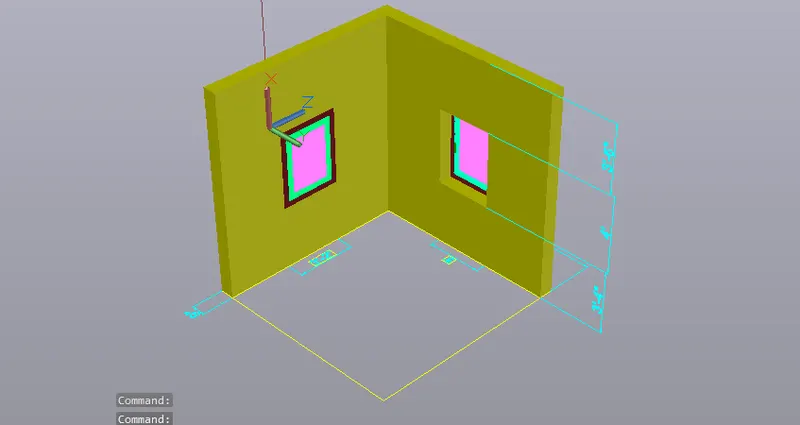

1. View 1,

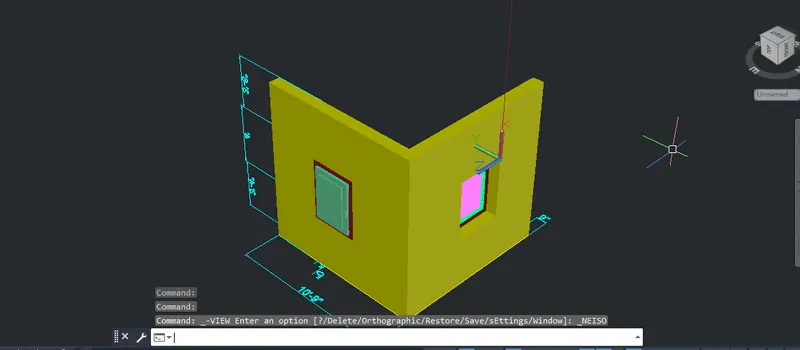

SW Isometric,

View 2

SE isometric,

View 3 :

NE isometric,

4. TOP View,

WINDOWS ,

3'*4'

WINDOW 3'2" *4'

2. Create the 3D View of the Building Façade as given in the plan and elevation. Also, see the detail of the window.

AIM :

To draw 3D building facade as given in the plan and elevation,

INTRODUCTION :

A plan view of wall and two elevation views one is of window details and second is of floor level elevation are given and they are to be converted into a 3D model,One window opening on front side is given, with details regarding the frame dimensions, The height of floor is given 9'4" , four floor building with similar dimension is made in 3D view. Height of window from floor level of each floor is given 4'6".

PROCEDURE:

Open AUTOCAD,

In start up settings , start from scractch select imperial ( feet and inches)

Open grid and snap settings

• changing snap and grid spacing 1'
• changing major line every grid line to 10
• turnoff adoptive grid

change the workspace setting from draft and annotation to 3d modelling,

Step 1:

Creating layers,

step 2:

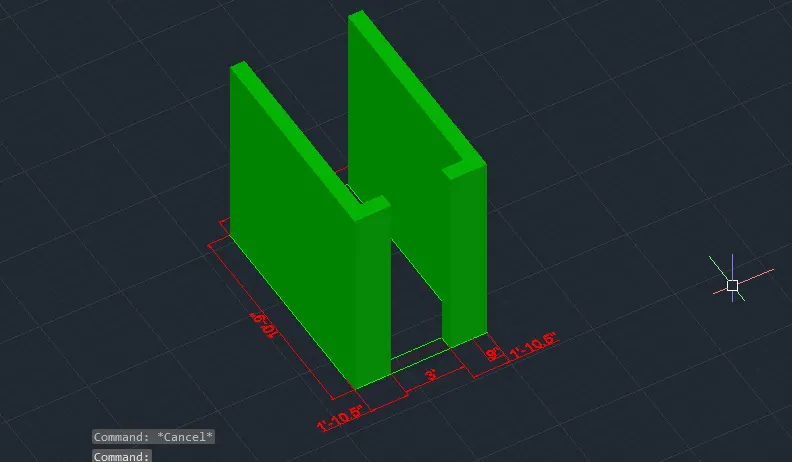

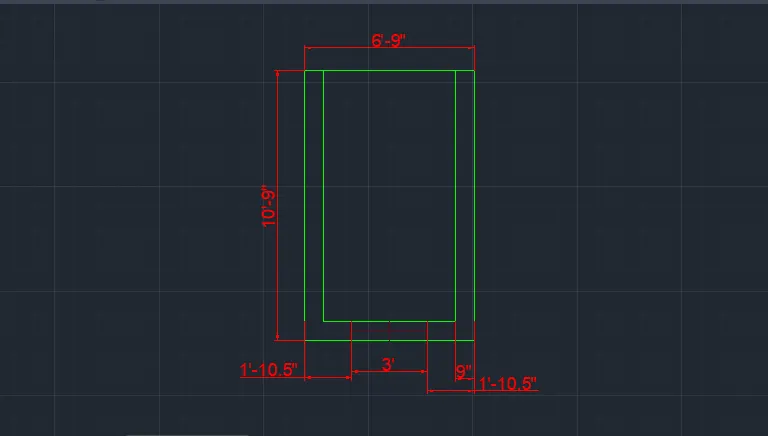

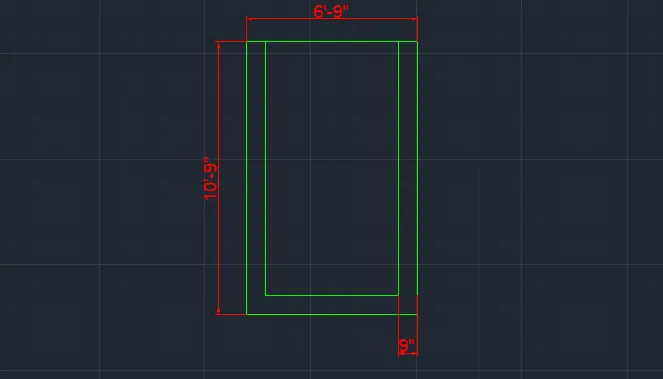

• Create 2D plan view, Rectangle of dimensions 6'9" * 10'9"
• offset the rectangle to inside of 9" of wall thickness,
• Explode the rctangles drawn, delete the top line extend them to edges.

• change the current layer 3D window frame,

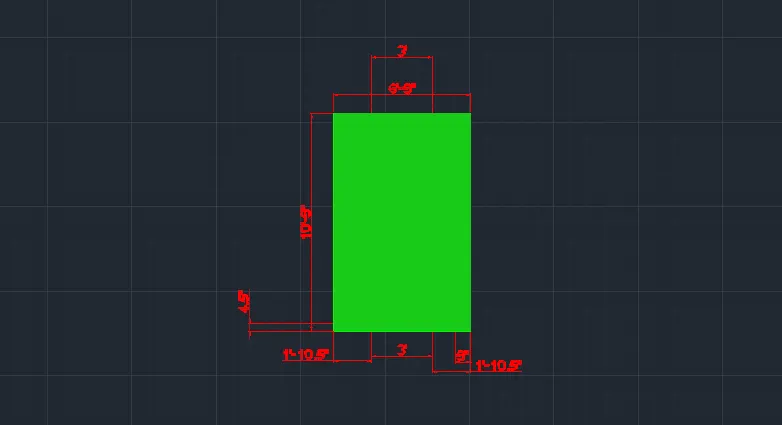

• create window openinig dimensions are drawn using dimensions layer,

Step 3:

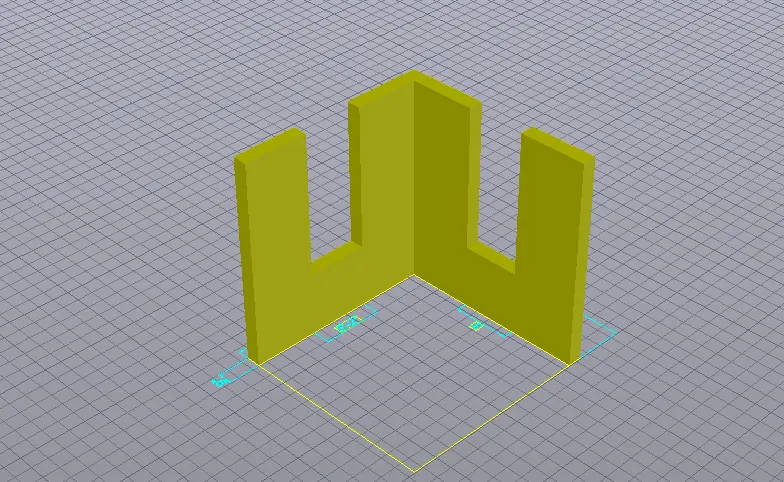

• Create 3D view,
• set ucs as world, set view style control as realistic.

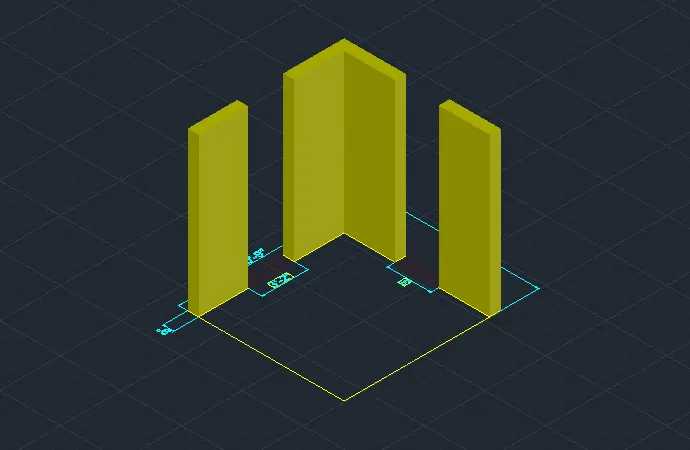

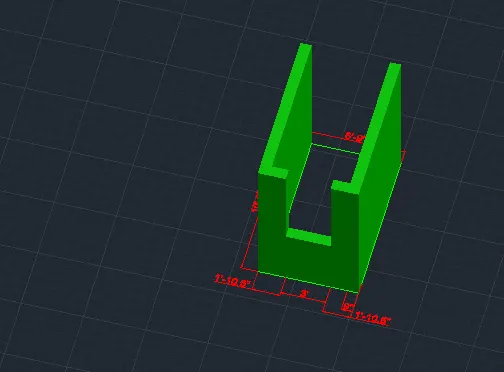

• cfreate boundries for the wall using bo command
• select all the walls use group command to group them,

• delete the window lines,
• create boundary region over window lines,
• extrude boundary @ 4'6"

• draw rectangle command on top of the window opening,
• change the rectangle into a region,

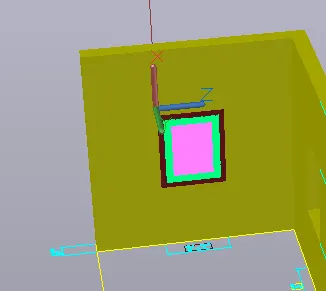

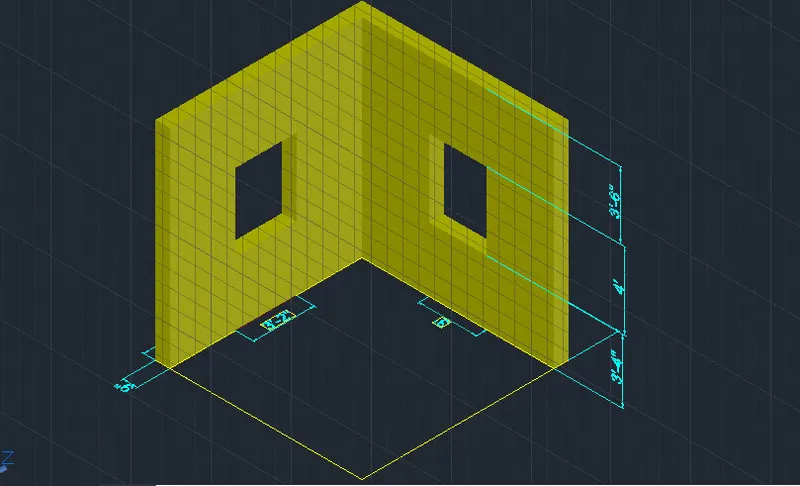

• extrude the region @ 1'3" and window opening is created as shown in fig,

Step 4:

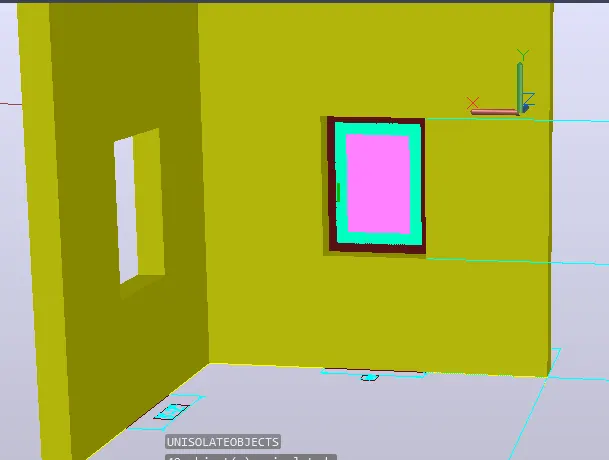

• creating elevation windows, change the current layer to 3d window frame
• type ucs , select the face having 3' wide window,
• darw the rectangle 3'4' and offset inside the distance 2" , offset the rectangle to inside the distance 3",
• trim all unnecessary edges,

• start bo command and click on points,
• click inside window frame area press enter,
• start subtract command, select the bigger region and then select the smaller region.
• start the bo commands and click on points, click inside the window mullion area and press enter
• start subtract command, select the bigger region and then select the smaller region.
• click inside the window glass area and press enter,
•

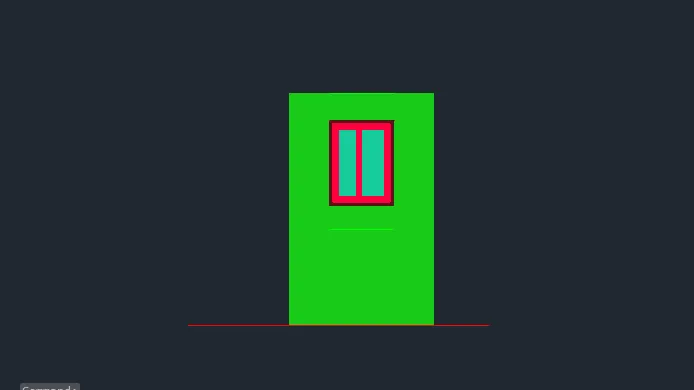

• all the layers are extruded to give window projections as shown in fig,

Step 5:

• Creating elevation views,

• windows created in step e are placed @ positions,

• group all the items to create the elevation windows

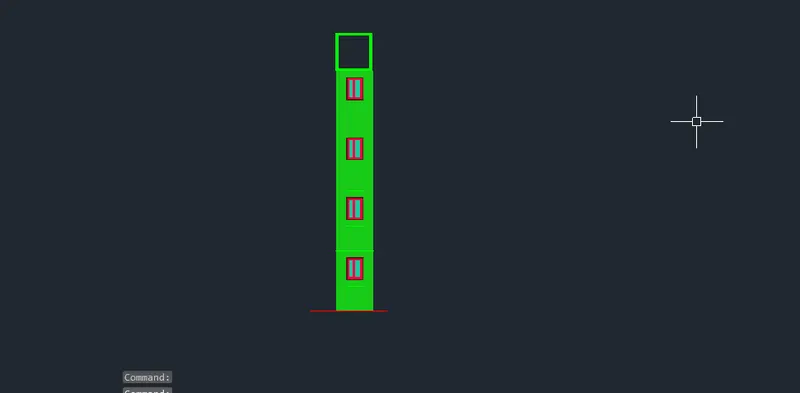

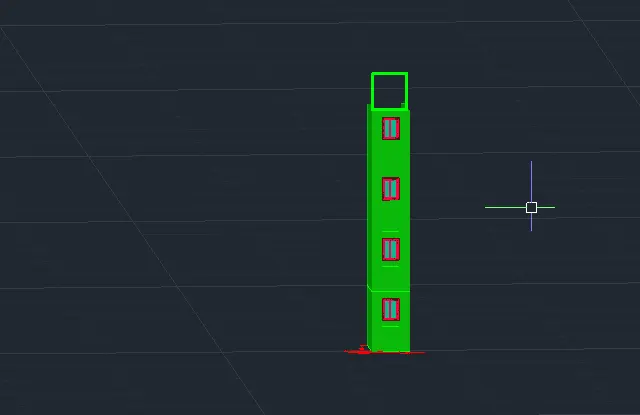

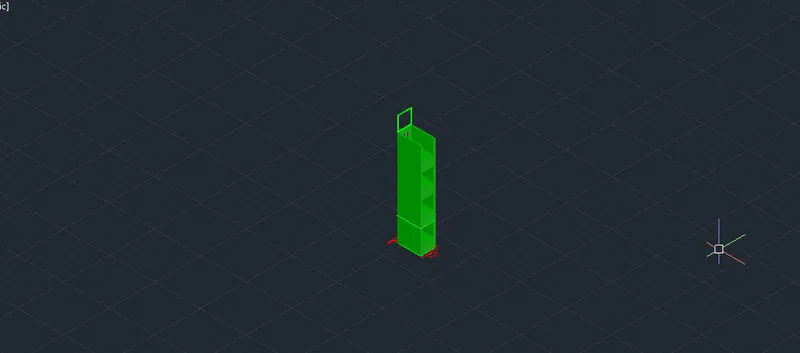

• copy the block having 4' height window and place it 3 times as shown in fig
• craete top part of drawing using 4" wall and height 6'5" from top
• create bo wall and extrude 9",

• creating views.

RESULTS :

Initially all the layers necessary are craeted with respective line types and line weights , the plan view is drawn as shown in step 2 ,

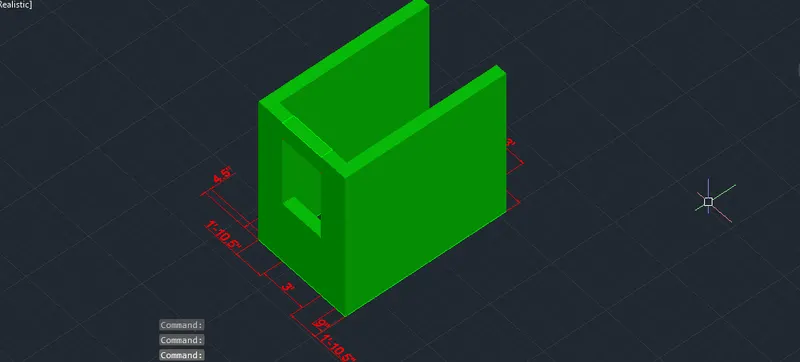

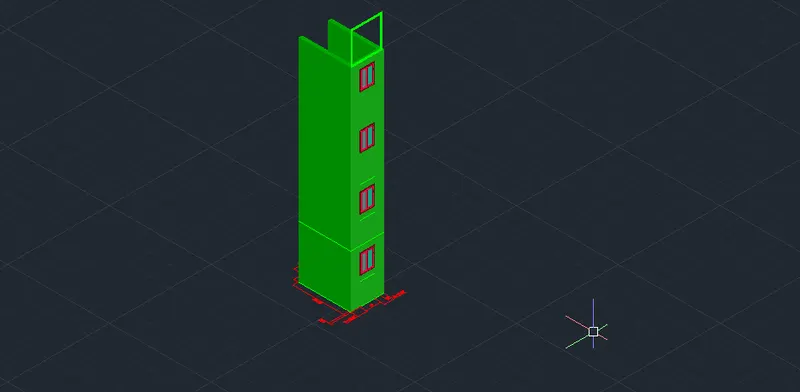

The results consists of different views :

3D model such as TOP view

SW isometric view

NE isometric view

Windows,

1. SW isometric view
2. NE Isometriuc view,

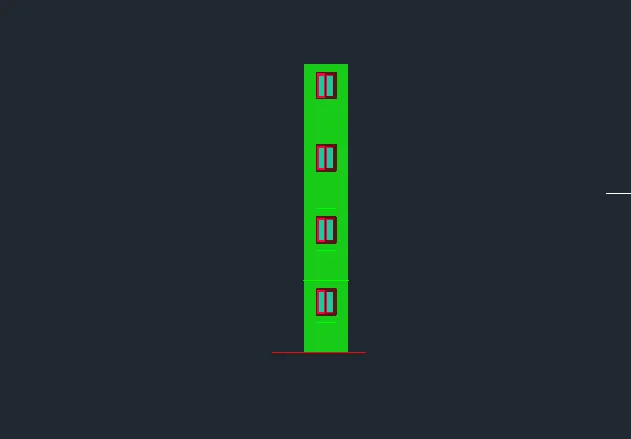

3. front view,
4. TOP view,
5. Windows,

3. Create the ismoteric 3d view of a stair with railing as shown in the plan and elevation. Assume the size of the balustrades and the hand rails.

AIM :

To draw the 3D view of the stair with railing as shown in the plan and elevation .

INTRODUCTION :

A plan view and elevation view of the staircase are given they are converted into 3D model , plan view consists of number of stairs in the staircase and the horizontal dimensions of the stair case,thickness of slab as given as the box some other components of the staiir re told to be assumed , the assume dimensions are as follows

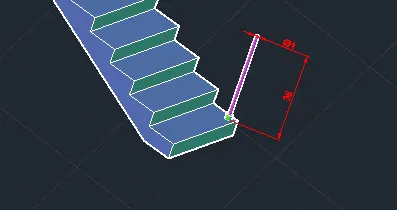

1. dimensions of verticalrails is 1" dia
2. dimensions of hand rails is 2" dia

PROCEDURE :

Open AUTOCAD,

In start up settings , start from scractch select imperial ( feet and inches)

Open grid and snap settings

• changing snap and grid spacing 1'
• changing major line every grid line to 10
• turnoff adoptive grid

change the workspace setting from draft and annotation to 3d modelling,

Step 1:

Creating layers,

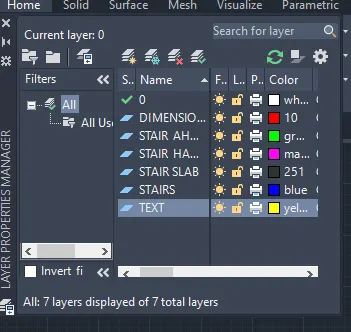

LAYER ARE CREATED AS FOLLOWS,

Step 2:

Creating 2D view plan of stiarcase,

change current layer to stairs,

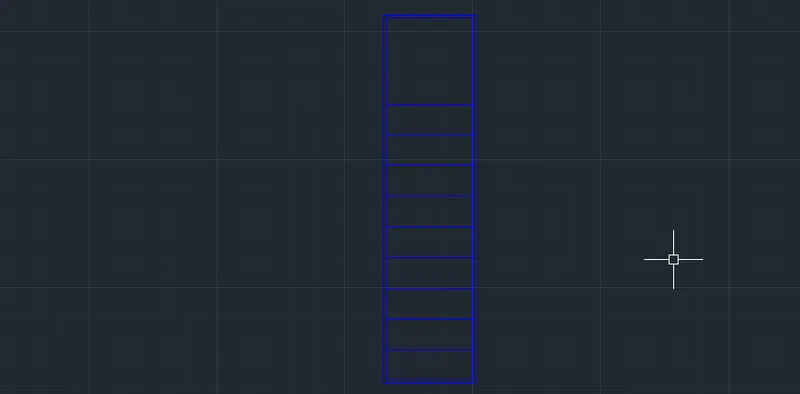

• draw rectangle 3'*12'
• explode the rectangle
• offset the side edges to inside the distance of 1"
• offset the bottom edge to upside 12 times to a distance of 1'

Step 3:

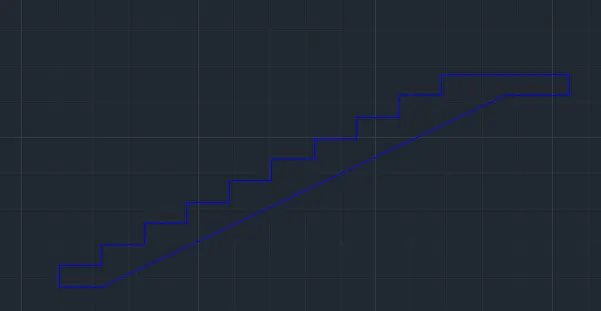

• Creating side view,
• view into 3d, change ucs as right,

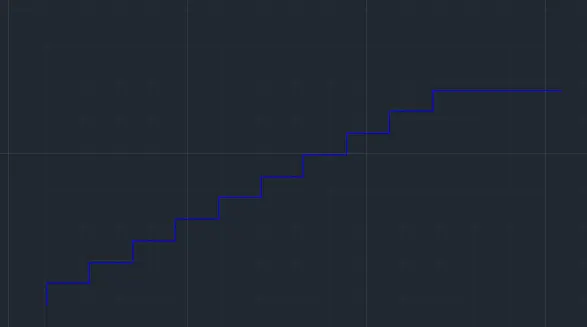

• start line command , draw a vertical line of length 6"
• draw horizontal line of length 1'
• repeat the same procedure, 12 times for 12 steps
• after reaching, 12 th step draw a landing length of 3'

• draw a line 1' @ the bottom step
• draw a line 6" @ the top edge of the landing,

• draw a slab joining the lines,

Step 4:

• Creating 3D view,

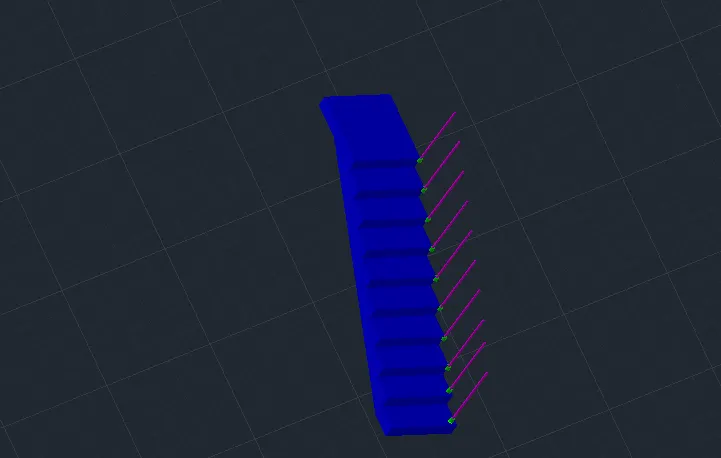

• set ucs as world, create region from side views as stairs , extrude the sideview to a distance 3'

• hand rails., change the layer to current layer stair hand rails,
• draw circle 1" with 2" offset from the top right edgesof the first thread of starcase,

• change the circle into a region
• extrude the region of height 3',

• change the current layer to stair hand rails stand,
• draw hand rail stand @ bottom with 2" dimensions as extrude,

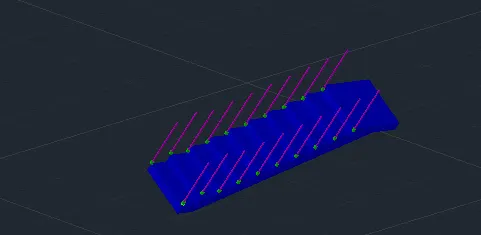

• using copy command, copy all the hand rails components on all stairs,
• copy the same to other side,

• draw a polyline connecting alle edges of teh hand rails
• cahnge the ucsto front,
• darw a circle diameter 2" on top of the firstmhand rails,
• create aregion of the circle drawn,

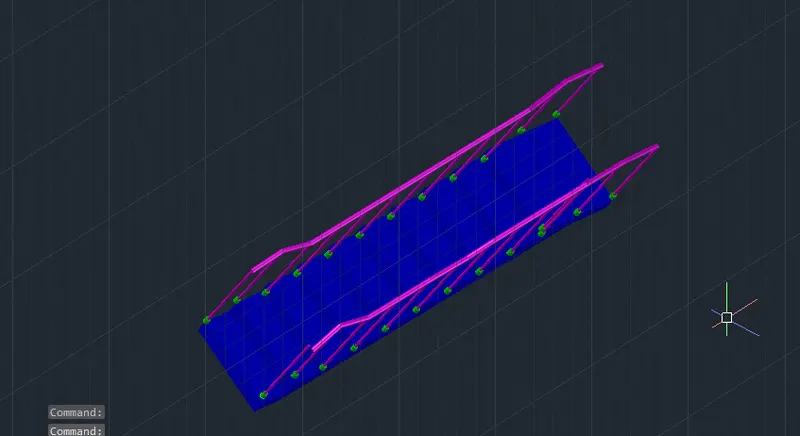

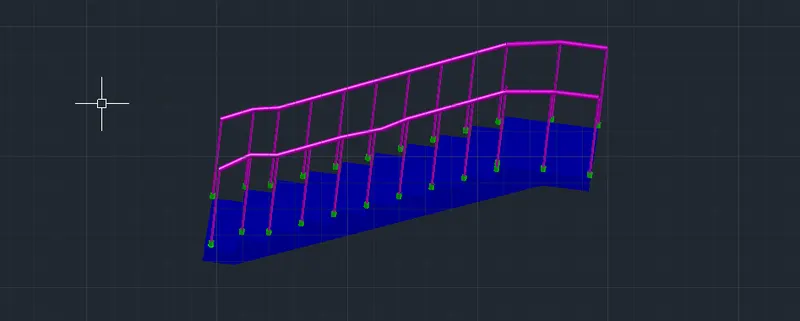

• start sweep command. select the object to sweep
• select the polyline drawn as path of sweep

• copy the same to other side
• craeting views.

RESULTS :

All dimensions are in feet and inches,

text and dimensions are added to respective layers

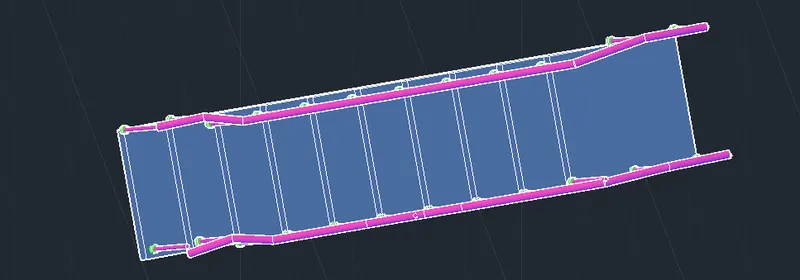

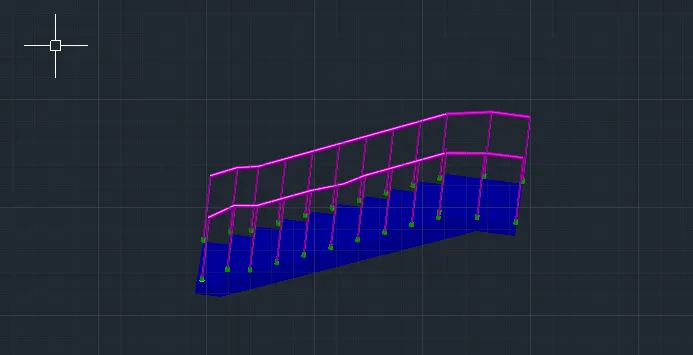

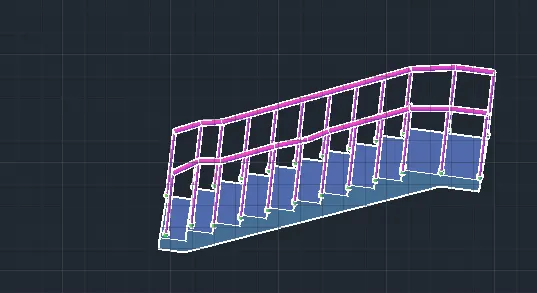

view 1 top view,

2.) view 2 right side view,

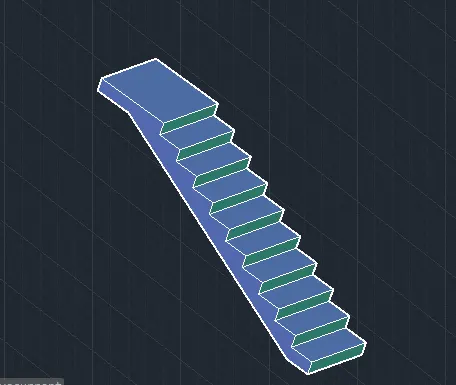

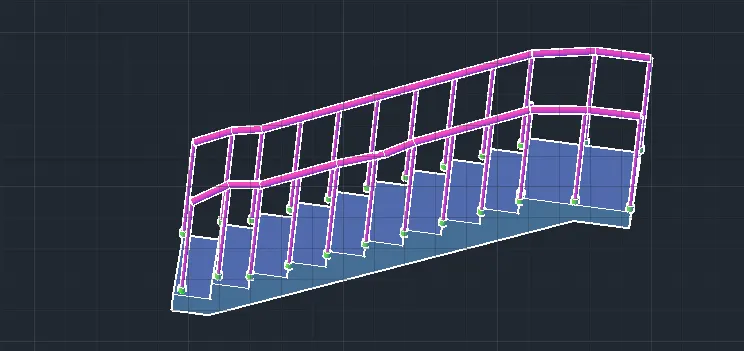

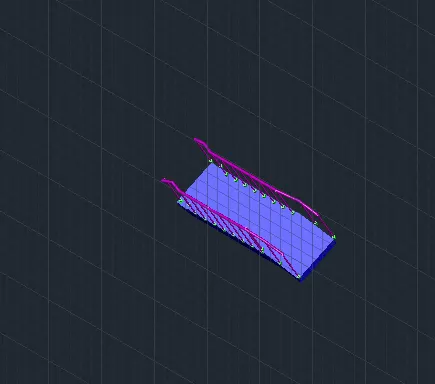

3.)view3, sw isometric.

4.) view 4 front view,

4. Create the 3D view of a Wall with spread footing . Create the Door opening only. Assume the size of the parpaet and the coping. See the plans and elevation for the details. Also, create a rendered view of the model with materials as of your choice.

AIM :

To draw the 3D view of wall with spread footing as shown in the plan and elevation.

INTRODUCTION :

Aplan view and elevation view of the wall in the spread footing under it are given and they are converted into a 3D model. spread footing is a type of footing which goes along the lenght of the wall in the building , it is used as shallow footing type, plan view consists of horizontal dimensions of the footing and the wall, elevation views consists of the vertical dimensions, of different level of footing , height of 230mm thickness wall.

thickness level 1 of footing same as 230mm

copuing thickness of the level 2 is offset the 50mm than the thickness of the wall

thickness of level 3 is ofsset of 50mm then the thickness of level2

thickness of level 4 is offset of 120mm than the thickness of level 3,

PROCEDURE :

Open AUTOCAD,

In start up settings , start from scractch select metric ( meters and mm)

Open grid and snap settings

• changing snap and grid spacing 100
• changing major line every grid line to 10
• turnoff adoptive grid

change the workspace setting from draft and annotation to 3d modelling,

Step 1:

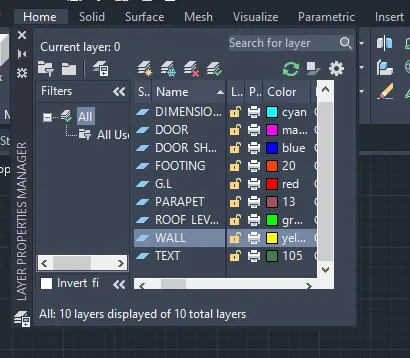

Creating layers,

LAYER ARE CREATED AS FOLLOWS,

step 2:

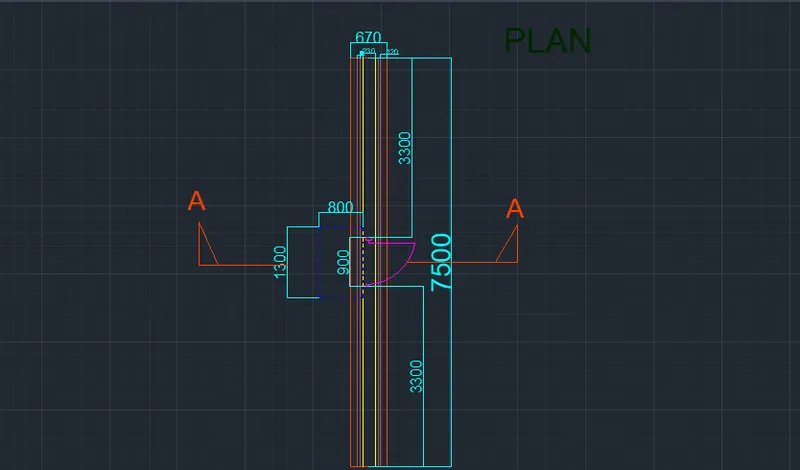

creating 2D plan view of wall with spread footing,

• change current layer to the wall

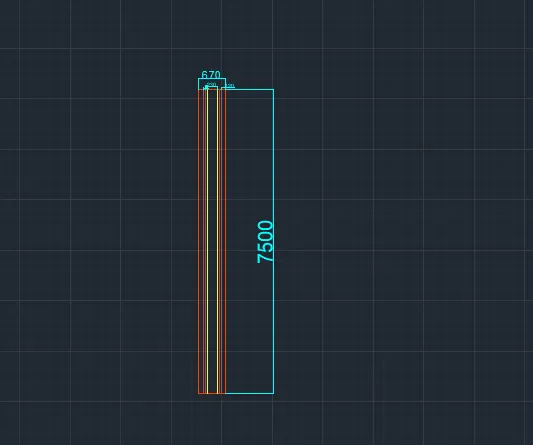

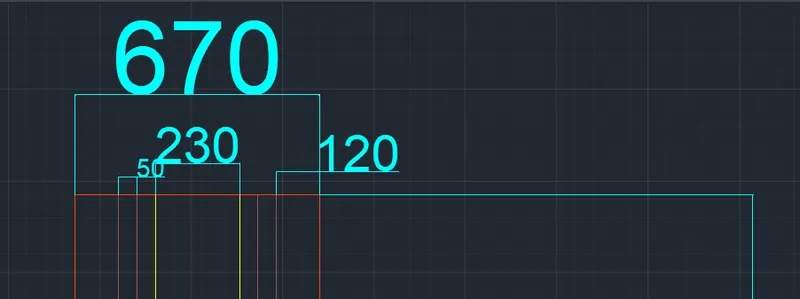

• darw the rectangle 670*7500
• offset the rectangle in side the distance 120mm,
• offset the offset the rectangle the distance 50mm as twice,
• explode all the offset rectangle,
• delete top and bottom of the exploded edges,
• extend all the rectangle to the top and bottom edges of outer rectangle
• @ the end select the individual lines change the layers,
•

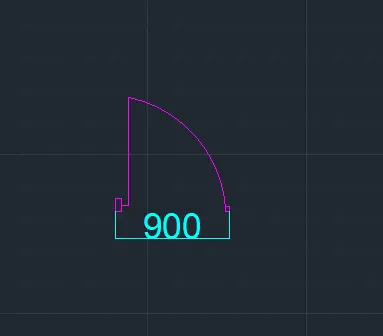

craeting door block,

• draw rectangle of dimension 50and 100 mm
• darw another rectangle of dimension 50*50 mm
• draw a linwe length of 850 mm from the edge
• darw an arc line of the door swing,
• convert the door into block

• edit the block and add flip parameters

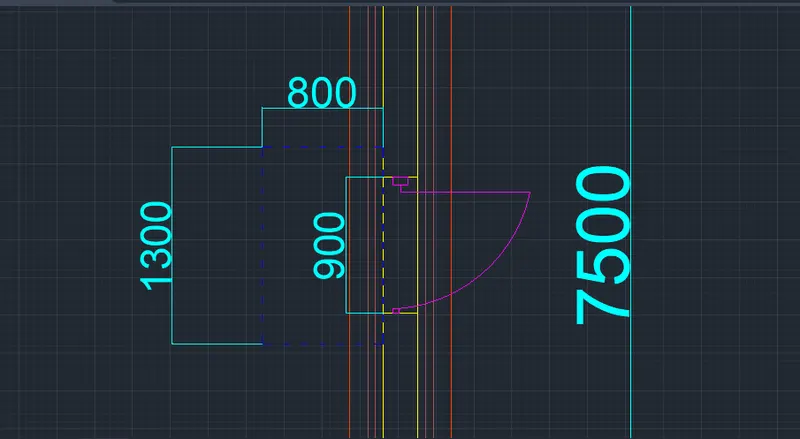

• create door opening 900mm @ the middle,
• add the door block by rotating the door
• add the door shade using respective layers
•

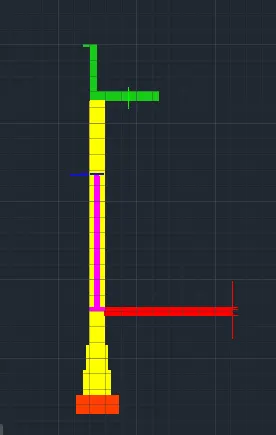

step 3: Creating elevation view,

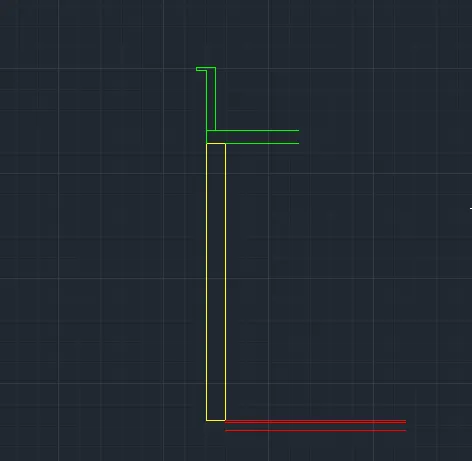

• click on front view on the view cube.
• change the ucs to the front,
• cahnge the current layer to g.l
• darw a line of central length,
• offset the line to bottom 25mm
• offset the last offset line bottom to distance of 100mm
• cahnge the current layer to the wall
• darw thw rectangle 230*3300 from top left edges of ground level
• cahnge the current layer to roof level,
  darw roof thickness 150mm
• draw parapet wall of height 600 mm

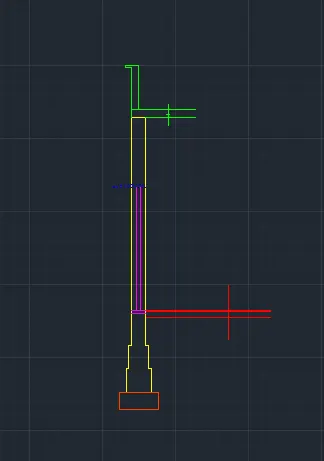

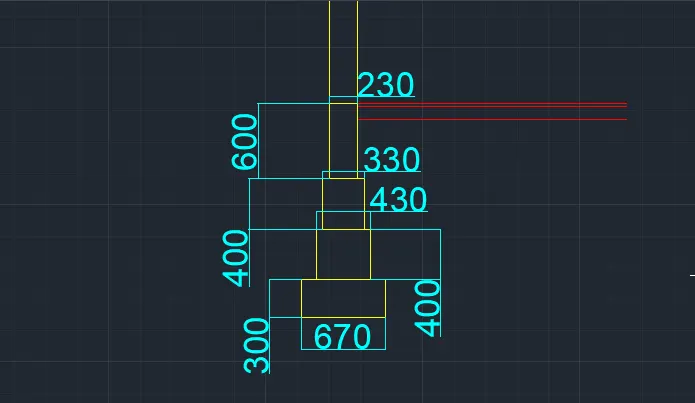

Footing layers,

• Draw thr rectangle 230*600 below the ground level,
• draw the recatngle 230*400 below thw first level,
• draw the rectangle 430 * 400 below thw second level,

Change current layer to footing,

draw rectangle dimension 670*300 below thw third level,

trim the unnecessary edges

door ,

change the current layer to the door,

darw line along the length of door 230mm @ the g.l

• offset the line below the distance of 50mm below the ground level
• offset the distance 2100 above
• change the current layuer to the door shade

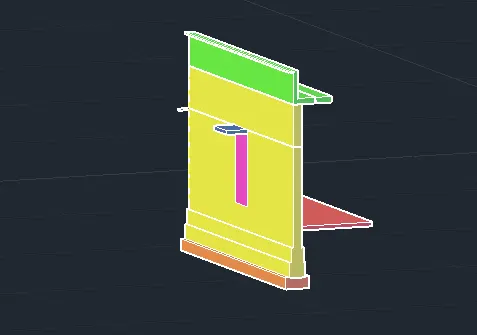

• darw the door shade, The end result of teh steps are follows

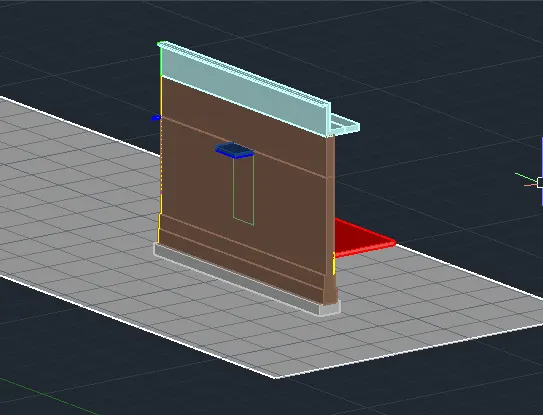

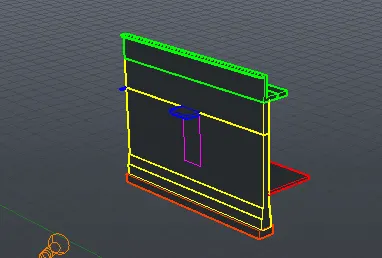

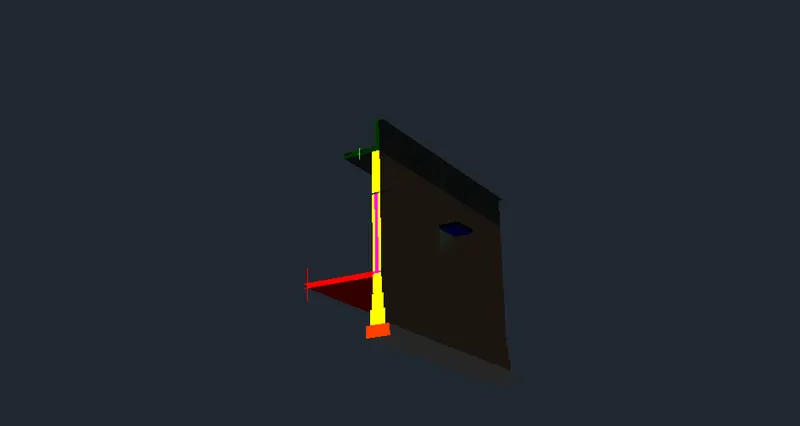

Step 4:

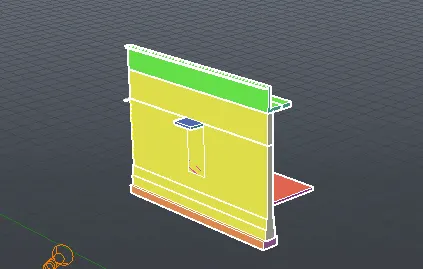

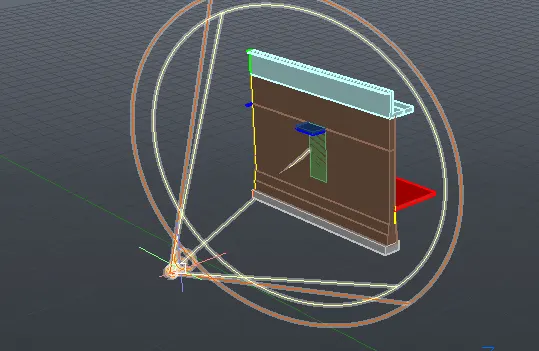

• Drawing 3D view of the section , for craeting 3D view initially boundaries are craeted,
• each boundaries is created with respective layers as current,

• the created boundaries are extruded to a distance of 7500 mm
• select the boundaries by creating the respective layers,
• door opening is added by drawing the rectangle @ the door location from the plan view
• then from extruded part the door region is subtracted
• similarly door shade is created with the opening above
• after door shade remaining layer is extruded

Step 5:

Rendering:

rendering is done by adding materials the 3d view

• material browser is used for adding materials to object,

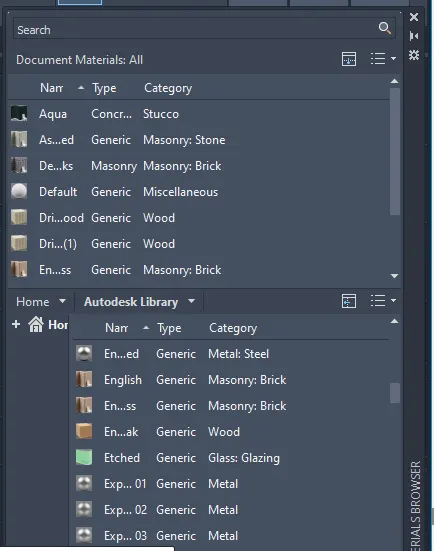

• materials added for the component from the material browser as shown below ,
• box mapping is done to adjust the texture of the wall

Lights:

• Torch light is placed in front of the door, @ central distance with fall of angle 50 and hotspot angle as 80
• Distant light is also used.

Creating views:,

RESULTS :

The results consists of different views of the 3D model,such as

• view 1 (top view)

• view 2 ( right side view)

• view 3 ( SW Isometric)

Hidden view,

• view 4 ( cam front door view)

• Rendered view
