Challenge 7 : Concept Modelling of Steering Wheel

Title of the Project:
CONCEPT MODELING OF AN CAR STEERING WHEEL

Objective:
In this tutorial we can learn the Car Steering wheel modeling concepts and approches and the surfaces to build the model.

Introduction:
In this model we learned how to create the Concept modeling car steering wheel by using the blue prints and the surfaces using the curves

Design methodology / approach:
By Following the above steps in the tutorials fisrt we need to Import the blue print.

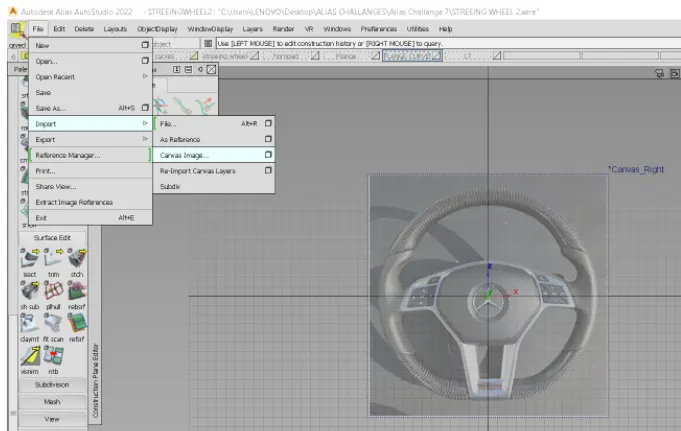

Step 1:importing of the blueprint

Step 2 :

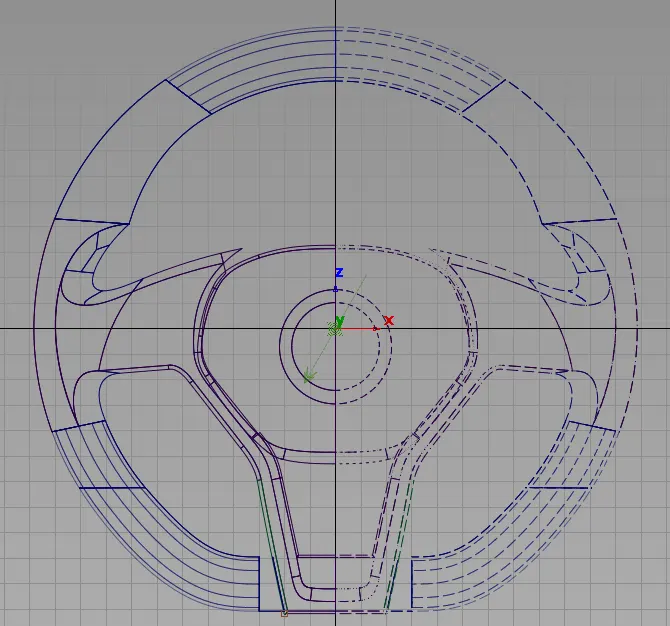

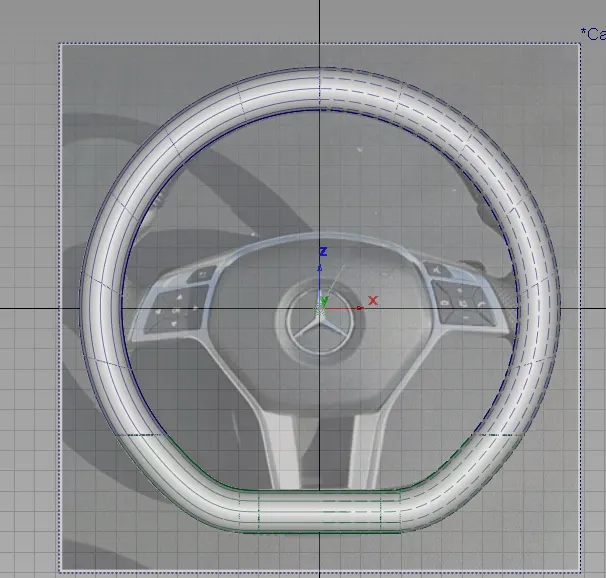

we have to create the outer ring shape profile has per the guided tutorial

step 3:

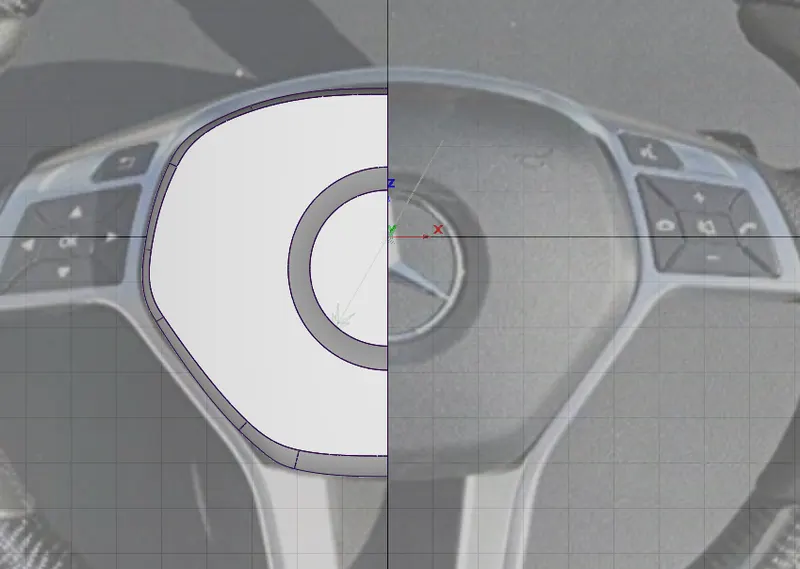

Then we have to create the hornpad shape According to the blueprint ,first we have to create the profile at one side then later we can make it symmetry.

Step 4:

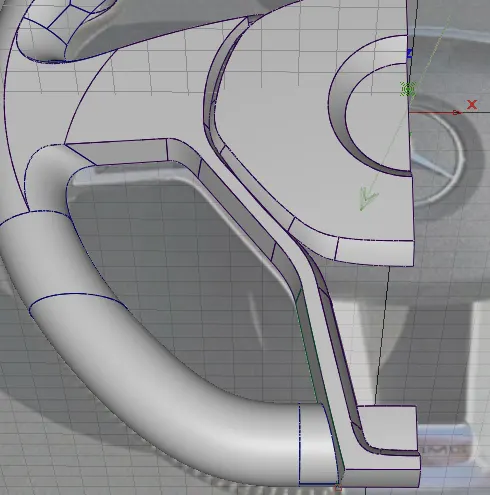

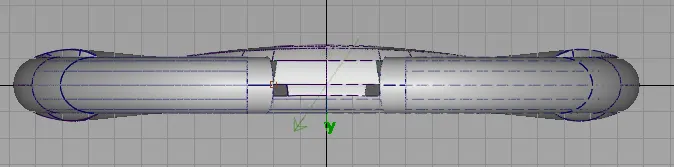

we have to create the center flange to connect the horn pad and the outer steering profile with the proper strengthened profile.

Step 5:

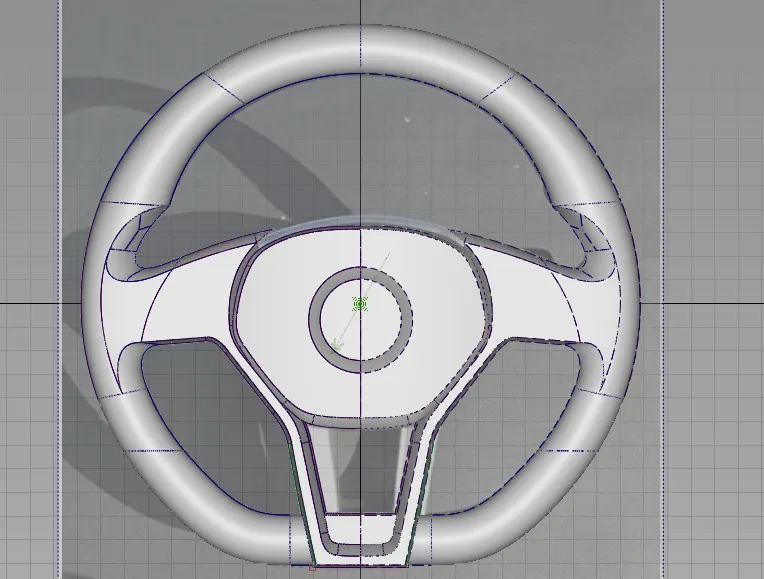

Then we have to make symmetry for the model what we have created,

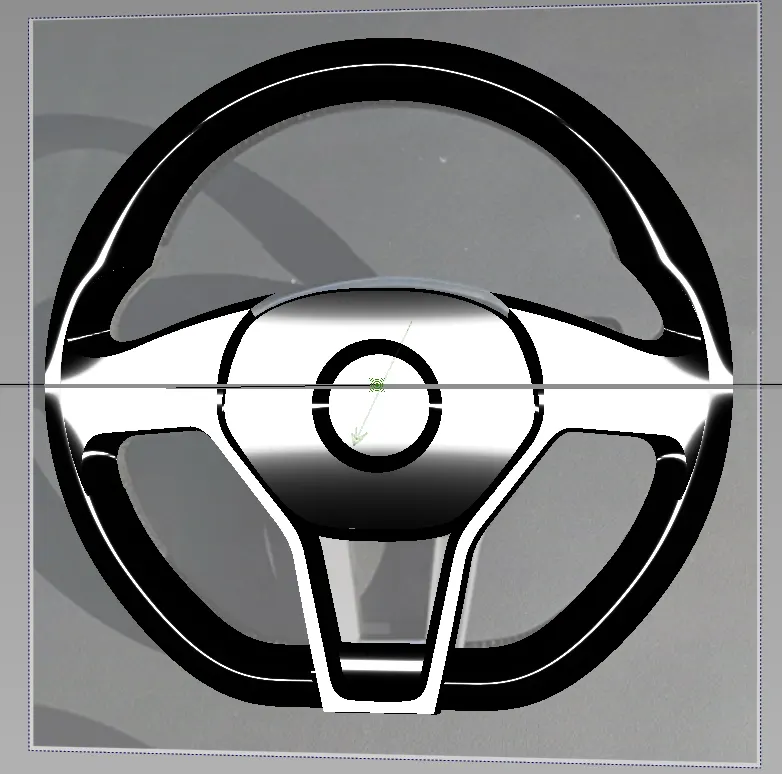

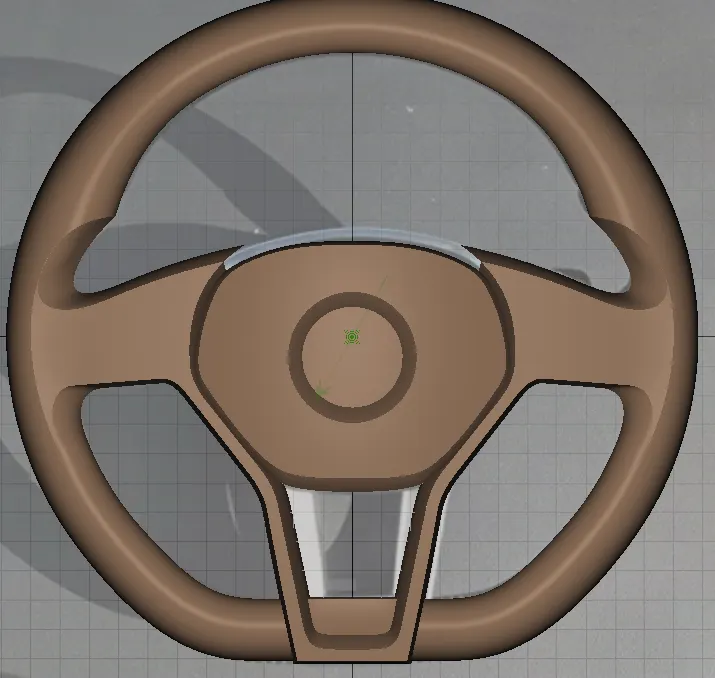

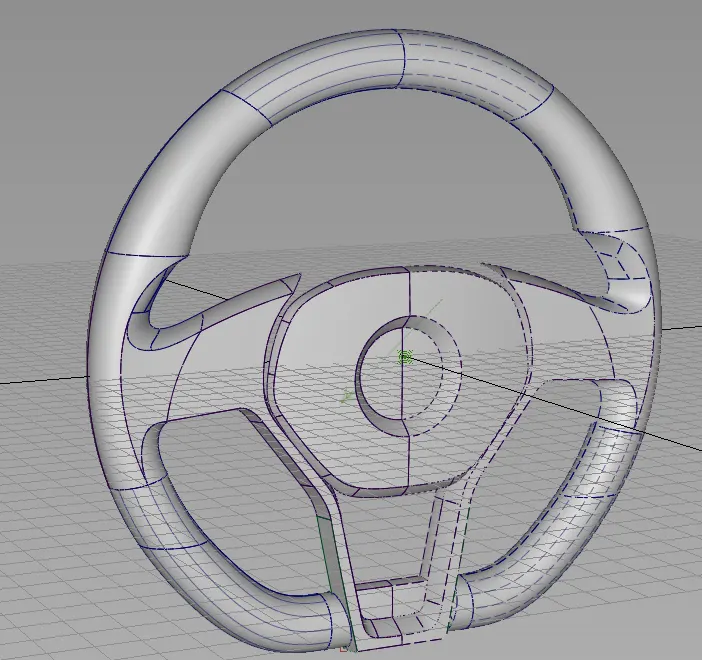

FINAL MODEL:





Conclusion:
By following the above steps and the tutorial we can easily able to create the steering wheel of the car.
