AutoCAD_Creation of Layout_Week 10
Challenges 10
Submitted By Kanala Rahul Reddy
Commands Used in this challenge
- Line
- Rectangle
- Mview
- View
- PS or paper space
- MS or model space
- Move
- BATTMAN
- Text

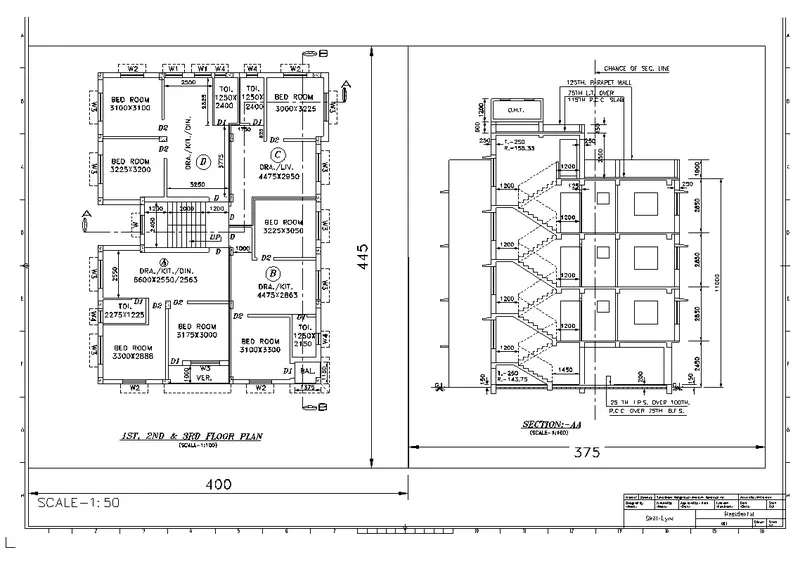

Create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial-mArch.dwt in a scale as given in the Figure. Use the MV command to create the viewport of the size as shown in Figure. Also, use ATTEDIT command to edit the information in the title block. Use A1 size for the layout. Take a plot.
Aim: To create the layout for floor plan, section AA as shown in the figure
Introduction: The floor plan given is of an apartment building with same plan for 1st, 2nd and 3rd floors. Each floor consists of four houses, three two-bedroom flats and one single bedroom flat each with kitchen and living room. Each flat has only one common bathroom. Stairs connect all the floors. Stair dimensions are taken from stair section view. The top two flats are given as flat C and flat D respectively. The section views AA and BB are drawn using projection lines from plan drawing. Dimensions and text is placed accordingly. The dimensions of doors and windows are assumed as follows
- Main Door or D as 1000mm X 2200mm
- Door 1 or D1 as 700mm X 2000mm
- Door 2 or D2 as 800mm X 2000mm
- Window 1 or W1 as 1000mm X 1400mm
- Window 2 or W2 as 1300mm X 1400mm
- Window 3 or W3 as 1500mm X 1400mm
- Window 4 or W4 as 600mm X 700mm
Procedure:
Open AutoCAD
In Startup settings start from scratch select metric (Meter)
Open grid and snap settings
- Change snap and grid spacing to 100
- Change major line every grid line to 10
- Turnoff adaptive grid
Type ‘un’ in command box and press enter
Change units’ type to decimal and precision to 0.00 and insertion scale to millimeters

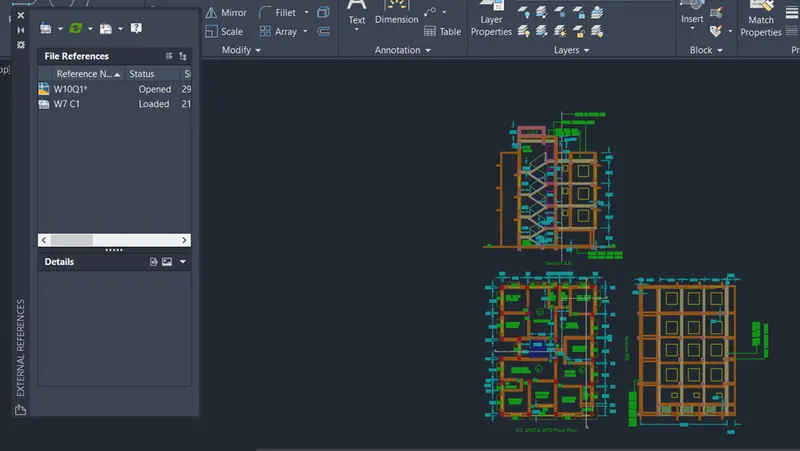

Step 1: Importing Drawing from Challenge 7

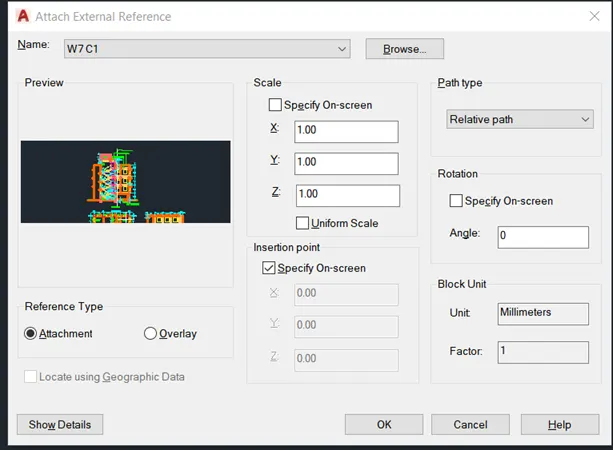

Type xref in command box and press enter
- Click on ‘Attachement’
- Keep scale as 1
- Click on insertion point as specify on screen
- Click on okay and specify the point of insertion
- Right click on the W7C1 drawing and select the bind option
- In pop up click on insert the drawing into W10Q1 along with layers
Step 2: Creating Layout

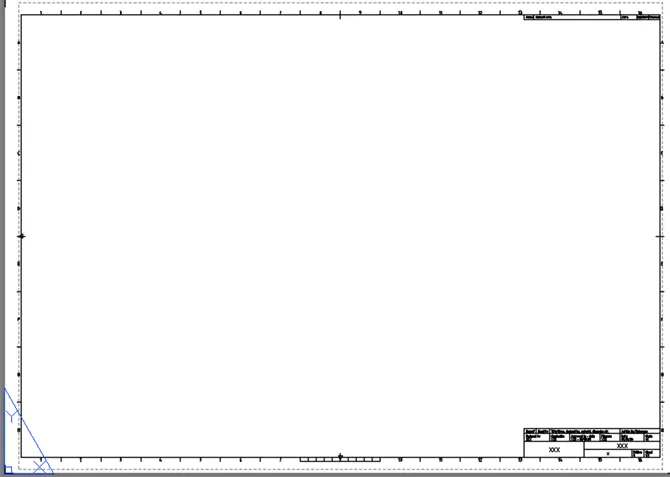

Go to layout tab and delete the current viewports available
- Right click on the layout tab

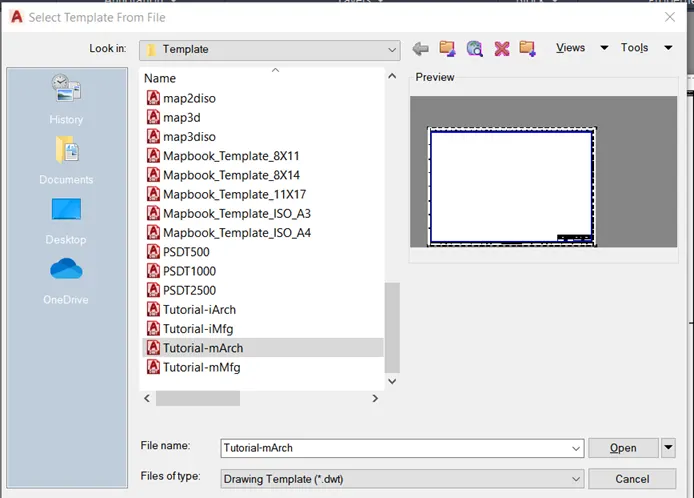

- Click on ‘From template’
- From pop up click on ‘Tutorial-mArch’
- Right click on layout and click on rename and type ‘FloorPlan-SectionAA’
Step 3: Creating Views
Go to model tab
Type ‘v’ and press enter
- Click on new
- Type name as ‘Floor Plan’
- Click on define window
- Select the Floor Plan
- Click on new
- Type name as ‘Section AA’
- Click on define window
- Select the Section view
Step 3: Creating Viewports

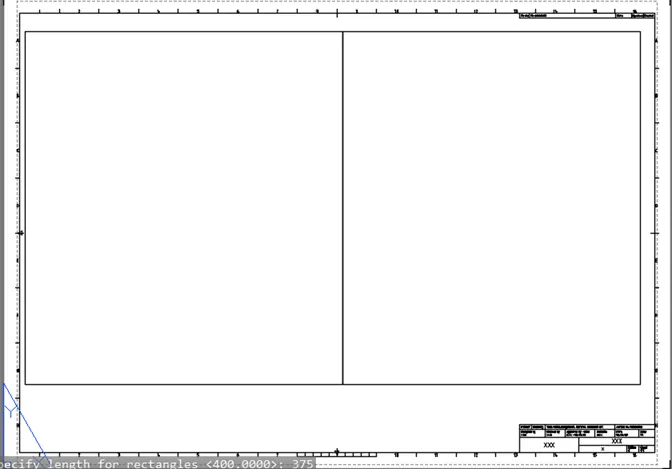

Draw rectangle from the top of layout of dimensions 400X445
Draw another rectangle adjacent to the rectangle from the top right corner with dimensions 375X445
Go to Paper space or ps
- Type mv in command box and click on object in command box
- Select the object to viewport as first rectangle drawn
Go to model space or ms
- Type v and press enter
- Select the Floor Plan view created and click on set current and click okay
- Change the scale to 1:50/2% and pan the figure to adjust
Go to paper space or ps
- Type mv in command box and click on object in command box
- Select the object to viewport as second rectangle drawn
Go to model space or ms
- Type v and press enter
- Select the Section AA view created and click on set current and click okay
- Change the scale to 1:50/2% and pan the figure to adjust

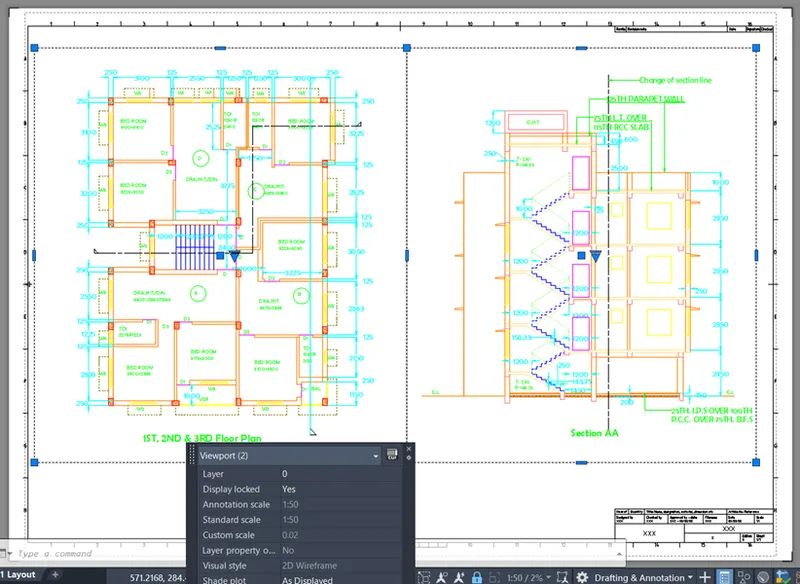

Go to paper space or ps
- Select the two viewports created and go to properties
- Change the display locked to ‘YES’

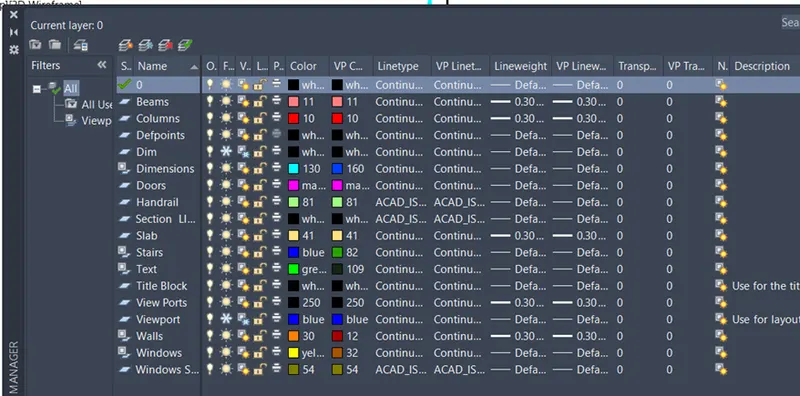

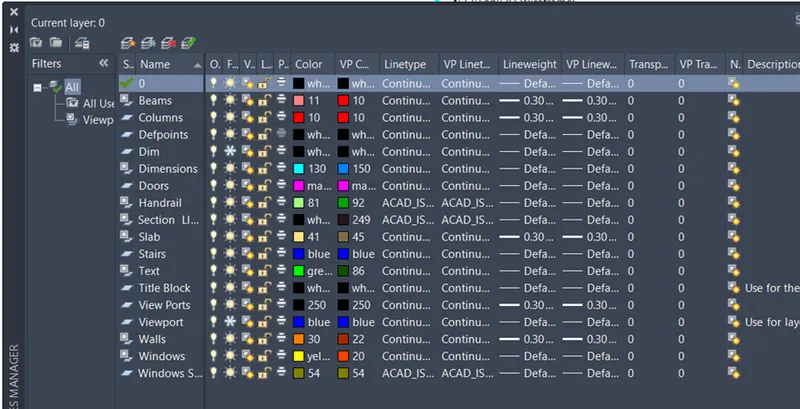

Step 4: Changing layers
Layers are change for better visibility as follows
For Viewport 1 & 2 respectively

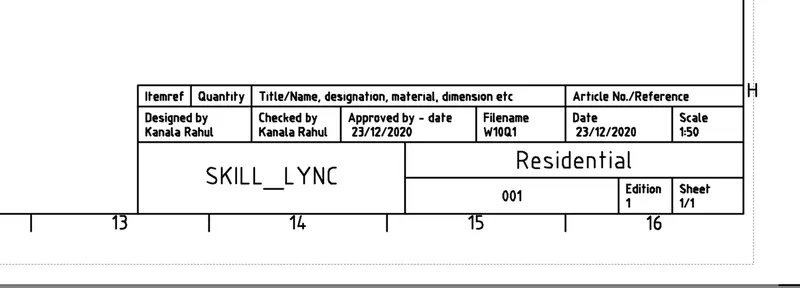

Step 5: Adding Details to Template
For changing the data of the attribute goto BATTMAN or double to enter the value
The values are changed as follows
And dimensions of the view ports and text regarding scale as 1:50

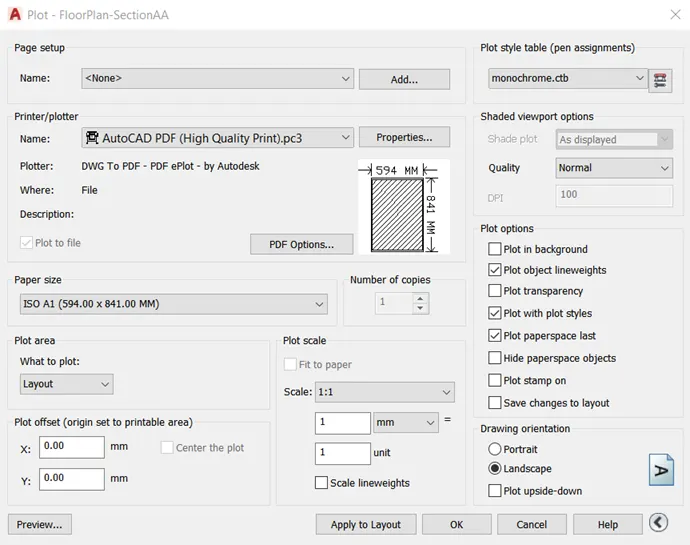

Step 6: Plotting
Type plot and press enter or select plot from the menu bar
- Set name as Week_10_Layout
- Change printer to AutoCAD PDF
- Set paper size as ISO A1
- Change plot area to ‘Layout’
- Change plot style table to ‘monochrome.ctb’
- Check the preview for adjustments
- Click ok to plot
- Select the path and set name

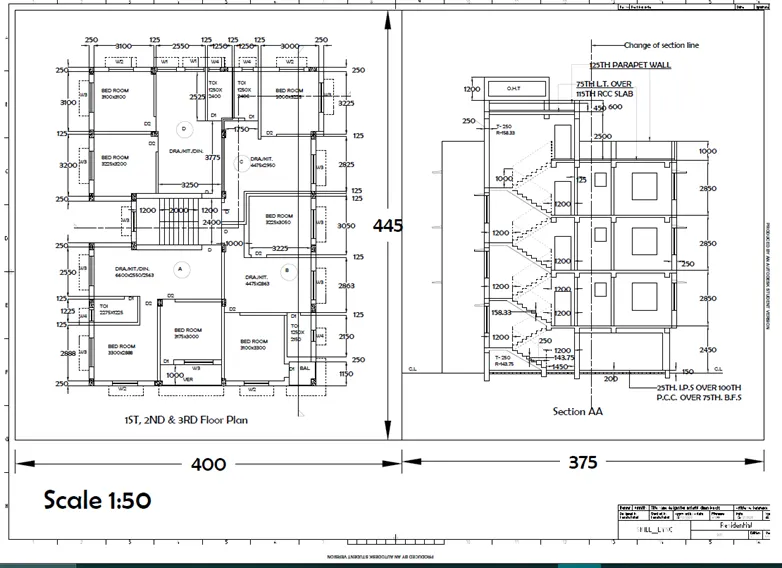

Result:

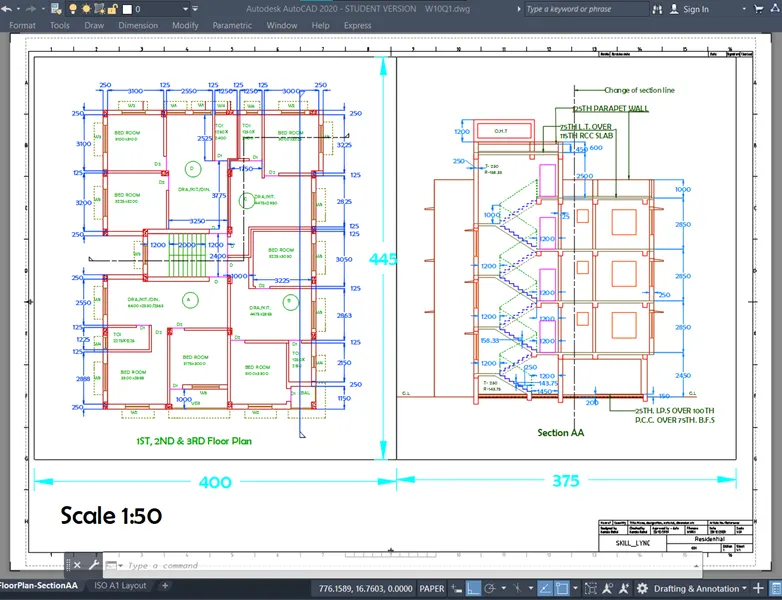

The result of this challenge consists of layout created from standard AutoCAD template ‘Tutorial-mArch’. Two viewports of dimensions 400X445 and 374X445 respectively are created for showing the floor plan and elevation section view of the plan. Viewport layer colors are changed according for better view of the plan and section view. Plotting is done using ISOA1 paper size and monochrome.ctb as plot style table. Both Plot result and Layout result are added below
- All the dimensions mentioned are in meters
- Dimensions and text are assigned using dimension layer and text layers
- Create a layout of the Kitchen drawn in Challenge 9 as shown in Figure. Use the scale as shown in the Figure. Use A4 Size page for the layout. Take a plot.
Aim: To create the Kitchen layout with four view parts along as shown in the figure
Introduction:
Procedure:
Open AutoCAD
In Startup settings start from scratch select metric (Meter)
Open grid and snap settings
- Change snap and grid spacing to 0.1
- Change major line every grid line to 10
- Turnoff adaptive grid
Type ‘un’ in command box and press enter
Change units’ type to decimal and precision to 0.00 and insertion scale to millimeters
Step 1: Importing Drawing from Challenge 7

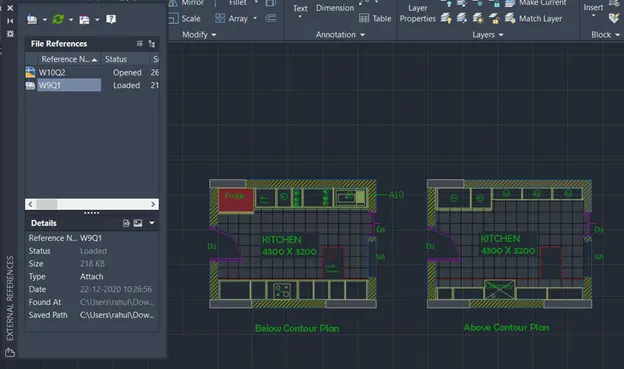

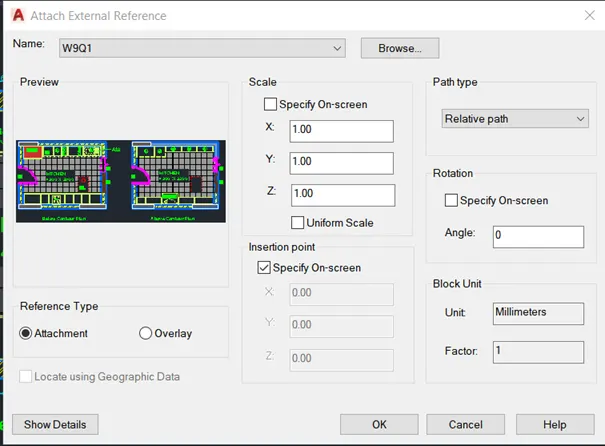

Type xref in command box and press enter
- Click on Add Dwg
- Select challenge 9 Question 1
- Click on ‘Attachment’
- Keep scale as 1
- Click on insertion point as specify on screen
- Click on okay and specify the point of insertion
- Right click on the W9Q1 drawing and select the bind option
- In pop up click on insert the drawing into W10Q2 along with layers
Step 2: Creating Layout
Go to layout tab and delete the current viewports available
- Right click on the layout tab
- Click on rename and type ‘Kitchen Layout A4’

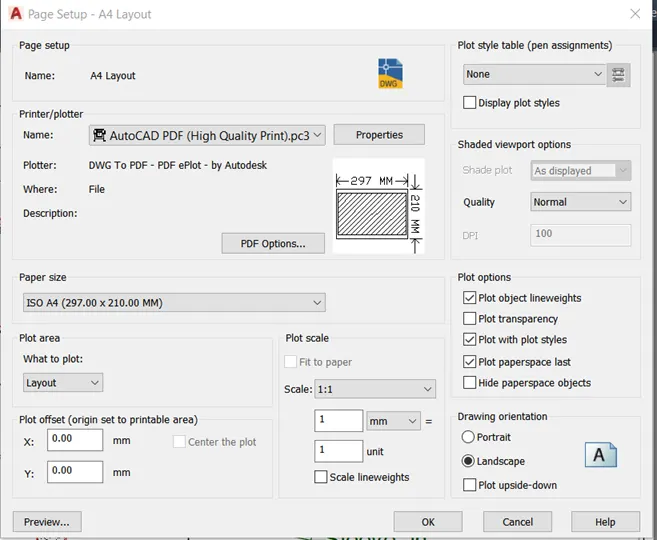

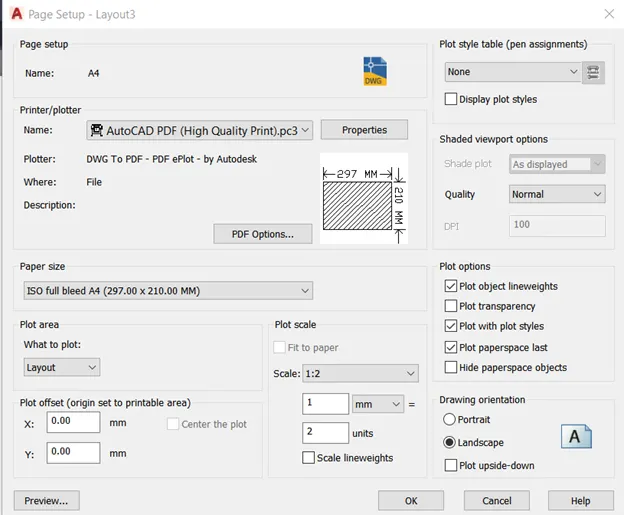

Go to Page setup manager
- Click on new
- Set name as A4
- Change printer to AutoCAD PDF
- Set paper size as ISO full bleed A4
- Change plot area to ‘Layout’
- Click okay

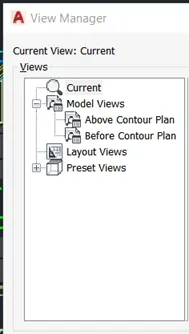

Step 3: Creating Views
Go to model tab

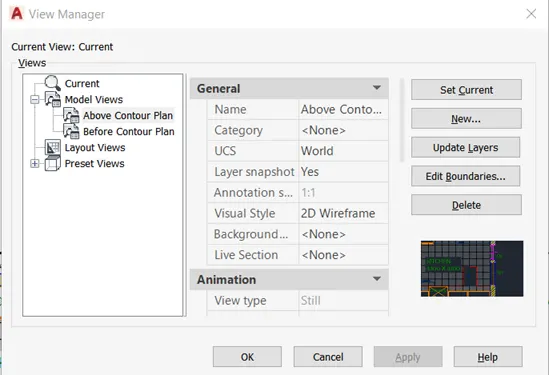

Type ‘v’ and press enter
- Click on new
- Type name as ‘Below contour plan’
- Click on define window
- Select the below contour plan view
- Click on new
- Type name as ‘Above contour plan’
- Click on define window
- Select the above contour plan view
Step 4: Creating Viewports

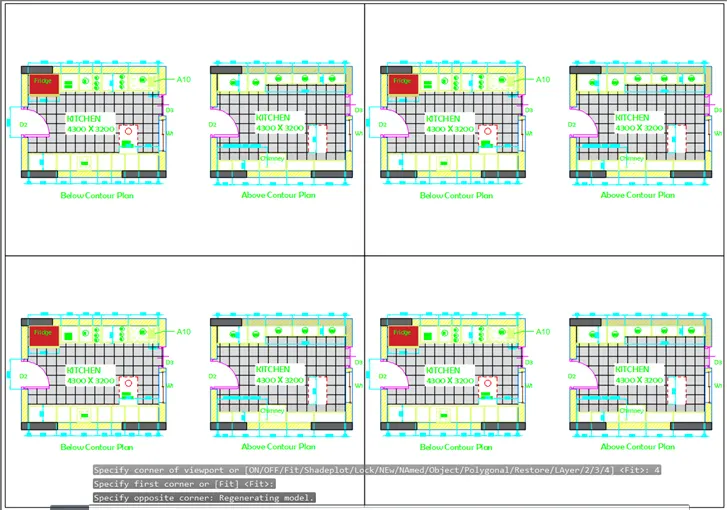

Type ‘mv’ and press enter
- Specify corner of viewport or
- Specify corner of viewport or ON / OFF / Fit / Shadeplot / Lock / New / Named / Object / Polygonal / Restore / Layer / 2 / 3 / 4] : Click on 4 and press enter
- Specify the corner points of view port
Step 5: Creating Viewport views
Go to model space in layout
- Click inside of bottom left viewport
- Type v and press enter
- Click on ‘Above contour plan’ and click on set current
- Change the scale to 1:2
- Click inside of bottom bottom viewport
- Type v and press enter
- Click on ‘Below contour plan’ and click on set current
- Change the scale to 1:2
Create other 2 views as shown in figure with custom scale 1:1
Step 6: Assigning Viewport Layers

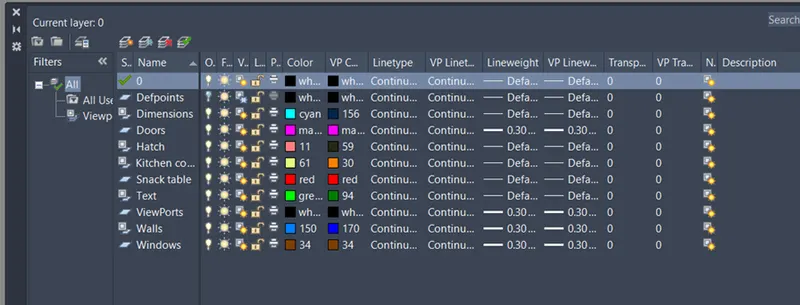

Viewport layer colors are changed for better visibility of drawing as follows for all the view ports

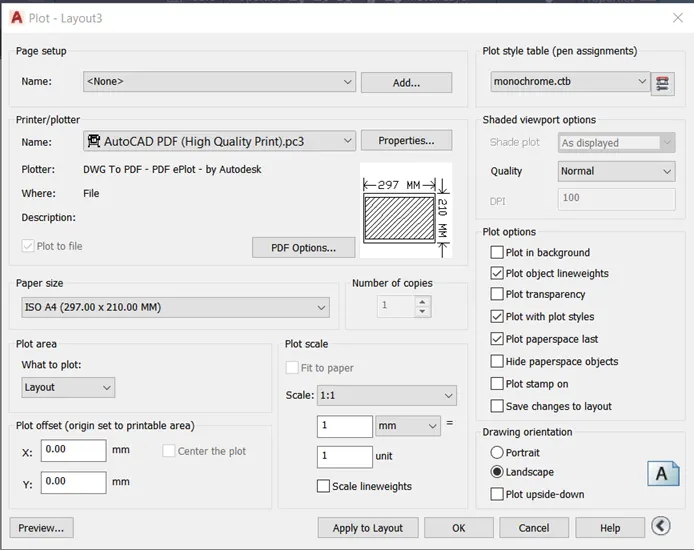

Step 7: Plotting

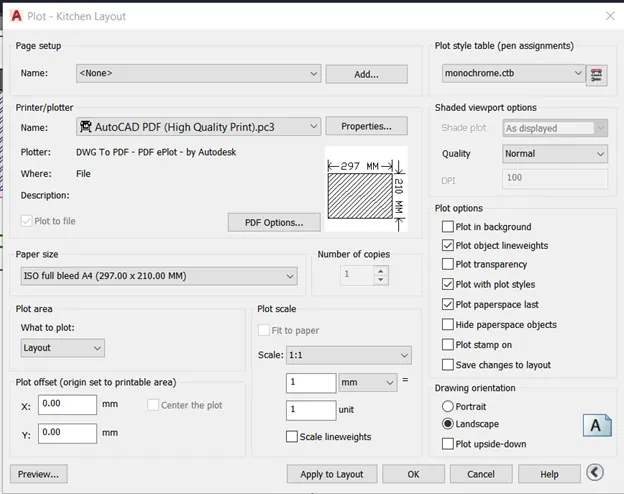

Type plot and press enter or select plot from the menu bar
- Set name as Kitchen_Layout
- Change printer to AutoCAD PDF
- Set paper size as ISO full bleed A4.
- Change plot area to ‘Layout’
- Change plot style table to ‘monochrome.ctb’
- Check the preview for adjustments
- Click ok to plot
- Select the path and set name

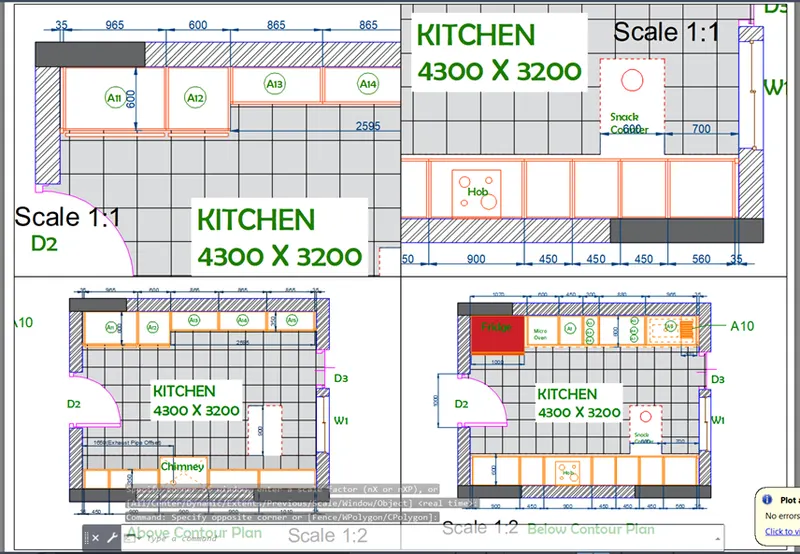

Result:

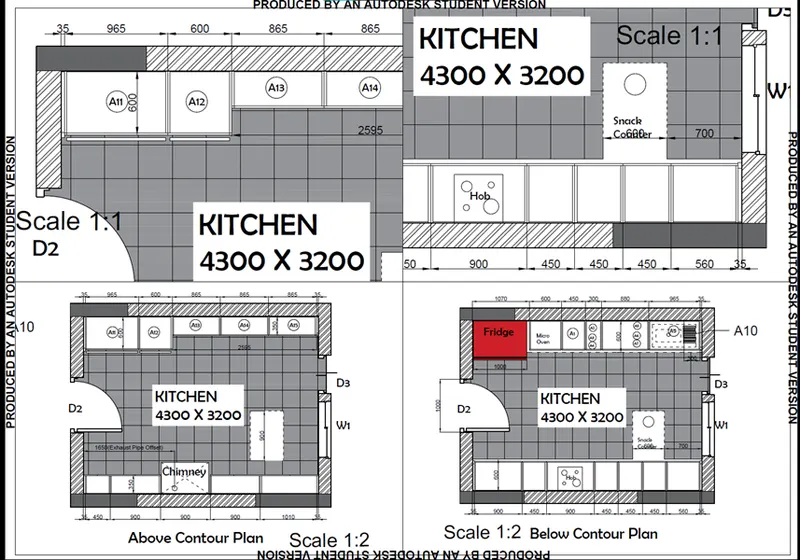

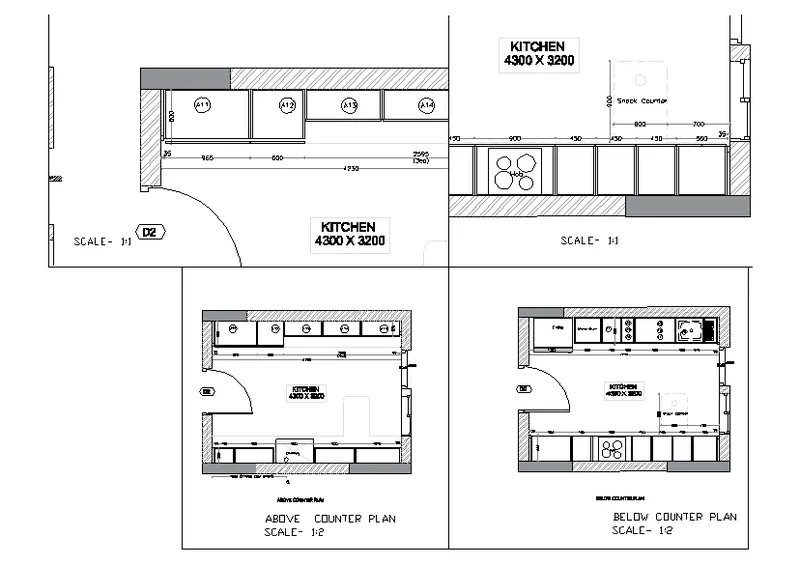

The result of this question consists of four viewports of kitchen layout plans from challenge 9. Viewports are created on A4 size sheet created from the page setup manager. The four-view port is created using MV command. Views are created in the model tab first and then viewed in layout viewport. Layers of viewport are changed for better visibility. Plotting is done with respect to A4 sheet size.
- All the dimensions mentioned are in meters
- Dimensions and text are assigned using dimension layer and text layers
- Create a layout of the section created in Challenges 9.
Use scale as mentioned in the Figure. Use MV command create multiple viewports. Take a plot.

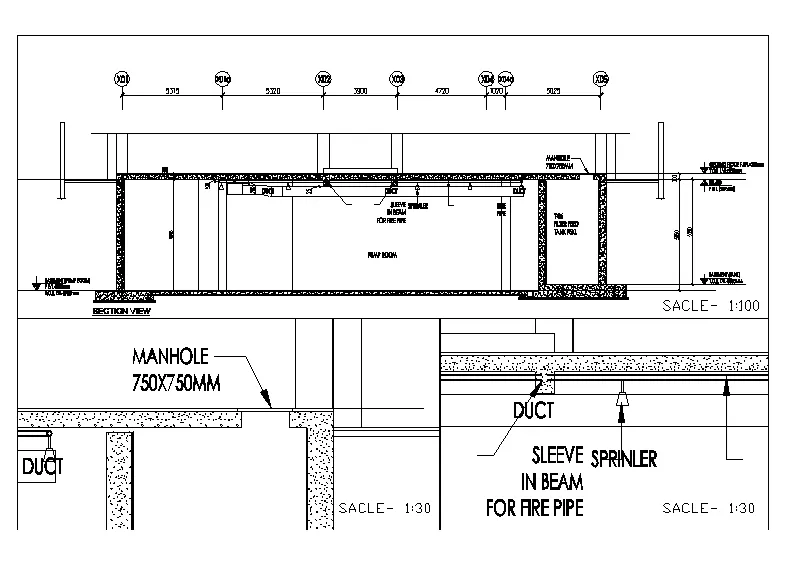

Aim: To create the three-viewport layout of an industrial building as shown in the figure
Introduction:
Procedure:
Open AutoCAD
In Startup settings start from scratch select metric (Meter)
Open grid and snap settings
- Change snap and grid spacing to 100
- Change major line every grid line to 10
- Turnoff adaptive grid
Type ‘un’ in command box and press enter
Change units’ type to decimal and precision to 0.00 and insertion scale to millimeters

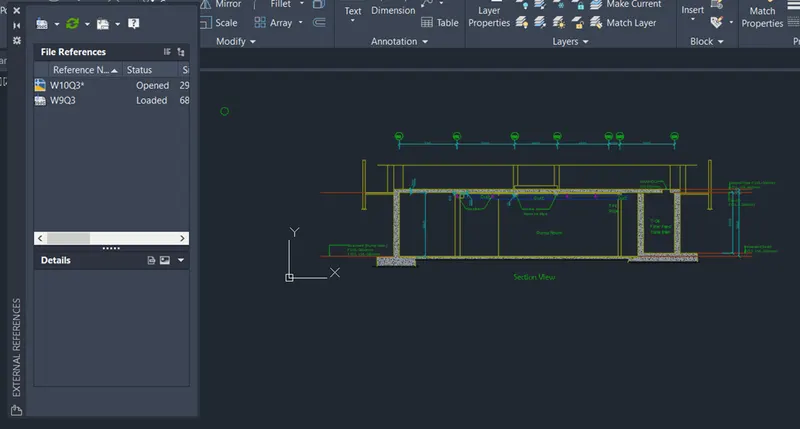

Step 1: Importing Drawing from Challenge 7

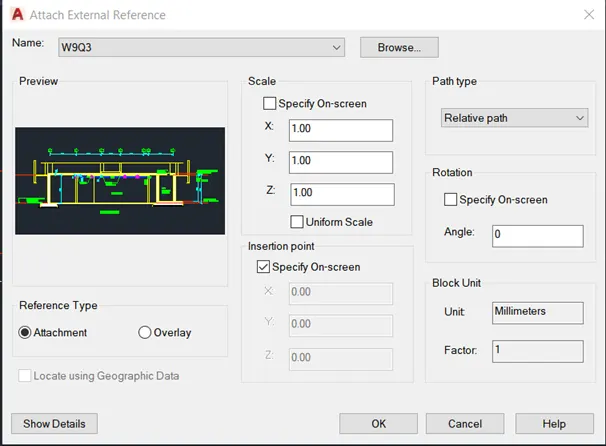

Type xref in command box and press enter
- Click on Add Dwg
- Select challenge 9 Question 3
- Click on ‘Attachment’
- Keep scale as 1
- Click on insertion point as specify on screen
- Click on okay and specify the point of insertion
- Right click on the W9Q1 drawing and select the bind option
- In pop up click on insert the drawing into W10Q3 along with layers
Step 2: Creating Layout
Go to layout tab and delete the current viewports available
- Right click on the layout tab
- Click on rename and type ‘Industrial Building layout’
Go to Page setup manager
- Click on new
- Set name as A4
- Change printer to AutoCAD PDF
- Set paper size as ISO full bleed A4
- Change plot area to ‘Layout’
- Click okay

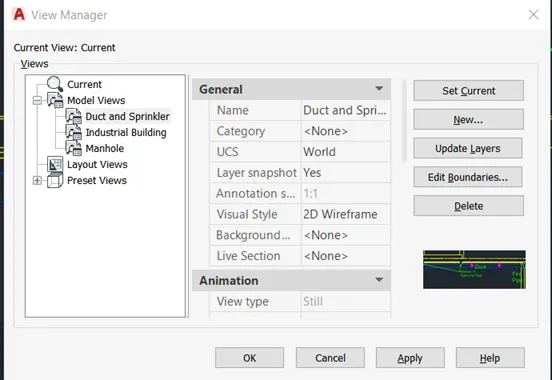

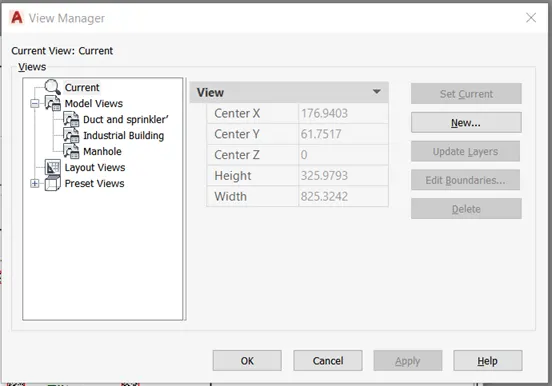

Step 3: Creating Views
Go to model tab
Type ‘v’ and press enter
- Click on new
- Type name as ‘Industrial Building’
- Click on define window
- Select the entire drawing to fit
- Click on new
- Type name as ‘Manhole’
- Click on define window
- Select the area around the manhole
- Click on new
- Type name as ‘Duct and sprinkler’
- Click on define window
- Select the area around the middle sprinkler and right duct
Step 4: Creating Viewports
Type ‘mv’ and press enter
- Specify corner of viewport or
- Specify corner of viewport or ON / OFF / Fit / Shadeplot / Lock / New / Named / Object / Polygonal / Restore / Layer / 2 / 3 / 4] : Click on 3
- Enter viewport arrangement [Horizontal/Vertical/Above/Below/Left/Right] <Right>: Click Above
- Specify first corner or [Fit] <Fit>: F
Step 5: Creating Viewport views
Go to model space in layout
- Click inside of top viewport
- Type v and press enter
- Click on ‘Industrial Building’ and click on set current
- Change the scale to 1:100
- Click inside of bottom left viewport
- Type v and press enter
- Click on ‘Manhole’ and click on set current
- Change the scale to 1:30
- Click inside of bottom right viewport
- Type v and press enter
- Click on ‘Duct and sprinkler’ and click on set current
- Change the scale to 1:30
Step 6: Assigning Viewport Layers

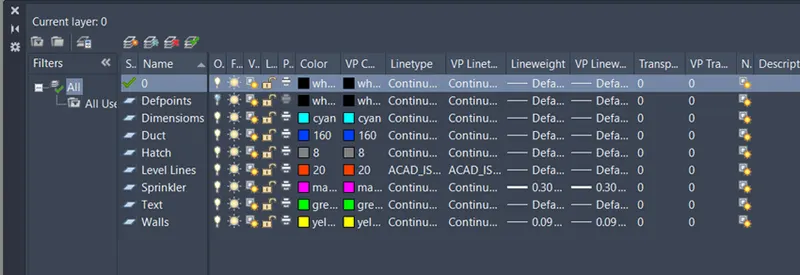

Viewport layer colors are changed for better visibility of drawing as follows for all the view ports
Step 7: Plotting
Type plot and press enter or select plot from the menu bar
- Set name as Industrial_Building_Layout
- Change printer to AutoCAD PDF
- Set paper size as ISO full bleed A4.
- Change plot area to ‘Layout’
- Change plot style table to ‘monochrome.ctb’
- Check the preview for adjustments
- Click ok to plot
- Select the path and set name
Result:

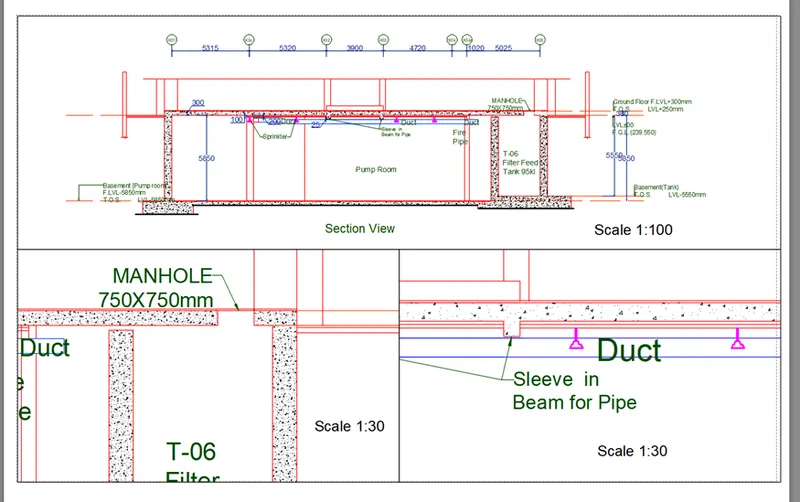

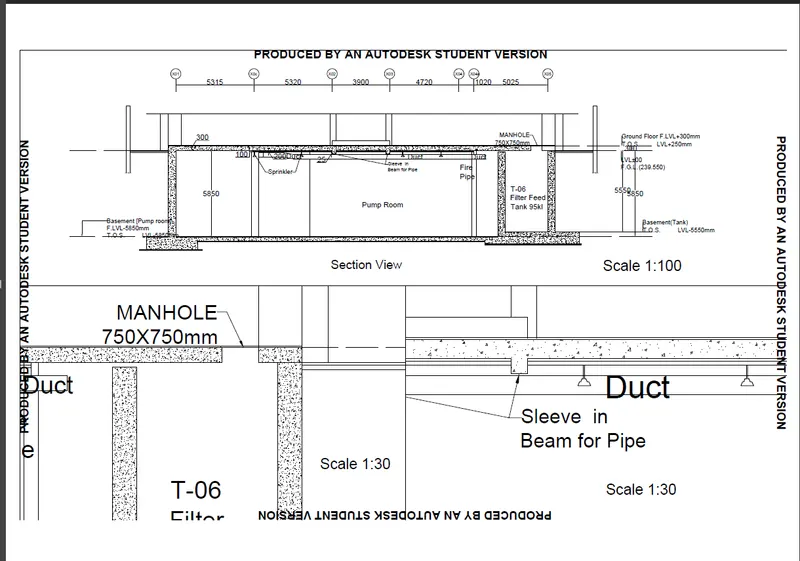

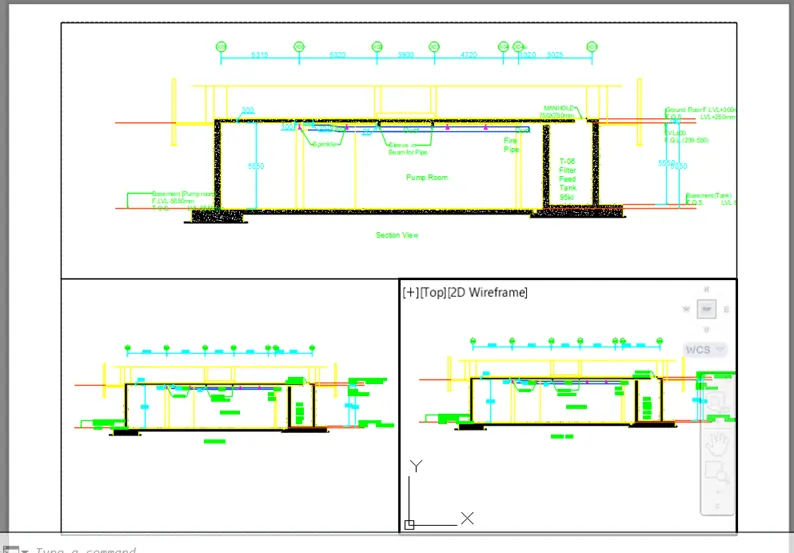

The result of this question consists of three viewports of Industrial Building layout plans from challenge 9. Viewports are created on A4 size sheet created from the page setup manager. The Three-view port is created using MV command. Views are created in the model tab first and then viewed in layout viewport. Layers of viewport are changed for better visibility. First view is the view of entire section view. Second viewport is of the manhole. Third view is of the duct and sprinklers. Plotting is done with respect to A4 sheet size and monochrome.ctb.
- All the dimensions mentioned are in meters
- Dimensions and text are assigned using dimension layer and text layers
