Assignment 7-Side Pole Crash Simulation Challenge

OBJECTIVE

• Check unit system and either follow [Mg mm s] or [Kg mm ms].
• Create appropriate interface ,friction 0.2 and recommended parameters.
• Make sure of no penetration and intersections.
• Create rigid wall with friction 0.1 as per referance model.
• Compare the model weight with the referance model and use added masses to reach target weight 700kg while getting CG about the required range.
• Initial velocity as shown in picture.
• Use model checker to ensure good quality.
• Timestep :0.5 to 0.1 microseconds.
• Run 80ms.

Output requests:

• Sectional force in the cross member.
• Intrusion at B pillar,hinge pillar and fuel tank region.Provide recommendation on what can help to reduce Fuel tank intrusion.

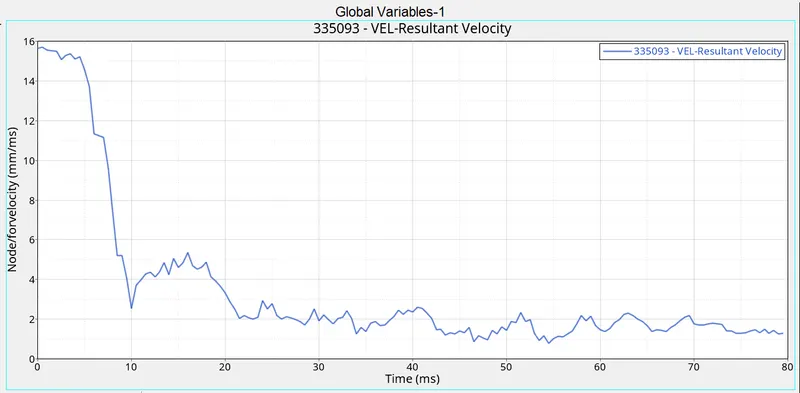

• Peak velocity of inner node of the door.

PROCEDURE

• Open the _0000.rad file in notepad.Check the units written in that.
• Import _0000.rad file in hypermesh with radioss solver.
• Go to model-create- contact.Select the card image as TYPE 7.
• Select g.nod id and surf id as all components.Give Istif= 4,Igap=3,Idel=2,Stmin=1,Gapmin=0.5,Inacti=6,Iform=2,Friction=0.2.
• Go to Tools-penetration checks-select the TYPE7 as group.Check for penetration.

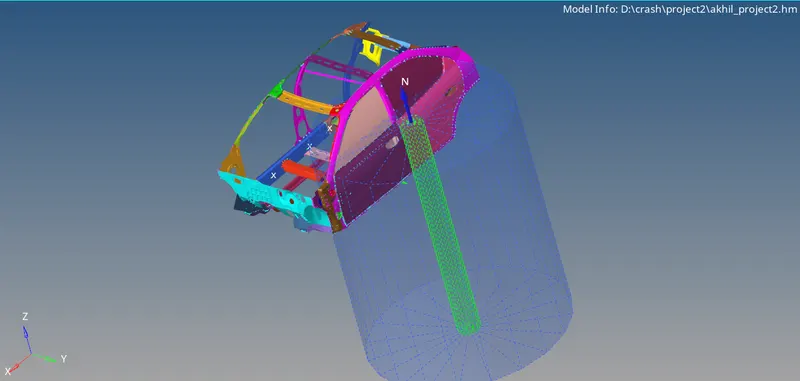

• Go to model-right click-create-rigid wall.
• Select the centre node on the SIDE DOOR.Select the cylinder.Give diameter.
• Give search distance as 1000 mm and friction as 0.1.
• Go to Tools- mass details-mass,cog,inertia.Note down the cog coordinates.
• Create a temporary node in that location and identify where we have to add additional mass to take cog to the centre of the rail.
• Go to solver-right click-create-ADMAS.sELECT MASS TYPE =0,select nodes which we have to add mass.Check the COG.
• Go to solver-right click-create-boundary conditions-INIVEL.
• Select all components.Convert 35 mph to mm/mS.
• Go to model-cards-ENG_RUN.give Tstop =80 mS.
• Go to views-model checks-radioss block-run for errors.
• Output requests:
• Isolate the required part which we have to create crossection.
• Go to solver-right click-create-frame-mov.
• Select 3 nodes for orgin,x direction and xy plane.
• Go to solver-right click-create-SECTION-SECT.Select the elements and frame id.give alpha=1.69,Iframe=12,Delt=0.1.
• Go to model-output blocks-right click-create.Rename it as crossection.Select the created crossection.
• Go to solver-right click-create-intrusion.Create three intrusion points near to cross rails and fuel tank.
• Create three skews opoosite to each intrusion points.Create output blocks for intrusions.
• Go to model-output blocks-right click-create.Select one point for velocity.

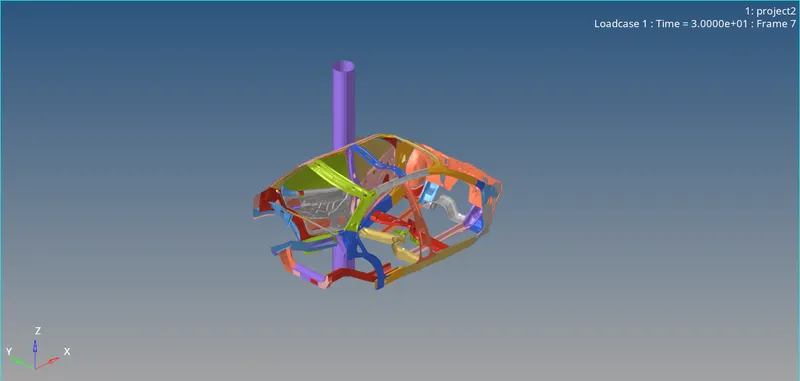

RESULTS

LEARNING OUTCOMES

• Understood how to create side pole,interfaces and apply initial velocity.
• Understood how to check mass and centre of gravity and how to add additional masses.
• Understood how to do model check.
• Understood how to create crossections, intrusions and apply peak velocity.

CONCLUSIONS

• The cross rail near to the side pole gets more force comapred to the other cross rail.

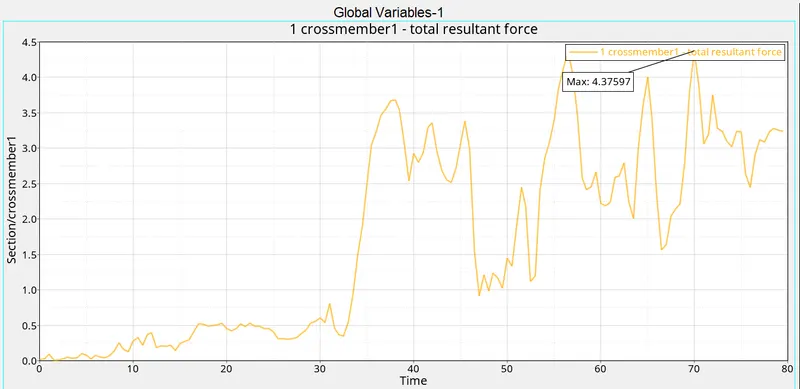

Maximum force in the cross rail 1= 4.37597 N

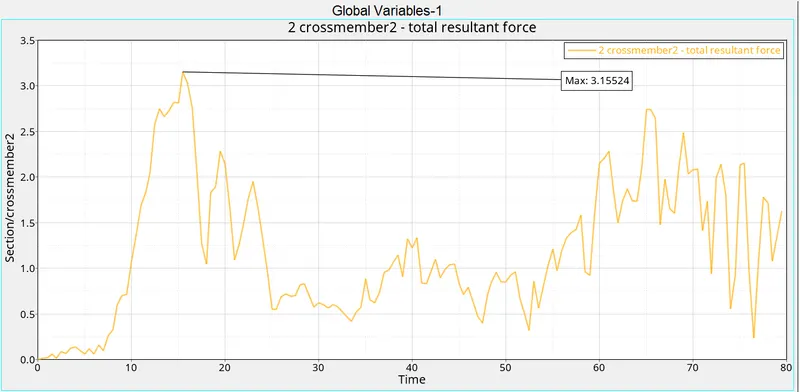

Maximum force in the cross rail 2=3.15524 N

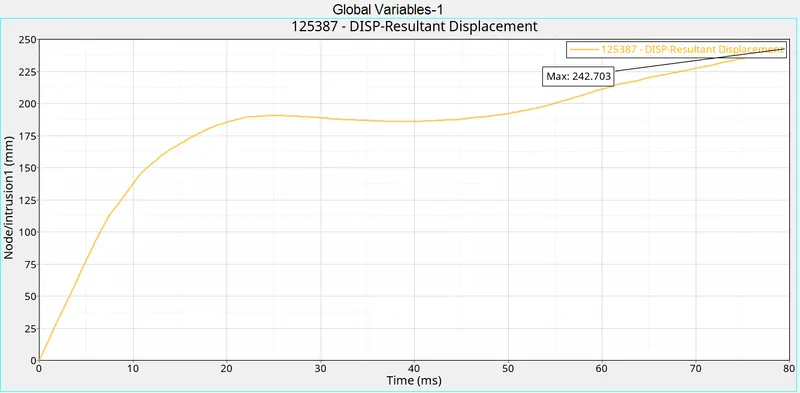

• The node near to the fuel tank displaced upto 242.703 mm.So that if the the fuel tank within this displacement ,it may cause damage to fuel tank.

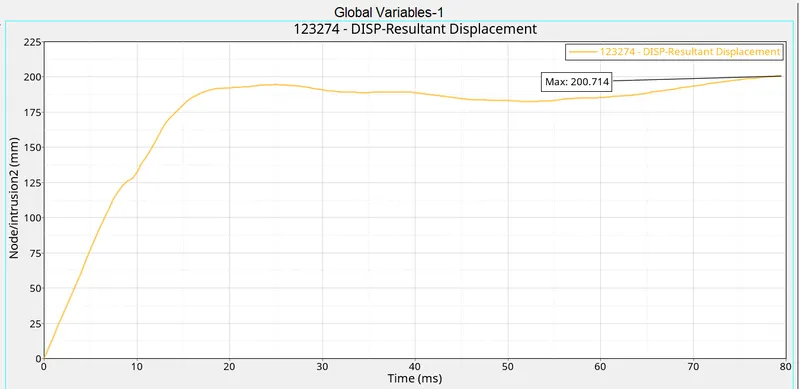

• The node near to the hinge pillar displaced upto 200.714 mm.If a person sitting in this limit may hurt.

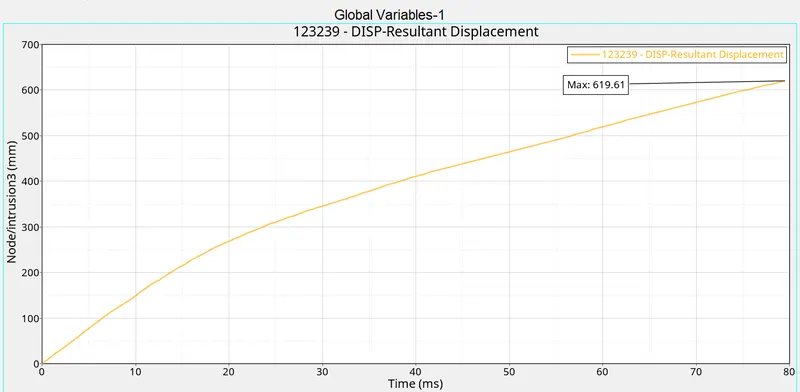

• The node near to the B pillar displaced upto 619.61 mm.If a person sitting in this limit may hurt.

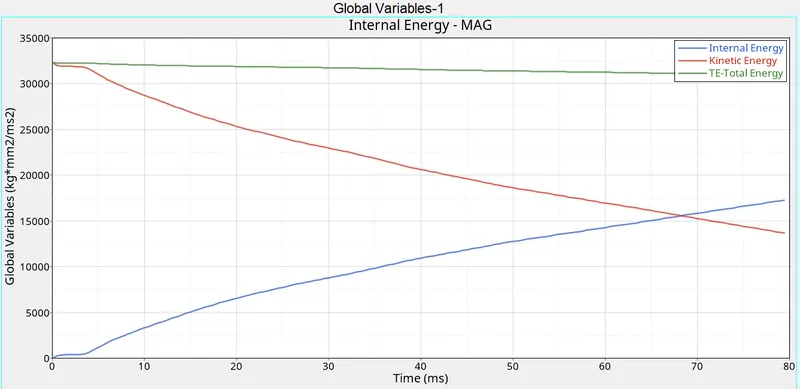

• The energy error must be -15% - 2%.Energy error first increases then decreases and going to negative.Because as the displacement continues it prouces a repulsive force to prevent more penetration.
• During deformation elements absorbs energy,thus increase the internal energy.
