Assignment 6-Frontal Crash Simulation Challenge

AIM : Frontal Crash Simulation Challenge.

Frontal vehicle crash simulation of sidestepping Neon BIW the use of the RADIOSS solver and preprocessing the use of hypermesh/hypercrash.

OBJECTIVE:

• To perform frontal crash anlysis of a vehicle against a rigid wall in hypermesh.

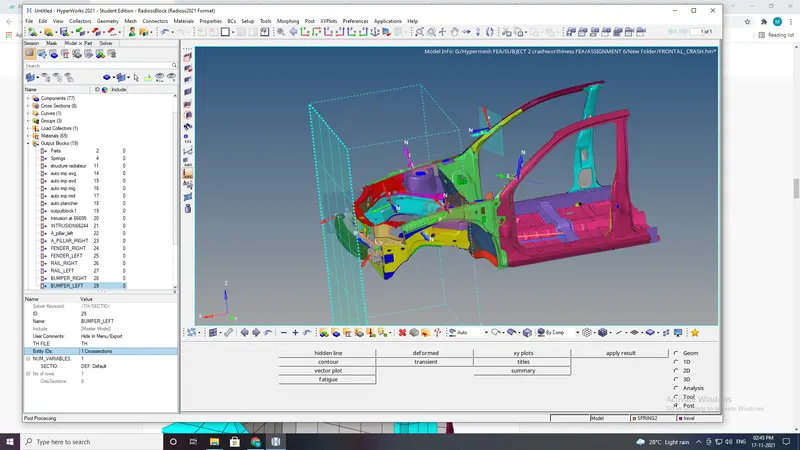

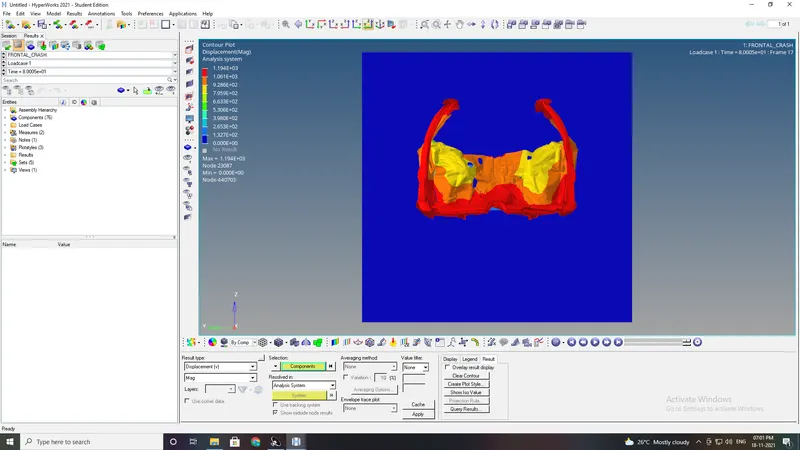

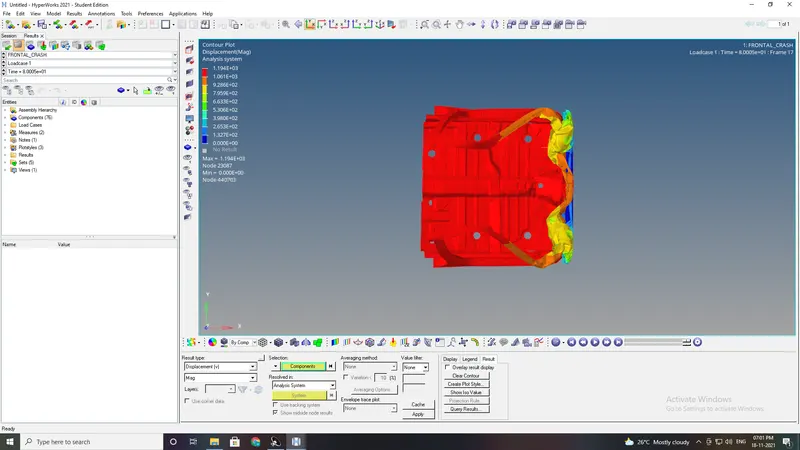

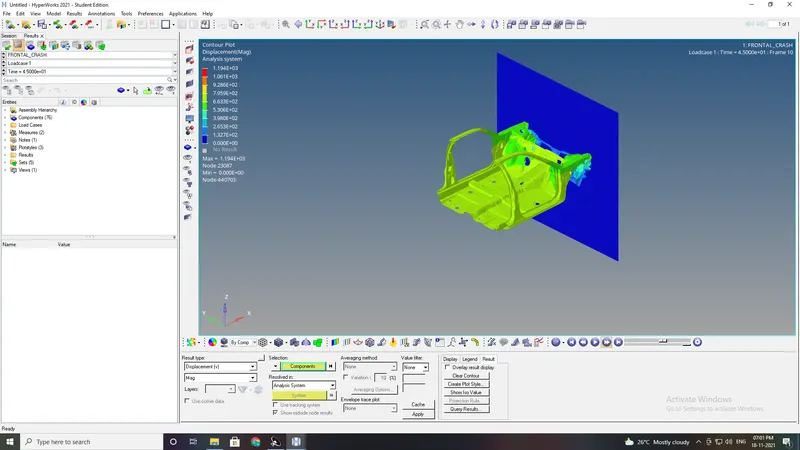

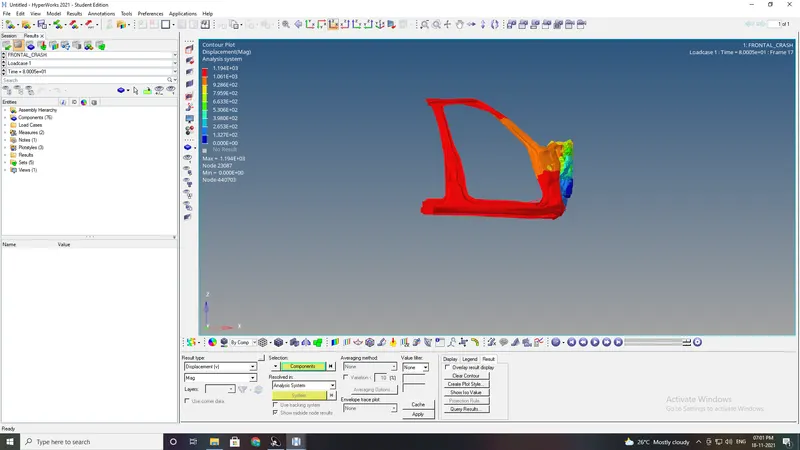

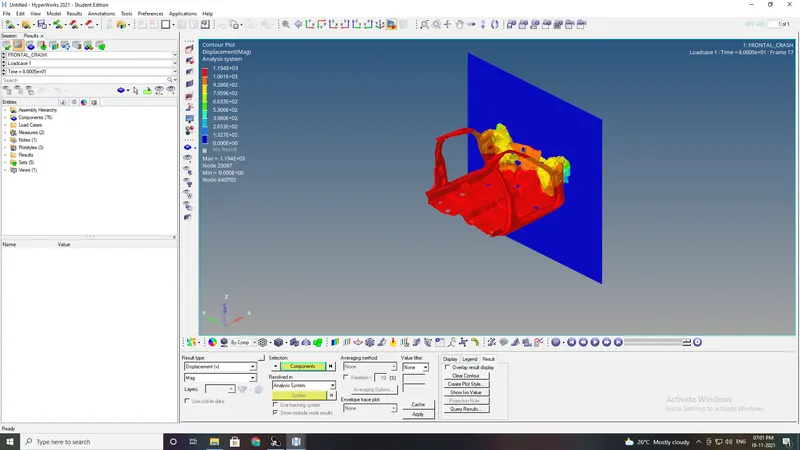

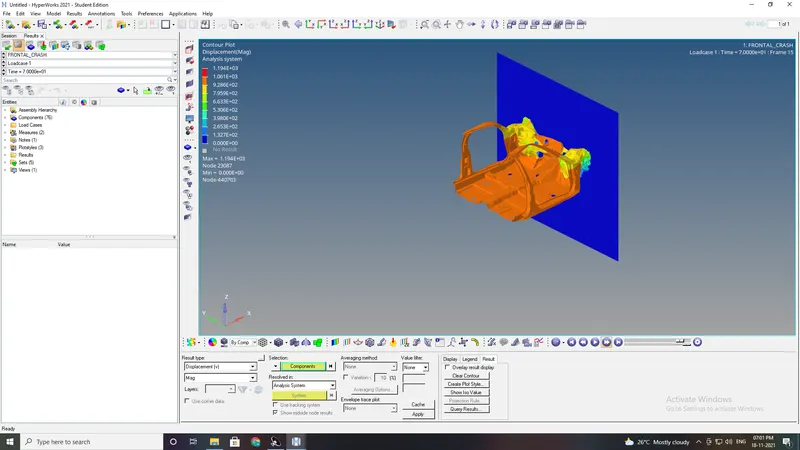

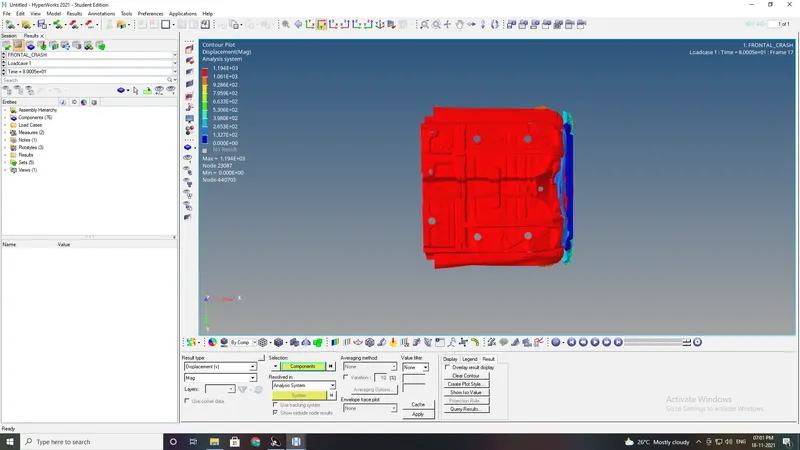

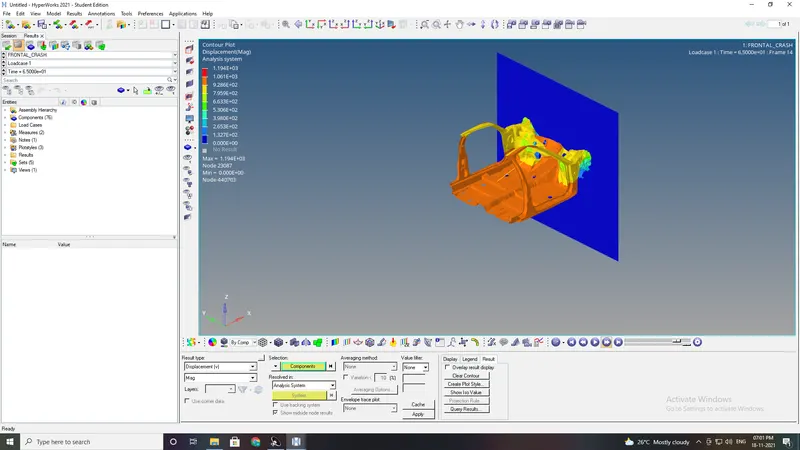

• To simulate the crash behavior of the vehicle in hyperview and discuss the results.
• Sectional force in the rails at location of indicated node 174247.
• Axial force received on the rails from bumper.
• Shotgun cross sectional forces.
• A pillar cross section.
• Acceleration curve received on the accelerometer at base of B pillar (on B pillar rocker).

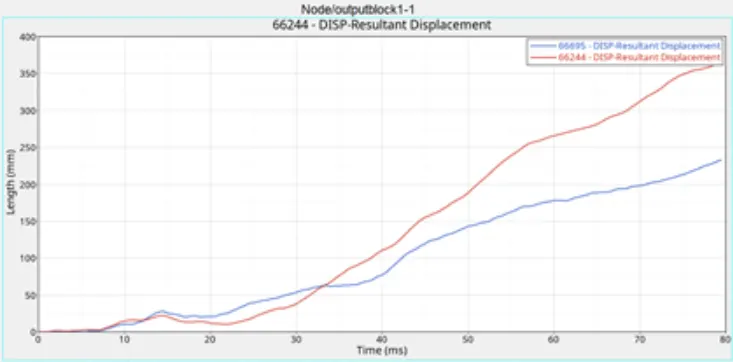

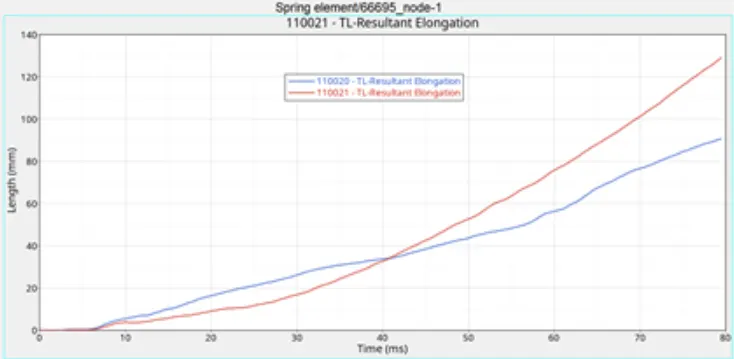

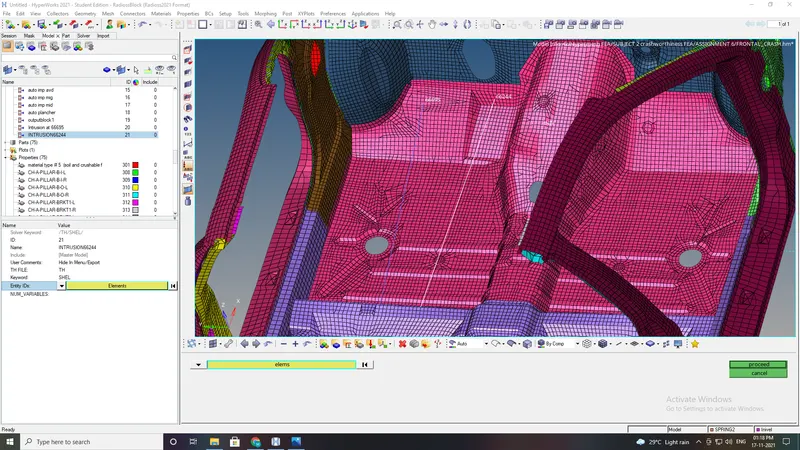

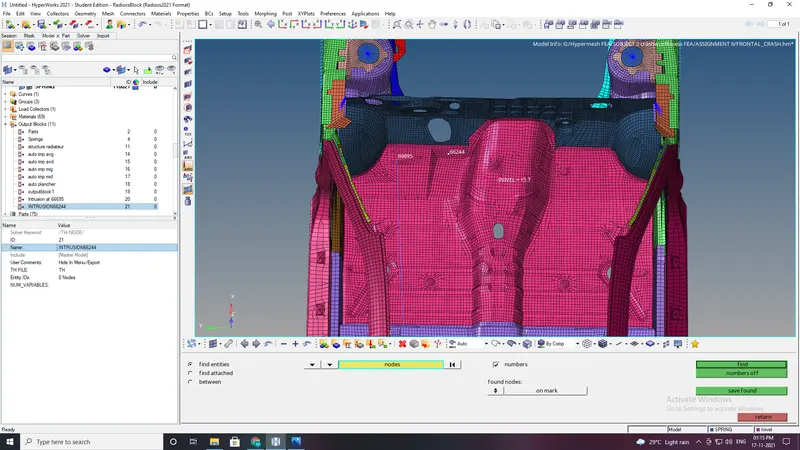

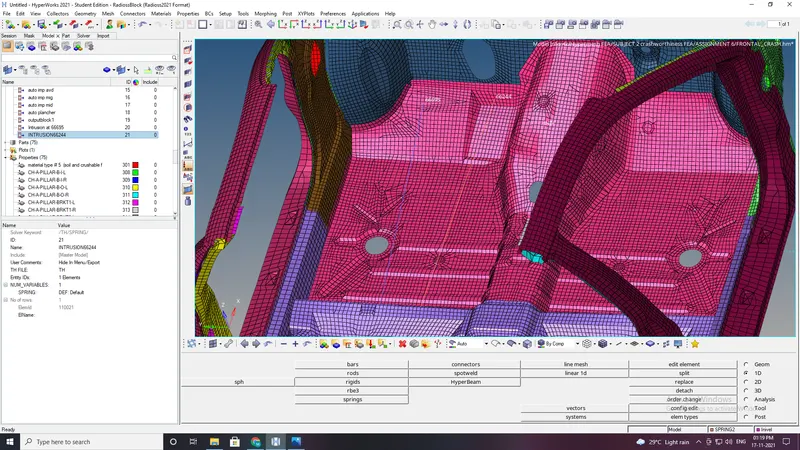

• Intrusions on the dash wall 66695,66244.

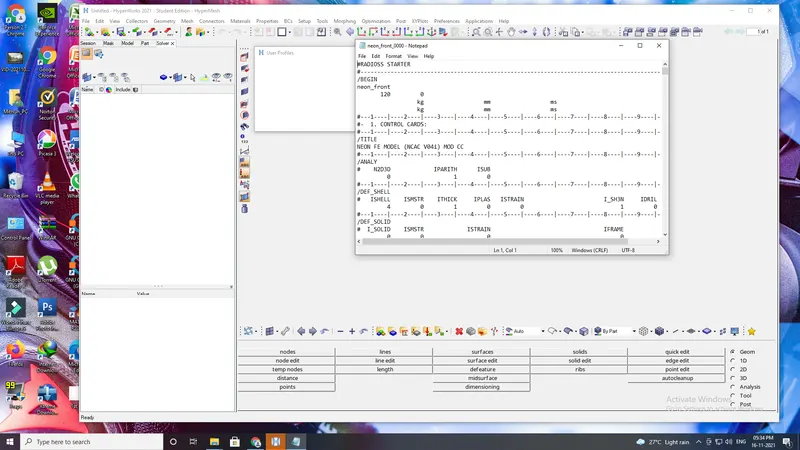

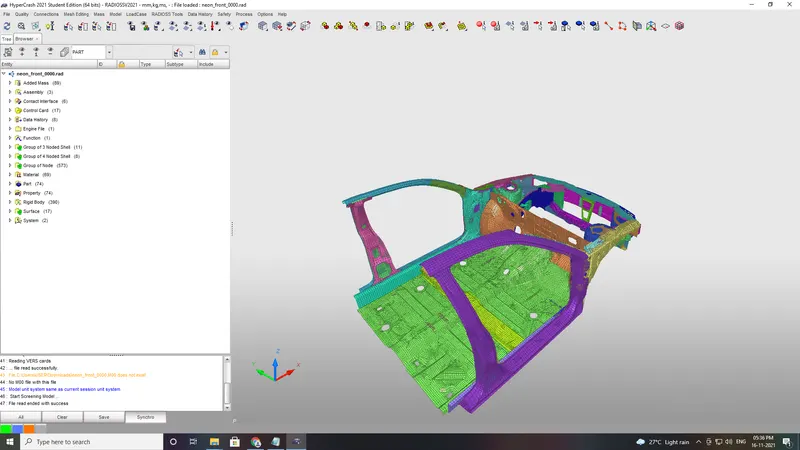

Check the unit system of the given starter file(neon_front_000.rad).

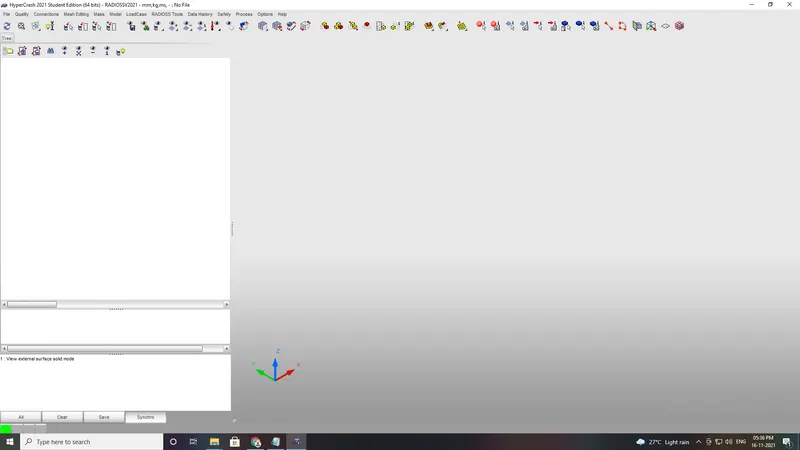

Open hypercrash asn set to KN mm ms kg.

And drag and drop the starter file in hypercrash.

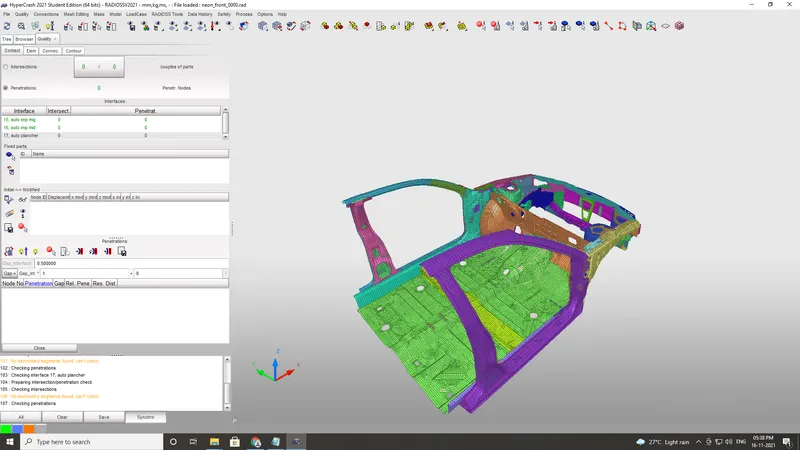

• To check the penetration and Intersections,Quality-check all solver contact onterfaces-select all parts-check penetration.
• And there is no penetrations.

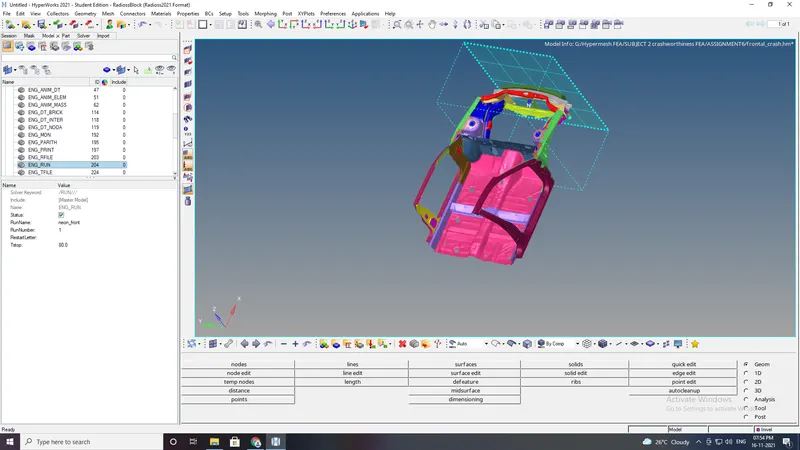

• Compare the model weight with the full scale 300k nodes model and use add masses.
• target weight is 700kg while getting CG
• we have to add mass to the current model.
• CHECK the mass-balancing.

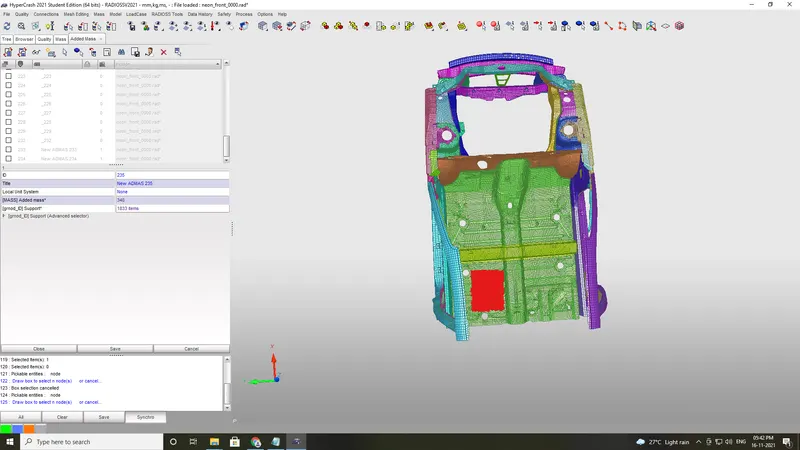

• mass can be added for both front seats and back.

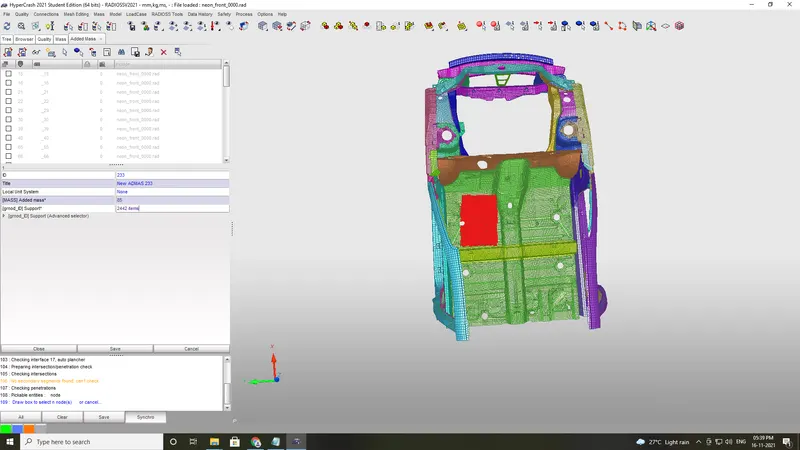

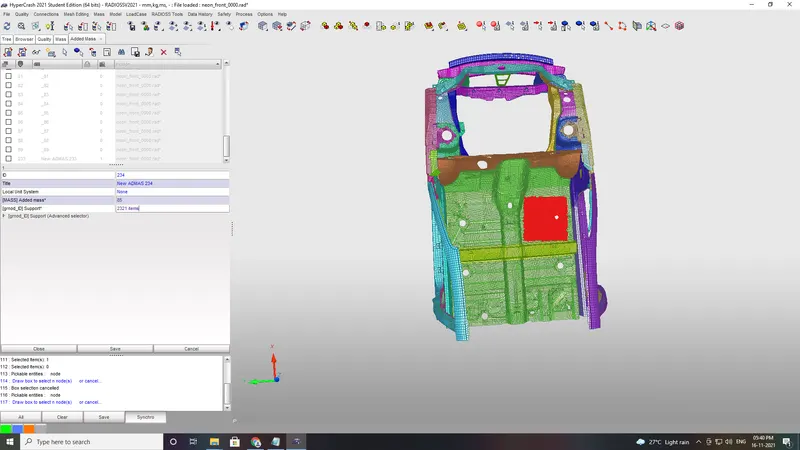

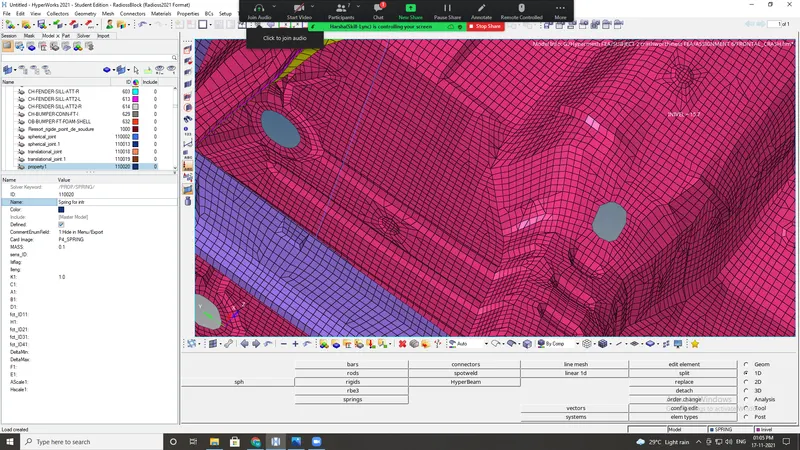

• To add mass. load case-added mass
• Create new-type1
• add mass
• we have added 3 new mass to current model.

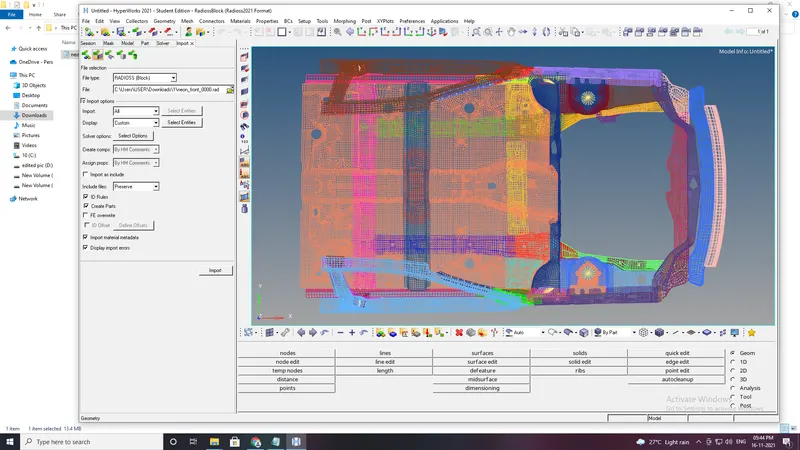

• Export the model in rad file
• And import in hypermesh

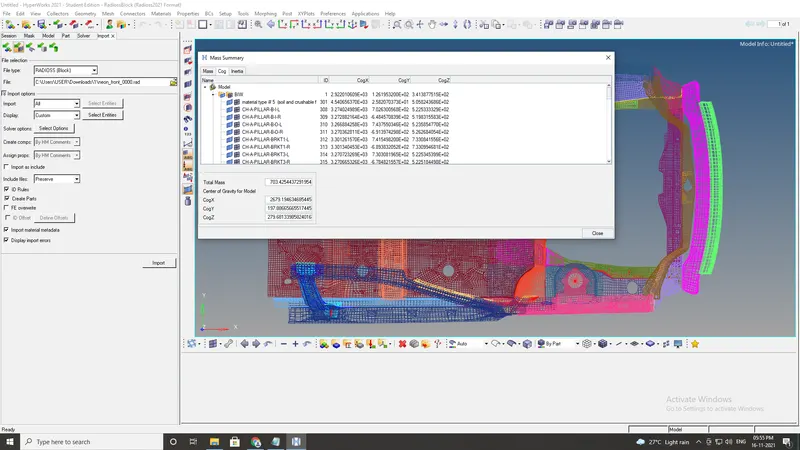

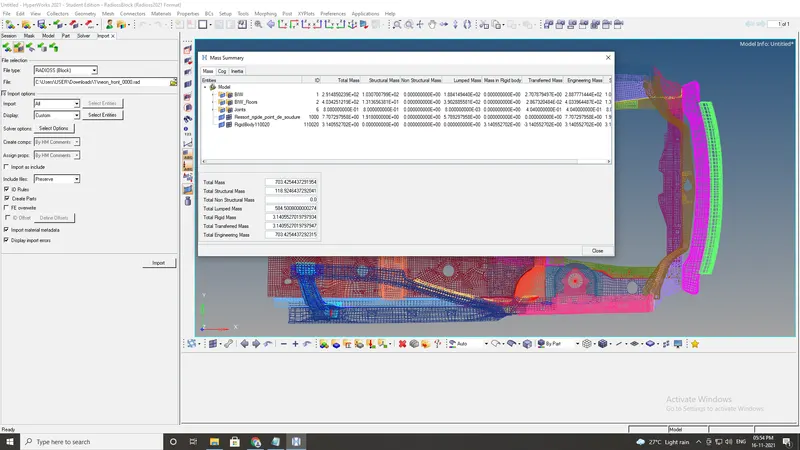

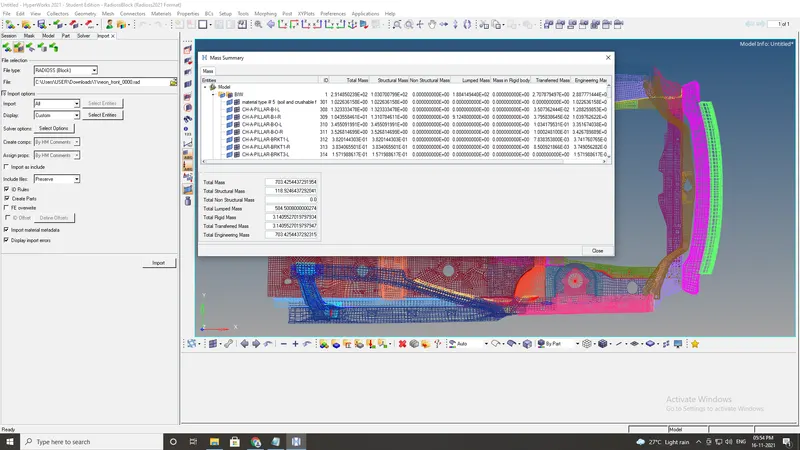

• check the mass is at 700kg.

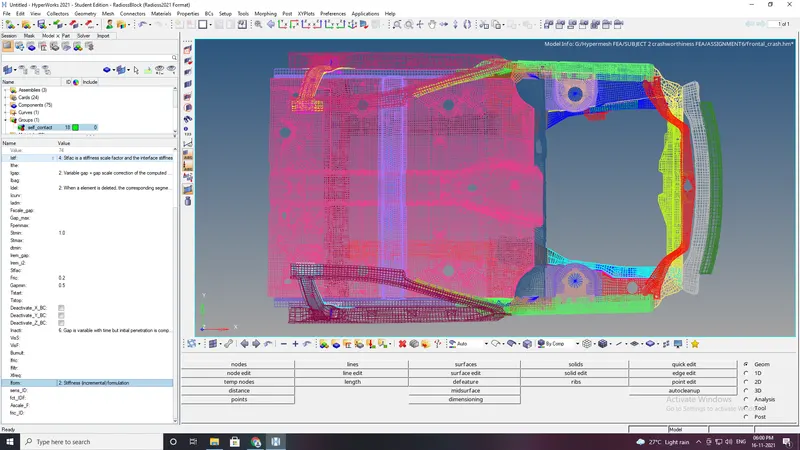

• Create an appropriate interface,frivtions 0.2 and recommended parameters.
• delete all the groups and create the contact interface.

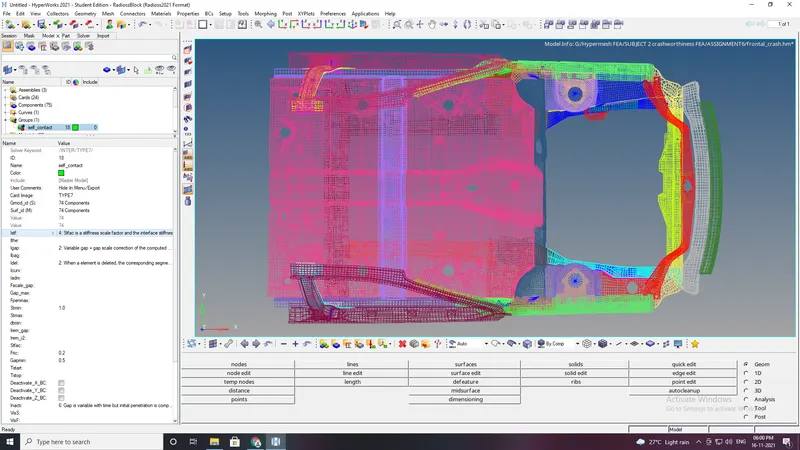

• create-contact. TYPE 7
• Istf = 4,Igap = 2,Idel = 2,Stmin = 1,Gapmin =0.5,Inactiv = 6,Iform = 2

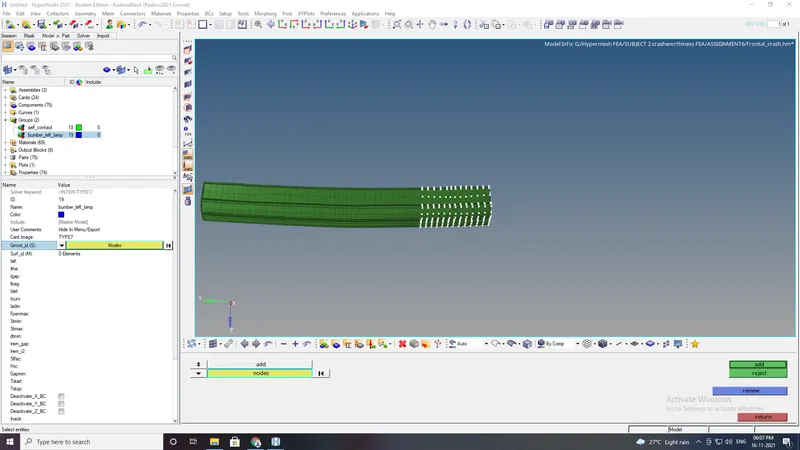

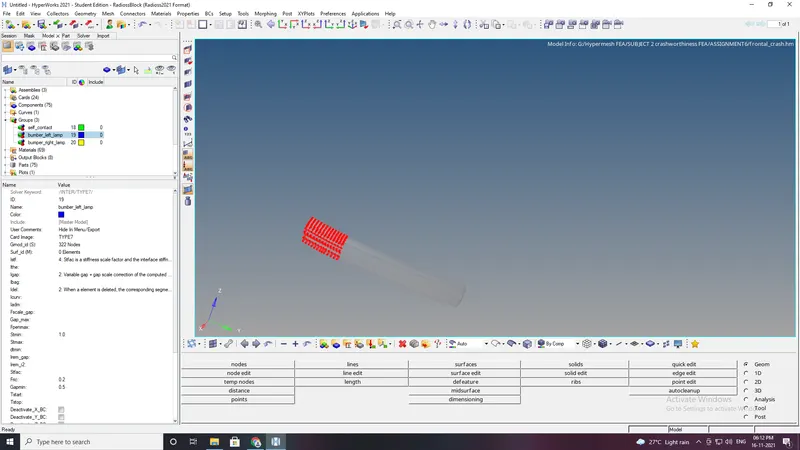

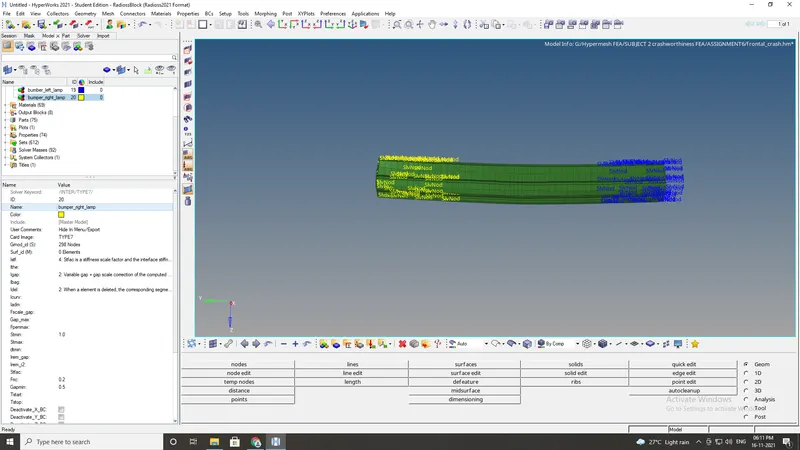

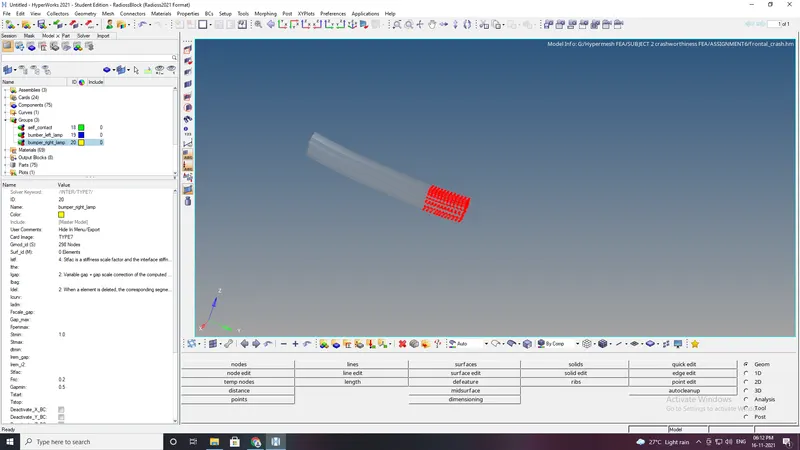

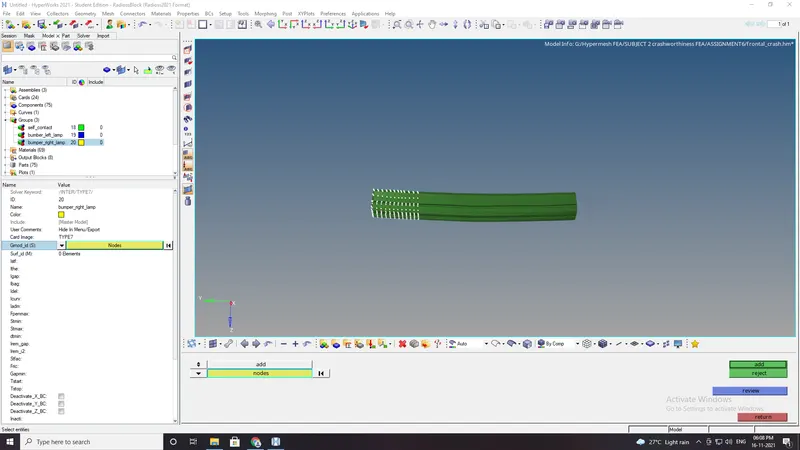

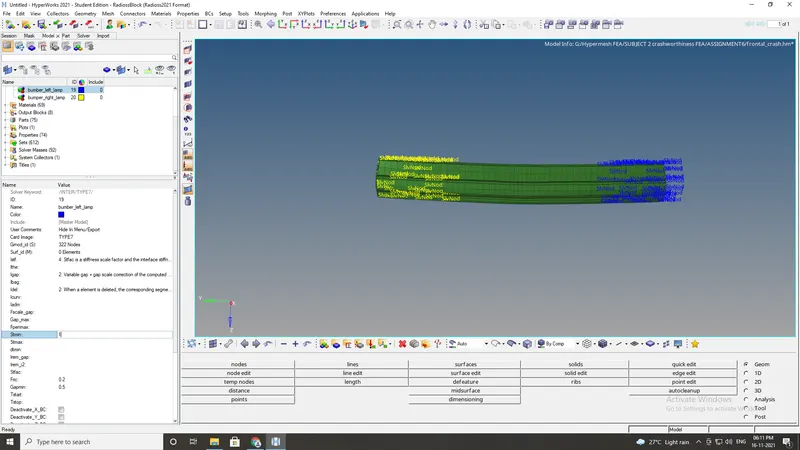

• For bumper - head light contact interface - nodes

• After creating the contact interface,review the check whether the master and slave are selected properly

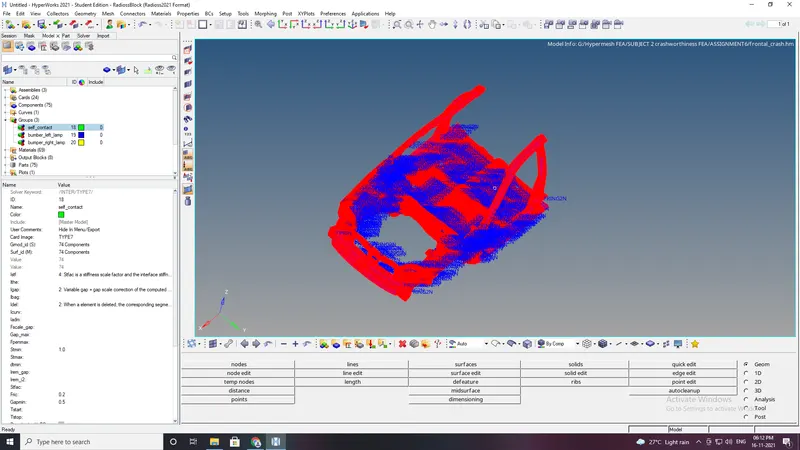

• red - slave , blue -master

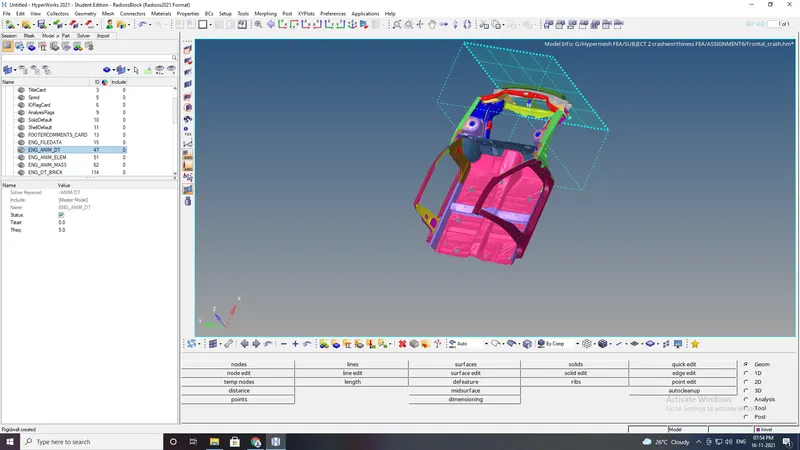

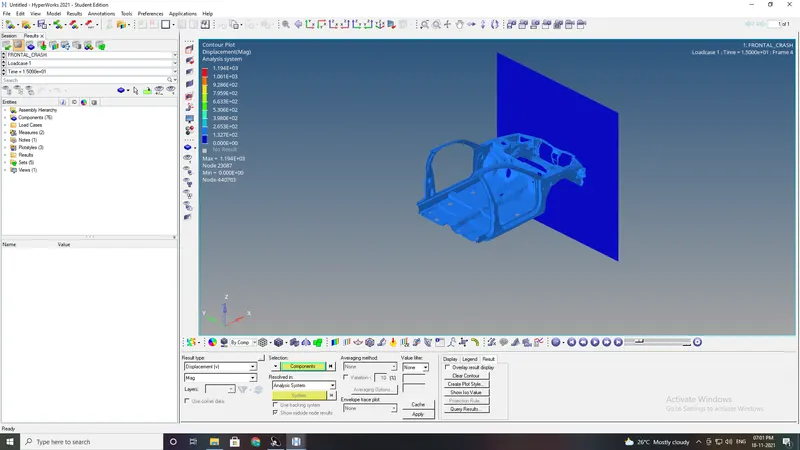

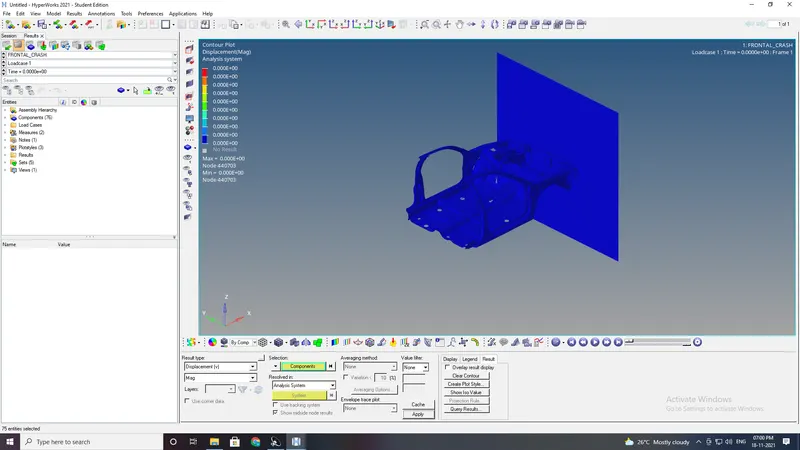

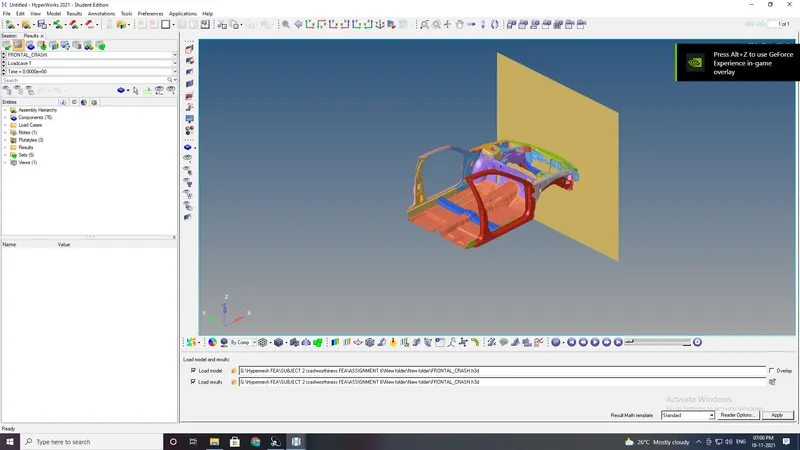

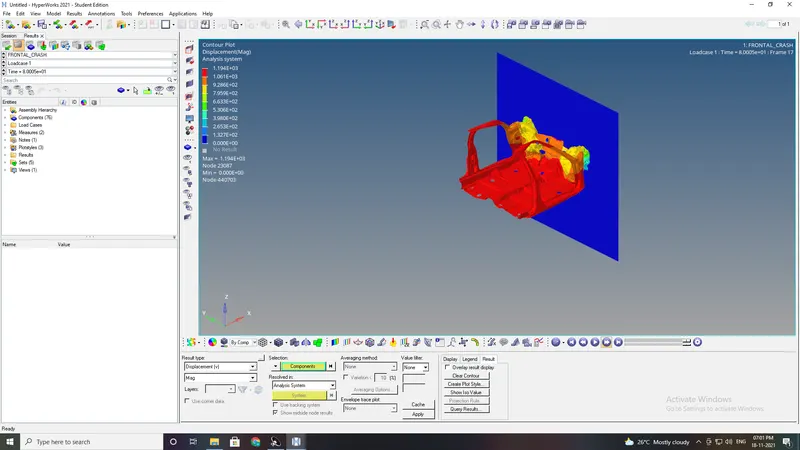

• create a rigid wall with friction 0.1

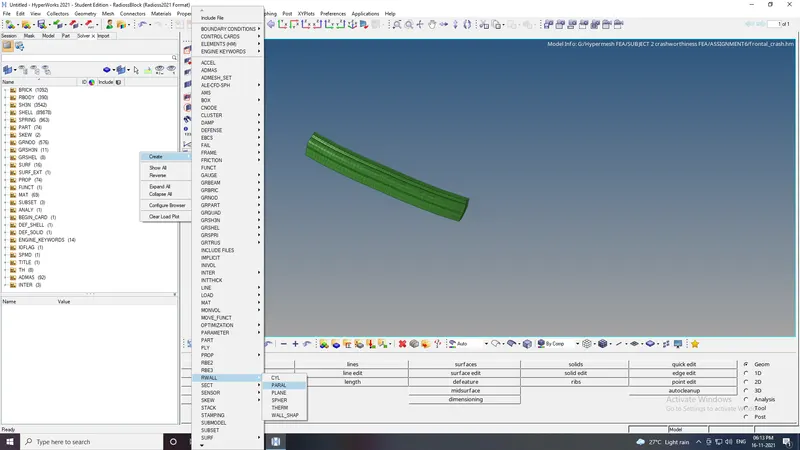

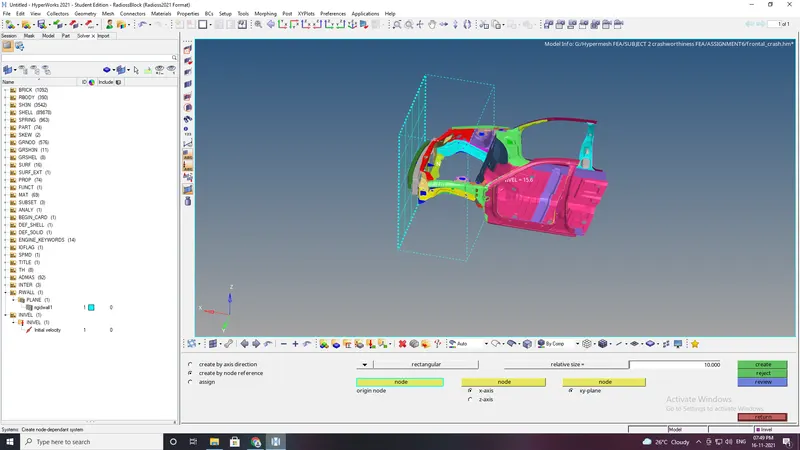

• In solver browser,create - RWALL-PLANE.

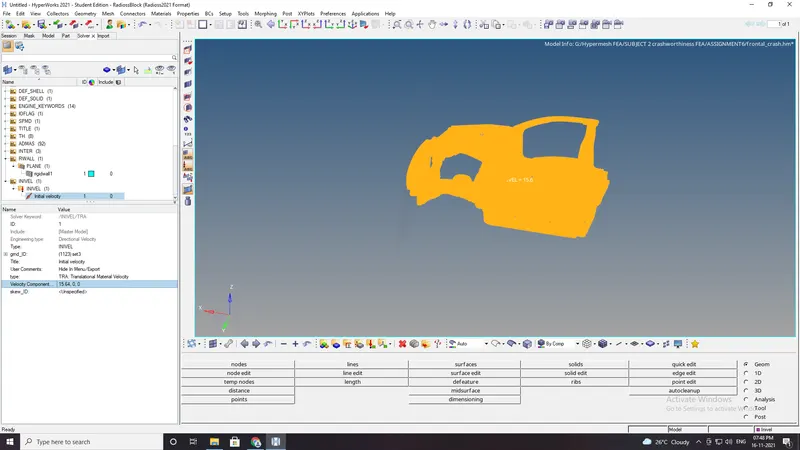

• INTIAL VELOCITY 35mph

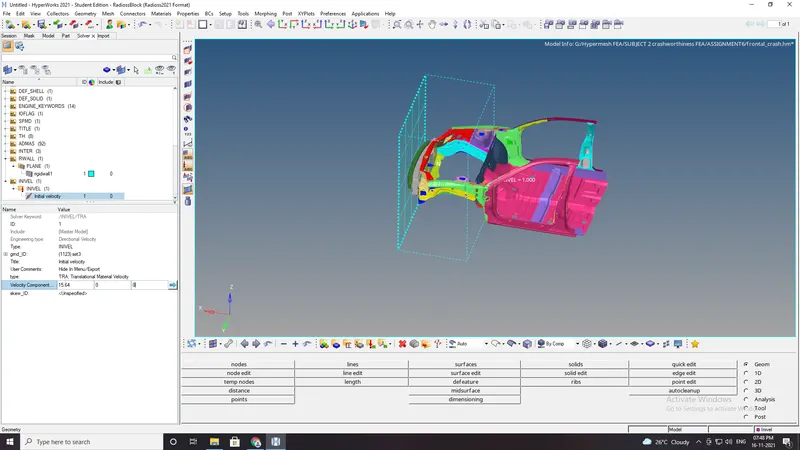

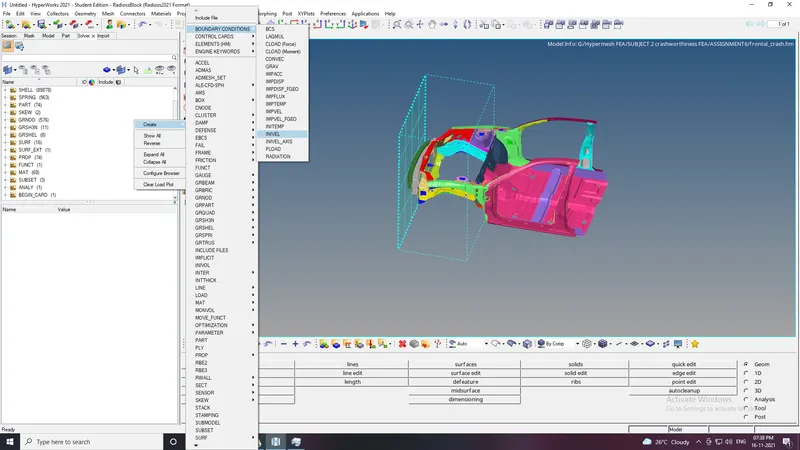

• create - boundary conditions-INIVEL

• Give velocity components : 15.64 kmph and select all the set in the grnd_ID

• using Review check whether all the sets are assigned with the given initial velocity.

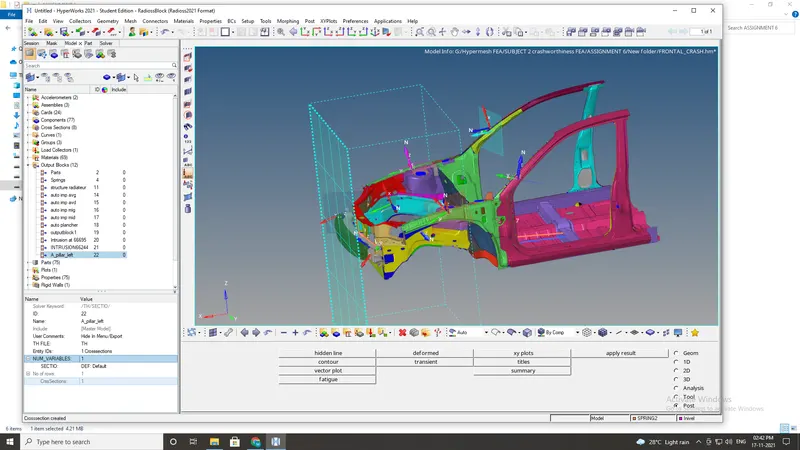

• For output request

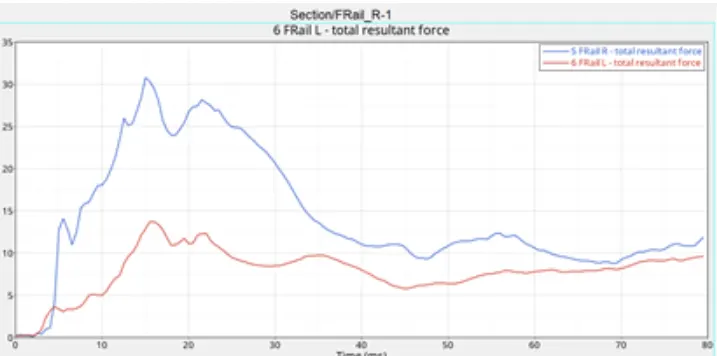

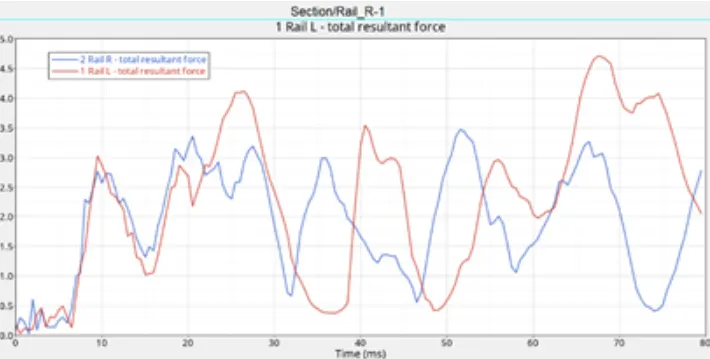

• sectional force in the rails at the loctions of indictaes nodes 174247.

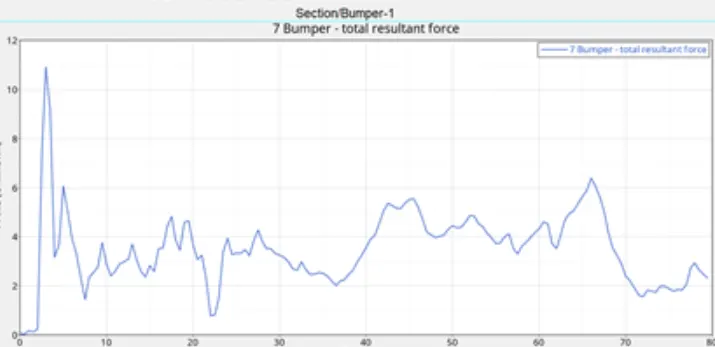

• The axial force received on the rails from bumper.

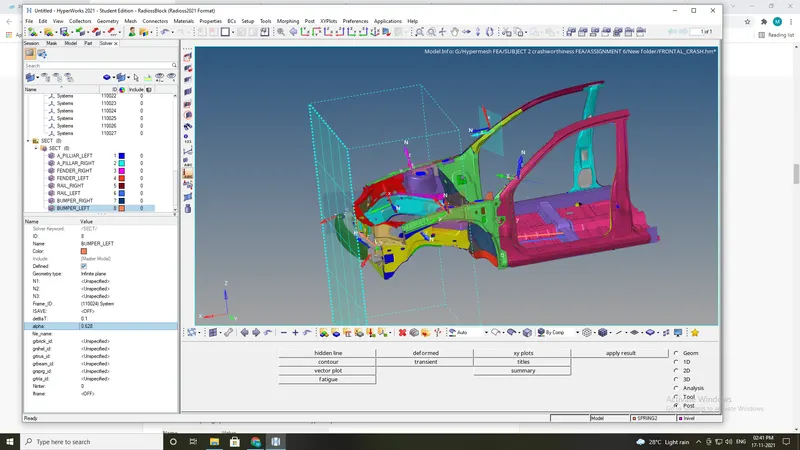

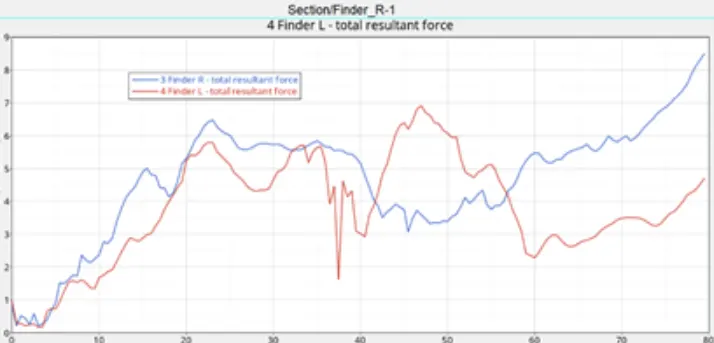

• SHOTGUN SECTION-SECTIONAL FORCES

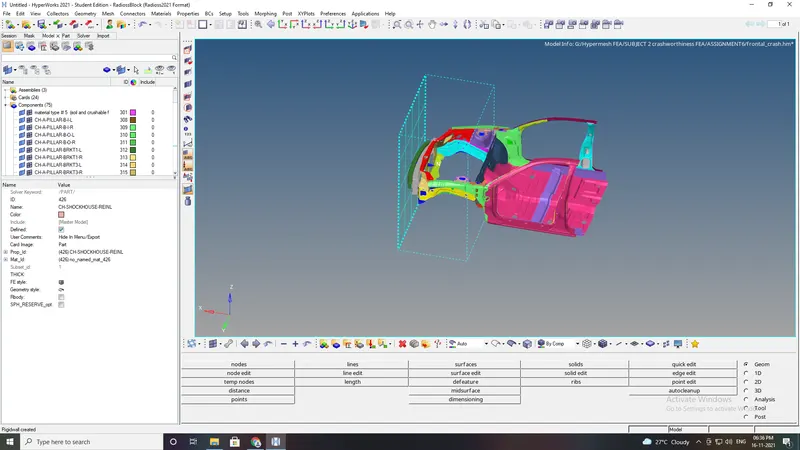

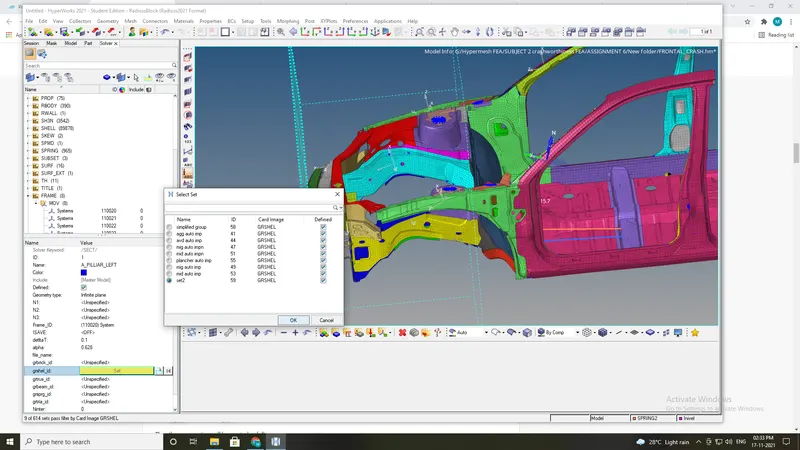

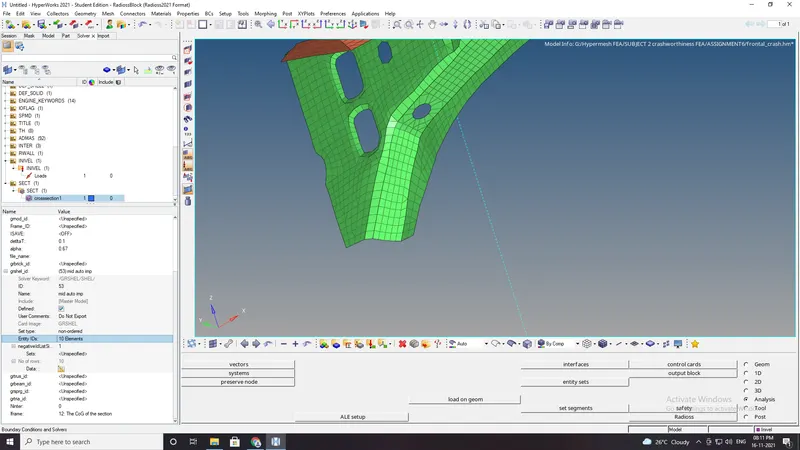

• A PILLAR CROSS - SECTION.

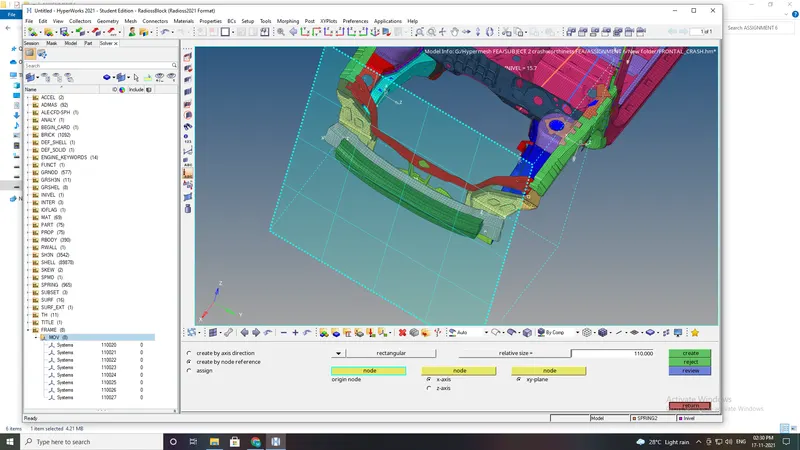

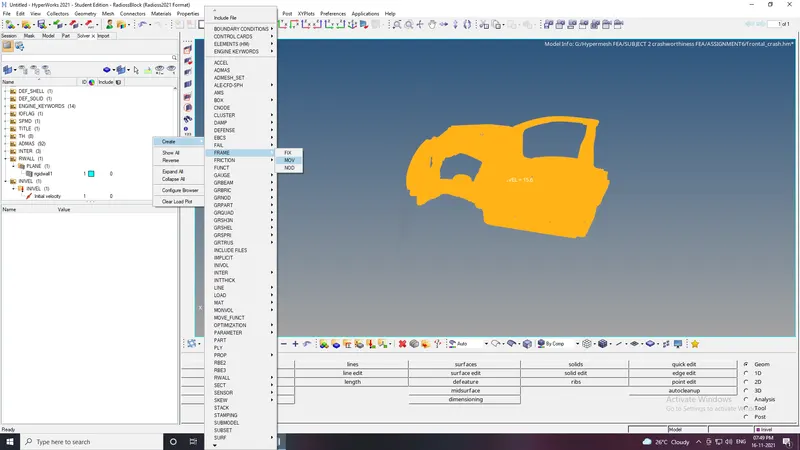

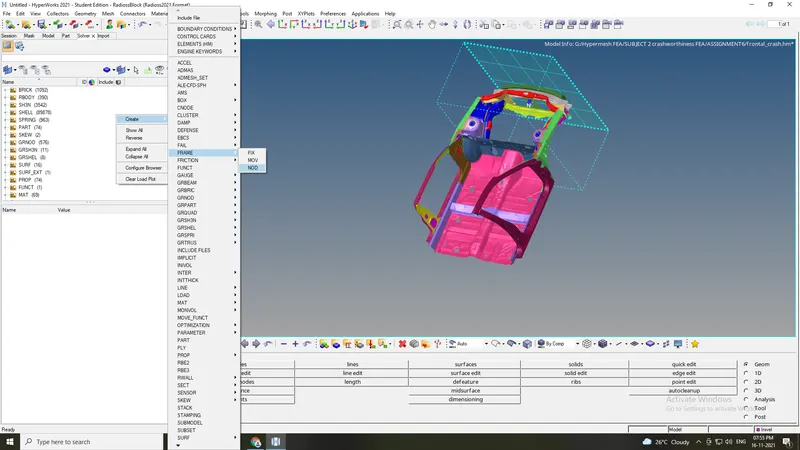

• CRREATE-FRAME-MOV-CREATE BY NODE REF.-ZAXIS-YZ PLANE.

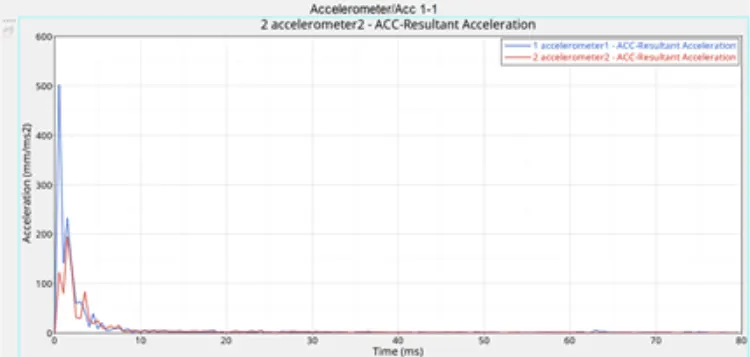

• Acceleration curve recived on the accelerometer at base of B pillar(on B pillar rocker).

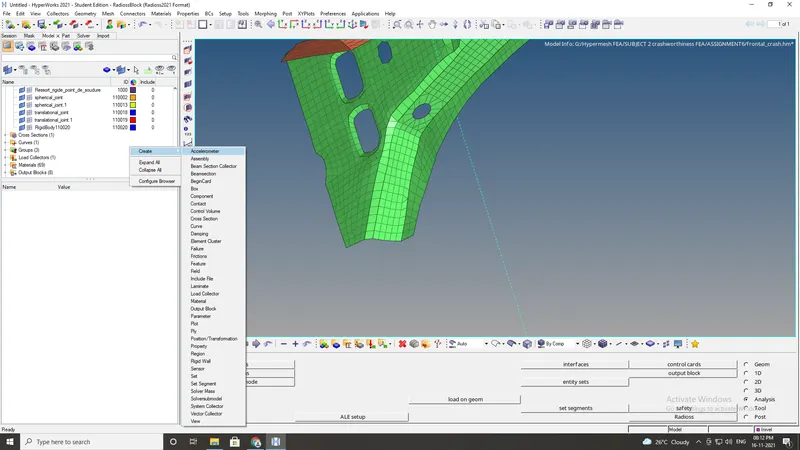

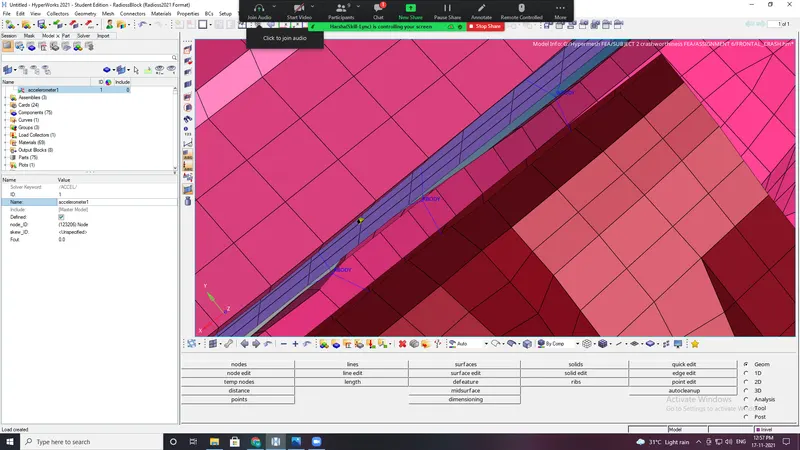

• Create-accelerometer
• selecrt the nodes.

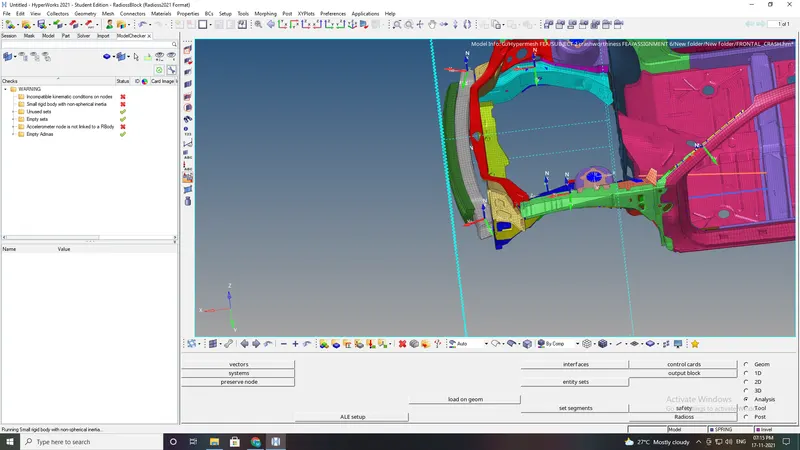

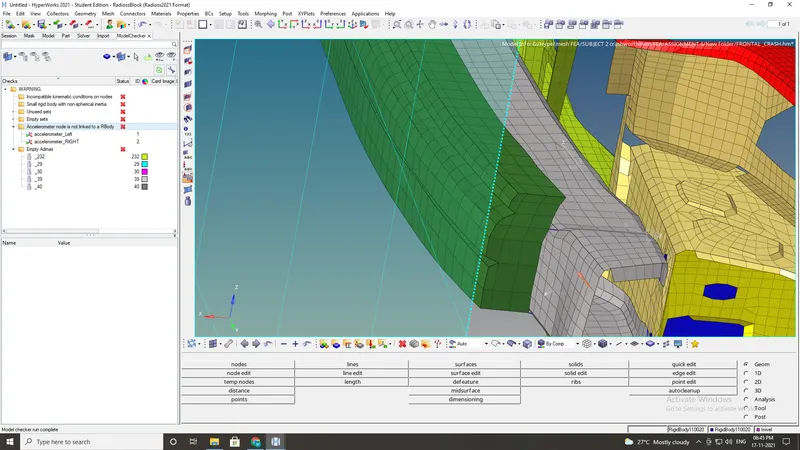

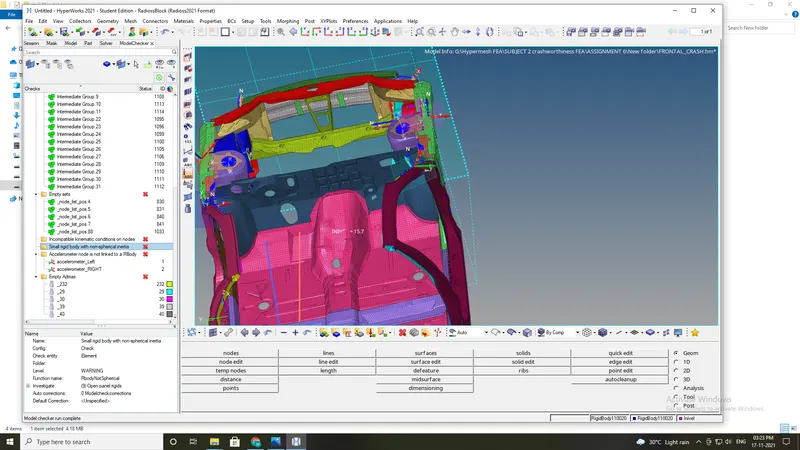

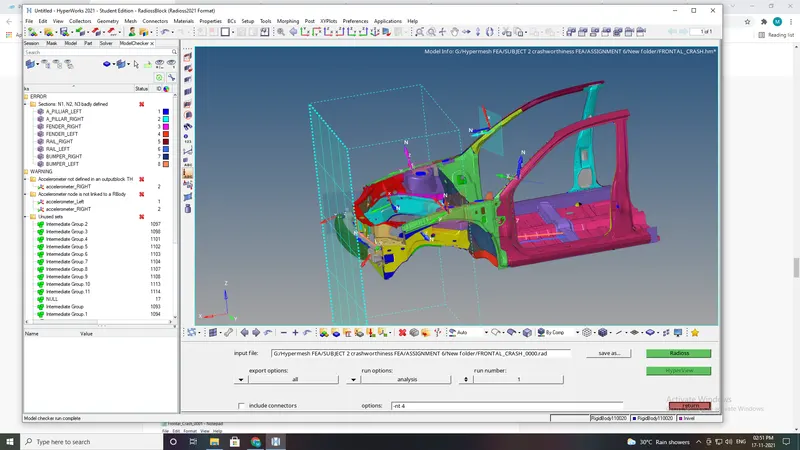

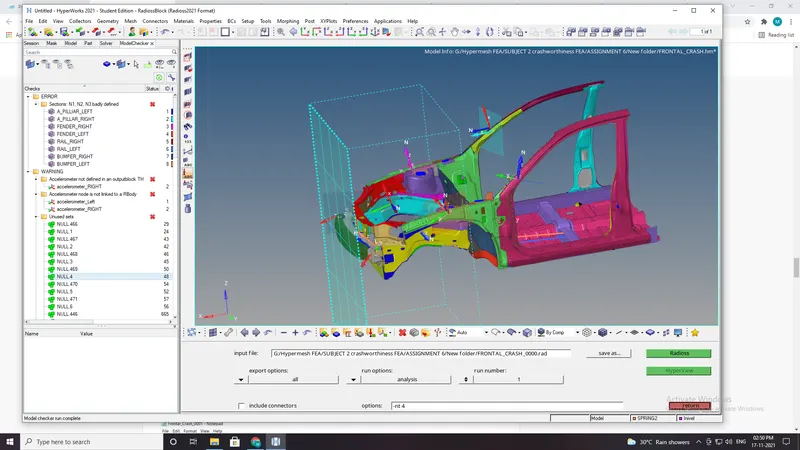

• model-check

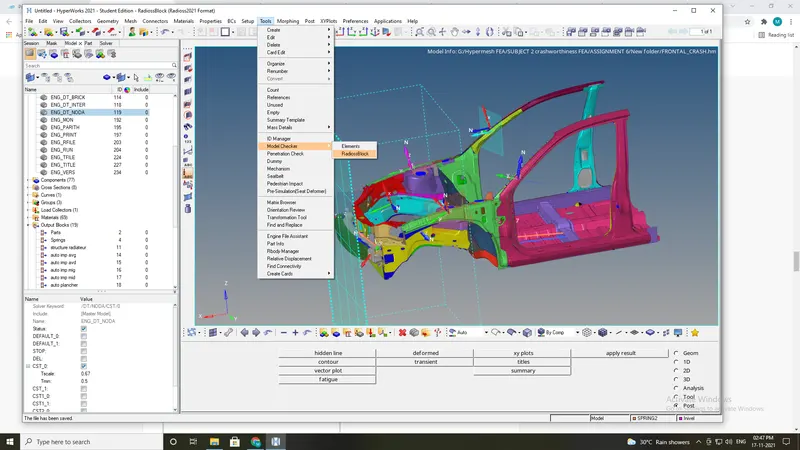

• Hypermesh-tools-model checker-radioss

• status is completed with no errors.

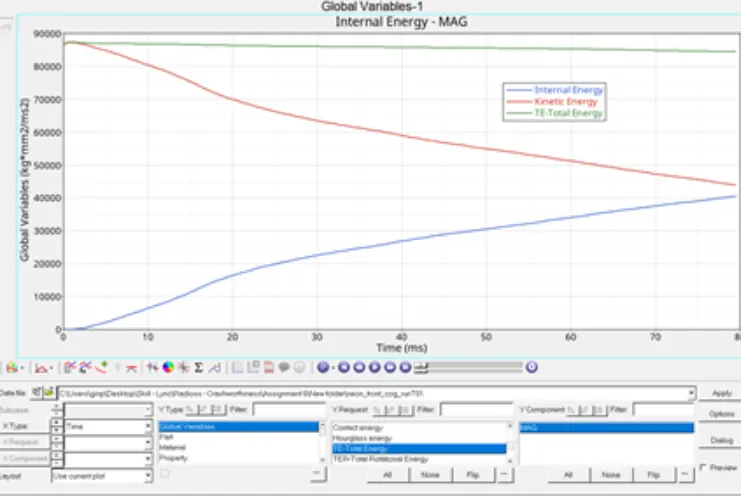

energy curves:

Mass energy

• Internal energy(79.5,40492)
• kinetic energy(0.5,87311)
• total energy(1,878371

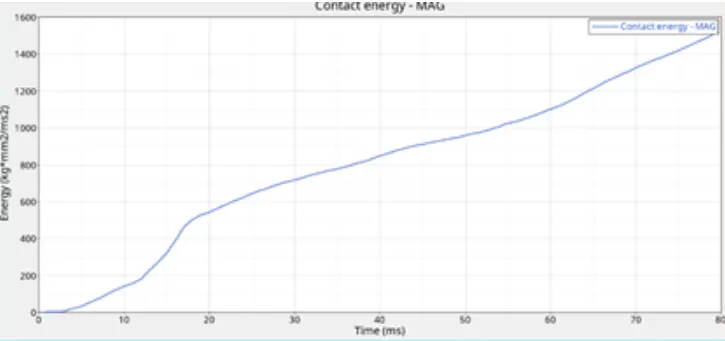

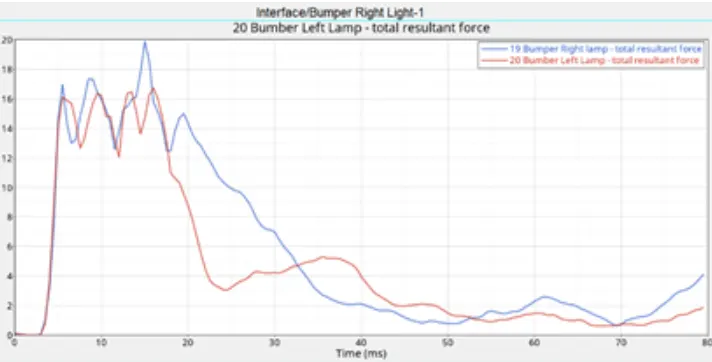

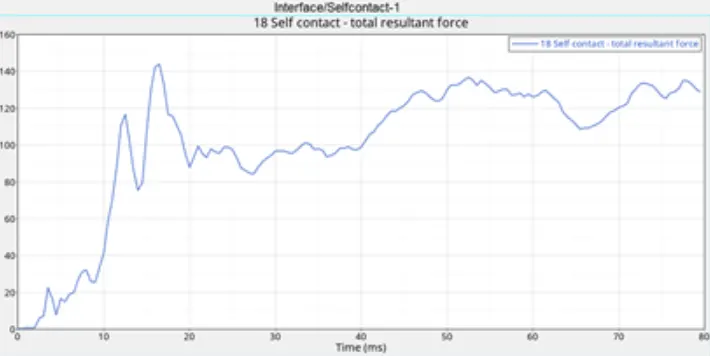

Contact energy

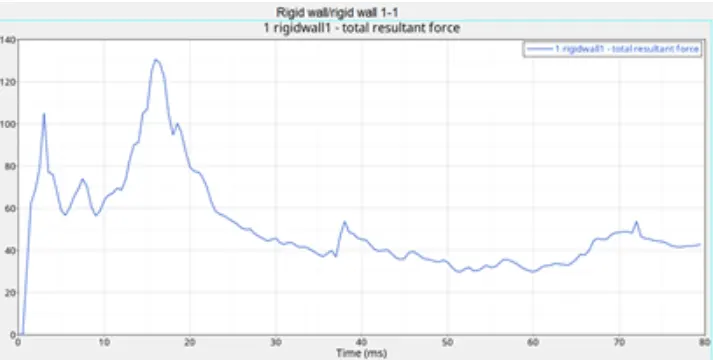

rigid wall

Result :

Thus the given model front half model was made to do the crash simulations with required inputs.
