Assignment 3-2D Element Formulation Challenge
1.Using the crash beam file from the previous assignment, change the run time to 55 ms.
Ans.
2. Change the number of animation steps during simulation to a minimum of 25 and maximum of 60.
Ans.

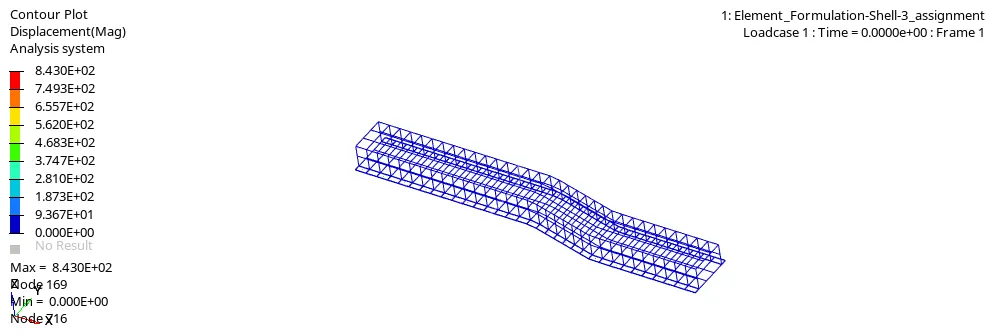

3. Run the base simulation without any modification to element properties
Ans.

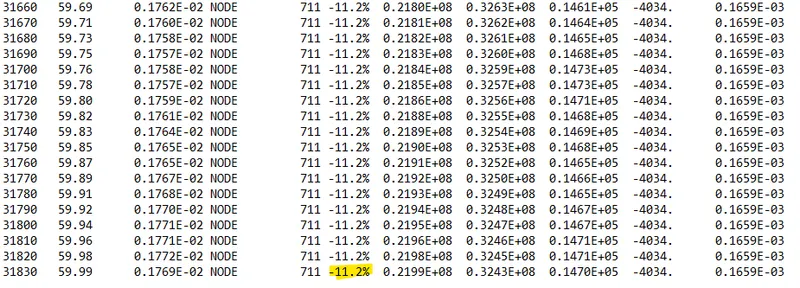

4. At the end of the simulation, do the energy error and mass error checks and determine whether results would be acceptable.
Ans. All the values were not extending the desired value 5 Hence we can say that the errors are acceptable

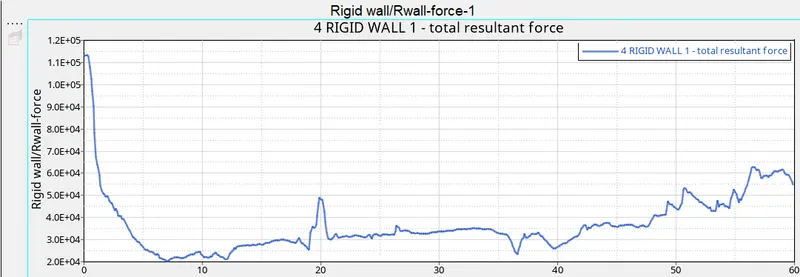

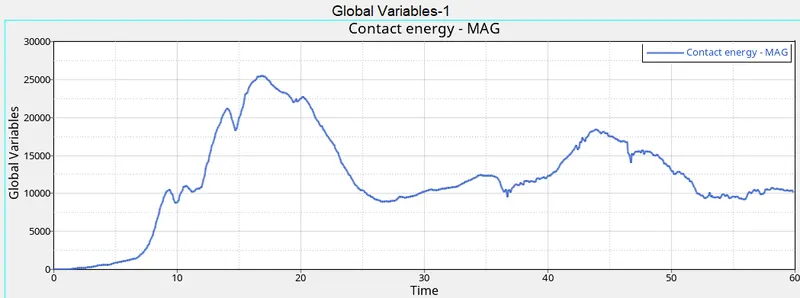

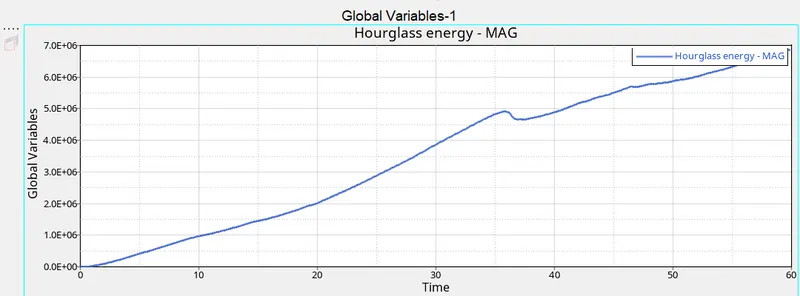

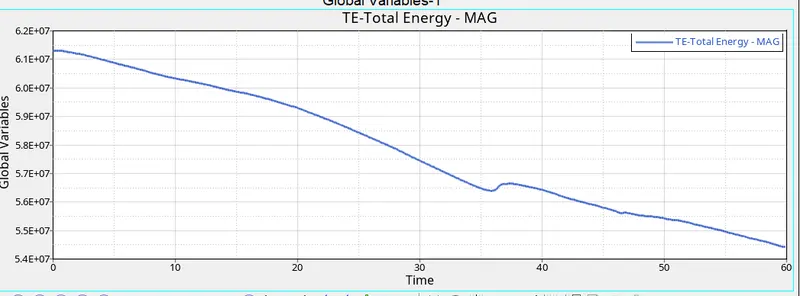

5. If acceptable, Plot rigid wall forces, internal energy, hourglass energy, contact energy, total energy of the simulations.
Ans.

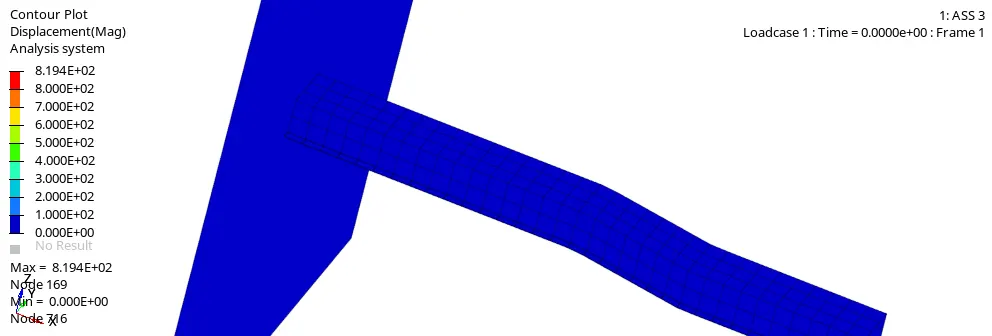

6. Change all the shell elements properties to recommended properties, save this as separate, rad files and run the simulation.
Ans.
8. Create a brief report comparing all the results from steps 5 and 6 for both simulations.
Ans. Sim2 Sim 1
CONTACT SORTING.............: .1531E+01 6.66 % CONTACT SORTING.............: .3312E+01 8.64 %
CONTACT FORCES..............: .2734E+01 11.90 % CONTACT FORCES..............: .5547E+01 14.47 %
ELEMENT FORCES..............: .1456E+02 63.36 % ELEMENT FORCES..............: .2147E+02 55.99 %
KINEMATIC COND..............: .5625E+00 2.45 % KINEMATIC COND..............: .1234E+01 3.22 %
INTEGRATION.................: .3281E+00 1.43 % INTEGRATION.................: .7188E+00 1.87 %
ASSEMBLING..................: .6719E+00 2.92 % ASSEMBLING..................: .1531E+01 3.99 %
OTHERS (including I/O)......: .2594E+01 11.28 % OTHERS (including I/O)......: .4531E+01 11.82 %
TOTAL.......................: .2298E+02 100.00 % TOTAL.......................: .3834E+02 100.00 %
9. Comment whether there is any change in the results and why there is any change in the result.
Ans. The total resulatant forces are less compared to sim 1 as the elemntal properties were not clear in the sim 1 according to the standards
