Assignment 2-RADIOSS Engine File Editing & 3D Meshing Challenge

Aim:

The aim is to do the edit in engine file and the 3d meshing of given models.

Objective:

Engine File Snippet:

Questions:

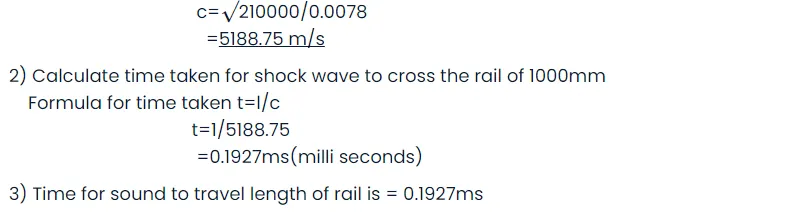

1. Check the material properties of the rail component and calculate the speed of sound in steel rail=_______

2. The length of the rail is about 1000 mm.calculate the time takes for a shock wave to travel from one end of the rail to the other.

3.Time for sound to travel length of rail=______

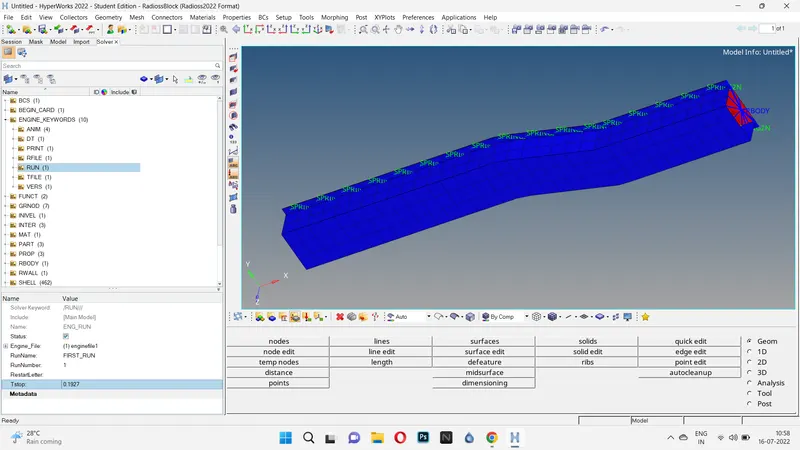

4.Edit the engine file so that the stress wave can be monitored, moving from one end of the rail to the other during impact -this will require a termination time equal to the time it takes for the sound to travel the length of the rail(set on/RUN card)

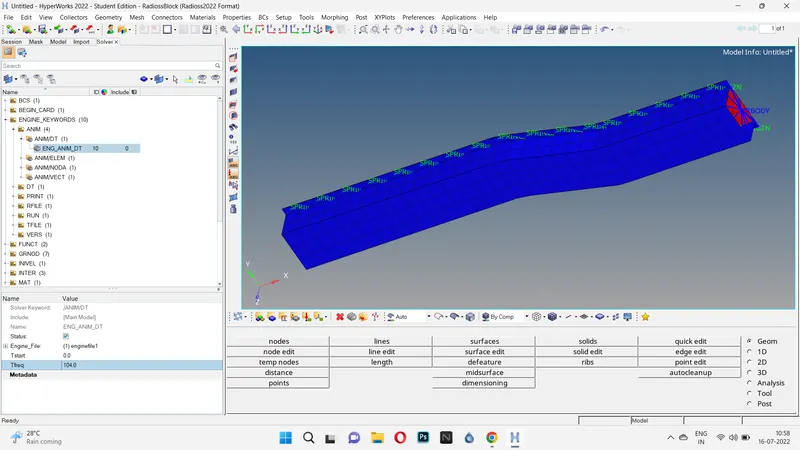

5.Set the frequency of animation output to a time that will give 20 animation steps(/ANIM/DT)

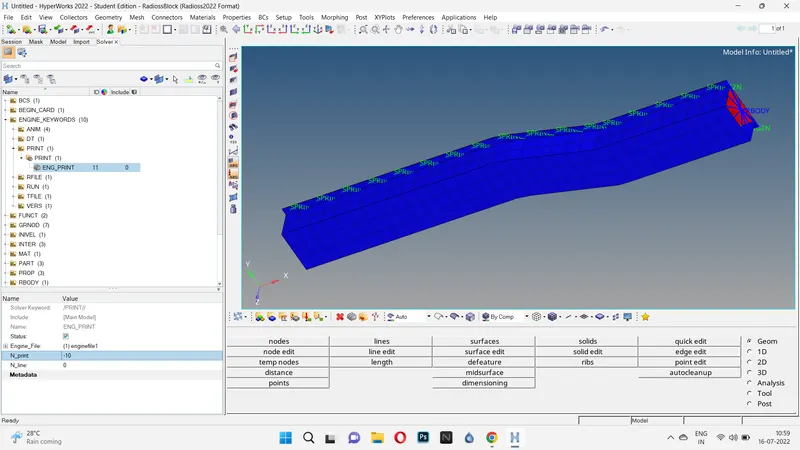

6.Change /print -10.

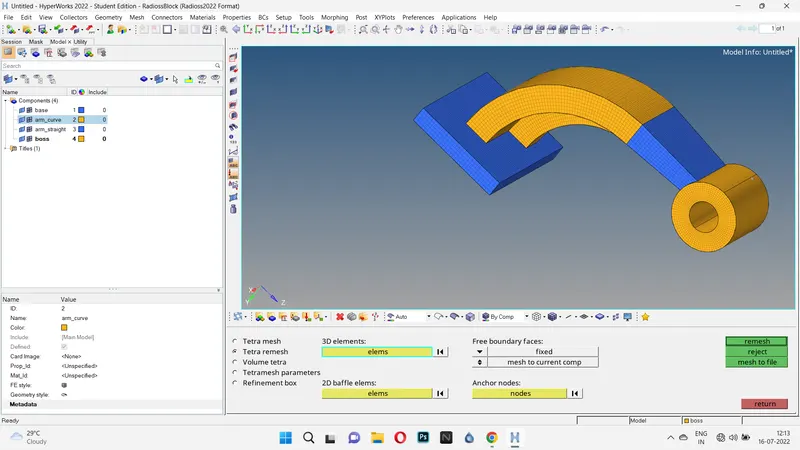

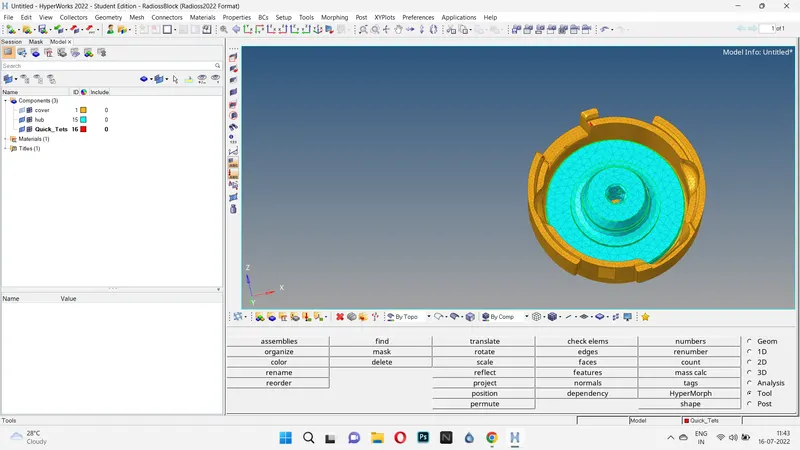

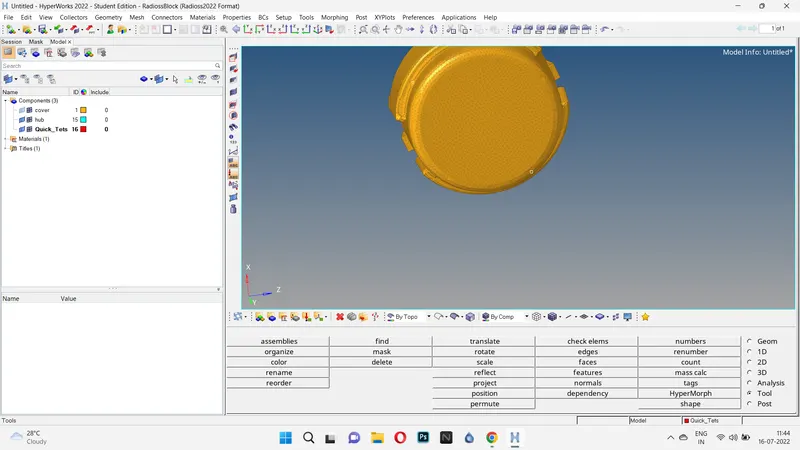

7.3d meshing tetra mesh and hex mesh

• Repeat class examples and, maintain the quality.
• Target tet size=5mm,hex size=10mm,tet collapse=0.15.

Engine solver:

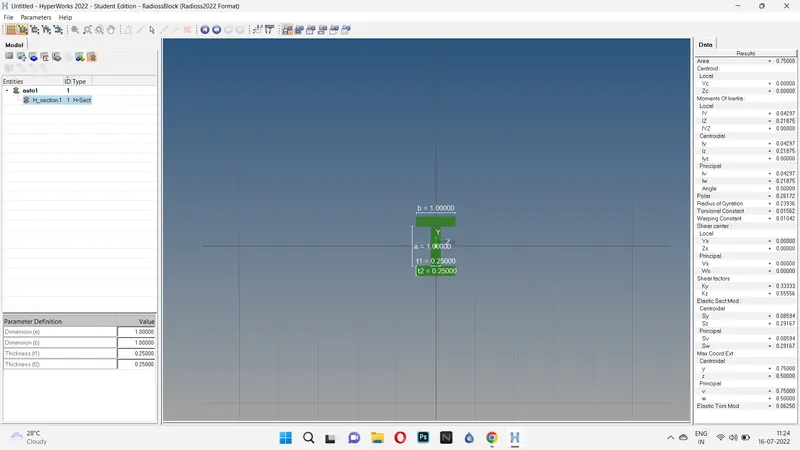

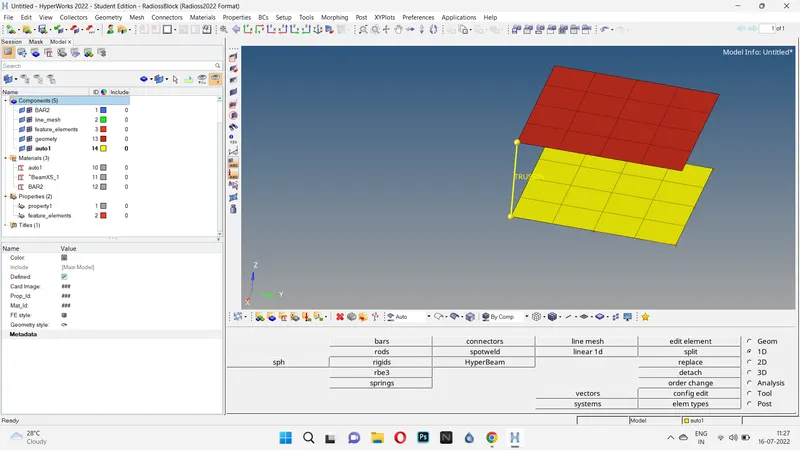

For the 1d element:

For housing:

For Arm:

Result:

Therefore for the given objective all has been completed and the file attached to the asset.
