Assignment 11

Tutorial 1:

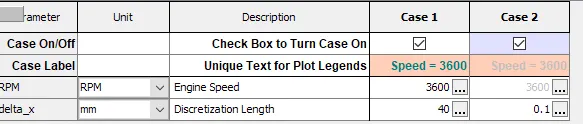

For the given case setup:

When each case is run independently, following shows the increase in computation time:

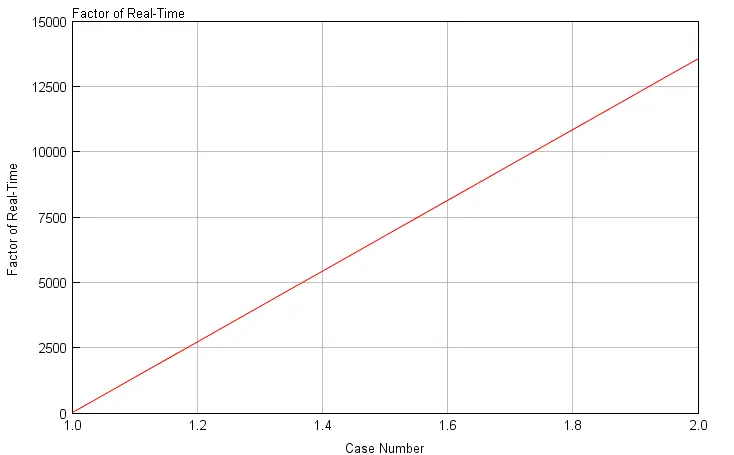

Above figure shows how time real factor is effected with variation in discretization length.

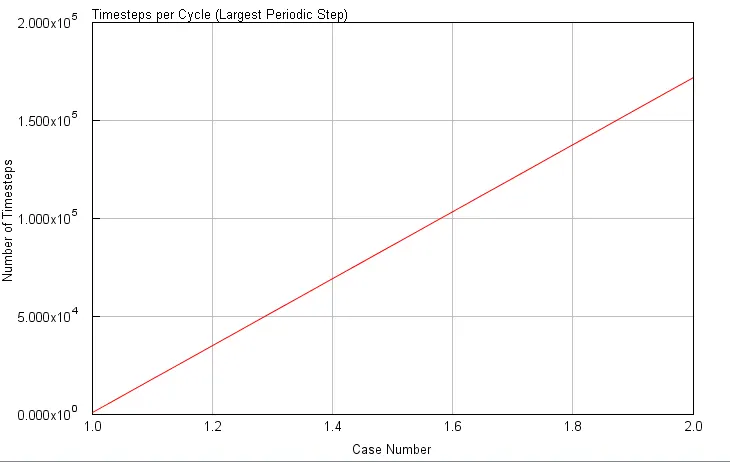

From above graph clear direct propotionality can be evaluated between discretization length and time step.

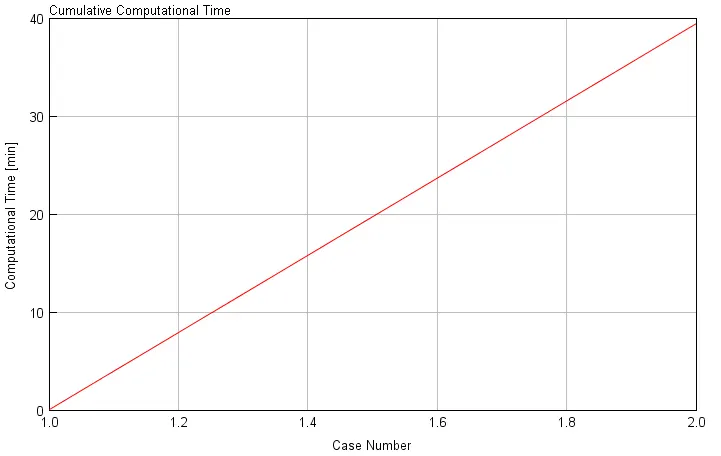

From above graph effect of computation time can be evaluated for case 1 and case 2.

Tutorial 2:

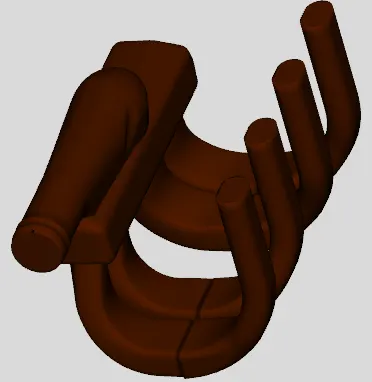

Step 1: Following figure shows imported stl model:

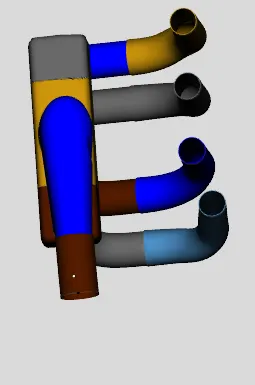

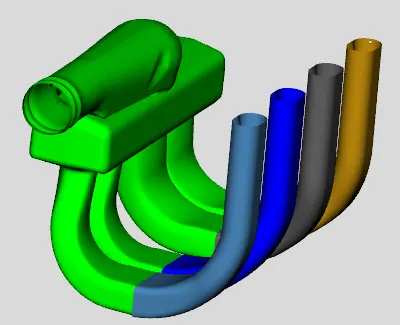

Step 2: Following is the model obtained after using, "Seprate by curve":

Its inlet and outlet ends are deleated.

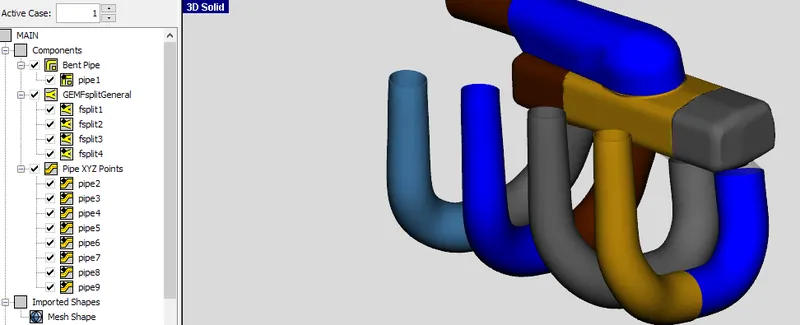

3. Discretization model with GT templates:

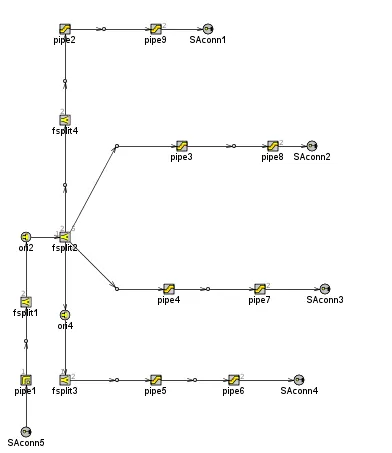

4. GT model:

Above figure shows the exported GT model.
