Assignment 1-2D Meshing Challenge
2D Meshing Challenge
AIM
To extract mid-surface from given component by geometry clean up and create the shell (two dimensional) mesh for the given three parts according to the given quality criteria by using HYPERMESH.
PROCEDURE
Extract mid-surface for all three models.

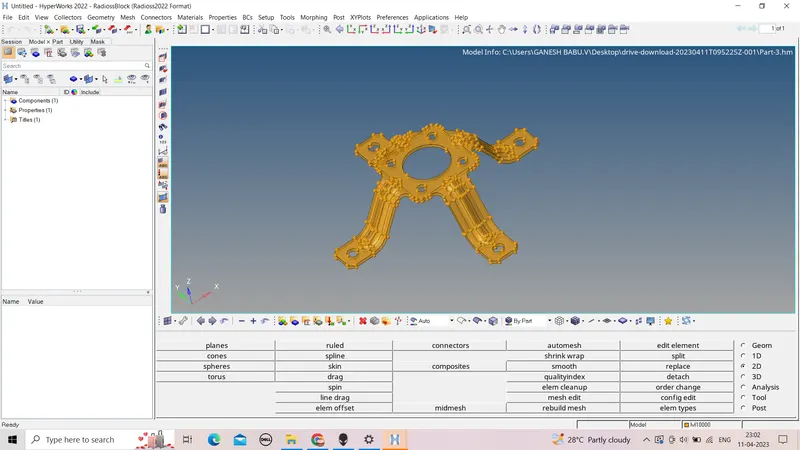

MODEL 1
Import the model.
After importing the model clear the geometry without having any free edge
Clearing all single and triple cons.

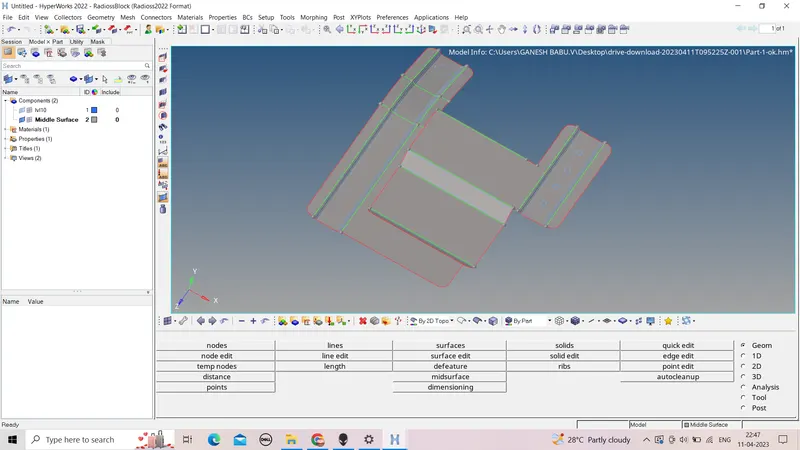

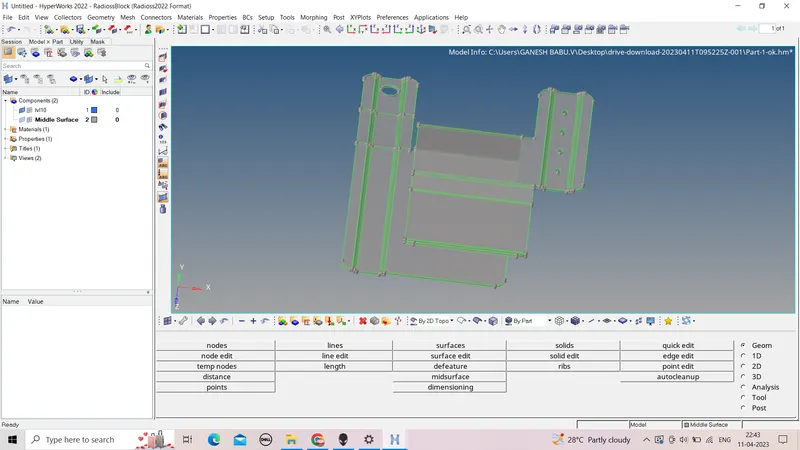

And extract the mid-surface for the given model
After extract the midsurface clear all cleanup
After clean the all cleanup mesh can be done by automesh

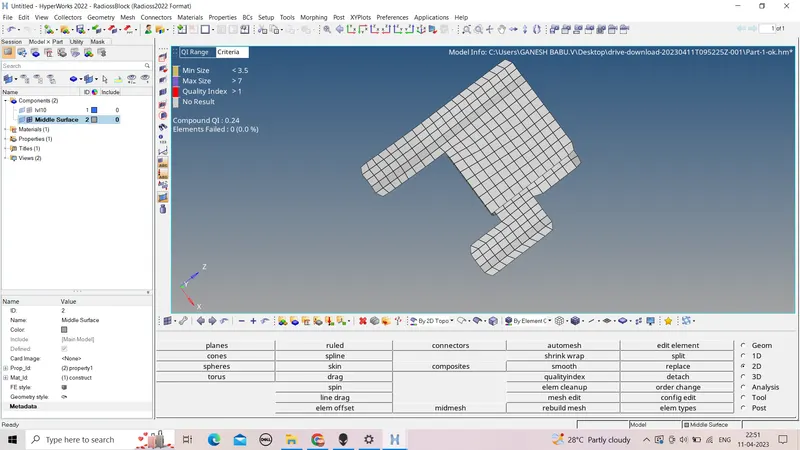

With quality criteria of target element length of 5mm
minimum element length of 3.5mm
maximum element length of 7mm
clear all quality criteria
MODEL 2

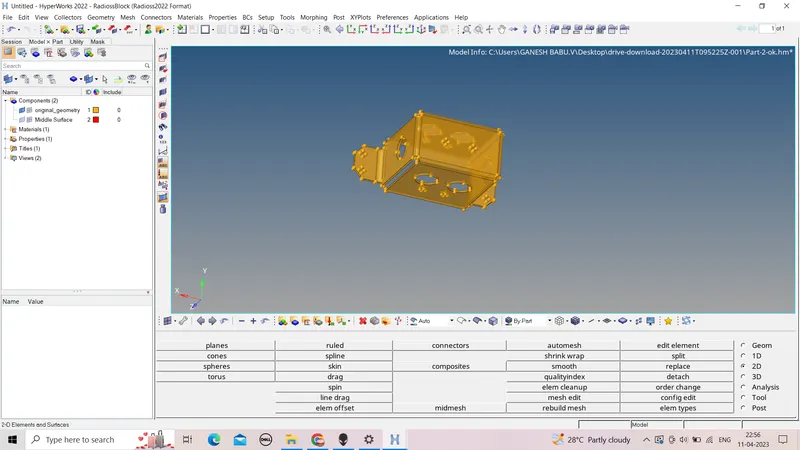

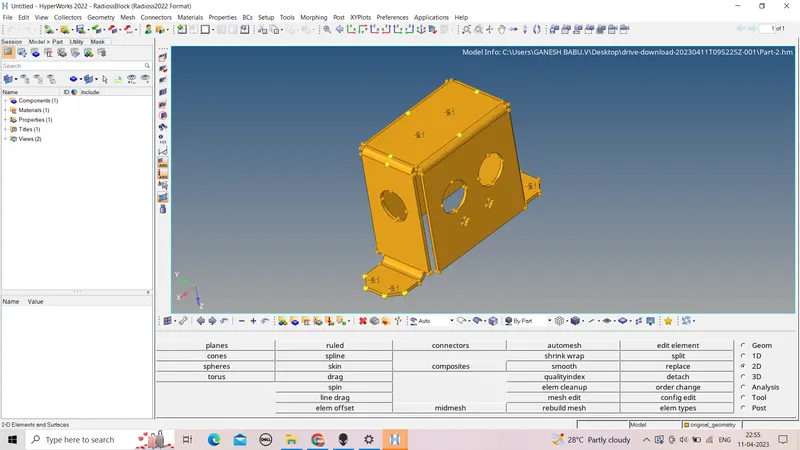

Import the model.
After importing the model clear the geometry without having any free edge
Clearing all single and triple cons.

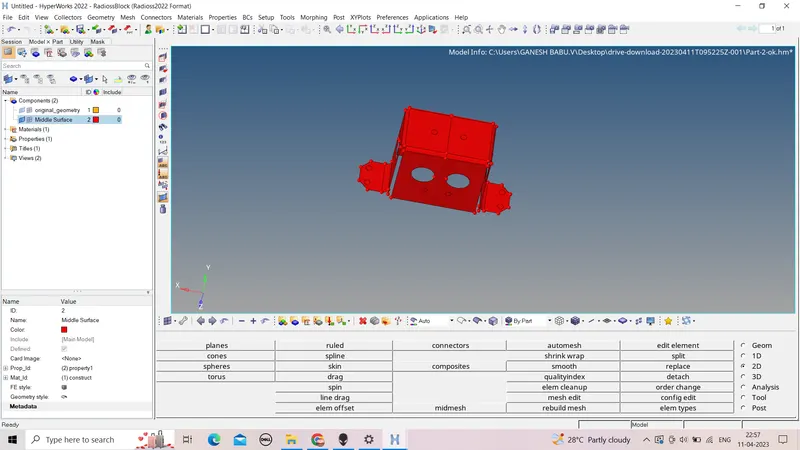

And extract the mid-surface for the given model
After extract the midsurface clear all cleanup
After clean the all cleanup mesh can be done by automesh
With quality criteria of target element length of 5mm
minimum element length of 3.5mm
maximum element length of 7mm
clear all quality criteria
MODEL 1
Import the model.
After importing the model clear the geometry without having any free edge
Clearing all single and triple cons.
And extract the mid-surface for the given model
After extract the midsurface clear all cleanup
After clean the all cleanup mesh can be done by automesh

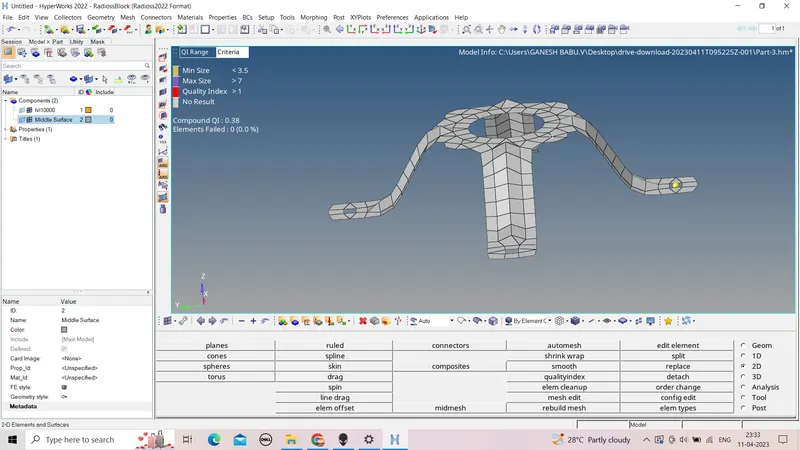

With quality criteria of target element length of 5mm
minimum element length of 3.5mm
maximum element length of 7mm
clear all quality criteria
Conclusion
Meshing of Rear Wheel Holder challenge by the proper quality criteria
