Assignment 1
objective:For the given geometry clean up the geometry and then extract the midsurface and mesh the component witha a given quality criteria .
procedure:1. Import the given geometry and then make the clean the geometry with that holes having the dia of 5mm ignore that holes.
2.After the geometry cleanup extract the midsurface for the given component and make the holes fill if having the small dia and having dia less than 5mmand if elements fails .
3.correct the midsurface manually if not having a proper and then set the quality criteria .
4. After the set of quality criteria and then mesh the given component with quality criteria given for the component.
5.Mesh the component avoid the opposite trias and if there fix it by using remesh or the replace option.
6.using the smooth option then smooth the elements for the proper mesh and using the translate option move the nodes of the elements to fix the element quality.
7.first make the property of the component to be current which is on current working.
8.After the meshing of the components check for the free edges if any fix it by using the split and combine option.
9.finally meshing of all the components assign the property
steps to assign the property
- first create the component id and then create the property of that element using the card image as the p-shell and then assign the property to the particular component by moving the collectors or elements to the particular property of the component.

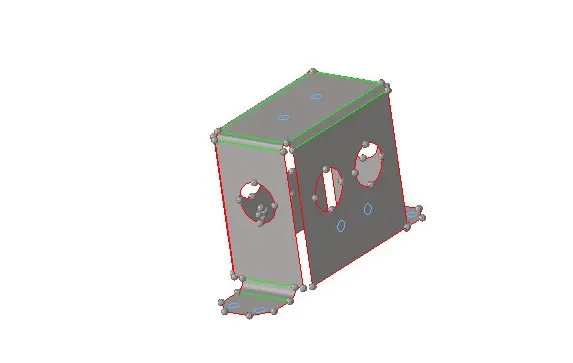

fig shows the import geometry of part1
fig shows the midsurface of part1

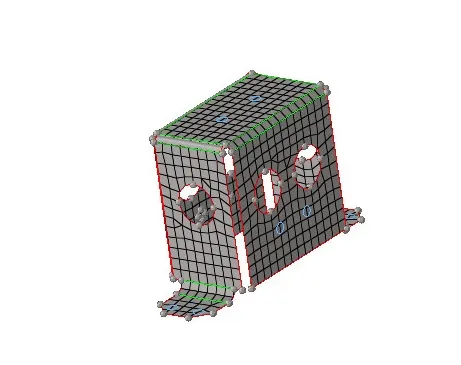

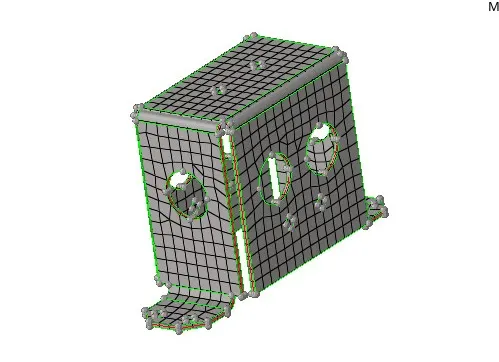

fig shows the meshing of part1
fig shows the thickness assign to the part1

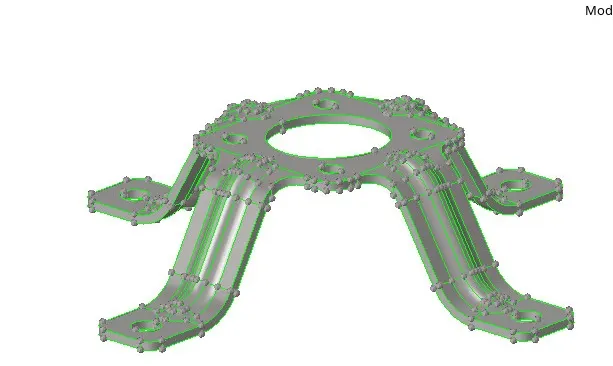

fig shows the import of part2

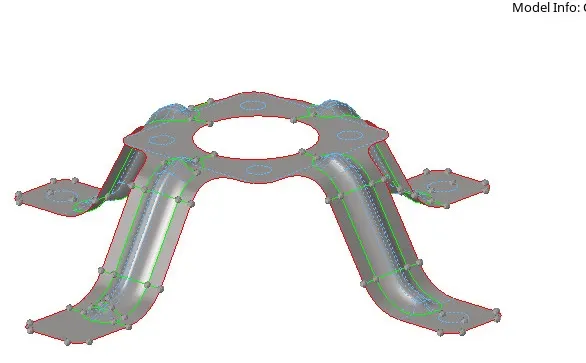

fig shows the mid surface of part 2

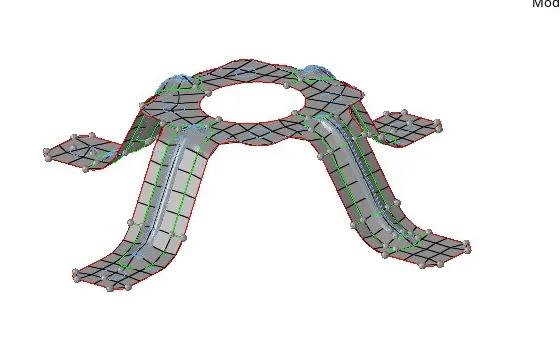

fig shows the meshing of part 2

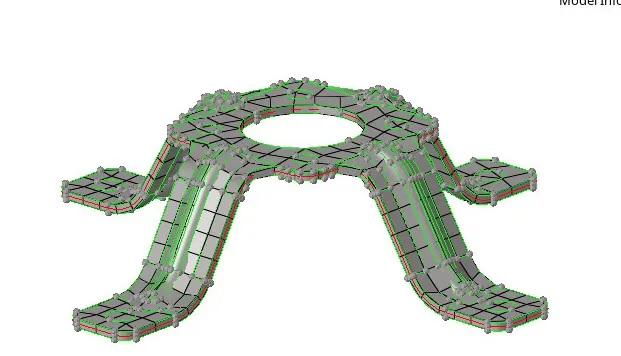

fig shows the thickness of part2

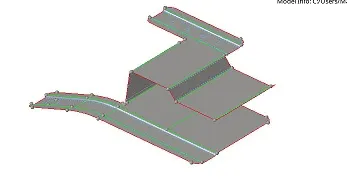

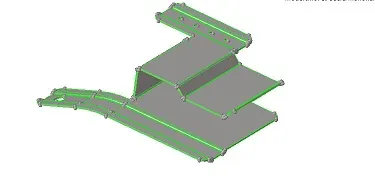

fig shows import of model 3
fig shows the mid surface of the part3

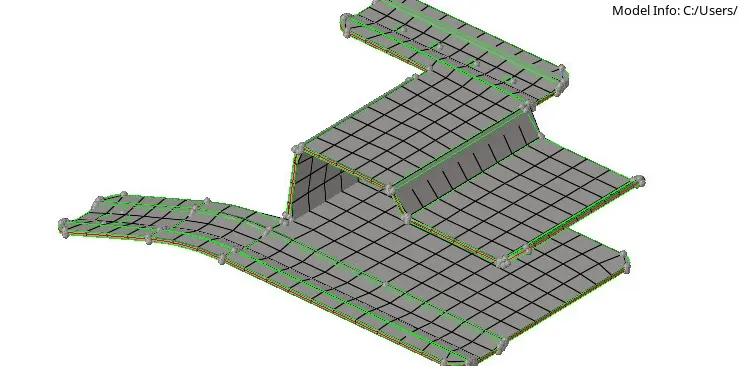

fig shows the thickness of part3

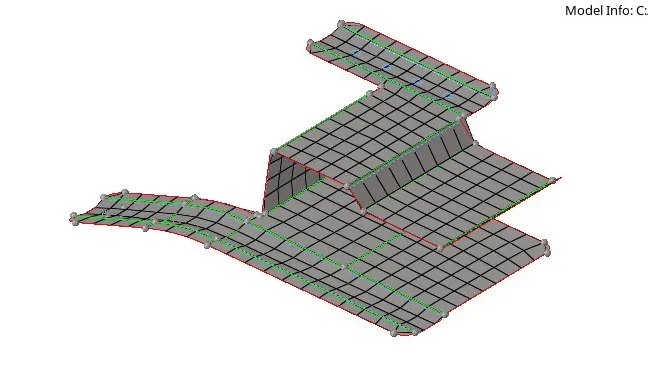

fig shows the meshing of part3
conclusion:In these components learnt about the extract of midsurface and meshing of the components and to assign the property to the particular component.
