Assembly of Yacht
Title: Design, modelling, assembly and photo realistic rendering of sunseeker Yacht.
Objective: -Design and create of part sunseeker predator yacht using solidworks.
-Assemble the parts modeled for sunseeker predator yacht.
-To create a photo realistic rendering of the sunseeker predator yacht using solid works & photoview 360.
Design Methodology:
- Designing.
- Blue Print Setup.
- Part Modelling.
- Assembly
- Photo Realistic Rendering.
=> Parts Included in Model.
- Radar.
- Propeller
- Radar Mast
- Hull
- Garage Door
- Front Seat
- Middle seat
- Rear seat
- Superstructure
Features used in the Model:
- 2D sketch-Two Dimmensional Drawings.
- 3D sketch- sketches of the model to be creayed in 3D space.
- Line- Create a straight line or centerline for construction.
- Circle-Create a circle in the sketch.
- Rectangle- Create a Rectangle in the sketch.
- spline-Create a curved line in sketch which can be controlled using midpoints and spline direction vector.
- Arc-Create a arc in sketch.
- Slot-Create various slot shapes in the sketch.
- Project curve-Create a 3D curve which is projected on the basis of 2d curve,
- offset entities -create offset sketch at specified distance.
- Revolved boss base- Creates axi symmetric 3D part form.
- Extruded cut- Remove material from solid according to shapes given by two dimmensional sketch, it is opposite of extrude boss.
- Fillet - creates a rounded edge on a part.
- Chamfer-a chamfer is an angeled shape that is added along to make them less sharp.
- extrude surface- Creates a surface by moving along the straight path.
- Swept surface-Create a surface sweep by moving a sketch along curved path.
- Lofted surface- creating a surface between multiple curves.
- Extend surface: extend surface from an edge along its direction .
- Trim surfcae-Trims a surface whenever required.
- Knit surface-Knits together multiple surface to form a single surface.
- Convert entities- Converts the projection of edges and points on to the sketch.
- Swept Cut- Removes material along a curve in the specified shape.
- Appeareance- provides a particular appeareane to the part
- Lofted boos- Create a part with variable cross section along a given surface, these cross section are linearly blended from one section to other.
- Dome-Creates a dome over a plane surface.
- Split: creates multiple parts from existing parts.

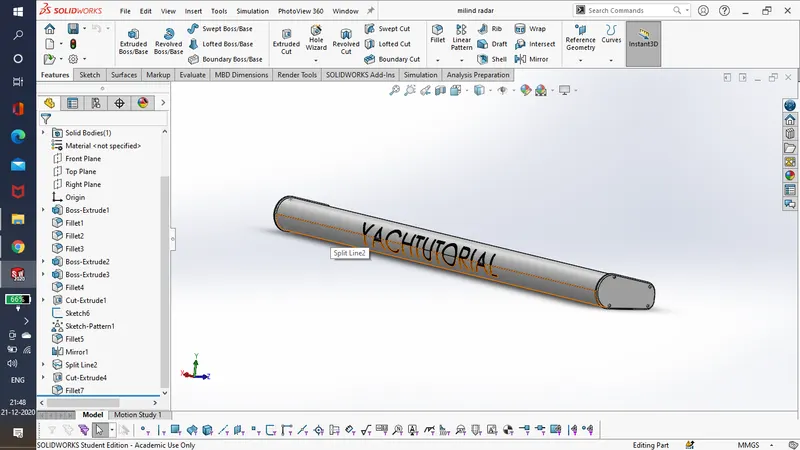

1) Radar-
Radar is a detection system that uses radio waves to determine the range, angle or velocityof objects it can be used to detect and aircraft ships , spacecraft, guided missile.
Features used -
Extrude Boss, fillet, cut extrude , split line, sketch pattern, split line,cut extrude , sketch pattern.

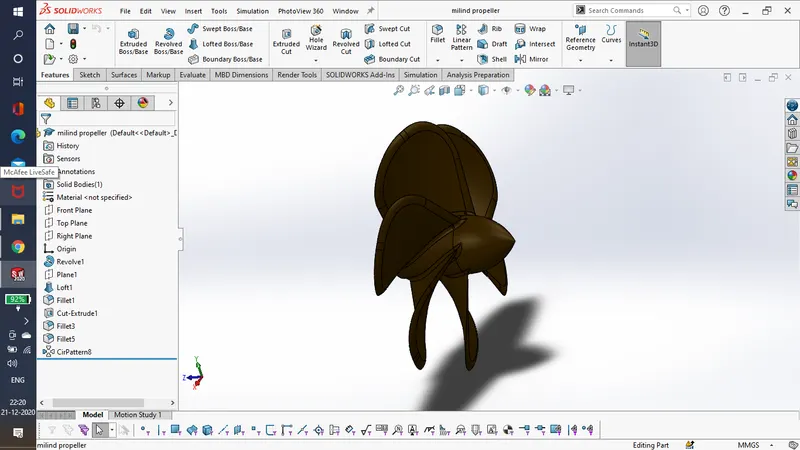

2)Propeller-
A Propeller is a device with a rotating hub and radiating blades that are set at a pitch to form a helical spiral that when rotated perform an action which is similar to archimidies screw.
Feature used- Revolved, Loft boss base, cut extrude ,fillets, cut extrude, circular pattern,

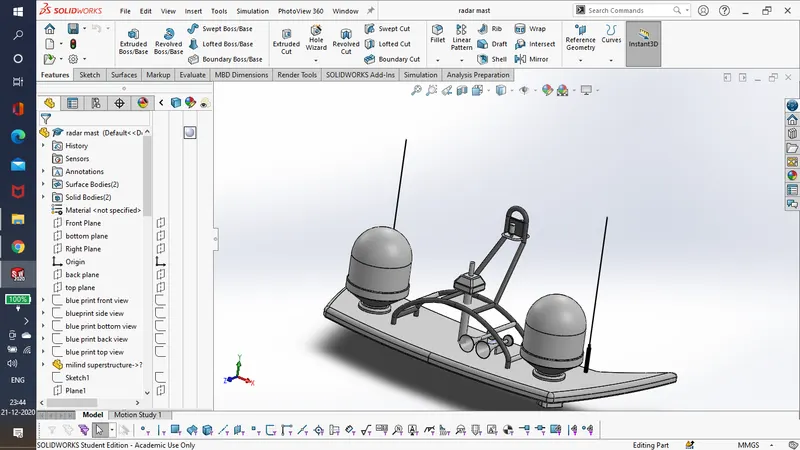

3)Radar Mast
Radar mast includes various electronic components that supports the radar and also horns on the radar mast.
Features used - revolved boss base , extrude boss base , 2D sketch , fillet.

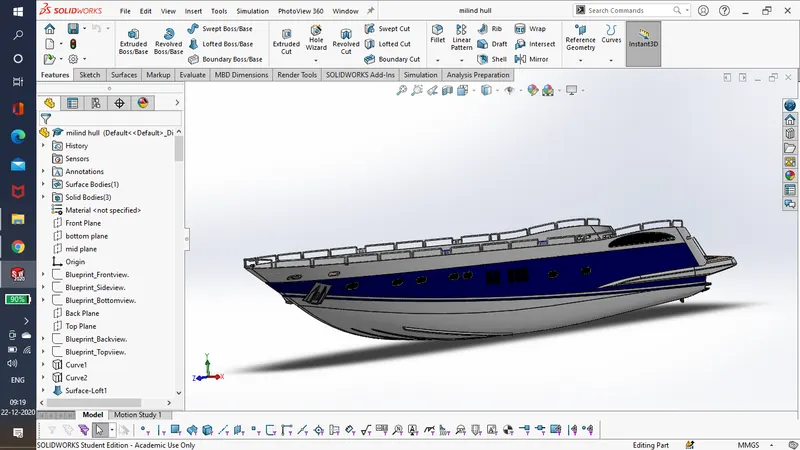

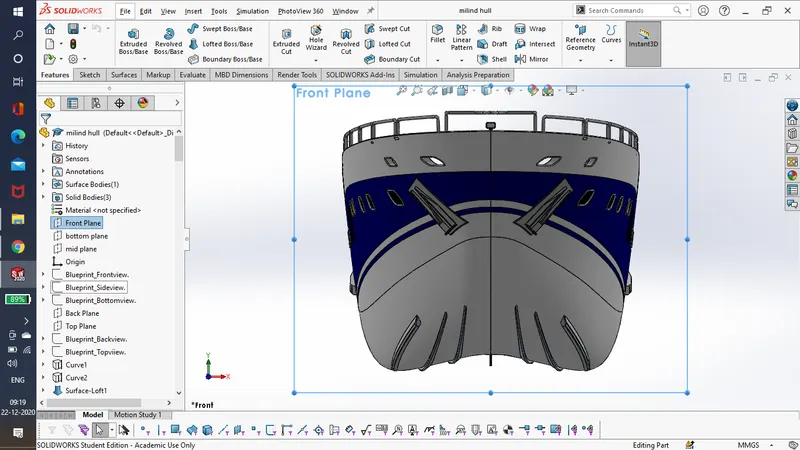

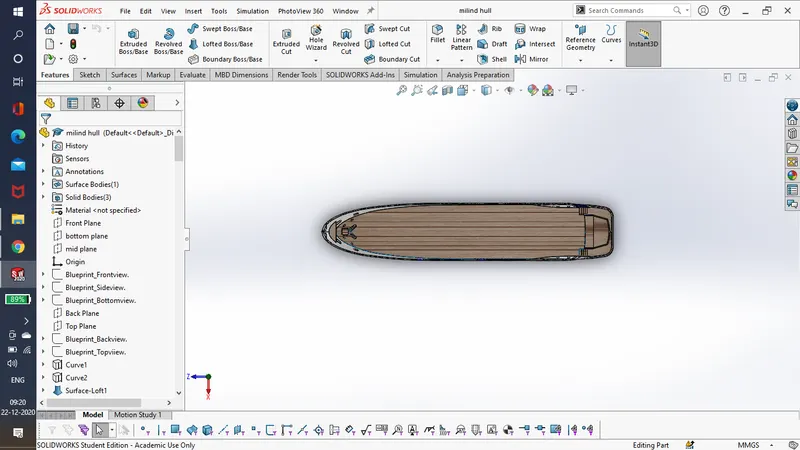

4) Hull
The hull of a ship is the most notable structural entity of the ship. To define the hull, it can be said that it is the watertight enclosure of the ship, which protects the cargo, machinery, and accommodation spaces of the ship from the weather, flooding, and structural damage. But this alone does not suffice our requirements of understanding all the aspects of a ship’s hull.
Features Used : Projected curve, surface loft, 3D sketch, shell, surface knit, surface trim, boss extrude, chamfer, fillet, cut extrude, surface sweep, helix spiral, boss extrude, linear pattern, combine, split line, surface offset, convert entities, offset entities.

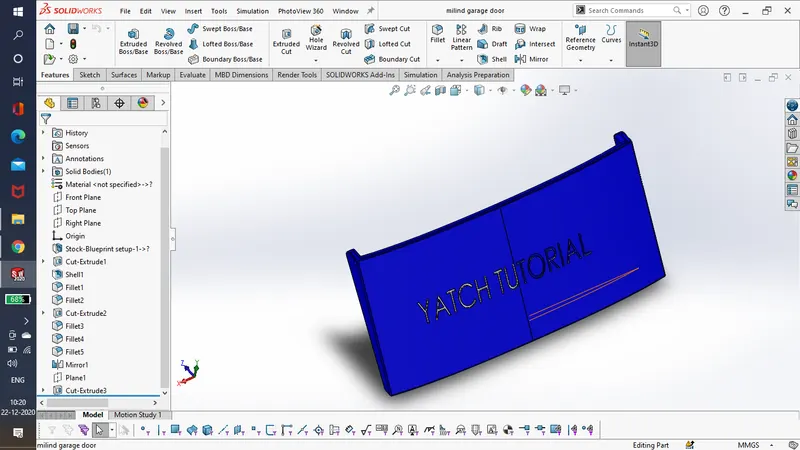

5) Garage Door
A garage door is a large door that opens either electronically or manually, it is a huge door that is able to accomodate automobiles and other vehicles.
Features Used- cut extrude, fillet, shell, mirror, shell.

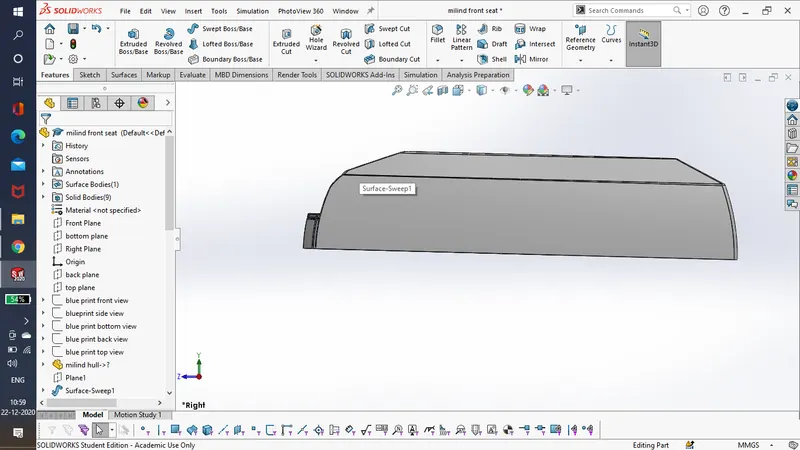

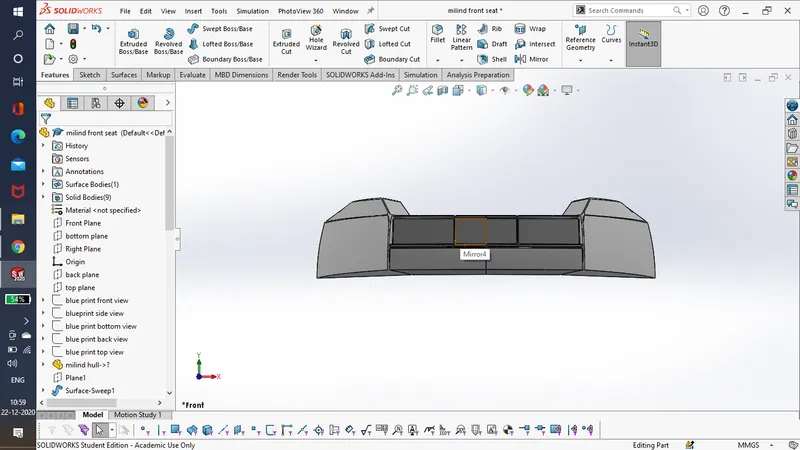

6)Front seat
A seat is a place to sit , the term may encompass additional features such as back armrest and head restraint.
Features Used-surface sweep, surface trim, surface extrude, surface loft, ruled surface, boss extrude, cut extrude, fillet, dome,surface knit, sketch tools, 3D sketch.

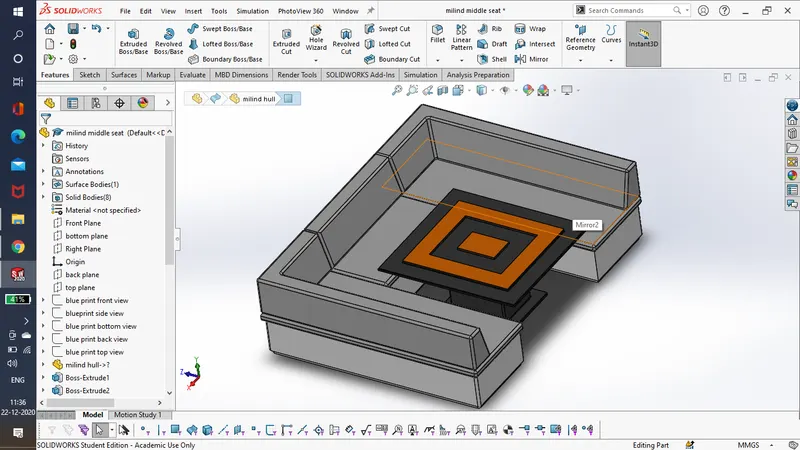

7)Middle seat
A seat is a place to sit , the term may encompass additional features such as back armrest and head restraint.
Features Used- Boss extrude, 2D sketch, Fillet, offset entities.

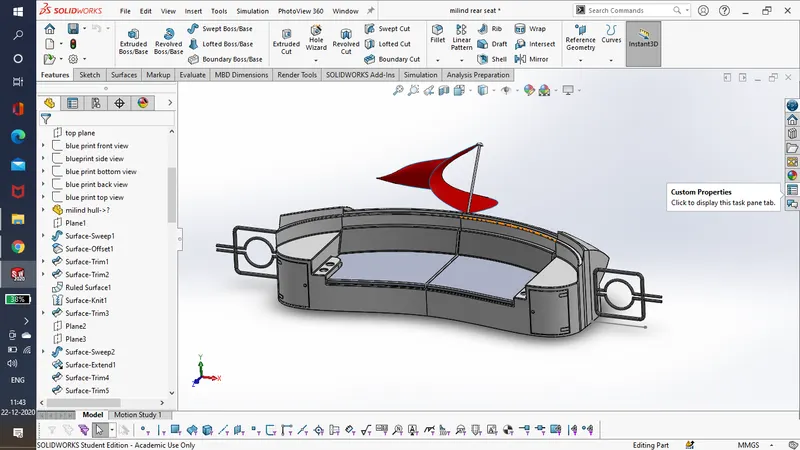

8) Rear seat
A seat is a place to sit , the term may encompass additional features such as back armrest and head restraint.
Features Used- surface trim, surface sweep, surface extrude, surface offset, 3D sketch, fillet, cut extrude, surface sweep, 2D sketch, surface knit, mirror,

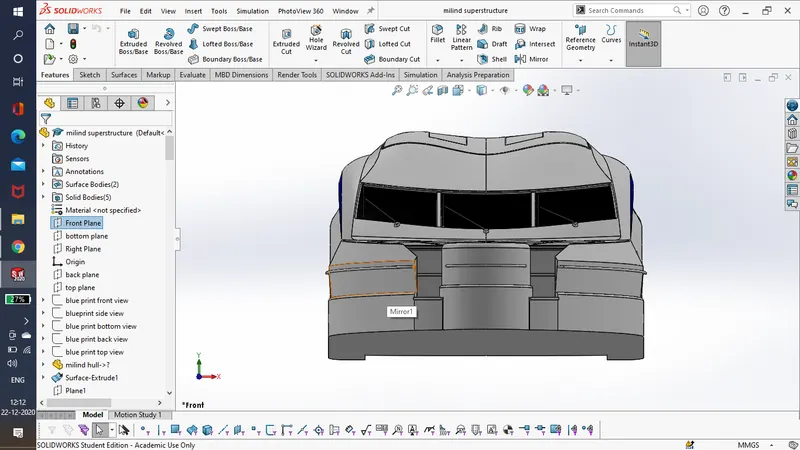

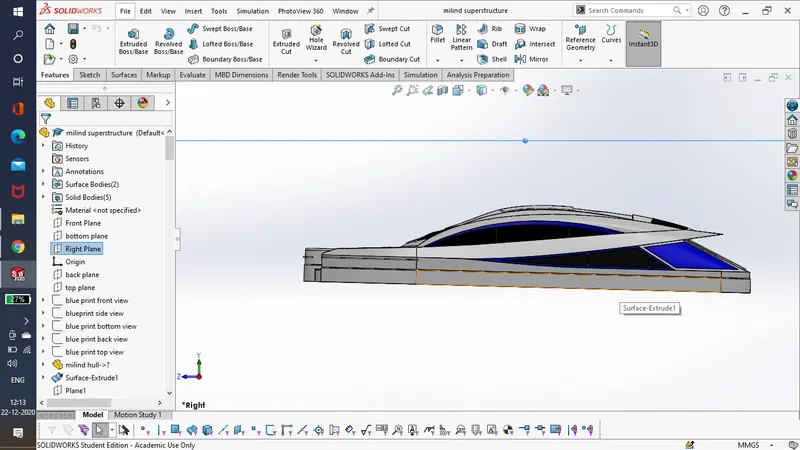

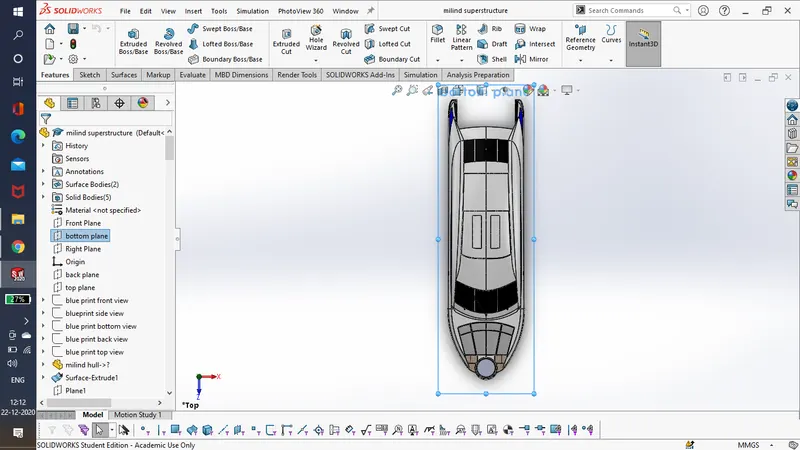

8) superstructure
A super structure A superstructure is an upward extension of an existing structure above a baseline. This term is applied to various kinds of physical structures such as ships, buildings and bridges. In this refrence superstructure will encompasses all the kind of ammenities and would include living space and accomodation for people on yacht.
Feature Used- surface trim , surface extrude, surface sweep, surface extend, surface trim , surface knit, boss extrude , chammfer, surface offset, refrence plane, 3D sketch, blueprint refrence, surface knit, boss extrude, mirror, 2D sketch, 3D sketch.

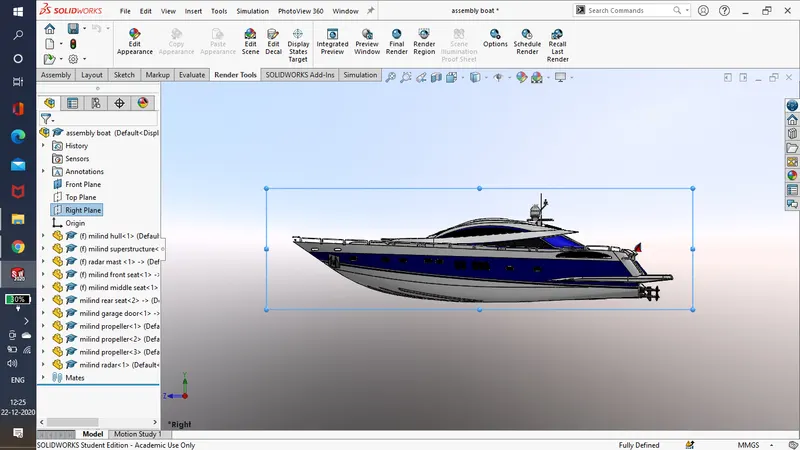

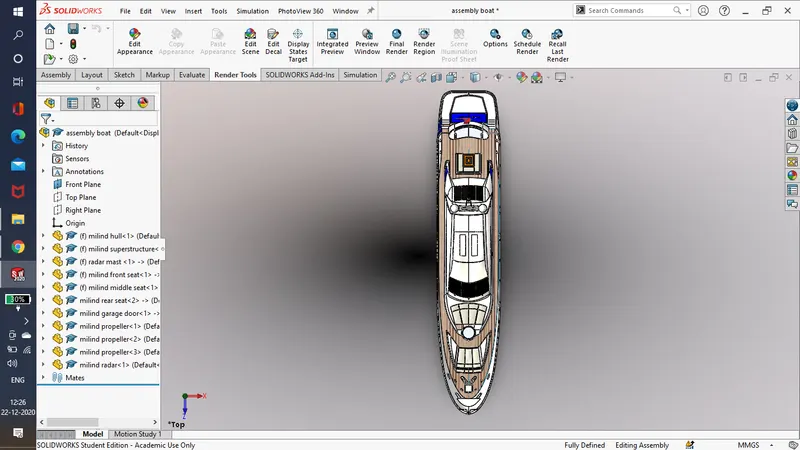

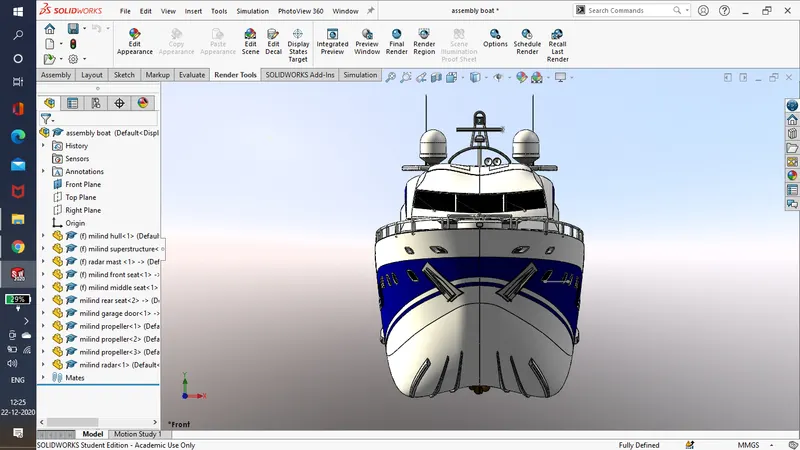

Assembly is carried out using assemble , the above parts have surfce bodies as their refrence certtain mates like coincident, cncentric and distance mates were applied in the assembly to make the assembly fully defined.

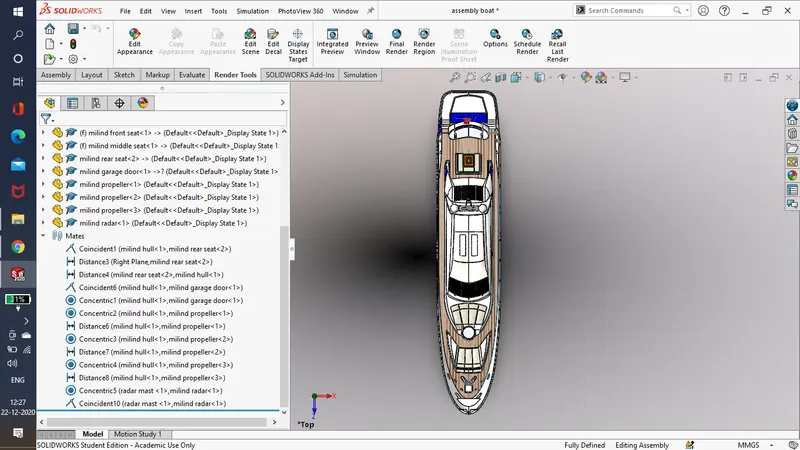

- The above are the following mates that are applied in the assembly.
Rendering:
Rendering is the process of giving a object a photo realistic look in the surrounding background and presenting the object in a more realistic manner, the following processs is carried out in solidworks visualize 360.

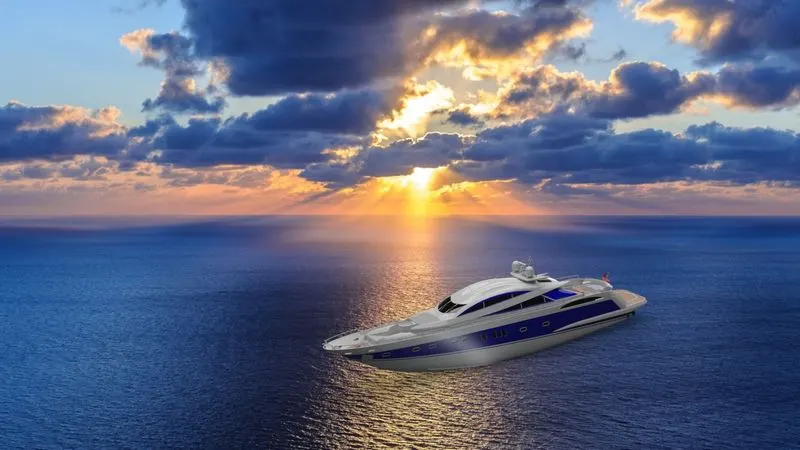

The below are the rendered images , backplate was used as option and ocean background was used for refrence.
Conclusion:
- Parts are modelled using solid works2020.
- The modelled parts are assembled using solid works 2020.
- Rendering of the solid works is done solid works visualize 360.
