Assembly of Yacht
Sunseeker predator Yatch
Objective:
The main aim is to model the sunseeker predator yacht. For doing that, a parts of the yatch should me designed. Do the realistic rendering.
Introduction:
To be termed a yacht, as opposed to a boat, such a pleasure vessel is likely to be at least 33 feet (10 m) in length and have been judged to have good aesthetic qualities.
The Commercial Yacht Code classies yachts 79 ft (24 m) and over as large. Such yachts typically require a hired crew and have higher construction standards. Further classications for large yachts are: commercial—carrying no more than 12 passengers, private—solely for the pleasure of the owner and guests, or by fag, the country under which it is registered. A super yacht (sometimes mega yacht) generally refers to any yacht (sail or power) longer than 131 ft(40 m).
Here almost 90% of model is modelled using surface modelling, and nally making them a solid body.
Most of the parts are modelled using blue print setup.
Parts to be modelled:-
1. Radar
2. Radar Mast
3. Front seat
4. Middle Seat
5. Rear Seat
6. Hull
7. Superstructure
8. Garage Door
9. propeller

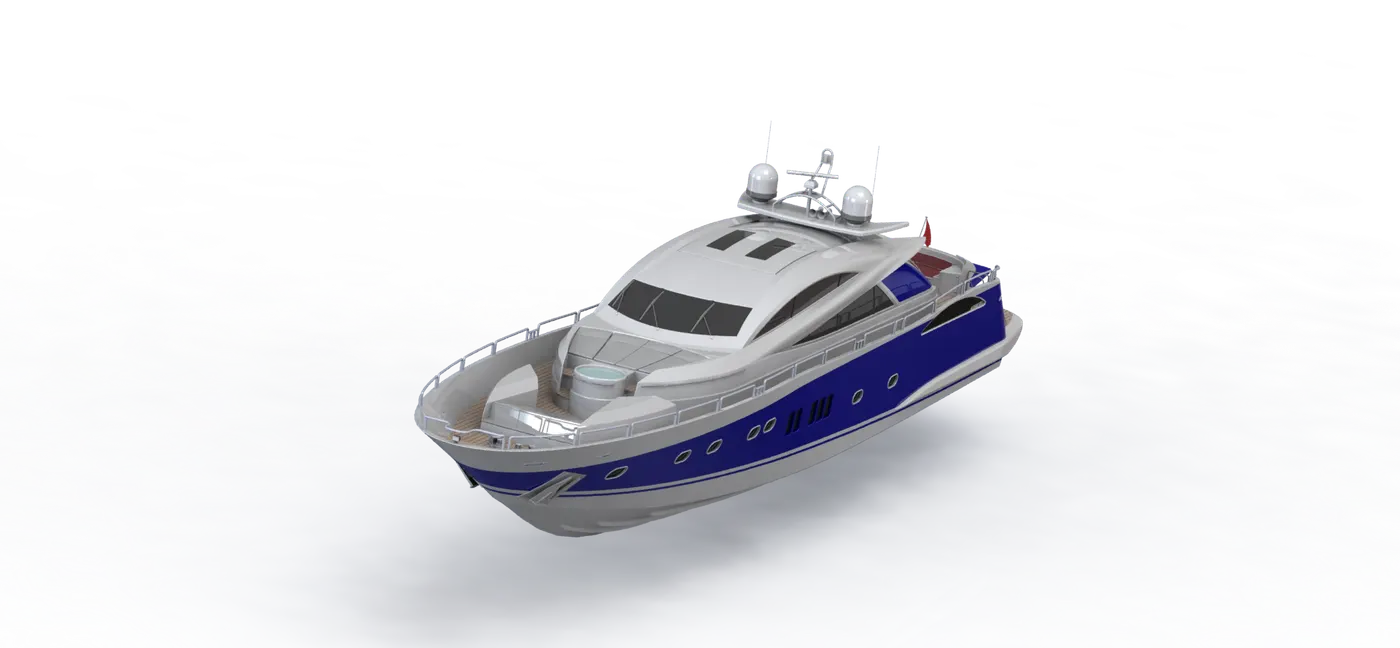

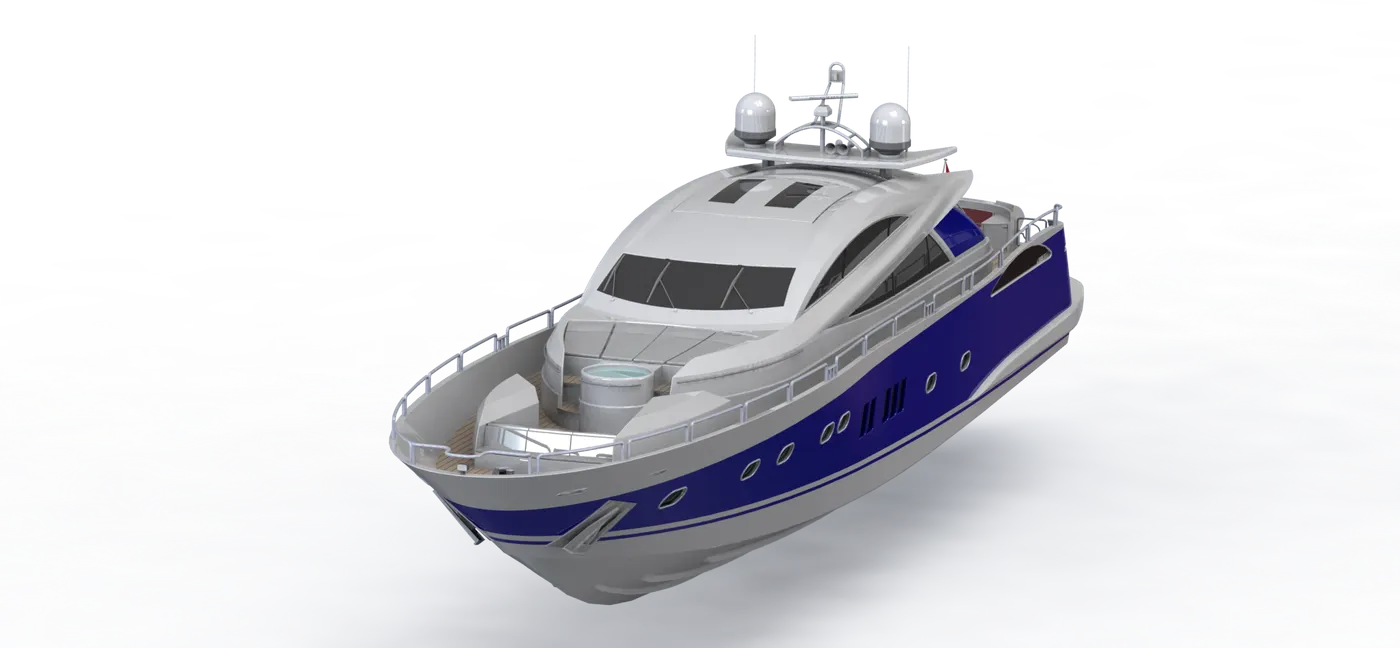

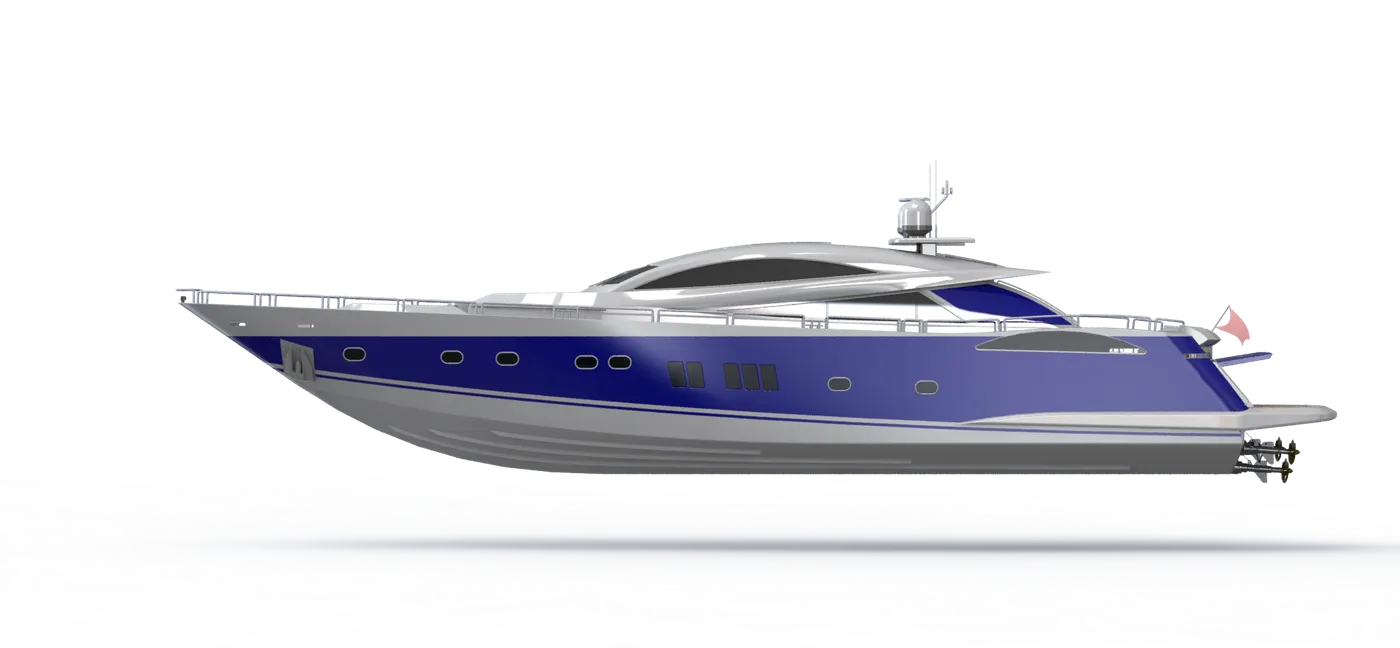

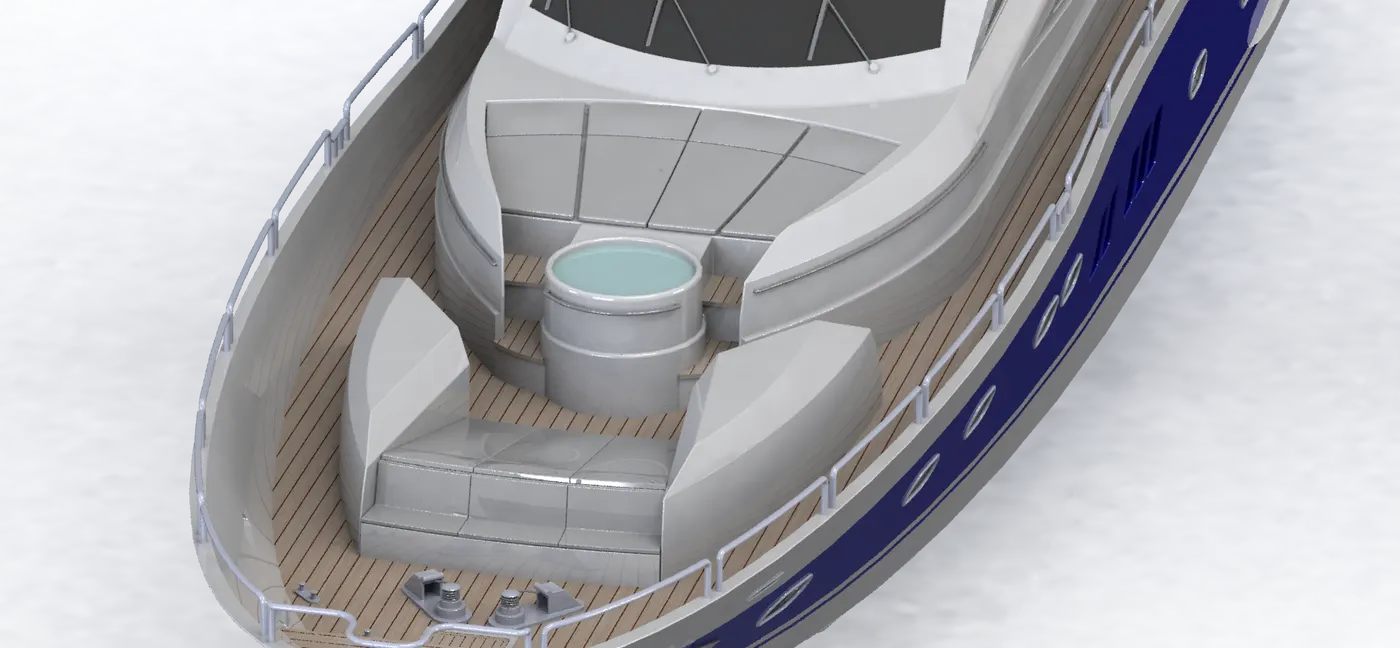

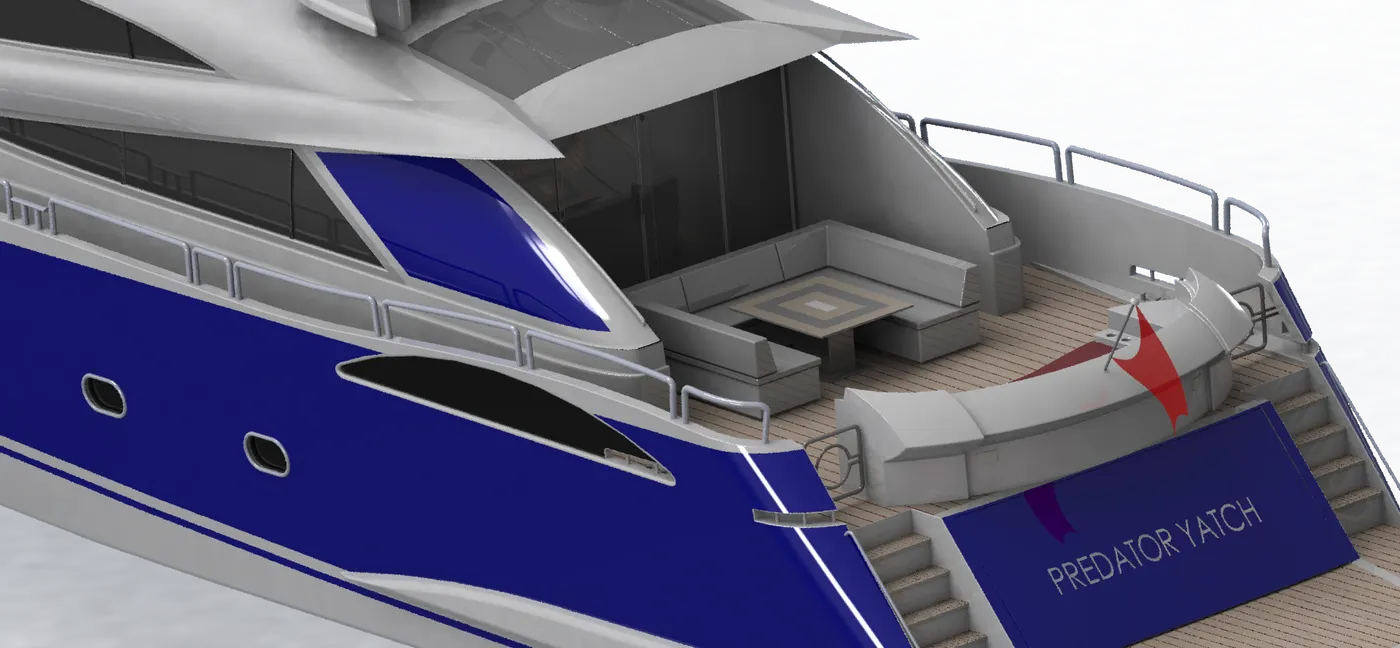

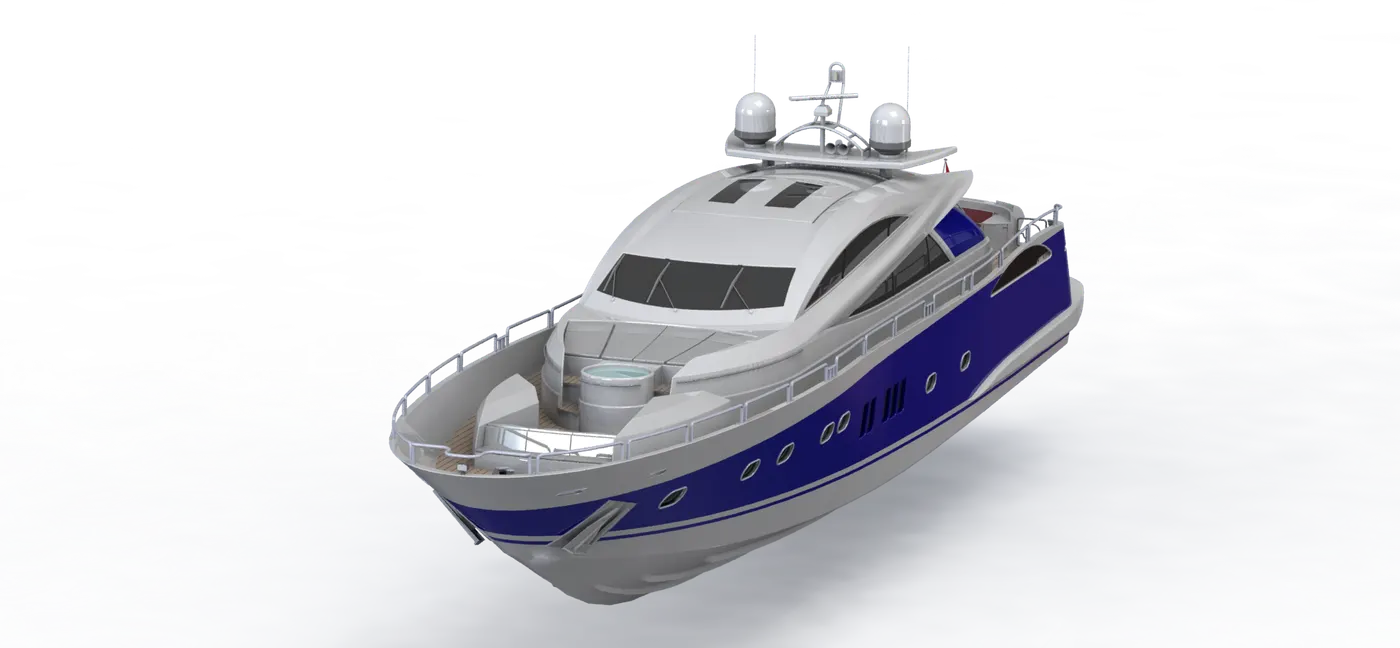

Sneak peek rendered Sunseeker Predator Yatch
Features which are used to model the Sunseeker Predator Yatch
For Surface Modelling :
Extruded Surface
Extended Surafce
Swept Surface
Lofted Surface
Boundary Surface
Offset Surface
Ruled Surface
Filled Surface
Trim Surface
Knit Surface
Delete Surface
Here are some solid tools used for the modelling:
Extruded bose/base
Exturded cut
Sweep
Revolve bose/base
Fillets
Chamfer
Mirror
Here are the parts which are modelled:-

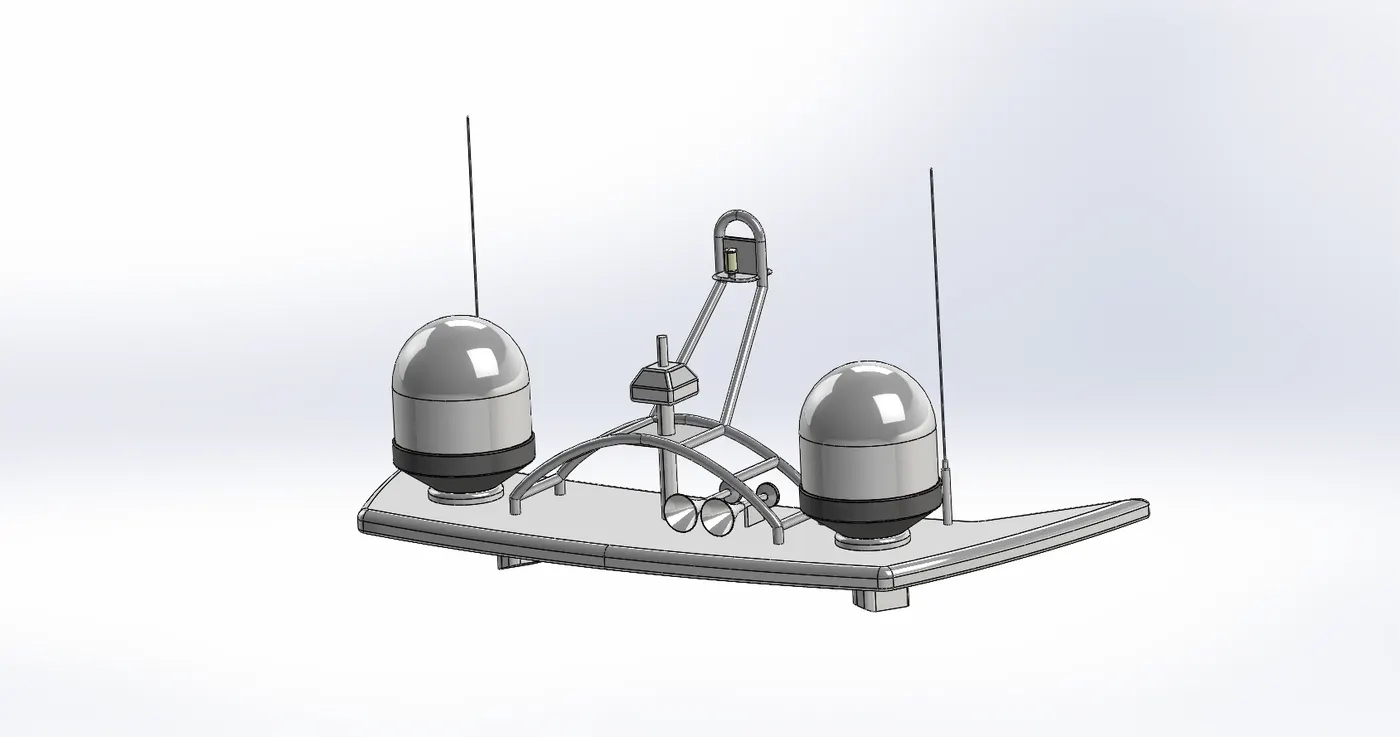

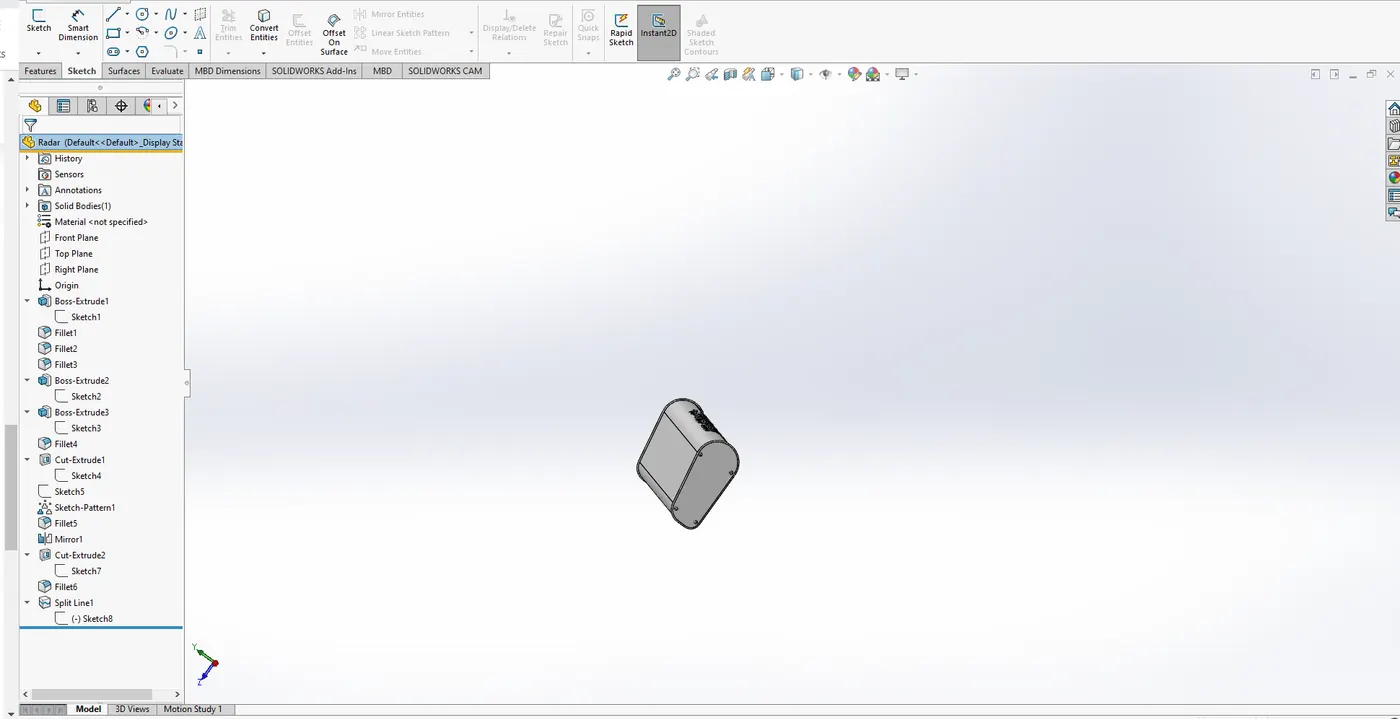

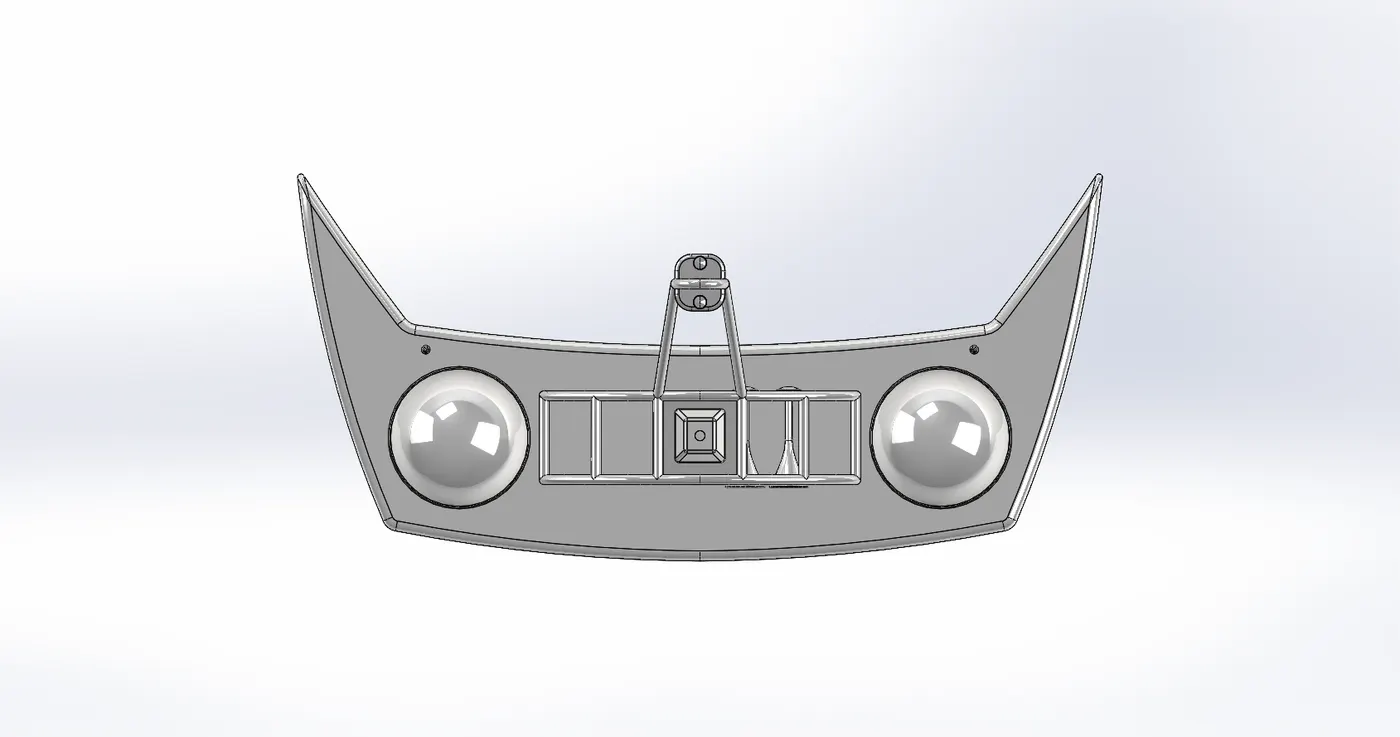

1. Radar
Radio Detection and Ranging, is used to detect objects and their position relative to your current location. It works by sending out a radio signal. When the signal hits an object, it gets reected back to the radar, which can then calculate a rough estimate of the object. It does so by detecting other ships and land obstacles, to give bearing and distance for collision avoidance and navigation while on water.
A marine radar device acts as a major navigation aid for boaters. It helps in detecting boats, birds, landmasses, and weather systems - even if the visibility is
less than usual.
Following part are used to model this part
Boss extrude
Cut extrude
Fillets
Sketch pattern
Mirror
Split line

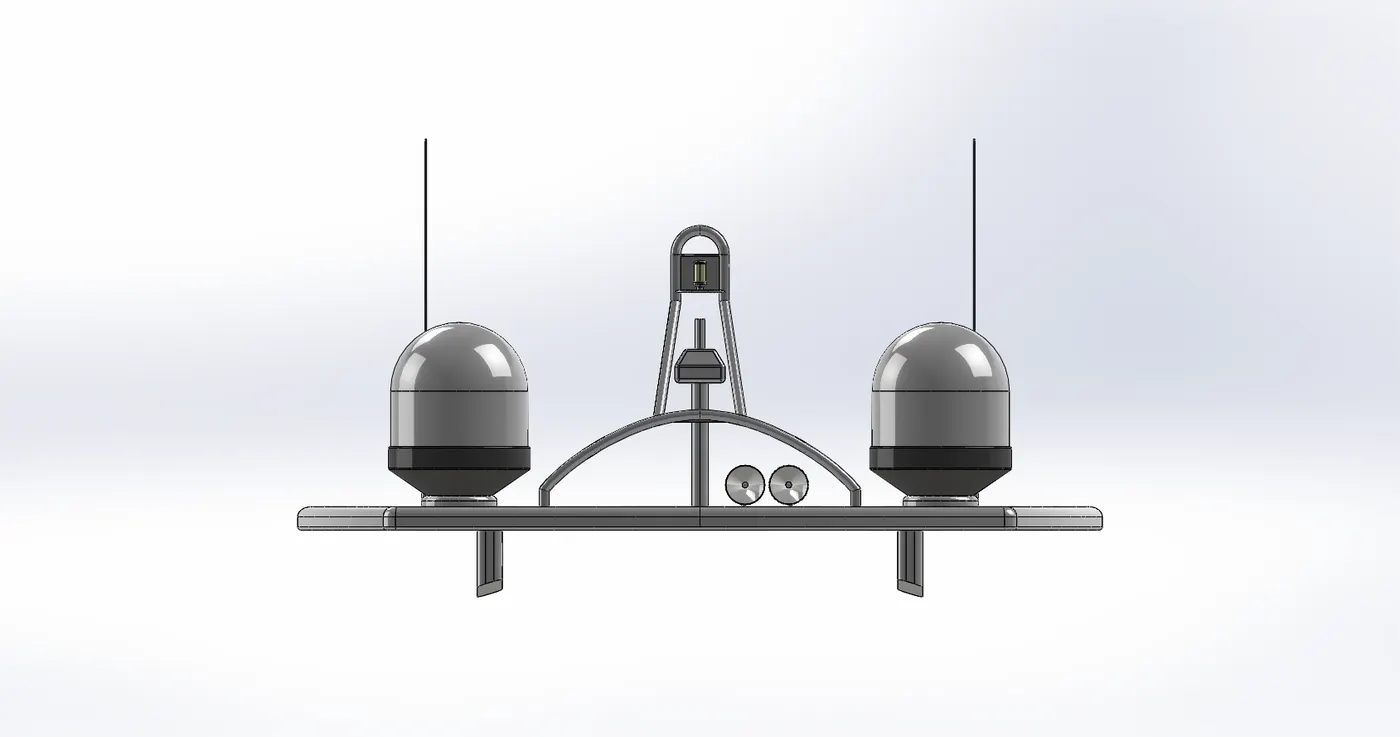

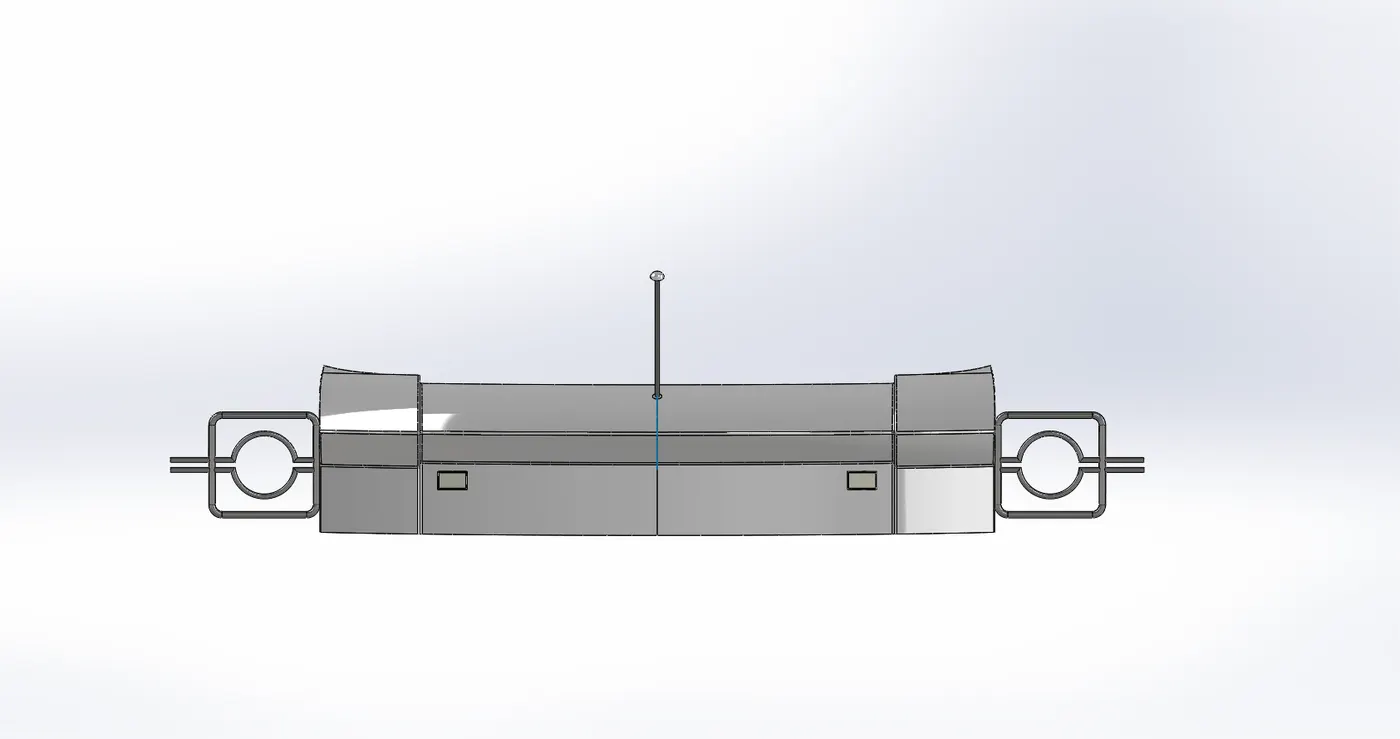

2. Radar Mast
Following tools are used to model this part
Boss extrude
Revolve
Fillet
Cut Extrude
Sweep
Curves
Chamfer
shell
mirror
combine

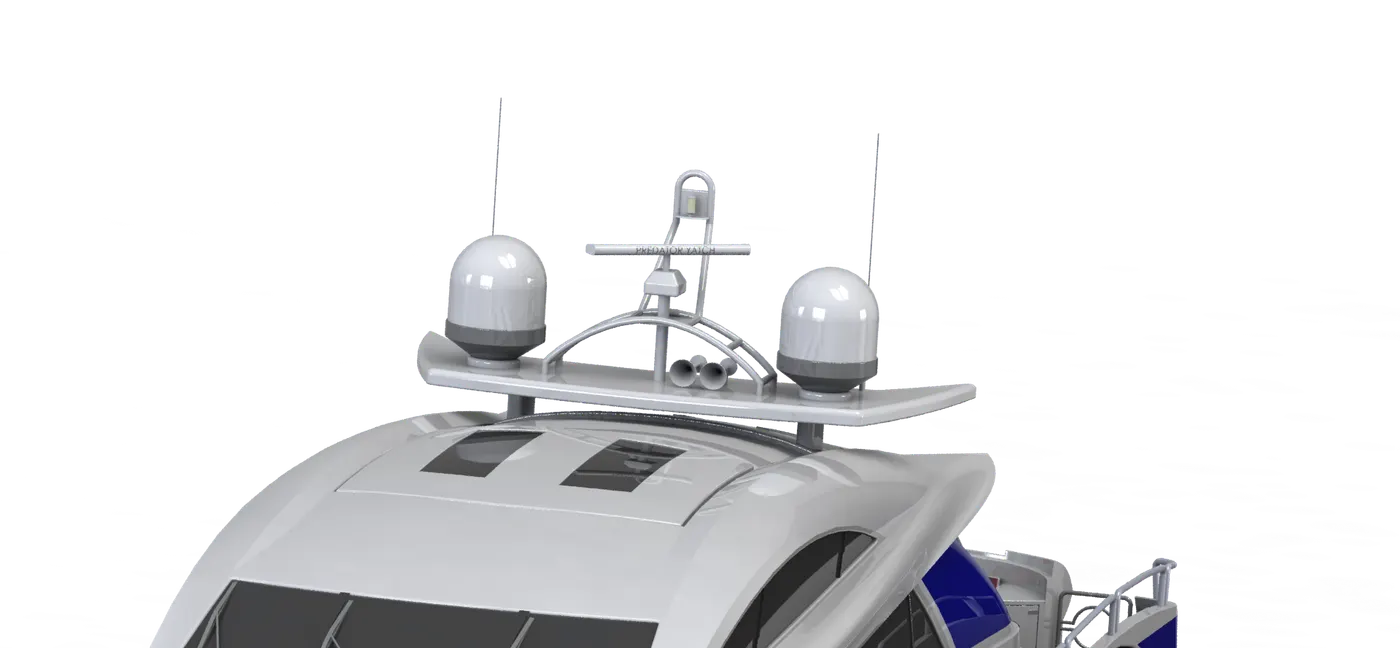

here is the picture of Radar Mast how it looks like on the Superstructure.

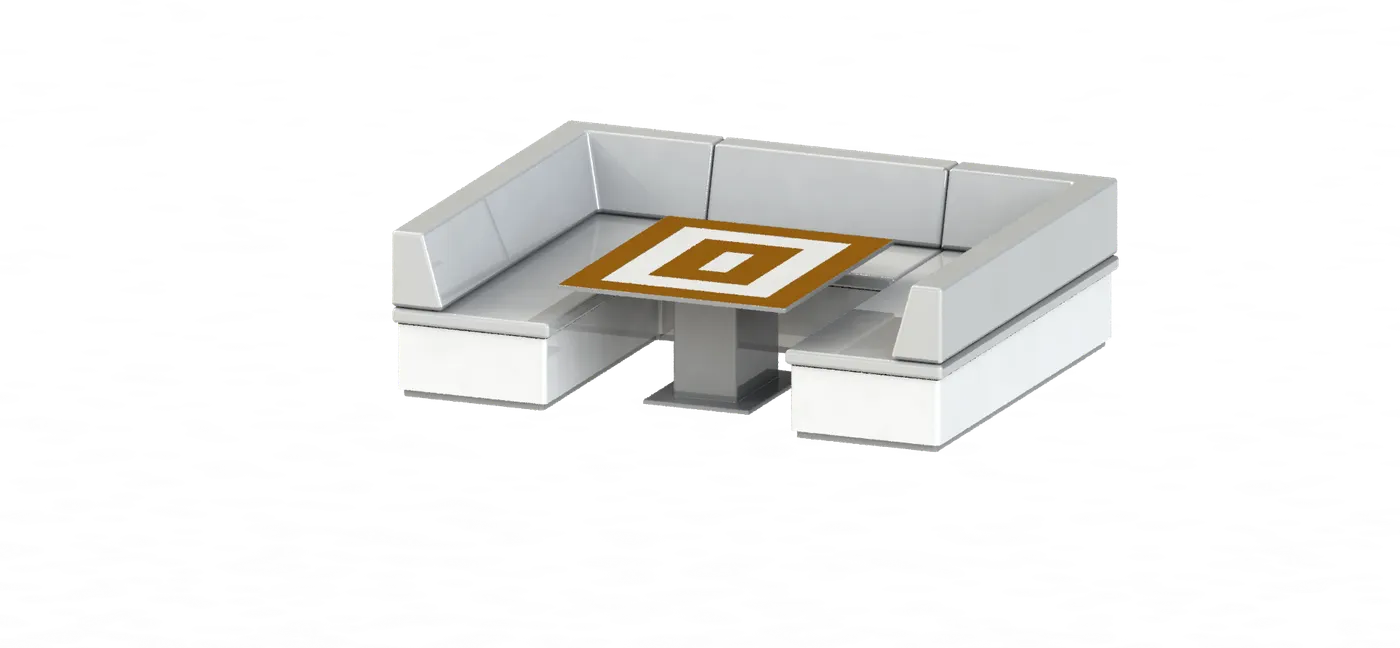

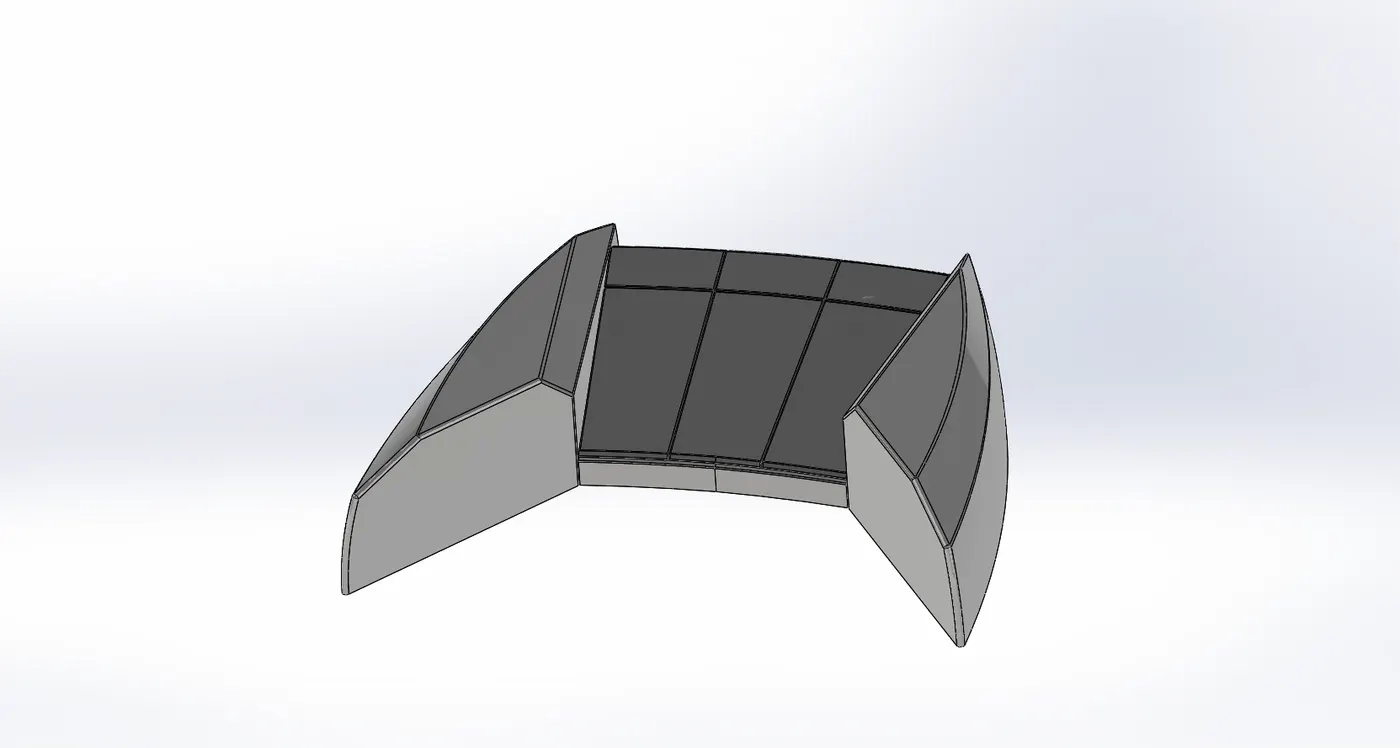

3. Front Seat
Following tools are used to model this part.
surface sweep
surface extrude
surface trim
surface Fill
surface knit
revolve
boss extrude
cut extrude
chamfer
Fillet
dome
mirror

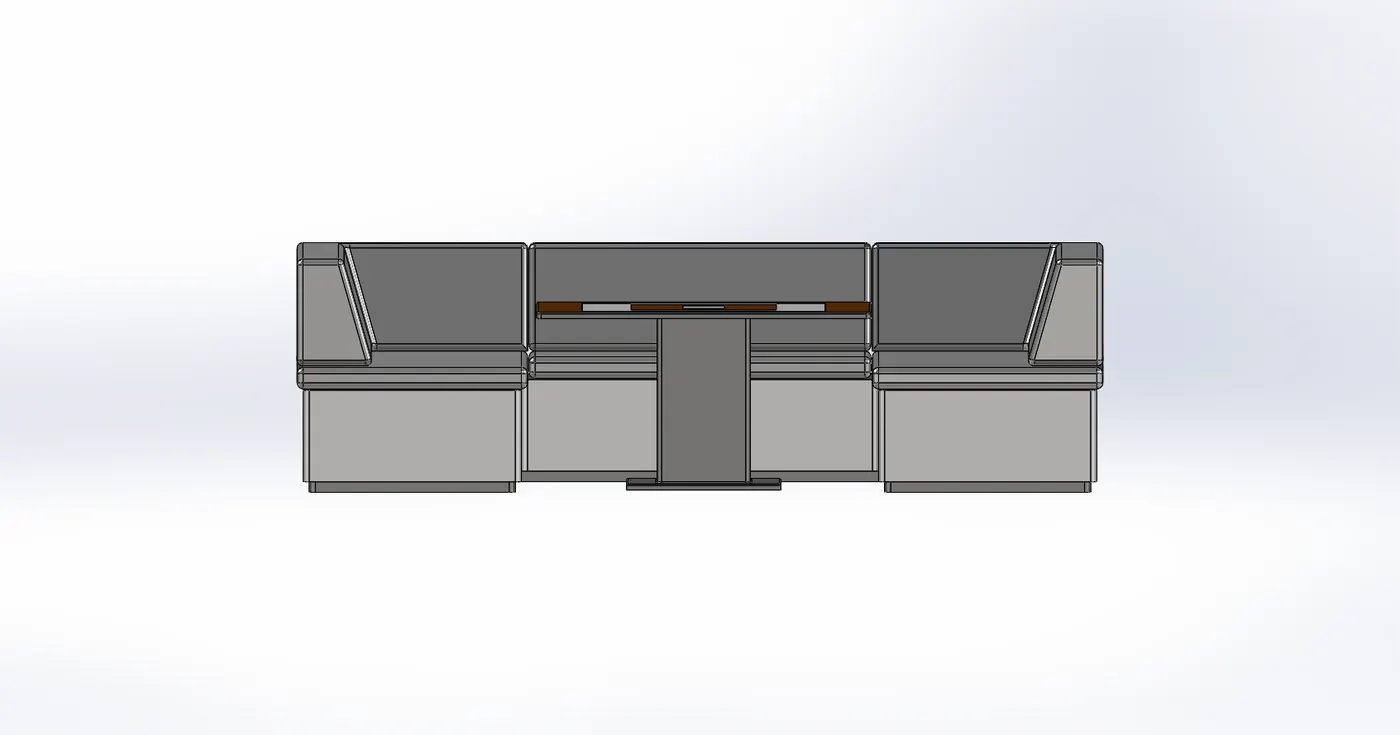

4. Middle Seat
Following tools are used to model this part.
boss extrude
chamfer
Fillet
mirror

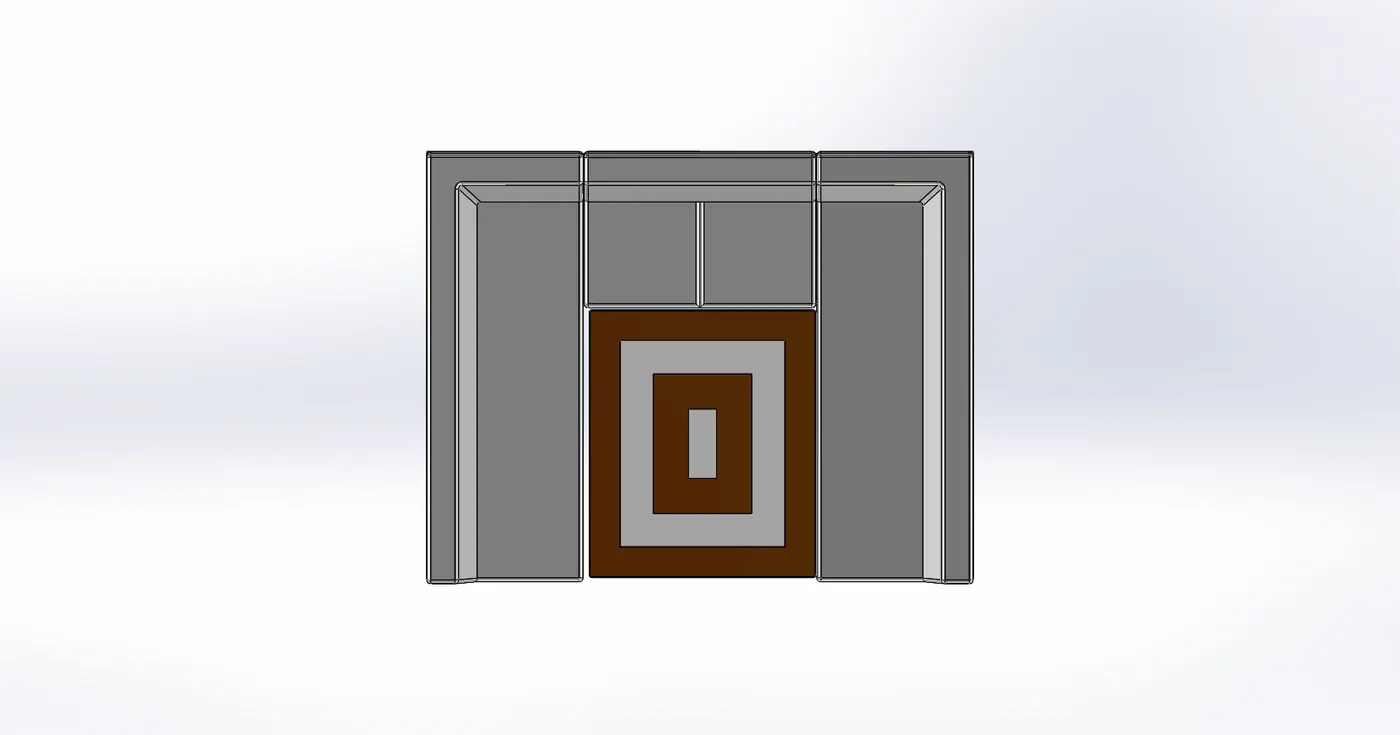

5. Rear Seat.
Following the tools are used to model this part.
surface sweep
surface extrude
surface trim
surface ll
surface knit
surface loft
surface extend
surface offset
boss extrude
cut extrude
chamfer
Fillet
sweep
mirror

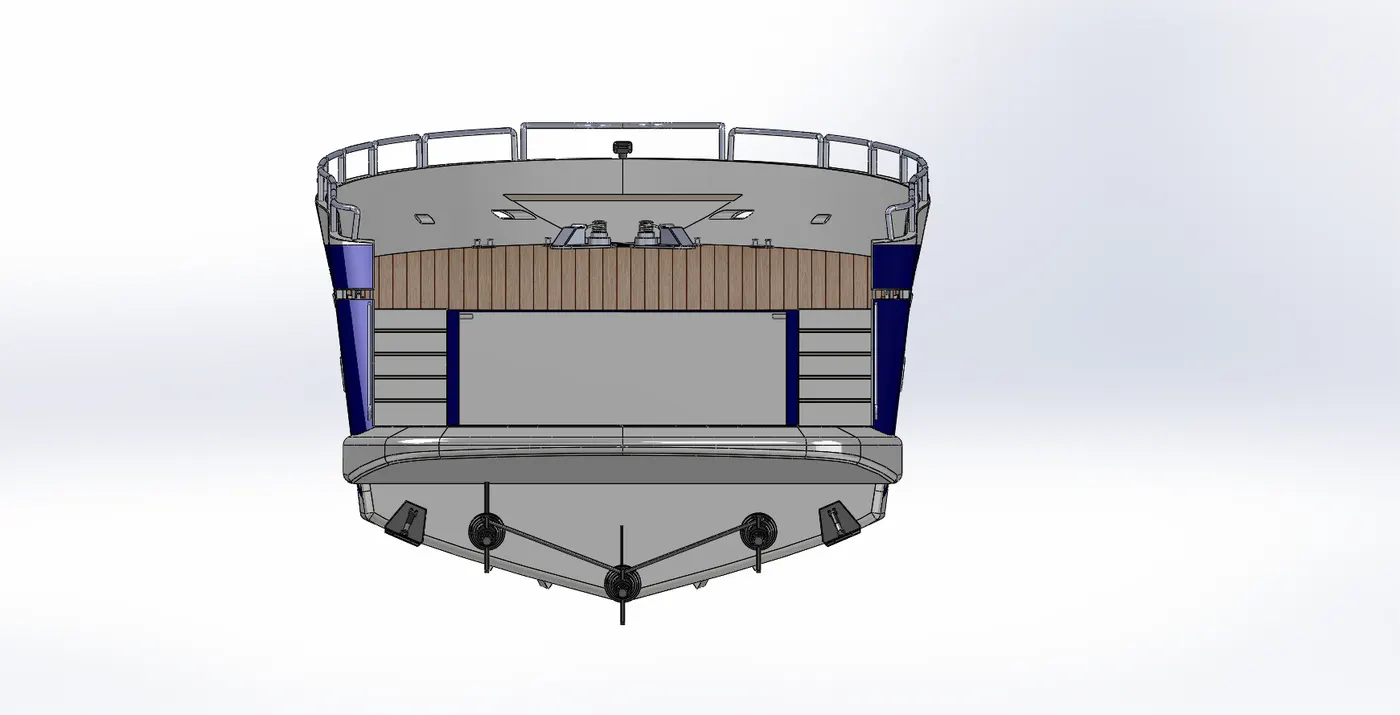

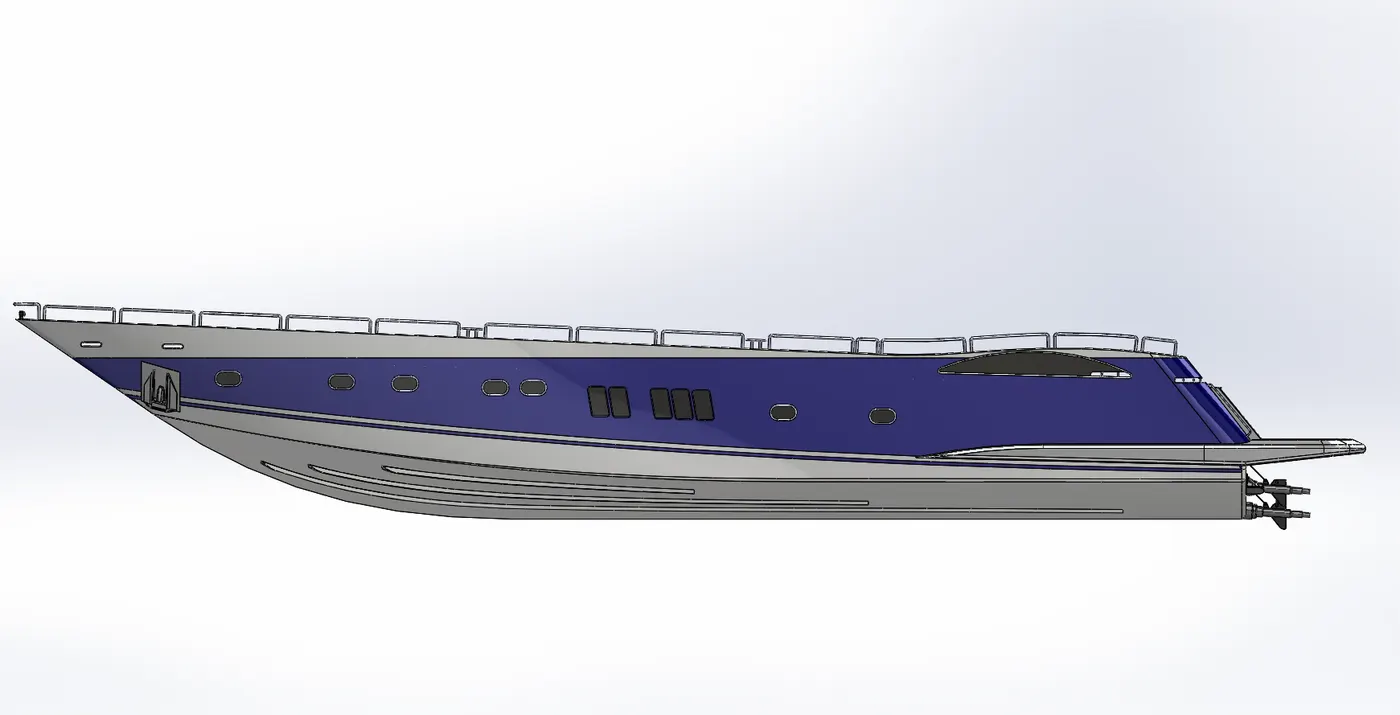

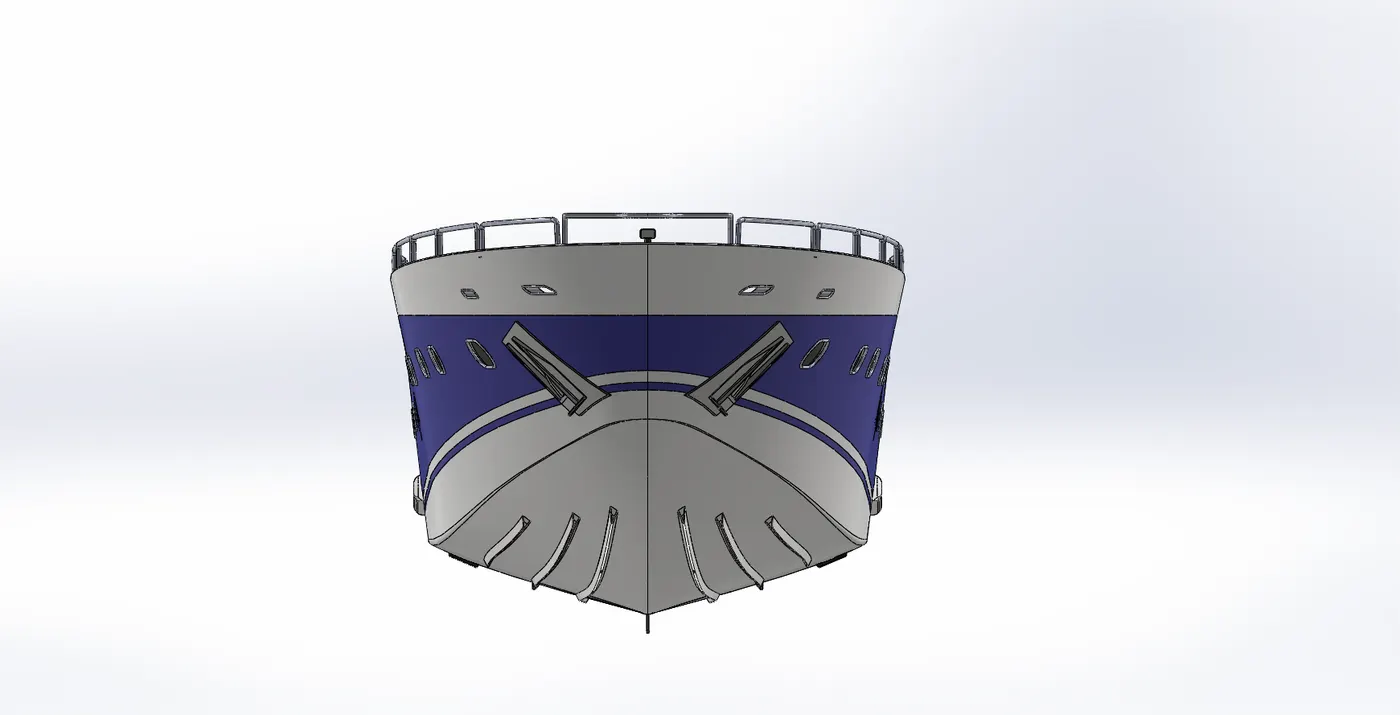

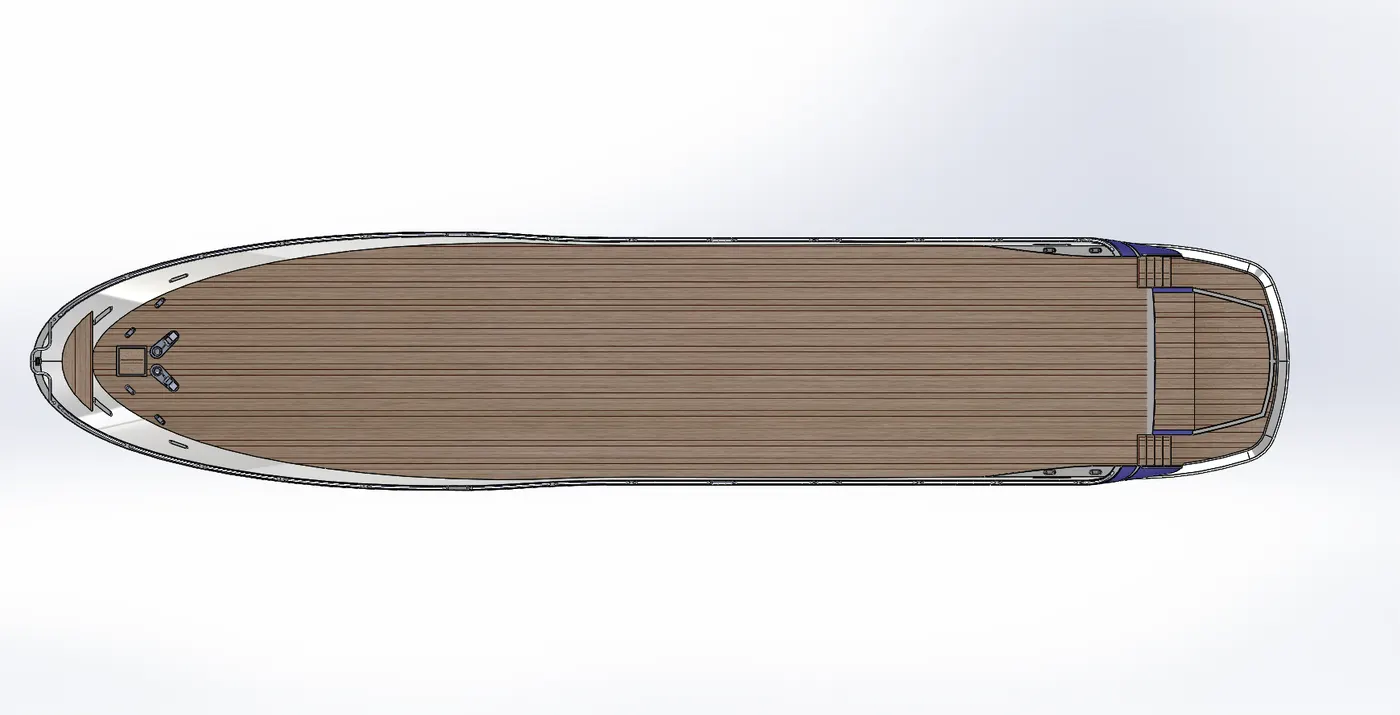

6. Hull
A hull is the watertight body of a ship or boat. The hull may open at the top (such as a dinghy), or it may be fully or partially covered with a deck. Atop the deck may be a deckhouse and other superstructures, such as a funnel, derrick, or mast. The line where the hull meets the water surface is called the waterline.
The hull is supported exclusively or predominantly by buoyancy. Vessels that have this type of hull travel through the water at a limited rate that is dened by the waterline length.
Following tools which are used to model this part.
Curves
Surface extrude
Surface extend
Surface offset
Surface loft
Ruled surface
Surface trim
Surface knit
Surface ll
Bose extrude
Extruded cut
Fillet
Chamfer
Sweep
Mirror
Split lines
Delete faces
Linear pattern
Shell

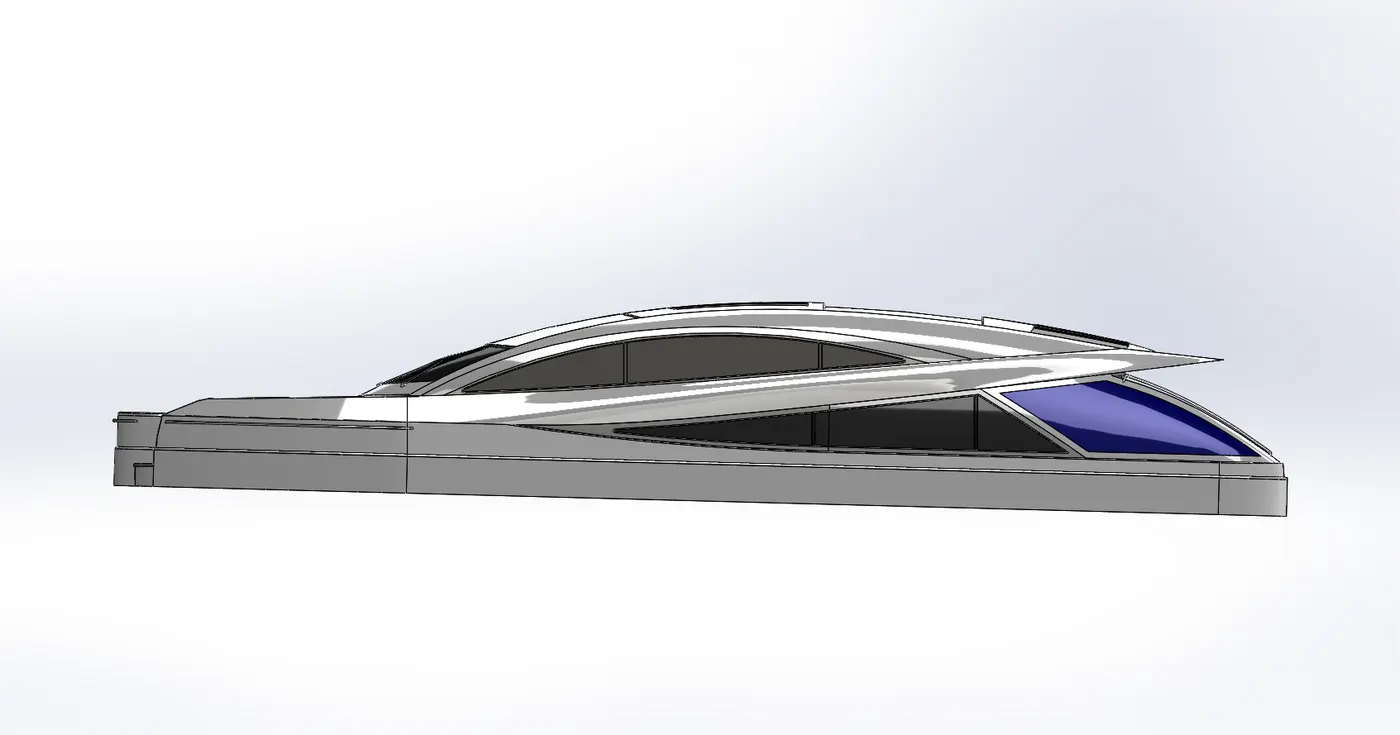

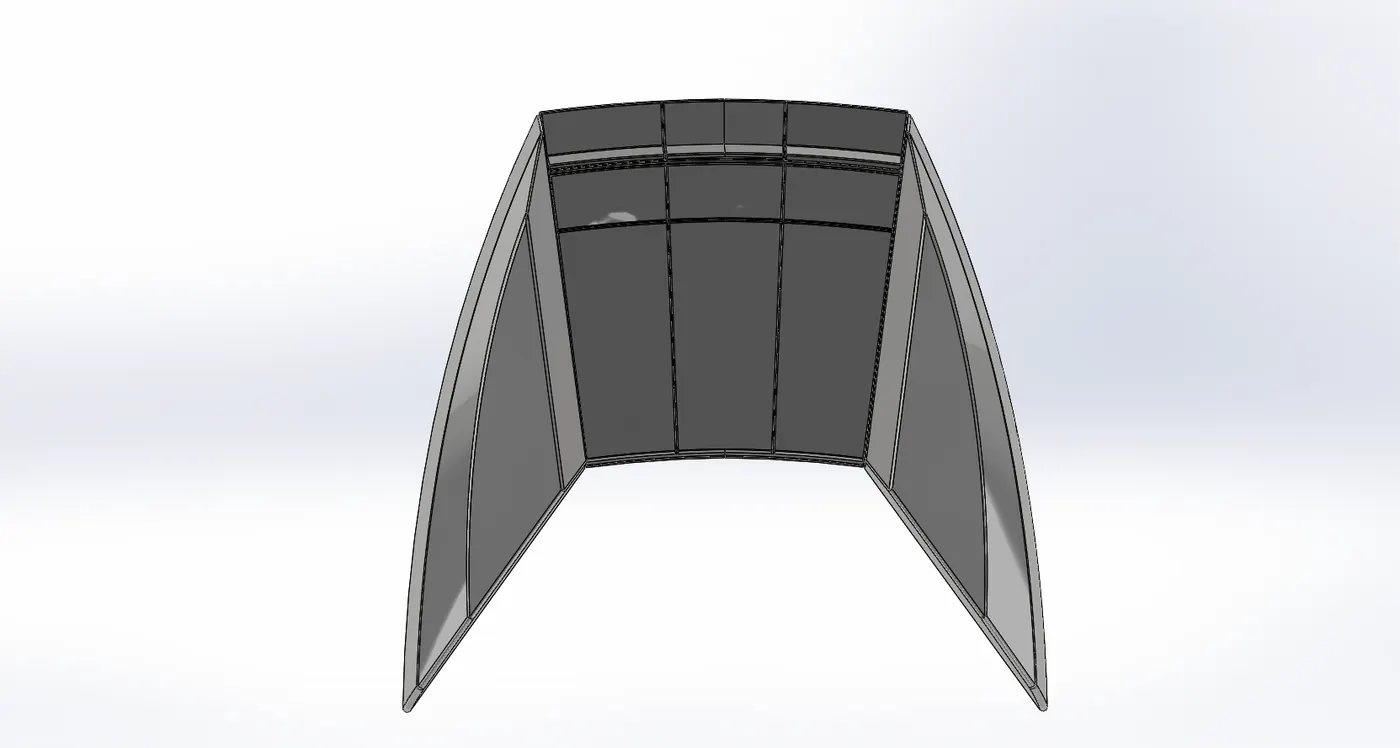

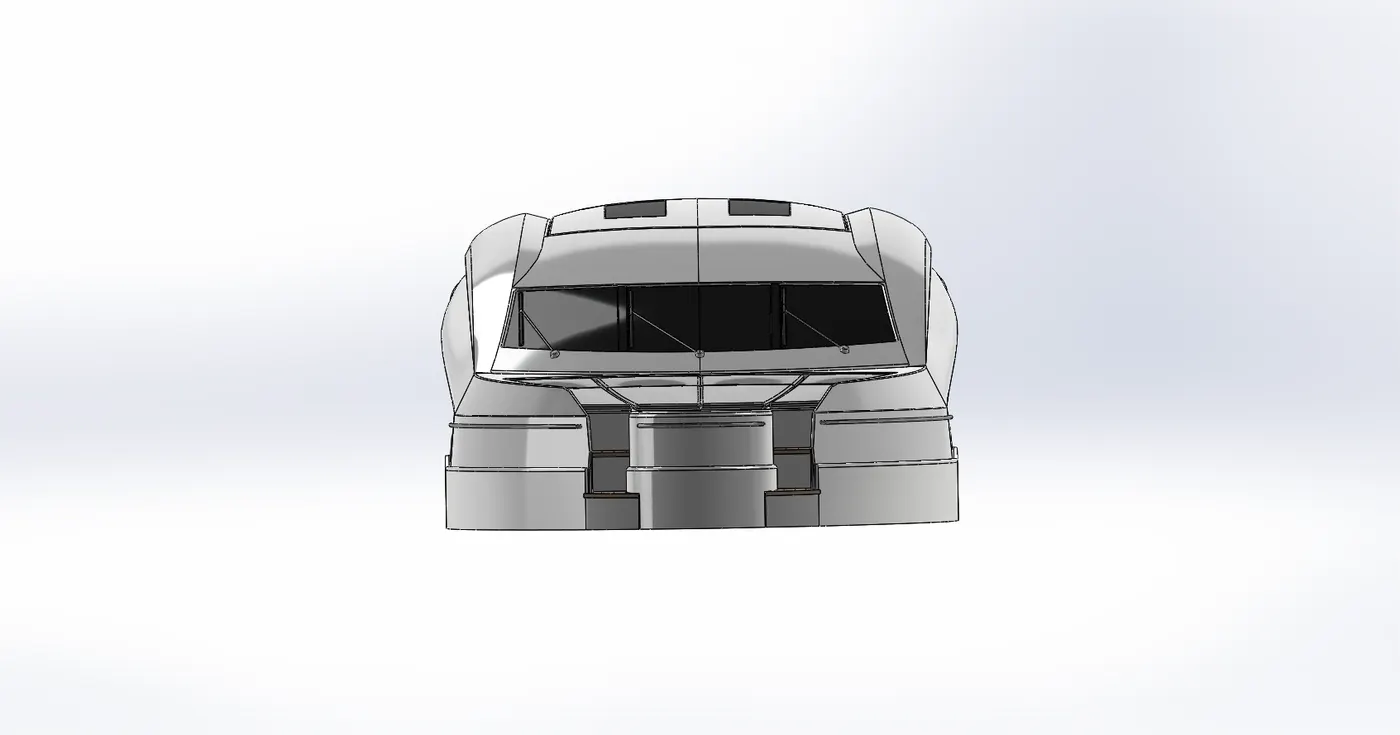

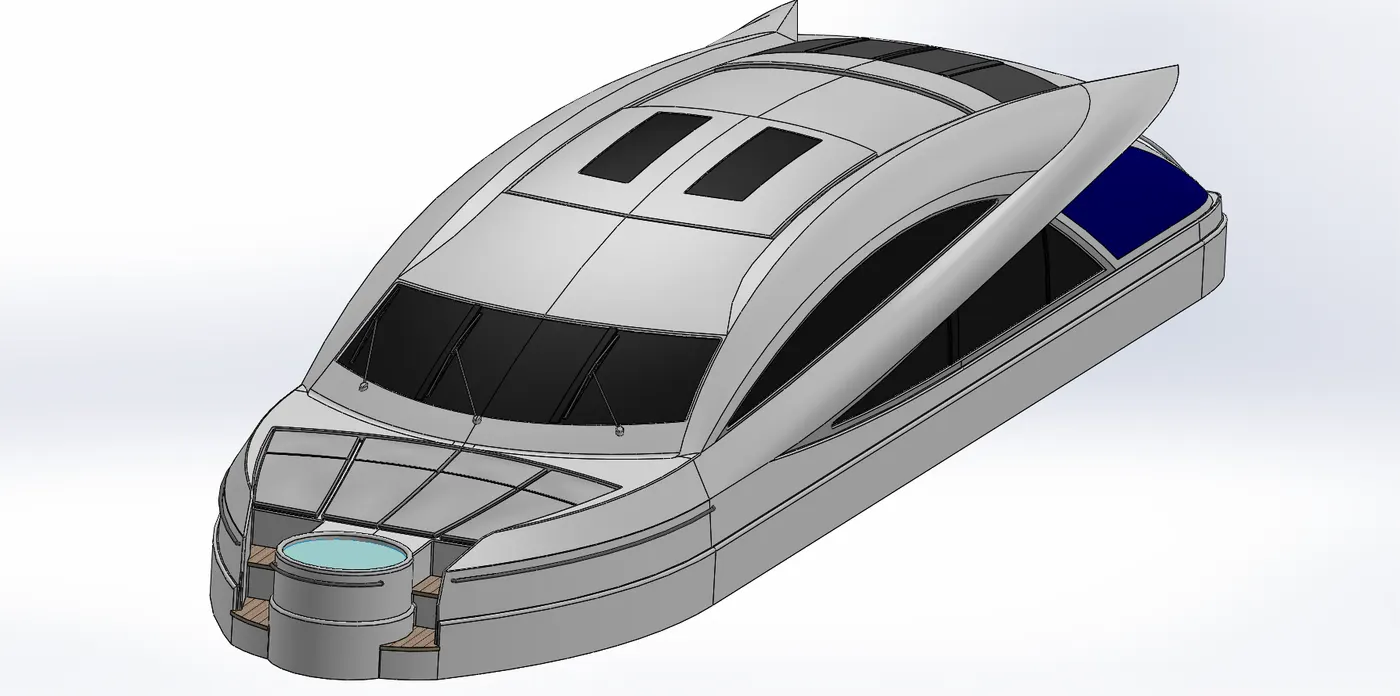

7. Superstructure.
A superstructure is an extended construction of any building or platform that rises above the rest of the building or platform in a distinct manner. In ships this is the name given to the part of the ship that emerges from the deck.
The size of the superstructure has a great influence on the mobility of the vessels. They are designed in a manner, so that, they add value and hinder the speed and mobility in the least.
The superstructure is mostly designed in fashion as well. This is because it is the most easily visible part of the ship, in fact it is the identication of the ship, and so the designers try to provide it with the identity that is unique.
Following tools are used to model this part.
Surface extrude
Ruled surface
Surface loft
Surface sweep
Surface trim
Surface knit
Extended surface
Curves
Boss extrude
Cut extrude
Fillet
Delete faces
Chamfer
Surface offset
Thicken
Dome
Sweep
Mirror

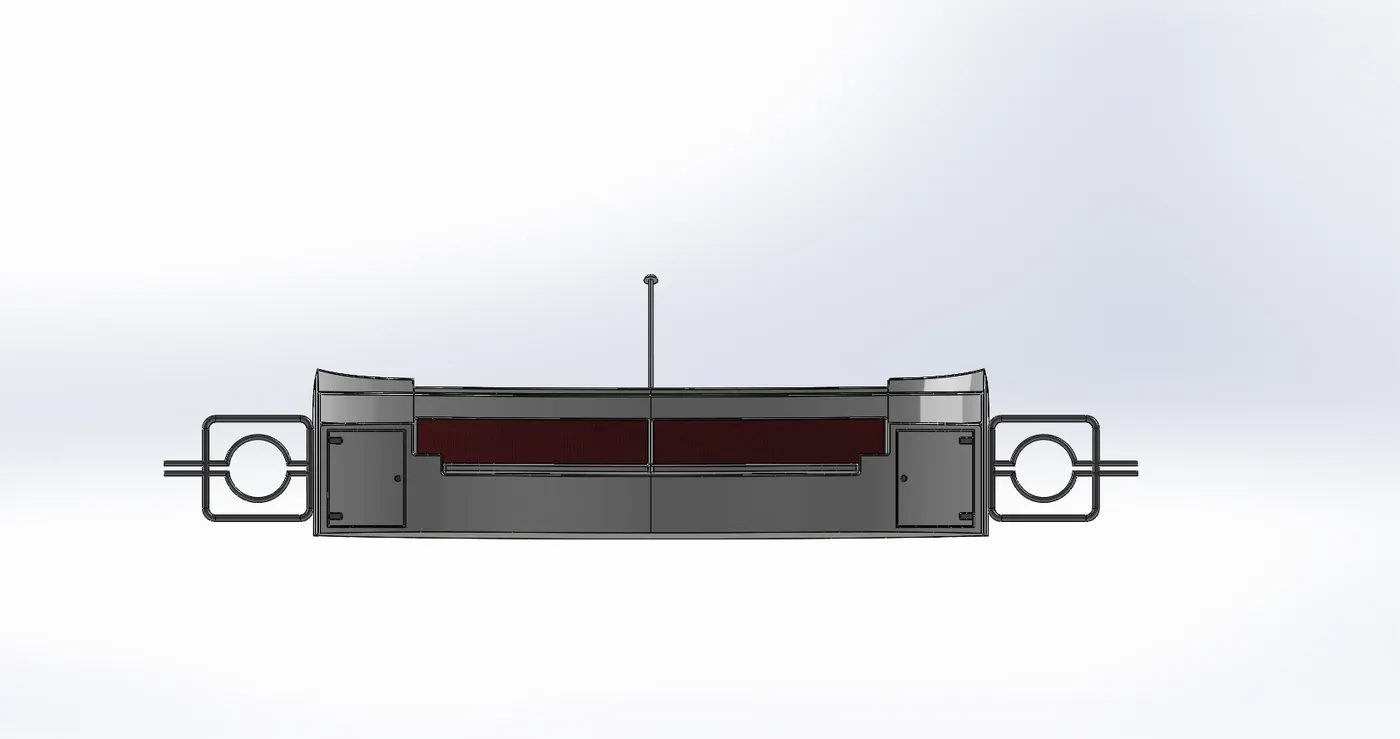

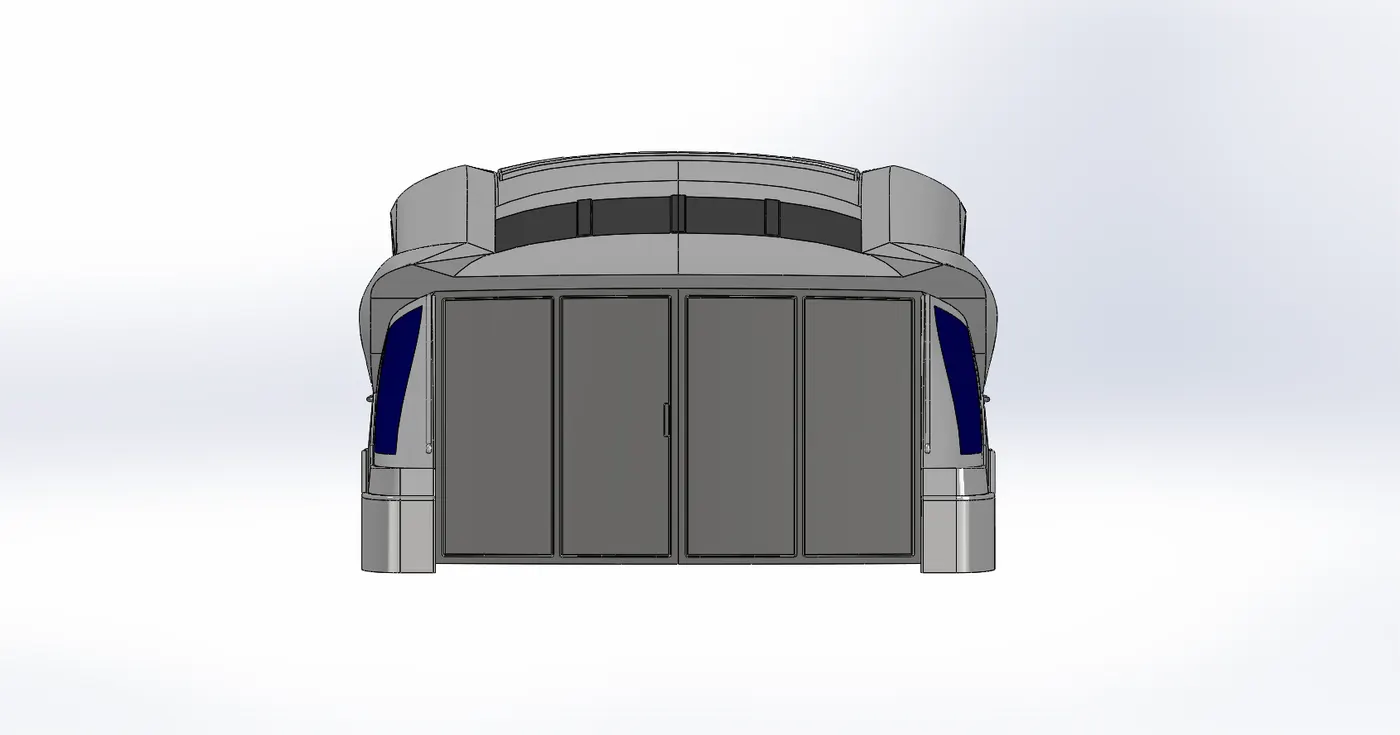

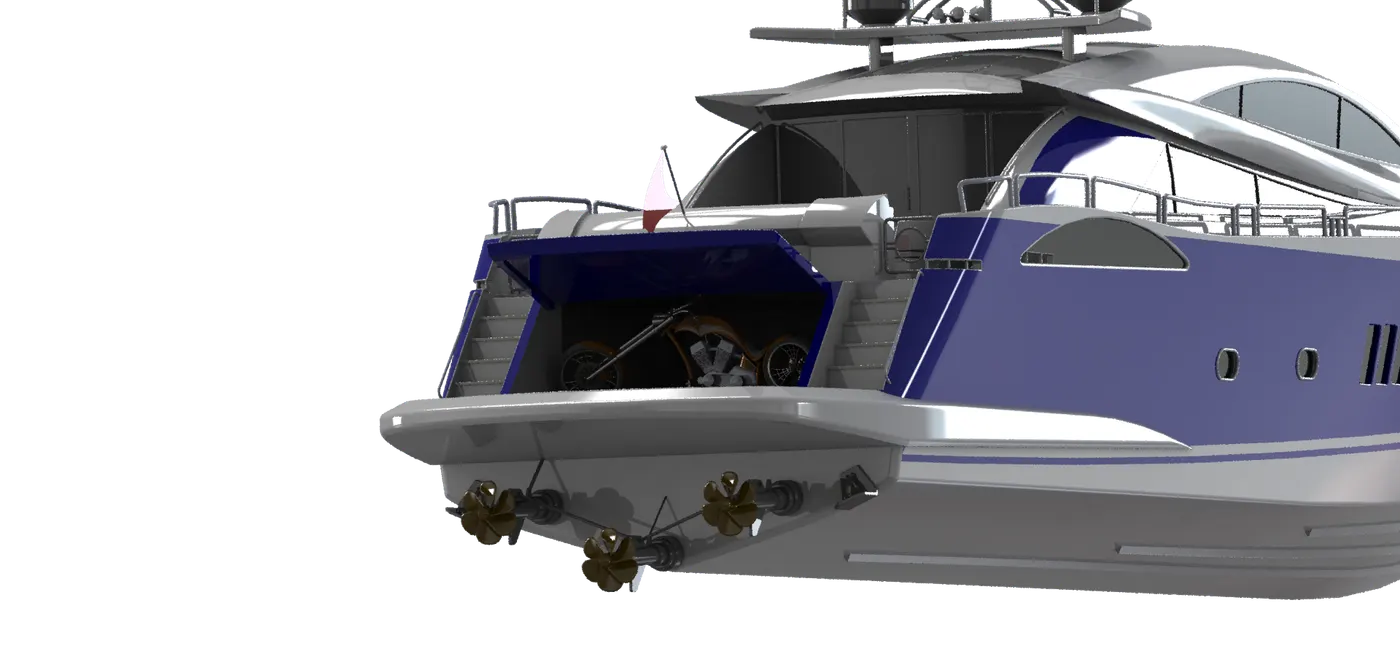

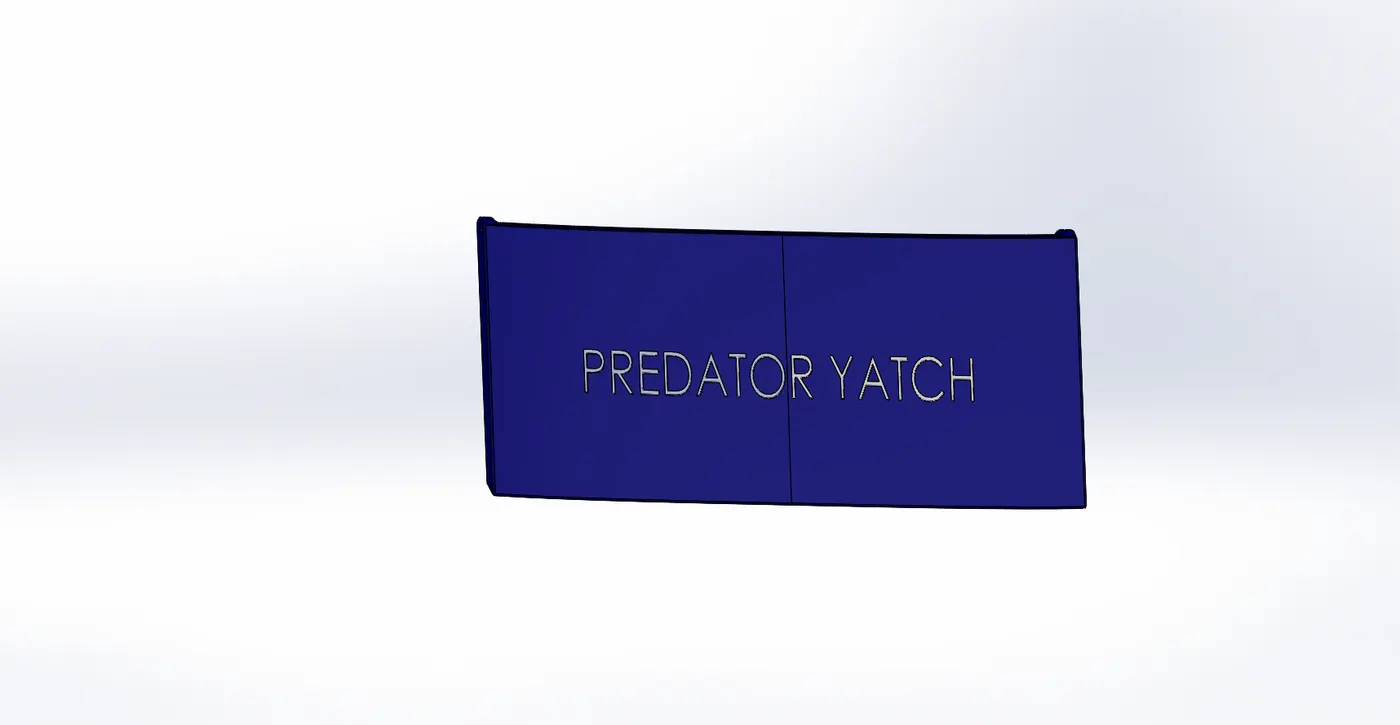

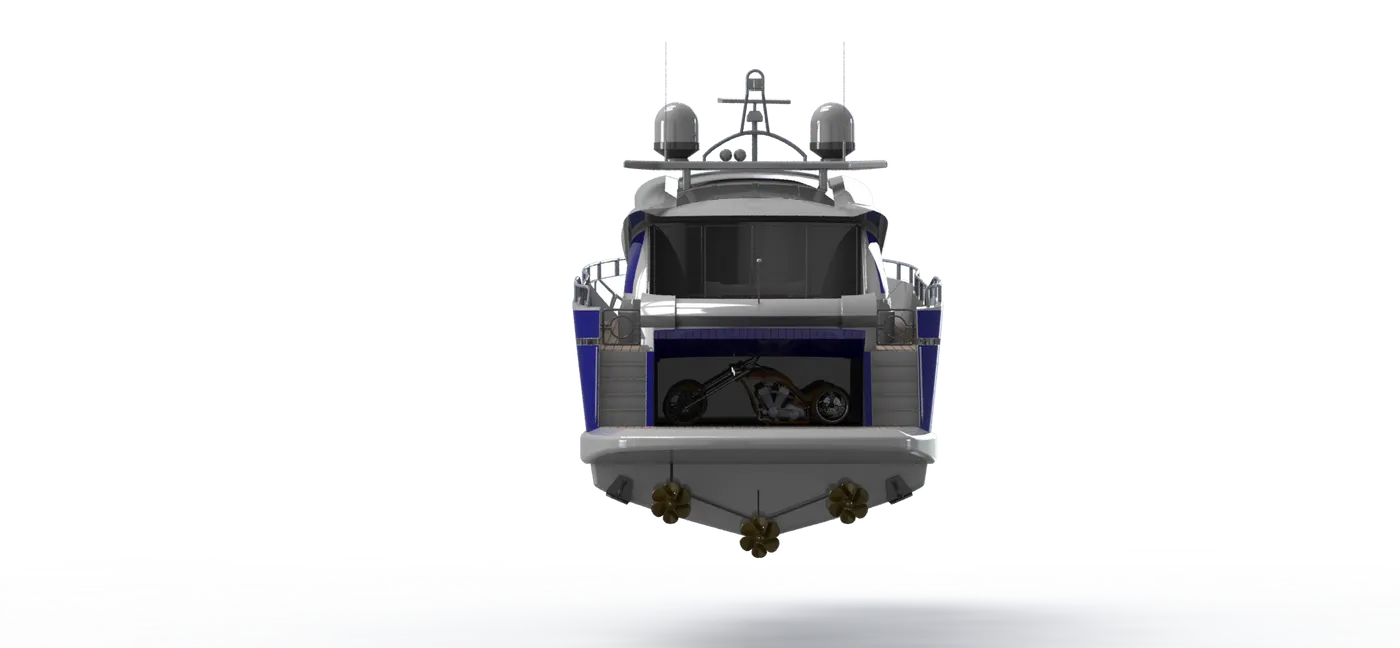

8. Garage Door.
Following tools are used to model this part.
Cut extrude
Shell
Fillet
Mirror

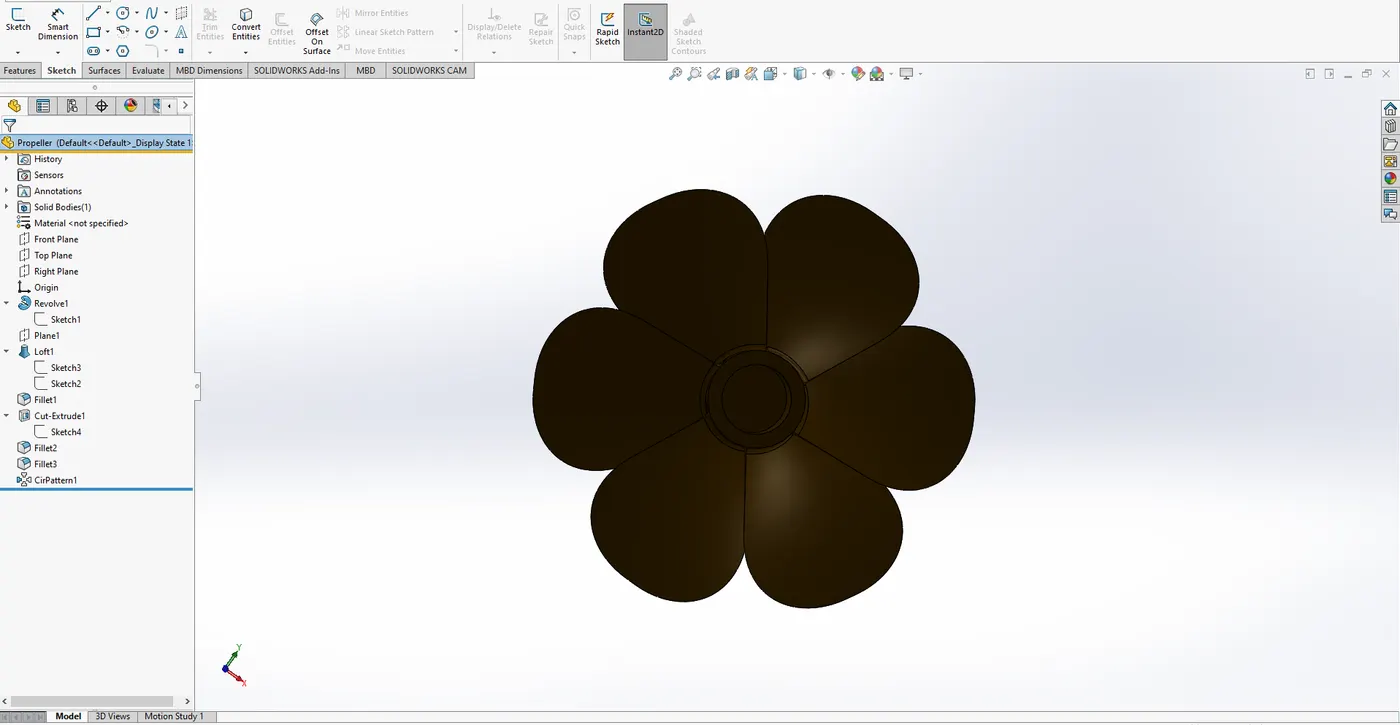

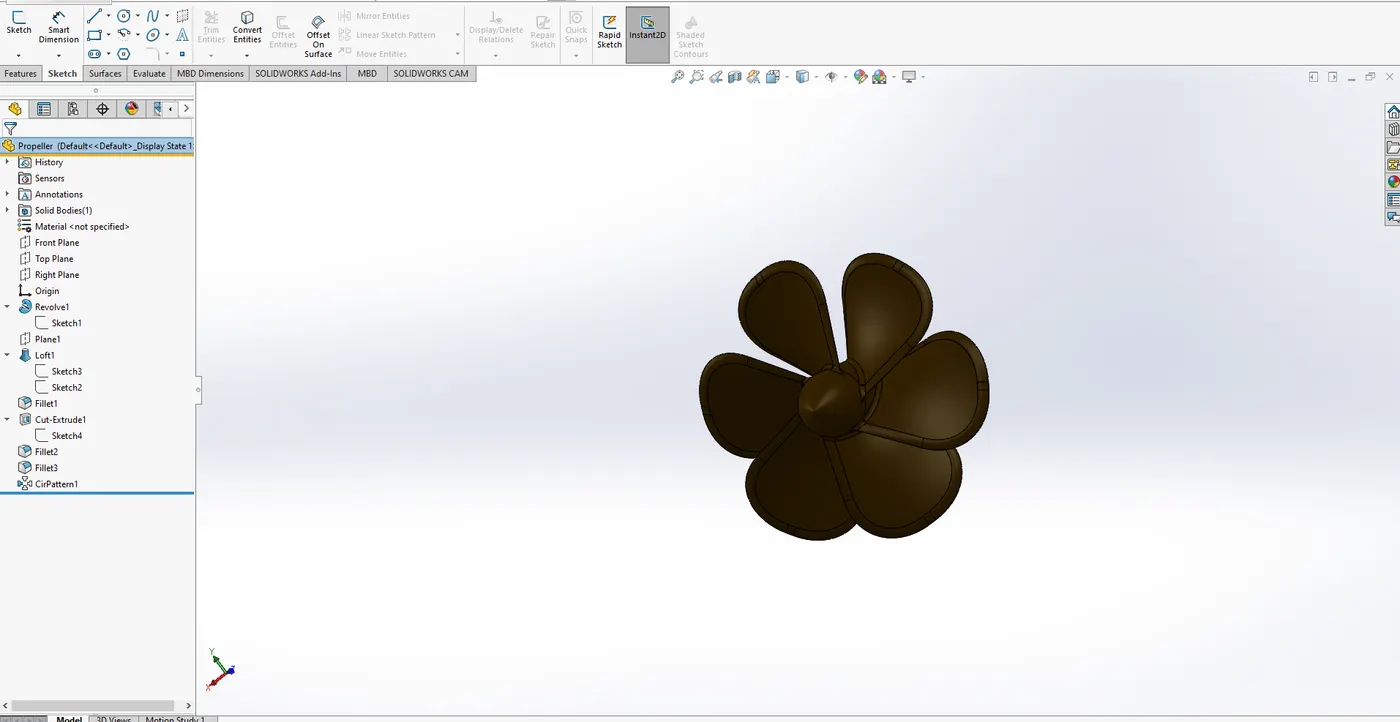

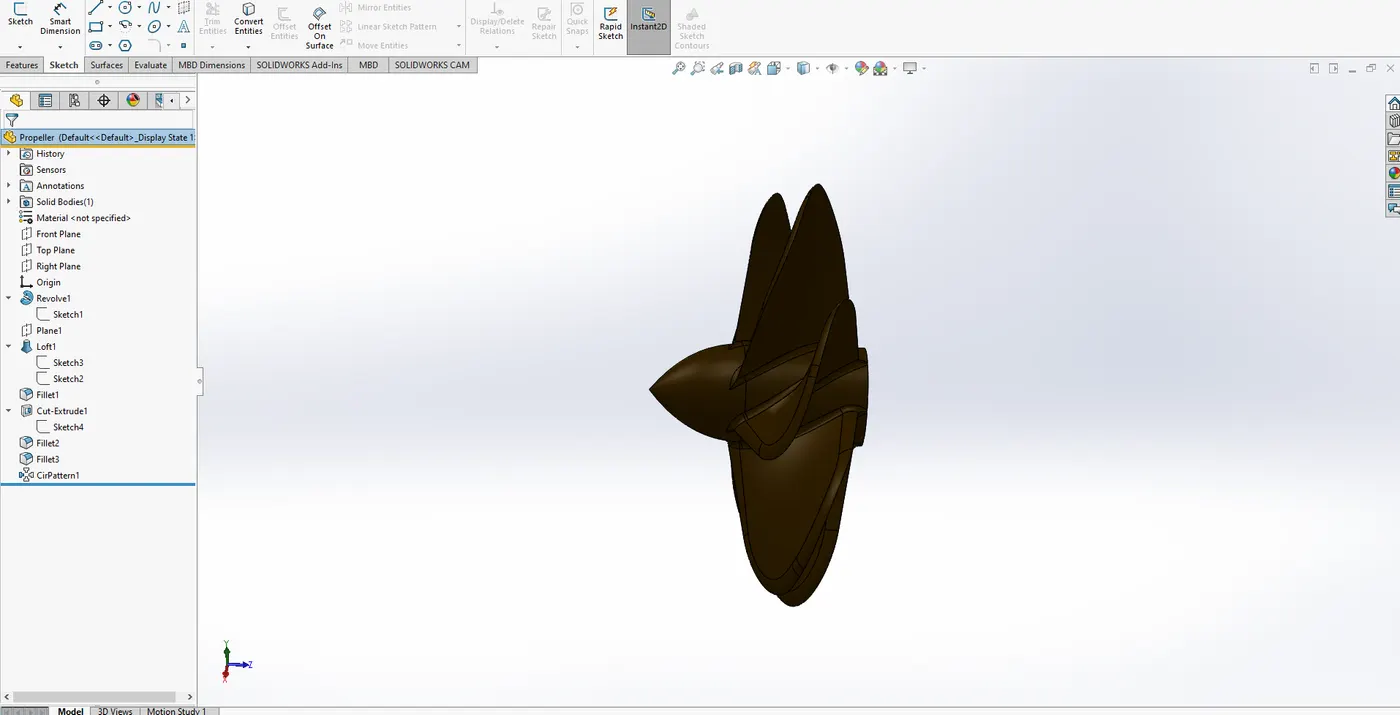

9. propeller.
Following tools are used to model this part.
Revolve
Loft
Fillets
Cut extrude
Circular pattern

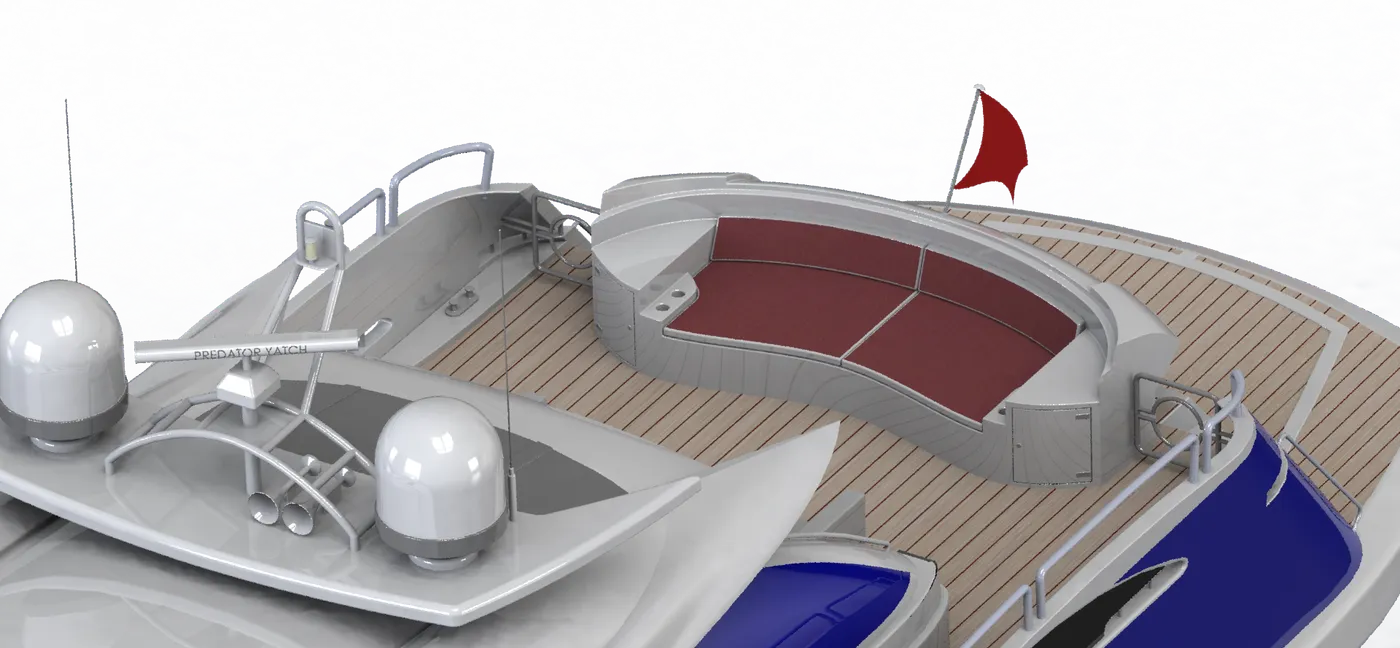

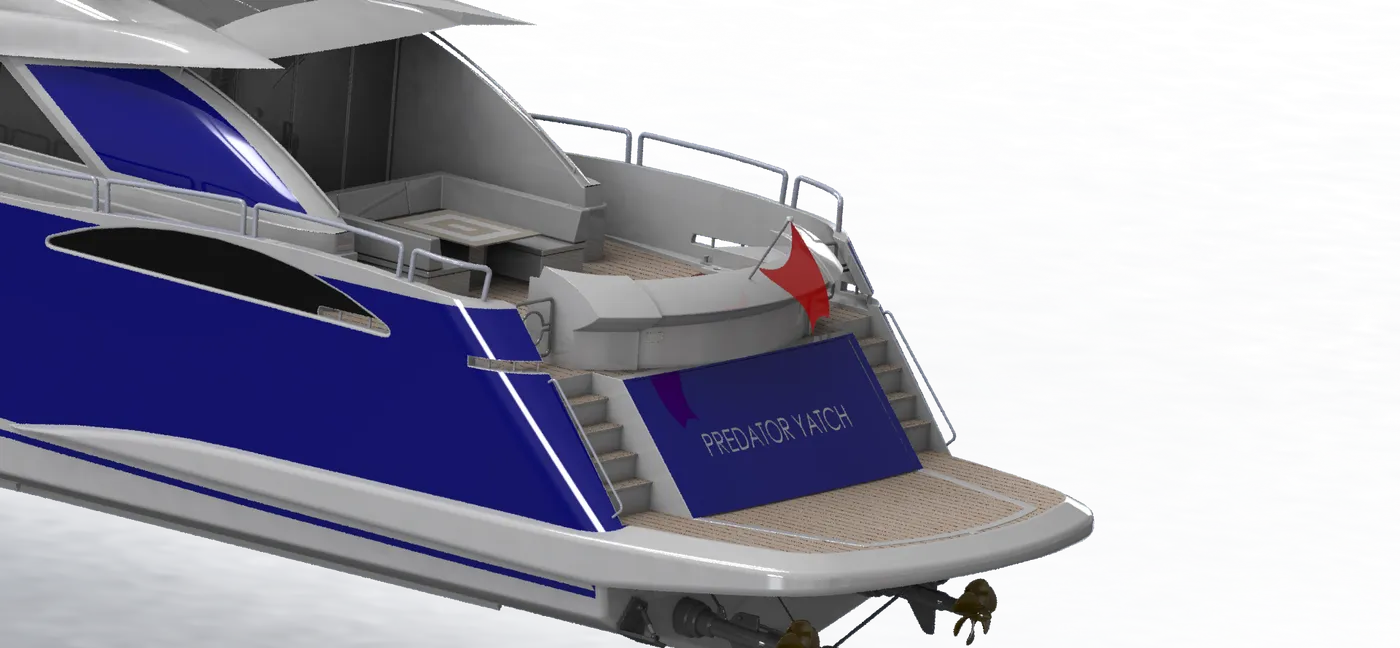

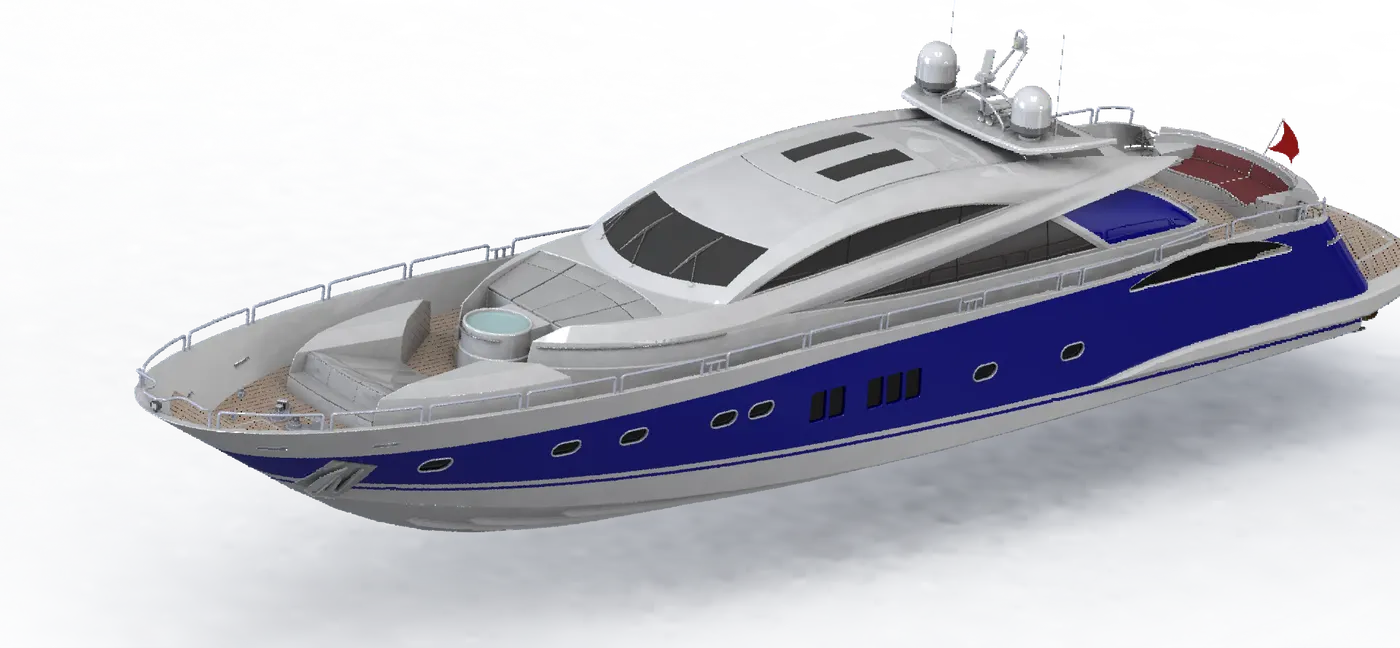

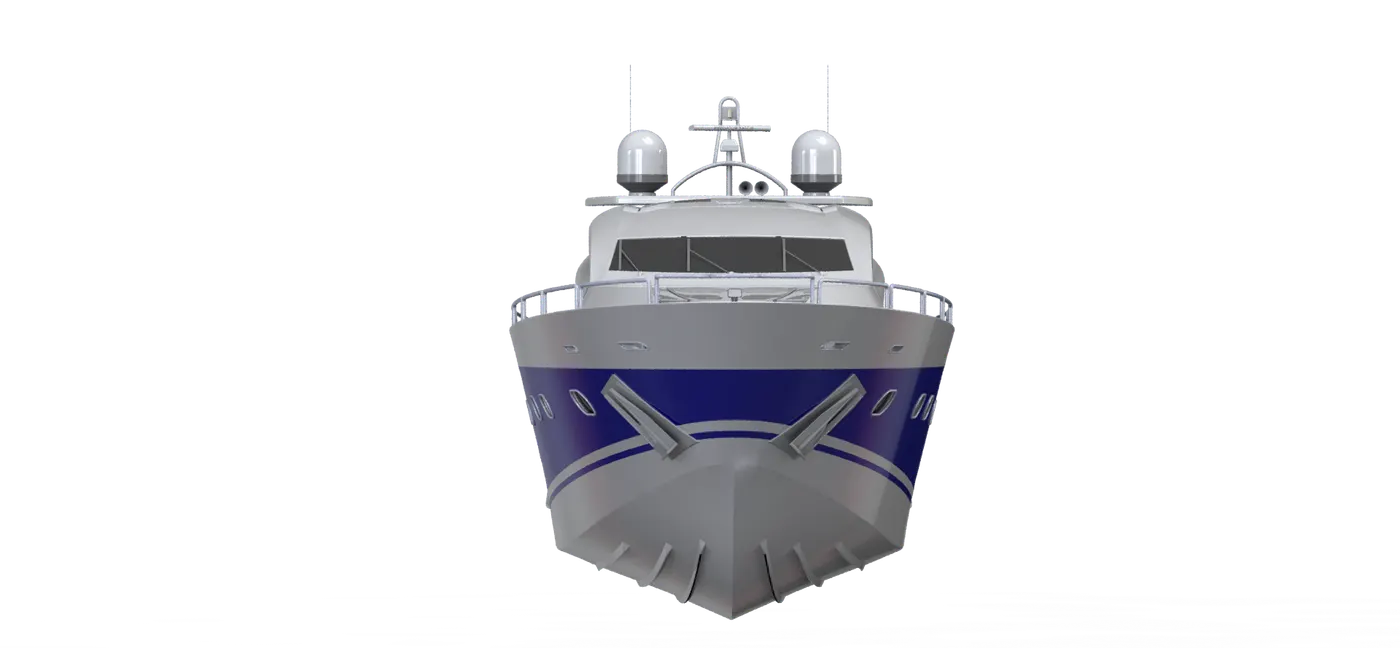

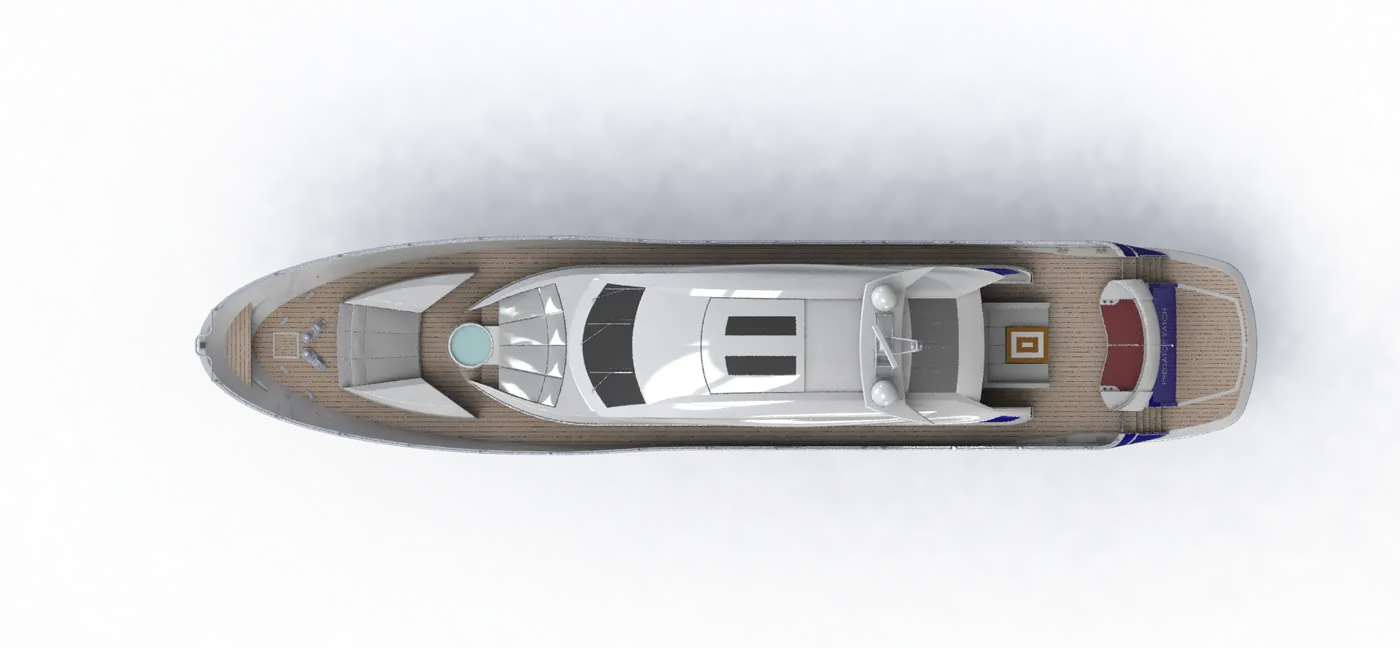

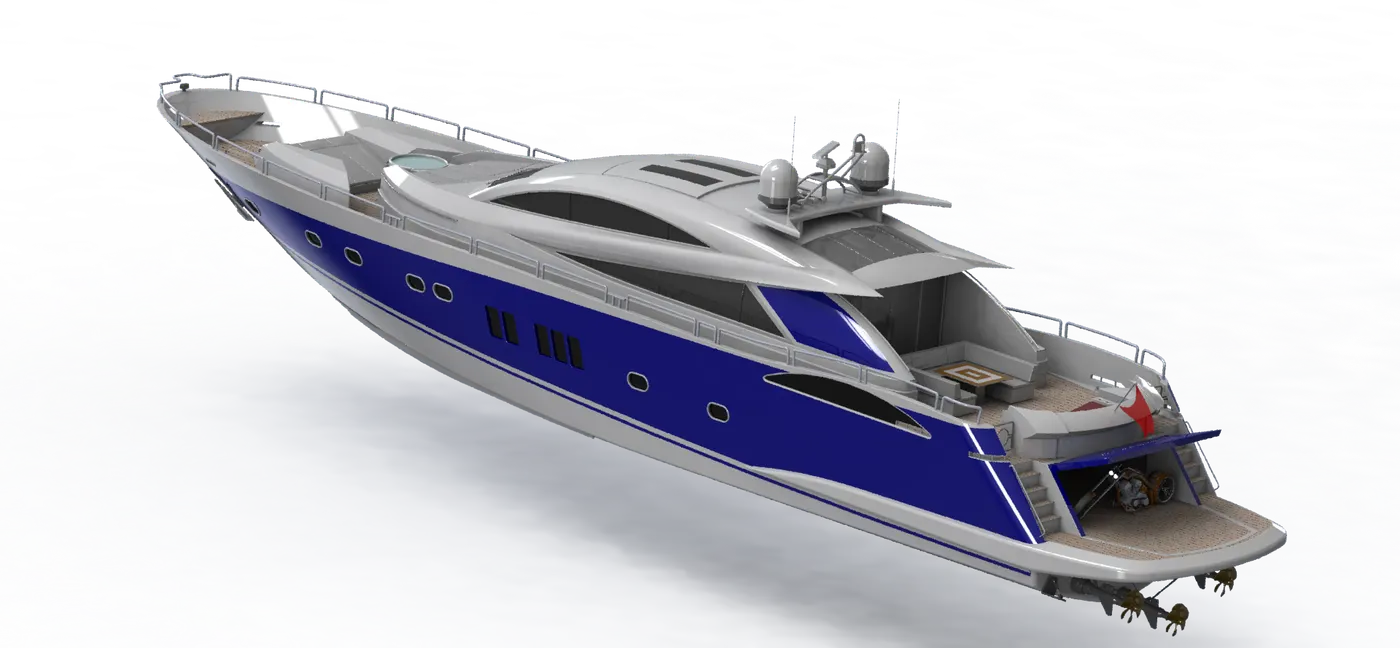

Assembly of Yatch
Conclusion:-
From this project, I have learned the surface modelling and to convert into solid bodies. I have learned from setting up the model blueprint and designing with the proper dimension. After doing this project , I got an brief knowledge how to do surface modelling and rendering the model. This knowledge will be very beneficial in the field of product development field or Designing field.
