Analysis & Design of RCC shear walls in the model using ETABS

Aim:

To run the analysis and design the RCC shear walls shown in the etabs model.

Step 1:

1) Open the ETABS file

2) After the analysis click Concrete frame design

Step 2:

1) Need to check there is any failures occurs

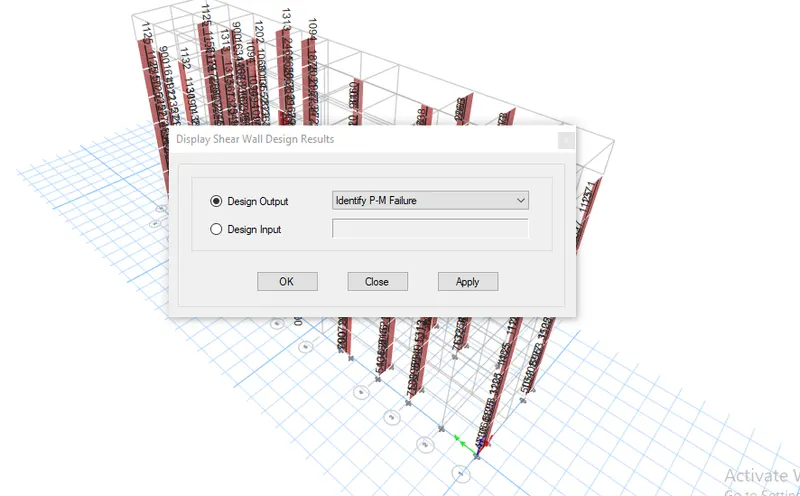

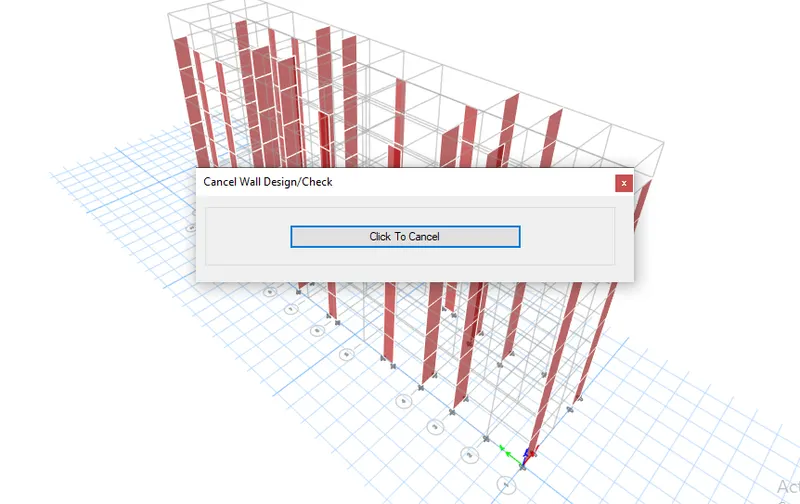

2) Click Shear wall design tool

3) select Display info and choose PM failure

Step 3:

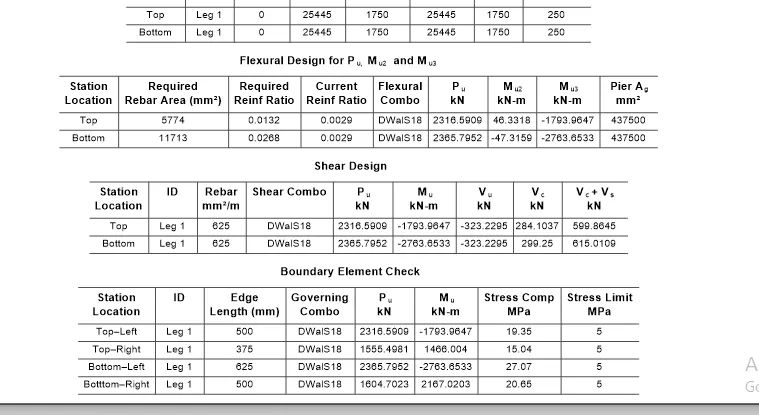

1) Click any wall and check the details

2) Here there is no failure occurs all the values of reinforcement ratio is within 4%

Step 4:

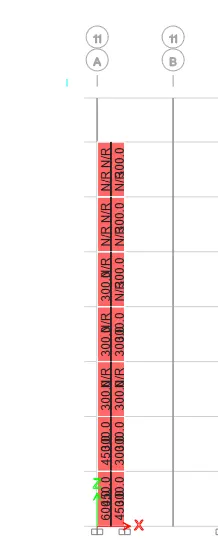

Shear Reinforcing

1) Go to concrete frame design

2) Click Display design info

3) Choose Shear reinforcing

Step 5:

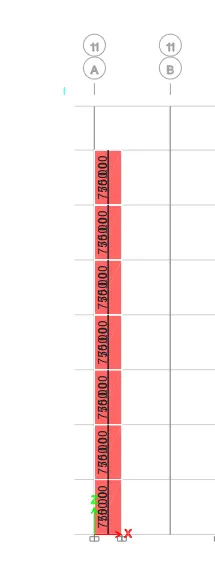

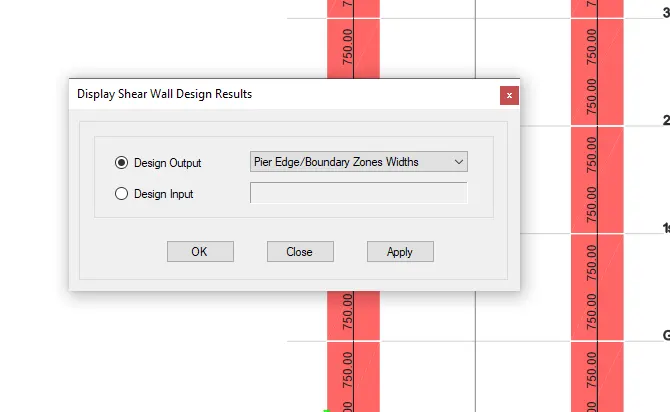

Boundary element width

1) Go to concrete frame design

2) Click Display design info

3) Choose Pier edge or boundary zone width

Step 6:

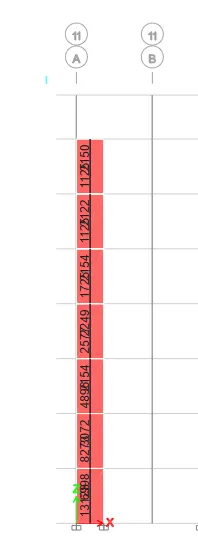

Longitudinal Reinforcement:

1) Go to concrete frame design

2) Click Display design info

3) Choose Pier longitudinal reinforcing

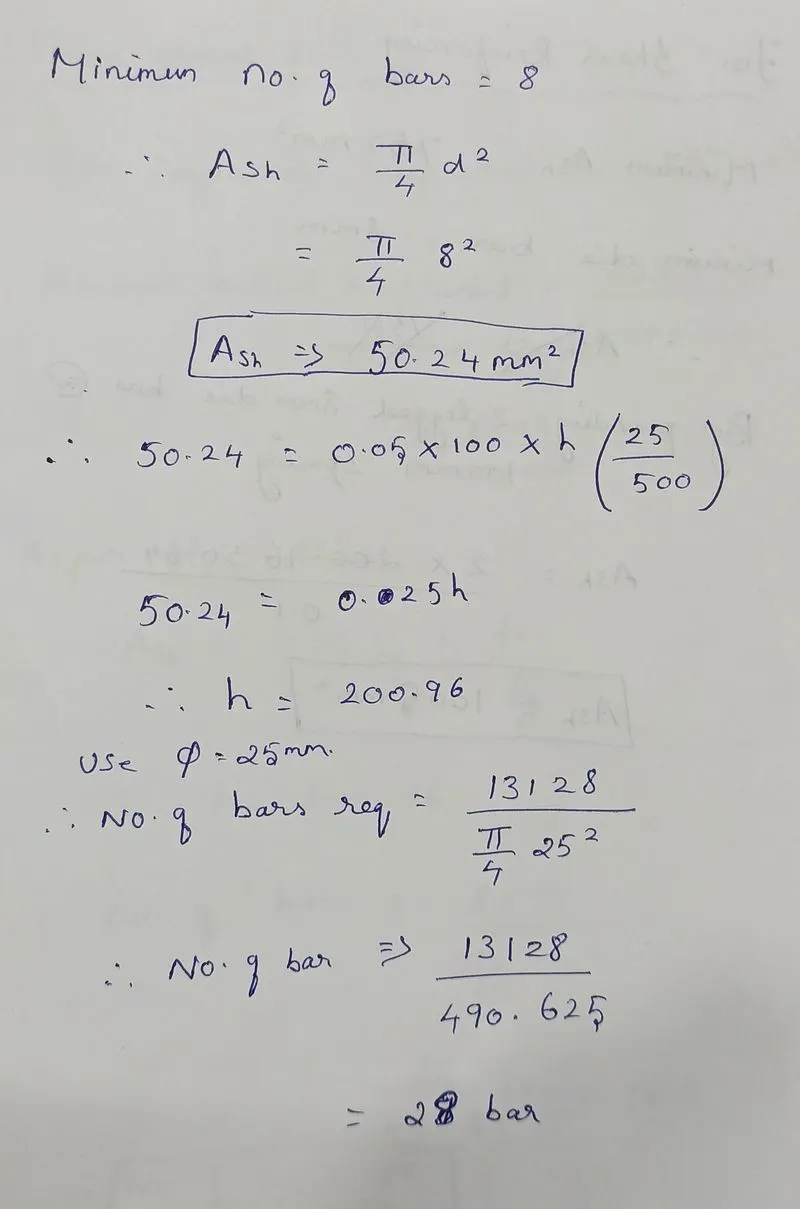

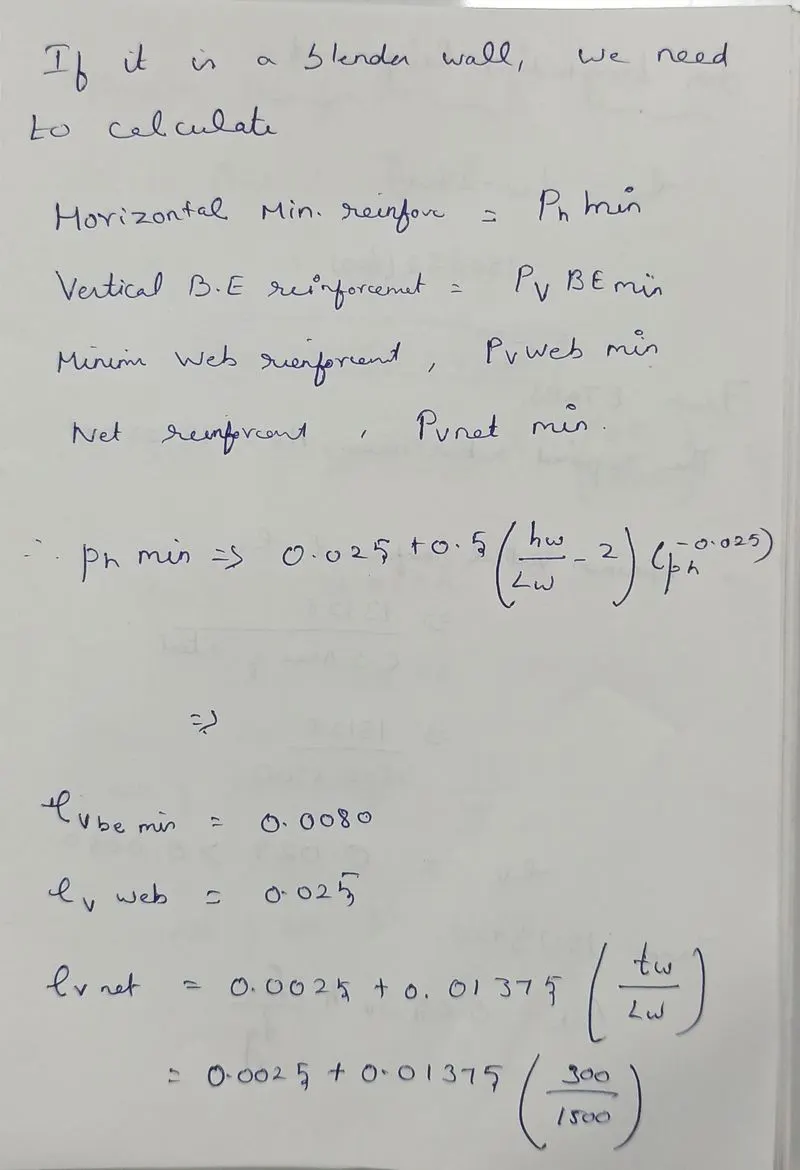

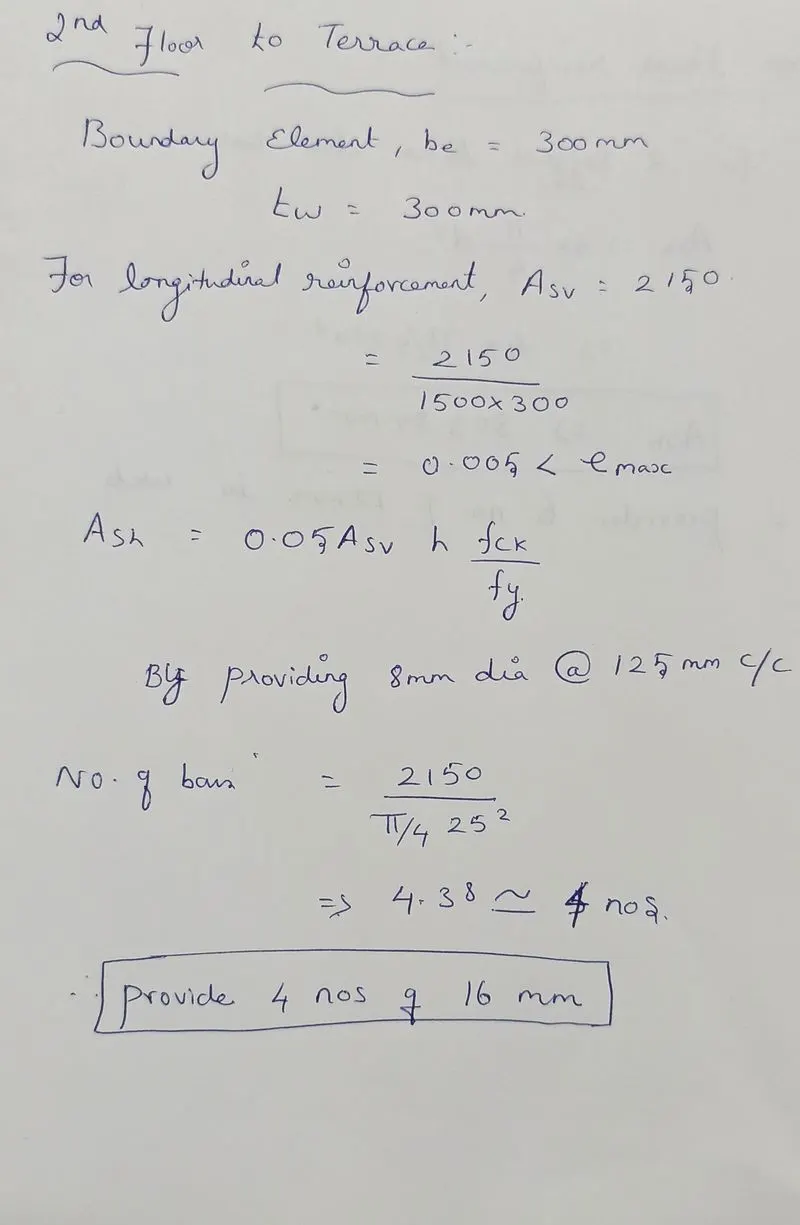

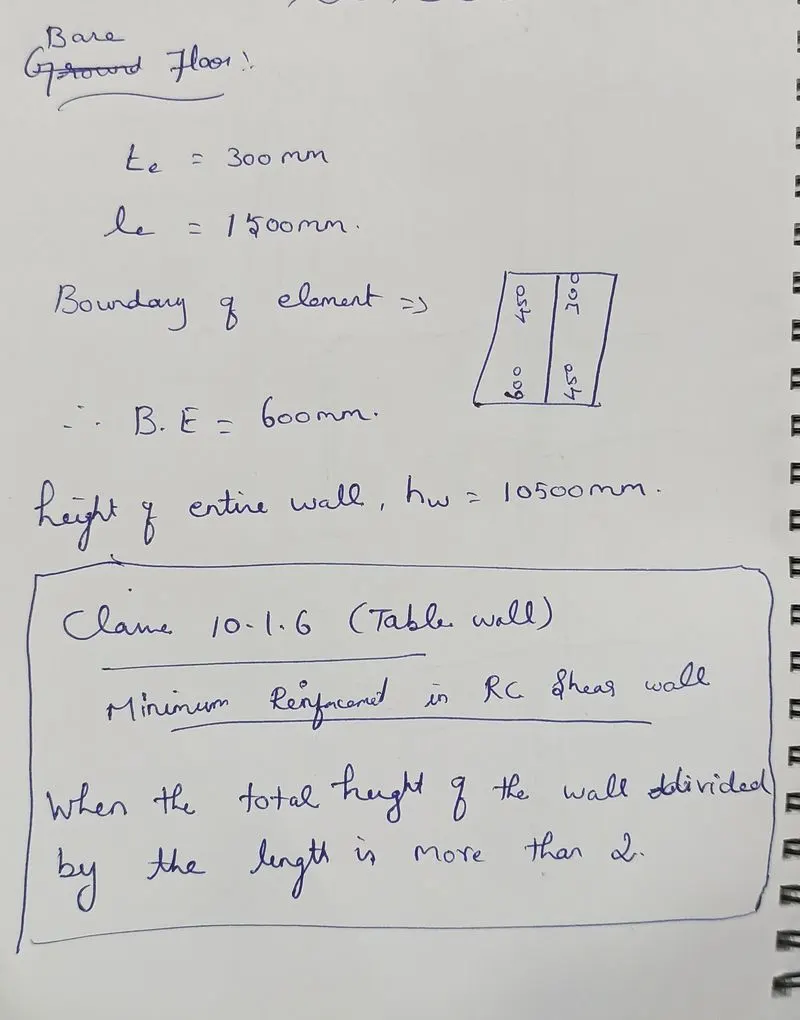

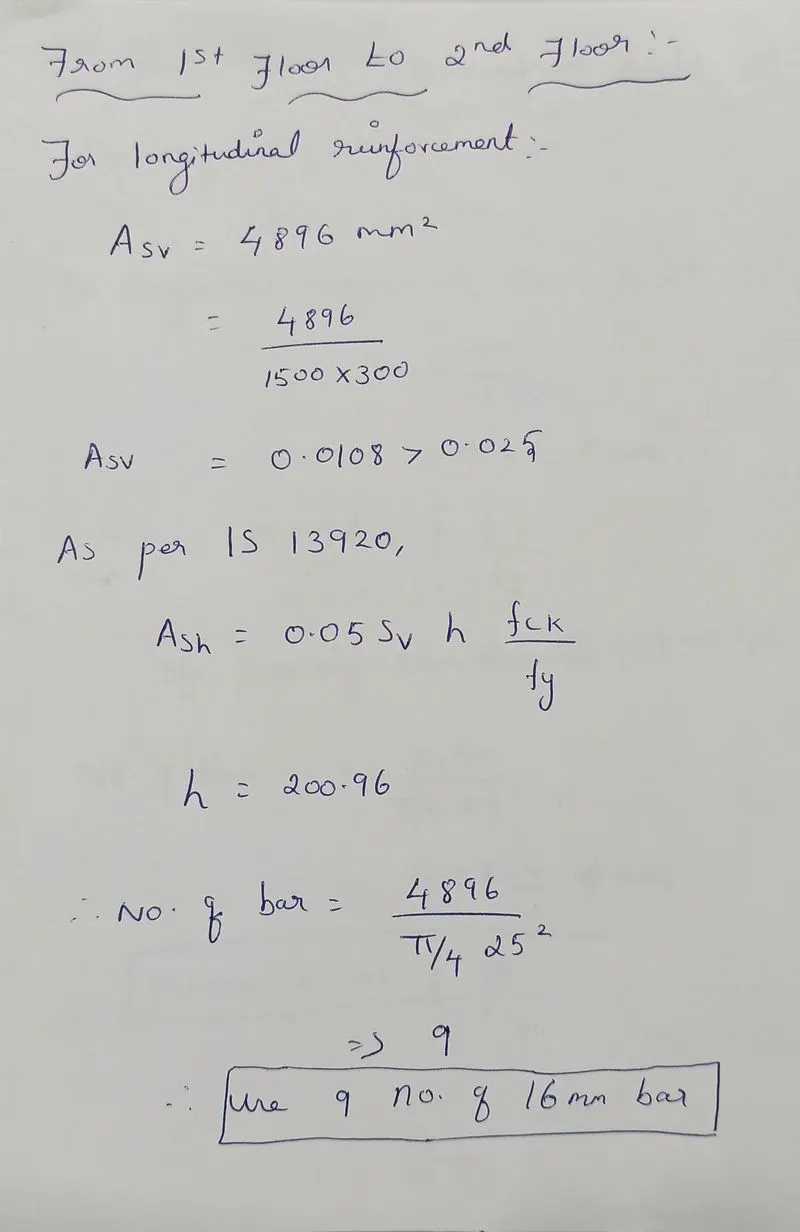

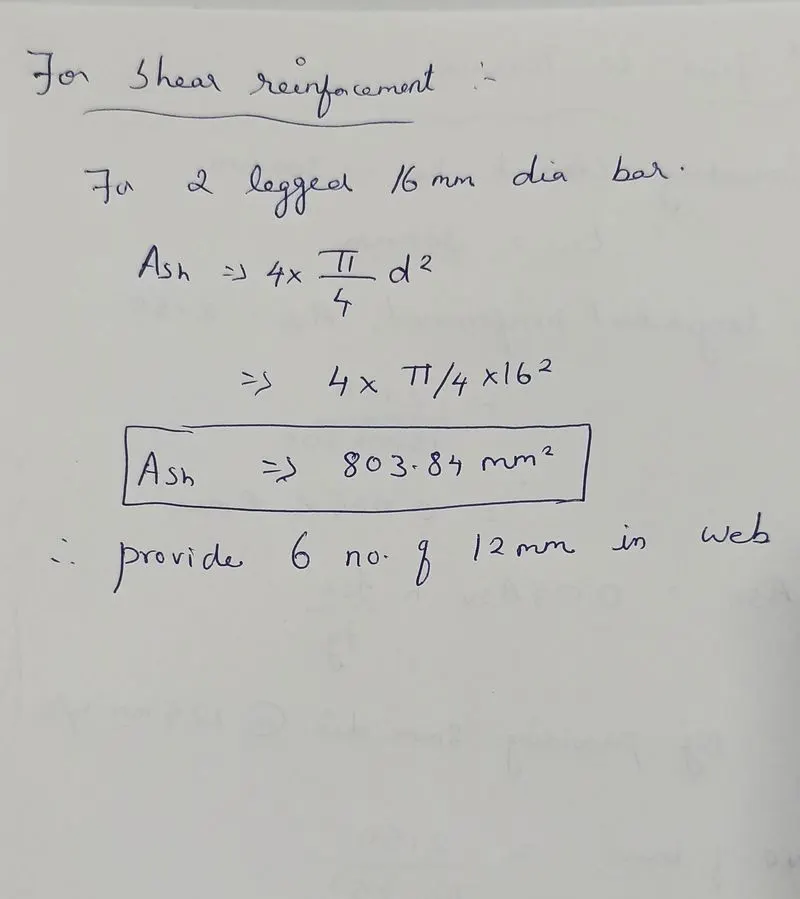

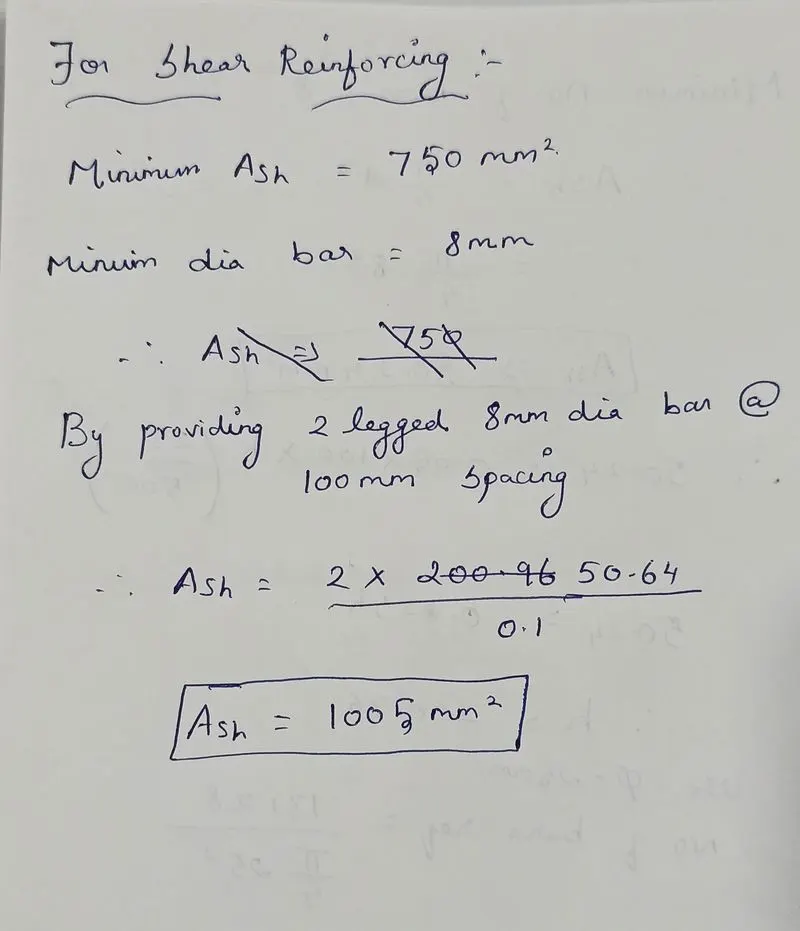

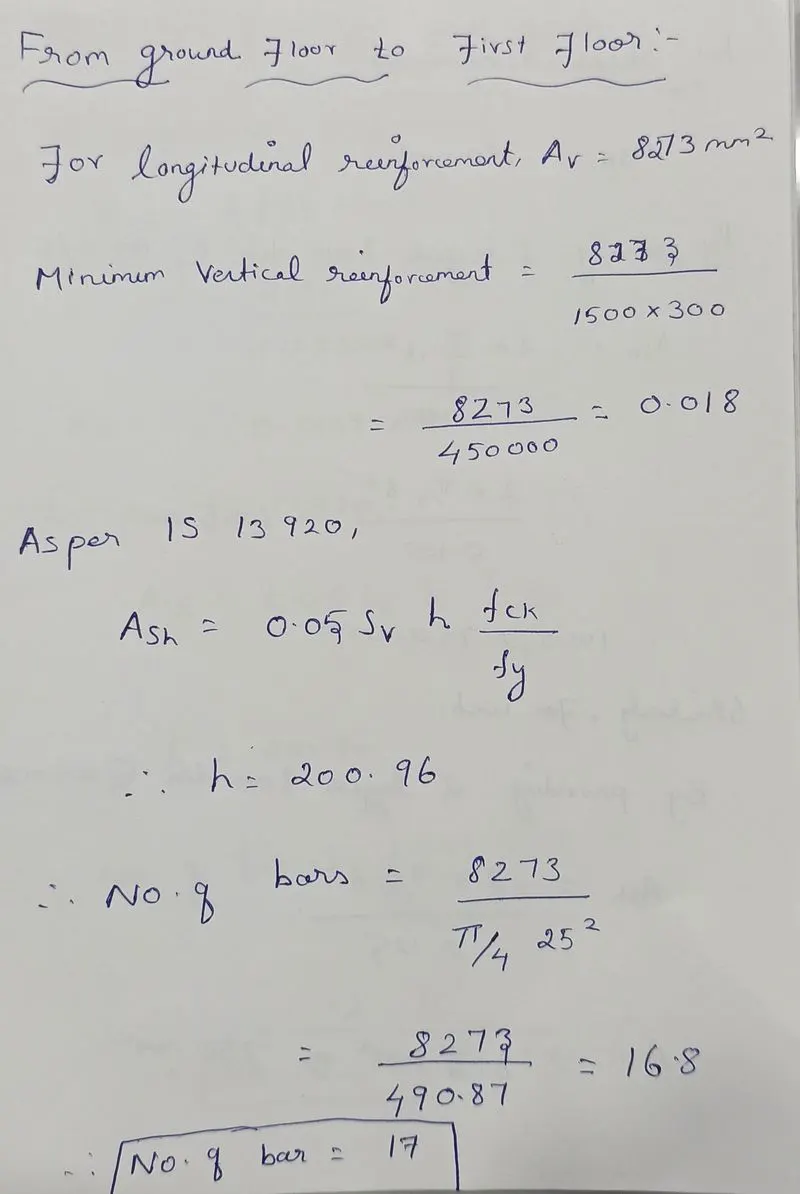

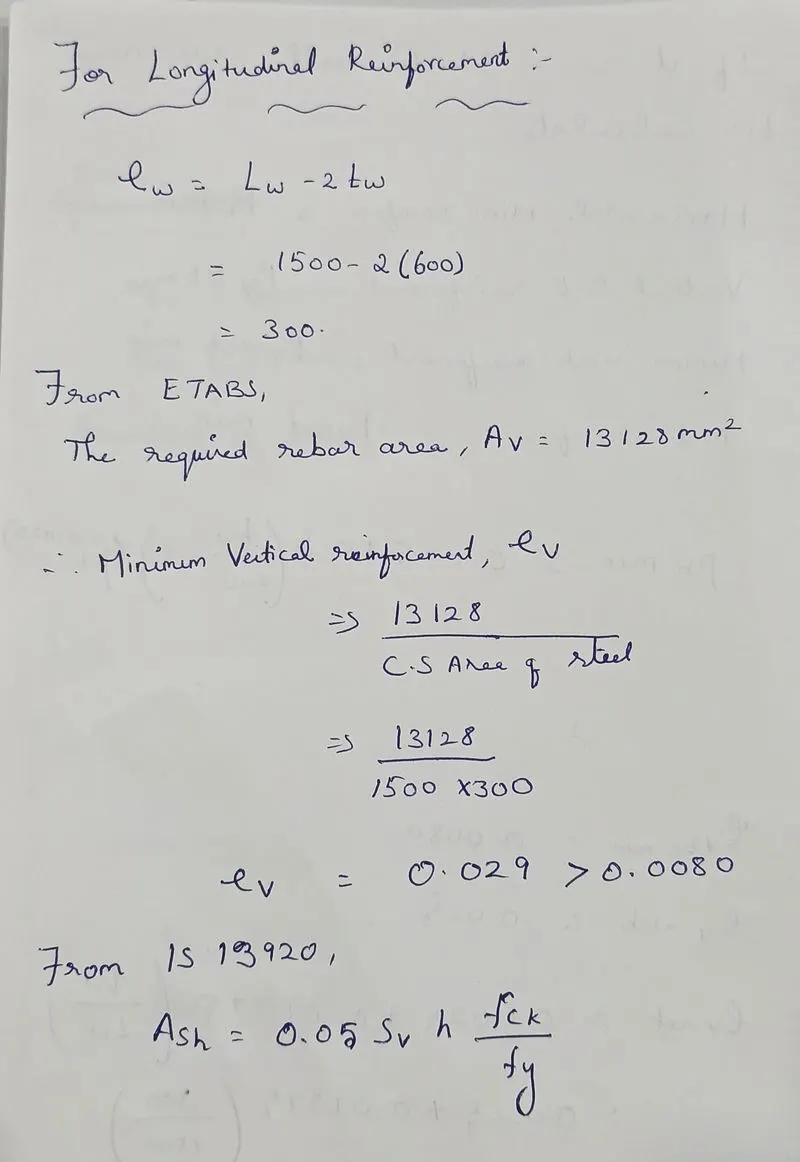

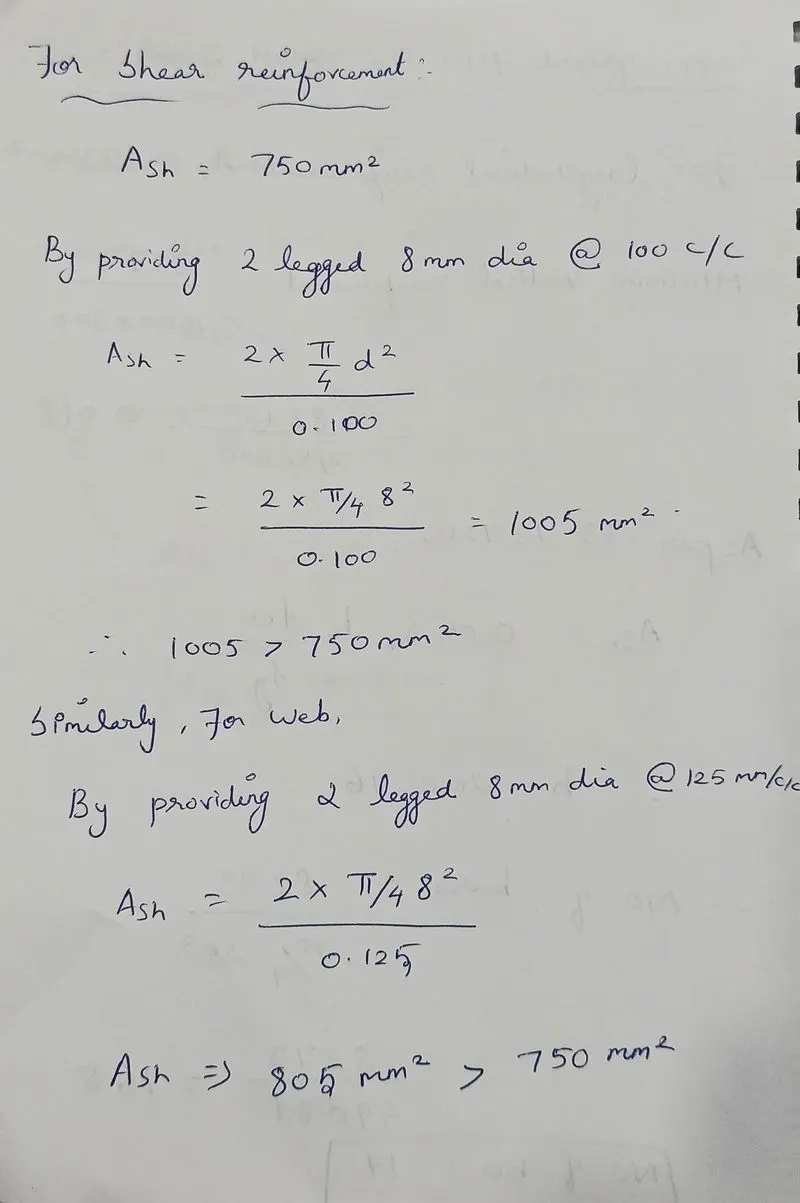

Calculations:

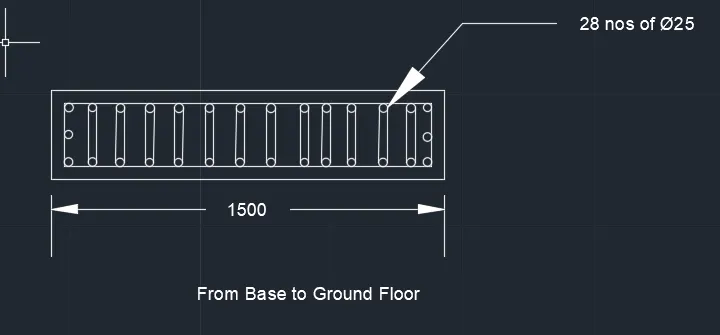

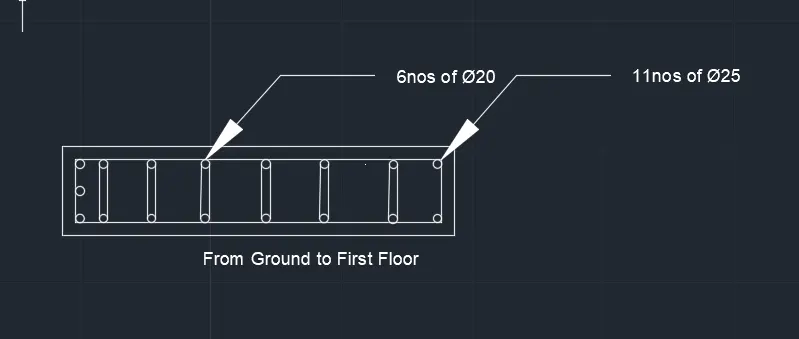

Drawings:
