Advanced Sheet Metal Design Using NX Cad Challenge_7_ Metal bracket-II

METAL BRACKET USING NX SHEET METAL APPLICATION:

OBJECTIVE:

This is a project to learn the step by step procedure to create a Bracket with a gusset from the given 2D drawing.

Features and Tools:

• Contour Flange: Creates a base feature by extruding the sketch along a vector or add material by sweeping the sketch along an edge.
• Break Corners: This feature makes sharp edges to smooth round shape or to chamfer shape.

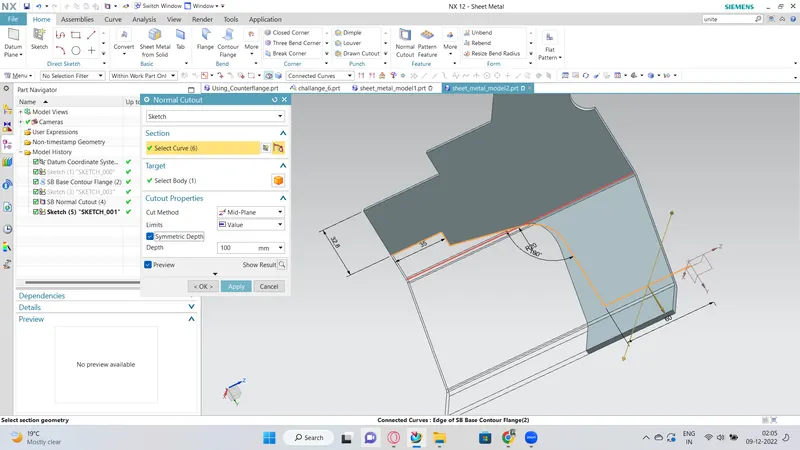

• Normal Cut-Out: It helps to cut material by projecting a sketch onto the model, cutting perpendicular to the face.
• Unbend: This feature helps to unbend the bent shapes to a flat pattern. In sheet metal the other features like cut-outs and holes needed to be created over the flat configuration. So that feature applied will be normal to a flat surface.
• Hole: Cut or remove the material with thread pattern on it. For applying the hole feature there should be a specific point, which will be the center of the hole.

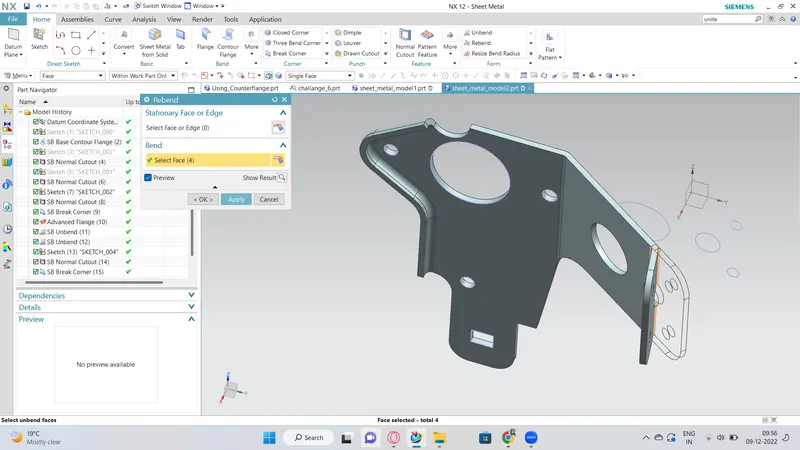

• Rebend: This command helps to rebend the previously unbent sheet and have a component in its original form.
• Advanced Flange: Add a flange along an edge using a bend angle or a reference face. The edge and reference face can be curved.

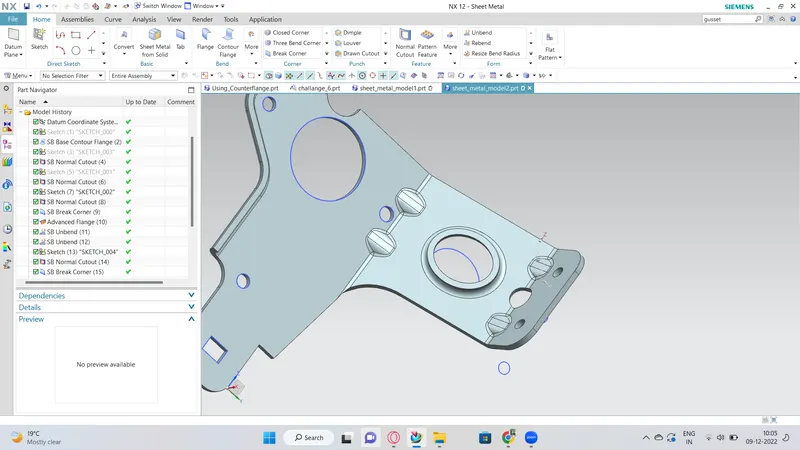

• Gusset: Creates a stiffening gusset on the part.

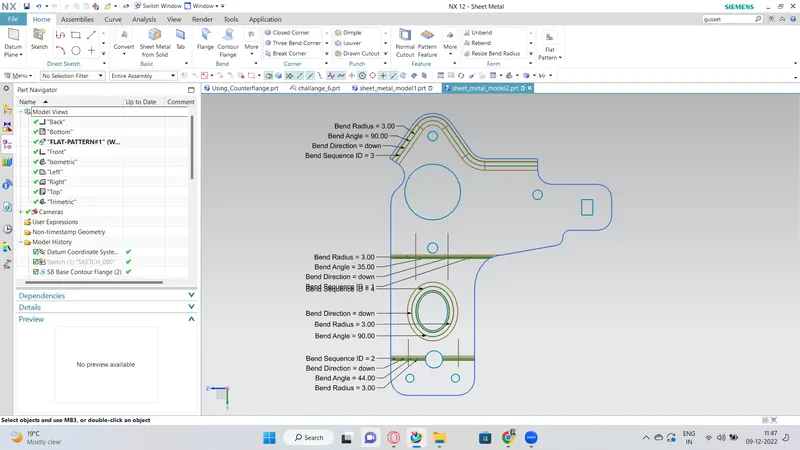

• Flat Pattern: It is used to represent the whole component in 2D form. This flat pattern also shows entire features with dimensions.

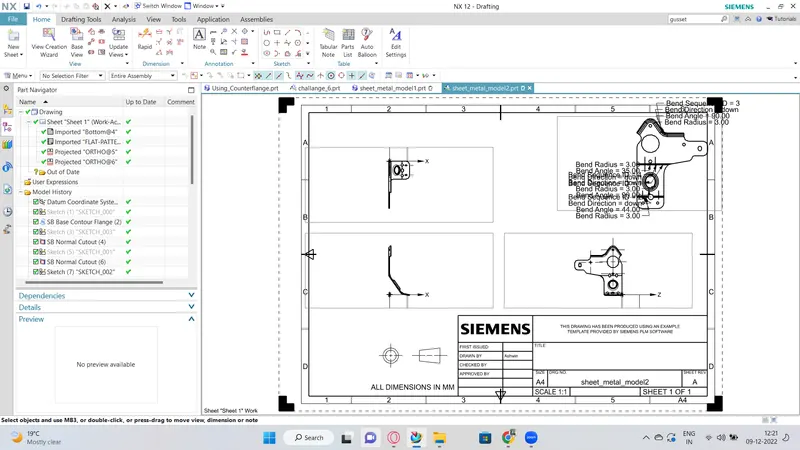

• Drafting: Drafting is creating a technical drawing into a sheet, communicating about the dimensions and view of components. The draft helps the manufacturing and production department to know about the product design in a 2D format.

Procedure:

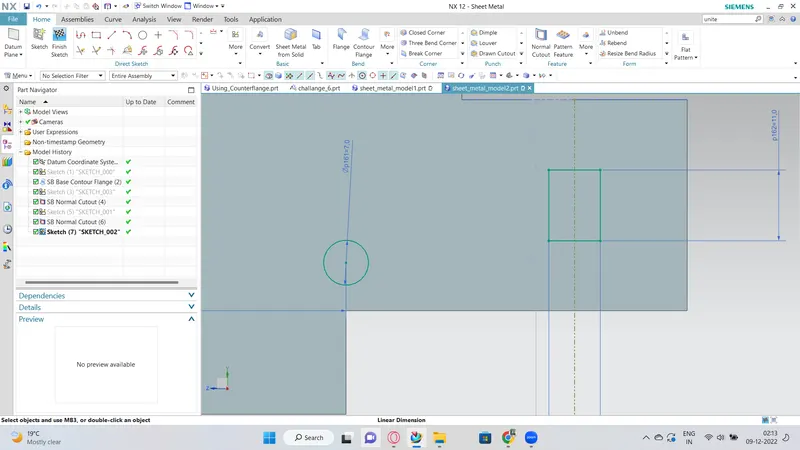

• Sketch the drawing for the contour flange on XZ plane with a width of 158mm.
• Using normal cut-out remove unwanted material by checking the 2D drawing.
• Use break corners to give a smooth curve to the corners according to the 2D drawing available.
• Unbend the model and cut out the shapes needed in the model.
• Rebend the model.

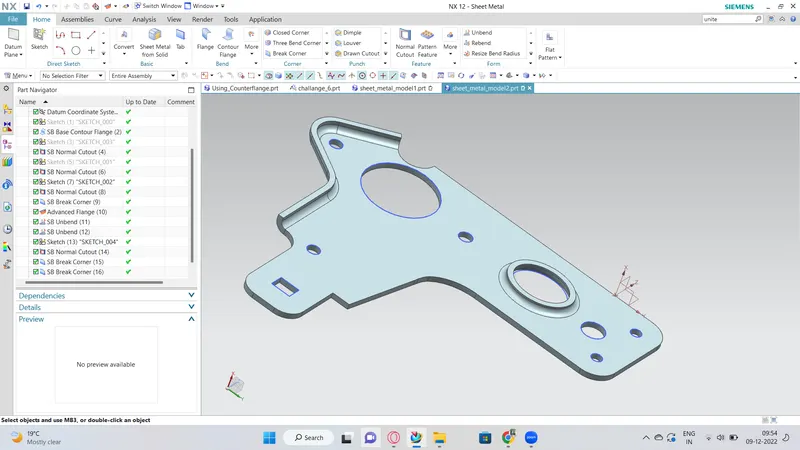

• Use advanced flange and select the upper edge with a flange length of 5mm.

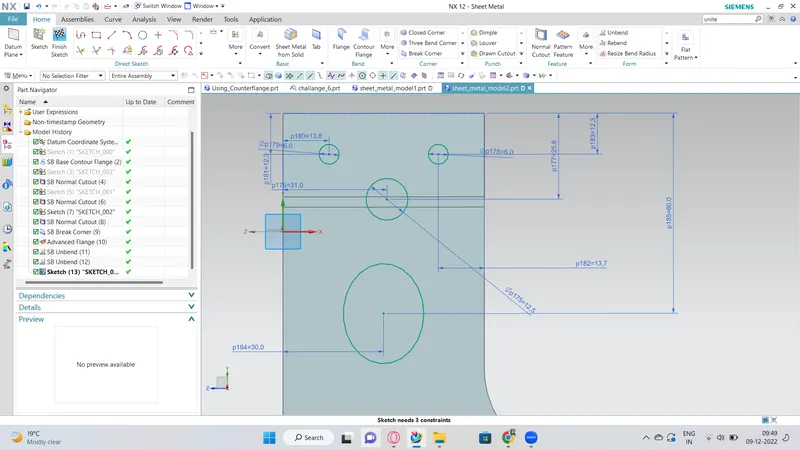

• Unbend the model again and give holes at the bottom of the part according to the drawing.
• Use normal cut-out by sketching the shape between two bends. Then use advance flange on the same sketch.

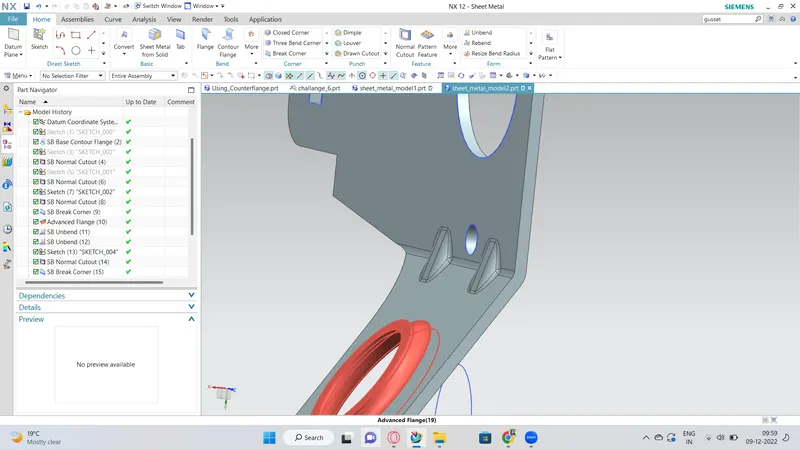

• Rebend the model and apply the gusset feature at the bend as shown in the drawing.

RESULT:

Views:

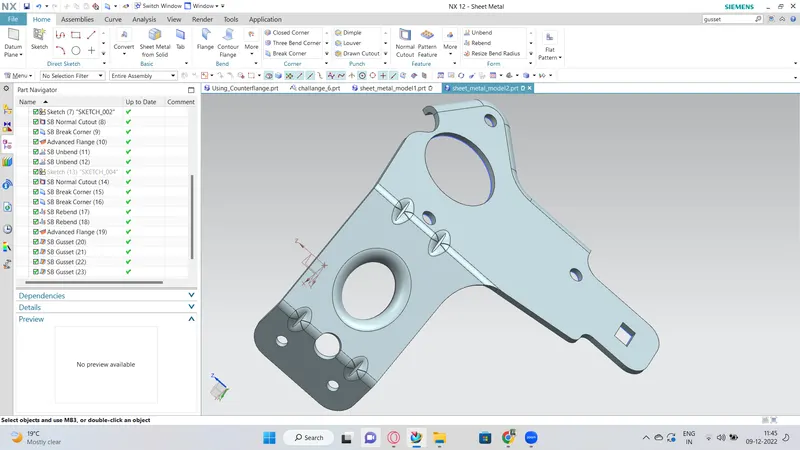

FIG: Isometric View

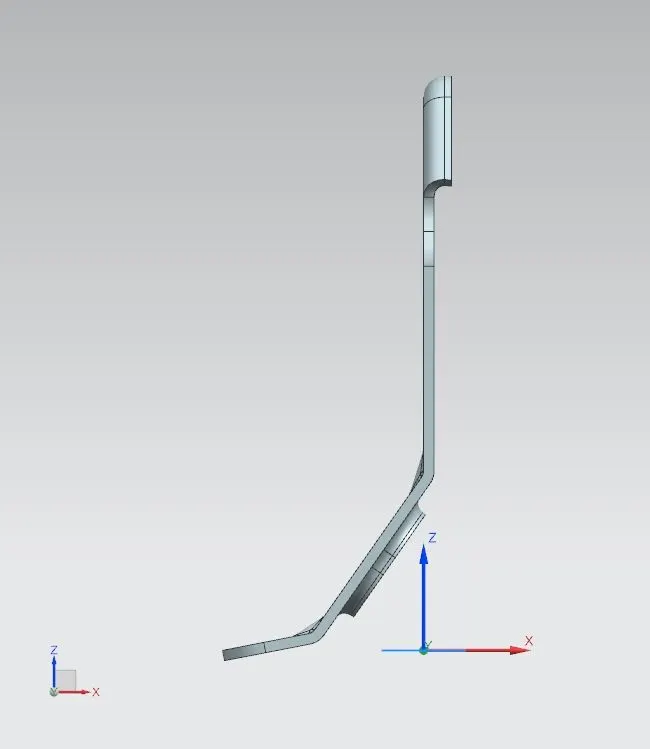

FIG: Front View

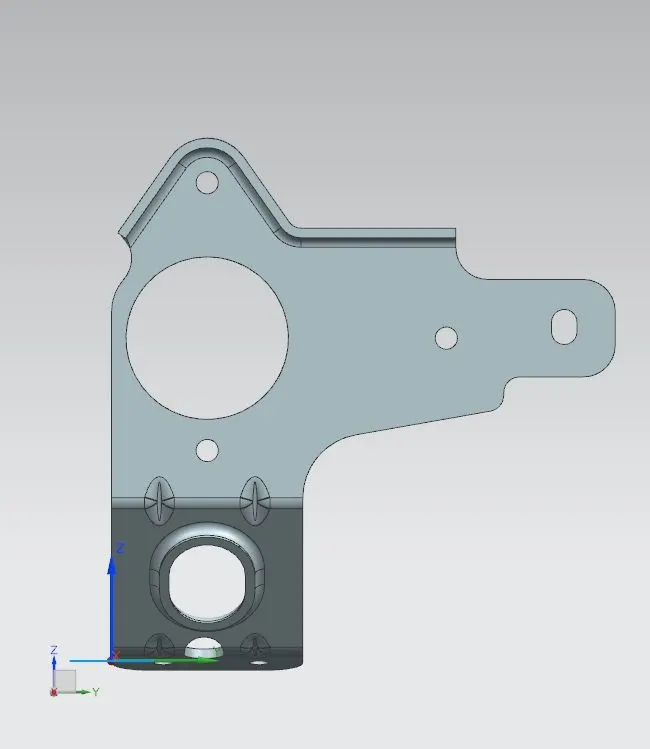

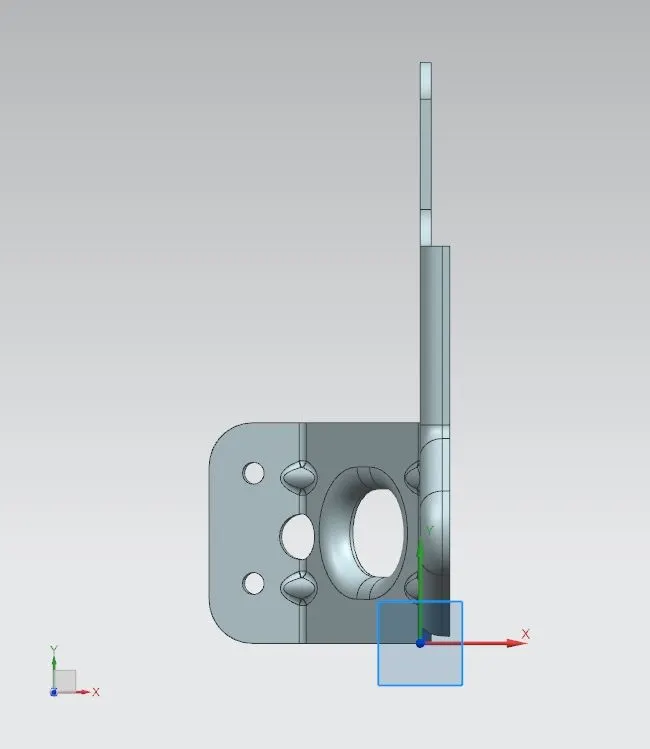

FIG: Top View

CONCLUSION:

Sheet metal bracket is designed successfully using NX Cad application. From this project, we get to understand advanced flange and gusset features.
