Advanced Sheet Metal Design Using NX Cad Challenge_7_ Metal bracket-II
Objective : To design Metal Bracket using NX CAD SOFTWARE.
Introduction
Sheet metal is any metal that has a thickness in between 0.5 to 6 millimetre.
Specification of Bracket Sheet Metal Fabrication
| Material | Aluminum, Copper, Brass, Stainless steel | |
| Plate thickness | 0.9 mm - 20mm | |
| Process | Punching, Cutting, Stamping, Bending | |
| Application | Metal Sheet Brackets, Wall Brackets, Mounting Brackets, TV Brackets, TV Wall Brackets, LCD Wall Mount Bracket, etc. |
|
| Surface finish | Anodizing, Zinc, Chrome plating, Powder coating, and Silk screen, etc. | |
| Tolerance | Bend to hole or feature: | ±0.2mm |
| Forming and bending: | ±0.4mm | |
| Diameter with inserts: | ±0.06mm | |
| Linear dimensions excluding locations to bends: |
±0.1mm | |
| Angularity | ±2 degrees | |
| Surface roughness | ±3.2 micrometers | |
| Lead time | 7-35 days, it depends on the quantity | |
Features of Bracket Sheet Metal Fabrication
Bracket sheet metal fabrication has widely used in electronic appliances, communication, automobile industry, medical equipment and other fields. The characteristics of sheet metal bracket are light weight, high strength, electrical conductivity ow cost, good mass production performance and so on.
Description

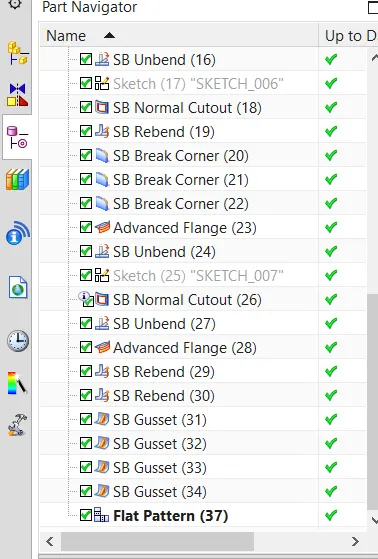

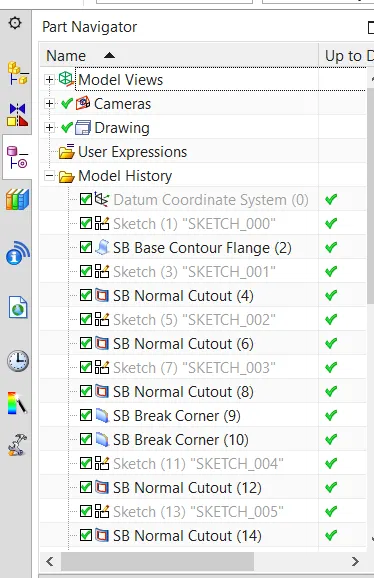

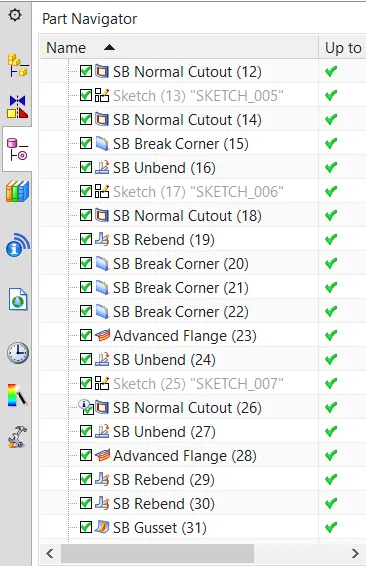

SKETCH : It is used to draw a 2D sketch.
UNBEND: Flattens a bend and material adjacent to the bend.
HOLE : Adds a hole to one or more solid bodies in a part or assembly with opctions for counterbored,countersunk and threaded.
REBEND: Resotres an unbend feature to its previous bent stste, along with any features added after the unbend feature.
NORMAL CUTOUT: Cuts material by projecting a sketch onto the model and then cutting perpendicular to the faces intersected by the projection.

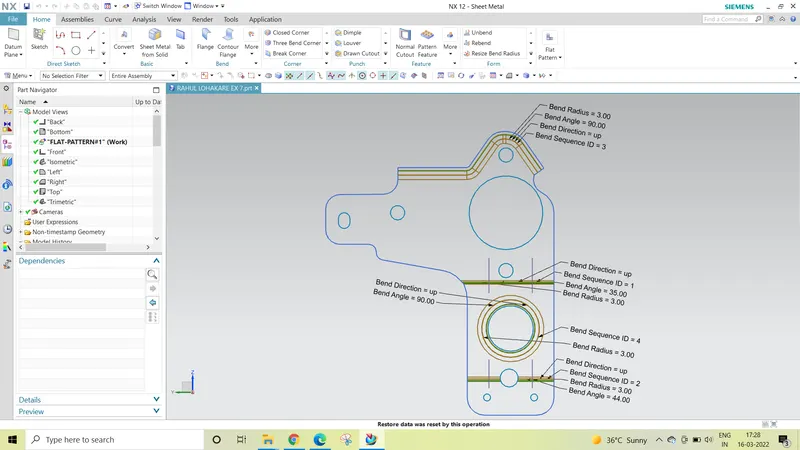

FLAT PATTERN : Creates a flat pattern feature from the formed sheet metal part.
BREAK CORNER: Rounds or chamfers a sharp corner of a tab or flange.
Advanced flange: Adds a flange along an edge using a bend angle or a reference face. The edge and reference face can be curved.
Gusset: Creates a stiffening gusset on the part.

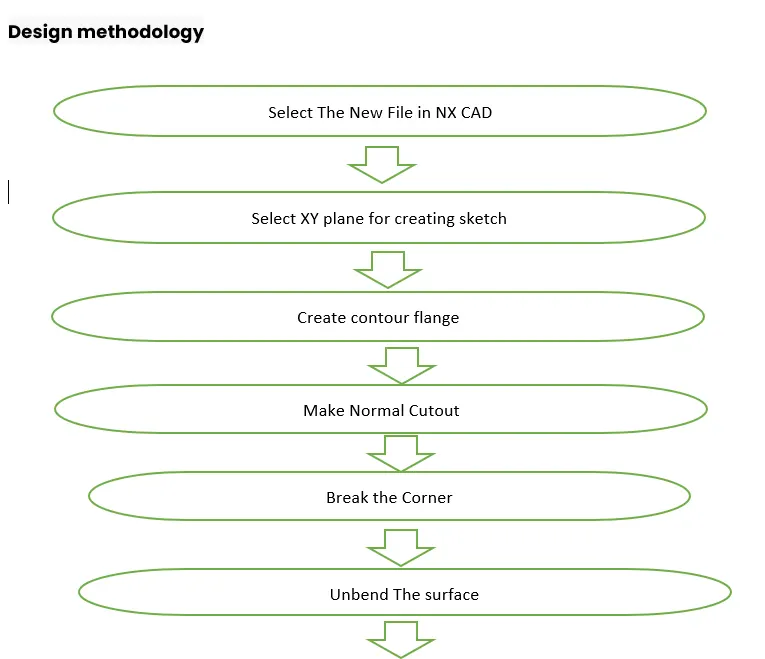

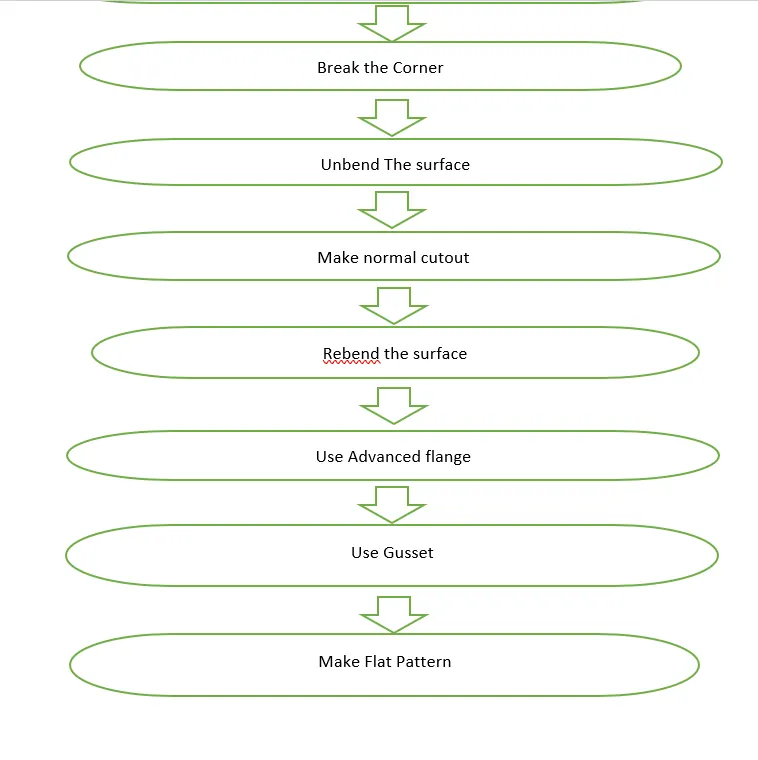

Design methodology

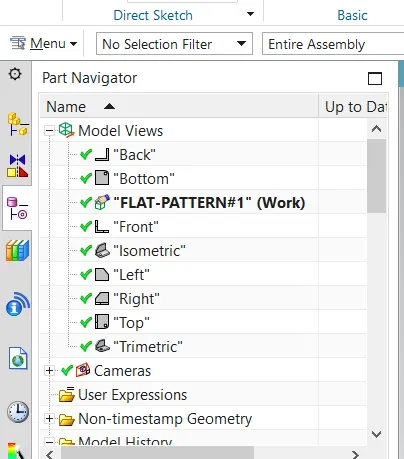

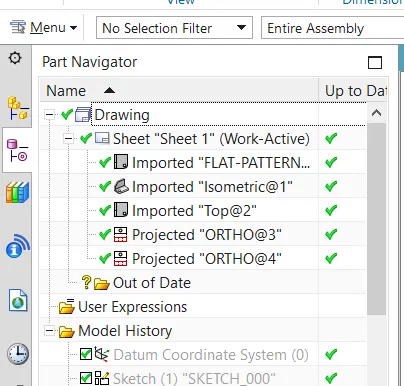

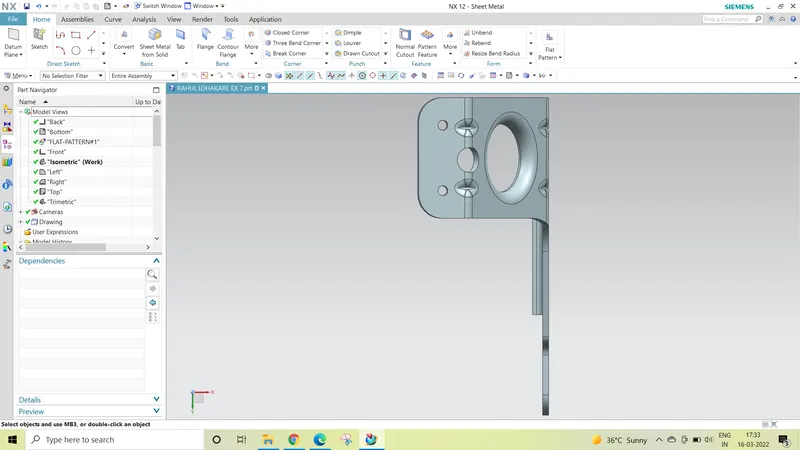

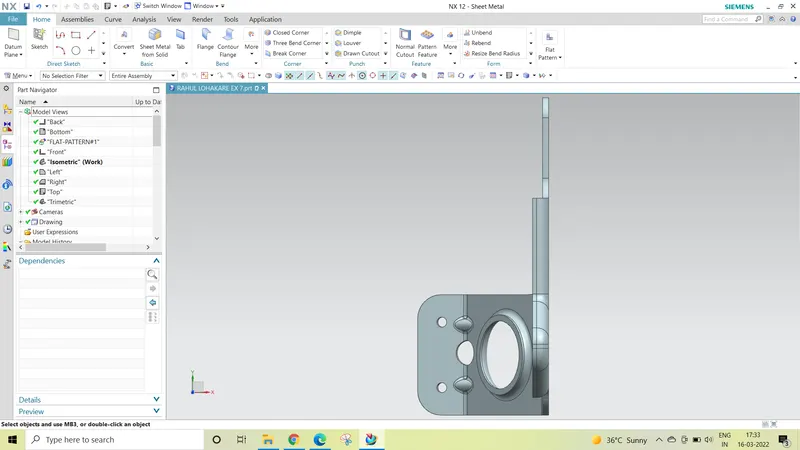

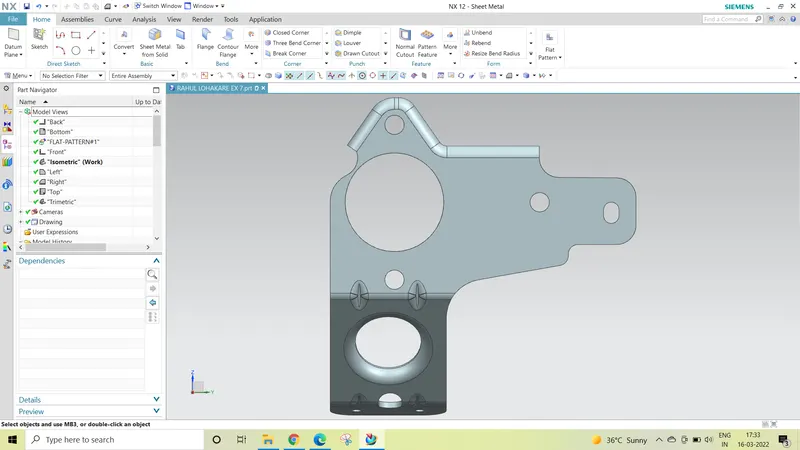

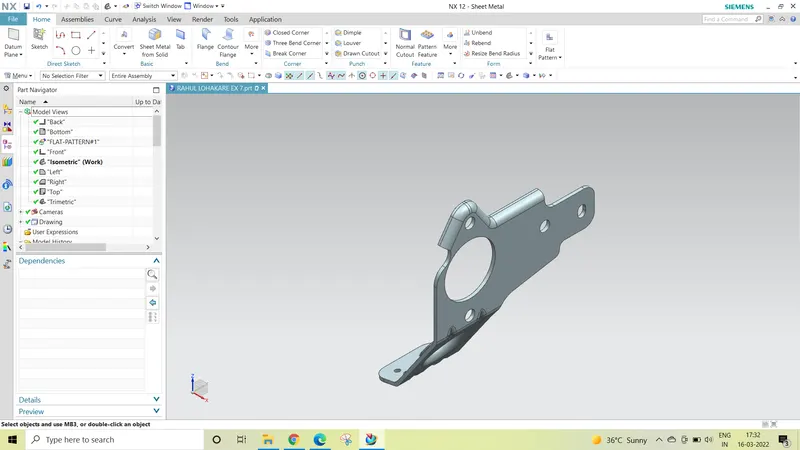

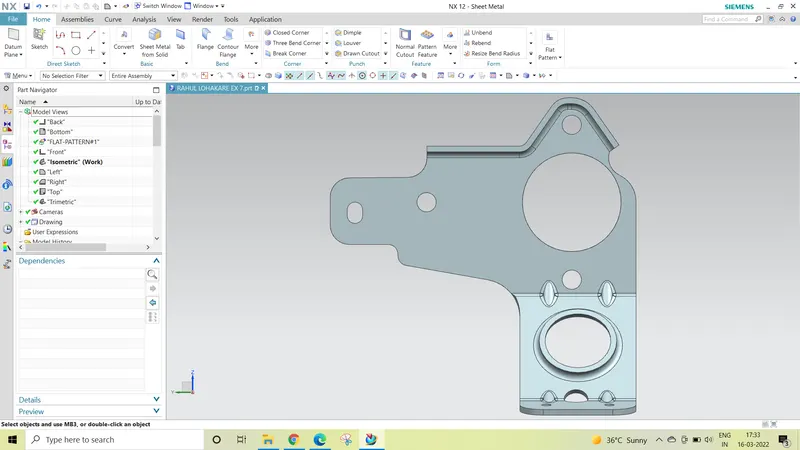

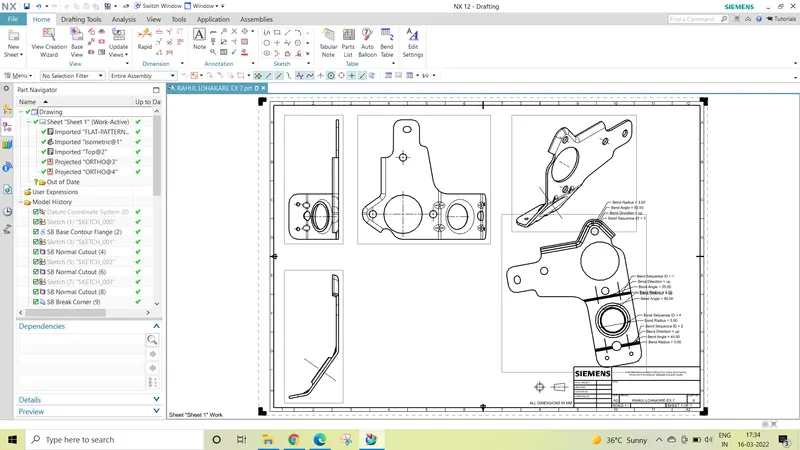

ISO VIEW
Conclusion
USING NX CAD sheet metal Bracket done successfully
