Advanced Sheet Metal Design Using NX Cad Challenge_6_Bracket

BRACKETS

OBJECTIVE:

To observe that model and create the sheetmetal by using given instruction in nx.

INTRODUCTION:

NX, formerly known as "unigraphics", is an advanced high-end CAD/CAM/CAE, which has been owned since 2007 by Siemens PLM Software.it widely used in various field for designing.

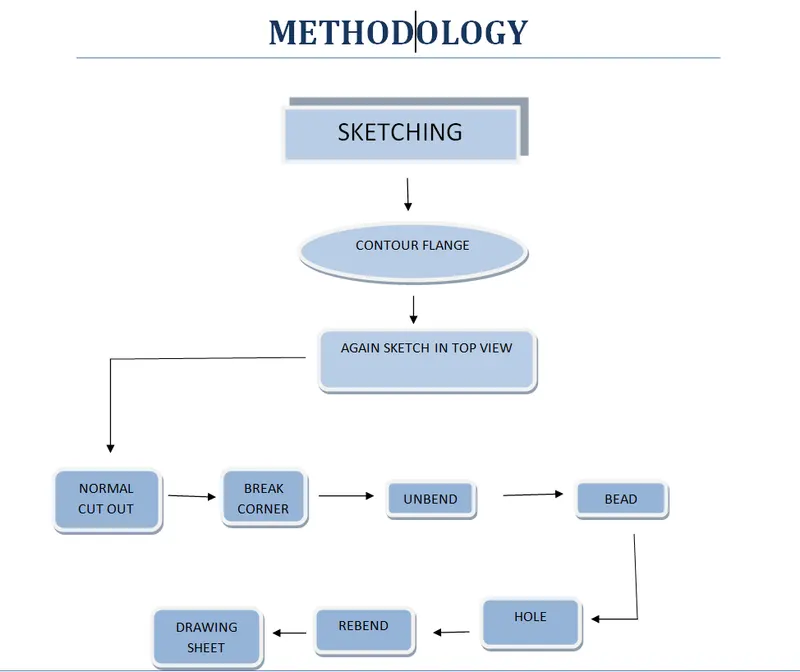

METHODOLOGY:

DESCRIPTION:

TOOLS	ABOUT
tab	it gives thickness to sketch
flange	we should click that corner to that tab,according to ur wish you create flange.
normal cut out	it should used to remove unwanted area
bending	it used to bend that sheetmetal product.
hole	it put hole in sm
unbend	that bend covert to flat.
flat pattern	generate the part into flat sheet matal.
bead	create embosed or engraved bead.
jog	create bend with addition of height.
dimple	it add dimple into that sm
breaking corner	it used to add fillet in sharp corners

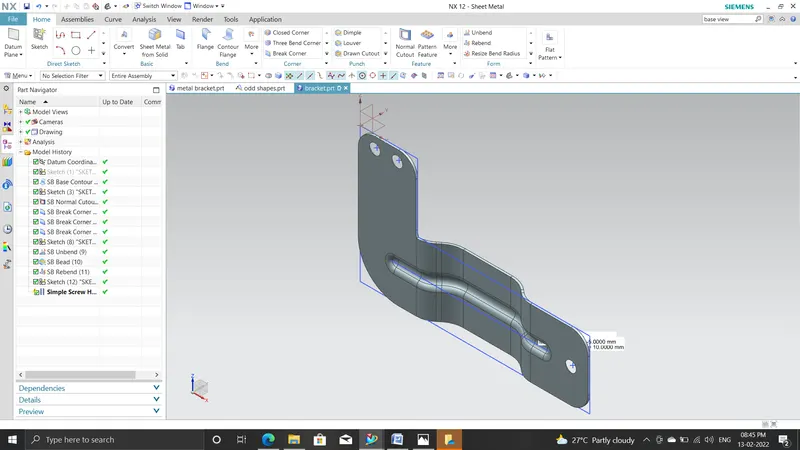

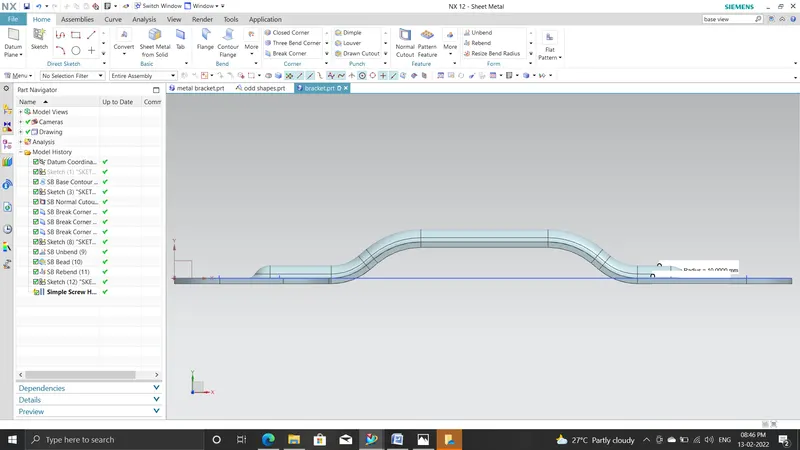

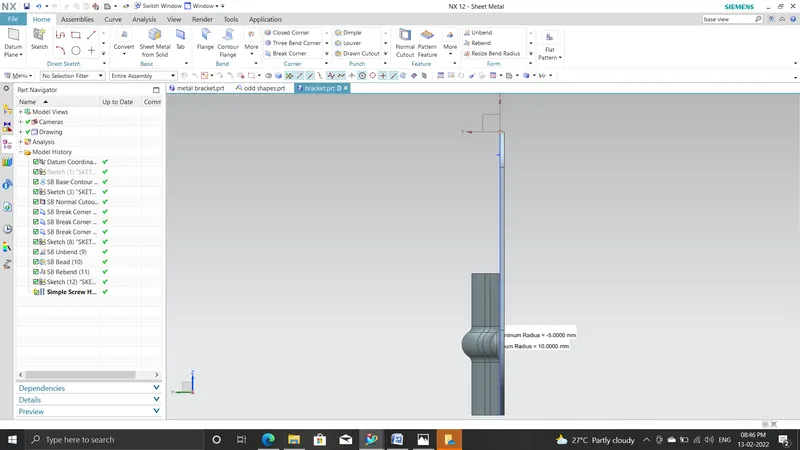

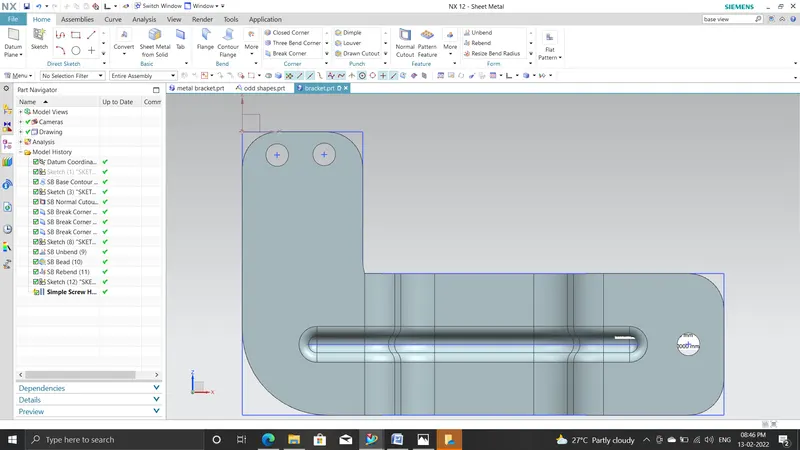

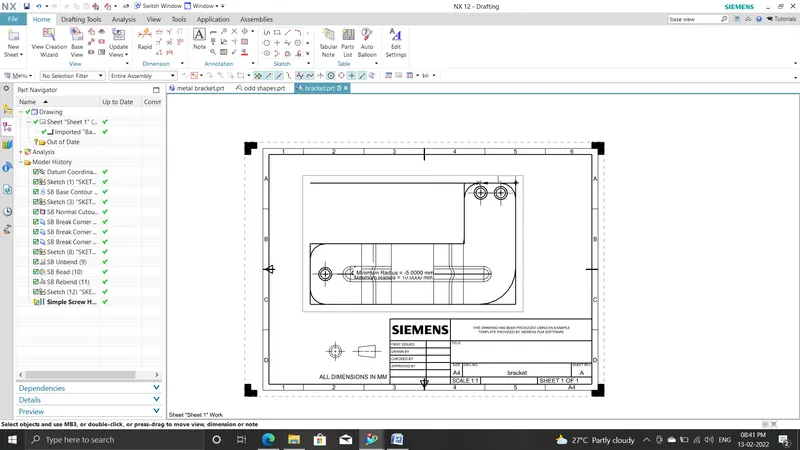

screenshot:

 CONCLUSION:

The model has been designed and dimensioned in that proper manner.
