Odd Shaped enclosurs in NX CAD

Objective:-

To Design the Odd-Shaped enclosure in Sheet metal by using NX CAD.

Introduction:-

For creating Odd Shaped enclosure I have used various features in NX CAd .Some of the features are Sheet metal from solid, Flange, Jog, unbend, hole, beads, Dimples, Rebend, Flat pattern.

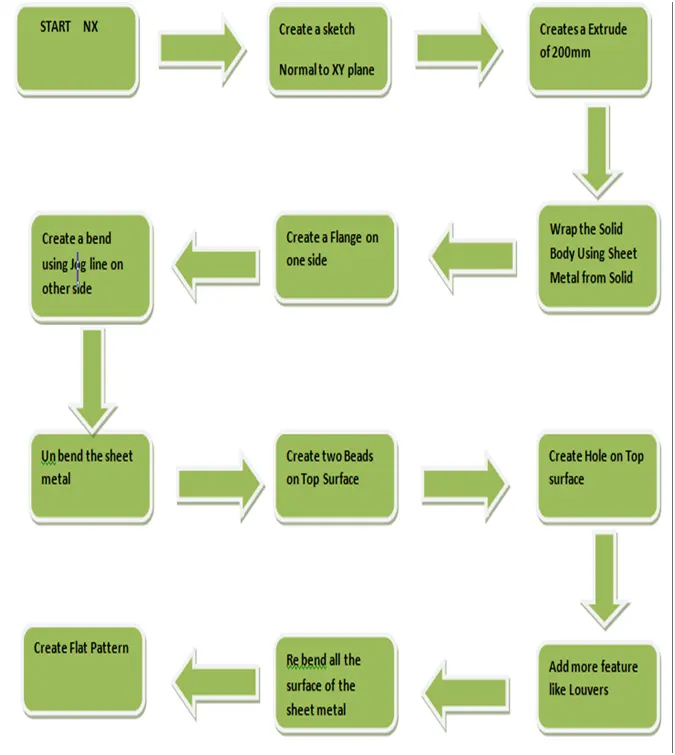

Design Methodology:-

Description:-

Feature/tools used to create Odd shaped enclosures

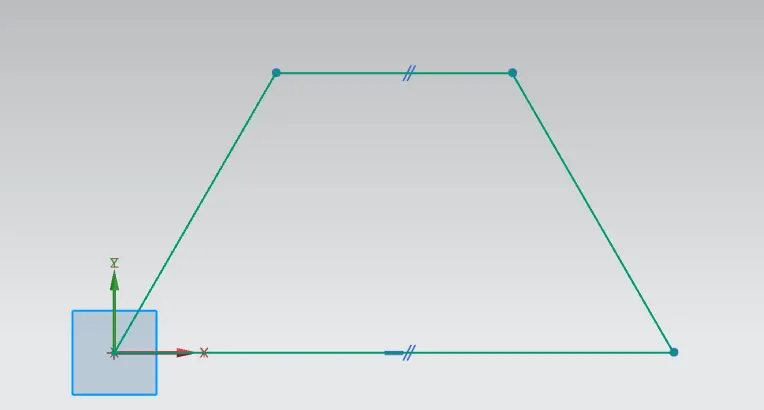

Sketch - It is the basic of any design.

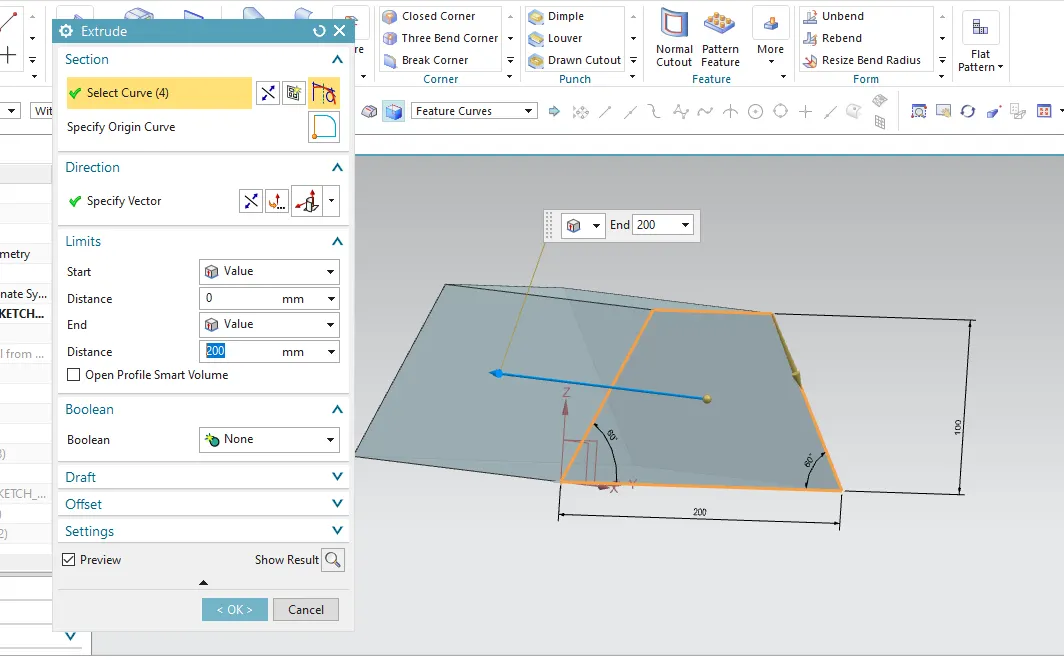

Extrude - It creates a feature by extruding a section along a vector.

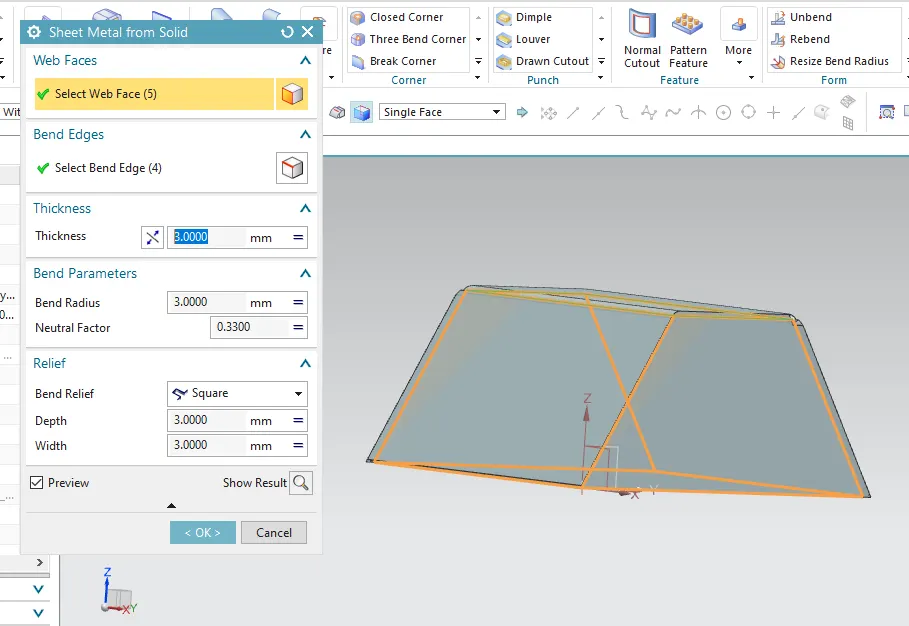

Sheet Metal from solid - It builds a sheet metal model that takes its shapes from a collection of planar faces. This command is used to convert the solid body into a sheet metal body. After selecting the command and the solid body, we can also remove the edge sharpness by removing the material at these places.

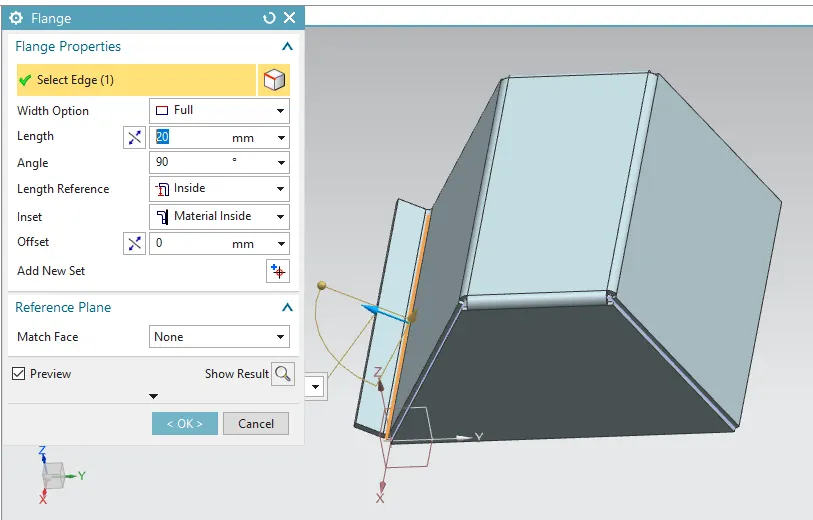

Flange - It is used to create an extended part (bend) of a sheet metal. It is created at the edge of one side of the model. This command will allow us to select the edge of the base to create a projecting flat extruded surface. The angle, width, length, and type of flange can be determined as per the requirements.

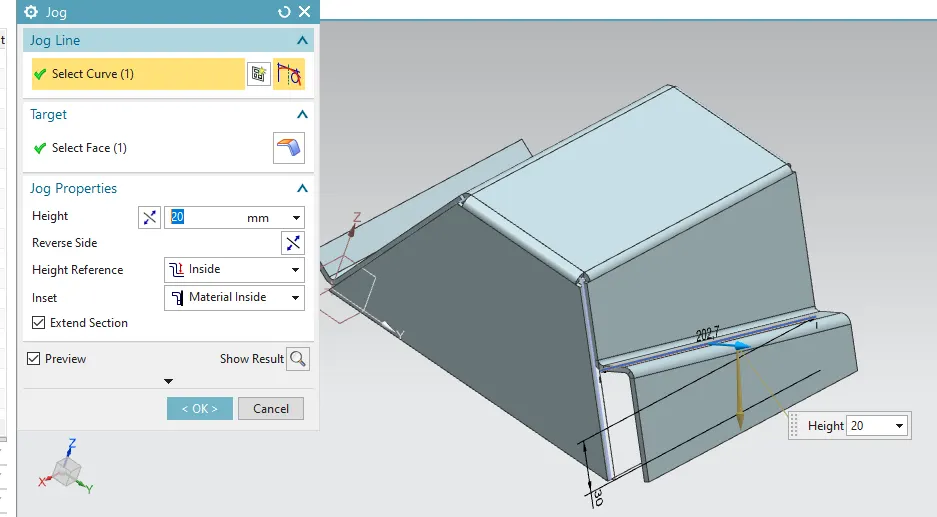

Jog - It modifies the model by lifting material on one side of a sketch line, adding a flange between the two sides. Jog is created at another end of the model opposite to the flange. Jog is a command to lift off one whole side of the part. By selecting a line and the plane, the material can be pushed down or lifted off depending on the situation.

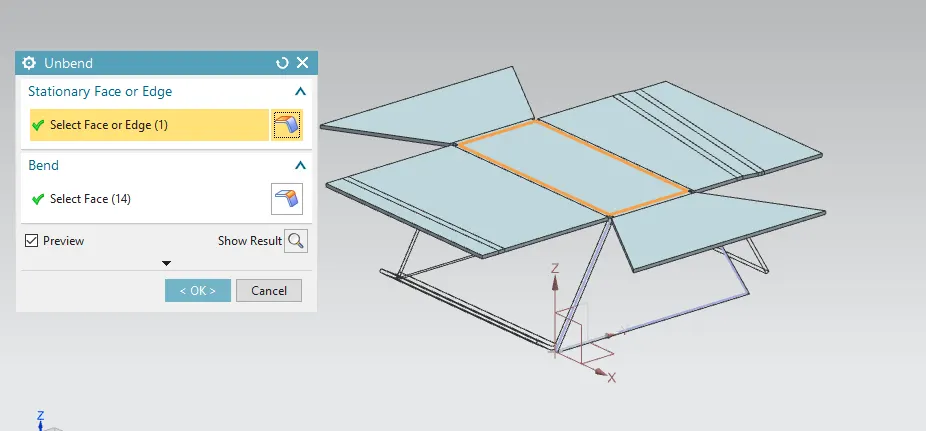

Unbend -

This feature is used to unbend the adjacent bends and flatten them. Here it is used to create more features. This command is used to unbend the sheet metal parts to create geometries and work on complicated designs. In this command, we have to select a stationary face and then select the corners of flanges to unbend.

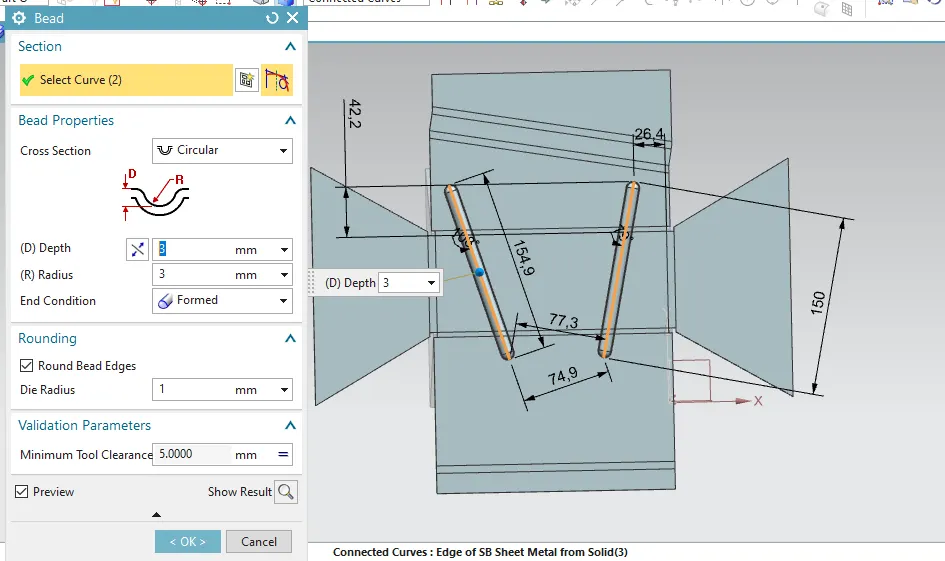

Bead -

It lifts material along the contour of a sketch that simulates a stamping tool, it is used for giving strength to the sheet metal. Here two beads are created on the unbent surface. The selected sketch is lifted off from the base to provide strength to the material. Similar to dimple, the material can be removed in both directions.

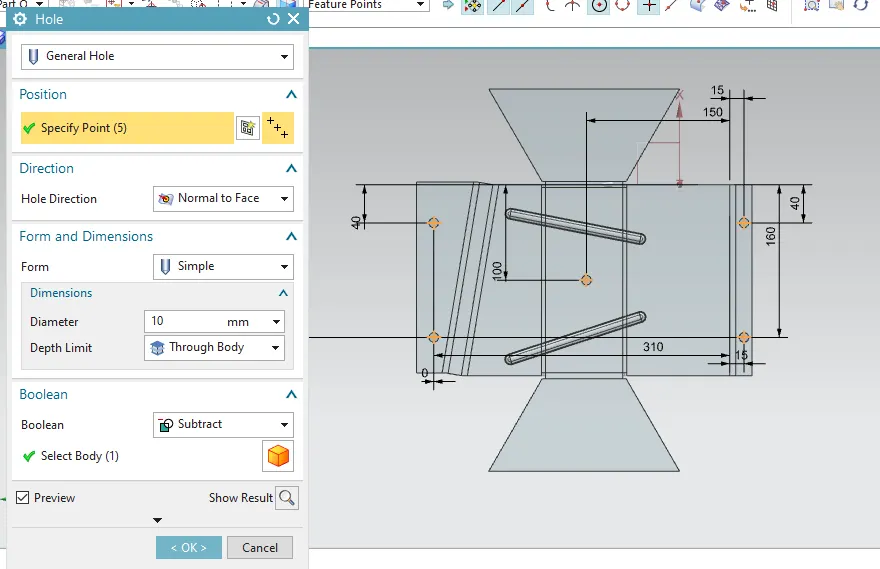

Hole -

It adds a hole to one or more solid bodies in a part or an asembly with options for counterbored, countersunk and threaded. Here six simple holes are created on the unbent surface with a diameter of 10mm. It can be used to make customized or standardized holes along with a defined point or path. The dept of the hole can be controlled.

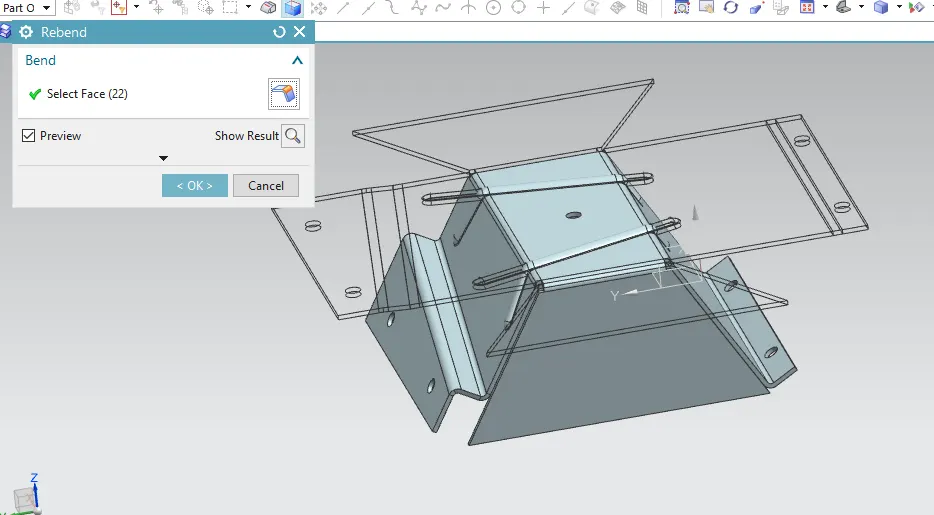

Rebend -

It is used to rebend the corners that were bent before along with any features added after the unbend feature.

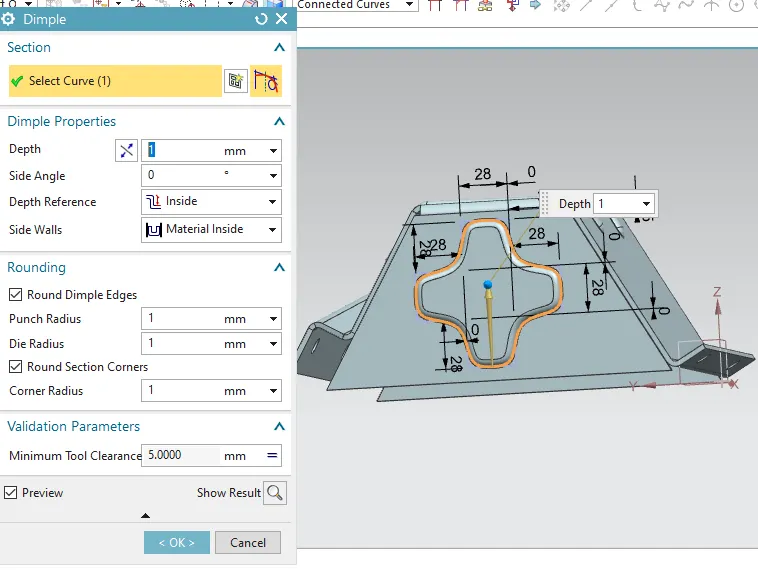

Dipmle:-

Dimple is used to give some strength to the part. The flat portion of the part posses less strength & rigidity, so there are higher chances of failure of the part. The dimple adds strength & rigidity to the part & reduces the chances of failure.

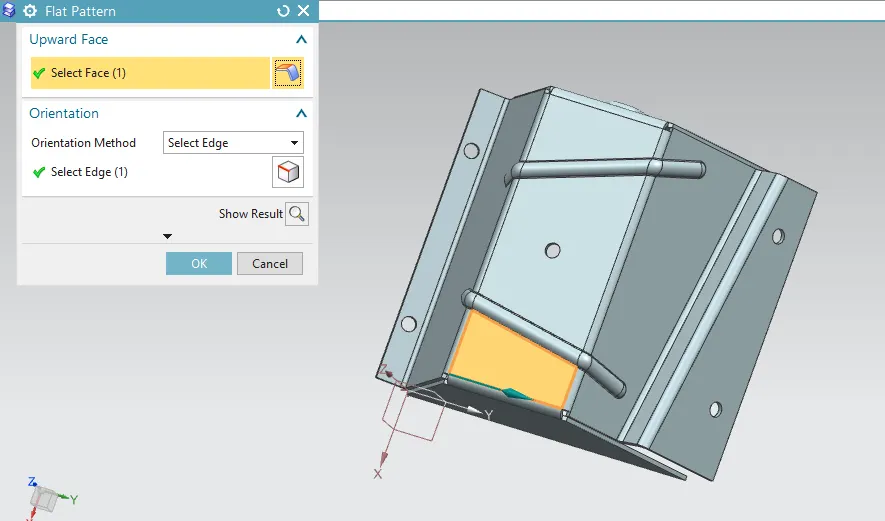

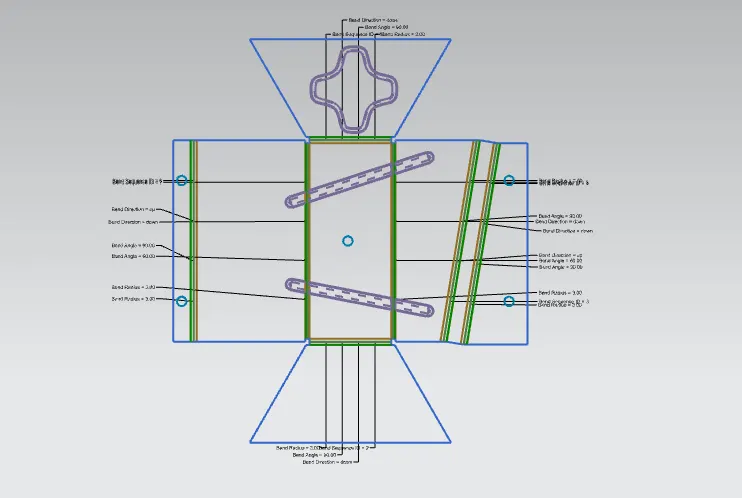

Flat pattern -

It creates a flat pattern feature from the formed sheet metal part. The user chooses this command to create a flat view of the sheet metal after unbending all the sides and faces. This view can be used in drawing the flat pattern along with the bend radius and other dimensions.[Reference 1]

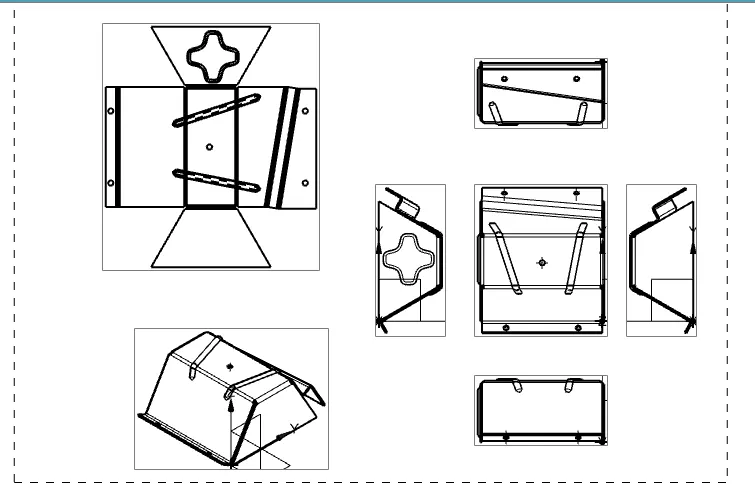

Drafting:-

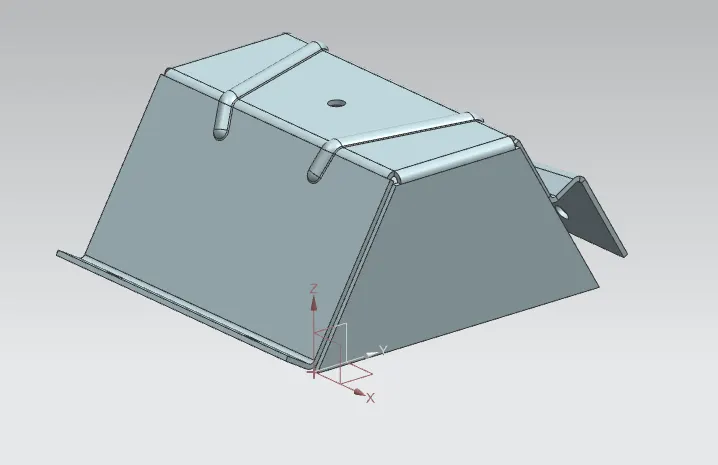

Isometric View:

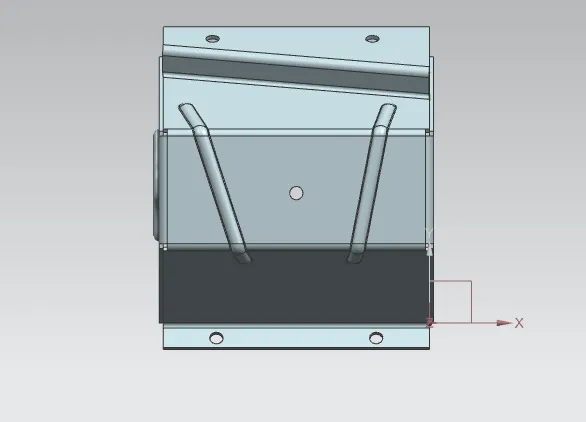

Top View:-

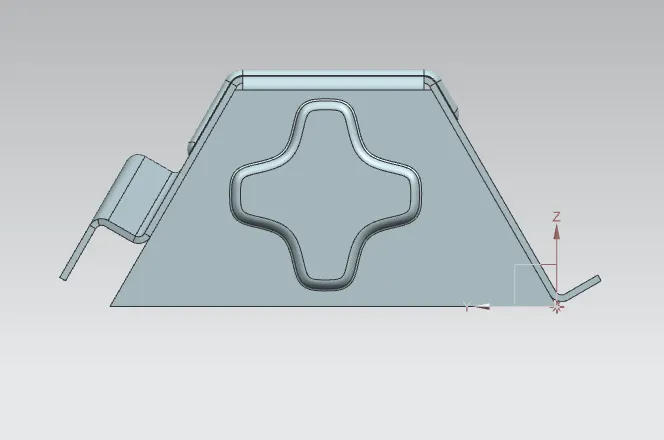

Side view:-

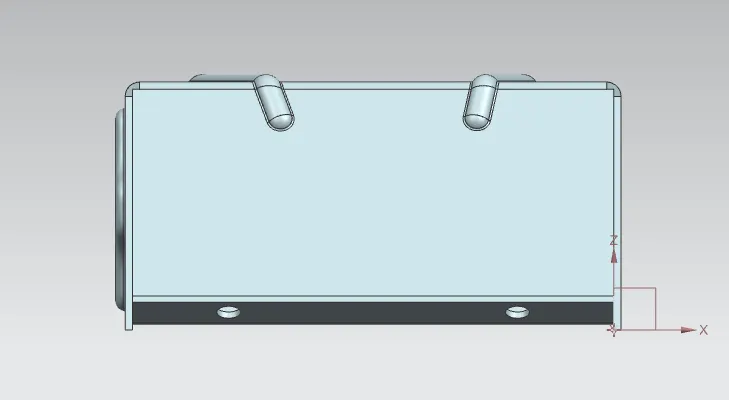

Front View:-
