Advanced Sheet Metal Design Using NX Cad Challenge_5_Odd Shaped Enclosure

Title of Project: Sheet Metal Casing design using NX CAD

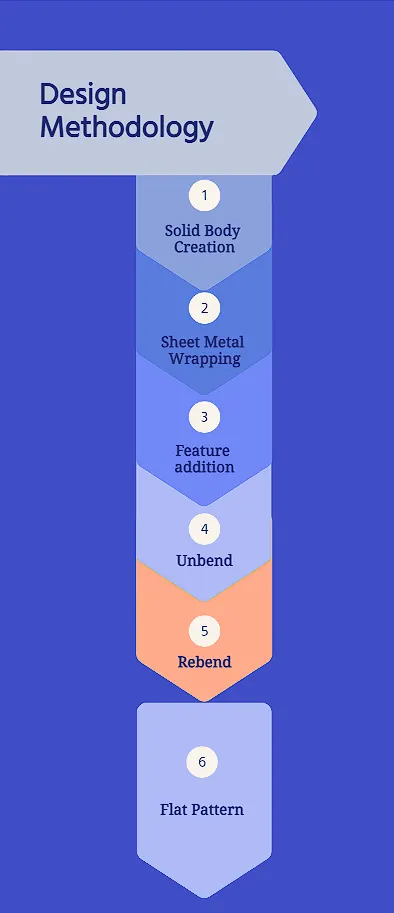

Objective: Utilizing Industrial Design Methodology to Develop an Odd-shaped enclosure Using NX CAD

Features/Commands Used:

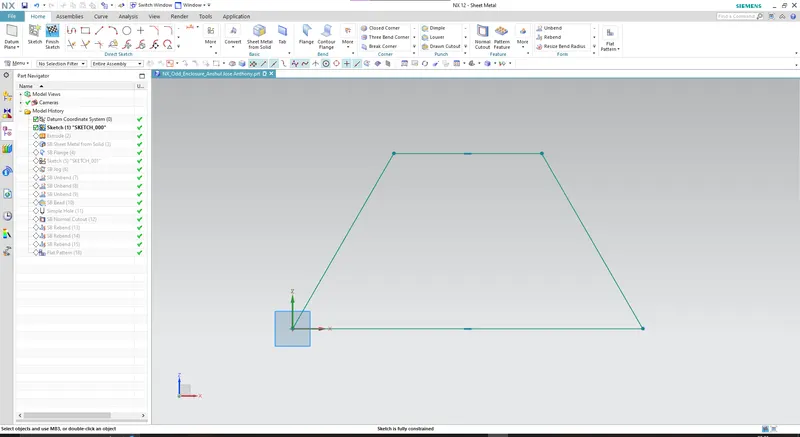

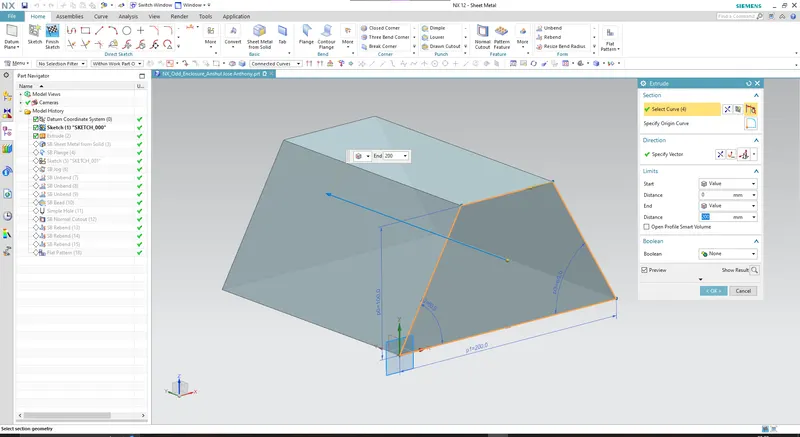

Solid Body Creation: Create a solid body using extrude command for the interior volume of the final enclosure

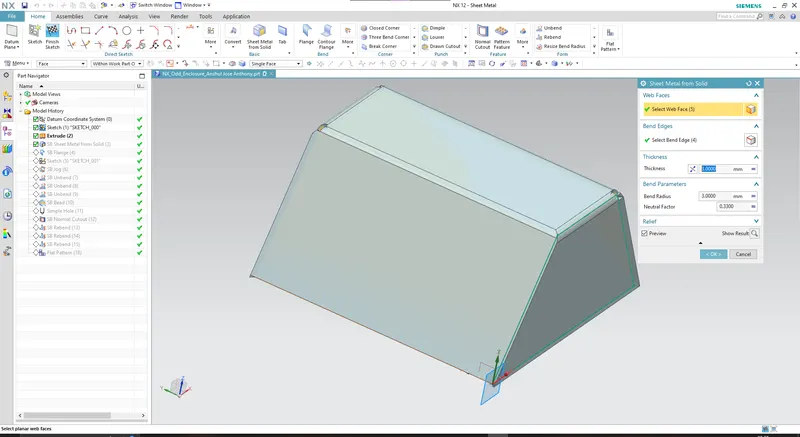

Sheet Metal Wrapping: This functioon is used to wrap arouynd a solid body to create a sheet metal enclosure.

Feature addition: Flange, jogs are added before unbending to aid in visualisation of the final body to be realized

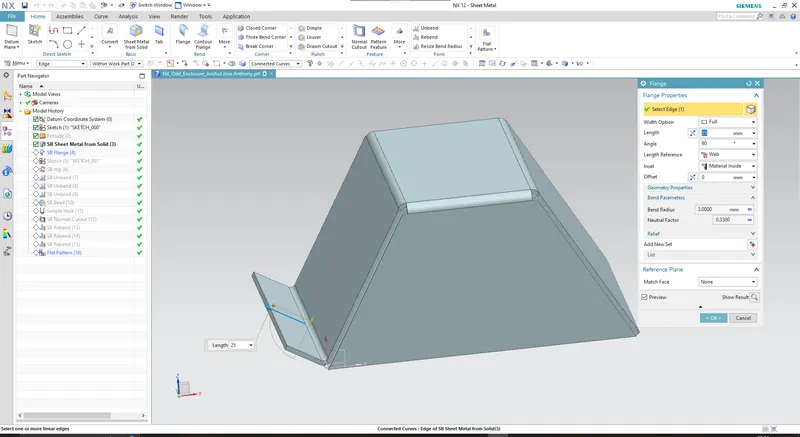

Flange

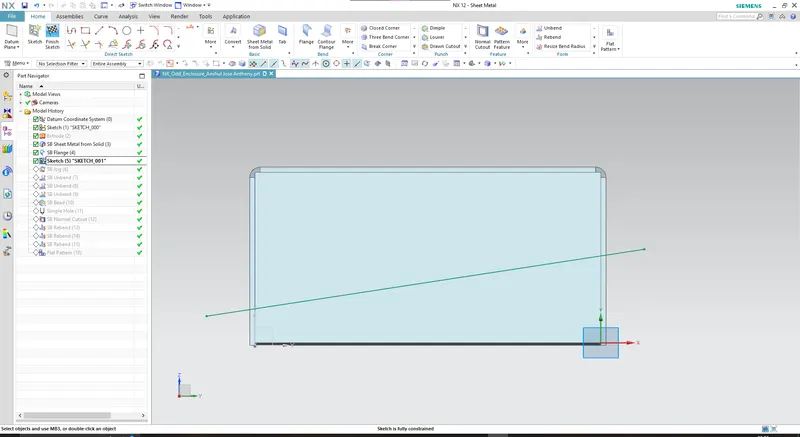

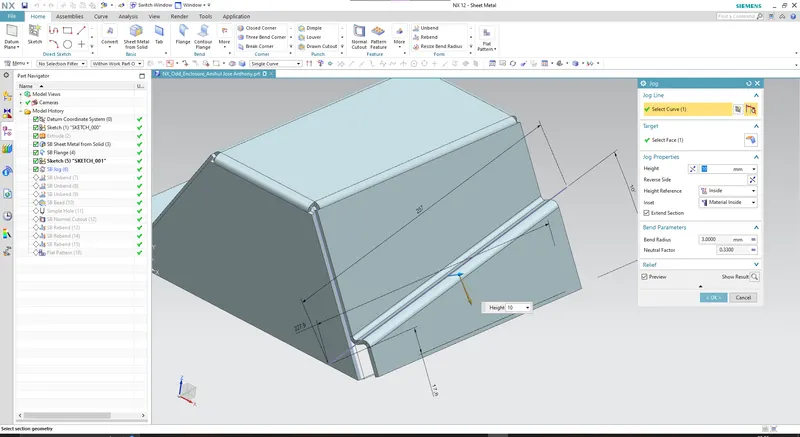

Jog

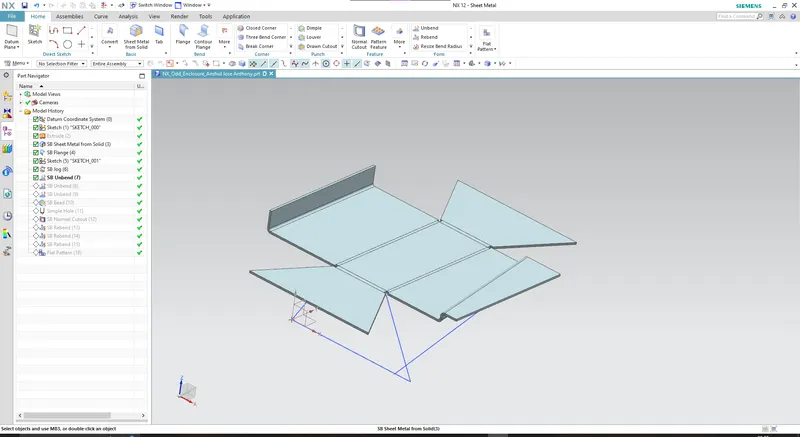

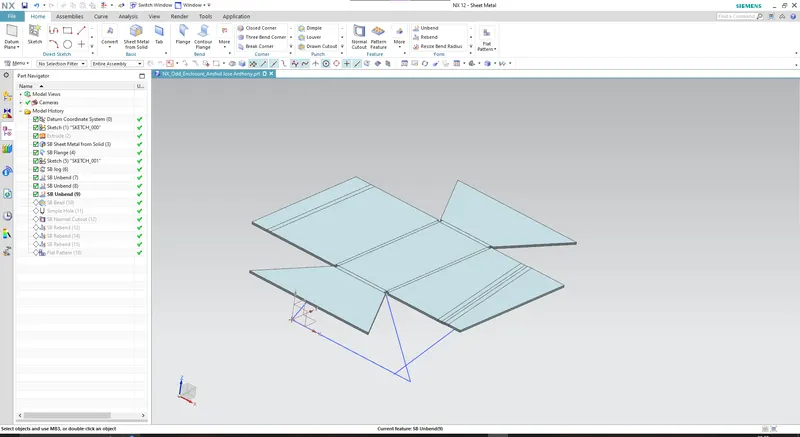

Unbend: This command is used to unbend the sheet metal at the bend locations to get a flat surface. This makes it easier to add features such as beads, cutouts on flat surfaces, etc. before rebending the component. The order if unbending should be sorted out as this imlicates the order of rebending.

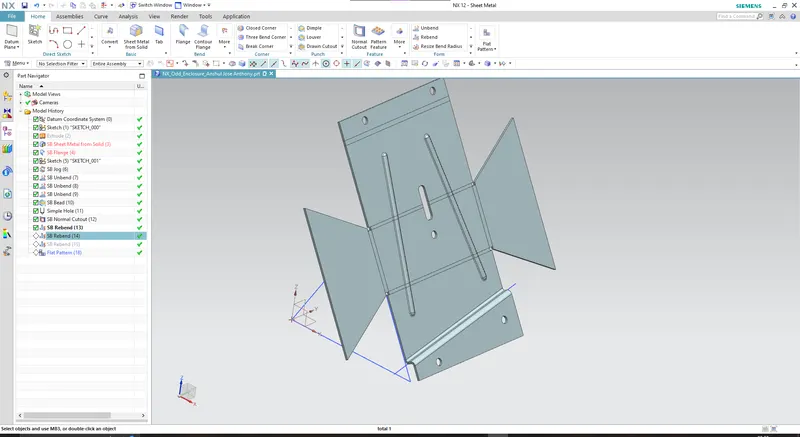

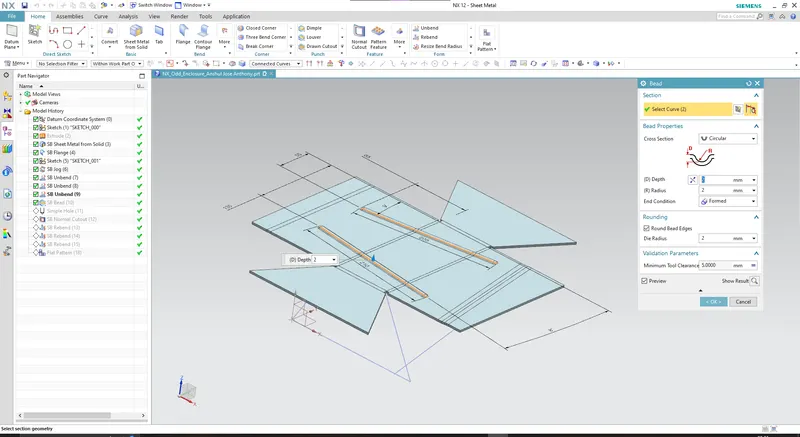

Beads: A "bead" refers to a design feature used in sheet metal components to strengthen, reinforce, or enhance the rigidity of certain areas. Beads are essentially raised or sunken lines or patterns that are added to the sheet metal part, typically perpendicular to the surface.

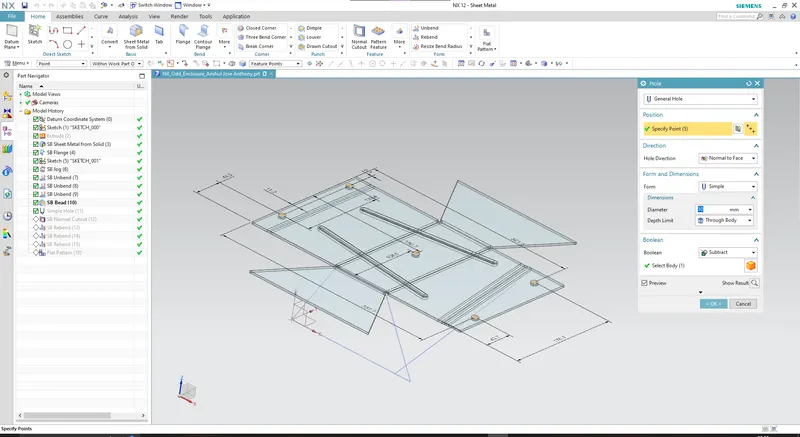

Hole: This feature is used for creation of standard or user defined holes at points contained within the component material.

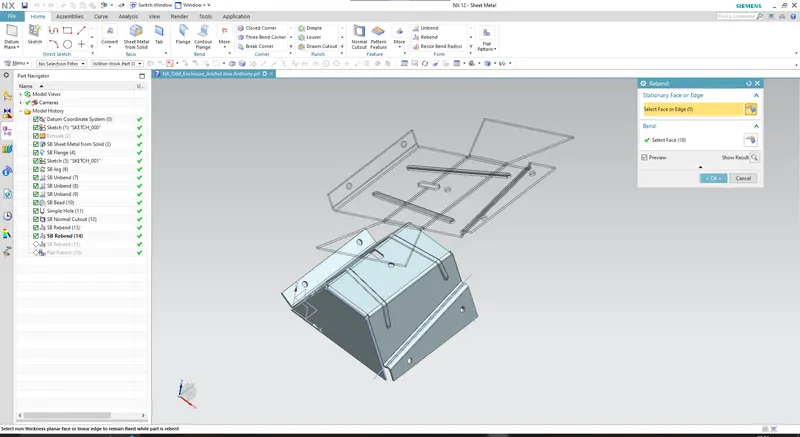

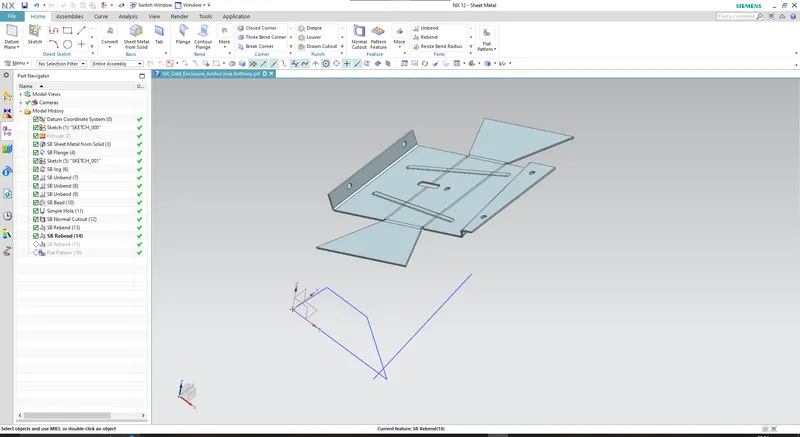

Rebend: This functionality complements the unbend process, allowing the sheet metal component to be reshaped into its final usable form after applying different modifications. The sequence for this reshaping is the reverse of the unbending sequence.

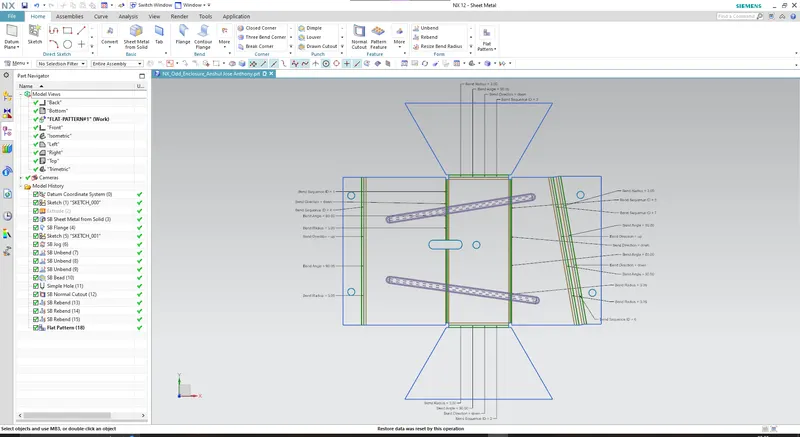

Flat Pattern: A "flat pattern" refers to the unfolded, 2D representation of a sheet metal part or component that has been bent or formed from a flat sheet. The flat pattern shows the sheet metal part as it would appear if it were flattened out, highlighting all the bends, flanges, and features of the part in their unfolded state.

Standard Views:

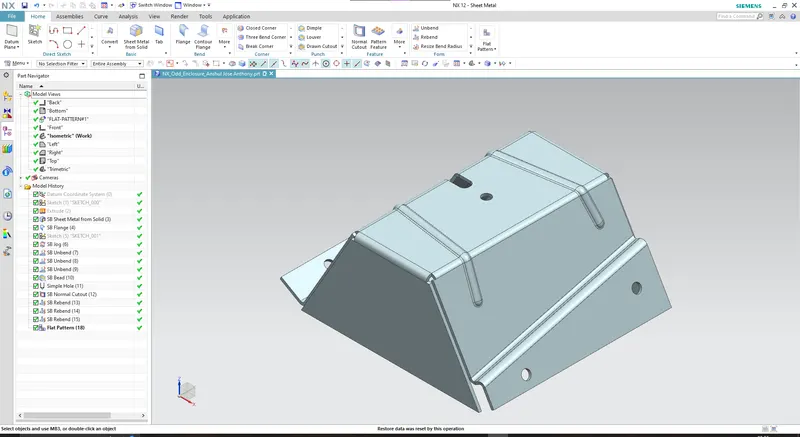

isometric

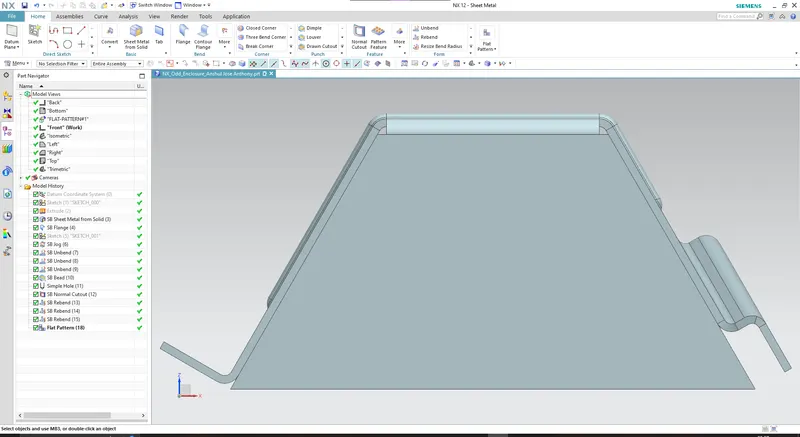

front

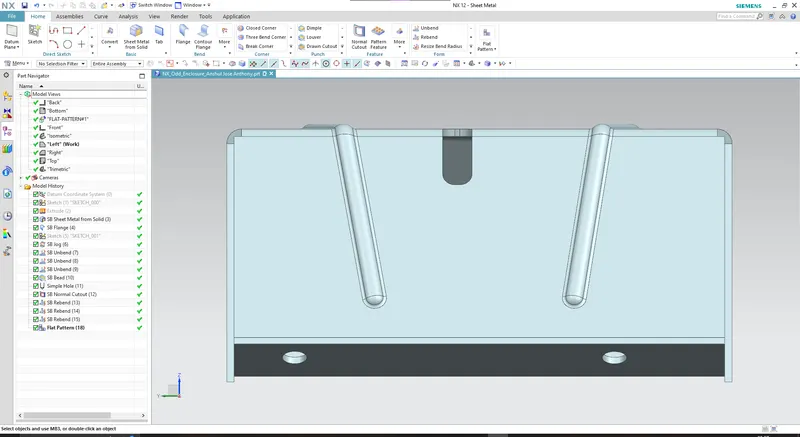

side

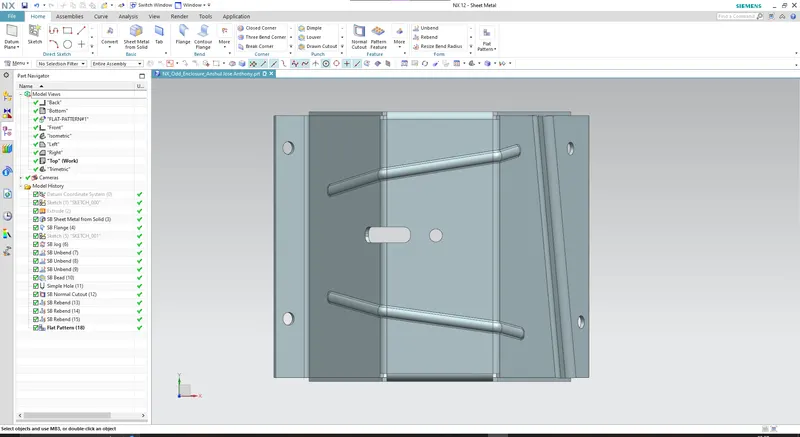

top

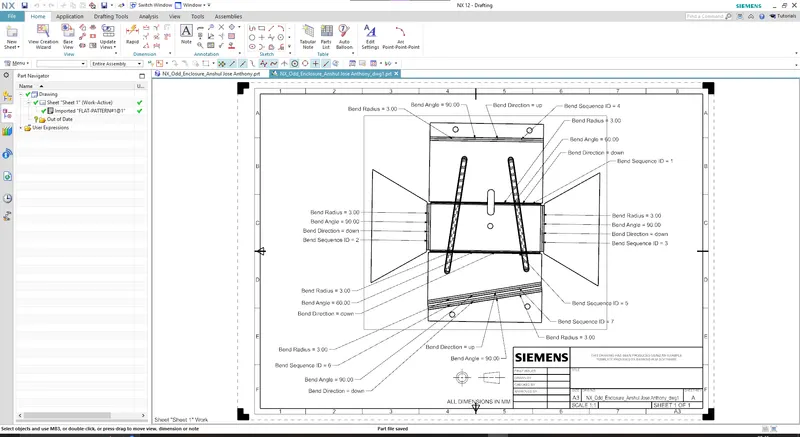

Draft
