ODD SHAPED ENCLOSURE USING SIEMENS NX
OBJECTIVE
To create a sheet metal odd shaped Enclosure using Siemens NX cad software and there by Develop a sustainable knowledge in the sheet Metal Designing
INTRODUCTION
Sheet metal is one of the most versatile materials in the manufacturing industry. It’s made from steel, aluminum, brass, copper, tin, nickel, titanium or precious metals. It ranges in thickness from wispy leaf through light foil to heavy plate. It takes variety of forms. Plain flat sheets, embossed, etched, ribbed, corrugated and perforated. And its uses expand across many different industries including transportation, aerospace, appliance manufacturing, consumer electronics, industrial furniture, machinery and more
Sheet metal components can have deceptively complex manufacturing processes band the design process itself can be similarly tricky. CAD software’s such as Siemens NX Cad, Solid works etc. are used to design the complex Sheet Metal components
Sheet metal design software considers the fabrication methods needed for manufacturing. AS you create flanges and add bends, the sheet metal design software will accurately represent the flat pattern required. The flat pattern can be used to document and manufacture associatively as the design changes
Here in this project we are dealing with the Sheet designing odd shaped Enclosure using the software Siemens NX
DESIGN METHODOLGY
|
Base sketch creation |

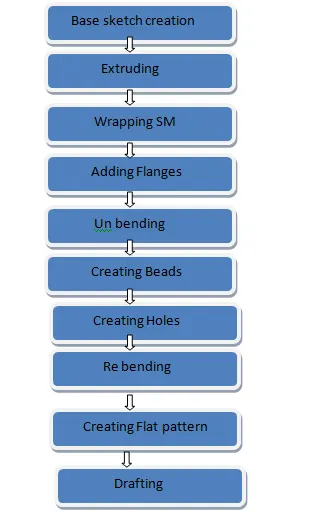

The Enclosure designed for this project is made by converting a Solid body in to a Sheet metal structure using the feature Sheet metal from solid. Every feature is designed in an order following the industrial procedure to keep the design intent. The design methodology used for this project can be summarized as depicted in the flow chart below
ODD SHAPED ENCLOSURE USING SIEMENS NX
OBJECTIVE
To create a sheet metal odd shaped Enclosure using Siemens NX cad software and there by Develop a sustainable knowledge in the sheet Metal Designing
INTRODUCTION
Sheet metal is one of the most versatile materials in the manufacturing industry. It’s made from steel, aluminum, brass, copper, tin, nickel, titanium or precious metals. It ranges in thickness from wispy leaf through light foil to heavy plate. It takes variety of forms. Plain flat sheets, embossed, etched, ribbed, corrugated and perforated. And its uses expand across many different industries including transportation, aerospace, appliance manufacturing, consumer electronics, industrial furniture, machinery and more
Sheet metal components can have deceptively complex manufacturing processes band the design process itself can be similarly tricky. CAD software’s such as Siemens NX Cad, Solid works etc. are used to design the complex Sheet Metal components
Sheet metal design software considers the fabrication methods needed for manufacturing. AS you create flanges and add bends, the sheet metal design software will accurately represent the flat pattern required. The flat pattern can be used to document and manufacture associatively as the design changes
Here in this project we are dealing with the Sheet designing odd shaped Enclosure using the software Siemens NX
DESIGN METHODOLGY
The Enclosure designed for this project is made by converting a Solid body in to a Sheet metal structure using the feature Sheet metal from solid. Every feature is designed in an order following the industrial procedure to keep the design intent. The design methodology used for this project can be summarized as depicted in the flow chart below
COMMANDS USED
Sketch
Extrude
Sheet metal from solid
Flange
Jog
Unbend
BEADS
HOLES
Re bend
Flat pattern
Draft
All the commands are explained with pictures in the description
DESCRIPTION
SKETCH
Sketches are the basic element or we can say the foundation of a design model. A base sketch is needed to perform most of the operations in Sheet metal designing including Tab, Dimple, Bead, Hole, Contour Flange etc. The sketch can be created using various sketch tools provided top left corner of the interface
EXTRUDE

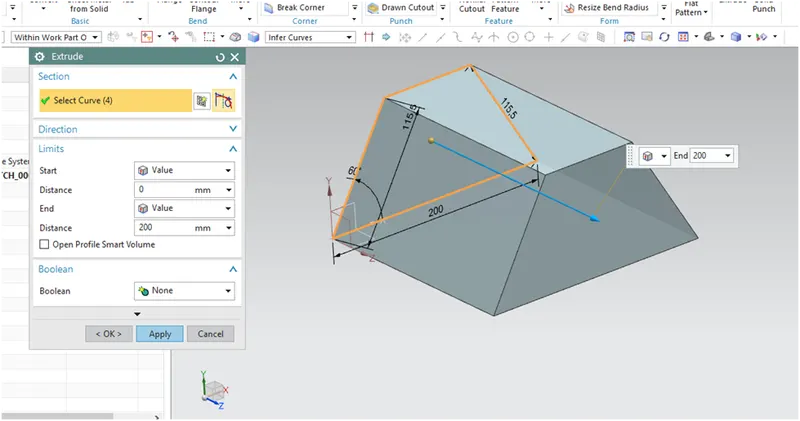

Extrude is the command use to create a 3dimensional body from a 2dimensionalsketch by adding thickness to the sketch in the third dimension
Extrude to a thickens of 200 mm
Sheet metal from solid

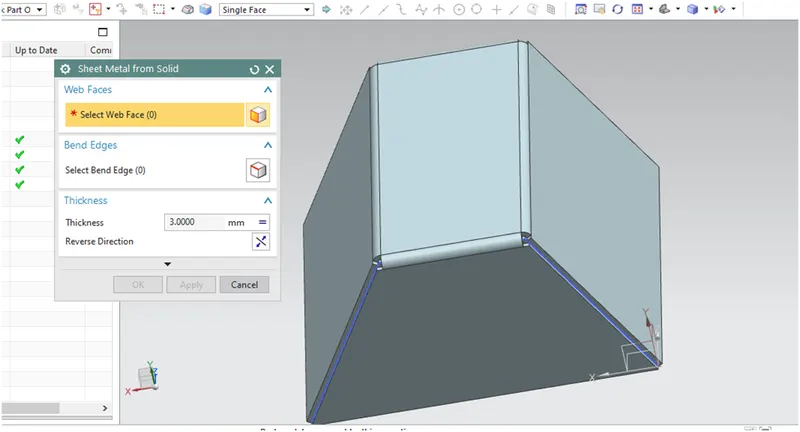

It’s a powerful and useful command used in NX to create a sheet metal structure from dumb solid body by wrapping sheet Metal over the solid body . For performing this command we need to select web faces as well as the Edges to Bend
Convert to SM by using sheet metal from solid feature. For the Web faces and select all the face except bottom face and for bends select the four edges of the top face
FLANGE
A FLANGE feature consists of a face and bend connected to an existing face along a straight edge. To add a flange feature, we select one or more edges and specify the size and position of the material added
Four flanges are made on the two sides of the casing Two toward inside and the others toward outside with a length of 5mm

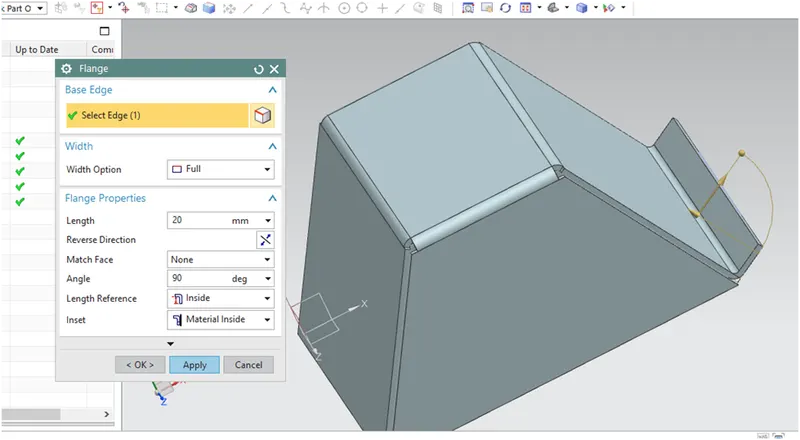

Create a flange from the one edge with a length 20mm as shown in the picture
JOG

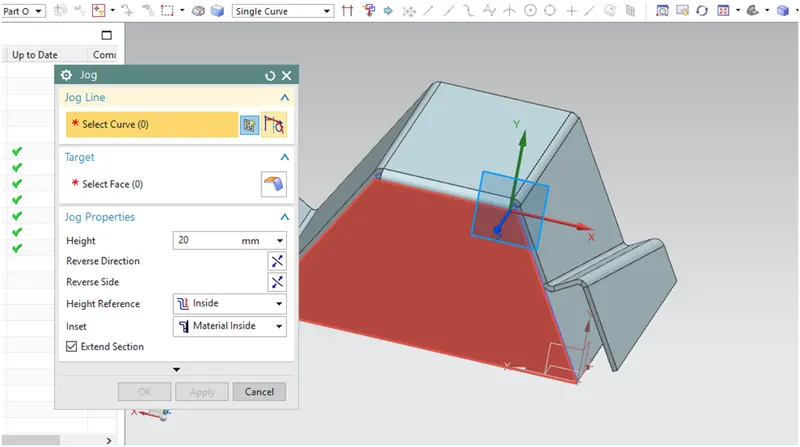

It is the feature used to lifts one side of the sheet metal part through a defined line. It ads flange between the stationary side and the lifted side

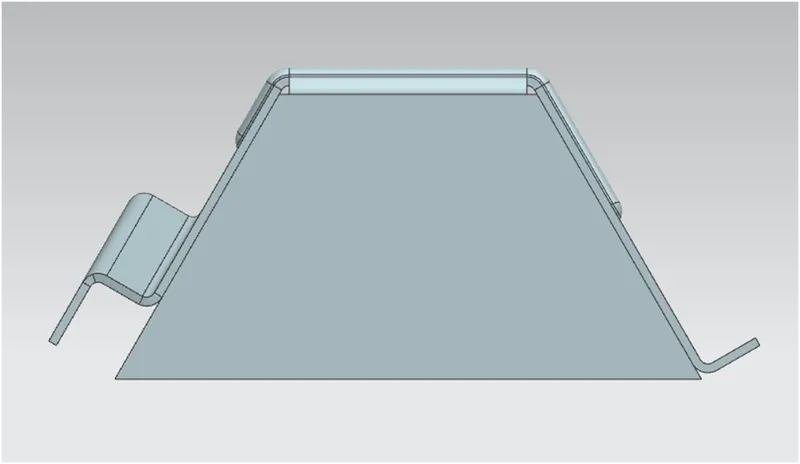

Sketch across line and create a jog
UNBEND
Use the unbend tool to unbend one or more curved surfaces such as Bends or Curved walls to a flat configuration in a sheet Metal part. For performing an Unbend feature its must to define a fixed planar face or edge. We can either select bend geometry individually or automatically select all the bend geometry

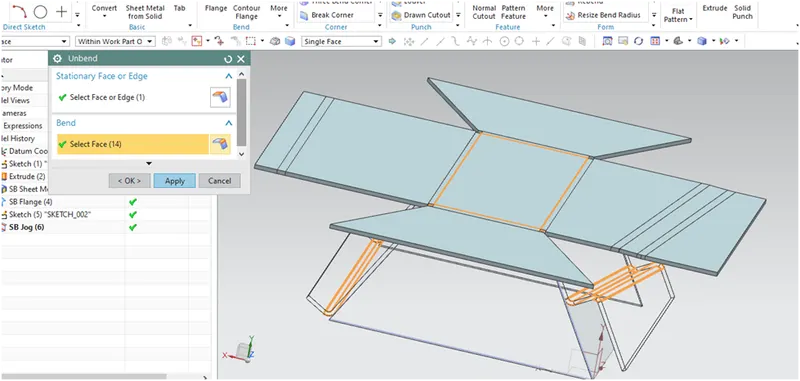

Unbend the model by selecting the fixed face and the bend
BEADS

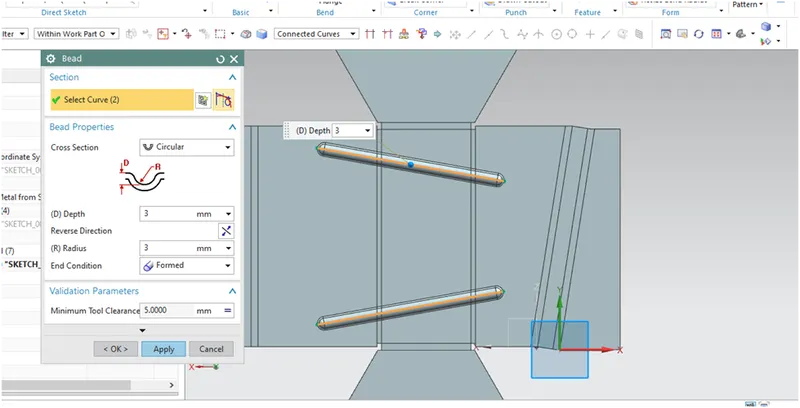

Beads are the features added in sheet metal components in order to increase the stiffness of the component. Beads require a sketch in order to apply the feature. It can be either an open or closed profile. For this casing design project, four small beads applied in the symmetric positions as shown in the image given below
Beads with a depth and radius of 3mm
HOLE

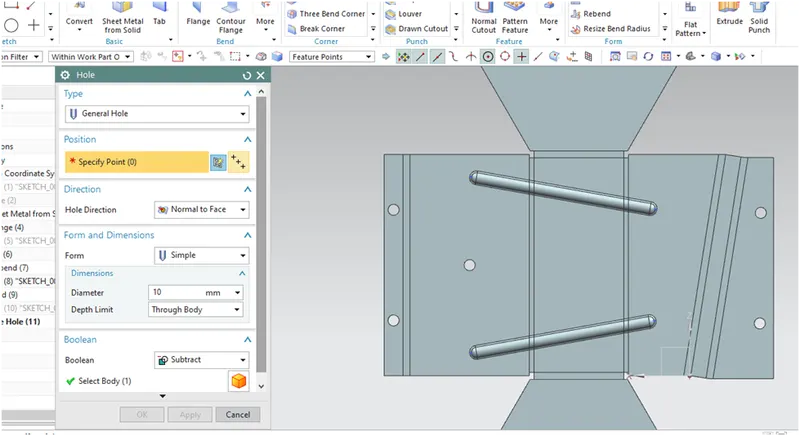

Hole feature in sheet metal design workbench is just like in the model workbench. It can create either simple or counter bore or countersink or tapped holes. For this casing, first the four points are sketched symmetric to x-axis in position and the hole feature is applied
Create five points on the sketch as in the picture and create General holes through the body with a diameter 10mm
REBEND

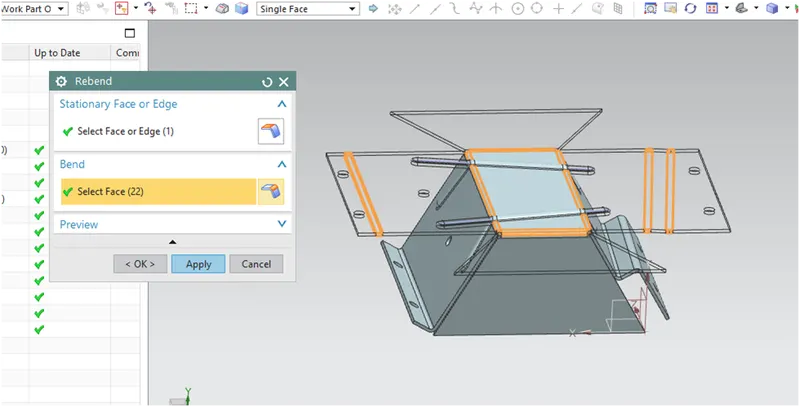

Command use to re bend the UN bended parts along with the feature applied after the unbend. After addition sketched and features the sheet metal sis to be re bended to its required shape. This operation is done by box selecting all the features and clicking the re bends command
FLAT PATTERN
Flat pattern is the representation of the entire sheet metal component in the 2D form with all the bends, cut-outs, holes and additional features in the form of lines and edges. The flat pattern ensures the ability to cut the sheet metal out of the raw sheet metal plate. It removes the possible errors such as interference or collision within the same component
DRAFT
After the modeling, the manufacturing of the component a technical 2D drawing of the component with accurate dimensions or scales denoted. For achieving this we are using the command draft.

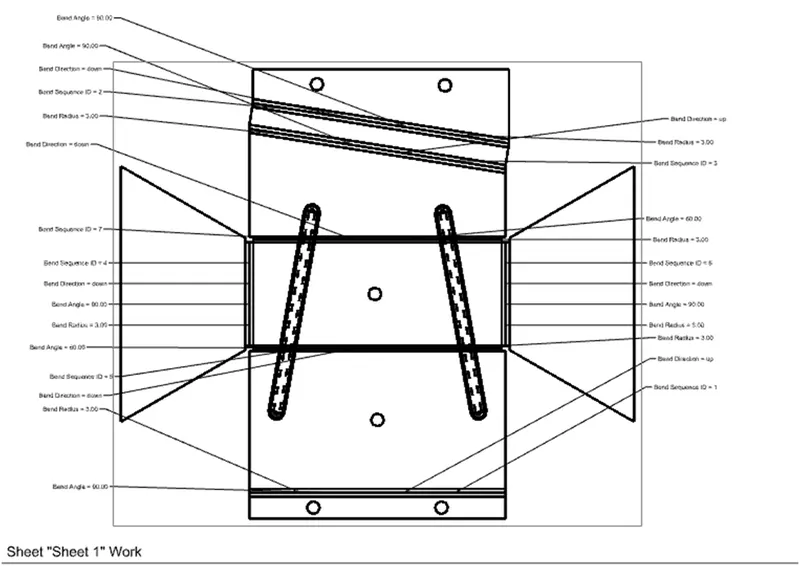

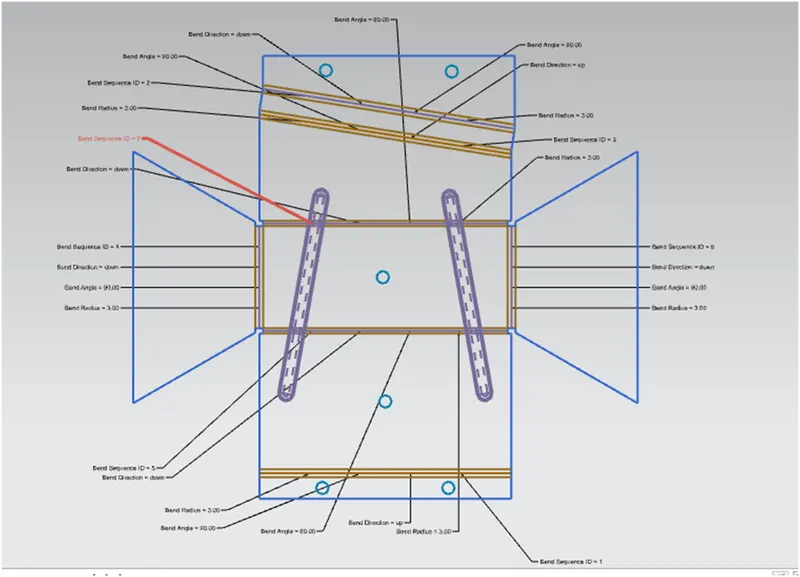

Draft image of the flat pattern

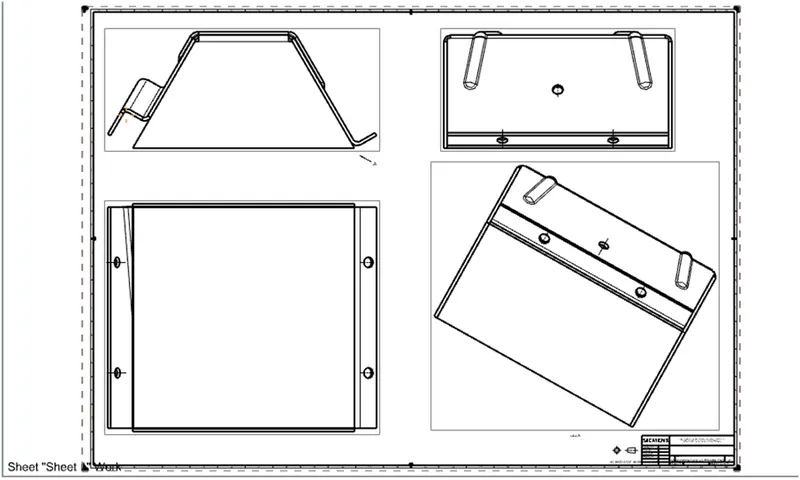

Draft image of different standard views

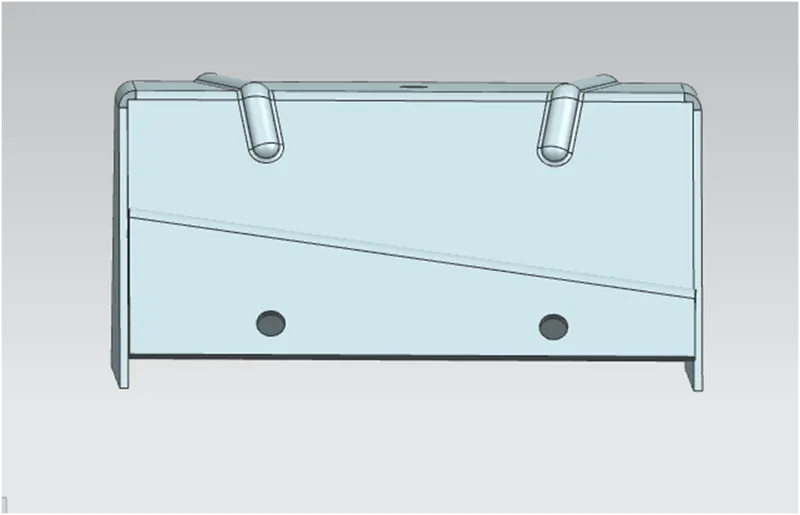

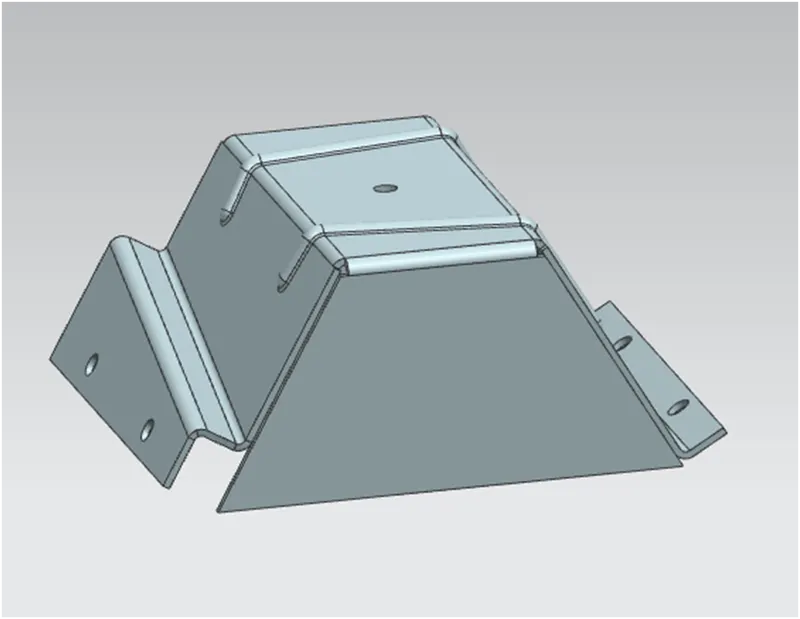

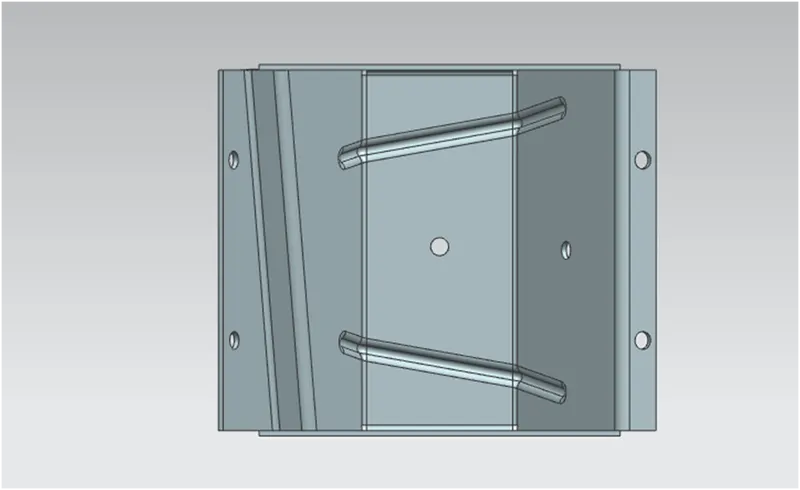

Some additional views of the created odd shaped Enclosure
CONCLUSION
Odd shaped Enclosure is created with proper scales and required images are drafted
