Advanced Sheet Metal Design Using NX Cad Challenge_5_Odd Shaped Enclosure

Project Object: In this Project: I am going to Design odd Shaped Part in Sheet Metal using Features Flange, Jog, Holes, and Bead in NX Cad.

01.Design Data for odd Shaped :

Sheet Size = 200mm X100mm.

Sheet Thickness = 3mm.

Flange Length = 20mm.

Hole Diameter = 10 mm (7Nos).

Bead = Depth 3mm and Radius 3mm.

02. Part Navigators:

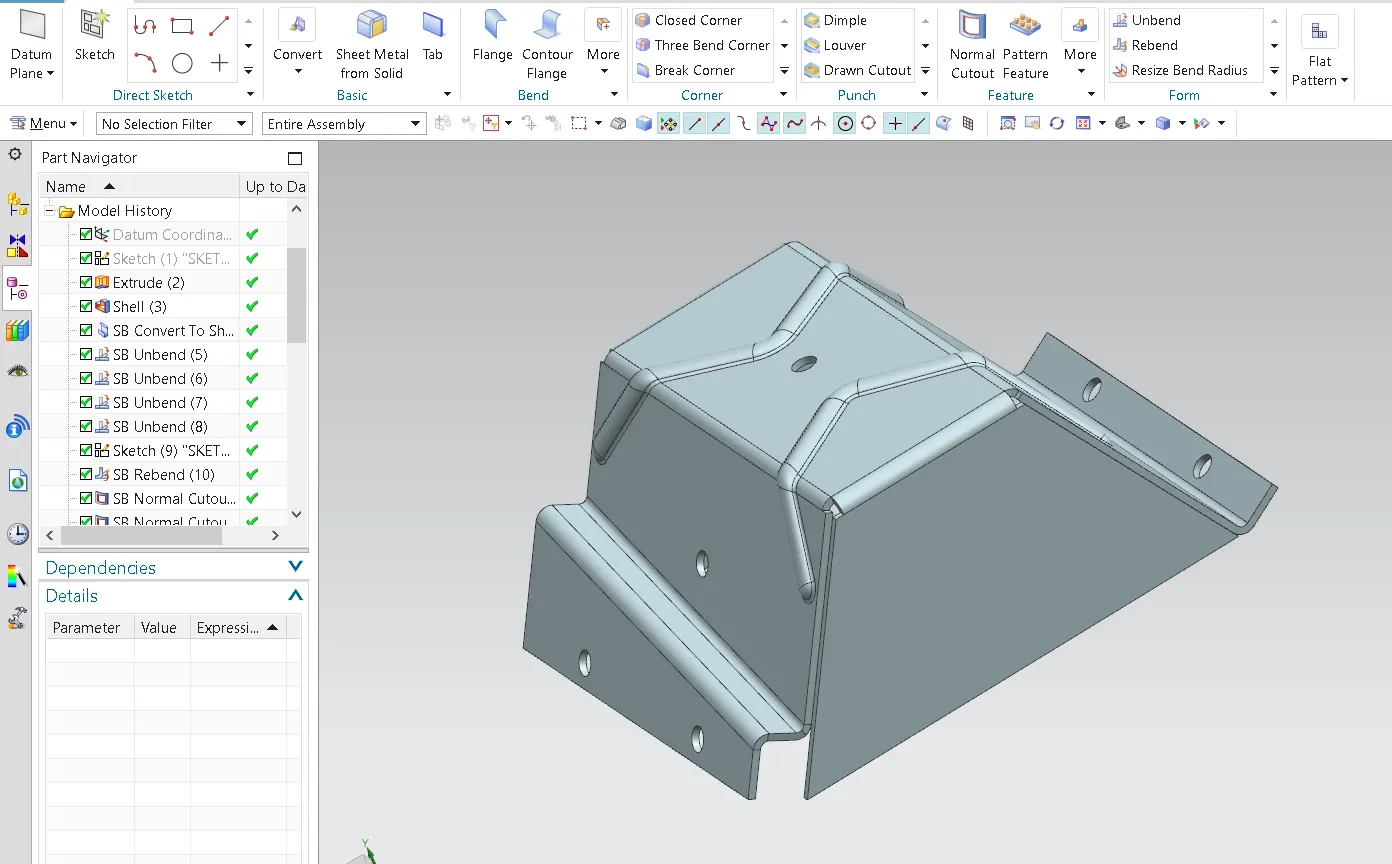

Sketch.

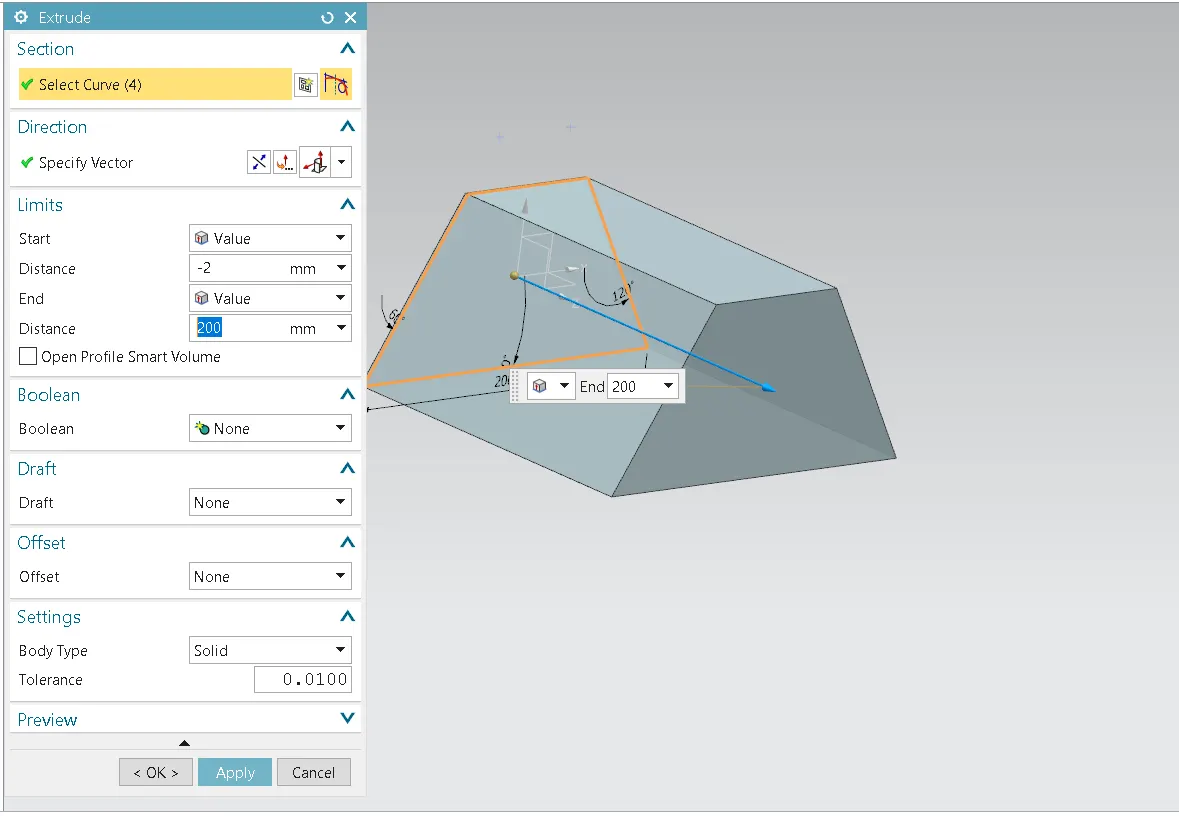

Extrude.

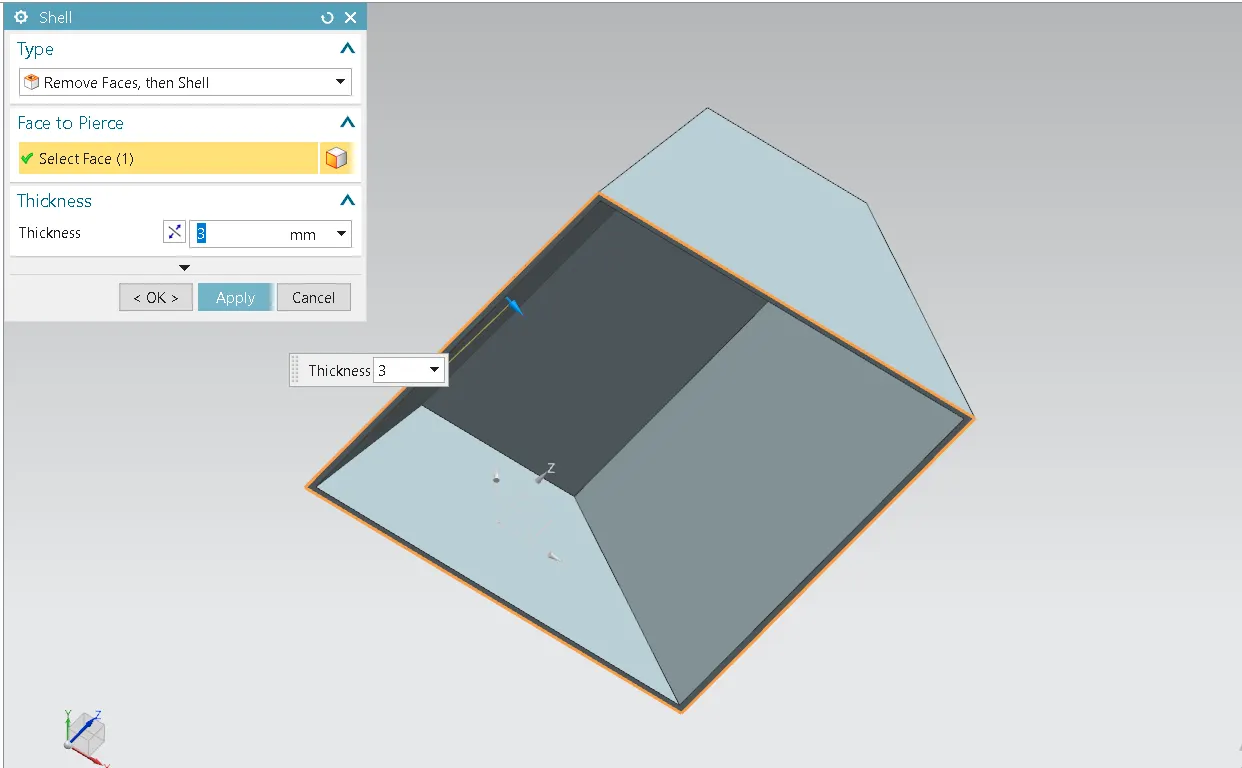

Shell.

Flange.

Jog.

Bead.

Hole.

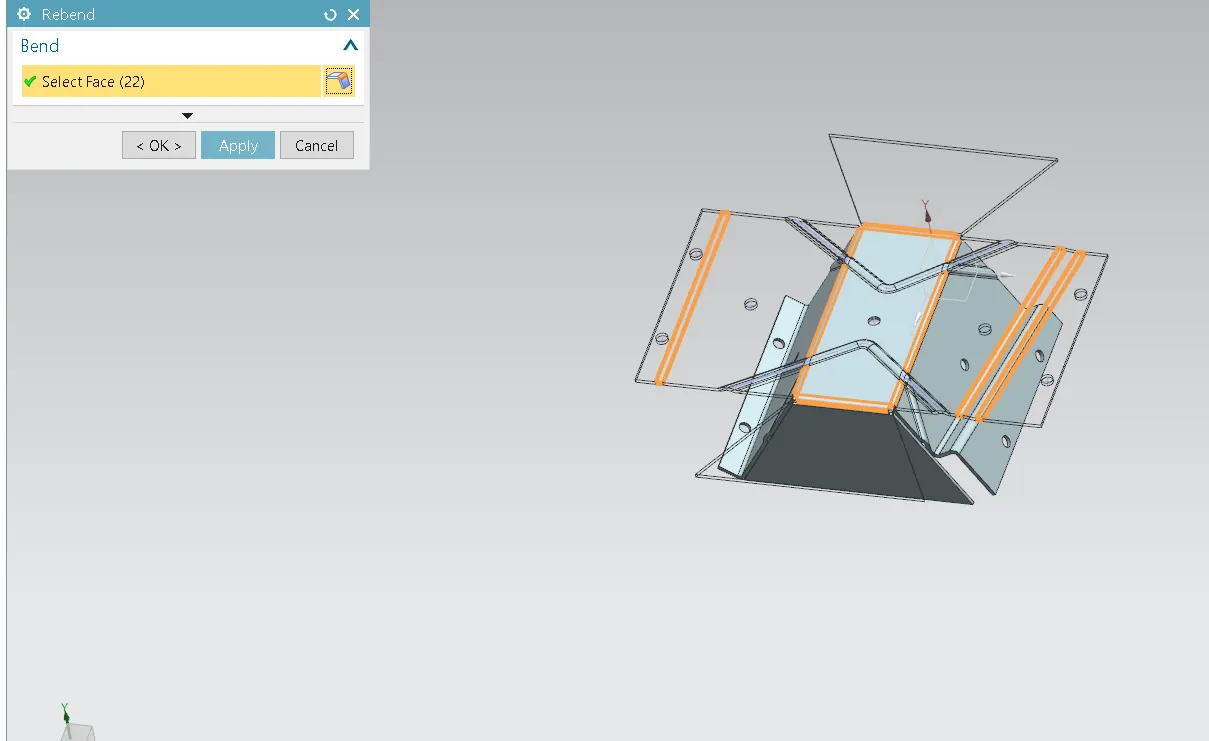

Rebend.

Unbend.

Flate Pattern.

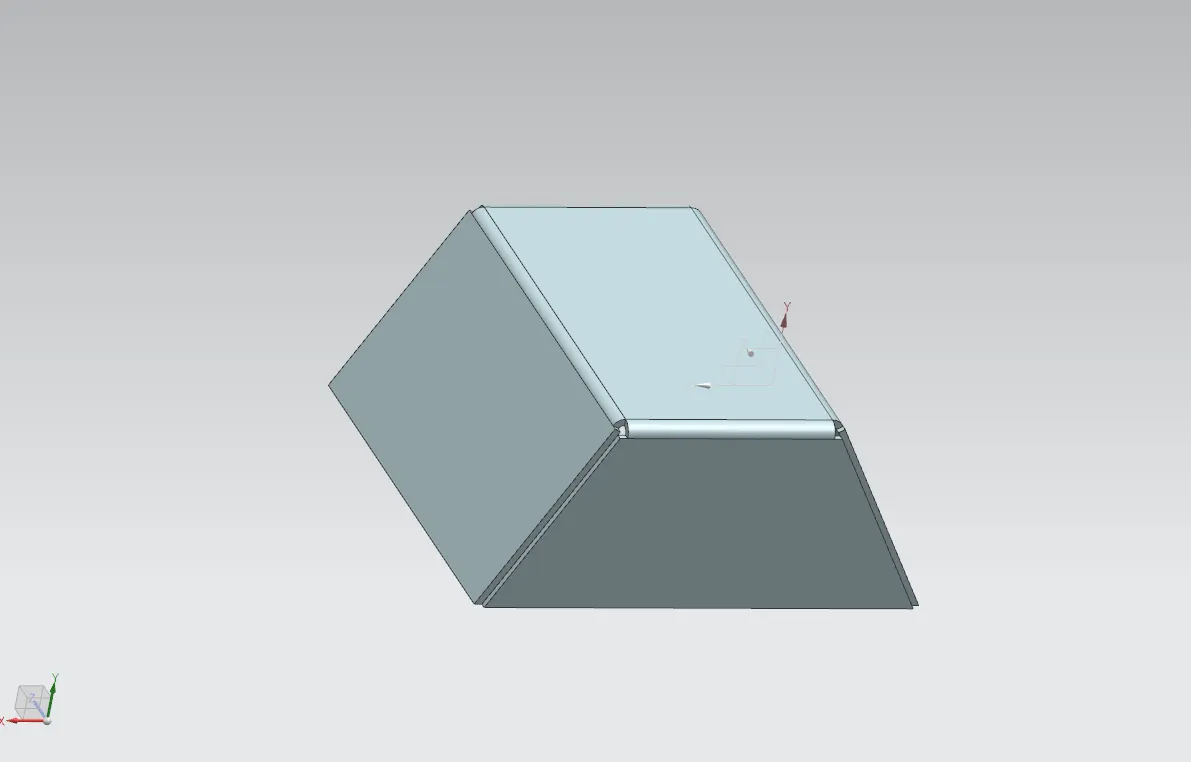

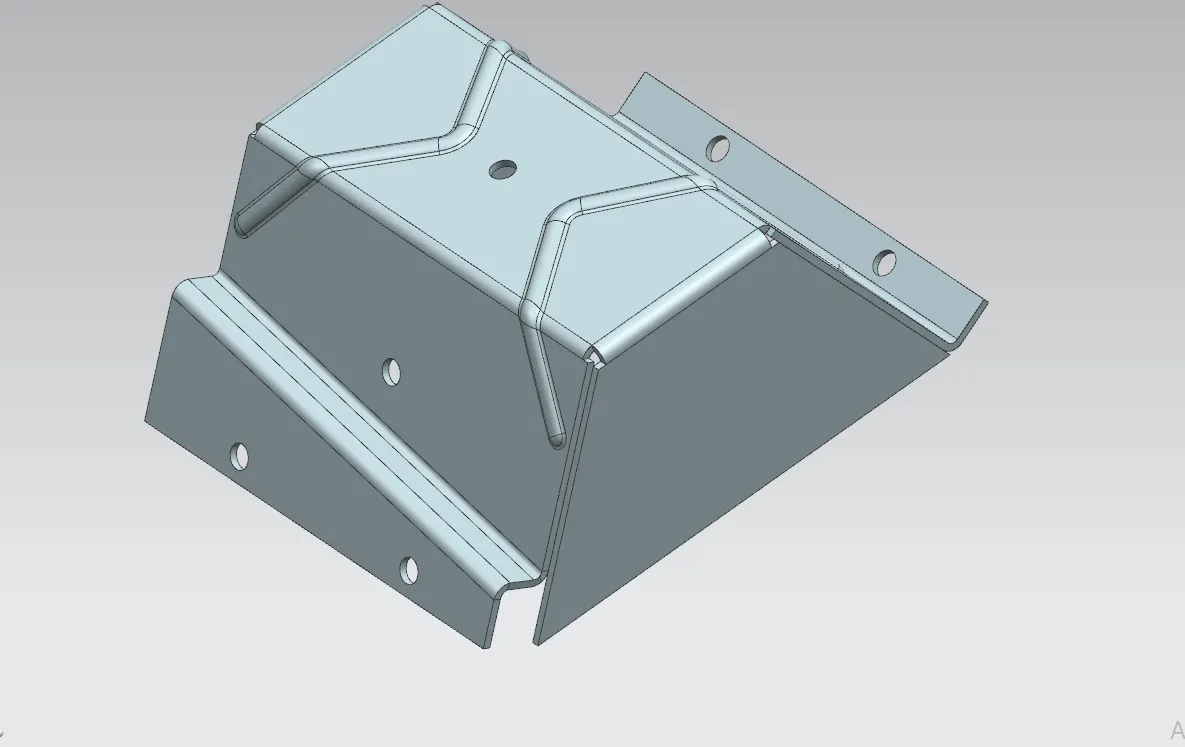

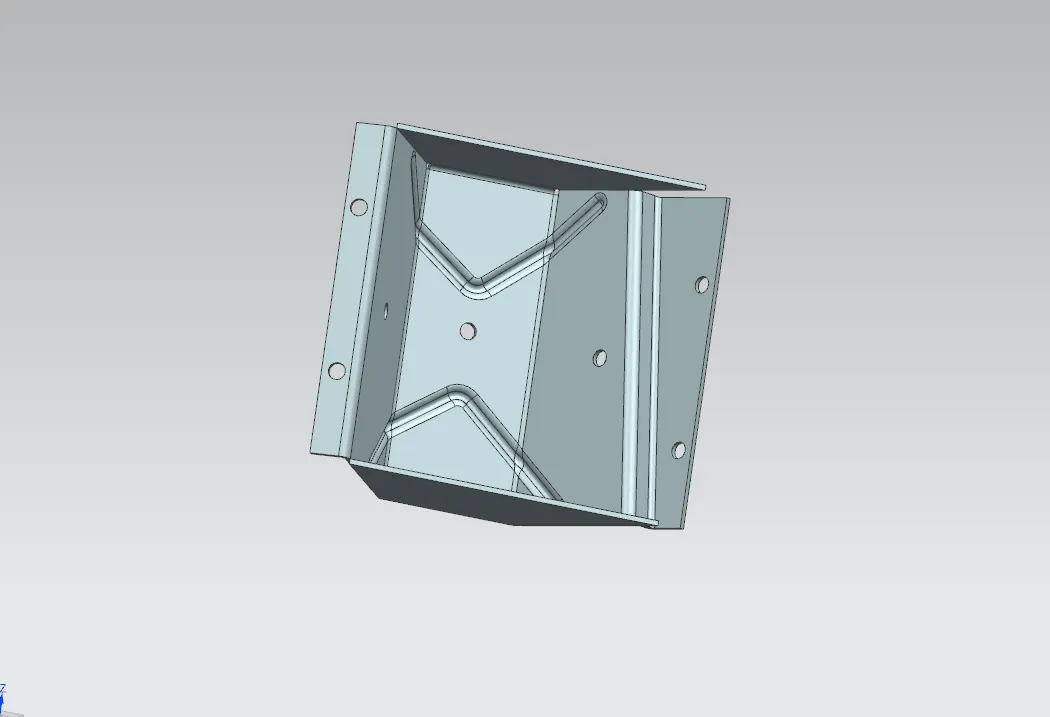

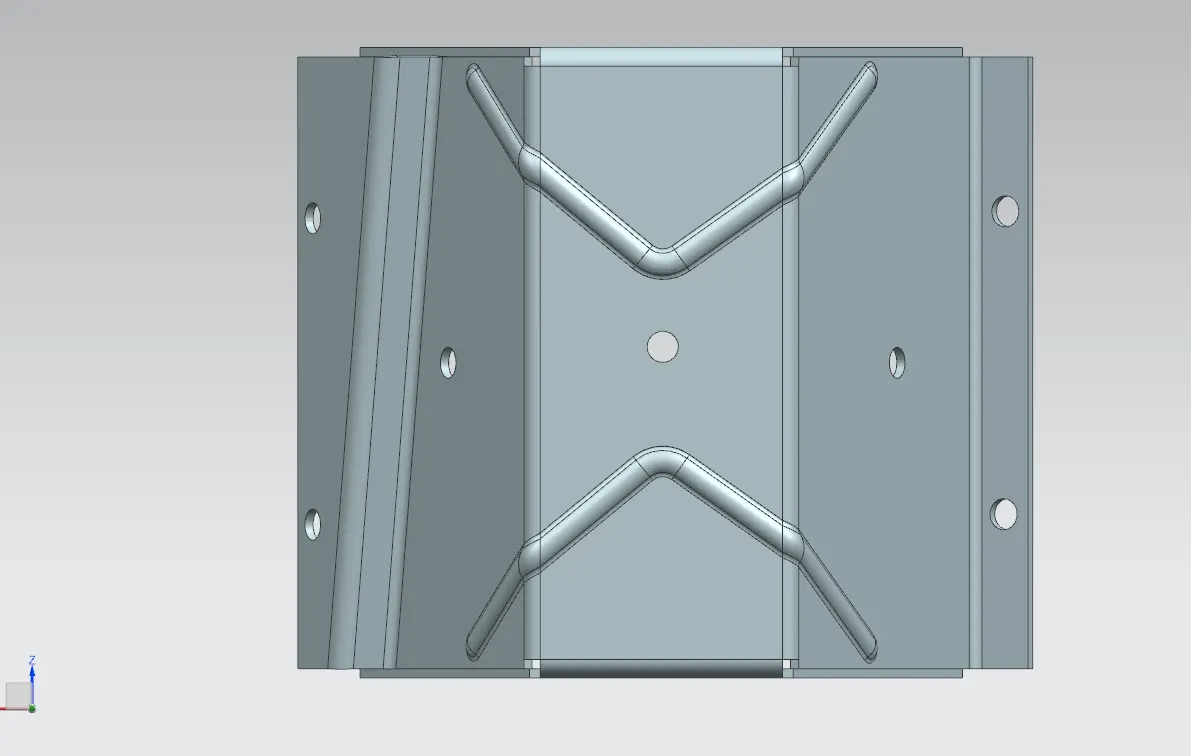

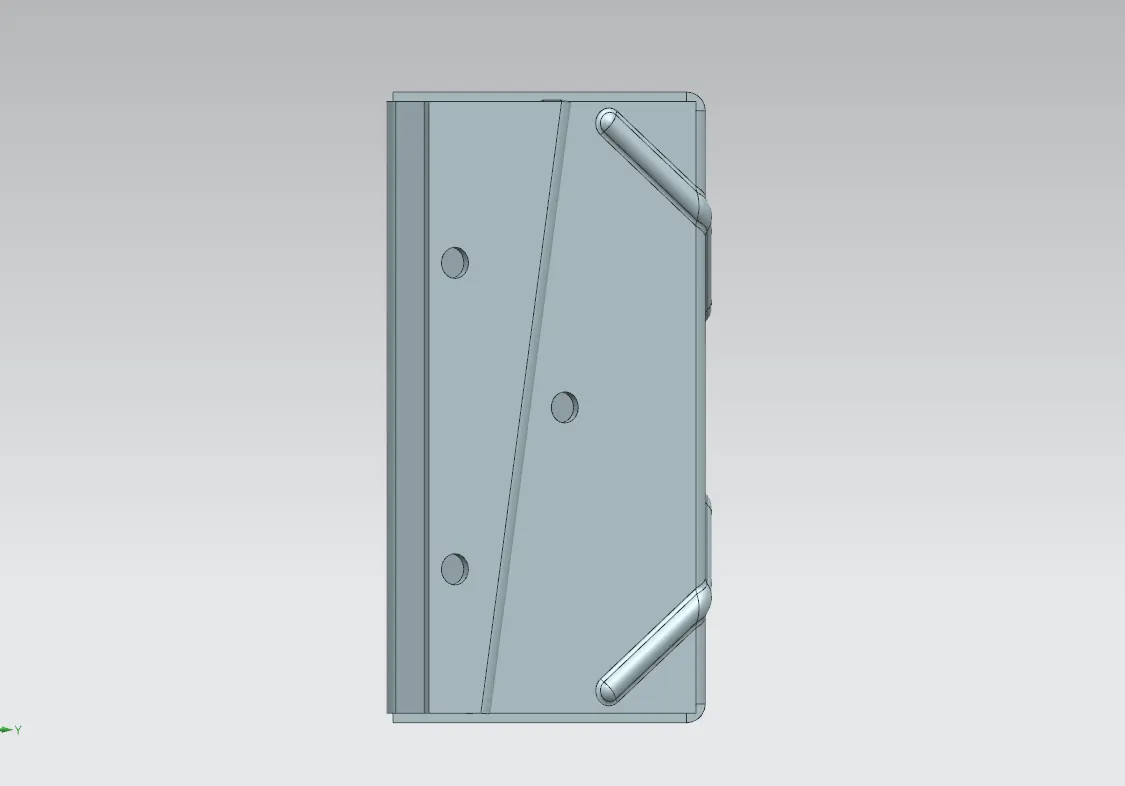

03.Odd Shaped Design Process and Views:

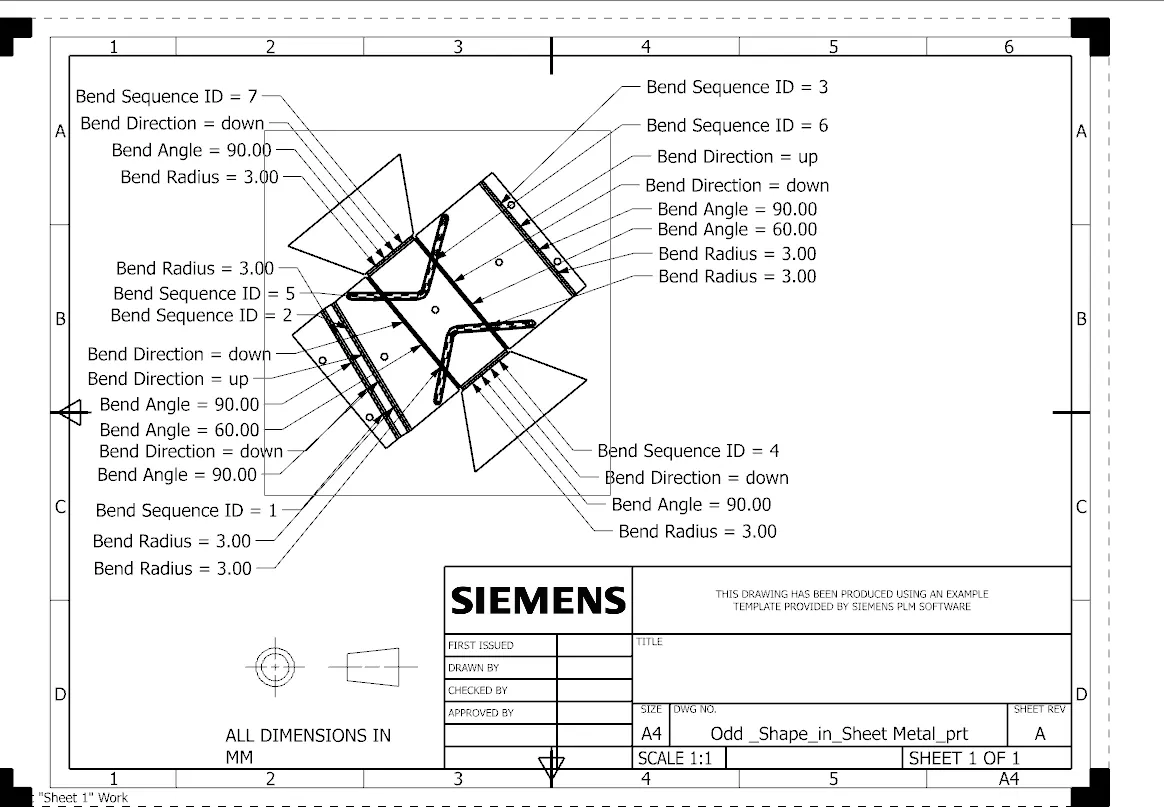

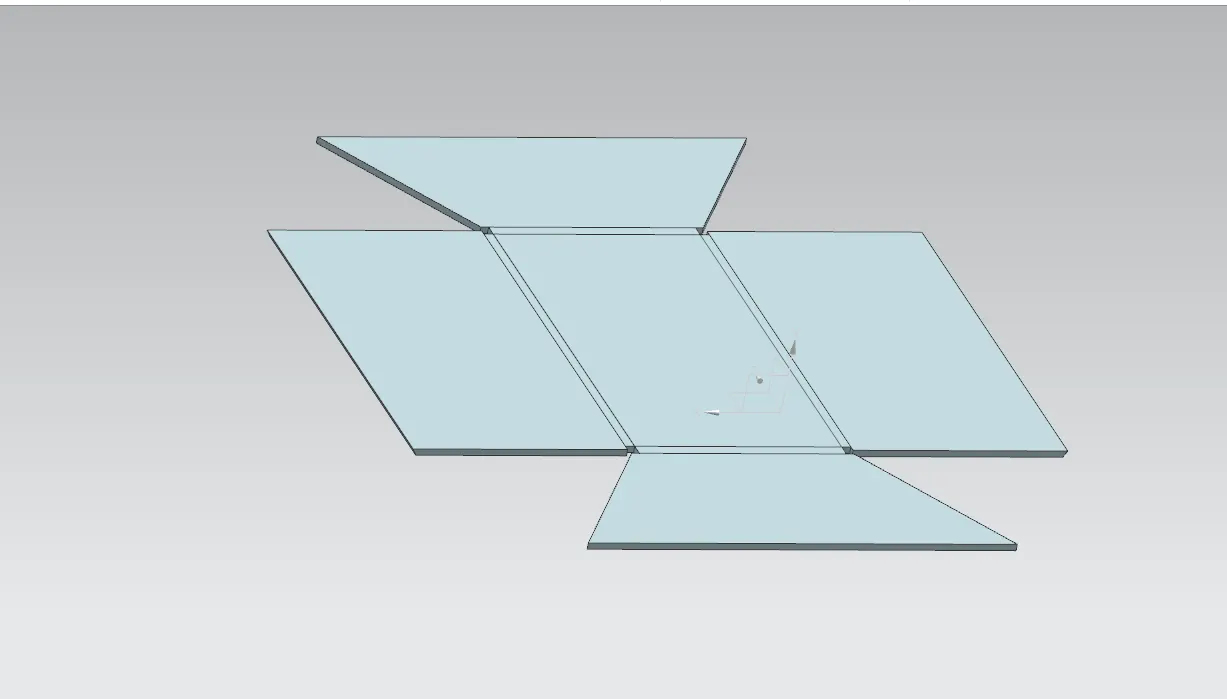

04. Flate Pattern Drafting:

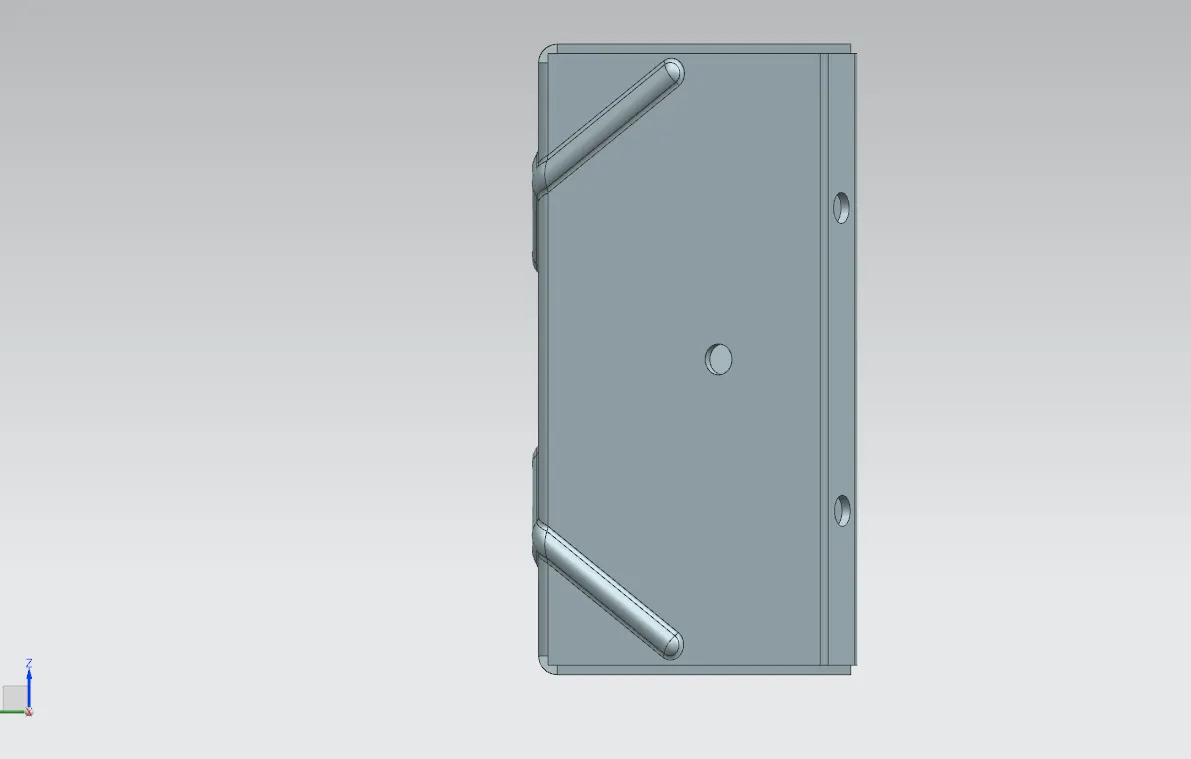

05. Final Design:

06. Google Drive Module Link:

07.Conclusion:

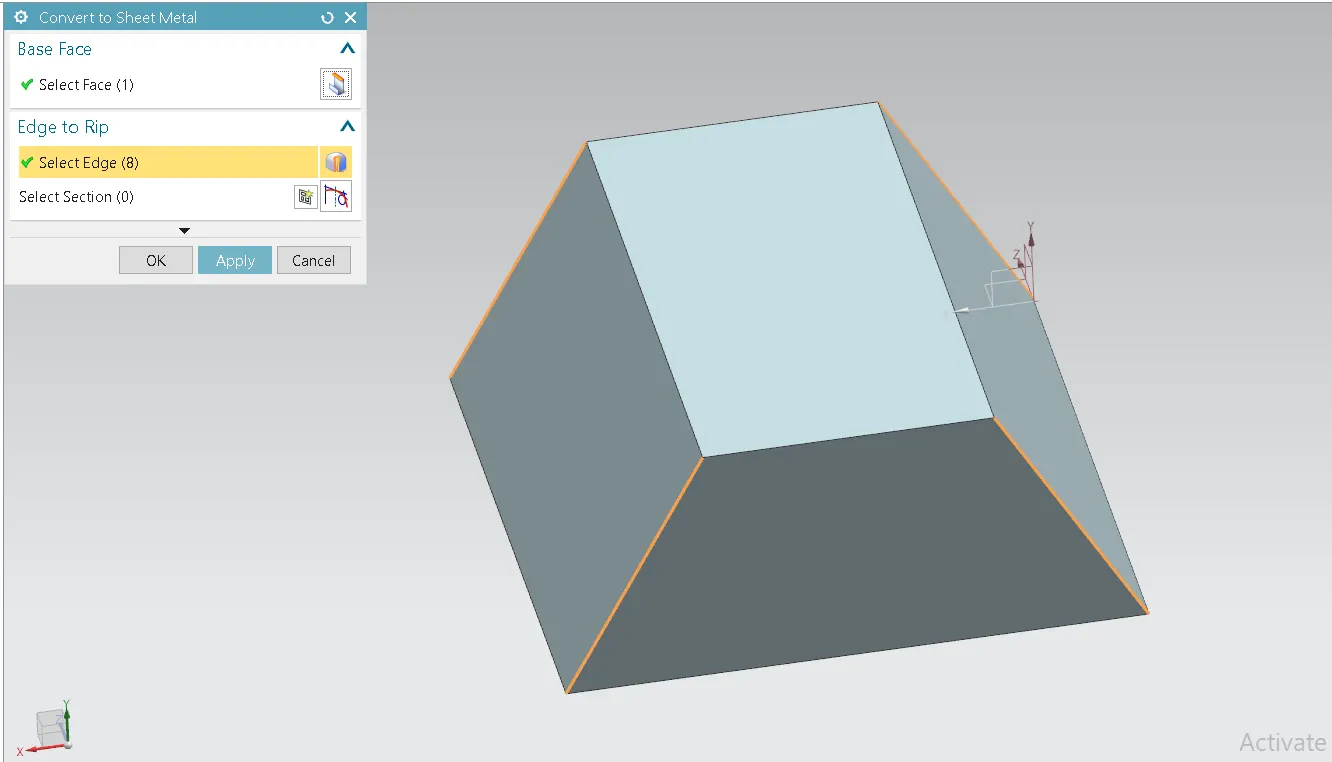

Thus, I learn Design of Odd Shaped Sheet Metal Parts Convert Solid to sheet Metal and Design Parts apply Features

Flange, Jog, Holes, and Bead using NX Cad
